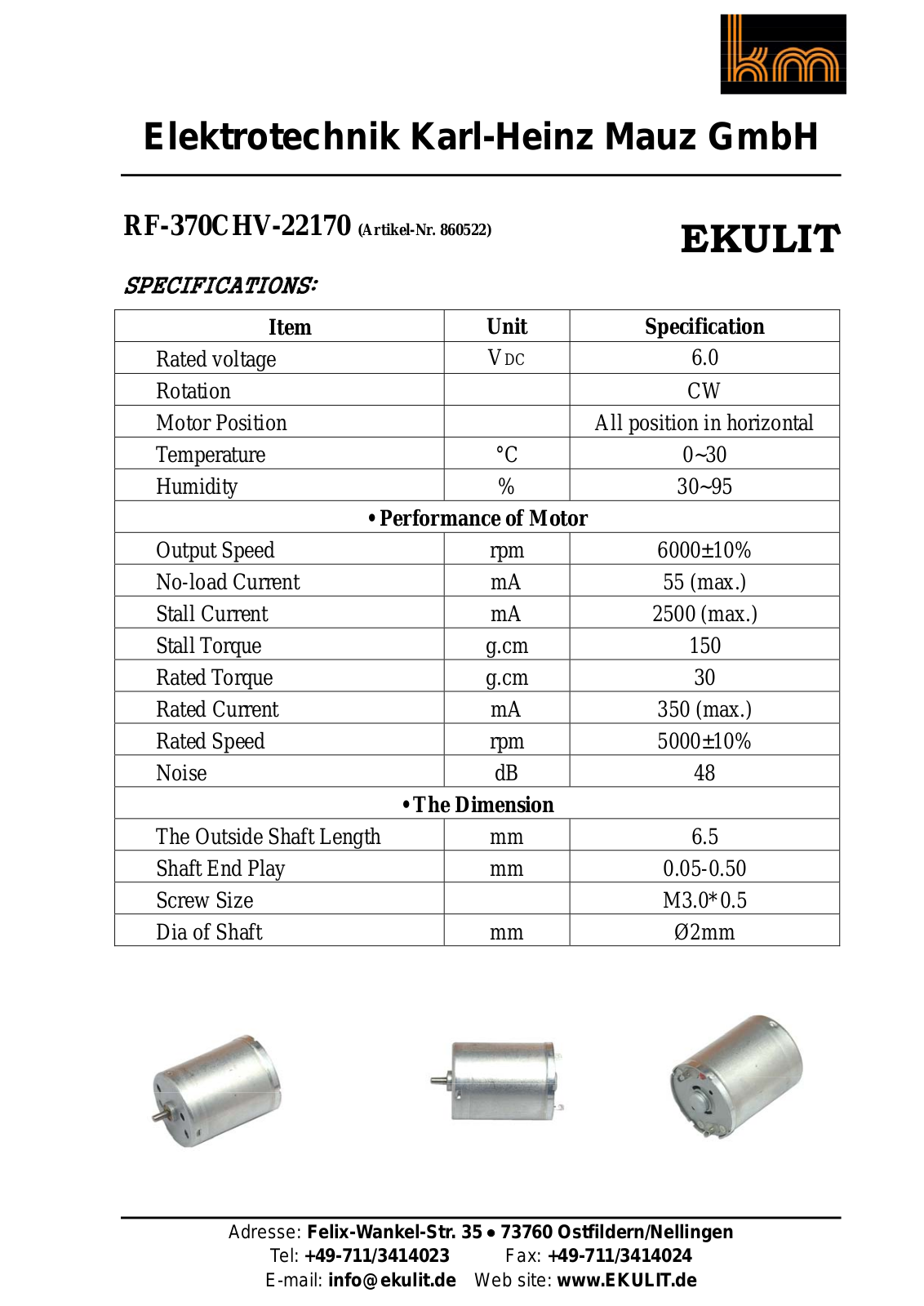

Page 1
Elektrotechnik Karl-Heinz Mauz GmbH
RF-370CHV-22170 (Artikel-Nr. 860522)
EKULIT
SPECIFICATIONS:
Item
Rated voltage
Unit Specification
DC 6.0
V
Rotation CW
Motor Position All position in horizontal
Temperature °C 0~30
Humidity % 30~95
• Performance of Motor
Output Speed rpm 6000±10%
No-load Current mA 55 (max.)
Stall Current mA 2500 (max.)
Stall Torque g.cm 150
Rated Torque g.cm 30
Rated Current mA 350 (max.)
Rated Speed rpm 5000±10%
Noise dB 48
• The Dimension
The Outside Shaft Length mm 6.5
Shaft End Play mm 0.05-0.50
Screw Size M3.0*0.5
Dia of Shaft mm Ø2mm
Adresse: Felix-Wankel-Str. 35 73760 Ostfildern/Nellingen
Tel: +49-711/3414023 Fax: +49-711/3414024
E-mail: info@ekulit.de Web site: www.EKULIT.de
Page 2
Elektrotechnik Karl-Heinz Mauz GmbH
RF-370CHV-22170 (Artikel-Nr. 860522)
EKULIT

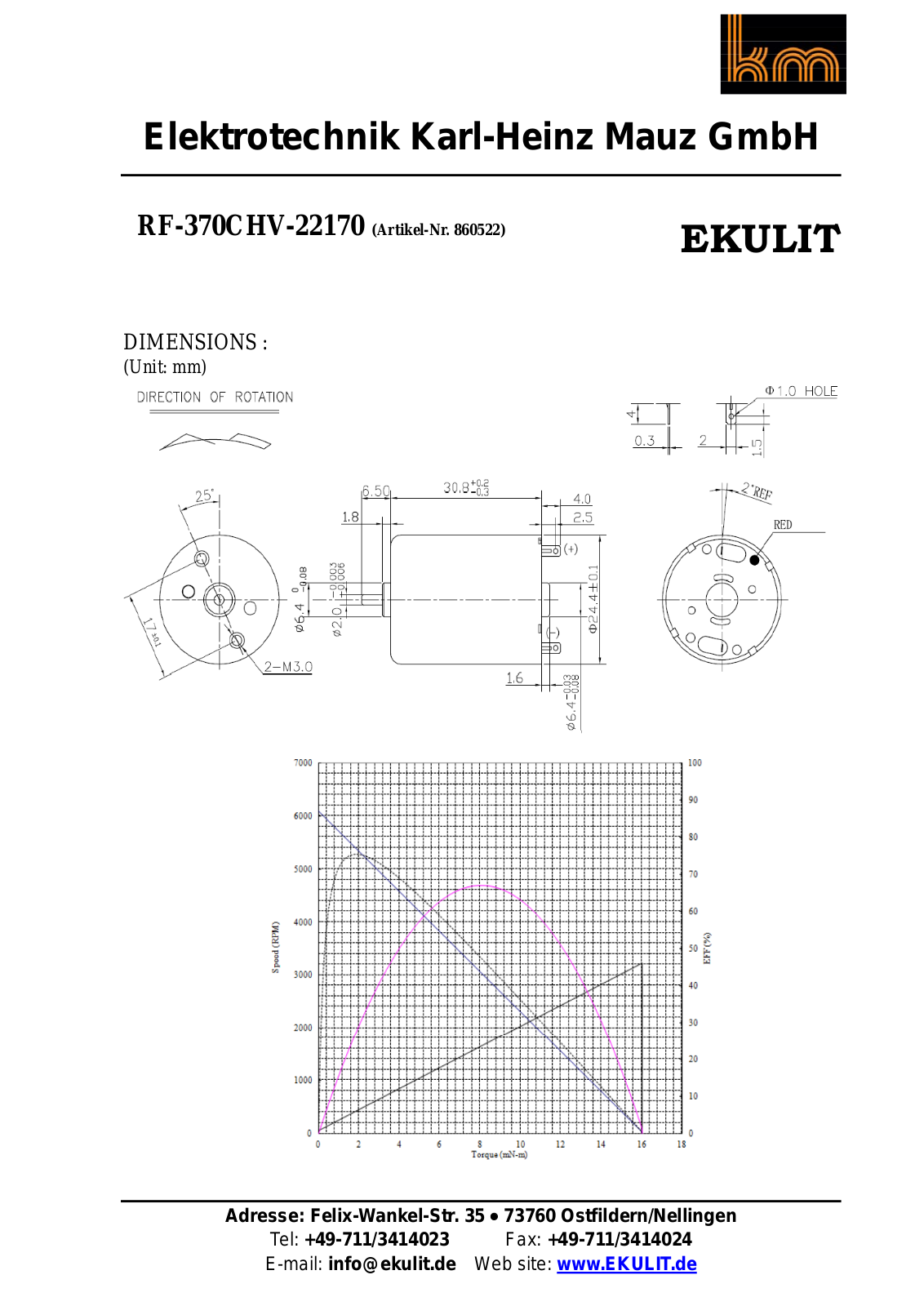

DIMENSIONS :
(Unit: mm)
