Eizo FlexScan MX-Series, MX300W, MX240W, MX210, MX190S Specifications

Clinical Review Monitors

Selecting the Optimum Monitor for Clinical Review

Display Differs Depending Upon Grayscale Tones

Standard monitors for general office use have grayscale tone characteristics which may vary even between the same
models. In the medical field, monitors must display medical images accurately and consistently. Digital Imaging and
Communications in Medicine (DICOM) Part 14 specifies a display function for grayscale which is now used as a
standard to adjust the grayscale tone characteristics of monitors used in the medical field.

Grayscale Tones Different Grayscale TonesMedical Image

Gamma 2.2

DICOM Part 14

Log-Linear

CIE

Monitor A Monitor B

Same Image Looks Different.

Cost-Efficiency Demanded Under Clinical Review Applications

Medical images can now be reviewed with clinical record applications. However, it is costly for hospitals to install
high-performance, DICOM calibration compatible medical display monitors throughout the entire hospital, and a cost-efficient
solution is demanded for clinical review application usage environment.

High-Performance

Medical Display Monitor

FlexScan MX-Series with Calibration to the DICOM Part 14 Compliant and Superior Cost Performance

With the bundled RadiCS LE quality control software installed, a self-diagnosis function using a built-in backlight sensor
periodically checks the brightness of FlexScan MX-Series monitors. When a change in the brightness is detected, the
self-calibration function performs a simplified calibration compliant with the DICOM Part 14 standard to correct grayscale
tones and brightness of the monitor. Superior cost performance will be achieved when installing a large number of monitors
compliant to DICOM Part 14 in clinical review application usage environment.

Grayscale Tones

Brightness

Grayscale

Grayscale

Self-

Calibration

Cost-Efficient

Clinical Review Monitor

Brightness

DICOM Part 14

Brightness

Grayscale

2

76 cm [29.8"] COLOR LCD MONITOR

61 cm [24.1"] COLOR LCD MONITOR

Calibration compliant with the DICOM Part 14 standard.
Widescreen format with 16:10 aspect ratio gives you more horizontal space.

4 Megapixel Bezel-Less Widescreen

Displaying 4 megapixel information volume on one monitor improves
your working efficiency and cost performance. No bezels in between
requires less eye movement
with less stress as compared
with dual 2 MP monitors.

DUEforBrightnessUniformity

The Digital Uniformity Equalizer (DUE) function provides optimum
backlight luminance uniformity which is considered difficult to attain
due to the characteristics of LCD monitors,
especially with larger screen sizes.

3

Bezel-Less

With DUEWithout DUE

More Comfortable Working Space with Widescreen

With a 16:10 aspect ratio, you can view patient charts and DICOM
medical images with no overlap. The increased horizontal space this
affords means you can also view whole intestinal images along with the
navigation window.

2 MP Monitor MX240W

432.0mm

2 MP Monitor MX240W

432.0mm

[

MX240W Comparison

518.4mm

518.4mm

]

54 cm [21.3"] COLOR LCD MONITOR

48 cm [19"] COLOR LCD MONITOR

Calibration compliant with the DICOM Part 14 standard.
Ideal for viewing patient charts with MRI and CT medical images.

BrightnessStabilization

At startup or upon wakeup, the EIZO patented drift correction function
quickly stabilizes the brightness level. In addition, a sensor measures the
backlight brightness and compensates for brightness fluctuations caused
by the ambient temperature and the passage of time.

This brightness stabilization function is EIZO patented technology
(Japan patent numbers 3171808 and 3193315, US patent number 6188380).

Brightness

With Brightness stabilization

Without Brightness stabilization

Preset Value

Minutes

Main Board

Backlight

Sensor

Backside
of Panel

Hole for
Light
Transmission

OutstandingContrastRatio

Makes images on dark backgrounds
appear more vivid, brings out the
subtle differences in similar shades
of color, and ensures that colors
retain their richness even in brightly
lit rooms.

WideViewingAngles

Wide Viewing angles with
minimal color shift when
viewed from the side.

4

Low Contrast (Image) High Contrast (Image)

178°

Image viewed from the side

Backlight Saver with Screen Saver

With ScreenManager Pro for Medical utility software installed, the
Backlight Saver function turns off the monitor’s backlight when the
screen saver is activated, and turns it on again when the computer comes
out of screen saver mode. This function helps to reduce power consumption
when the monitor is used for a prolonged period of time.

Screen saver
activated

Backlight

stayson

18 hours

/ day

16 hours

/ day

2 hours

Cuts power

consumption by 11%

Portrait Mode Support

90° pivot for portrait mode gives you
versatility with images or applications
requiring more vertical viewing space.

Graphics board that supports portrait mode is required.

CalibrationModeSelection

Selectable with the front
panel buttons, the CAL
Switch function allows for
various calibration modes
of different modalities
such as CR, CT, and endo­scope images. Furthermore,
auto mode settings can be
made with the Auto CAL
Switch function.

[ MX300W Usage Example ]

[

MX240W Usage Example

[

Without Backlight Saver

][

With Backlight Saver

]

Backlight Saver with Viewer Application

By setting the Backlight Saver function to operate with viewer application,
the monitor’ s backlight is on while the viewer is being used and the
backlight is off while the viewer is not being used.

Cutspower
consumption

[

Viewer in use

] [

Viewer not in use

]

Ergonomic Design

Narrow bezels require less eye movement in a
multi-panel environment. The height and pivot
adjustable stand offers added flexibility and viewing
comfort.

RadiCS LE Quality Control Software Included

The bundled RadiCS LE quality control software comes with a Status
Analyzer function which observes the monitor’s status. When the
self-diagnosis function detects a change in luminance, a warning icon
appears on the desktop taskbar enabling prompt detection and correction.
This reduces the time spent administering to the monitor.

Warning

Normal

Full 5-Year Warranty

EIZO and its authorized distributors offer a five-year limited

]

warranty for all FlexScan MX-Series monitors.

5

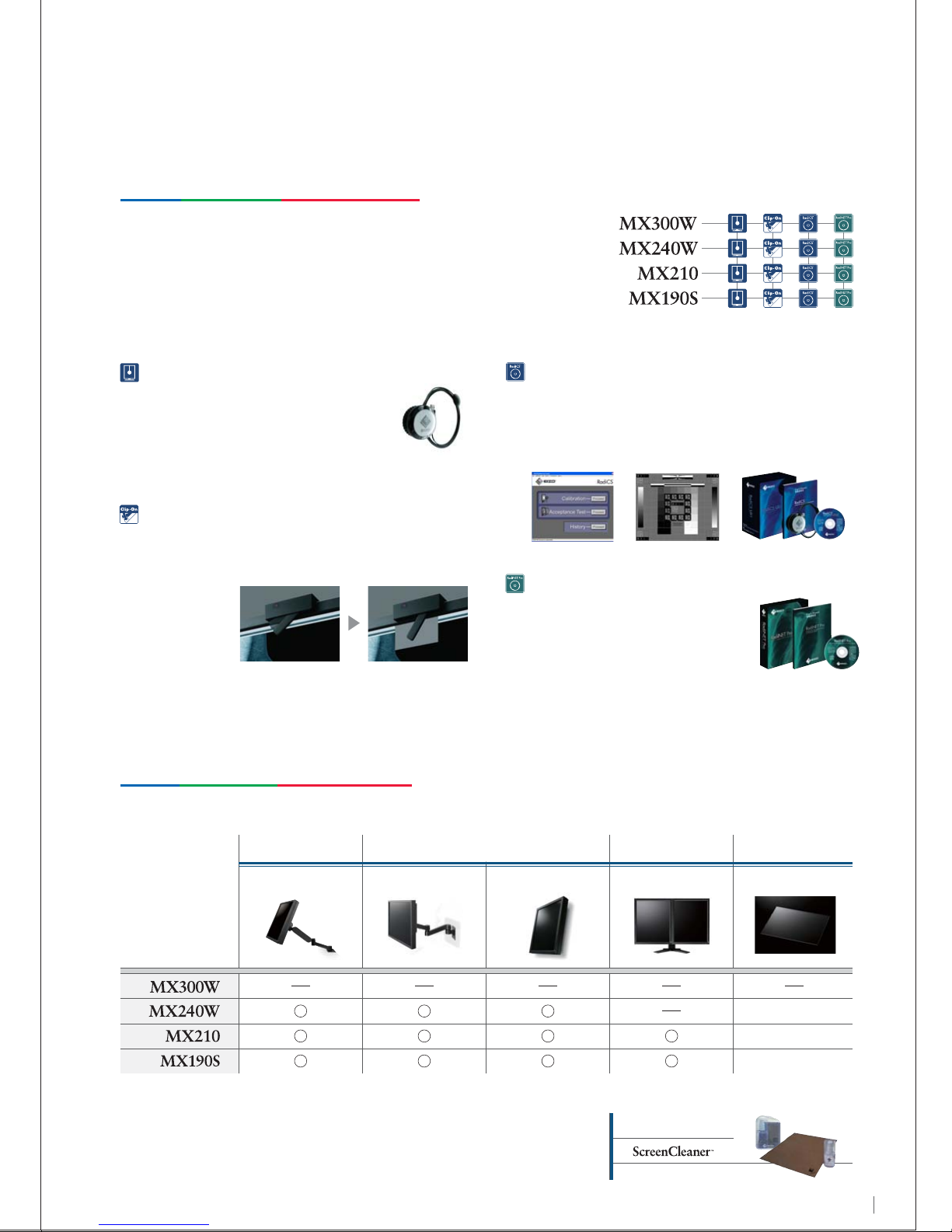

Quality Control Solutions

More Precise Calibration with UX1 Sensor

By using the UX1 sensor (sold separately) with
the bundled RadiCS LE software, more precise
calibration com pliant with the DICOM Part 14
standard can be performed.

Clip-On Swing Sensor

Once attached to the top of the monitor, the Clip-On Swing Sensor
G1 (sold separately) can remain in place and is ready for use. This
saves the time and trouble of attaching and removing it when
performing quality
control tasks.

Accessory Compatibility

Monitor Quality Control Standards Compliance

Quality control tool RadiCS UX1 (sold separately) enables you to
perform basic quality checks necessary for clinical review monitors.
In addition, high-performance calibration compliant with the
DICOM Part 14 standard corrects the fluctuation in monitor quality.

Centralized Management of All Monitors

RadiNET Pro (sold separately) enables centralized
management of calibration tasks, history data
of multiple RadiCS clients via a network, and
remote QC functions.

Flexible Arm Wall Mount Arm Panel Protector

LA-131-DLA

-

030-WLA

-

011-WLS

Dual Height

Adjustable Stand

-

HM1-D

Monitor Cleaning Kit

PANEL PROTECTOR

(

MX300W-C:Built-In Panel Protector

FP-2400W

FP-2101

FP-702

)

7

Environment Awareness

EIZO Eco Products — A Commitment to Environmental Preservation over the Product Life Cycle

The development, implementation, and revision of the EIZO Eco Products internal environmental label stems from EIZO’s
longstanding commitment to manufacturing environmentally sound products as well as a desire to provide consumers with an
instantly recognizable means to assess their environmental performance. Based on the 3Rs (Reduce, Reuse, Recycle) and energy
savings, EIZO has introduced three versions of this label with EIZO Eco Products 2006 being the most recent.

EIZO Eco Products 2006EIZO Eco Products 2002 EIZO Eco Products 2004

EIZO Eco Products 2006 Requirements

Power consumption less than 1 watt when turned off.

1)

User’s manual made with chlorine-free, recycled paper.

2)

Subject to an internal product environmental assessment.

3)

Partial use of recycled plastic.

4)

Power consumption less than two watts in power save mode.

5)

Partial use of soy ink with supplied printed materials.

6)

Use or partial use of plastic containing raw plant materials.

7)

Use of recycled Styrofoam or paper in packaging cushioning materials.

8)

Meets VOC (volatile organic compounds) guidelines for PCs as established by JEITA*.

9)

Complies with the RoHS directive.

10 )

Previous versions of this label are EIZO Eco Products 2004 which covers the first six and EIZO Eco Products 2002 which
covers the first three requirements.

*JEITA is the Japan Electronics and Information Technology Industries Association. JEITA established guidelines to limit emission levels of VOCs from PCs. The guidelines are a
countermeasure against health hazards caused by VOC contaminants released from furniture, everyday objects, and building materials that accumulate indoors. EIZO carries out evaluations
based on these guidelines.

8

Monitor Specifications

54 cm [21.3"] Color LCD Monitor 48 cm [19"] Color LCD Monitor61 cm [24.1"] Color LCD Monitor76 cm [29.8"] Color LCD Monitor

Model Variations

Cabinet Color

Panel

Active Display Size (H

Viewable Image Size

Native Resolution

Pixel Pitch

Display Colors

Viewing Angles (H, V

Brightness

Contrast Ratio

On/Off Response Time

Midtone Response Time

Scanning Frequency (H, V

Dot Clock

Input Signals

Sync Formats

Input Terminal

USB Ports

USB Standard

Power Requirements

Power Consumption

Power Save Mode

Sensor

Power Management

OSD Languages

Net Weight

Hole Spacing

Certifications and Standards

Supplied Accessories

Warranty

1

Average response time measured between each grayscale level of 31, 63, 95, 127, 159, 191, and 223. 2 FlexScan MX-Series does not support the display of mammography images for diagnosis.

Dimensions [Unit:mm]

35°

35°

MX300W: without Panel Protector
MX300W-C: with Panel Protector

Black

TFT Color LCD Panel (VA

)

641.3 × 400.8 mm

× V

Diagonal: 756 mm

2560 × 1600

0.2505 × 0.2505 mm

16.77 million from a palette of 1.06 billion colors

)

178°, 178°

MX300W: 300 cd/m
MX300W-C: 265 cd/m

1000:1 (typical

12 ms (typical

1

6 ms (typical)

)

Digital: 31 - 100 kHz, 25.5 - 61 Hz (VGA Text:
69 - 71 Hz
Frame synchronous mode: 59 - 61 Hz

2

(

)

)

)

Digital: 269 MHz

DVI Standard 1.0

-

DVI-D 24 pin × 2 (dual link supported by

)

Signal 1 only

1 upstream, 2 downstream

Standard Rev. 2.0

AC 100 - 120 V, 200 - 240 V: 50 / 60 Hz

170 watts

Less than 2 watts

Backlight Sensor

Digital: DVI DMPM

English, German, French, Italian,
Japanese, Simplified Chinese, Spanish,
Swedish, Traditional Chinese

With Stand: MX300W 15.7 kg / MX300W-C

16.4 kg, Without Stand: MX300W 11.2 kg /
MX300W-C 11.9 kg

VESA standard (100 × 100 mm

TÜV/GM (EN60601-1), CE (Medical Device
Directive), CB (IEC60601-1), UL (cTÜVus),
CSA (cTÜVus), FCC-B, Canadian ICES­003-B, c-Tick, FDA 510(k), VCCI-B, EIZO
Eco Products 2006, CCC, RoHS

AC power cord, dual link signal cable

~

(

DVI-D

DVI-D), signal cable(DVI-D ~
DVI-D), USB cable, EIZO LCD Utility Disk
(

user's manual, RadiCS LE, ScreenManager
Pro for Medical), ScreenCleaner (MX300W-C
only), warranty card

Five Years

Height
Adjustment

689

118

643.3

90°

511.5

286.5

61.5

405.6

typical

2

(

typical

)

)

)

)

2

450

402.8

57

-

Black, Gray

TFT Color LCD Panel (VA

518.4 × 324.0 mm

Diagonal: 611 mm

1920 × 1200

0.270 × 0.270 mm

16.77 million from a palette of 1.06 billion colors

178°, 178°

2

(

320 cd/m

typical

)

850:1 (typical

16 ms (typical)

6 ms (typical)

Digital: 31 - 76 kHz, 59 - 61 Hz (VGA Text:

)

69 - 71 Hz
Analog: 24 - 94 kHz, 49 - 86 Hz (1600 x 1200:
76 Hz, 1920 x 1200: 61 Hz
Frame synchronous mode: 59 - 61 Hz

Digital: 162 MHz, Analog: 202.5 MHz

Digital: DVI Standard 1.0, Analog: RGB Analog

Separate, Composite

DVI-I 29 pin × 2

1 upstream, 2 downstream

Standard Rev. 2.0

AC 100 - 120 V, 200 - 240 V: 50 / 60 Hz

110 watts

Less than 2 watts

Backlight Sensor

Digital: DVI DMPM, Analog: VESA DPMS

English, German, French, Italian,
Japanese, Simplified Chinese, Spanish,
Swedish, Traditional Chinese

With Stand: 10.4 kg, Without Stand: 7.4 kg

VESA standard (100 × 100 mm

TCO'03, TÜV/Ergonomics (including ISO
13406-2), TÜV/GS, c-Tick, CE, CB, UL
(

cTÜVus), CSA (cTÜVus), FCC-B,
Canadian ICES-003-B, TÜV/S, VCCI-B,
EPA ENERGY STAR®, EIZO Eco Products
2006, CCC, RoHS

AC power cord, signal cables (DVI-D ~
DVI-D, DVI-I ~ D-Sub mini 15 pin), USB
cable, EIZO LCD Utility Disk (user's manual,
RadiCS LE, ScreenManager Pro for Medical),
warranty card

Five Years

40°

90

51

254.7

433.5

Height
Adjustment

82

456

272.5

89

520.4

325.5

)

)

)

)

566

56.3

90°

326

367

20.7

-

Black, Gray

TFT Color LCD Panel (VA

432.0 × 324.0 mm

Diagonal: 540 mm

1600 × 1200

0.270 × 0.270 mm

16.77 million from a palette of 1.06 billion colors

178°, 178°

2

(

300 cd/m

typical

1000:1 (typical

)

16 ms (typical)

8 ms (typical)

Digital: 31 - 76 kHz, 59 - 61 Hz (VGA Text:

)

69 - 71 Hz
Analog: 24 - 80 kHz, 49 - 76 Hz (1600 x 1200:

)

61 Hz
Frame synchronous mode: 59 - 61 Hz

Digital: 162 MHz, Analog: 162 MHz

Digital: DVI Standard1.0, Analog: RGB Analog

Separate, Composite

DVI-I 29 pin, D-Sub mini 15 pin

1 upstream, 2 downstream

Standard Rev. 2.0

AC 100 - 120 V, 200 - 240 V: 50 / 60 Hz

70 watts

Less than 2 watts

Backlight Sensor

Digital: DVI DMPM, Analog: VESA DPMS

English, German, French, Italian,
Japanese, Spanish, Swedish

With Stand: 9.7 kg, Without Stand: 6.7 kg

VESA standard (100 × 100 mm

TCO'03, TÜV/Ergonomics (including ISO
13406-2), TÜV/GS, c-Tick, CE, CB, UL
(

cTÜVus), CSA (cTÜVus), FCC-B,
Canadian ICES-003-B, TÜV/S, VCCI-B,
EPA ENERGY STAR®, EIZO Eco Products
2006, CCC, RoHS

AC power cord, signal cables (DVI-D ~
DVI-D, D-Sub mini 15 pin ~ D-Sub mini 15
pin), USB cable, EIZO LCD Utility Disk
(

user's manual, RadiCS LE, ScreenManager

Pro for Medical), warranty card

Five Years

Height

40°

Adjustment

85

208.5

301.5

82

453

272.5

92

325.5

)

)

)

465
434

38

90°

361

326

42

-

Black, Gray

TFT Color LCD Panel (VA

376.3 x 301.0 mm

Diagonal: 481 mm

1280 x 1024

0.294 x 0.294 mm

16.77 million from a palette of 1.06 billion colors

178°, 178°

2

(

250 cd/m

typical

1000:1 (typical

)

20 ms (typical)

-

Digital: 31 - 64 kHz, 59 - 61 Hz (VGA Text:
69 - 71 Hz)
Analog: 24.8 - 80 kHz, 50 - 75 Hz

Digital: 108 MHz, Analog: 135 MHz

Digital: DVI Standard 1.0, Analog: RGB Analog

Separate

DVI-D 24 pin, D-Sub mini 15 pin

1 upstream

Standard Rev. 2.0

AC 100 - 120 V, 200 - 240 V: 50 / 60 Hz

45 watts

Less than 0.8 watts

Backlight Sensor

Digital: DVI DMPM, Analog: VESA DPMS

English, German, French, Italian,
Japanese, Simplified Chinese, Spanish,
Swedish, Traditional Chinese

With Stand: 7.2 kg, Without Stand: 5.2 kg

VESA standard 100 x 100 mm

c-Tick, CE, CB, FCC-B, Canadian ICES-003-B,
TÜV/S, VCCI-B, EPA ENERGY STAR®,
EIZO Eco Products 2006, RoHS

AC power cord, signal cables (DVI-D ~
DVI-D, D-Sub mini 15 pin ~ D-Sub mini 15
pin), USB cable, EIZO LCD Utility Disk
(user's manual, RadiCS LE, ScreenManager
Pro for Medical), warranty card

Five Years

Height

40°

64

Adjustment

100

301.5

208.5

406.5

240.3

73.3

)

405

378.4

320

)

30°

61.5

38.5

90°

334

303

50.3
205

260.4

9

Copyright © 2009 EIZO NANAO CORPORATION. All rights reserved. (090103) Printed in Japan, 1, 2009, 3.5K
