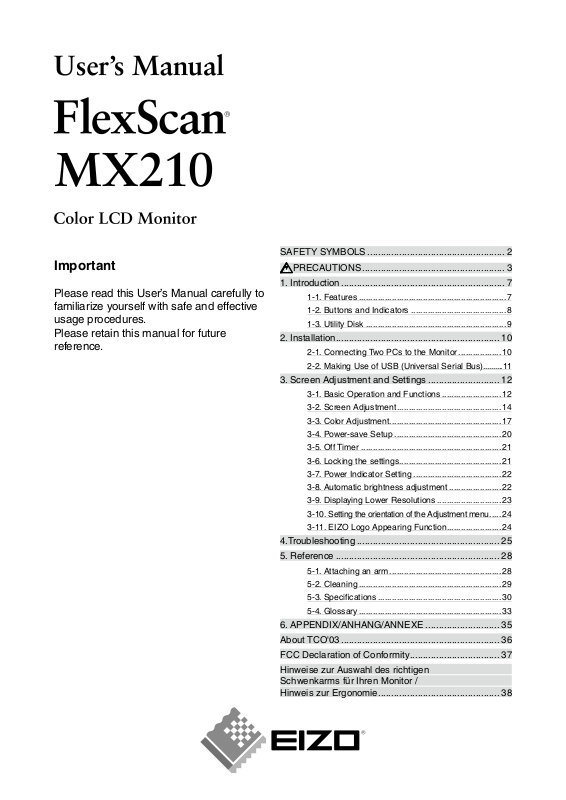

Eizo FlexScan MX210 User Manual

Important

Please read this User’s Manual carefully to
familiarize yourself with safe and effective
usage procedures.
Please retain this manual for future
reference.

About TCO'03 ............................................................ 36

FCC Declaration of Conformity .................................. 37

Hinweise zur Auswahl des richtigen
Schwenkarms für Ihren Monitor /

Hinweis zur Ergonomie .............................................. 38

SAFETY SYMBOLS .................................................... 2

PRECAUTIONS ...................................................... 3

1. Introduction .............................................................. 7

1-1. Features .............................................................. 7

1-2. Buttons and Indicators ........................................8

1-3. Utility Disk ...........................................................9

2. Installation .............................................................. 10

2-1. Connecting Two PCs to the Monitor ..................10

2-2. Making Use of USB (Universal Serial Bus) ..........11

3. Screen Adjustment and Settings ........................... 12

3-1. Basic Operation and Functions .........................12

3-2. Screen Adjustment ............................................ 14

3-3. Color Adjustment ...............................................17

3-4. Power-save Setup .............................................20

3-5. Off Timer ........................................................... 21

3-6. Locking the settings...........................................21

3-7. Power Indicator Setting .....................................22

3-8. Automatic brightness adjustment ...................... 22

3-9. Displaying Lower Resolutions ........................... 23

3-10. Setting the orientation of the Adjustment menu ..... 24

3-11. EIZO Logo Appearing Function .......................24

4.Troubleshooting ...................................................... 25

5. Reference .............................................................. 28

5-1. Attaching an arm ...............................................28

5-2. Cleaning ............................................................29

5-3. Specifications ....................................................30

5-4. Glossary ............................................................33

6. APPENDIX/ANHANG/ANNEXE ............................ 35

2

SAFETY SYMBOLS

SAFETY SYMBOLS

This manual uses the safety symbols below. They denote critical information. Please read them carefully.

WARNING

Failure to abide by the information in a WARNING may result in serious injury and can
be life threatening.

CAUTION

Failure to abide by the information in a CAUTION may result in moderate injury and/or
propertyor product damage.

Indicates a prohibited action.

Indicates to ground for safety.

Copyright© 2007 EIZO NANAO CORPORATION All rights reserved. No part of this manual may be
reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic,
mechanical, or otherwise, without the prior written permission of EIZO NANAO CORPORATION.

EIZO NANAO CORPORATION is under no obligation to hold any submitted material or information
confidential unless prior arrangements are made pursuant to EIZO NANAO CORPORATION's receipt
of said information. Although every effort has been made to ensure that this manual provides up-to-date
information, please note that EIZO monitor specifications are subject to change without notice.

ENERGY STAR is a U.S. registered mark.
Macintosh is registered trademarks of Apple Inc.
VGA is a registered trademark of International Business Machines Corporation.
DPMS is a trademark and VESA is a registered trademark of Video Electronics Standards Association.
Windows is a registered trademark of Microsoft Corporation.
PowerManager and RadiCS are trademarks of EIZO NANAO CORPORATION.
ScreenManager, FlexScan and EIZO are registered trademarks of EIZO NANAO CORPORATION

As an ENERGY STAR® Partner, EIZO NANAO CORPORATION has determined that this product
meets the ENERGY STAR guidelines for energy efficiency.

Product specifications may vary depending on the region. Confirm the specifications in the manual written
in the language of the region of purchase.

PRECAUTIONS

3

PRECAUTIONS

IMPORTANT!

•

This product has been adjusted specifically for use in the region to which it was originally shipped.
If operated outside the region to which it was originally shipped, the product may not perform as

stated in the specifications.
This product is designed for use in Japan only and cannot be used in any other countries.

•

To ensure personal safety and proper maintenance, please read this section and the caution statements
on the unit (refer to the figure below).

[Location of the Caution Statements]

WARNING

If the unit begins to emit smoke, smells like something is burning, or makes
strange noises, disconnect all power connections immediately and contact
your dealer for advice.

Attempting to use a malfunctioning unit may result in fire, electric shock, or
equipment damage.

Do not open the cabinet or modify the unit.

Opening the cabinet or modifying the unit may result in fire, electric shock, or burn.

Refer all servicing to qualified service personnel.

Do not attempt to service this product yourself as opening or removing covers may
result in fire, electric shock, or equipment damage.

Keep small objects or liquids away from the unit.

Small objects accidentally falling through the ventilation slots into the cabinet or
spillage into the cabinet may result in fire, electric shock, or equipment damage. If an
object or liquid falls/spills into the cabinet, unplug the unit immediately. Have the unit
checked by a qualified service engineer before using it again.

4

PRECAUTIONS

WARNING

Place the unit at the strong and stable place.

A unit placed on an inadequate surface may fall and result in injury or equipment
damage.
If the unit falls, disconnect the power immediately and ask your dealer for advice.
Do not continue using a damaged unit. Using a damaged unit may result in fire or
electric shock.

Set the unit in an appropriate location.

Not doing so may result in fire, electric shock, or equipment damage.

•

Do not place outdoors.

•

Do not place in the transportation system (ship, aircraft, trains, automobiles,

etc.)

•

Do not place in a dusty or humid environment.

•

Do not place in a location where the steam comes directly on the screen.

•

Do not place near heat generating devices or a humidifier.

To avoid danger of suffocation, keep the plastic packing bags away from
babies and children.

Use the enclosed power cord and connect to the standard power outlet of your
country.

Be sure to remain within the rated voltage of the power cord.Not doing so may result
in fire or electric shock.
Power supply: 100-120/200-240 Vac, 50/60 Hz

To disconnect the power cord, grasp the plug firmly and pull.

Tugging on the cord may damage and result in fire or electric shock.

The equipment must be connected to a grounded main outlet.

Not doing so may cause in fire or electric shock.

Use the correct voltage.

•

The unit is designed for use with a specific voltage only. Connection to another

voltage than specified in this User's Manual may cause fire, electric shock, or

equipment damage.

Power supply: 100-120/200-240 Vac, 50/60 Hz

•

Do not overload your power circuit, as this may result in fire or electric shock.

Handle the power cord with care.

•

Do not place the cord underneath the unit or other heavy objects.

•

Do not pull on or tie the cord.

If the power cord becomes damaged, stop using it. Use of a damaged cord may
result in fire or electric shock.

Never touch the plug and power cord if it begins to thunder.

Touching them may result in electric shock.

PRECAUTIONS

5

WARNING

When attaching an arm stand, please refer to the user's manual of the arm
stand and install the unit securely.

Not doing so may cause the unit to come unattached, which may result in injury or
equipment damage. When the unit is dropped, please ask your dealer for advice.
Do not continue using a damaged unit. Using a damaged unit may result in fire or
electric shock. When reattaching the tilt stand, please use the same screws and
tighten them securely.

Do not touch a damaged LCD panel directly with bare hands.

The liquid crystal which leaks from the panel is poisonous if it enters the eyes or
mouth.
If any part of the skin or body comes in direct contact with the panel, please wash
thoroughly. If some physical symptoms result, please consult your doctor.

Lamps contain mercury, dispose according to local, state or federal laws.

CAUTION

Handle with care when carrying the unit.

Disconnect the power cord and cables when moving the unit. Moving the unit with
the cord attached is dangerous. It may result in injury.

When handling the unit, grip the bottom of the unit firmly with both hands
ensuring the panel faces outward before lifting.

Dropping the unit may result in injury or equipment damage.

Do not block the ventilation slots on the cabinet.

•

Do not place any objects on the ventilation slots.

•

Do not install the unit in a closed space.

•

Do not use the unit laid down or upside down.

Blocking the ventilation slots prevents proper airflow and may result in fire, electric
shock, or equipment damage.

Do not touch the plug with wet hands.

Doing so may result in electrical shock.

Use an easily accessible power outlet.

This will ensure that you can disconnect the power quickly in case of a problem.

Periodically clean the area around the plug.

Dust, water, or oil on the plug may result in fire.

Unplug the unit before cleaning it.

Cleaning the unit while it is plugged into a power outlet may result in electric shock.

If you plan to leave the unit unused for an extended period, disconnect the
power cord from the wall socket after turning off the power switch for the
safety and the power conservation.

6

PRECAUTIONS

LCD Panel

In order to suppress the luminosity change by long-term use and to maintain the stable luminosity, use of a
monitor in lower brightness is recommended.

The LCD panel is manufactured using high-precision technology. However, note that the appearance of any
missing pixels or lit pixels does not indicate damage to the LCD monitor.
Percentage of effective pixels : 99.9994% or higher.

The backlight of the LCD panel has a fixed life span. When the screen becomes dark or begins to flicker,
please contact your dealer.

Do not press on the panel or edge of the frame strongly, as this may result in damage to the screen. There
will be prints left on the screen if the pressed image is dark or black. If pressure is repeatedly applied to the
screen, it may deteriorate or damage your LCD panel. Leave the screen white or black to decrease the prints.

When the screen image is changed after displaying the same image for extended periods of time, an
afterimage may appear. Use the screen saver or timer to avoid displaying the same image for extended
periods of time.

When the monitor is cold and brought into a room or the room temperature goes up quickly, dew
condensation may occur inside and outside the monitor. In that case, do not turn the monitor on and wait until
dew condensation disappears, otherwise it may cause some damages to it.

Do not scratch or press on the panel with any sharp objects, such as a pencil or pen as this may result in
damage to the panel. Do not attempt to brush with tissues as this may scratch the LCD panel.

To use the monitor comfortably

An excessively dark or bright screen may affect your eyes. Adjust the brightness of the monitor according to
the environmental conditions.

Staring at the monitor for a long time tires your eyes. Take a 10-minute rest every hour.

1. Introduction

7

1. Introduction

Thank you very much for choosing an EIZO Color Monitor.

1-1. Features

•

Dual-input compliant (DVI-I and D-sub mini 15-pin connectors)

•

DVI Digital input (TMDS ) compliant

•

[Horizontal scanning frequency]

Analog: 24 - 80kHz
Digital: 31 - 76 kHz
[Vertical scanning frequency]
Analog: 49 - 76Hz (1600x1200: 49 - 61Hz )
Digital: 59- 61Hz (VGA text: 69 - 71Hz)
[Resolution] 1600 dots x 1200 lines

•

Frame Synchronous mode supported (59 - 61Hz)

•

BrightRegulator function incorporate

•

DICOM mode (CAL Switch function)

•

CAL Switch function for selecting an optimal calibration mode

•

Smoothing function incorporated for the adjustment of an enlarged image

•

The quality control software "RadiCS LE" (for Windows) used to calibrate the monitor is

included(refer to the EIZO LCD Utility Disk).

•

The utility software "ScreenManager Pro for Medical" (for Windows) to control the monitor from

a PC with mouse/keyboard is included (refer to the EIZO LCD Utility Disk).

•

Height adjustable stand

•

Ultra slim bezel

•

The Portrait/Landscape display capability

8

1. Introduction

1-2. Buttons and Indicators

1. Adjustment menu (ScreenManager ®*)

2. Senser (BrightRegulator)

3. Input Signal Selection button

4. Mode button

5. Auto Adjustment button

6. Enter button

7. Control buttons (Left, Down, Up, Right)

8. Power button

9. Power indicator

Indicator status Operation status

Blue The screen is displayed
Orange Power saving
Off Power off

*ScreenManager® is an EIZO's nickname of the Adjustment menu.

Buttons

1. Introduction

9

1-3. Utility Disk

An "EIZO LCD Utility Disk" (CD-ROM) is supplied with the monitor. The following table shows the
disk contents and the overview of the application software programs.

Disk contents and software overview

The disk includes a monitor information file, application software programs for adjustment, and User’s
Manual. Refer to "Readme.txt” or the "Readme" file on the disk for software startup procedures or file
access procedures.

Item Overview For Windows For Macintosh

A “Readme.txt” or “Readme” file

√ √

Color Profiles
(ICC Profiles)

Color profiles

√ √

Screen Adjustment
Program

Available for easy adjustments of the monitor screen
following adjustment patterns and procedures on the
screen.

√ √

RadiCS LE
(for Windogs)

RadiCS LE is quality control software used to calibrate
the monitor and manage the calibration history.

(A PC must be connected to the monitor with the
supplied USB cable.) Refer to the description later.

√

-

ScreenManager
Pro for Medical
(for Windows)

A utility software program to control monitor adjustments
from a PC using its mouse and keyboard.
(A PC must be connected to the monitor with the
supplied USB cable.) Refer to the description later.

√

-

User’s Manual (PDF file)

√ √

To RadiCS LE or ScreenManager Pro for Medical

Refer to the corresponding User's Manual on the CD-ROM disk in order to install and use the software.
When using this software, you will need to connect a PC to the monitor with the supplied USB cable.
For more information refer to the "2-2. Making Use of USB (Universal Serial Bus)" (page 11).

10

2. Installation

2. Installation

2-1. Connecting Two PCs to the Monitor

Two PCs can be connected to the monitor through the DVI-I connector on the back of the monitor.

Connection examples

PC 1 PC 2

(Ex.1) Digital DVI

Signal Cable
(FD-C39 enclosed)

Signal Cable
(MD-C87 enclosed)

D-Sub
mini 15
pin

Analog

(Ex.2) Analog

D-Sub
mini 15
pin

Signal Cable
(FD-C16 optional)

Signal Cable
(MD-C87 enclosed)

D-Sub
mini 15
pin

Analog

Selecting input signal

Switch the input signal with . Input signal switches each time is pressed. When the signal is
switched, the active signal type (Signal 1 or 2/ Analog or Digital) appears at the top right corner of the
screen for two seconds.

To set auto-switching of input signals [Input Signal]

The monitor recognizes the connector through which PC signals are input.
When either PC is turned off or enters the power-saving mode, the monitor automatically displays signals
of another PC.

Prioritysetting Function

Auto

When either PC is turned off or enters the power-saving mode, the
monitor automatically displays signals of another PC.

Manual

The monitor does not detect the PC’s signals automatically. Select an
active input signal with .

[Input signal setting]

1. Choose <Others> from the Adjustment menu, and press .

2. Choose <Input Signal> from the <Others> menu, and press .
The <Input Signal> menu appears.

3. Select "Auto" or "Manual" with or , and press .
The Input Priority setting is completed.

DIV-I
connector
(SIGNAL1)

Input Signal Selection button

D-sub mini
15-pin Connector
(SIGNAL2)

2. Installation

11

2-2. Making Use of USB (Universal Serial Bus)

This monitor provides a hub which supports the USB standard. When connecting to a USB compliant PC
or another hub, the monitor functions as a hub to which the USB compliant peripherals can be easily
connected.

Required system environment

•

PC equipped with USB ports or another USB hub connected to the USB compliant PC

•

Windows 2000/XP/Vista // Mac OS 9.2.2 or later

•

USB Cable (MD-C93, enclosed)

NOTE

•

The USB hub function may not work properly depending on the PC or peripherals. Please consult the

manufacturer of each device about the USB support.

•

Using the USB Rev. 2.0 compatible PC or peripherals is recommended.

•

If the monitor is in the power saving mode, or if the monitor is connected to the power outlet with the

monitor turned off, all the devices connected to the USB ports (upstream and downstream) work.
Therefore, power consumption of the monitor varies with connected devices even in the power saving
mode.

•

The followings are procedures for the Windows2000/XP/Vista and Mac OS.

Connecting to the USB HUB

1

Connect the monitor to the PC with the signal cable first, then turn on the PC.

2

Connect the upstream port of the monitor to the downstream port of the

USBcompliant PC or another hub by using the USB cable.

After connecting the USB cable, the USB function can be set up automatically.

3

After setting up, the monitor's USB hub is available for connecting USB

compliantperipherals to the downstream ports of the monitor.

Downstream

Upstream

12

3. Screen Adjustment and Settings

3. Screen Adjustment and Settings

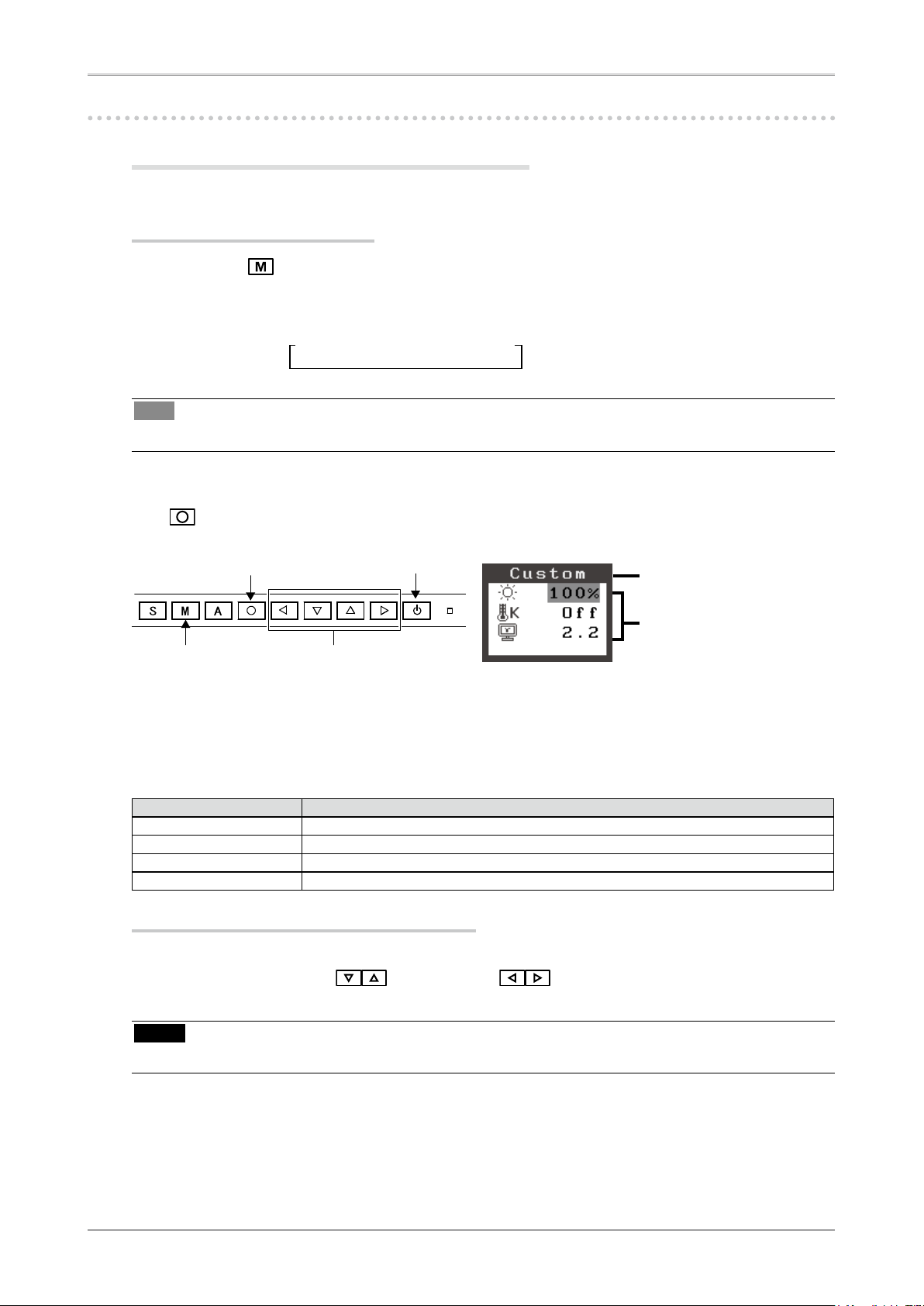

3-1. Basic Operation and Functions

ScreenManager allows you to adjust screen performance though the main menu and select a CAL Switch
mode easily.

NOTE

•

The Adjustment menu and the CAL Switch mode name cannot be displayed at the same time.

1

Entering the ScreenManager

Press once to display the main menu of the ScreenManager.

2

Making Adjustments and Settings

1. Select the desired sub menu icon using and press . The sub menu appears.

2. Use to select the desired setting icon and press . The setting menu appears.

3. Use to make all required adjustments and press save the settings.

3

Exiting the ScreenManager

1. To return to the main menu, select the <Return> icon or press twice, followed by .

2. To exit the ScreenManager, select <Exit> icon or press twice, followed by .

Tips

• Double clicking at any time also exits the ScreenManager menu.

Adjustment menu (ScreenManagaer®)

Mode button

Control buttons
(Left, Down, Up, Right)

Power button

Enter button

CAL Switch Menu

3. Screen Adjustment and Settings

13

Functions

The following table shows all the ScreenManager's adjustment and setting menus. "*" indicates
adjustments of analog input only and "**" indicates digital input only.

Main menu Sub menu Reference

Screen Clock

*

3-2. Screen Adjustment

Phase

*

Position

*

Resolution

*

Range Adjustment

*

Smoothing
Signal Filter

*

Color(Custom)

*

1

Brightness 3-3. Color Adjustment
Temperature
Gamma
Saturation
Hue
Gain
6 Colors
Reset

PowerManager DVI DMPM

**

3-4. Power-save Setup

VESA DPMS

*

OFF

Others Screen Size 3-9. Displaying Lower Resolutions

Border Intensity
Input Signal Set the input signal selection of automatic or

manual.
Off Timer Set the monitor's Off Timer to on or off.
Menu Settings Menu Size Change the size of the menu.

Menu Position Adjust the menu position.
Menu Off Timer Set the menu displaying time.
Translucent Set the transparency of the background.

Orientation Set the orientation of the Adjustment menu.
BrightRegulator Set automatic brightness adjustment.
Power Indicator Make non-light for blue lighting when the screen

is displayed (Power Indicator Setting).

Reset Return to the factory Default settings.

Information Information Review the ScreenManager's settings, model

name, serial number and usage time.

*

2

Language English, German, French,

Spanish, Italian, Swedish and
Japanese

Select the ScreenManager's language.

*

1

The adjustable functions on the <Color> menu depend on the selected CAL Switch mode. The above table shows the sub

menus when the "Custom" mode is selected (See " 3-3. Color Adjustment ").

*

2

Due to the inspection on the factory, the usage time may not "0 hour" at shipping.

14

3. Screen Adjustment and Settings

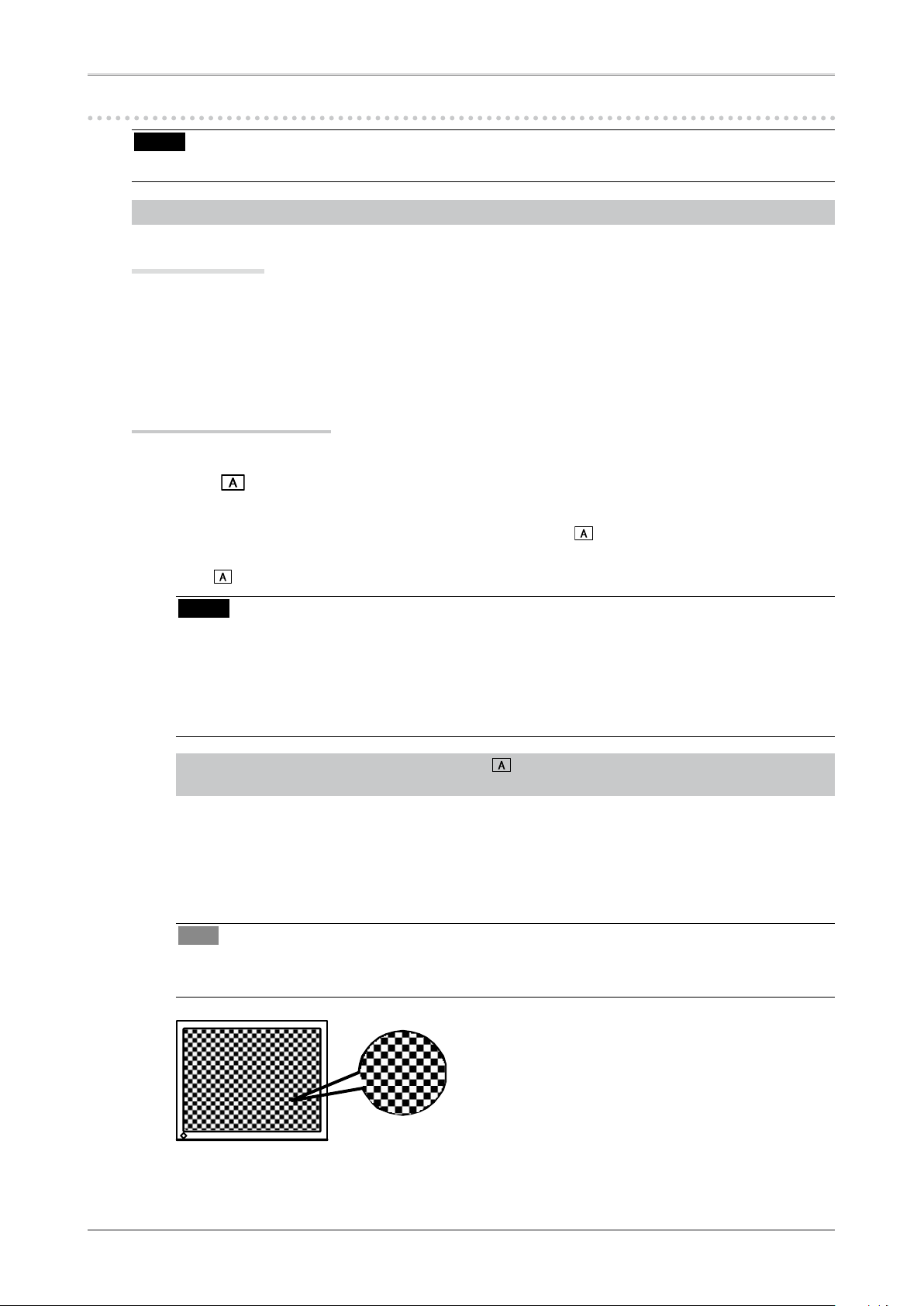

3-2. Screen Adjustment

NOTE

•

Allow the LCD monitor to stabilize for at least 30 minutes before making image adjustments.

The monitor displays the digital input image correctly based on its pre-setting data.

Analog Input

Screen adjustments for the LCD monitor should be used in suppressing screen flickering and also for
adjusting the screen to its proper position. There is only one correct position for each display mode. It is
also recommended to use the ScreenManager function when first installing the display or whenever
changing the system. For convenience, an easy set-up Program installed on the utility disk to assist in the
set-up procedure is provided.

Adjustment Procedure

1

Press on the control panel.

The message "Your setting will be lost if you press again now." appears and remains on the screen
for 5 seconds. While the message is on the screen, press the again to automatically adjust the
clock, phase, screen position and resolution. If you do not wish to do adjust the screen, do not
press again.

NOTE

•

The Auto adjustment function is intended for use on the Macintosh and on AT-compatible PC

running Windows. It may not work properly in either of the following cases. When running an
AT-compatible PC on MS-DOS (Not windows). The background color for the "wall paper" or
"desktop" pattern is set to black.

•

It cannot work correctly using with some graphics cards.

If the appropriate screen cannot be made by using , adjust the screen through the following procedures.
If the appropriate screen can be made, proceed to 4. Range Adjustment .

2

Run the "Screen Adjustment Program".

Having read the "Readme.txt" file, run the "Screen Adjustment Program" in the enclosed EIZO
LCD Utility Disk. Step by step, adjustment is provided by the wizard guide. (If using the Windows,
the program can be directly run from the menu screen of the CD-ROM.)

Tips

•

If the user's operating system has no utility disk (e.g. OS/2), we recommend setting the desktop

pattern to that as shown in the diagram on the following.

3. Screen Adjustment and Settings

15

3

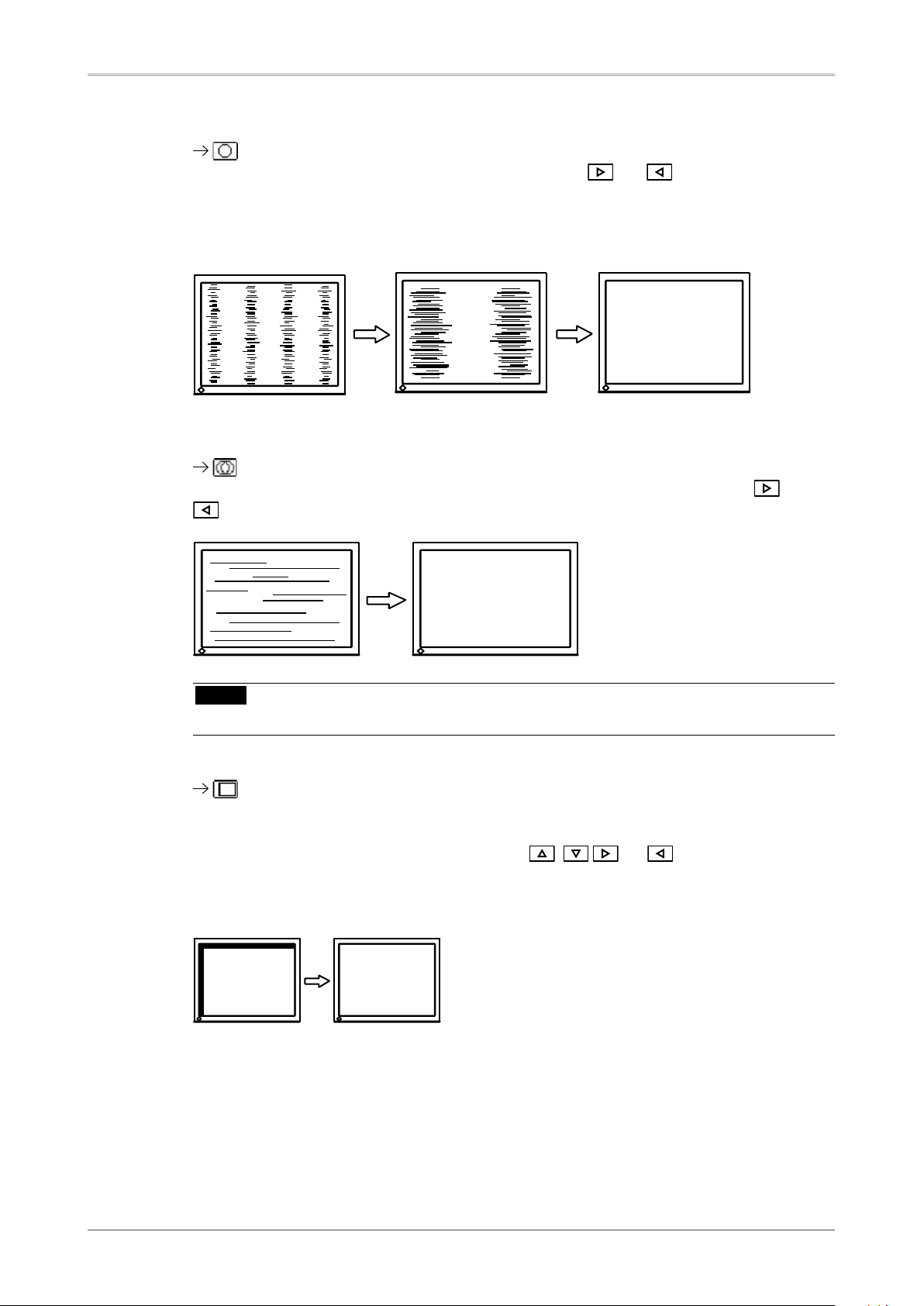

Adjust by using <Screen> menu in the ScreenManager

(1)Vertical bars appear on the screen

Use the <Clock> adjustment.
Select the <Clock> and eliminate the vertical bars by using and of the Control buttons.
Do not continuously press the Control buttons, as the adjustment value will change quickly and
make it difficult to locate the most suitable adjustment point. If the horizontal flickering, blur
or bars appear, proceed to <Phase> adjustment as follows.

(2)Horizontal flickering, blurring or bars appear on the screen.

Use the <Phase> adjustment.
Select the <Phase> and eliminate the horizontal flickering, blurring or bars by using and

.

NOTE

• Horizontal bars may not completely disappear from the screen depending on the PC.

(3)The screen position is incorrect.

Use the <Position> adjustment.
The correct displayed position of the monitor is decided because the number and the position of
the pixels are fixed. The <Position> adjustment moves the image to the correct position.

Select <Position> and adjust the position by using , , and . If vertical bars of
distortion appear after finishing the <Position> adjustment, return to <Clock> adjustment and
repeat the previously explained adjustment procedure. ("Clock" => "Phase" => "Position")

16

3. Screen Adjustment and Settings

(4)Screen image is smaller or larger than the actual screen images.

Use the <Resolution> adjustment.
Adjustment is needed when the input signal resolution and the resolution now being displayed
are different.
Select <Resolution> and confirm if the resolution now being displayed is the same as the input

resolution. If it is not, adjust the vertical resolution using and and adjust the horizontal
resolution using and .

4

Adjust the output signal range (Dynamic Range) of the signal.

Use the <Range Adjustment> of <Screen> menu.

This controls the level of output signal range to display the whole color gradation (256 colors).

[Procedure]
Select the <Range Adjustment> in the ScreenManager <Screen> menu. While the message "Your

setting will be lost if you press AUTO button." is on the screen, press on the control panel to
adjust the Range Adjustment.

The screen blanks for a moment and adjusts the color range to display the whole color gradation
of the current output signal.

Smaller than the actual screen images.

Larger than the actual screen images.

3. Screen Adjustment and Settings

17

3-3. Color Adjustment

Simple adjustment [CAL Switch mode]

This function allows you to select the best display mode for monitor brightness, etc.

To select CAL Switch mode

Directly pressing allows you to select the best suited mode for screen display from 4 CAL Switch
modes; DICOM-CL, Text, Custom and CAL. Color settings each mode can be adjusted by using the
<Color> menu of the ScreenManager.

Tips

• The Adjustment menu and the CAL Switch mode name cannot be displayed at the same time.

Exit

Press to exit the menu.

CAL Switch Mode

Selectable CAL Switch modes are as follows.

Mode Purpose

DICOM-CL

Available for setting tailored to X-ray lm color (clear base).

Text

Suitable for displaying texts for word processing or spreadsheets.

Custom

Available for making desired setting.

CAL Used for monitor calibration

Color Adjustment of the Mode Settings

<Brightness>, <Temperature> and <Gamma> settings can be adjusted on the CAL Switch menu. Select
the desired function icon with and adjust with . (Setting(s) of <Temperature> and/or
<Gamma> is defined as standard default in some modes.

NOTE

•

"DICOM-CL"mode and "CAL" mode can be adjusted only by Calibration Software.

->DICOM-CL -> Text -> Custom-> CAL

Current Mode

Mode button

Power button

CAL Switch Menu
[EX.]Custom

Settings status
of Brightness,
Temperature and
Gamma

Enter button

Control buttons

18

3. Screen Adjustment and Settings

Advanced Adjustments[Adjustment menu]

Color settings of each CAL Switch mode can be adjusted and saved by using the <Color> menu of the
Adjustment menu.

In the analog input, perform the "Range Adjustment" before making the color adjustments. Never change
the CAL Switch mode during color adjustment. Select the mode in advance by using

Adjustment Items

The adjustable items and displayed icons on the <Color> menu depend on the selected CAL Switch
mode.

" √ ": Settable/Adjustable " - ": Fixed at the factory

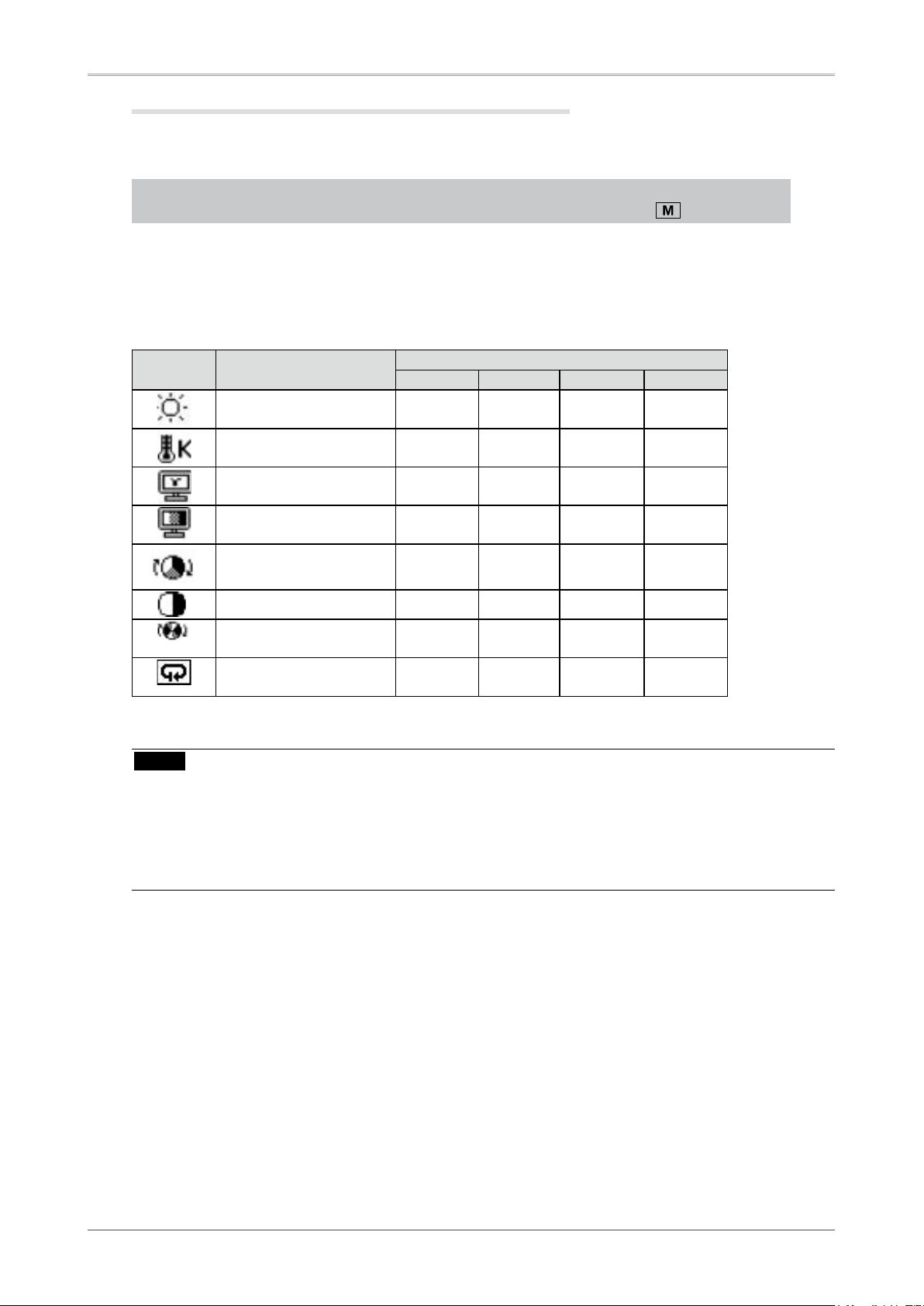

Icons Functions

CAL Switch Mode

DICOM-CL Text Custom CAL

Brightness

*

-

√ √

-

Temperature

*

-

√ √

-

Gamma

*

-

√ √

-

Saturation -

√ √

-

Hue -

√ √

-

Gain - -

√

-

6 colors - -

√

-

Reset -

√ √

-

*

These settings can be also adjusted on the CAL Switch menu. (See CAL Switch.)

NOTE

•

Allow the LCD monitor to stabilize for at least 30 minutes before making image adjustments. (Allowthe

monitor to warm up for at least 30 minutes before making adjustments.)

•

The values shown in percentages represent the current level within the specific adjustment. They

areavailable only as a reference tool. (To create a uniform white or black screen, the percentages for
eachwill probably not be the same.)

3. Screen Adjustment and Settings

19

Adjustment Contents

Menu Function Descriptions Adjustable range

Brightness To set the brightness of the screen 0~100%

Tips

• The values shown in the “%” are available only as reference.

Temperature To set the color temperature 6500K~15000K

in 500 K increments (including 9300 K)

Tips

• The values shown in the Kelvin are available only as a reference tool.

• While color temperature is adjusted, <Gain> is adjusted automatically according to the
color temperature.

• Setting the temperature under 6500 K or over 15000 K invalidates the color
temperature setting. (The color temperature's setting turns "OFF".)

• Setting the <Gain> invalidates the <Temperature> adjustment.

Gamma To set the gamma value 1.8~2.6

Tips

• If setting the gamma value, the using the monitor in the digital signal input is
recommended. If using the monitor in the analog input signal, set the gamma value
from 1.8 to 2.2.

Saturation To change the saturation -100~100

Setting the minimum level (-100) turns the
image to the monochrome.

NOTE

• The <Saturation> adjustment may cause undisplayable color tone.

Hue To change the flesh color, etc. -100~100

NOTE

• Using <Hue> adjustment may not obtain proper tone reproduction.

Gain To change each color

(red, green and blue)

0~100%
By adjusting the red, green and blue color
tones for each mode, custom colors can be
defined. Display a white or gray background
image and adjust the <Gain>.

Tips

• The values shown in the “%” are available only as reference.

• The <Temperature> setting invalidates this setting. The <Gain> setting varies with
color temperature.

6 colors To adjust <Saturation> and <Hue> in

each color (Red, Yellow, Green, Cyan,
Blue and Magenta)

Hue: -100 ~ 100
Saturation: -100 ~ 100

Reset To return the color settings to the

default settings

Select the <Reset>.

20

3. Screen Adjustment and Settings

3-4. Power-save Setup

The <PowerManager> menu in the ScreenManager enables to set the power-save setup.

NOTE

•

Do your part to conserve energy, turn off the monitor when you are finished using it. Disconnecting

the monitor from the power supply is recommended to save energy completely.

•

Even if the monitor is in a power saving mode, USB compliant devices function when they are

connected to the monitor's USB (both the upstream and the downstream ports). Therefore, power
consumption of the monitor will change according to the connected devices even if the monitor is in a
power saving mode.

Analog Input

This monitor complies with the "VESA DPMS" standard and adopts a power saving method.

[Procedure]

1. Set the PC's power saving settings.

2. Select "VESA DPMS" from the <PowerManager> menu.

[Power Saving System]

PC Monitor Power Indicator

Operation Operation Blue

Power saving

STAND-BY
SUSPEND

OFF

Power saving Orange

[Power Resumption Procedure]

Operate the mouse or keyboard to return to a normal screen.

Digital Input

This monitor complies with the "DVI DMPM"

[Procedure]

1. Set the PC's power saving settings.

2. Select "DVI DMPM" from the <PowerManager> menu.

[Power Saving System]

The monitor enters the power saving mode in five seconds in connection with the PC setting.

PC Monitor Power Indicator

Operation Operation Blue

Power saving Power saving Orange

[Power Resumption Procedure]

Operate the mouse or keyboard to return to a normal screen.

3. Screen Adjustment and Settings

21

3-5. Off Timer

The off timer function causes the monitor to automatically enter a power off state after a predetermined
amount of time has lapsed. This function was created to reduce Afterimage characteristics that are
particular to LCD monitors when the monitor screen is left on for a long period without use.

[Procedure]

1. Select <Off Timer> in the ScreenManager <Others> menu.

2. Select "Enable" and touch the Right and Left directing switches to adjust the operating time (1 to 23
hours).

[Off Timer System]

PC Monitor Power Indicator

Operating time (1H - 23H) Operation Blue
Last 15 min. in operating time Advance Notice

*

1

Blue Flashing

Operating time expired Power Off Off

*1

When is pressed during the advance notice period, the monitor continues to operate for additional 90 minutes. Extension
of operation time can be set without limitation.

[Power Resumption Procedure]

Press to return a normal screen.

NOTE

• The off timer function works while the PowerManager is active, but there is no advance notice before
the monitor's power is turned off.

3-6. Locking the settings

Use the "Adjustment Lock" function to prevent any accidental changes.

Buttons that can be locked

• (Enter button) / Adjustments/settings using Adjustmentmenu

• (Mode button)

• (Auto Adjustment button)

Buttons that cannot be locked

• (Input Signal Selection button)

• (Power button)

[How to lock]

1. Press to turn off the unit.

2. Press

again while pressing .

The screen is displayed with the adjustment lock.

[How to unlock]

1. Press to turn off the unit.

2. Press

again while pressing .

The screen is displayed with the adjustment lock released.

NOTE

•

The adjustment lock function may activate when calibration is performed with the calibration kit. The

monitor can be unlocked using the same unlocking procedure described above.

22

3. Screen Adjustment and Settings

3-7. Power Indicator Setting

Light off the power indicator. This function is available for the multiple panels settings.

[Procedure]

1. Select <Power Indicator> in the ScreenManager <Others> menu.

2. Select "Disable".

3-8. Automatic brightness adjustment

The sensor on the front side of the monitor detects the environmental brightness to adjust the screen
brightness automatically and comfortably.

[Procedure]

1. Select <BrightRegulator> in the ScreenManager <Others> menu.

2. Select "Enable".

NOTE

•

This function is not available in the DICOM-CL and CAL modes.

3. Screen Adjustment and Settings

23

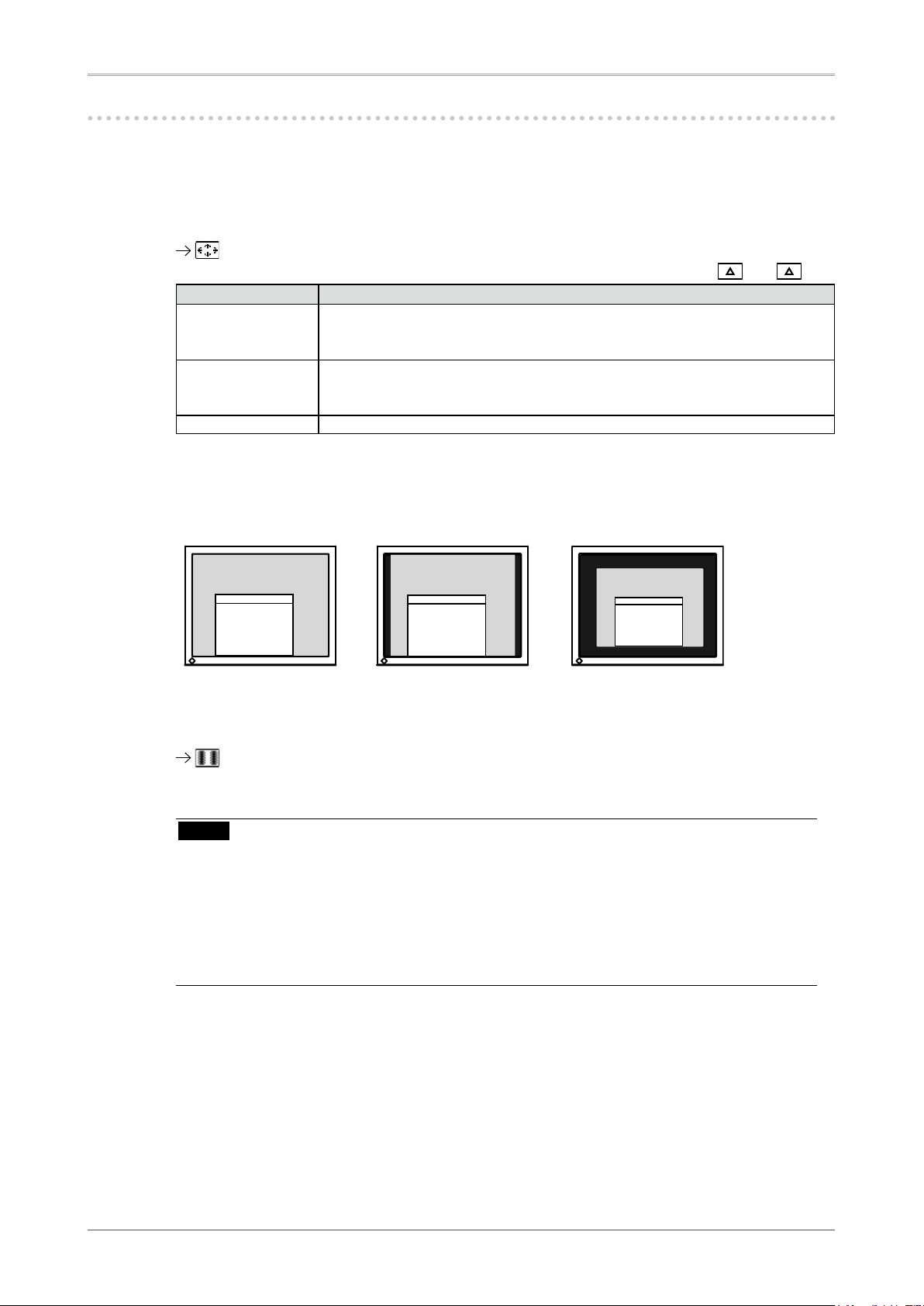

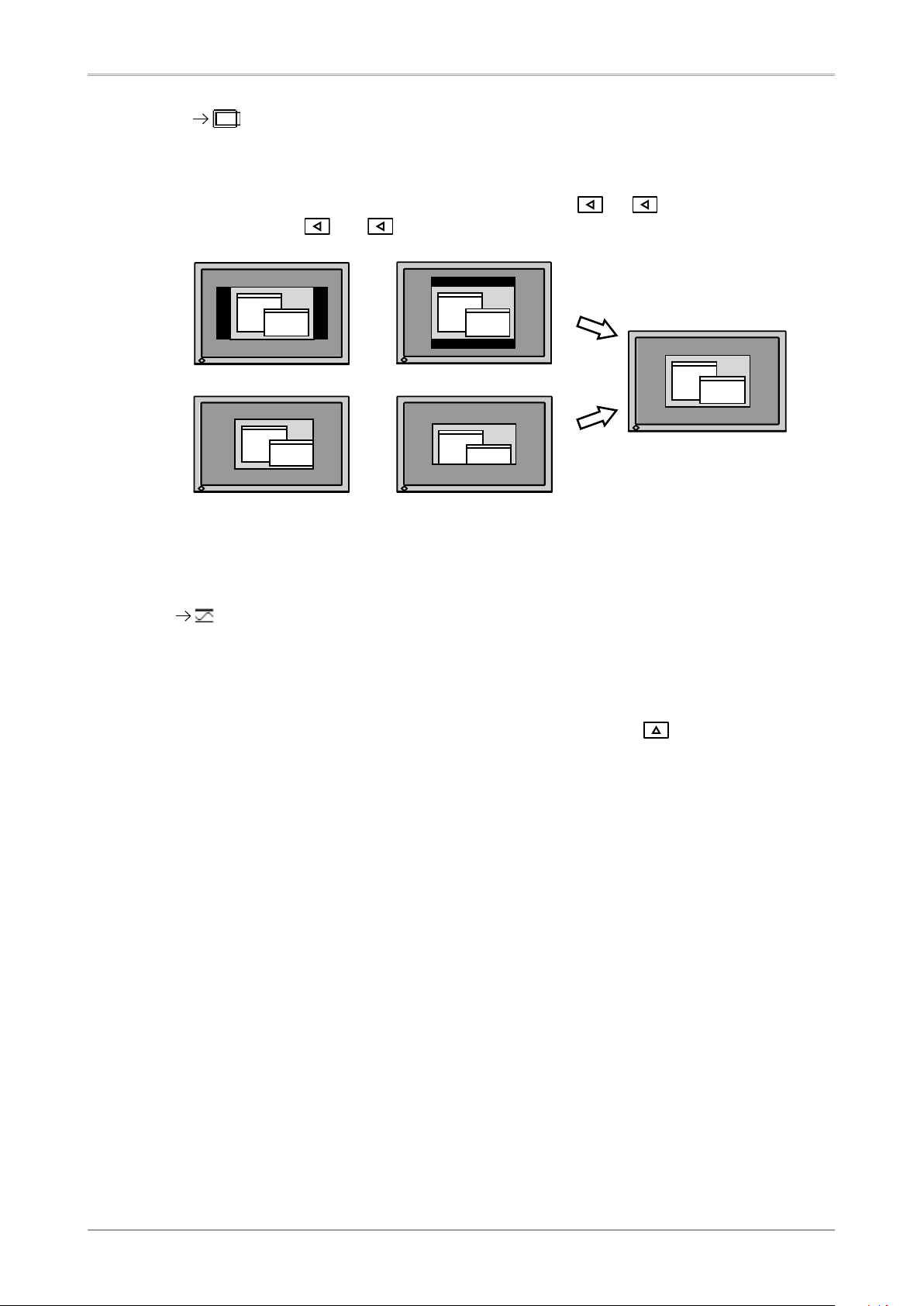

3-9. Displaying Lower Resolutions

The lower resolutions are enlarged to full screen automatically. Using the <Screen Size> function in the
<Others> menu enables to change the screen size.

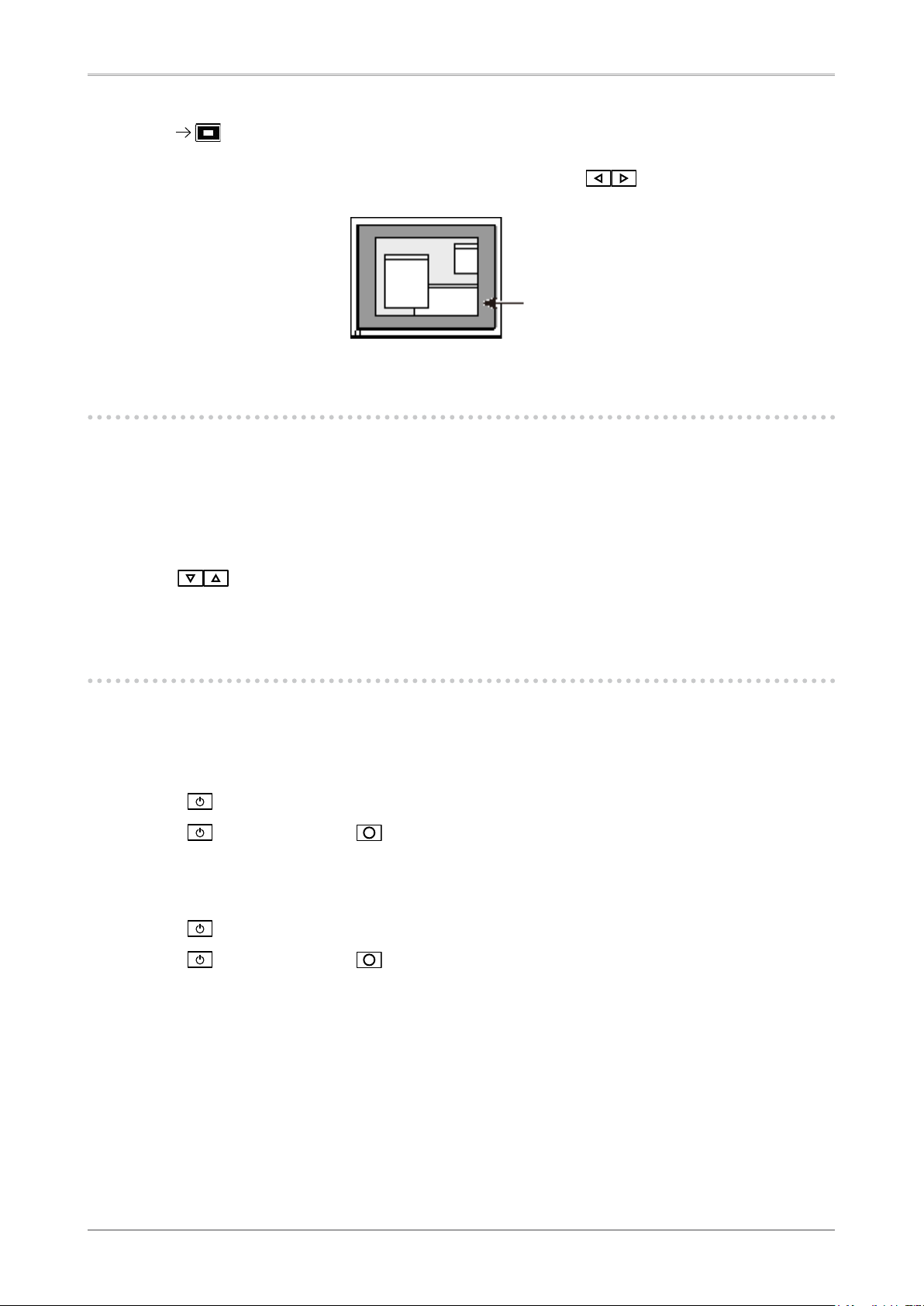

1

Enlarge the screen size when displaying a low resolution.

Select the <Screen Size>.

Select the <Screen Size> in the <Others> menu and select the screen size by using and .

Mode Function

Full Displays the picture on the screen in full, irrespective of the picture's resolution.

Since the verticalresolution and the horizontal resolution are enlarged at different
rates, some images may appeardistorted.

Enlarged Displays the picture on the screen in full, irrespective of the picture's resolution.

Since the vertical resolution and horizontal resolution are enlarged at same rates,
some horizontal or vertical image maydisappear.

Normal Displays the picture at the actual Screen resolution.

Example: Displaying 1280 x 1024

2

Smooth the blurred texts of the enlarged screen.

Switch the <Smoothing> setting.

Select the suitable level from 1 - 5 (Soft - Sharp).
Select <Smoothing> in the <Screen> menu and adjust by using the right and left switches.

NOTE

• <Smoothing> is disabled in the following cases.

-

Screen is displayed in the 1600 x 1200.

-

Screen is displayed in the 800 x 600.

-

"Normal" is selected in <Screen Size>.

-

The image size is doubled both in horizontally and vertially to (i.e. 1600 x 1200 enlarged

from 800 x 600) provide clear focus which does not require this function.

(1600× 1200)

(1500 × 1200)

(1280 × 1024)

Full (Default Setting)

Enlarged

Normal

24

3. Screen Adjustment and Settings

3

Set the brightness of the black area surrounding the displayed image.

Set the <Border Intensity>.
In the <Enlarge> mode or <Full Screen> mode, the outer area (border) is usually black. Select
<BorderIntensity> in the <Others> menu and adjust by using .

3-10. Setting the orientation of the Adjustment menu

The orientation of the Adjustment menu can be changed.

[Procedure]

1. Select <Menu Settings> in the ScreenManager <Others> menu.

2. Select <Orientation> in the <Menu Settings> menu.

3. Use

to select between "Portrait" and "Landscape".

3-11. EIZO Logo Appearing Function

When switching on the power button on the front control panel, the EIZO logo is displayed for a while.
If you desire to display or undisplay this logo, use this function. (Default is logo appearing.)

[To undisplay]

1. Press to turn off the unit.

2. Press again while pressing .
The EIZO logo does not appear on the screen.

[To display]

1. Press to turn off the unit.

2. Press again while pressing .
The EIZO logo appear on the screen.

Border

4. Troubleshooting

25

4.Troubleshooting

If a problem still remains after applying the suggested remedies, contact your local dealer.

• No-picture problems : See No.1 - No.2

• Imaging problems : See No.3 - No.14

• Other problems : See No.15 - No.18

• USB problems : See No.19 - No.20

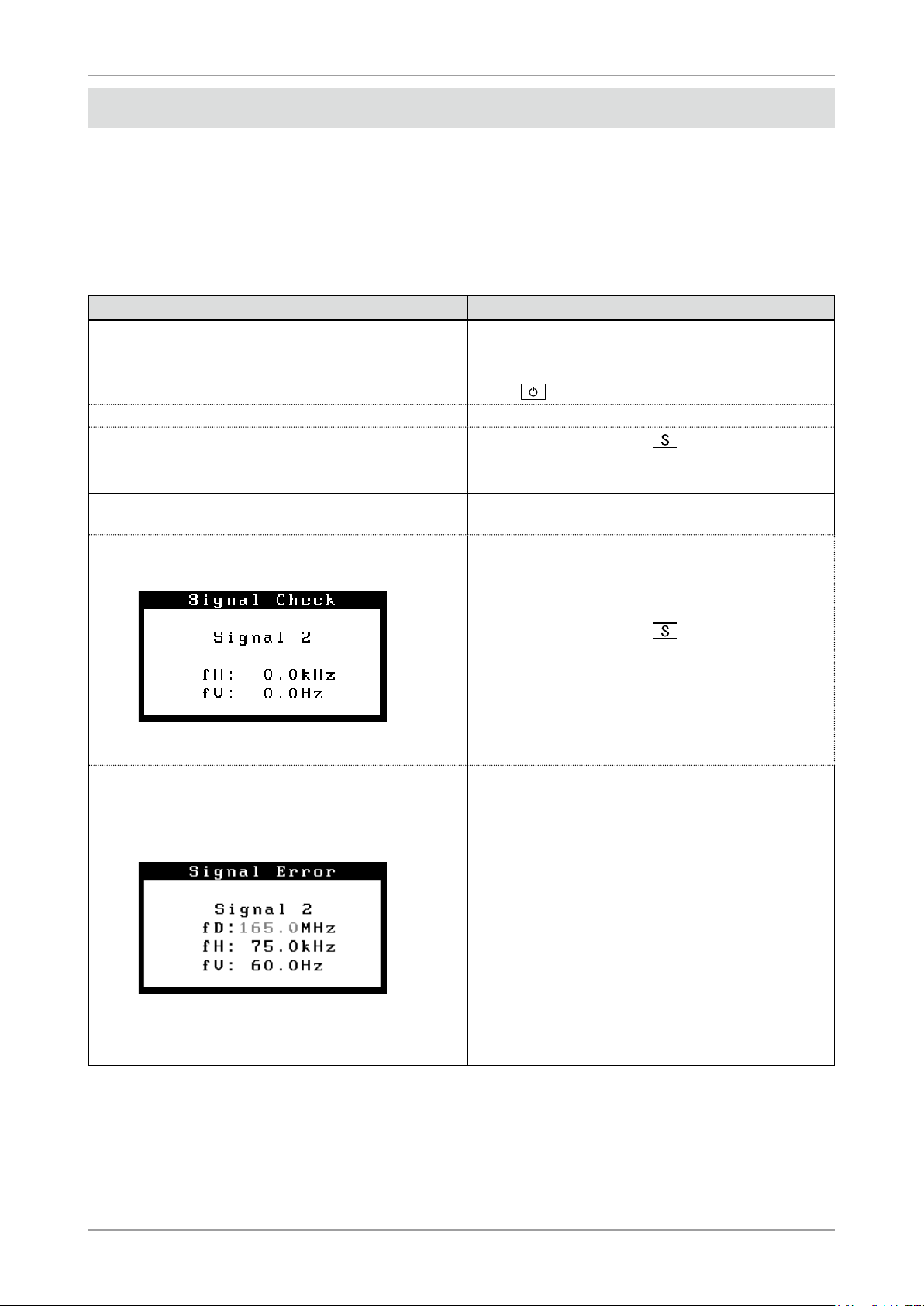

Problems Possible cause and remedy

1. No picture

•

Power indicator does not light.

•

Check whether the power cord is connected correctly. If

the problem persists, turn off the monitor, and then turn
it on again a few minutes later.

•

Press .

•

Power indicator is lighting blue.

•

Check gain setting

(page 19).

•

Power indicator is lighting orange.

•

Switch the input signal with

.

•

Operate the mouse or keyboard.

•

Turn on the PC.

2. The message below appears.

This message appears when the signal is not input
correctly even when the monitor functions properly.

•

This message appears when no signal is input.

(This is displayed for about 40 seconds)

•

The message shown left may appear, because some

PCs do not output the signal soon after power-on.

•

Check whether the PC is turned on.

•

Check whether the signal cable is connected properly.

•

Switch the input signal with

.

•

The message below shows that the input signal is out of

the specified frequency range. (Such signal frequency is
displayed in red.)

Example:

•

Reboot the PC.

•

Select an appropriate display mode using the graphics

board’s utility. Refer to the manual of the graphics board
for details.

26

4. Troubleshooting

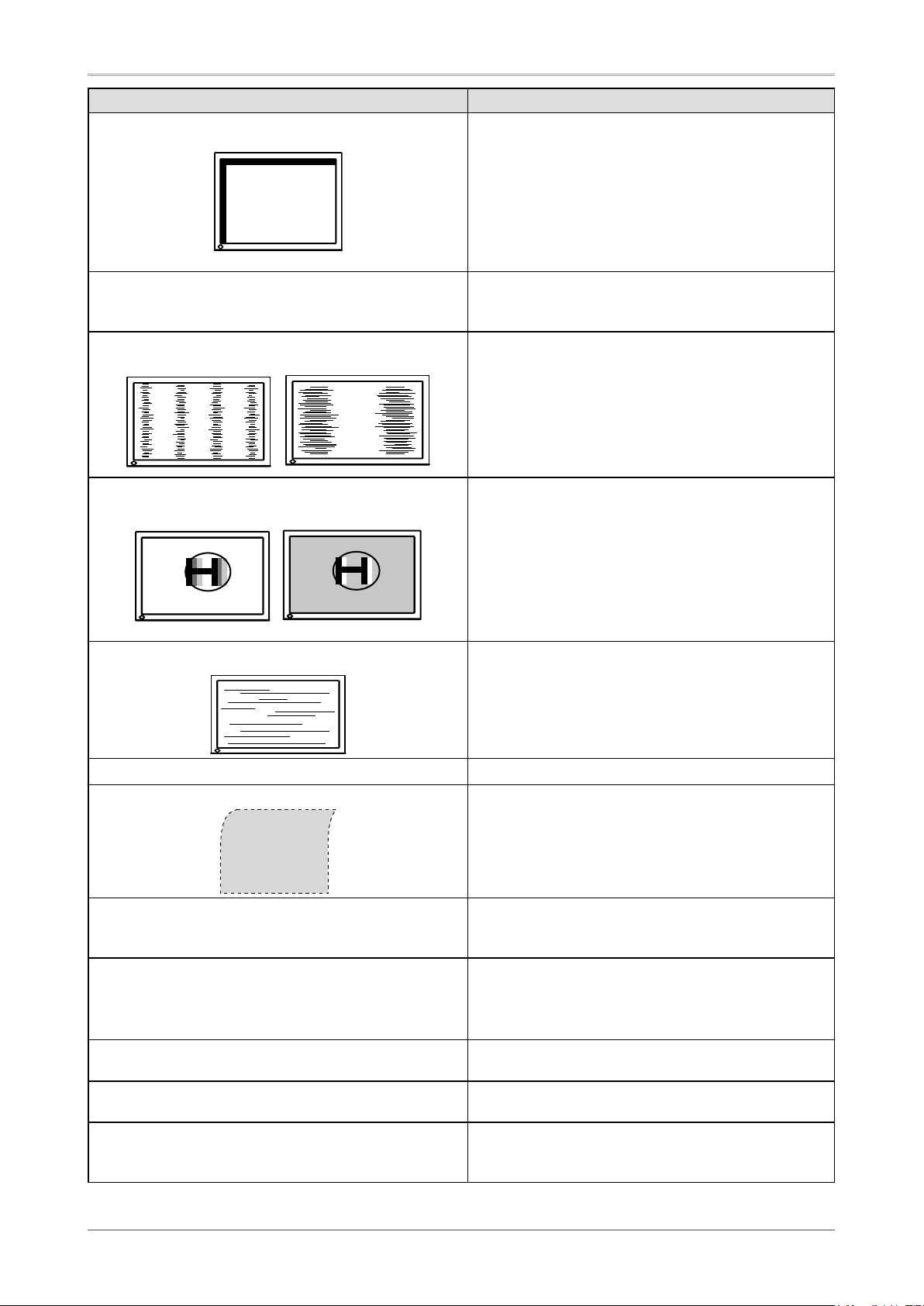

Problems Possible cause and remedy

3. Display position is incorrect.

•

Adjust image position so that it is displayed properly

within the display area using the <Position> adjustment
(page 15).

•

Adjust image position so that it is displayed properly

within the display area using the "Hor.Position" and "Ver.
Position" adjustment (page 15).

•

If the problem persists, use the graphics board’s utility if

available to change the display position.

4. Screen image displayed is smaller or larger than the
actual screen image.

•

Adjust the resolution using <Resolution> so that the

input signal resolution equals the resolution in the
resolution adjustment menu (page 16).

5. Vertical bars appear on the screen or a part of the image
is flickering.

•

Adjust using <Clock> (page 15).

6. The characters and images have several vertical bars on
their right side.

•

Adjust the characters and images using the

<Signal Filter>.

7. Whole screen is flickering or blurring.

•

Adjust using <Phase> (page 15).

8. Characters are blurred.

•

Adjust using <Smoothing> (page 23).

9. Upper part of the screen is distorted as shown below.

•

This is caused when both composite sync (X-OR)

signal and separate vertical sync signal are input
simultaneously. Select either composite signal or
separate signal

10.The screen is too bright or too dark.

•

Adjust <Brightness>. (The LCD monitor backlight has a

fixed life span. When the screen becomes dark or begins
to flicker, contact your local dealer.)

11.Afterimages appear.

•

Use a screen saver or off timer function for a long-time

image display.

•

Afterimages are particular to LCD monitors. Avoid

displaying the same image for a long time.

12.Green/red/blue/white dots or defective dots remain on

the screen.

•

This is due to LCD panel characteristics and is not a

failure.

13.Interference patterns or fingerprints remain on the

screen.

•

Leave the monitor with a white screen or a black screen.

The symptom may disappear.

14.Noise appears on the screen.

•

When entering the signals of analog input, select 1 to

4 in <Signal Filter> from the <Screen> menu to change
the mode.

4. Troubleshooting

27

Problems Possible cause and remedy

15.The <Smoothing> icon on the Adjustment menu
<Screen> cannot be selected.

•

<Smoothing> is disabled when the screen is displayed in

the following resolutions.

•

1600 × 1200

•

800 × 600

•

Select "Normal" during <Screen Size> mode.

•

<Smoothing> cannot be selected when the resolution
is doubled with <Screen Size> menu. (Example: 800 ×
600 is enlarged to 1600 × 1200)

16.The Main menu of Adjustment menu does not start.

•

Check for Adjustment Lock function (page 21).

17.The CAL Switch mode is not displayed.

•

Check for Adjustment Lock function (page 21).

18.

does not function.

•

does not function when digital signal is input.

•

Check for Adjustment Lock function (page 21).

19.PC is hung up. / The peripherals connected to the
downstream ports do not operate.

• Check that the USB cable is correctly connected.

• Check the downstream ports by connecting the
peripherals to other downstream ports. If the problem is
solved by doing this, contact an EIZO dealel (For details,
refer to the manual of the PC).

• Try executing the following method.

•Restarting the PC

•Connecting the PC and peripherals directly

•If the problem is solved by doing this, contact an EIZO
dealer.

20.USB function cannot be setup. • Check that the USB cable is correctly connected.

• Check that the PC and OS are USB compliant (For
verification of USB support, consult the manufacturer of
each system).

• Check the PC's BIOS setting for USB (For details, refer
to the manual of the PC).

28

5. Reference

5. Reference

5-1. Attaching an arm

The LCD monitor can be used with an arm by removing the tilt stand and attaching the arm stand to the
LCD monitor.

NOTE

•

If you will use the arm or stand of other manufacturers, confirm the followings to the manufacturers

before selecting.

-

Hole spacing on the arm mounting

100 mm x 100 mm (VESA compliant)

-

Supportable Weight: Total weight of the monitor (without stand) and attaching equipment such

as a cable

-

TÜV/GS approved arm or stand

•

Please connect cables after attaching an arm stand.

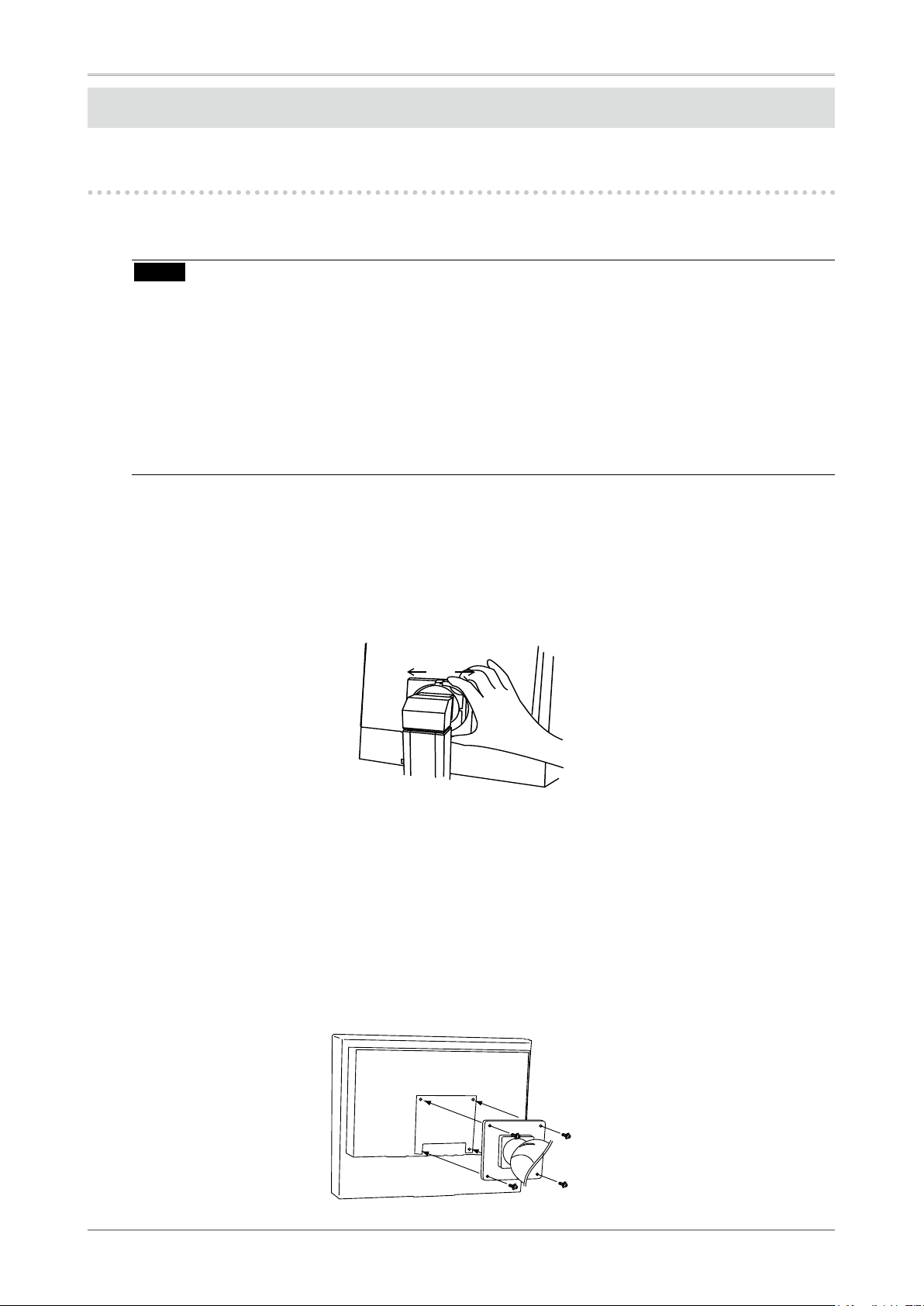

Setup Procedure

1

Hold the upper and lower centers of the stand joint cover, and slide sideways to

remove it.

2

Lay the LCD monitor on a soft cloth spread over on a stable surface with the

panel surface facing down.

3

Remove the stand. (Prepare a screwdriver.)

Unscrew the two screws securing the unit and the stand with the screwdriver.

4

Attach the monitor to the arm or stand.

Secure the stand to the monitor with four screws using a screwdriver.

5. Reference

29

5-2. Cleaning

Periodic cleaning is recommended to keep the monitor looking new and to prolong its operation lifetime.

NOTE

•

Never use thinner, benzene, alcohol (ethanol, methanol, or isopropyl alcohol), abrasive cleaners, or

other strong solvents, as these may cause damage to the cabinet or LCD panel.

Cabinet

To remove stains, wipe the cabinet with a soft, lightly moistened cloth using a mild detergent. Do not
spray wax or cleaner directly into the cabinet. (For details, refer to the manual of the PC.)

LCD Panel

•

The LCD surface can be cleaned with a soft cloth, such as cotton or lens paper.

•

For stubborn stains, use the cleaning kit “ ScreenCleaner”(Optional) or gently wipe the affected area

using a cloth moistened with water or an ethanol-based cleaner.

30

5. Reference

5-3. Specifications

LCD Panel 54 cm (21.3 inch), TFT color LCD panel

Surface treatment : Anti-Glare
Surface hardness : 3H
Response Time : 16ms

Viewing Angle Horizontal : 178°, Vertical : 178°

(CR: 10 or more)

Dot Pitch 0.270mm

Horizontal Scan
Frequency

Analog 24~80 kHz (Automatic)

Digital 31~76 kHz

Vertical Scan
Frequency

Analog 49~76Hz (Automatic) (1600x1200 : 49 ~ 61Hz)

Digital 59 ~ 61 Hz (VGA TEXT: 69 ~ 71 Hz)

Resolution 1600 dots x 1200 lines

Dot Clock
(Max.)

Analog 162MHz

Digital 162MHz

Display Colors 16.77 million colors (max.)

Display Area 432 mm (H) × 324 mm (V) (17" (H) x 12.8" (V))

Power Supply 100-120 VAC±10%, 50/60 Hz, 0.7A (with USB)

200-240 VAC±10%, 50/60 Hz, 0.4A (with USB)

Power Consumption Max.

Max. (Normal)
Power Saving Mode

:70 W (with USB)
:60W (without USB)
:Less than 2 W (for single signal input without
USB)

Input Signal Connector

DVI-I connector, D-Sub mini 15-pin

Analog Input Signal (Sync)

Separate, TTL, Positive/Negative

Composite, TTL, Positive/Negative

Analog Input Signal (Video)

0.7 Vp-p / 75 ohms, Positive

Input Signal (Digital) TMDS (Single Link)

Signal
registration

Analog 45 (Factory preset: 22)

Digital 10 (Factory preset: 0)

Plug & Play VESA DDC 2B / EDID structure 1.3

Dimensions with stand 465 mm (W) x 453 ~ 535 mm (H) x 208.5 mm (D)

(18.3"(W) x 17.8" ~ 21.1" (H) x 8.2"(D))

without stand 465 mm (W) x 361 mm (H) x 64 mm (D)

(18.3"(W) x 14.2" (H) x 2.52"(D))

Weight with stand 9.7kg (21.4 lbs.)

without stand 6.7kg (14.8 lbs.)

Environment
Conditions

Temperature Operating

Storage

: 0°C ~ 35°C (32°F ~ 95°F)
: -20°C ~ 60°C (-4°F ~ 140°F)

Humidity Operating

Storage

: 30% to 80% R.H. Non-condensing
: 30% to 80% R.H. Non-condensing

Pressure Operating

Storage

: 700 to 1060 hPa.
: 200 to 1060 hPa.

USB standard USB Specification

Revision 2.0

USB port Upstream port x 1

Downstream port x 2

Communication
Speed

480 Mbps (high), 12 Mbps (full), 1.5 Mbps (low)

Power Supply Downstream: 500 mA for each (max.)

5. Reference

31

Default settings

Smoothing 3
CAL Switch Mode DICOM-CL
PowerManager Analog input : VESA DPMS

Digital input:DVI DMPM
Screen Size Full
Off Timer Disable
Menu Settings Menu Size Normal

Menu Off Timer 45 seconds
BrightRegulator Disable
Language English

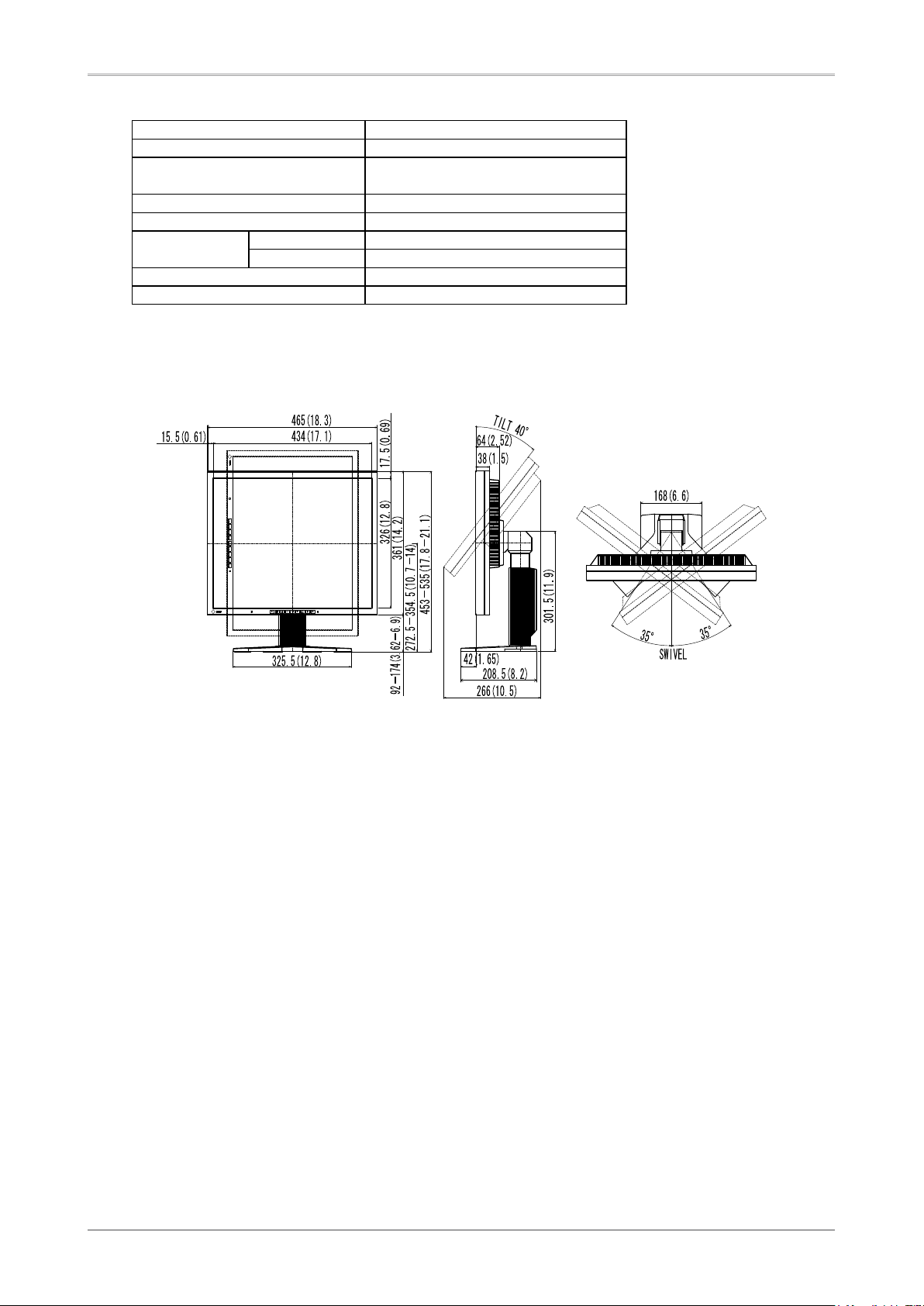

Dimensions

mm(inch)

32

5. Reference

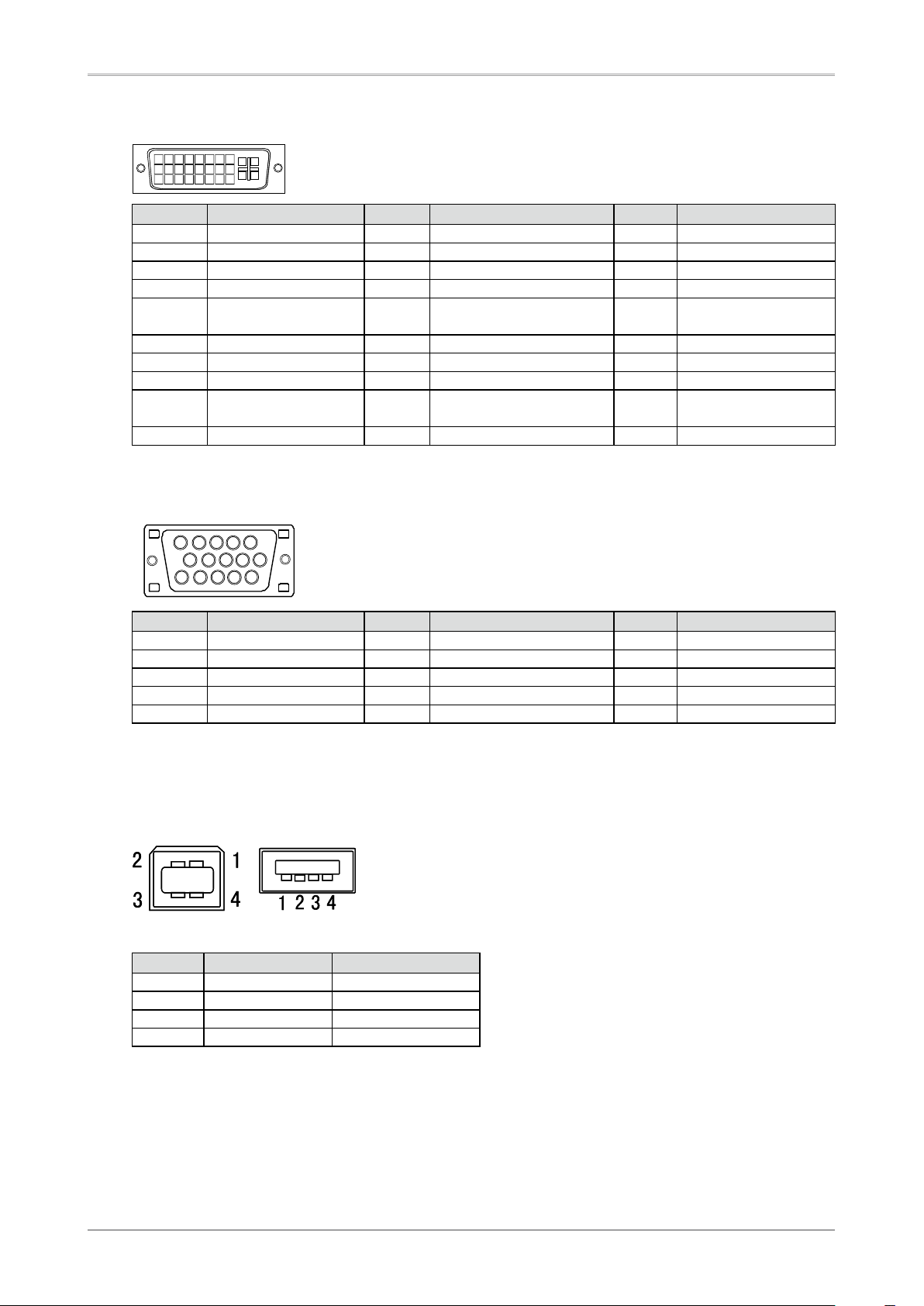

Pin Assignment

•DVI-I Connector

1

2

3

4

5

6

7

8

9

10

11

12

13

14 15

16

19

20

21

17

18 22 23

24

C1

C2

C3

C4

C5

Pin No. Signal Pin No. Signal Pin No. Signal

1 TMDS Data 2- 11 TMDS Data1/3 Shield 21 NC

*

2 TMDS Data 2+ 12 NC

*

22 TMDS Clock shield

3 TMDS Data2/4 Shield 13 NC

*

23 TMDS Clock+

4 NC

*

14 +5V Power 24 TMDS Clock-

5 NC

*

15 Ground (return for +5V,

Hsync and Vsync)

C1 Analog Red

6 DDC Clock (SCL) 16 Hot Plug Detect C2 Analog Green
7 DDC Data (SDA) 17 TMDS Data0- C3 Analog Blue
8 Analog Vertical Sync 18 TMDS Data0+ C4 Analog Horizontal Sync
9 TMDSData1- 19 TMDS Data0/5 Shield C5 Analog Ground(analog

R,G,&B return)

10 TMDS Data1+ 20 NC

*

(*NC: No Connection)

•D-sub mini 15-pin connector

5

1

3

4

2

8

7

6

9

10

12

13

14

15

11

Pin No. Signal Pin No. Signal Pin No. Signal

1

Red video

6

Red video ground

11 NC*

2

Green video

7

Green video ground

12

Data (SDA)

3

Blue video

8

Blue video ground

13

H. Sync

4 NC* 9 NC* 16

V. Sync

5

Ground

10

Ground

15

Clock (SCL)

(*NC: No Connection)

•USB Port

No. Signal Remarks

1 VCC Cable power
2 - Data Serial data
3 + Data Serial data
4 Ground Cable Ground

Upstream

Downstream

Series B
Connector

Series A
Connector

5. Reference

33

5-4. Glossary

Clock

With the analog input signal display, the analog signal is converted to a digital signal by the LCD
circuitry. To convert the signal correctly, the LCD monitor needs to produce the same number clock
pulse as the dot clock of the graphics system. When the clock pulse is not correctly set, some vertical
bars of distortion are displayed on the screen.

DICOM (Digital Imaging and Communication in Medicine)

DICOM is a standard for digital imaging and communication for medical use developed by American
College of Radiology and National Electric Manufacturers Association.

DVI (Digital Visual Interface)

A digital flat panel interface. DVI can transmit digital data from the PC directly without loss with the
signal transition method "TMDS". There are two kinds of DVI connectors. One is DVI-D connector
for digital signal input only. The other is DVI-I connector for both digital and analog signal inputs.

DVI DMPM (DVI Digital Monitor Power Management)

The Power management system for the digital interface. The "Monitor ON" status (operation mode)
and the "Active Off" status (power-saving mode) are indispensable for the DVI-DMPM as the
monitor's power mode.

Gain Adjustment

Adjusts each color parameter for red, green and blue. The color of the LCD monitor is displayed
through the color filter of the LCD panel. Red, green and blue are the three primary colors. The colors
on the monitor are displayed by combining these three colors. The color tone can change by adjusting
the illumination amount passed through each color's filter.

Gamma

Generally, the relationship that the light intensity values of a monitor change nonlinearly to the input
signal level is called "Gamma Characteristic". On the monitor, low gamma values display the whitish
images and high gamma values display the high contrast images.

Phase

The phase adjustment decides the sampling timing point for converting the analog input signal to a
digital signal. Adjusting the phase after the clock adjustment will produce a clear screen.

Range Adjustment

The Range Adjustment controls the level of output signal range to display the whole color gradation.

34

5. Reference

Resolution

The LCD panel consists of a fixed number of pixel elements which are illuminated to form the screen
image. This monitor consists of 1600 horizontal pixels and 1200 vertical pixels. At a resolution of
1600 x 1200 , all pixels are displayed as a full screen.

Temperature

Color Temperature is a method to measure the white color tone, generally indicated in degrees Kelvin.
At high temperatures the white tone appears somewhat blue, while at lower temperatures it appears
somewhat red. Computer monitors generally give best performance at high temperature settings.

5000 K: Slightly reddish white.
6500 K: Warm-white tone, similar to white paper or daylight.
9300 K: Slightly bluish white.

TMDS (Transition Minimized Differential Signaling)

A signal transition method for the digital interface.

VESA DPMS
(Video Electronics Standards Association - Display Power Management
Signaling)

The acronym VESA stands for "Video Electronics Standards Association", and DPMS stands for
"Display Power Management Signaling". DPMS is a communication standard that PCs and graphics
boards use to implement power savings on the monitor side.

6. APPENDIX/ANHANG/ANNEXE

35

6. APPENDIX/ANHANG/ANNEXE

Preset Timing Chart for Analog input
Timing-Übersichten für Analog Eingang
Synchronisation des Signaux pour Analog numerique

NOTE

• Based on the signal diagram shown below factory presets have been registered in the monitor's

microprocessor.

• Der integrierte Mikroprozessor des Monitors unterstützt werkseitige Standardeinstellungen (siehe

hierzu die nachfolgenden Diagramme).

• Signaux ont été enregistrés en usine dans le microprocesseur du moniteur, conformément au diagramme

de synchronisation ci-dessous.

Mode

Dot Clock
MHz

Frequencies

Sync Polarity

Horizontal:kHz
Vertical:Hz

VGA 640×480@60Hz 25.2 MHz

Horizontal 31.47 Negative
Vertical 59.94 Negative

VGA TEXT 720×400@70Hz 28.3 MHz

Horizontal 31.47 Negative
Vertical 70.09 Positive

Macintosh 640×480@67Hz 30.2 MHz

Horizontal 35.00 Negative
Vertical 66.67 Negative

Macintosh 832×624@75Hz 57.3 MHz

Horizontal 49.72 Negative
Vertical 74.55 Negative

Macintosh 1152×870@75Hz 100.0 MHz

Horizontal 68.68 Negative
Vertical 75.06 Negative

Macintosh 1280×960@75Hz 126.2 MHz

Horizontal 74.76 Positive
Vertical 74.76 Positive

PC-9801 640×400@56Hz 21.0 MHz

Horizontal 24.83 Negative
Vertical 56.42 Negative

PC-9821 640×400@70Hz 25.2 MHz

Horizontal 31.48 Negative
Vertical 70.10 Negative

VESA 640×480@72Hz 31.5 MHz

Horizontal 37.86 Negative
Vertical 72.81 Negative

VESA 640×480@75Hz 31.5 MHz

Horizontal 37.50 Negative
Vertical 75.00 Negative

VESA 800×600@56Hz 36.0 MHz

Horizontal 35.16 Positive
Vertical 56.25 Positive

VESA 800×600@60Hz 40.0 MHz

Horizontal 37.88 Positive
Vertical 60.32 Positive

VESA 800×600@72Hz 50.0 MHz

Horizontal 48.08 Positive
Vertical 72.19 Positive

VESA 800×600@75Hz 49.5 MHz

Horizontal 46.88 Positive
Vertical 75.00 Positive

VESA 1024×768@60Hz 65.0 MHz

Horizontal 48.36 Negative
Vertical 60.00 Negative

VESA 1024×768@70Hz 75.0 MHz

Horizontal 56.48 Negative
Vertical 70.07 Negative

VESA 1024×768@75Hz 78.8 MHz

Horizontal 60.02 Positive
Vertical 75.03 Positive

VESA 1152×864@75Hz 108.0 MHz

Horizontal 67.50 Positive
Vertical 75.00 Positive

VESA 1280×960@60Hz 108.0 MHz

Horizontal 60.00 Positive
Vertical 60.00 Positive

VESA 1280×1024@60Hz 108.0 MHz

Horizontal 63.98 Positive
Vertical 60.02 Positive

VESA 1280×1024@75Hz 135.0 MHz

Horizontal 79.98 Positive
Vertical 75.03 Positive

VESA 1600×1200@60Hz 162.0 MHz

Horizontal 75.00 Positive
Vertical 60.00 Positive

36

Congratulations!

The display you have just purchased carries the TCO’03 Displays label. This
means that your display is designed, manufactured and tested according to
some of the strictest quality and environmental requirements in the world.
This makes for a high performance product, designed with the user in focus
that also minimizes the Impact on our natural environment.

Some of the features of the TCO’03 Display requirements:

Ergonomics

●

Good visual ergonomics and image quality in order to improve the working environment for the user

and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution,

reectance, colour rendition and image stability.

Energy

●

Energy-saving mode after a certain time - benecial both for the user and environment

●

Electrical safety

Emissions

●

Electromagnetic elds

●

Noise emissions

Ecology

●

The products must be prepared for recycling and the manufacturer must have a certied environmental

management system such as EMAS or ISO 14000

●

Restrictions on

●

chlorinated and brominated ame retardants and polymers

●

heavy metals such as cadmium, mercury and lead.

The requirements includes in this label have been developed by TCO Development in co-operation with scientists,
experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in

inuencing the development of IT equipment in a more user-friendly direction. Our labeling system with displays

in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

37

For U.S.A. , Canada, etc. (rated 100-120 Vac) Only

FCC Declaration of Conformity

We, the Responsible Party EIZO NANAO TECHNOLOGIES INC.

5710 Warland Drive, Cypress, CA 90630
Phone: [phone]

declare that the product Trade name: EIZO

Model: FlexScan MX210

is in conformity with Part 15 of the FCC Rules. Operation of this product is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures.

* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help.

Changes or modications not expressly approved by the party responsible for compliance could void the user’s

authority to operate the equipment.

Note

Use the attached specied cable below or EIZO signal cable with this monitor so as to keep interference within the

limits of a Class B digital device.

- AC Cord

- Shielded Signal Cable (Enclosed)

Canadian Notice

This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de le classe B est comforme à la norme NMB-003 du Canada.

38

Hinweise zur Auswahl des richtigen Schwenkarms für Ihren Monitor

Dieser Monitor ist für Bildschirmarbeitsplätze vorgesehen. Wenn nicht der zum Standardzubehör gehörige
Schwenkarm verwendet wird, muss statt dessen ein geeigneter anderer Schwenkarm installiert werden. Bei der
Auswahl des Schwenkarms sind die nachstehenden Hinweise zu berücksichtigen:

Der Standfuß muß den nachfolgenden Anforderungen entsprechen:
a) Der Standfuß muß eine ausreichende mechanische Stabilität zur Aufnahme des Gewichtes vom Bildschirmgerät

und des spezizierten Zubehörs besitzen. Das Gewicht des Bildschirmgerätes und des Zubehörs sind in der

zugehörenden Bedienungsanleitung angegeben.

b) Die Befestigung des Standfusses muß derart erfolgen, daß die oberste Zeile der Bildschirmanzeige nicht höher

als die Augenhöhe eines Benutzers in sitzender Position ist.

c) Im Fall eines stehenden Benutzers muß die Befestigung des Bildschirmgerätes derart erfolgen, daß die Höhe der

Bildschirmmitte über dem Boden zwischen 135 – 150 cm beträgt.

d) Der Standfuß muß die Möglichkeit zur Neigung des Bildschirmgerätes besitzen (max. vorwärts: 5°, min. nach

hinten ≥ 5°).

e) Der Standfuß muß die Möglichkeit zur Drehung des Bildschirmgerätes besitzen (max. ±180°). Der maximale

Kraftaufwand dafür muß weniger als 100 N betragen.
f) Der Standfuß muß in der Stellung verharren, in die er manuell bewegt wurde.
g) Der Glanzgrad des Standfusses muß weniger als 20 Glanzeinheiten betragen (seidenmatt).
h) Der Standfuß mit Bildschirmgerät muß bei einer Neigung von bis zu 10° aus der normalen aufrechten Position

kippsicher sein.

Hinweis zur Ergonomie :

Dieser Monitor erfüllt die Anforderungen an die Ergonomie nach EK1-ITB2000 mit dem Videosignal, 1600 ×
1200 , Digital Eingang und mindestens 60,0 Hz Bildwiederholfrequenz, non interlaced. Weiterhin wird aus
ergonomischen Gründen empfohlen, die Grundfarbe Blau nicht auf dunklem Untergrund zu verwenden (schlechte
Erkennbarkeit, Augenbelastung bei zu geringem Zeichenkontrast.)

„Maschinenlärminformations-Verordnung 3. GPSGV:
Der höchste Schalldruckpegel beträgt 70 dB(A) oder weniger gemäss EN ISO 7779“
