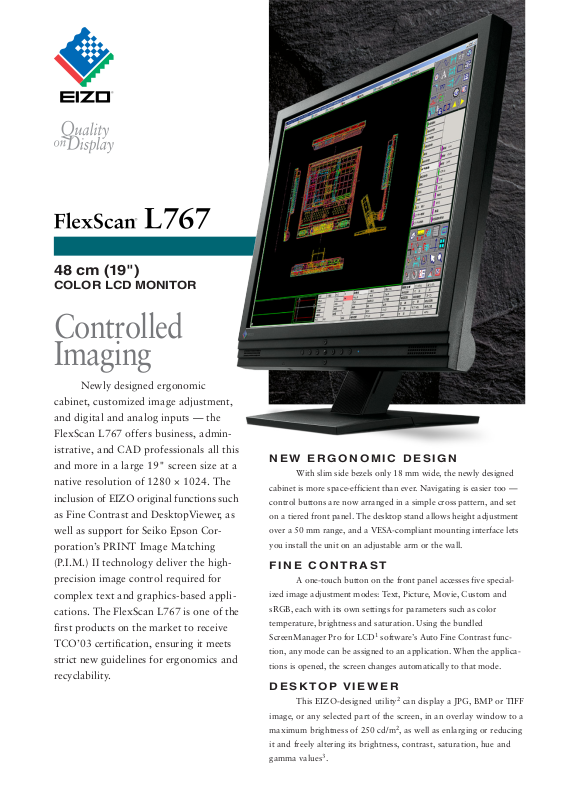

Eizo FLEXSCAN L767 BROCHURE

48 cm (19")

COLOR LCD MONITOR

Controlled
Imaging

Newly designed ergonomic
cabinet, customized image adjustment,
and digital and analog inputs — the
FlexScan L767 offers business, admin­istrative, and CAD professionals all this
and more in a large 19" screen size at a
native resolution of 1280 × 1024. The
inclusion of EIZO original functions such
as Fine Contrast and DesktopViewer, as
well as support for Seiko Epson Cor­poration’s PRINT Image Matching

NEW ERGONOMIC DESIGN

With slim side bezels only 18 mm wide, the newly designed
cabinet is more space-efficient than ever. Navigating is easier too —
control buttons are now arranged in a simple cross pattern, and set
on a tiered front panel. The desktop stand allows height adjustment
over a 50 mm range, and a VESA-compliant mounting interface lets
you install the unit on an adjustable arm or the wall.

(P.I.M.) II technology deliver the high­precision image control required for
complex text and graphics-based appli­cations. The FlexScan L767 is one of the
first products on the market to receive
TCO’03 certification, ensuring it meets
strict new guidelines for ergonomics and
recyclability.

FINE CONTRAST

A one-touch button on the front panel accesses five special­ized image adjustment modes: Text, Picture, Movie, Custom and
sRGB, each with its own settings for parameters such as color
temperature, brightness and saturation. Using the bundled

1

ScreenManager Pro for LCD
tion, any mode can be assigned to an application. When the applica­tions is opened, the screen changes automatically to that mode.

software’s Auto Fine Contrast func-

DESKTOP VIEWER

This EIZO-designed utility2 can display a JPG, BMP or TIFF
image, or any selected part of the screen, in an overlay window to a

2

maximum brightness of 250 cd/m
it and freely altering its brightness, contrast, saturation, hue and

3

gamma values

.

, as well as enlarging or reducing

48 cm (19")

COLOR LCD MONITOR

Additional Features

P.I.M. II AND EXIF 2.2

Support for these image optimization technologies enable
digital camera images to be viewed, edited and printed out
at the highest level of quality. (Digital camera and printer
must be P.I.M. II- and Exif 2.2-enabled.)

GAMMA CORRECTION

Internal circuitry automatically converts 8-bit data from the
PC to 10-bit and back to 8-bit, producing smooth, accurate
color tones. Gamma values are also user adjustable from 1.4
to 3.0 in increments of 0.2.

REGULATORY STANDARDS

The FlexScan L767 complies with current international
standards relating to safety, ergonomics, and power manage­ment as well as “EIZO Eco Products 2002”, an in-house
label covering such environmental issues as manufacture
with lead-free solder and chrome-free steel plates.

Accessories

High-transparency screen cover for
protection from dust and scratches.

This EIZO-developed software enables various important
setup and management tasks of client PCs and monitors to
be executed across a network from a single server PC.

Dimensions

415

378.3

303

(Unit: mm)

374

456

~

406

30.5

5˚

30˚

54

2

34

Specifications

Panel Size and Type

Available Cabinet Colors

Pixel Pitch

Display Colors

Viewing Angles

Scanning Frequency

Recommended Resolution

Brightness

Contrast Ratio

Response Time

Dot Clock

Input Signals

Input Terminals

USB Port / Standard

Active Display Size (H × V)

Viewable Image Size

Plug & Play

Screen Control

Power Requirements

Power Management

Power Consumption

Power Save Mode

OSD Languages

Dimensions (W × H × D)

Net Weight

Audio

Certifications and Standards

Supplied Accessories

1

ScreenManager Pro for LCD is compatible with the Microsoft® Windows® 98SE/

ME/ 2000/XP OS only.

3

Support for editing functions varies with the graphics card used.

OS only.

Specifications are subject to change without notice.

This product supports PRINT Image Matching. A combination of PRINT Image Matching

and PRINT Image Matching II enabled digital still cameras, printers, and software help

photographers to produce images which are more faithful to their intentions.

Copyright© 2003 Eizo Nanao Corporation. All rights reserved. All product names are

trademarks or registered trademarks of their respective companies. Screen Administrator

is a trademark, and FlexScan, EIZO, and ScreenManager are registered trademarks

of Eizo Nanao Corporation.

2

48 cm (19") TFT color LCD panel

Gray, Black

0.294 mm × 0.294 mm

16.7 million

H: 170°, V: 170°

Analog: 24.8 – 80 kHz, 50 – 75 Hz

Digital: 31 – 64 kHz, 59 – 61 Hz (VGA Text: 69 – 71 Hz)

1280 × 1024

250 cd/m2 (typical)

500:1 (typical)

25 ms (typical)

Analog: 135 MHz, Digital: 108 MHz

RGB Analog, DVI Standard 1.0

D-Sub mini 15 pin, DVI-D 24 pin (switchable)

1 Upstream / Rev.1.1

376 mm × 301 mm

482 mm (diagonal)

VESA DDC 2B

ScreenManager®, ScreenManager Pro for LCD1,

One Touch Auto Adjustment Function

AC 100 – 120V / 200 – 240V, 50 – 60 Hz

VESA DPMS, DVI-DMPM

45 watts (maximum)

Less than 2 watts

English, French, German, Italian, Japanese, Spanish, Swedish

With Stand: 415 mm × 406 – 456 mm × 216 mm

Without Stand: 415 mm × 374 mm × 54 mm

With Stand: 6.6 kg, Without Stand: 5.1 kg

Dual 1W built-in speakers, input/headphone jacks

30° Up, 5° Down

Tilt

TCO’03 (gray), TCO’99 (black), TÜV/Ergonomics,

TÜV/GS, c-Tick CE, CB, UL 60950: 2000,

CSA C22.2 No. 60950-00, FCC-B,

Canadian ICES-003-B, TÜV/S, VCCI-B,

EPA ENERGY STAR®, EIZO Eco Products 2002

AC power cord, signal cable (D-Sub mini 15 pin),

USB cable, audio cable, setup guide, EIZO LCD

Utility Disk (ScreenManager Pro for LCD, ICC

Profile, HTML user’s manual), 4 screws for

mount option, warranty registration card

DesktopViewer is compatible with the Windows 2000/XP

135

~

85

62

190

8.7

82

~

32

13

31~60

50

216

140.5

EIZO NANAO CORPORATION

153 Shimokashiwano, Matto, Ishikawa 924-8566 Japan

Phone [phone] Fax: [phone]

www.eizo.com
