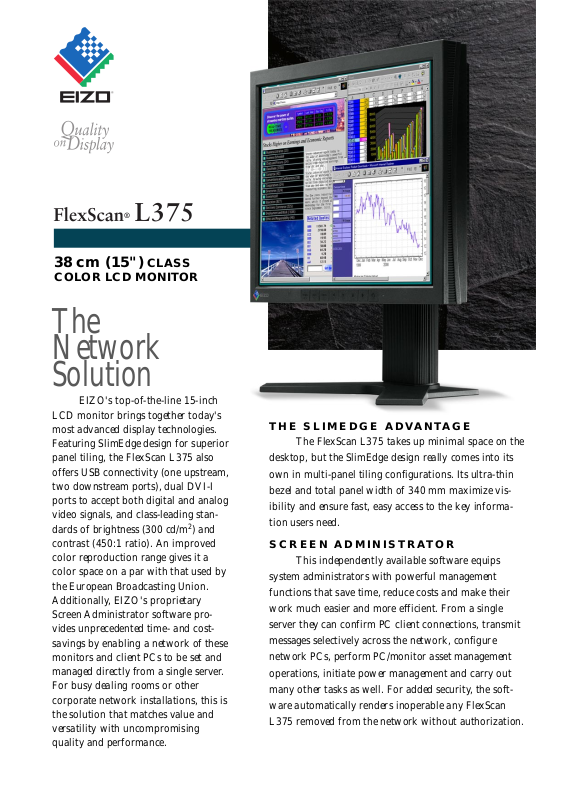

38 cm (15") CLASS

COLOR LCD MONITOR

The
Network
Solution

EIZO's top-of-the-line 15-inch
LCD monitor brings together today's
most advanced display technologies.
Featuring SlimEdge design for superior
panel tiling, the FlexScan L375 also
offers USB connectivity (one upstream,
two downstream ports), dual DVI-I
ports to accept both digital and analog
video signals, and class-leading stan­dards of brightness (300 cd/m
contrast (450:1 ratio). An improved
color reproduction range gives it a
color space on a par with that used by
the European Broadcasting Union.
Additionally, EIZO's proprietary
Screen Administrator software pro­vides unprecedented time- and cost­savings by enabling a network of these
monitors and client PCs to be set and
managed directly from a single server.
For busy dealing rooms or other
corporate network installations, this is
the solution that matches value and
versatility with uncompromising
quality and performance.

2

) and

THE SLIMEDGE ADVANTAGE

The FlexScan L375 takes up minimal space on the
desktop, but the SlimEdge design really comes into its
own in multi-panel tiling configurations. Its ultra-thin
bezel and total panel width of 340 mm maximize vis­ibility and ensure fast, easy access to the key informa­tion users need.

SCREEN ADMINISTRATOR

This independently available software equips
system administrators with powerful management
functions that save time, reduce costs and make their
work much easier and more efficient. From a single
server they can confirm PC client connections, transmit
messages selectively across the network, configure
network PCs, perform PC/monitor asset management
operations, initiate power management and carry out
many other tasks as well. For added security, the soft­ware automatically renders inoperable any FlexScan
L375 removed from the network without authorization.

38 cm (15") CLASS

COLOR LCD MONITOR

Additional Features

WIDE ANGLE OF VISION

160˚ horizontal and 150˚ vertical viewing angles minimize
color shift, even at acute angles.

INPUT PRIORITY

To display vital information as soon as it becomes available,
the user can assign priority to either input when two
computers are connected.

ADVANCED COLOR CONTROL

Color settings such as temperature, hue, gain and saturation
can be adjusted independently.

AUTO ADJUSTMENT

A one-touch button centers the displayed image auto­matically.

FREE MOUNT CAPABILITY

Freestanding (desktop) or wall- or arm-mounting options
accommodate any user preference.

CUSTOMIZED POSITIONING

Tilt (40˚) and swivel (35˚) capabilities enable individually
customized positioning.

ECONOMICAL OPERATION

Automatic (or server-controlled) PowerManager and Off
Timer functions minimize power consumption.

REGULATORY STANDARDS

Specifications

Panel Size and Type

Available Cabinet Colors

Pixel Pitch

Display Colors

Viewing Angles

Scanning Frequency

Recommended Resolution

Brightness
Contrast Ratio
Response Time

Dot Clock

Input Signals

Input Terminal

Active Display Size (H × V)

Viewable Image Size

Plug & Play

Screen Control

Power Requirements

Power Management

Power Consumption

Power Save Mode

OSD Languages

Dimensions (W × H × D)

Net Weight

Tilt/Swivel

Certifications and Standards

USB Standard

USB Ports

Supplied Accessories

38 cm (15") TFT color LCD panel
Gray, Black

0.297 mm × 0.297 mm

16.7 million
H: 160°, V: 150°
Analog: H: 31 - 61 kHz, V: 50 - 85 Hz
Digital: H: 31 - 49 kHz, V: 60 Hz (VGA text: 70 Hz)
1024 × 768
300 cd/m2 (typical)
450:1 (typical)
Rise Time: 6 ms, Fall Time: 19 ms
Analog: 80 MHz, Digital: 65 MHz
RGB Analog, DVI Standard 1.0
DVI-I 29 pin × 2 (switchable)
304 mm × 228 mm
380 mm (diagonal)

1

VESA DDC 2B
ScreenManager®, One Touch Auto Adjustment Function
AC 100-120V/220-240V, 50/60 Hz
VESA DPMS, EIZO MPMS, DVI-DMPM
35 watts (typical)
Less than 5 watts
English, German, French, Spanish, Italian, Swedish, Japanese
With Stand: 340 mm × 369 mm × 175 mm
Without Stand: 340 mm × 267 mm × 61 mm
With Stand: 4.3 kg, Without Stand: 3.2 kg
40° Up, 0° Down / 35° Right, 35° Left
TCO‘992, TÜV/Ergonomics, TÜV/GS, c-Tick, CE,
CB, UL 1950, CSA C22.2 No.950, FCC-B, Canadian
ICES-003-B, TÜV/S, VCCI-B, EPA ENERGY STAR
USB Standard Rev. 1.1
1 upstream, 2 downstream
AC power cord, user’s manual, signal cables
(DVI-D ~ DVI-D, D-Sub ~ DVI-D), EIZO LCD Utility
Disk (with ICC profile), warranty registration card

®

Accessories

SOUND UNIT

Powered from the monitor, this stereo speaker unit attaches
directly to the bezel.

PROTECTION SHEET

Protects the screen surface from dust and scratches.

1

Only valid when computer supports all Plug & Play functions (personal
computer, graphics boar d, Windows
to the Windows 95/98/2000, personal computer, and graphics board manuals or
contact the manufacturers.

2

Gray cabinet only.
With current LCD technology, a panel may contain a limited number of missing
or flickering pixels.

Specifications are subject to change without notice.
ENERGY STAR is a U.S. registered mark. As an ENERGY STAR® Partner, Eizo Nanao

Corporation has determined that the products specified herein meet the ENERGY
STAR® guidelines for energy efficiency.
Copyright© 2001 Eizo Nanao Corporation. All rights reserved. All product names are
trademarks or registered trademarks of their respective companies. PowerManager,
QuickSet, and i·Sound are trademarks, and FlexScan, EIZO, and ScreenManager are
registered trademarks of Eizo Nanao Corporation.
