55 cm (21 inch) Class Color Display Monitor
Page 2
655 Fukudome, Matto, Ishikawa 924-8533 Japan
Phone : +81 76 277-3310 Fax : +81 76 277-3450
http://www.eizo.co.jp/
Specifications are subject to change without notice.
ENERGY STAR
®
is a U.S. registered mark. As an ENERGY STAR® Partner, Eizo Nanao Corporation has determined
that this product meets the ENERGY STAR
®
guidelines for energy efficiency.
Copyright© 2000 Eizo Nanao Corporation. All rights reserved. All product names are trademarks of their respective
companies. PowerManager and i.Sound are trademarks, and FlexScan, EIZO, ScreenManager, and ErgoCoat are
registered trademarks of Eizo Nanao Corporation.
High Resolutions
Fine Contrast

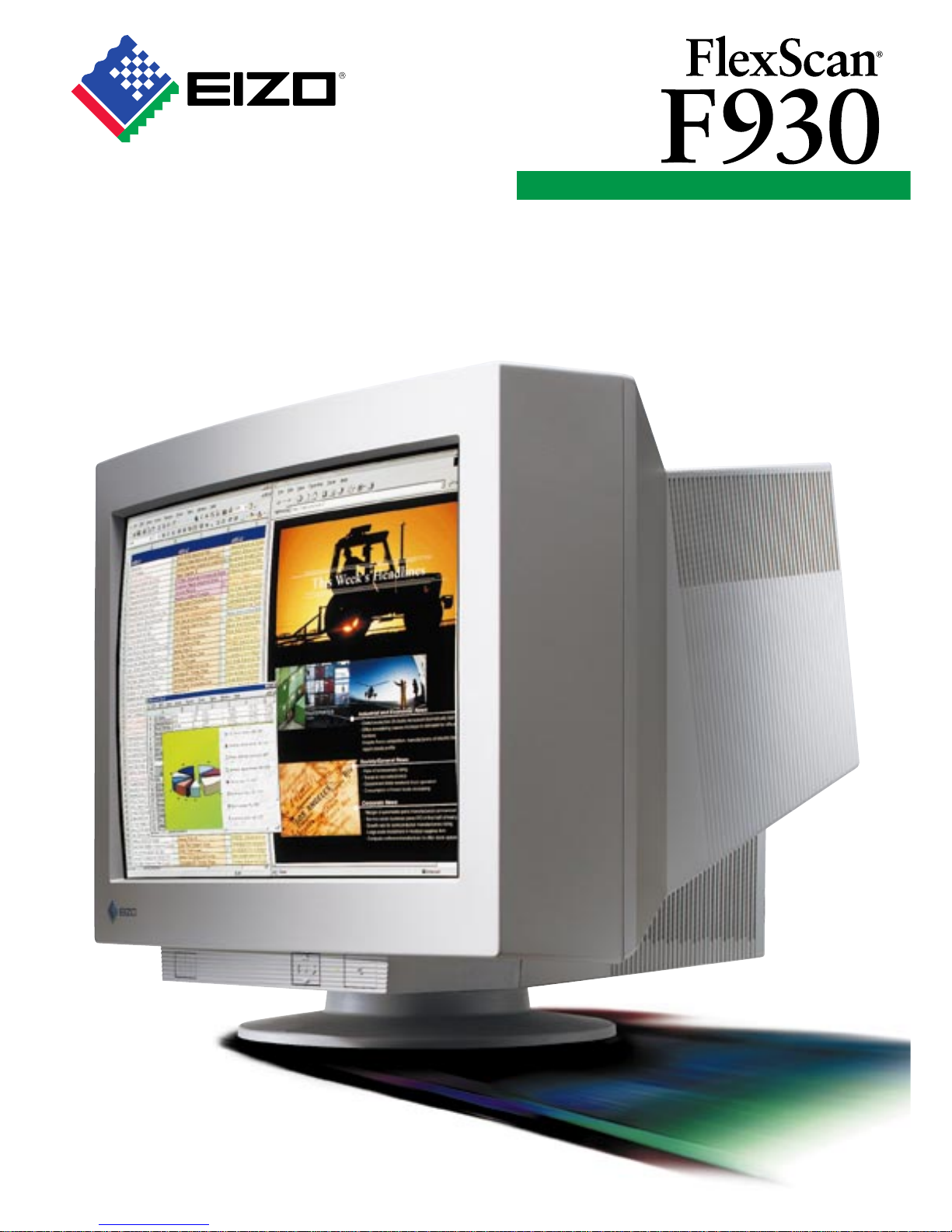

55 cm (21 inch) Class Color Display Monitor
Size, quality, and innovation all come together in the new F930. EIZO has loaded
this 21 inch Invar shadow mask CRT monitor with advanced technological features
to ensure high performance standards for CAD/CAM, desktop publishing, web
design, and business applications.
55 cm (21 inch) class, 90°
deflection Invar Shadow Mask
0.25 mm / 0.21 mm (H)
SuperErgoCoat
®
H: 30 - 130 kHz V: 50 - 160 Hz
RGB Analog
D-Sub mini 15 pin and
BNC
× 5 (switchable)
402 mm (H)
× 300 mm (V)
(Diagonal: 501 mm)
1600 dots
× 1200 lines,
flicker-free at 104 Hz (max.)
(2048 dots
× 1536 lines at
80 Hz addressable)
ScreenManager
®
,
One Touch Auto Adjustment Function (Auto-Sizing)
VESA DPMS
130 W
Less than 10 W
Less than 3 W
DDC 1/2B
494 mm (W)
× 486 mm (H)
× 520 mm (D)
29.0 kg
TÜV Rheinland/GS, CB, CE Mark
FlexScan® F930 Specifications
EIZO NANAO CORPORATION
The fine contrast function widens
the dynamic range of the displayed image by approximately
20% and contains both text and
picture modes to enable the user
to customize it for specific applications.
A wide horizontal scanning frequency of 30 – 130 kHz allows the
F930 to attain a recommended resolution of 1600 × 1200 /104 Hz
(addressable) and a maximum resolution of 2048 × 1536 at a flicker-free refresh rate of 80 Hz. The
extremely fine 0.25 mm dot pitch
(0.21 mm horizontal) creates
sharp images even at the highest
resolutions.
i⋅SoundTM Sound Unit
Ergonomic Standards
For the enhancement of multimedia applications, EIZO offers the
i⋅Sound, a separately sold speaker
unit which comfortably attaches to
the control panel console of the
F930. The i⋅Sound is equipped
with two speakers, two stereo
mini-jack cables, and a microphone, and is powered directly
from the monitor.
Advanced Functions
• EIZO's own Digital Signal Processor (DSP) to correct screen
distortion.
• Two signal filters to eliminate
ghosting and moiré.
• Auto-Sizing button located on
the front bezel for simple and
quick readjustment of the displayed image to the ideal setting.
• Two video input terminals for
simultaneous attachment of two
computers to the F930.
• PowerManager and off timer
functions to reduce energy consumption to under 3 watts during periods of inactivity.
Warm-up Period Reduced
While conventional CRT monitors
may take 40 minutes or longer to
warm up and achieve stable
brightness, the F930 employs a
new drift correction circuit to
shorten the warm-up period by
75% so that users can enjoy picture stability in only 10 minutes.
The F930 complies with the most
stringent ergonomic, energy, environmental, and safety standards
including TCO'99, the CE Mark,
TÜV Rheinland/Ergonomie, and
the EPA ENERGY STAR
Program.
Automatic Color Correction
This new function detects video
signal output level from a graphics
card and automatically compensates it to a proper level to minimize disparities in color temperature and brightness. Color correction unifies color temperature when
two computers are connected to
the F930, even if the graphics cards
and operating systems are different.
♦
Text Mode
Clear, smooth text
♦
Picture Mode
Vivid, natural colors
486
300
42.8
72.5
126
494
402
520
4
°
10
°
306
φ
Video Bias Circuitry
The F930's new video bias circuitry minimizes color changes
caused by variations in brightness,
even with fluctuations from 0 –
100% for realistic color reproduction.
*Only valid when computer system supports all Plug & Play
functions (personal computer, graphics board, Windows
®
95/98/2000).
For more details, please refer to the Windows 95/98/2000, personal
computer, and graphics board manuals or contact the
manufacturers.
(Unit : mm)
TÜV Rheinland/Ergonomie
Geprüft (including ISO 92413, ISO 9241-7 [Positive/Class
I, Negative/Class I], ISO 92418 and MPR-II), EPA ENERGY STAR
®
Program, Energy
2000, TCO'99
CRT Size
CRT Phosphor Pitch
CRT Surface Treatment
Scanning Frequency
Input Signals
Input Terminals
Active Display Size
Recommended Resolution
Screen Control
Power Management System
Power Consumption
Power Save Mode 1
Power Save Mode 2 (Off)
Plug & Play*
Dimensions
Net Weight
Safety Standards
Ergonomic/Environmental
Standards
