Eizo EV3237 User Guide
User’s Manual
Color LCD Monitor
Important
Please read PRECAUTIONS, this User’s Manual, and the Setup Guide (separate volume) carefully to familiarize yourself
with safe and effective usage.
• Please refer to the Setup Guide for basic information ranging from connection of the monitor to a PC to using the
monitor.
• The latest User’s Manual is available for download from our web site:
http://www.eizoglobal.com
Location of Caution Statement
WARNING
AVERTISSEMENT
WARNUNG
This product has been adjusted specically for use in the region to which it was originally shipped. If operated outside this region, the product may not perform as
stated in the specications.
No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, or otherwise, without
the prior written permission of EIZO Corporation.
EIZO Corporation is under no obligation to hold any submitted material or information condential unless prior arrangements are made pursuant to EIZO
Corporation’s receipt of said information. Although every effort has been made to ensure that this manual provides up-to-date information, please note that EIZO
monitor specications are subject to change without notice.
- 2 -
Notice for this monitor
Notice for this monitor
Aside from creating documents, viewing multimedia content, and other general purposes, this product is also suited to applications such as creating survey maps
and other drawings.
This product has been adjusted specically for use in the region to which it was originally shipped. If the product is used outside the region, it may not operate as
specied in the specications.
This product may not be covered by warranty for uses other than those described in this manual.
The specications noted in this manual are only applicable when the following are used:
· Power cords provided with the product
· Signal cables specied by us
Only use optional products manufactured or specied by us with this product.
It takes about 30 minutes for the performance of electrical parts to stabilize. Please wait 30 minutes or more after the monitor power has been turned on, and then
adjust the monitor.
Monitors should be set to a lower brightness to reduce changes in luminosity caused by long-term use and maintain a stable display.
When the screen image is changed after displaying the same image for extended periods of time, an afterimage may appear. Use the screen saver or power save
function to avoid displaying the same image for extended periods of time.
If the monitor displays continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor
be turned off periodically.
Periodic cleaning is recommended to keep the monitor looking new and to prolong its operation lifetime (refer to “Cleaning” (page 4)).
The LCD panel is manufactured using high-precision technology. Although, missing pixels or lit pixels may appear on the LCD panel, this is not a malfunction.
Percentage of effective dots: 99.9994% or higher.
The backlight of the LCD panel has a xed lifetime. When the screen becomes dark or begins to icker, please contact your local EIZO representative.
- 3 -
Notice for this monitor
Do not press on the panel or edge of the frame strongly, as this may result in display malfunctions, such as interference patterns, etc. If pressure is continually
applied to the panel, it may deteriorate or damage your panel. (If the pressure marks remain on the panel, leave the monitor with a black or white screen. The
symptom may disappear.)
Do not scratch or press on the panel with any sharp objects, as this may result in damage to the panel. Do not attempt to brush with tissues as this may scratch the
panel.
When the monitor is cold and brought into a room or the room temperature goes up quickly, dew condensation may occur on the interior and exterior surfaces of the
monitor. In that case, do not turn the monitor on. Instead wait until the dew condensation disappears, otherwise it may cause some damage to the monitor.
Cleaning
Attention
• Chemicals such as alcohol and antiseptic solution may cause gloss variation, tarnishing, and fading of the cabinet or panel, and also quality deterioration of the image.
• Never use any thinner, benzene, wax, and abrasive cleaner, which may damage the cabinet or panel.
Note
• The optional ScreenCleaner is recommended for cleaning the cabinet and panel surface.
The stains on the cabinet and panel surface can be removed by moistening part of a soft cloth with water.
To use the monitor comfortably
• An excessively dark or bright screen may affect your eyes. Adjust the brightness of the monitor according to the environmental conditions.
• Staring at the monitor for a long time tires your eyes. Take a 10-minute rest every hour.
- 4 -
CONTENTS
CONTENTS
Notice for this monitor ................................................................................3
Cleaning ................................................................................................................4
To use the monitor comfortably .........................................................................4
CONTENTS ....................................................................................................5
Chapter 1 Introduction ..............................................................................7
1-1. Features .....................................................................................................7
1-2. Controls and Functions ...........................................................................9
Front ............................................................................................................9
●
Rear ...........................................................................................................10
●
1-3. Supported Resolutions ..........................................................................11
1-4. Setting the Resolution ...........................................................................12
Windows 8.1 / Windows 8 / Windows 7.....................................................12
●
Windows Vista ...........................................................................................12
●
Mac OS X ..................................................................................................12
●
Chapter 2 Basic Adjustment/Setting ..................................................... 13
2-1. Button Operation Method ......................................................................13
2-2. Switching Input Signals (During Single Screen Display) ...................14
2-3. Switching Display Modes (Color Modes) .............................................15
Display Modes ...........................................................................................15
●
2-4. ConguringPbyP/PinP ...........................................................................16
2-5. Conserving Energy .................................................................................20
2-6. Adjusting Brightness .............................................................................23
2-7. Adjusting Volume....................................................................................24
Chapter 3 Advanced Adjustment/Setting ............................................. 25
3-1. Basic Operation of the Setting menu ...................................................25
3-2. Setting Menu Functions .........................................................................26
Color Adjustment .......................................................................................26
●
Signal Settings ..........................................................................................29
●
Preference Settings ..................................................................................31
●
Language ..................................................................................................33
●
Information ............................................................................................... 34
●
Chapter 4 Administrator Settings ..........................................................35
4-1. Basic Operation of the “Administrator Settings” Menu .....................35
4-2. Functions of the “Administrator Settings” Menu ...............................36
Chapter 5 Troubleshooting ..................................................................... 38
5-1. No picture ................................................................................................38
5-2. Imaging problems .................................................................................. 40
5-3. Other problems .......................................................................................42
Chapter 6 Reference ...............................................................................43
6-1. Attaching the Optional Arm .................................................................. 43
6-2. Detaching/Attaching Stand Base ......................................................... 44
6-3. Attaching/Detaching the Cable Holder ................................................47
6-4. Making Use of USB (Universal Serial Bus) ......................................... 49
Required System Environment .................................................................49
●
Connection Procedure (Setup of USB Function) ......................................50
●
6-5. Specications .........................................................................................51
Outside Dimensions ..................................................................................53
●
Main Default Settings ............................................................................... 54
●
Accessories ...............................................................................................55
●
Chapter 7 Glossary .................................................................................56
Appendix ..................................................................................................... 59
Trademark .......................................................................................................... 59
License / Copyright ........................................................................................... 60
ENERGY STAR ................................................................................................... 60
TCO ..................................................................................................................... 60
FCC Declaration of Conformity ........................................................................63
Hinweise zur Auswahl des richtigen Schwenkarms für Ihren Monitor ........65
Hinweis zur Ergonomie : ...................................................................................65
- 5 -
- 5 -
LIMITED WARRANTY ........................................................................................ 66
Recycling Information .......................................................................................75
China Measures for RoHS Compliance in ChinaRoHS ..................................80
CONTENTS
- 6 -
- 6 -
Chapter 1 Introduction
Thank you very much for choosing an EIZO color LCD monitor.
1-1. Features
• 31.5″ wide format LCD
• Supports a resolution of 3840 × 2160
• IPS panel with 89˚ horizontal and vertical viewing angles
• Supports four digital signal input interfaces (DisplayPort × 2, DVI-D (Dual Link/Single Link) × 1, HDMI × 1)
- DisplayPort (8-bit support)
The DisplayPort input receives both image signals and audio signals via a single DisplayPort cable.
*1 When transmitting an audio signal using the DisplayPort cable, the graphics board must support audio output.
See “6-5. Specications” (page 51).
- HDMI
Supports PC signals via HDMI input.
The HDMI input receives both image signals and audio signals via a single HDMI cable.
• Equipped with “Picture by Picture (PbyP)” and “Picture in Picture (PinP)” functions that allow simultaneous display of multiple signals
Eliminates the need for changing between signals and leads to increased work efciency.
See “2-4. Conguring PbyP/PinP” (page 16).
• The Color Mode function allows the user to select the display mode optimum to the displayed image.
The Paper mode reproduces a printed paper effect on the monitor. In Paper mode, the amount of blue light emitted from the screen is reduced by changing the color tone
and controlling the brightness.
See “2-3. Switching Display Modes (Color Modes)” (page 15).
• Power saving functions
Suppressing power consumption*2 reduces carbon dioxide emissions. This product is equipped with power saving functions.
- 0 W power consumption when the main power is off
Equipped with a main power switch.
When not using the monitor, the power supply can be shut off with the main power switch.
- Auto EcoView
The ambient light sensor on the front of the monitor detects the ambient brightness to automatically adjust the screen brightness to a comfortable level. Excessively
high brightness may increase power consumption and cause unwanted environmental effects. It may also lead to eye fatigue. The range of automatic adjustment can be
congured to personal preference.
See “Auto EcoView” (page 21).
*1
Chapter 1 Introduction
- 7 -
Chapter 1 Introduction
- EcoView Optimizer 2
The monitor automatically adjusts the screen brightness according to the white level of the input signal. This function can reduce power consumption while maintaining
the brightness specied by the input signal.
See “EcoView Optimizer 2” (page 21).
- EcoView Sense
The sensor on the front of the monitor detects user movement. When the user moves away from the monitor, the monitor shifts to power saving mode automatically and
does not display images on the screen in order to reduce power consumption. The sensitivity of the sensor and time until power saving mode is activated can be set
according to the monitor usage environment and movement of the user.
See “EcoView Sense” (page 22).
*2 Reference values:
Maximum power consumption: 105 W (when a USB device is connected, speaker working)
Standard power consumption: 30 W (brightness 120 cd/m
2
, when no USB device is connected, speaker not working, at default settings)
• Equipped with a USB Hub function that supports USB 3.0
Achieves high-speed data transfers of up to 5 Gbps, which enables transfers of large amounts of data to and from USB-connected devices in a short amount time.
The USB downstream “CHARGE” port supports quick charging that allows charging of smartphones and tablets in a short time.
See “6-4. Making Use of USB (Universal Serial Bus)” (page 49) and “USB CHARGE Port” (page 31).
• Stand with wide range of movement
The monitor can be adjusted to a position that provides a comfortable and less tiring work environment.
Tilt: 35˚ up/5˚ down, swivel: 344˚, adjustable height: 141 mm (tilt: 35˚) / 139 mm (tilt: 0˚)
• Displays HDCP (High-bandwidth Digital Protection) *3 protected contents.
*3 Supports HDCP Version 1.x
• Supports the “ScreenManager Pro” software for adjusting the screen using the mouse and keyboard
This software can be downloaded from our web site (http://www.eizoglobal.com).
• Supports the “EIZO Monitor Congurator” software for creating monitor conguration les
When installing multiple units of this monitor, this software allows users to apply a single conguration le to all monitors at the same time. This increases the efciency of
monitor installation work by eliminating the need for conguring each monitor individually.
For more information, refer to our web site (http://www.eizoglobal.com).
- 8 -
1-2. Controls and Functions
Front
●
Chapter 1 Introduction
Setting menu
1. EcoView Sense sensor Detects user movement in front of the monitor (EcoView Sense function (page 22)).
2. Ambient light sensor Detects ambient brightness (Auto EcoView function (page 21)).
3. Operation buttons Displays menus. Operate the buttons according to the operation guide.
4. Power button Turns the power on or off.
5. Power indicator Indicates the monitor’s operation status.
White: Screen display
Orange: Power saving mode
OFF: Main power / power off
*1 For details on usage, see “3-1. Basic Operation of the Setting menu” (page 25).
*1
4
3
521
- 9 -
Rear
●
Chapter 1 Introduction
11
12
13
14
16
15
17
76 1098
6. Main power switch Turns the main power on or off.
7. Power connector Connects the power cord.
8. Input signal connectors Left: DVI connector
Middle: HDMI connector
Right: DisplayPort connector × 2
9. USB upstream port Connects to the USB cable when using software that needs a USB connection, or when using the USB Hub function.
10. Stereo mini jack Connects to a stereo mini jack cable.
11. Handle This handle is used for transportation
12. USB downstream port Connects to a peripheral USB device.
The “CHARGE” port supports quick charging (page 31).
13. Headphone jack Connects to headphones.
14. Security lock slot Complies with Kensington’s MicroSaver security system.
15. Speakers Outputs audio.
16. Stand
17. Cable holder
*2 An optional arm (or optional stand) can be attached by removing the stand section (see “6-1. Attaching the Optional Arm” (page 43)).
*3 For the cable holder attachment procedure, see “6-3. Attaching/Detaching the Cable Holder” (page 47).
*2
*3
Adjusts the height and angle (tilt and swivel) of the monitor.
Holds the monitor cables.
- 10 -
1-3. Supported Resolutions
The monitor supports the following resolutions.
Chapter 1 Introduction
Resolution Applicable Signals
Vertical Scan
Frequency
DisplayPort HDMI DVI
640 × 480 VGA/CEA-861 59.94 Hz √ √ √
640 × 480 CEA-861 60 Hz √ √ 720 × 400 VGA TEXT 70.09 Hz √ √ √
720 × 480 (4:3) CEA-861 59.94 Hz/60 Hz √ √ -
720 × 480 (16:9) CEA-861 59.94 Hz/60 Hz √ √ -
800 × 600 VESA 60.32 Hz √ √ √
1024 × 768 VESA 60 Hz √ √ √
1280 × 720 VESA CVT 59.86 Hz √ √ √
1280 × 720 VESA CVT RB 59.98 Hz √ √ √
1280 × 720 CEA-861 59.94 Hz/60 Hz √ √ 1280 × 800 VESA CVT 59.81 Hz √ √ √
1280 × 800 VESA CVT RB 59.91 Hz √ √ √
1280 × 1024 VESA 60.02 Hz √ √ √
1280 × 1600 VESA CVT RB 59.91 Hz √
*1
*1
√
1600 × 900 VESA RB 60 Hz √ √ √
1600 × 1200 VESA 60 Hz √ √ √
1680 × 1050 VESA CVT 59.95 Hz √ √ √
1680 × 1050 VESA CVT RB 59.88 Hz √ √ √
1920 × 1080 CEA-861 29.97 Hz/30 Hz √ √ 1920 × 1080 CEA-861 59.94 Hz √ √ 1920 × 1080 CEA-861 60 Hz √ √ √
1920 × 1200 VESA CVT 59.89 Hz √ - 1920 × 1200 VESA CVT RB 59.95 Hz √ - 1920 × 2160 VESA CVT RB 29.95 Hz - √ √
1920 × 2160 VESA CVT RB 59.99 Hz √ √ √
2560 × 1440 VESA CVT 29.94 Hz - - √
2560 × 1440 VESA CVT RB 59.95 Hz √ √ √
2560 × 1600 VESA CVT RB 59.97 Hz √ √ √
3840 × 1080 VESA CVT RB 29.97 Hz - √
*2
3840 × 1080 VESA CVT RB 59.97 Hz √ √ √
3840 × 2160 VESA CVT RB 29.98 Hz √ √
3840 × 2160 VESA CVT RB 60 Hz √
*3
*3
- -
3840 × 2160 CEA-861/HDMI 1.4 29.97 Hz/30 Hz - √ -
*1 Only for PbyP display of a left and right window
conguration
*2 Only for PbyP display of an upper and lower window
conguration
*3 Recommended resolution
Note
• During PbyP display, only resolutions available with each
screen layout can be selected. (For the recommended
resolutions of each screen layout, see page 17.)
• Only the progressive scan type is supported.
*1
√
*2
√
*3
√
- 11 -
1-4. Setting the Resolution
If the resolution is incorrect after connecting the monitor to a PC or if you want to change the resolution, follow the procedure below.
Windows 8.1 / Windows 8 / Windows 7
●
1. For Windows 8.1 / Windows 8, click the “Desktop” tile on the Start Screen to display the desktop.
2. Right-click the mouse anywhere on the desktop except for icons.
3. From the displayed menu, click “Screen resolution”.
4. On the “Screen Resolution” dialog box, select the monitor.
5. Click “Resolution” to select the desired resolution.
6. Click the “OK” button.
7. When a conrmation dialog box is displayed, click “Keep changes”.
Windows Vista
●
1. Right-click the mouse anywhere on the desktop except for icons.
2. From the displayed menu, click “Personalize”.
3. On the “Personalization” window, click “Display Settings”.
4. On the “Display Settings” dialog box, select the “Monitor” tab and select the desired resolution in the “Resolution” eld.
5. Click the “OK” button.
6. When a conrmation dialog box is displayed, click “Yes”.
Chapter 1 Introduction
Mac OS X
●
1. Select “System Preferences” from the Apple menu.
2. When the “System Preferences” dialog box is displayed, click “Displays” for “Hardware”.
3. On the displayed dialog box, select the “Display” tab and select the desired resolution in the “Resolutions” eld.
4. Your selection will be reected immediately. If you are satised with the selected resolution, close the window.
- 12 -
Chapter 2 Basic Adjustment/Setting
Chapter 2 Basic Adjustment/Setting
This monitor enables users to change the screen layout or brightness according to personal preference or to suit the usage environment and reduce power
consumption to conserve energy.
This chapter describes the basic functions that can be adjusted and set using the function buttons on the front of the monitor.
For advanced adjustment and setting procedures using the Setting menu, see “Chapter 3 Advanced Adjustment/Setting” (page 25).
2-1. Button Operation Method
Displaying the operation guide
1.
1. Press any button (except ).
The operation guide appears above the buttons. (Guide display differs depending on screen layout.)
Adjusting/setting
2.
1. Press the button for adjustment/setting.
The Adjustment/Setting menu appears.
(A submenu may also be displayed. In this case, select the item for adjustment/setting using
2. Perform adjustment/setting with the buttons and select to accept the changes.
Exiting
3.
1. Select or to exit the menu.
2. When no menu is displayed, the operation guide will automatically disappear after a few seconds if no buttons are operated.
and select .)
- 13 -
2-2. Switching Input Signals (During Single Screen Display)
When a monitor has multiple signal inputs, the signal to display on-screen can be changed.
Note
• During PbyP/PinP display, specify the input signal of each screen in the “Picture Setup”. For details, see “2-4. Conguring PbyP/PinP” (page 16).
Chapter 2 Basic Adjustment/Setting
- 14 -
Chapter 2 Basic Adjustment/Setting
2-3. Switching Display Modes (Color Modes)
This product is preinstalled with color modes for various display purposes.
Switch the mode according to the purpose and content for display. This allows the monitor to display images in a manner appropriate to the display content.
Display Modes
●
Color Mode Purpose
User1
User2
sRGB
Paper
Movie
DICOM
Select either of these modes to set a user-dened display mode.
This mode is suitable for matching color reproduction with peripheral devices that support sRGB, such as when printing photos taken using a
digital camera.
This mode uses color tones and contrast similar to that of paper to produce a printed paper effect. It is suitable for displaying images from
media such as books and documents.
This mode displays moving images brightly and with a clear-cut three-dimensional appearance. It is suitable for playing back video content.
Selected for the display in the DICOM mode.
Note
• “ScreenManager Pro” allows you to select the color mode automatically according to the application in use. (“ScreenManager Pro” is software for adjusting the screen using
the mouse and keyboard. This software can be downloaded from our web site (http://www.eizoglobal.com).)
- 15 -
Chapter 2 Basic Adjustment/Setting
2-4. ConguringPbyP/PinP
When the monitor receives multiple input signals, windows can be displayed in a side-by-side or large/small conguration.
Because multiple windows can be displayed on a single monitor, the need for changing between signals is eliminated, which leads to increased work efciency.
Display example
PbyP (Picture by Picture) PinP (Picture in Picture)
Large window
A B
A
B
Small window
- 16 -
Chapter 2 Basic Adjustment/Setting
Display Setting
PbyP Color Mode Active Window
Sound Source Active Window
Layout Layout 1
1 to 4 DisplayPort 1
Setting
Range
Whole Screen
DisplayPort 1
DisplayPort 2
HDMI
DVI
Layout 2
Layout 3
Layout 4
Layout 5
DisplayPort 2
HDMI
DVI
Description Note
Select the application range when setting the color mode.
(For details on color mode settings, see “2-3. Switching
Display Modes (Color Modes)” (page 15).)
• “Active Window”
Apply separate color modes to each displayed window.
• “Whole Screen”
Apply the same color mode to all displayed windows.
Select the source of audio to output from the monitor.
• “Active Window”
Output the audio of the window selected using the
operation button on the front of the monitor.
• “DisplayPort 1/DisplayPort 2/HDMI/DVI”
Always output the audio input from each connector. Note
that audio from connectors that do not correspond to a
displayed window is not output.
Select the screen layout.
1 2 3 4 5
Layout
Recommended
resolution of
each screen
*1 In the default setting, changing the layout automatically changes to the above resolutions (see “Auto PbyP
Resolution” (page 37)).
Select the input connector to display at each position based
on the selected layout.
*1
1 2
1/2: 1920 × 2160 1/2: 3840 × 1080
1
2
2/3: 1920 × 1080
• The “Brightness” and “Overdrive” settings are
not related to this setting and the value of the
window selected using the
button on the front of the monitor is applied to
the entire screen.
-
2
1
3
1: 1920 × 2160
• The same connector cannot be set to more
than two positions. For this reason, when
changing the input connector for a certain
window, if an input connector already set
to another window is selected, the input
connectors are exchanged automatically.
1
3
2
1/2: 1920 × 1080
3: 1920 × 2160
operation
123
4
1/2/3/4:
1920 × 1080
- 17 -
Chapter 2 Basic Adjustment/Setting
Display Setting
PinP Color Mode Active Window
Sound Source Active Window
PinP Size Large
PinP Position Upper Right
Large Window DisplayPort 1
Small Window DisplayPort 1
Setting
Range
Whole Screen
DisplayPort 1
DisplayPort 2
HDMI
DVI
Small
Lower Right
Lower Left
Upper Left
DisplayPort 2
HDMI
DVI
DisplayPort 2
HDMI
DVI
Description Note
Select the application range when setting the color mode.
(For details on color mode settings, see “2-3. Switching
Display Modes (Color Modes)” (page 15).)
• “Active Window”
Apply separate color modes to each displayed window.
• “Whole Screen”
Apply the same color mode to all displayed windows.
Select the source of audio to output from the monitor.
• “Active Window”
Output the audio of the window selected using the
operation button on the front of the monitor.
• “DisplayPort 1/DisplayPort 2/HDMI/DVI”
Always output the audio input from each connector. Note
that audio from connectors that do not correspond to a
displayed window is not output.
Select the size of the small window. -
Select the display position of the small window. -
Select the input connector of the large window. • The same connector cannot be set for both
Select the input connector of the small window.
• The “Brightness” and “Overdrive” settings are
not related to this setting and the value of the
window selected using the
button on the front of the monitor is applied to
the entire screen.
-
the large window and small window. For this
reason, when changing the input connector of
the large window, if the input connector already
set to the small window is selected, the input
connectors of the large window and small
window are exchanged automatically.
operation
- 18 -
Note
• Return to single screen display by selecting “Single” on the “Picture Setup” menu.
• To adjust or set the following functions during PbyP/PinP display, select the window for applying the function in advance.
- Color mode selection (when “Picture Setup” is set to “Active Window”)
(page 15)
- Brightness adjustment (page 23)
- Volume adjustment (page 24)
- “Color” (page 26) and “Signal” (page 29) on the Setting menu
Window Selection Method
1. Press any button (except
2. Select
The selected window is enclosed in a gray frame.
3. Select a window with
Active Window
.
Chapter 2 Basic Adjustment/Setting
).
and select .
- 19 -
Chapter 2 Basic Adjustment/Setting
2-5. Conserving Energy
This monitor is equipped with EcoView functions to enable users to conserve energy.
Use this function to curtail unnecessary power consumption and save on electricity expenses. Saving power also reduces carbon dioxide emissions.
Level of power saving
Note
• The power saving level (Power Reduction, CO2 Reduction, and Eco Performance Level) can be checked on the “EcoView Settings” menu. The more indicators that light up
representing the Eco Performance Level, the higher the power saving level attained.
- Power Reduction: the reduction in the backlight’s power consumption as a result of the adjusted brightness value.
- CO
Reduction: converted from the “Power Reduction” value, this is an estimate of the quantity of CO2 emissions reduced when using the monitor for 1 hour.
2
* The numeric value is a result of calculation based on a default setting (0.000555 t -CO2/kWh) determined by a Japanese ministerial ordinance (2006, Ministry of Economy,
Trade and Industry, Ministry of Environment, civil code article 3) and may differ depending on country and year.
- 20 -
Function Setting Range Description Note
Auto EcoView On
Off
Advanced
Settings
EcoView Optimizer 2 On
Maximum
Minimum
Reset - Return the advanced settings to their default values. -
Brightness 0 to 100 Set the range for automatic brightness adjustment.
Ambient Light Bright
Standard
Dark
Off
The ambient light sensor on the front of the monitor
detects the ambient brightness to automatically
adjust the screen brightness to a comfortable
level using the Auto EcoView function. The power
consumption of the backlight can be curtailed by
adjusting the brightness to an appropriate level.
This function can also mitigate eye strain and
tiredness caused by a screen that is too bright or
too dark.
Use the “Advanced Settings” to set the automatic
adjustment range to suit the monitor’s usage
environment or personal preference.
By setting the maximum value and minimum value
of the adjustment range in advance, the brightness
will be adjusted automatically within the set range.
Using the default setting is recommended.
(Default setting: “Bright” for maximum value, “Dark”
for minimum value)
The monitor automatically adjusts the screen
brightness according to the white level of the input
signal.
This function can reduce power consumption while
maintaining the brightness specied by the input
signal.
Chapter 2 Basic Adjustment/Setting
• Be careful not to block the ambient light sensor
on the lower side of the monitor when using the
Auto EcoView function.
• Even when the Auto EcoView setting is “On”,
the
monitor or color adjustment can be used to
change the “Brightness” to suit your personal
preference. Moreover, the manner in which
the Auto EcoView function changes brightness
also differs according to the changed value.
• When “DICOM” is selected for the color mode,
the Auto EcoView setting is turned “Off”.
• The maximum and minimum brightness values
cannot be set to the same value.
• For details on the “Ambient Light” setting, refer
to our web site (http://www.eizoglobal.com).
• The setting is turned “Off” in the following
cases:
- When “sRGB”, “Movie” or “DICOM” is
selected for the color mode.
- During PbyP/PinP display
• When set to “On”, the appearance of pale
colors may change. If this bothers you, set this
function to “Off”.
operation button on the front of the
- 21 -
Function Setting Range Description Note
EcoView Sense On
Off
Advanced
Settings
Time 5, 30 sec
1, 3, 5, 10, 15, 30, 45,
60 min
Sensitivity Level 5
Level 4
Level 3
Level 2
Level 1
Reset - Return the advanced settings to their default values. -
When set to “On”, the sensor on the front of the
monitor detects user movement. When the user
moves away from the monitor, it automatically
shifts to power saving mode and does not display
images on the screen in order to reduce power
consumption. When the user comes near the
monitor again, it recovers from power saving mode
and displays images.
The sensitivity of the sensor and time until
power saving mode is activated can be set in the
“Advanced Settings” according to the monitor usage
environment and movement of the user.
Species the time from when the user leaves the
monitor until the “No Presence detected” message
appears. The monitor shifts to power saving mode
about 20 seconds after the message is displayed.
When the setting level is high (“Level 5” at
maximum), even minor movements of the user are
detected, which prevents the monitor from readily
shifting to power saving mode. On the other hand,
when the setting level is low (“Level 1” at minimum),
only major movements of the user are detected,
which allows the monitor to readily shift to power
saving mode.
Chapter 2 Basic Adjustment/Setting
• At the time of shifting to power saving mode,
a message that indicates the transition is
displayed.
• When “Power Save” on the Preferences menu
is set to “Off”, the EcoView Sense setting is
disabled.
-
• The EcoView Sense function is activated when
the sensor on the front of the monitor detects
the movement of heat. Therefore, the sensitivity
should be changed depending on the typical
user’s clothes or typical room temperature. If
the monitor shifts to or recovers from power
saving mode contrary to your expectations, try
changing the setting level.
• To use the monitor comfortably, increase the
sensitivity for high temperatures, because the
detection sensitivity decreases. Reduce the
sensitivity for low temperatures because the
detection sensitivity increases.
- 22 -
Chapter 2 Basic Adjustment/Setting

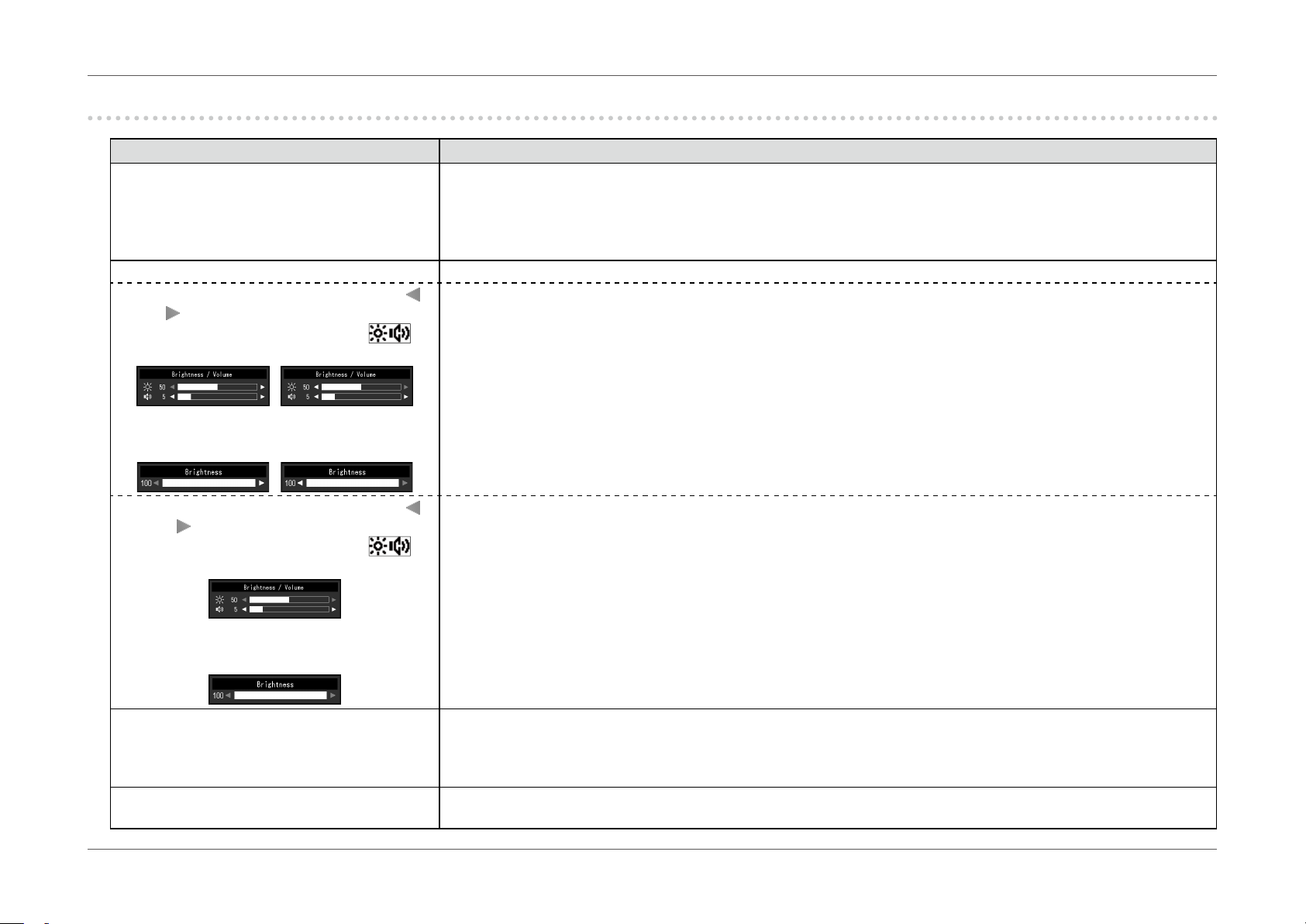

2-6. Adjusting Brightness
The brightness of the screen can be adjusted to suit the installation environment or personal preference.
The screen brightness is adjusted by changing the brightness of the backlight (light source from the LCD back panel).
Setting Range
0 to 100
Note
• When “DICOM” is selected for the color mode, the brightness cannot be changed. is not displayed on the operation guide or menu.
• When Auto EcoView is set to “On”, the adjustment range is restricted as follows. (For details on Auto EcoView, see “Auto EcoView” (page 21).)
- The brightness setting cannot be increased or decreased past the maximum and minimum brightness values specied in the advanced settings of Auto EcoView.
- Brightness may not be adjusted when the installation environment of the monitor is excessively bright or dark.
- 23 -
2-7. Adjusting Volume
The volume of the speakers and headphones can be set individually.
Setting Range
0 to 30
Note
• When “DICOM” is selected for the color mode, is not displayed on the operation guide or menu.
Chapter 2 Basic Adjustment/Setting
- 24 -
Chapter 3 Advanced Adjustment/Setting
This chapter describes the advanced monitor adjustment and setting procedures using the Setting menu.
For basic functions, see “Chapter 2 Basic Adjustment/Setting” (page 13).
3-1. Basic Operation of the Setting menu
Chapter 3 Advanced Adjustment/Setting
Menu display
1.
1. Press any button (except ).
The operation guide appears.
2. Select .
The Setting menu appears.
Adjusting/setting
2.
1. Select a menu to adjust/set with and select .
The Sub menu appears.
2. Select an item to adjust/set with and select .
The Adjustment/Setting menu appears.
3. Perform adjustment/setting with or and
select to accept the changes.
The Sub menu appears.
Selecting
and restore the state prior to making changes.
Exiting
3.
1. Select .
The Setting menu appears.
2. Select .
The Setting menu quits.
during adjustment/setting will cancel the adjustment/setting
- 25 -
Loading...
