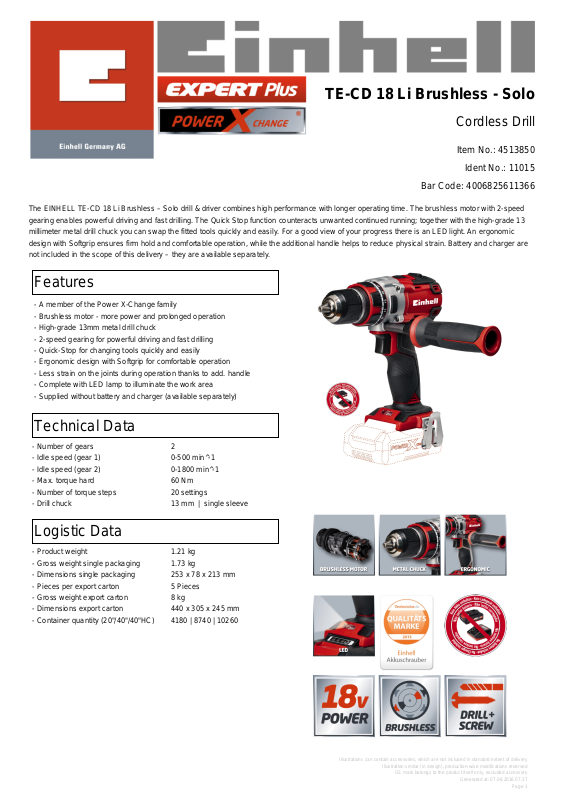

Einhell TE-CD 18 Li Brushless - Solo Service Manual

TE-CD 18 Li Brushless - Solo

Cordless Drill

Item No.: 4513850

Ident No.: 11015

Bar Code: 4006825611366

The EINHELL TE-CD 18 Li Brushless – Solo drill & driver combines high performance with longer operating time. The brushless motor with 2-speed
gearing enables powerful driving and fast drilling. The Quick Stop function counteracts unwanted continued running; together with the high-grade 13
millimeter metal drill chuck you can swap the fitted tools quickly and easily. For a good view of your progress there is an LED light. An ergonomic
design with Softgrip ensures firm hold and comfortable operation, while the additional handle helps to reduce physical strain. Battery and charger are
not included in the scope of this delivery – they are available separately.

Features

A member of the Power X-Change family­Brushless motor - more power and prolonged operation­High-grade 13mm metal drill chuck­2-speed gearing for powerful driving and fast drilling­Quick-Stop for changing tools quickly and easily­Ergonomic design with Softgrip for comfortable operation­Less strain on the joints during operation thanks to add. handle­Complete with LED lamp to illuminate the work area­Supplied without battery and charger (available separately)-

Technical Data

- Number of gears 2

- Idle speed (gear 1) 0-500 min^-1

- Idle speed (gear 2) 0-1800 min^-1

- Max. torque hard 60 Nm

- Number of torque steps 20 settings

- Drill chuck 13 mm | single sleeve

Logistic Data

- Product weight 1.21 kg

- Gross weight single packaging 1.73 kg

- Dimensions single packaging 253 x 78 x 213 mm

- Pieces per export carton 5 Pieces

- Gross weight export carton 8 kg

- Dimensions export carton 440 x 305 x 245 mm

- Container quantity (20"/40"/40"HC) 4180 | 8740 | 10260

Illustrations can contain accessories, which are not included in standard extent of delivery

Illustration similar (in design), production-wise modifications reserved

GS mark belongs to the product itself only, excluded accessory

Generated at: 07.06.2016 07:37

Page 1

Available as special accessories

Bit-Set, 23-teilig
Cordless Drill Accessory
Item No.: 4258073
Bar Code: 4006825573268
Einhell Grey

18V 5,2 Ah Power-X-Change
Battery
Item No.: 4511357
Bar Code: 4006825598865
Einhell Accessory

18V Starter-Kit Power-X-Change
PXC-Starter-Kit
Item No.: 4512021
Bar Code: 4006825601350
Einhell Accessory

Drill and bit set, 70 pcs
Power Tools Accessory
Item No.: 4258085
Bar Code: 4006825563610
Einhell Grey

18V 30min Power-X-Change
Power Tools Accessory
Item No.: 4512011
Bar Code: 4006825587029
Einhell Accessory

18V 3,0 Ah Power-X-Change
Battery
Item No.: 4511341
Bar Code: 4006825590593
Einhell Accessory
