Page 1
iSC GmbH
Customer Service
Eschenstraße 6
94405 Landau/Isar
Telephone:
Email:
+49 9951 959 2019
[email protected]

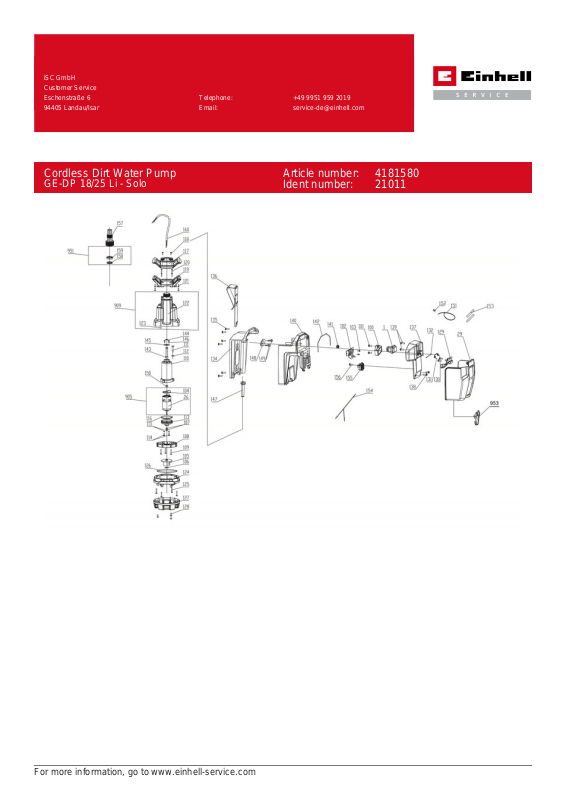

Cordless Dirt Water Pump Article number: 4181580
GE-DP 18/25 Li - Solo
Ident number: 21011
For more information, go to www.einhell-service.com
Page 2
Spare parts
Pos Art. Ident number Product Name
418158001001 00000 power level selector switch
418158001029 00000 accu cover
418158001099 00000 color box
418158001100 00000 switch bracket
418158001101 00000 screw ST4,2 x 13
418158001102 00000 circuit board
418158001103 00000 screw ST3 x 8
418158001105 00000 pump wheel
418158001106 00000 retainer
418158001107 00000 shaft seal
418158001108 00000 diffusor spinner
418158001109 00000 screw M4 x 20
418158001110 00000 motor housing
418158001111 00000 screw M4 x 9
418158001112 00000 o-ring
418158001113 00000 end cover
418158001114 00000 screw M5 x 14
418158001115 00000 o-ring
418158001116 00000 o-ring
418158001117 00000 carrier handle upper shell
418158001118 00000 screw ST4.2 x 13
418158001119 00000 carrier handle lower shell
418158001120 00000 screw A ST4.2 x 18
418158001121 00000 screw B ST4.2 x 8
418158001124 00000 housing base
418158001125 00000 screw ST4.2 x 32
418158001126 00000 o-ring
418158001127 00000 intake fence
418158001128 00000 screw ST4.2 x 16
418158001129 00000 fitting
418158001130 00000 screw ST2.9 x 11
418158001131 00000 return spring
418158001132 00000 pin
418158001134 00000 ground plate
418158001135 00000 screw ST4.2 x 18
418158001136 00000 suspension hook
418158001137 00000 switch housing
418158001138 00000 screw A ST2.9 x 11
418158001139 00000 screw B ST4.2 x 18
418158001140 00000 battery slot housing
418158001141 00000 cable sleeve
418158001142 00000 sealing line
418158001143 00000 tension relief A
418158001144 00000 o-ring
418158001145 00000 fixing ring
418158001146 00000 screw M4 x 10
418158001147 00000 tension relief B
418158001148 00000 cord grip
418158001149 00000 screw ST4.2 x 13
418158001150 00000 clamping holding
418158001151 00000 cable tie
418158001152 00000 crimp end connector
418158001153 00000 insulation
418158001154 00000 cable switch to contact
418158001155 00000 contacts
418158001156 00000 screw
418158001157 00000 universal hose connection
418158001160 00000 connect cable battery box/pump
418158001905 00010 Complete Engine Assembly
418158001909 00010 Housing Assembly
418158001951 00010 Non-return valve assembly
418158001953 00000 Locking hook assembly
For more information, go to www.einhell-service.com
Page 3
Complete Engine Assembly
Spare parts
Pos Art. Ident number Product Name
418158001026 00000 DC brush-type motor
418158001104 00000 dejam circuit board
Article number: 418158001905
Ident number: 00010
For more information, go to www.einhell-service.com
Page 4
Housing Assembly
Spare parts
Pos Art. Ident number Product Name
418158001122 00000 pump housing
418158001123 00000 ball
Article number: 418158001909
Ident number: 00010
For more information, go to www.einhell-service.com
Page 5
Non-return valve assembly
Spare parts
Pos Art. Ident number Product Name
418158001158 00000 sealing ring
418158001159 00000 non-return valve
Article number: 418158001951
Ident number: 00010
For more information, go to www.einhell-service.com
