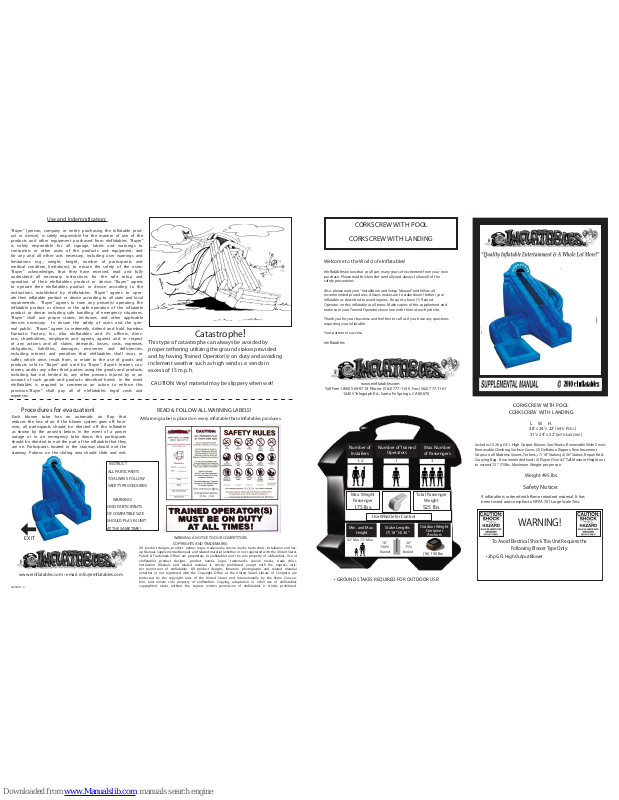

einflatables corkscrew with pool, corkscrew with landing Supplemental Manual

Catastrophe!

This type of catastrophe can always be avoided by
proper tethering utilizing the ground stakes provided
and by having Trained Operator(s) on duty and avoiding
inclement weather such as high winds i.e. winds in
excess of 15 m.p.h.

CAUTION: Vinyl material may be slippery when wet!

Procedures for evacuation!

Each blower tube has an automatic air ap that
reduces the loss of air if the blower system goes o, how­ever, all par ticipants should be directed o the inatable
as shown by the arrow(s) below. In the event of a power
outage or in an emergency take down, the participants
should be directed to exit the part of the inatable that they
are on. Participants located in the stairway should exit the
stairway. Patrons on the sliding area should slide and exit.

EXIT

Welcome to the World of eInflatables!

eInflatables knows that you’ll get many years of excitement from your new

purchase. Please read this booklet carefully and always follow all of the
safety precautions.

Also, please read your “Installation and Setup Manual” and follow all
recommended procedures. Always make sure to stake down (tether) your
inflatable as described to avoid injuries. Be sure to have (1) Trained
Operator on this inflatable at all times. Make copies of this supplement and
make sure your Trained Operators have one with them at each job site.

Thank you for your business and feel free to call us if you have any questions
regarding your inflatable.

Your partner in success,

eInflatables

www.einflatables.com
Toll Free: [phone] Phone: [phone] Fax: [phone]

12405 Telegraph Rd., Santa Fe Springs, CA 90670

Safety Notice:

If inflatable is ordered with flame retardent material, It has
been tested and complies to NFPA 701 Large Scale Test.

Number of

Installers

Number of Trained

Operators

Total Passenger

Weight

525 lbs.

Max. Weight

Passenger

175 lbs.

Outdoor Weight

Container

Anchors

Stake Lengths

(7) 18” (4) 36”

Min. and Max.

Height

42” Min. 72” Max

1-2

1

3

Use Whistle for Control

(16) 150 lbs.

c o r k s c r e w w i t h p o o l

c o r k s c r e w

w i t h l a n d i n g

l. w. h.

28’ x 24’ x 22’ (w i t h poo l )

31’ x 24’ x 22’ (w i t h la n d i n g )

Includes (1) 2hp G.F.I. High Output Blower, Sun Shade, Removable Slide Cover,
R

emovable Climbing Surface Cover,

(2) Deflation Zippers, Reinforcement

S

trips on all Mattress Seams, Tethers,

(7) 18” Stakes,(4) 36” Stakes, Repair Kit &
Carrying Bag. Recommended load (2) Player Over 42” Tall Maxium Height not
to exceed 72”. 175lbs. Maximum Weight per person.

Max. Number
of Passengers

READ & FOLLOW ALL WARNING LABELS!

A Warning Label is placed on every inatable that eInatables produces.

INSTRUCT

ALL PARTICPANTS

TO ALWAYS FOLLOW

SAFETY PROCEDURES!

WARNING!

ONLY PARTICIPANTS

OF COMPATIBLE SIZE

SHOULD PLAY IN UNIT

AT THE SAME TIME!

To Avoid Electrical Shock This Unit Requires the

Following Blower Type Only:

• 2hp G.F.I. High Output Blower

WARNING!

www.einflatables.com • email: [e-mail]

Use and Indemnification:

“Buyer” (person, company or entity purchasing the inflatable prod­uct or device), is solely responsible for the manner of use of the
products and other equipment purchased from eInflatables. “Buyer”
is solely responsible for all signage, labels and warnings to
consumers or ot her users of the pro ducts and equipme nt, and
for any an d all other acts necessa ry, incl uding us er warn ings an d
limitatio ns (e.g., weig ht, height, nu mber of part icipants and
medical condition limitations), to ensure the safety of the users.
“Buyer” acknowledges that they have received, read and fully
understan d all necessar y inst ructions for the s afe setup and
operation of their eInflatables product or de vice. “Buyer” agrees
to operate their eInflatables product or device according to the
instructions established by eInflatables. “Buyer” agrees to oper­ate their inflatable product or device according to all state and local
requirements. “Buyer” agrees to train any person(s) operating the
inflatable product or device in the safe operation of the inflatable
product or device including safe handling of emergency situations.
“Buyer” shall use proper stakes, tie-downs, and other applicable
devices necessary to ensure the safety of users and the gen­eral public. “Buyer” agrees to indemnify, defend and hold harmless
Funtastic Factory, Inc. dba eInflatables and it’s officers, direc­tors, shareholde rs, employees and agents, again st and in respec t
of any actions and all claims, demands, losses, costs, expenses,
obligations, liabilities, damages, recoveries and deficiencies,
including interest and penalties that eInflatables sh all inc ur, or
suffer, whic h arise, result from, or relate to the use of g oods and
products sold to “Buyer” and used by “Buyer”, Buyer’s lessees, cus­tomers, and/or any other third parties using the goods and products,
including but not limited to, any other persons injured by or on
account of such goods and products described herein. In the event
eInflatables is required to commence an action to e nforce this
provision,“Buyer” shall pay all of eInflatables le gal cos ts and
expenses.

WARNING: A NOTICE TO OUR COMPETITORS

COPYRIGHTS AND TRADEMARKS:

All product designs, product names, logos, trademarks, service marks, trade dress, Installation and Set­up Manual, Supplemental Manuals and related material (whether or not registered with the United States
Patent & Trademark Oce) are proprietary to eInatables and the sole property of eInatables. Use of
eInatables product designs, product names, logos, trademarks, service marks, trade dress,
Instruction Manuals and related material is strictly prohibited, except with the express writ­ten permission of eI natables. All product designs, literature, photographs and related material
(whether or not registered with the Copyright Oce at the United States Library of Congress) are
protected by the copyright laws of the United States and Internationally by the Berne Conven­tion, and remain sole proper ty of eInatables. Copying, adaptation, or other use of eInatables
copyrighted works without the express written permission of eInatables is strictly prohibited.

corkscrew with pool

corkscrew with landing

18”

100%

Buried

36”

75%

Buried

• GROUND STAKES REQUIRED FOR OUTDOOR USE!

Weight 495 lbs.

4/24/08 - 2

Directions

• Read “Installation and Setup Manual” completely.

• Layout ground tarp for inflatable (not provided)

• Remove unit from storage bag.

• Position inflatable on tarp with a level ground area

approximately 40’ x 40’. Unit should have 10’ clearance
on all sides with 23’ height clearance.

• Connect G.F.I. blower to air tube making sure strap is firmly

secure.

• Close zipper(s) & water/air flaps on slide and pool.

• G.F.I. Blower system requires a dedicated 20 amp

breaker.

• Turn blower on and steer the slide up with the guide

tethers from at least 2 different opposing positions.

• Secure all tethers firmly to stakes or sandbags after

the unit is fully inflated. Bur y stakes flush with ground.

• Connect customer’s water hose to Black hose of unit.

• Do a safety check on the blower and extension cord.

• Do a safety check of slide and pool covers.

• Do a safety check on the interior and exterior surfaces of

slide, landing or pool look ing for any moisture, debris,
rips, tears or seams coming apar t.
(If noticed,do not use inflatable until repaired.)

• Do not operate in winds over 15 m.p.h..

• ADULT SUPERVISION IS REQUIRED AT ALL TIMES!

• ALWAYS INSTRUCT SAFETY!

• Instruct every participant to follow the

Safety Rules on each inatable.

• Never jump, ip, dive, or somersault on or

o of slide.

• Do not use slide as a bouncer!

WARNING!

NEVER LEAVE THIS RIDE UNATTENDED

OR DROWNING MAY OCCUR!

Be sure to instruct
all operators of the
correct procedures
to have passengers
follow as they ride the
inatable.

• CAUTION: Electric shock

may occur if Blower or
Extension Cord gets wet.

•

Pool Unit Only!

• WARNING: Fill pool to water
line before using slide.

• WARNING: Water level

must be maintained at
14” at all times for safe
operation.

Step by step Procedures for

CORKSCREW

AVOID INJURIES!
DO NOT enter the slide
lane head rst!

• Be sure to sit down at the

top of the slide with your
feet out in front of you,
then push o going

feet rst only.

• Instruct all passengers

to ride individually.

No double riding!

KEEP LANDING AREAS
CLEAR!

• Operators should not

allow next rider to slide
until slide lane and pool
area is clear of all riders.

Operators must

take control!

Maintain 14” of Water
at all times!

WARNING: NEVER LEAVE
POOL UNATTENDED OR
DROWNING MAY OCCUR!!!

CORKSCREW (WITH POOL OR LANDING)

! CAUTION !

Do not apply wax to slide!

1. Step onto unit and climb
up the steps using both

hands and feet to direct
you to the top. Only allow
one person to climb up
steps at a time.

2. Once at the top, position
yourself correctly making
sure to have your feet rst.
Slide one at a time only!

3. With arms crossed
over your chest,
slide down feet rst
only.

4. Splash down into the

pool area.

1

2

3

4

5. Have rider exit the

pool as soon as they

get to the bottom to

avoid others sliding

into them.

Assist participants

out of pool!

5

6. Have riders slide to
bottom of landing and
immediately get up and
exit ride.

6

(For Landing Only!)

(For Pool Only!)

(For Pool Only!)

Pool Unit Only!
