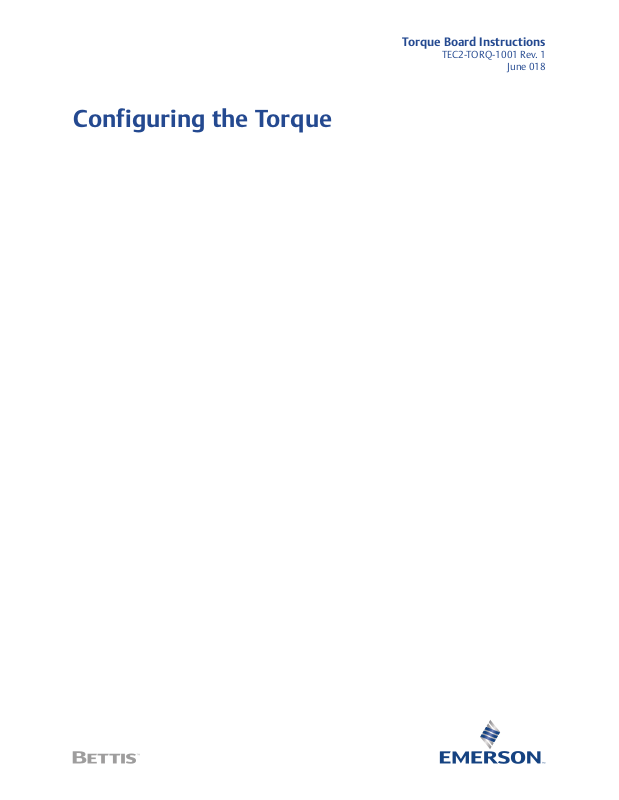

Configuring the Torque
Torque Board Instructions
TEC2-TORQ-1001 Rev. 1
June 018
Torque Board Instructions
TEC2-TORQ-1001 Rev. 1
Table of Contents
Section 1: TEC2 Torque Board Instructions ........................... 1
Table of Contents
June 2018
Table of Contents
I
Section 1: TEC2 Torque Board Instructions
June 2018
Torque Board Instructions
TEC2-TORQ-1001 Rev. 1
Section 1: TEC2 Torque Board Instructions
Figure 1 Torque Board in TEC2 Housing
1. Remove the front side cover of the Actuator.
2. Remove the six pin Torque Cable. See Figure 1.
3. Loosen the retaining screws for the torque board. Refer to Figures 1 and 2.
Figure 2 Torque Board Retaining Screws
1
TEC2 Torque Board Instructions
Torque Board Instructions
TEC2-TORQ-1001 Rev. 1
4. Remove the torque board.
5. Install new torque board.
6. Connect six pin Torque Cable.
7. Snug the three retaining screws, but leave loose enough so that you can still rotate
8. Turn on the power to the actuator.
9. Remove all torque from the actuator.
10. Carefully turn the Torque board in its mount, clockwise or counterclockwise until
NOTE:
Section 1: TEC2 Torque Board Instructions
June 2018
the board in the retaining ring
the LED comes on. Adjust it until you get a stead ON light. This is the Zero point
for
the Torque.
You should also see the Torque gauge on the front display going up and down as you move
the board back and forth. See Figure 3.
Figure 3 Torque Board With LED on (Zero Torque) (TEC2 Housing)
TEC2 Torque Board Instructions
2
Section 1: TEC2 Torque Board Instructions
June 2018
11. Tighten the screws on the torque board. See Figure 3.
NOTE:
The board has a tendency to turn when you are tightening the three screws.
12. The torque should now be set correctly to the Zero point.
13. Turn off the actuator and replace the front side cover with the four bolts.
Torque Board Instructions
TEC2-TORQ-1001 Rev. 1
3
TEC2 Torque Board Instructions
