Eiki XG-705A User Manual
Owner's Manual
Network Set-up
and Operation
Wired and Wireless Setting
Projector Controller
Network Viewer
Moderator Function
Note; For operating the projector via the Wireless network, USB Wireless
LAN adapter (optionally available) is required.
English
First, read the owner's manual of the projector to
understand the projector's basic operation and the safety
instructions.
The safety instructions in the owner's manuals should be
followed.
FrançaisEspañol
DeutschItaliano
Compliance
Federal Communication Commission Notice
Note : This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures :
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
Use of shielded cable is required to comply with class B limits in Subpart B of Part 15 of FCC Rules.
Do not make any changes or modifications to the equipment unless otherwise specified in the instructions. If
such changes or modifications should be made, you could be required to stop operation of the equipment.
Model Number : XG-705A
Trade Name : EIKI
Responsible party : EIKI International, Inc.
Address : 30251 Esperanza Rancho Santa Margarita CA 92688-2132
Telephone No. : 800-242-3454 (949-457-0200)
For Canadian Users
This Class B digital apparatus complies with Canadian ICES-003.
Cet apparei numérique de la class B est conforme à la norme NMB-003 du Canada.
L’utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de
brouillage et (2) l’utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même
si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.
CAUTION
Changes or modifications not expressly approved by the manufacturer could void the user’s authority to
operate the equipment.
Exposure to radio frequency
This product uses an optionally available USB Wireless LAN Adapter (XG-705A) to communicate with other
devices using the 2.4 GHz ISM band. The radiated power output of this card is well below FCC radio
frequency exposure limits. However, it is advised to maintain a minimum 20 cm separation between the
product and user(s) or bystanders to minimize human exposure to the transmitted radio frequencies.
For French Users
Restricted frequency band only channels 10 through 11 (2457MHz and 2462MHz respectively) may be used
in France. License required for every installation, indoor and outdoor installations.
Please contact ART for procedure to follow. Do not use this USB Wireless LAN Adapter in the open air.
Statement on EC Directive
Hereby, Eiki Co., Ltd., declares that this Wireless USB LAN Adapter (XG-705A) is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
The CE Mark is a Directive conformity mark of
the European Community(EC).
The Alert Mark is a Directive conformity mark
of the European Community.
2
Safety Instructions
CAUTION IN USING THE PROJECTOR VIA NETWORKS
● When you find a problem with the projector, remove the power cable immediately and
inspect the unit. Using the projector with failure may cause fire or other accidents.
● If you remotely use the projector via networks, carry out a safety check regularly and
take particular care to its environment. Incorrect installation may cause fire or other
accidents.
CAUTION IN USING NETWORK FUNCTION
● EIKI Co., Ltd. assumes no responsibility for the loss or damage of data, or damage of the
computer caused by using this projector. Making back-up copies of valuable data in your
computer is recommended.
Caution about Radio Wave
This unit operates in 2.4 GHz band, the same frequency band used for industrial, scientific, and
medical equipment (such as pacemaker), as well as amateur radio stations.
Please read “Safety Instructions” section and make sure the following cautions.
1. Be sure that there are no other devices in the area that may use the same frequency band as
Projector.
2. If any other devices are causing radio interferences, change the communication frequency
channel or move to other location.
Tr ademarks and Copyright
Microsoft, Windows, and Internet Explorer are either registered trademarks or trademarks of
Microsoft Corporation in the United States and/or other countries.
Netscape Navigator and Netscape Communicator are registered trademarks or trademarks of
Netscape Communications Corporation in the United States and other countries.
Pentium is a registered trademark of Intel Corp. in the United States.
Each name of corporation or product in this Owner’s Manual is either a registered trademark or
a trademark of its respective corporation.
USB Wireless LAN Adapter
Use the optionally available USB Wireless LAN Adapter (Model : WL-30). If you use other
product, the projector may not work properly.
The USB Wireless LAN Adapter is dedicated for our company's projectors. We cannot
guarantee for using with other projectors.
Notes
● The contents of this manual are subject to change without notice.
● You may not copy the printed materials accompanying with the software.
● We shall not be responsible for any damages caused by reliance on this manual.
English
3
Ta ble of Contents
Compliance............................................................................................2
Safety Instructions ................................................................................3
Table of Contents..................................................................................4
Operating Environment and Configuration ........................................6
Required Operating Environment for Computers ......................................6
Network Specifications of the Projector ....................................................7
1. About LAN Functions ...............................................................................9
LAN Functions and the Features................................................................10
Image Projecting System via LAN..............................................................10
Flow of Image Transfer .......................................................................................10
An Example of the Connection ..................................................................11
LAN Connection Modes.............................................................................12
2. Setup Procedures .....................................................................................15
Installing the Software ...............................................................................17
3. Names and Functions of the Operation Screen. ....................................19
Network Connection Standby Display........................................................20

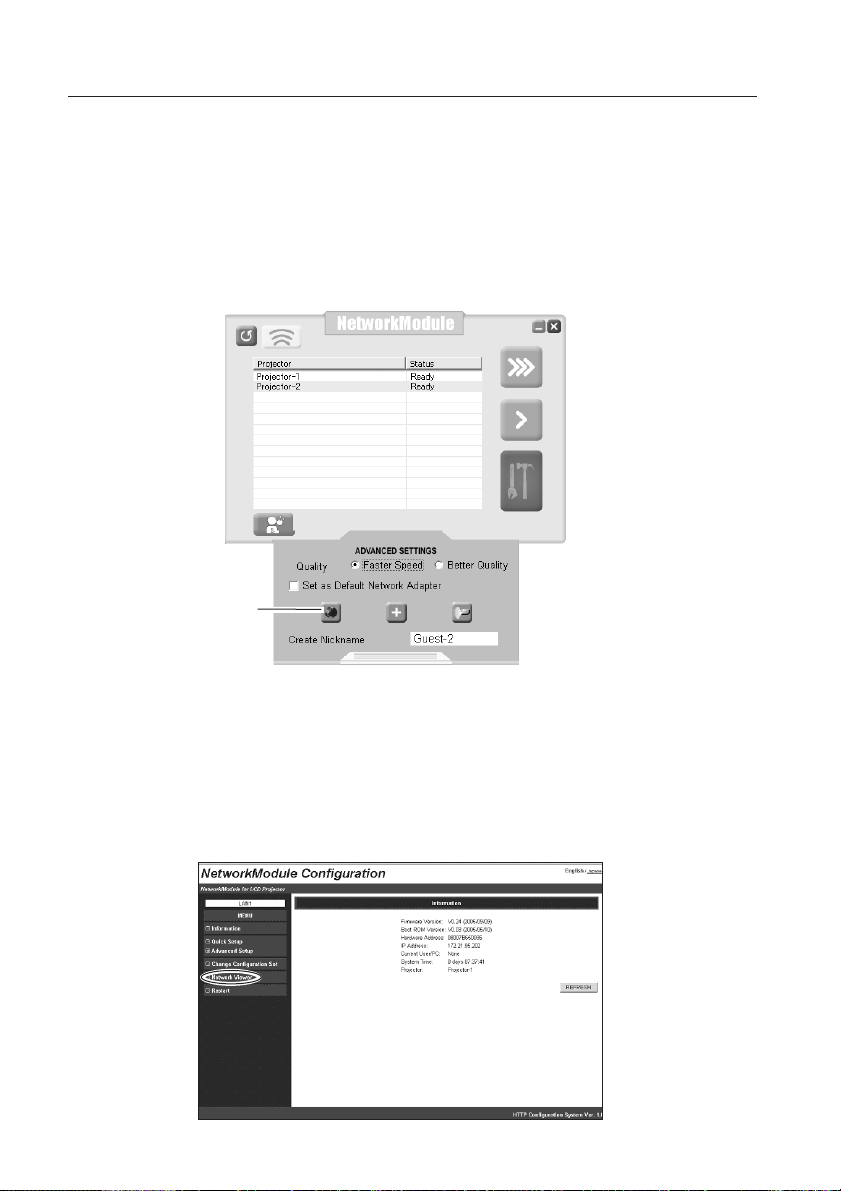

NetworkModule Client ...............................................................................21
NetworkModule Moderator .......................................................................23
4. Wired LAN Configurations......................................................................25
Connecting to the LAN Line.......................................................................26
Network Environment Settings..................................................................26
Setting Procedure................................................................................................26
Confirming the Operation...........................................................................28

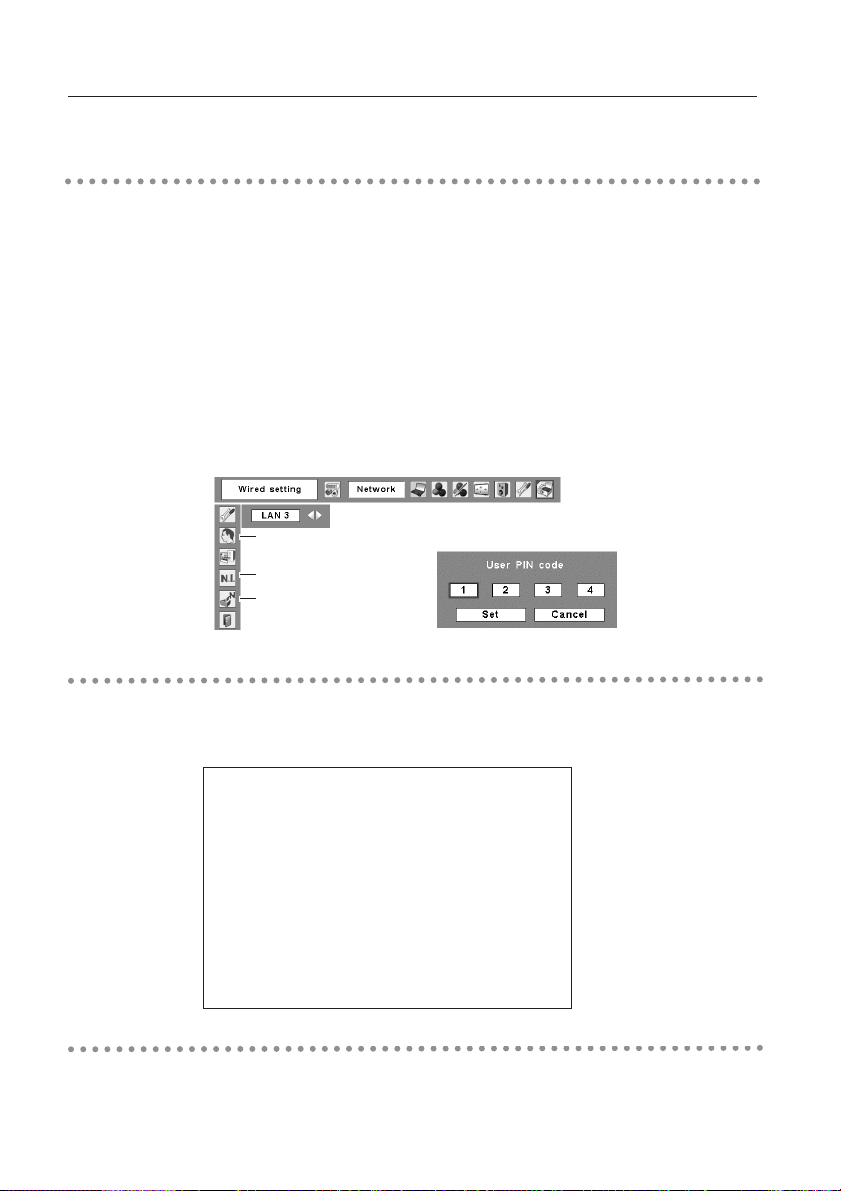

User PIN Code / Wired Information / Wired Factory Default .....................30
Factory Default Setting of the Wired LAN ................................................31
5. Wireless LAN Configurations .................................................................33

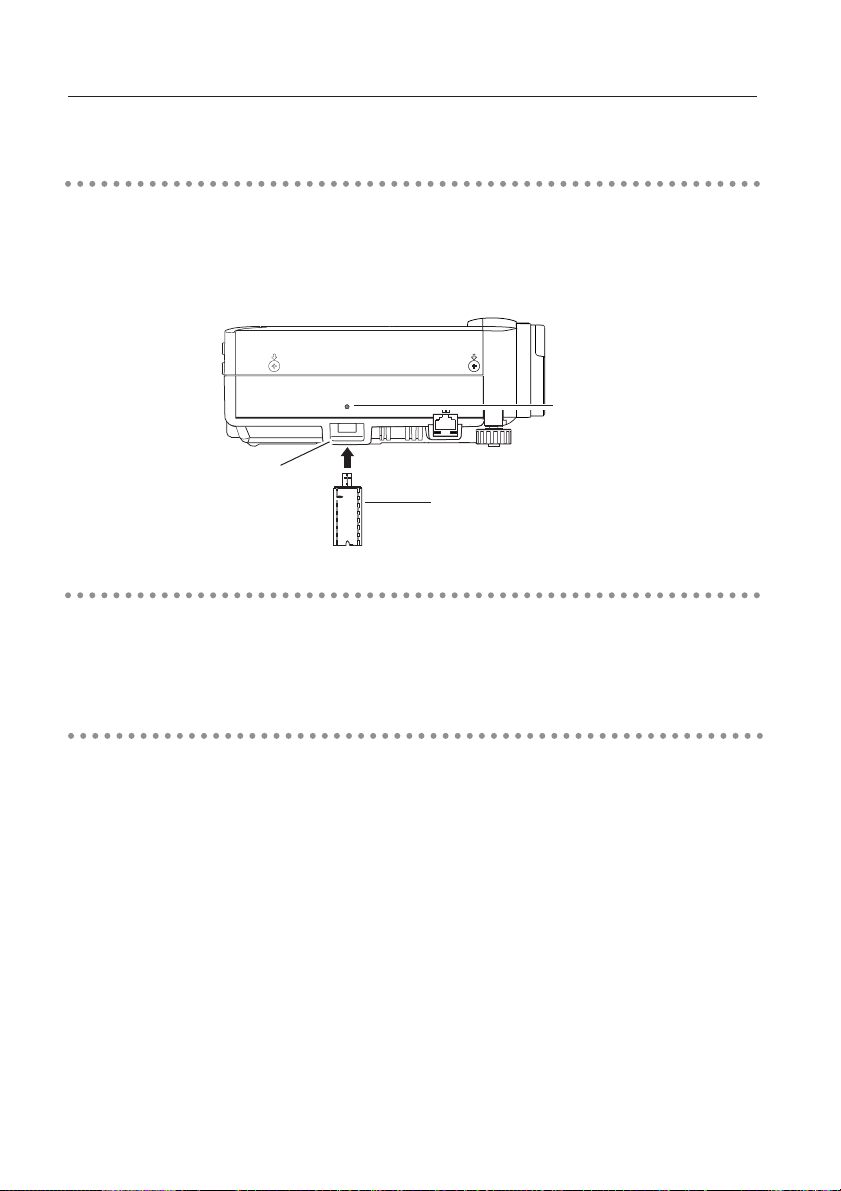

Attaching the USB Wireless LAN Adapter .................................................34

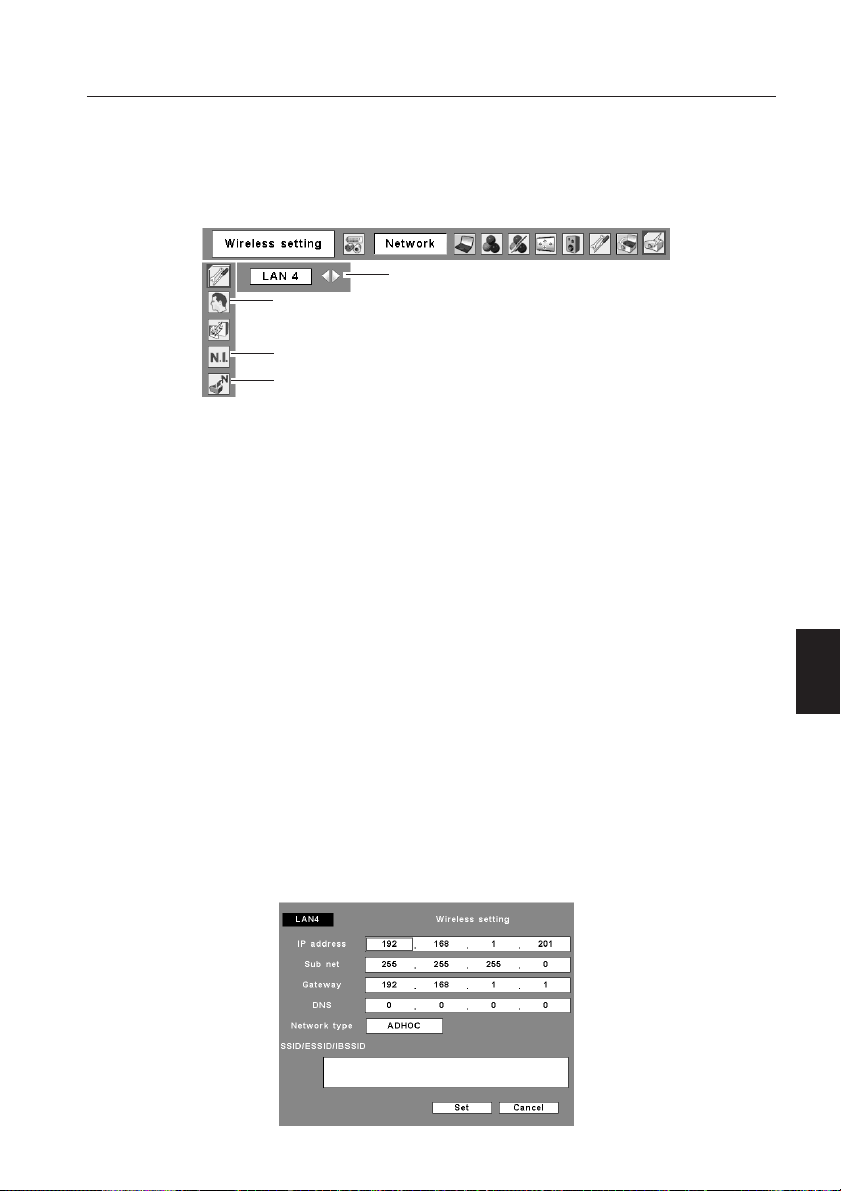

Setting the Network Environment .............................................................34
Setting Procedures.....................................................................................34
Easy Setting ...............................................................................................36
Setting Procedures..............................................................................................36
User PIN Code / Wireless Information / Wireless Factory Default.............37
Wireless LAN Factory Default Settings......................................................38
6. Configurations with Browser...................................................................39
Introduction ................................................................................................40
Browser Environment ................................................................................40
Browser Configuration ...............................................................................40
Starting up the Browser .............................................................................41

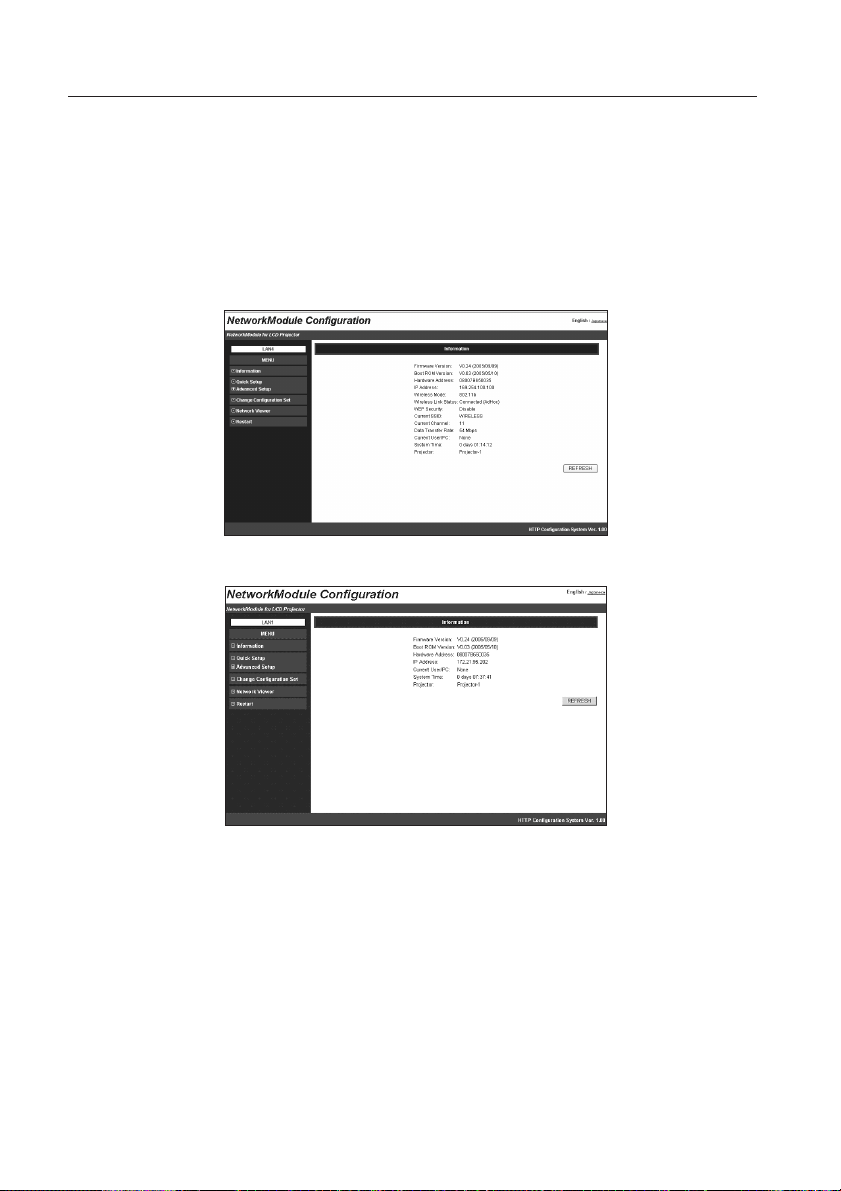

Information ..........................................................................................................42
Quick Setup................................................................................................44
4
Table of Contents
Advanced Settings .....................................................................................46

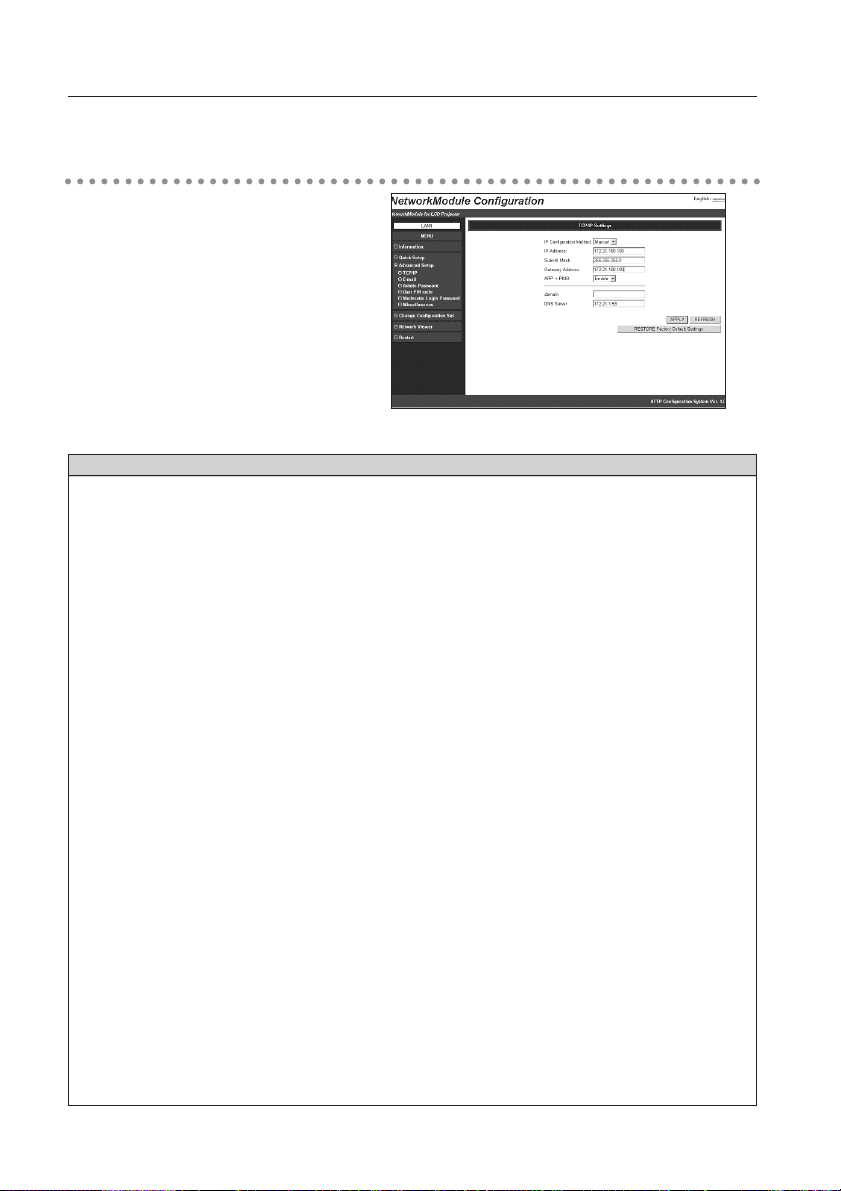

TCP / IP................................................................................................................46

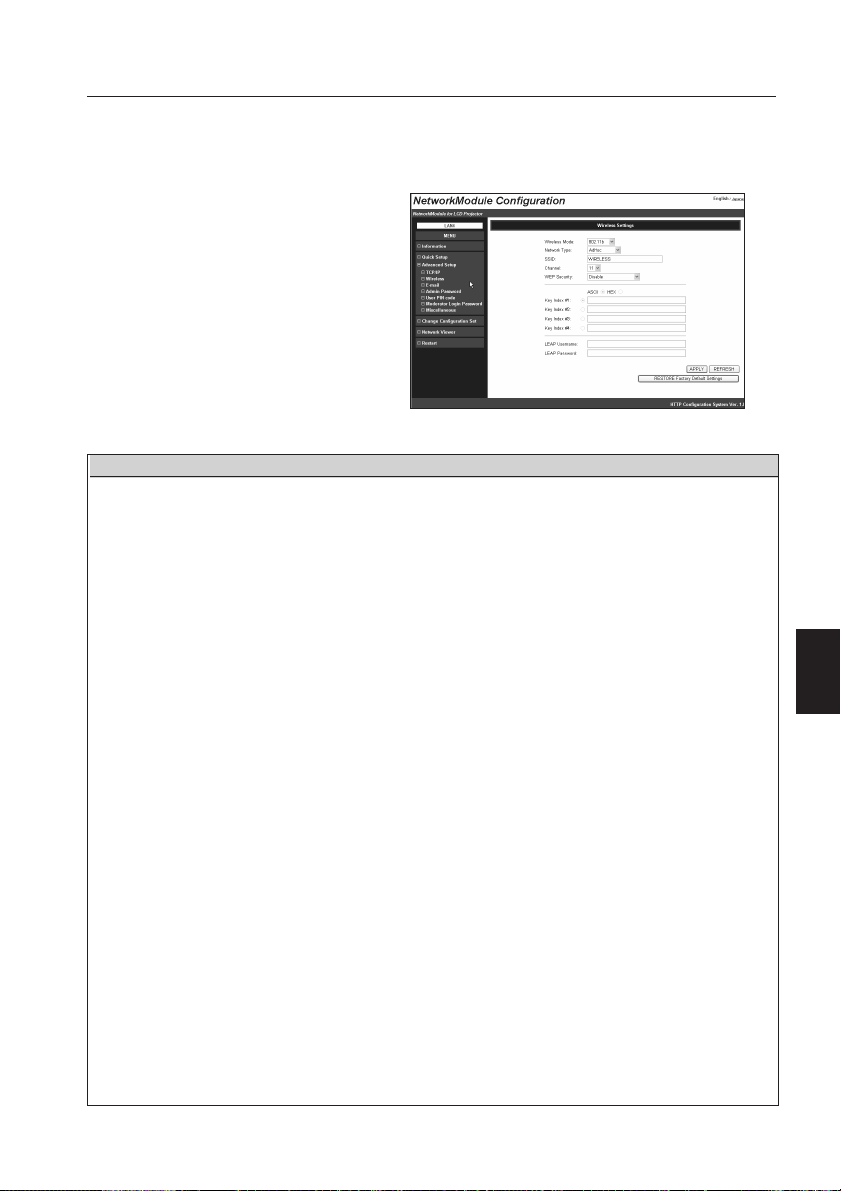

Wireless Setting ..................................................................................................47
E-mail...................................................................................................................48
Admin Password .................................................................................................49
User PIN code .....................................................................................................50

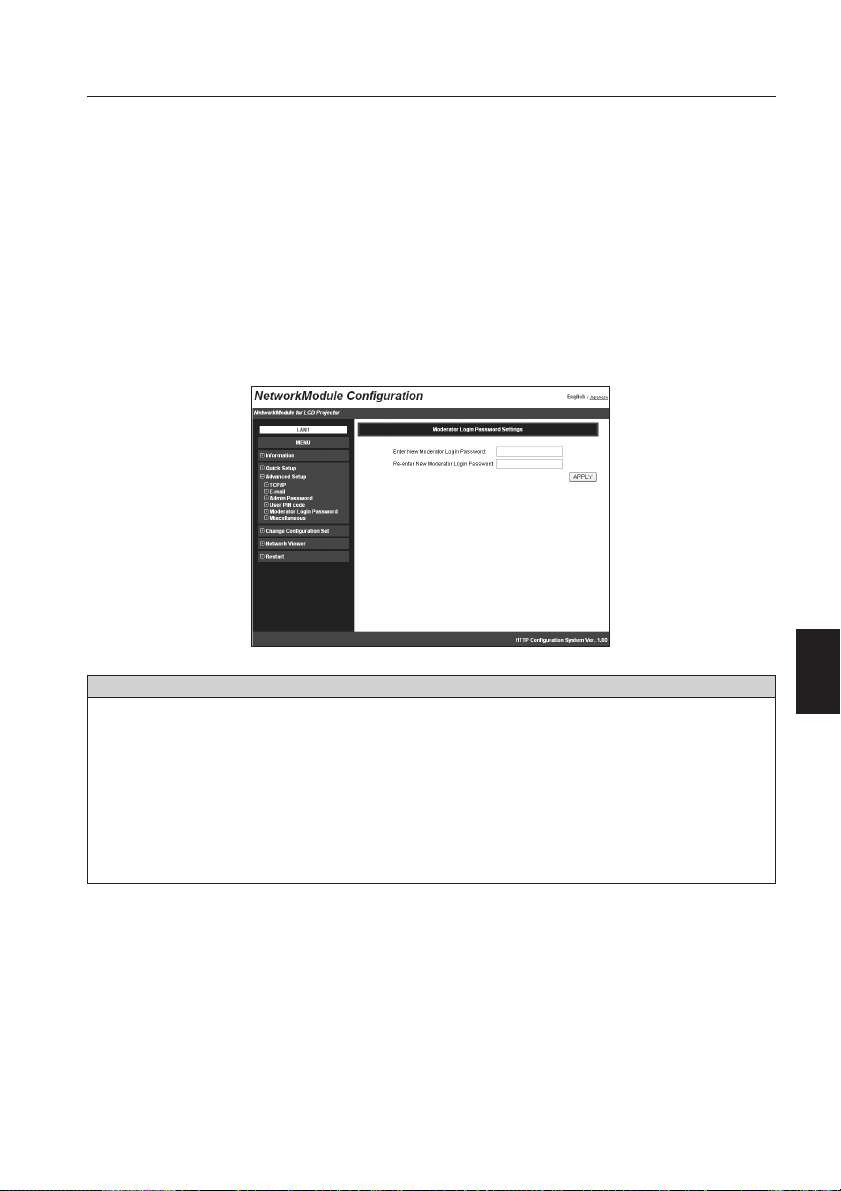

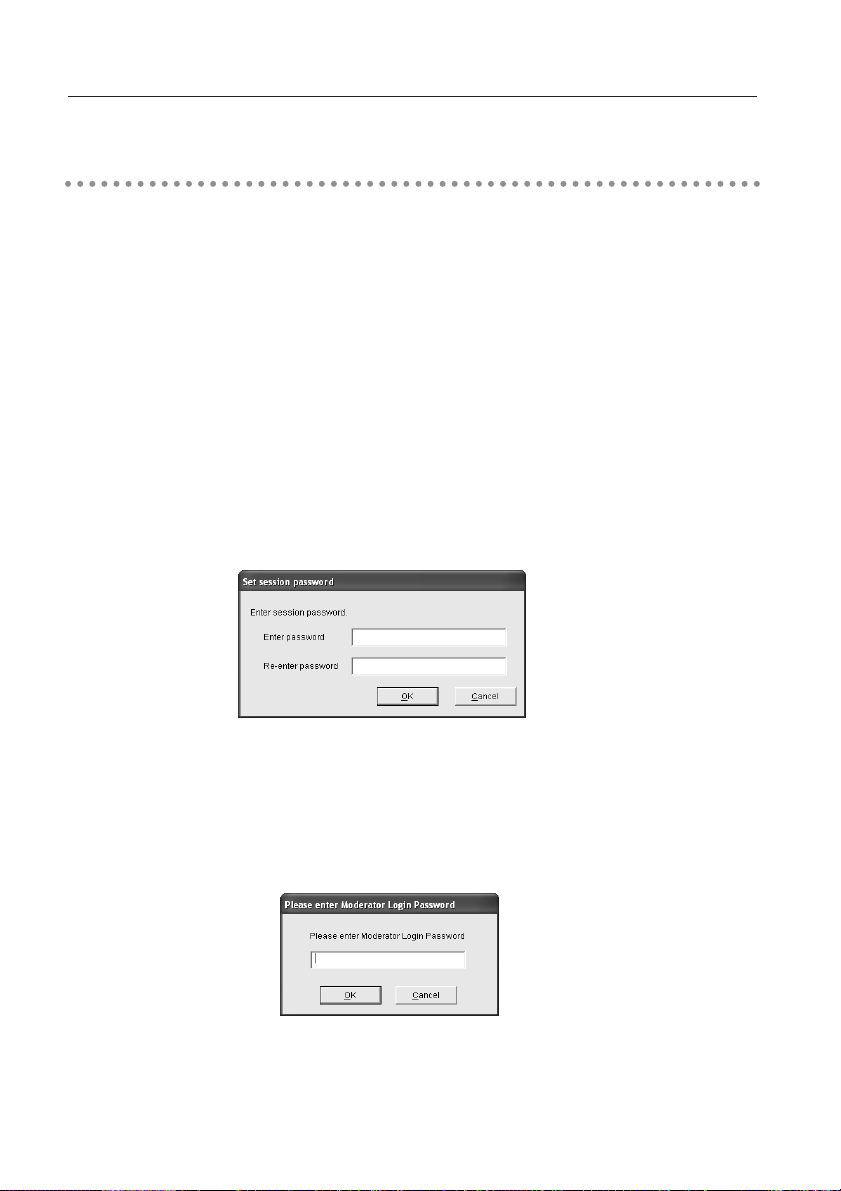

Moderator Login Password .................................................................................51

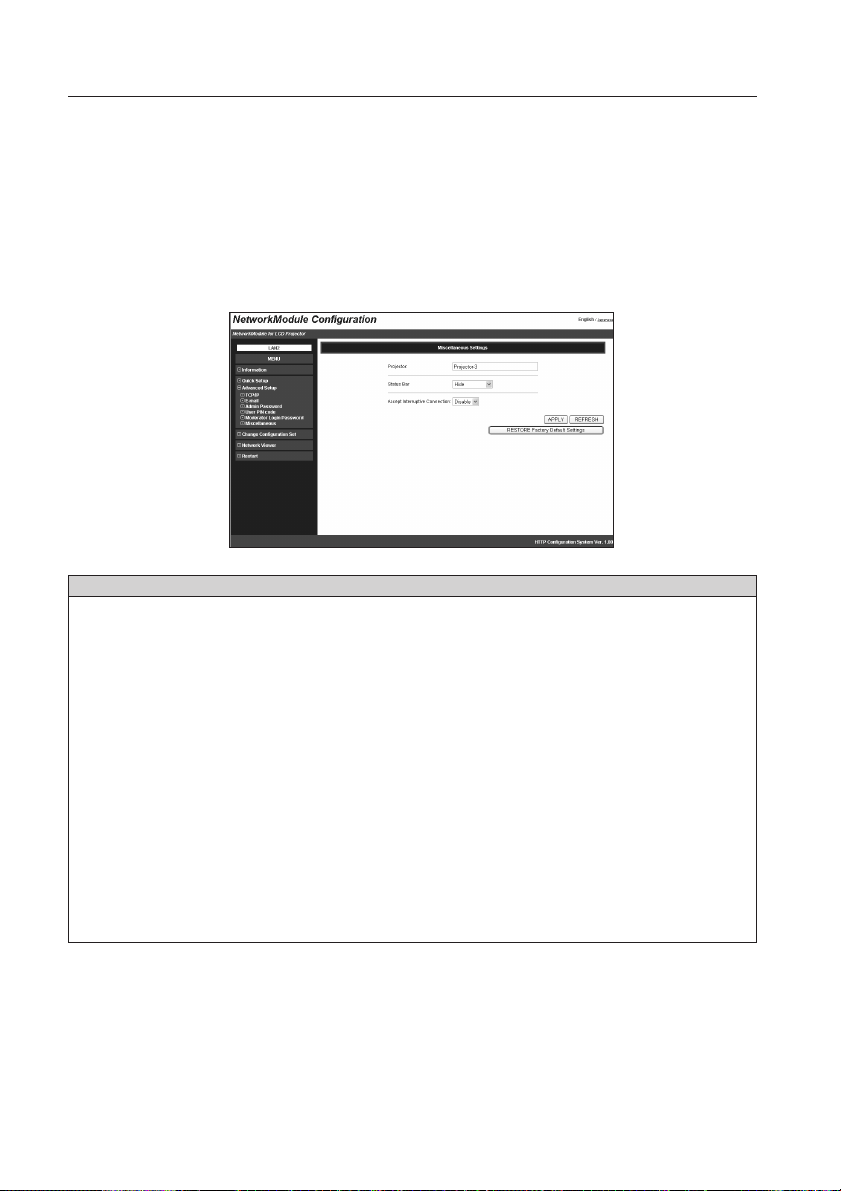

Miscellaneous .....................................................................................................52

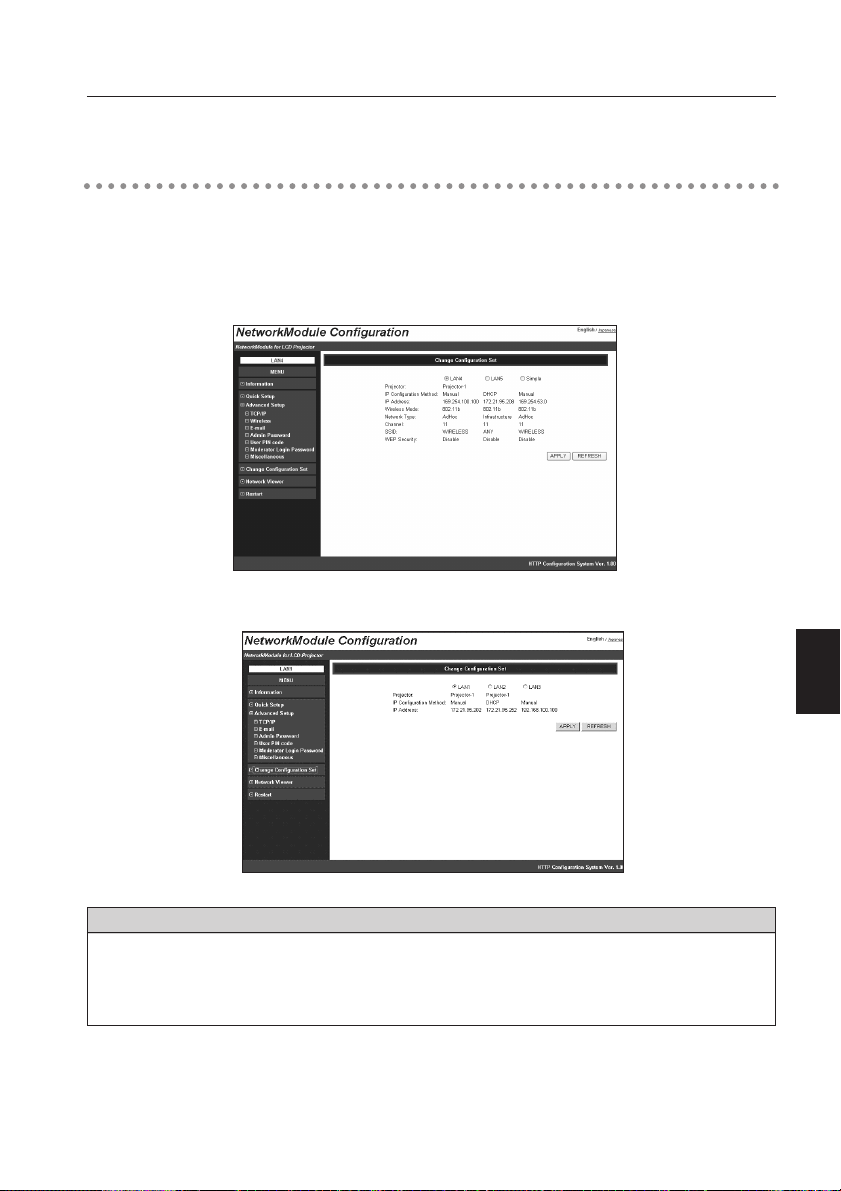

Change Configuration Set ..........................................................................53

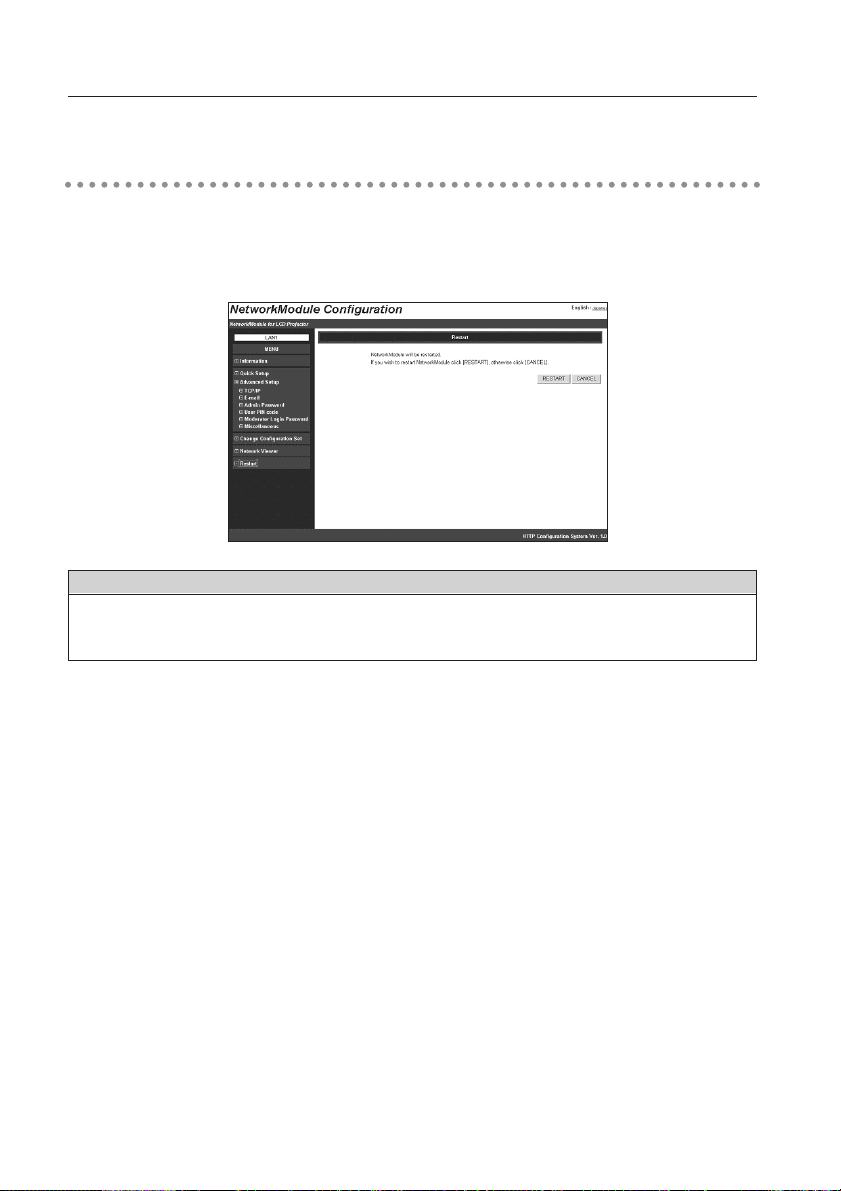

Restart........................................................................................................54
7. Project the Image via the Networks ........................................................55
8. Use the Moderator Function....................................................................57
Moderator Function....................................................................................58
Preparation for Using the Moderator Function...........................................59
Preparation Procedure for Using the Moderator Function .........................59
Setting the Moderator Function .................................................................60
Registration of the Moderator ............................................................................60
Registration of the Clients (Participants) ............................................................61

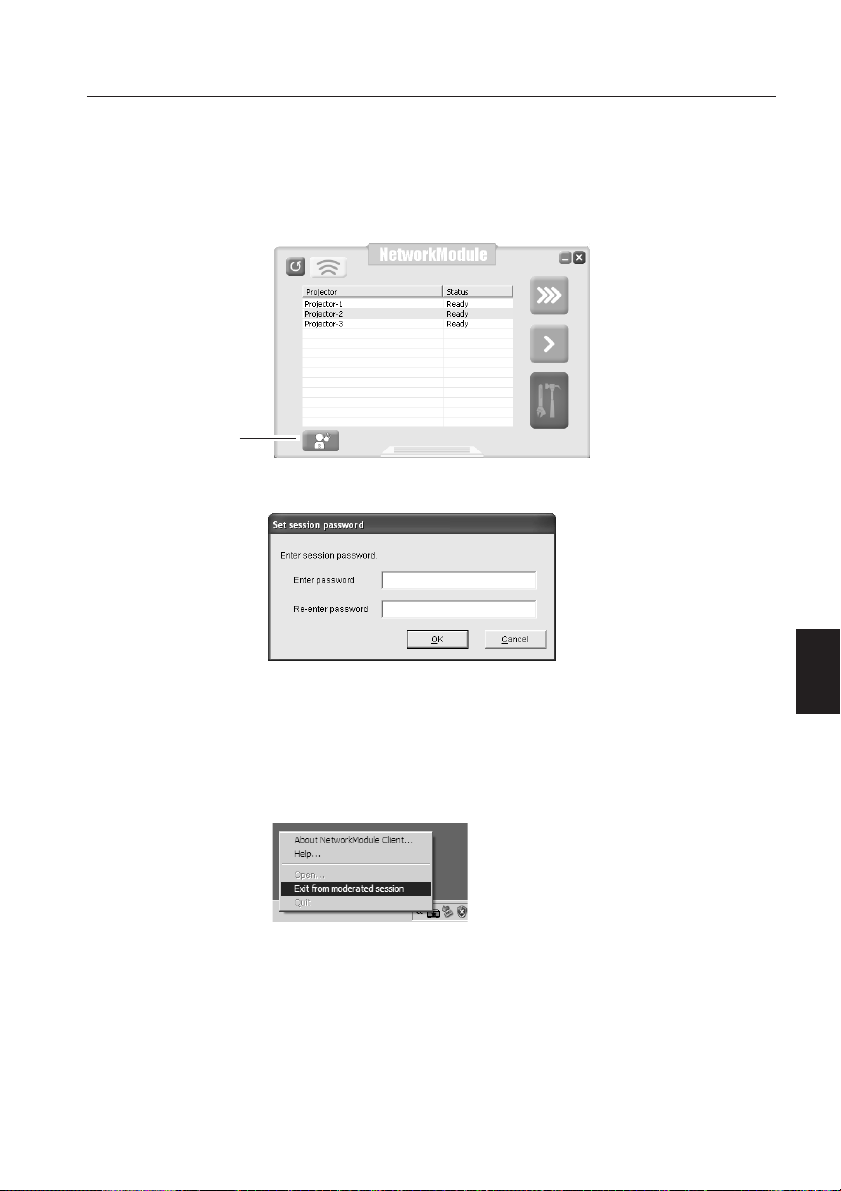

Unregister from Moderator Status.............................................................62
How to Use the Moderator Function .........................................................62
Project the Client's Images ................................................................................62
Stop Projecting the Client's Images ...................................................................62
Easy Settings for Moderator Function .......................................................62
9. How to Use Network Viewer....................................................................63
The Mechanism of Network Viewer and the Flow of the Signal ...............64
Operation.............................................................................................................65
Functional Conditions of FTP Server Which Provides Images ............................65
Projecting the Image ..................................................................................66
10. How to Use the PJ Controller ................................................................73
How to Operate .........................................................................................74
Initial Settings.............................................................................................75

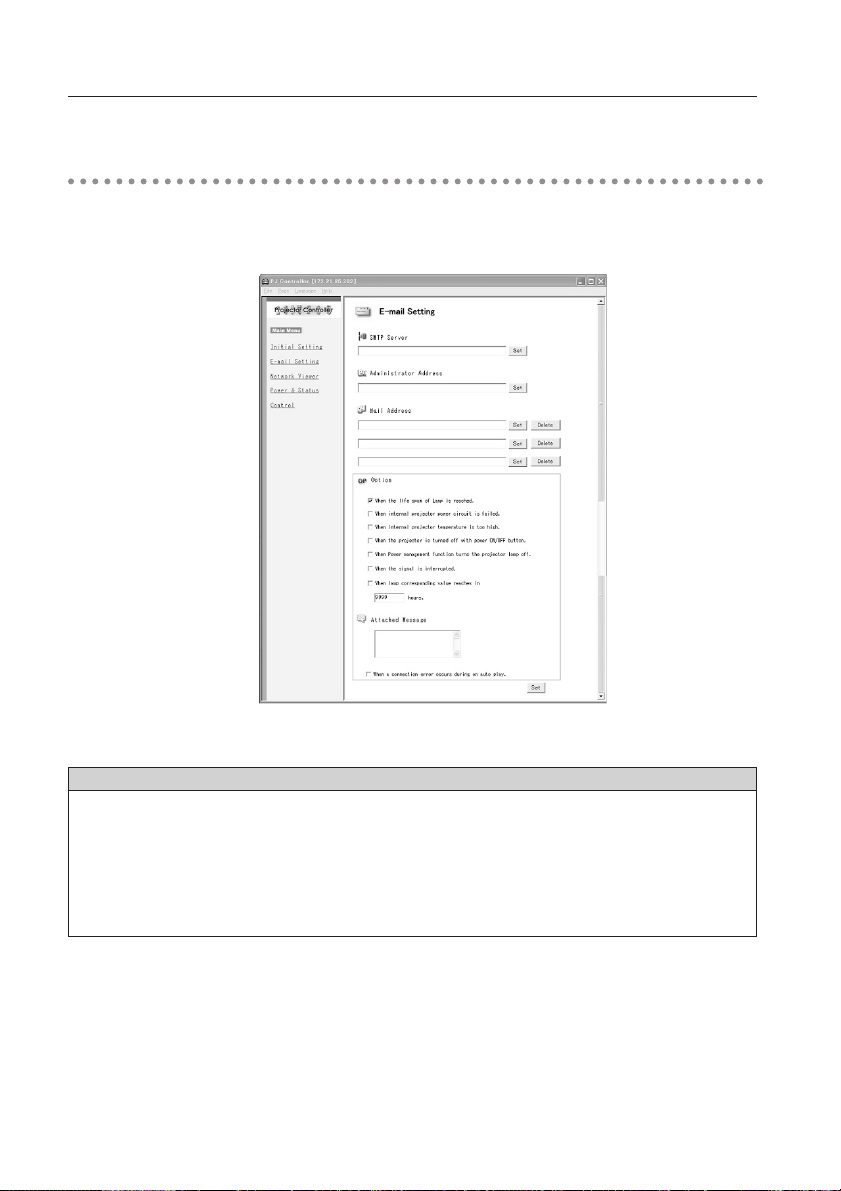

E-mail Setting .............................................................................................76
Power & Status ..........................................................................................78

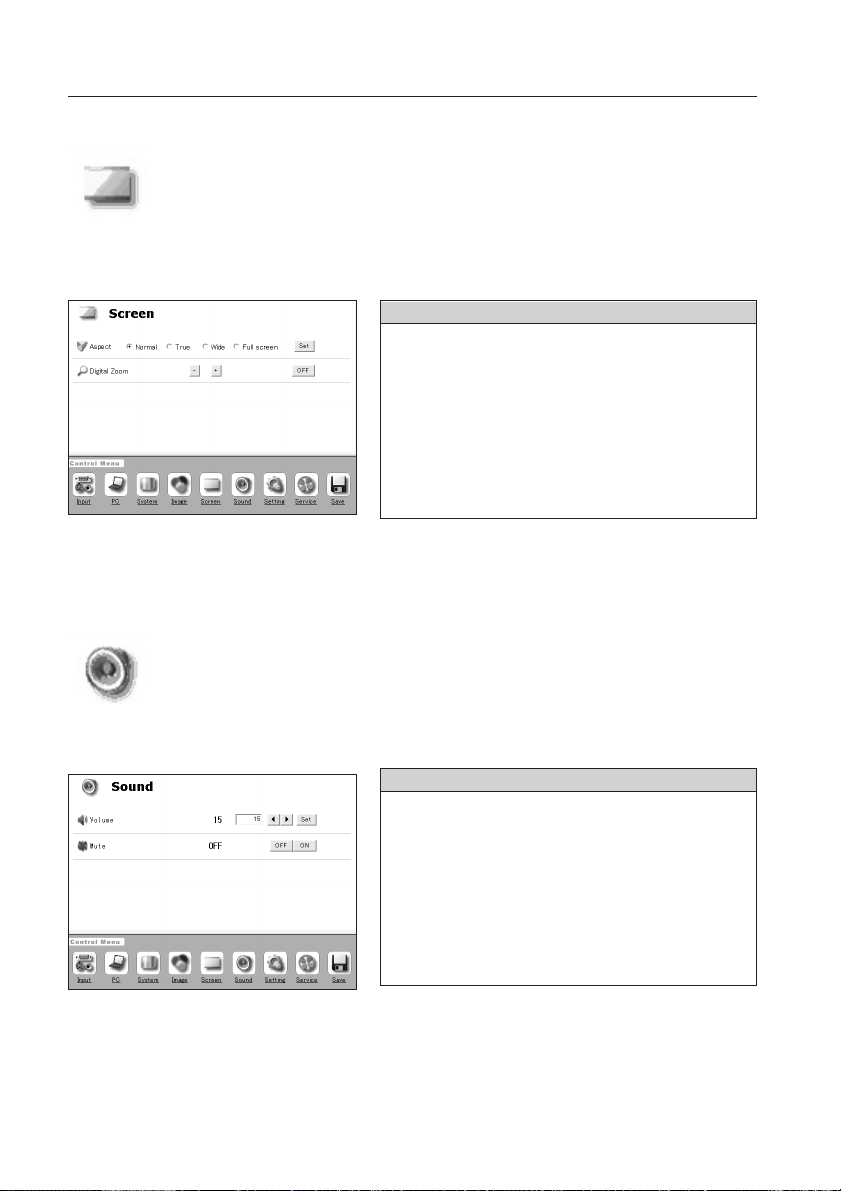

Control........................................................................................................80
Multi Control ..............................................................................................89
11. Appendix .................................................................................................91

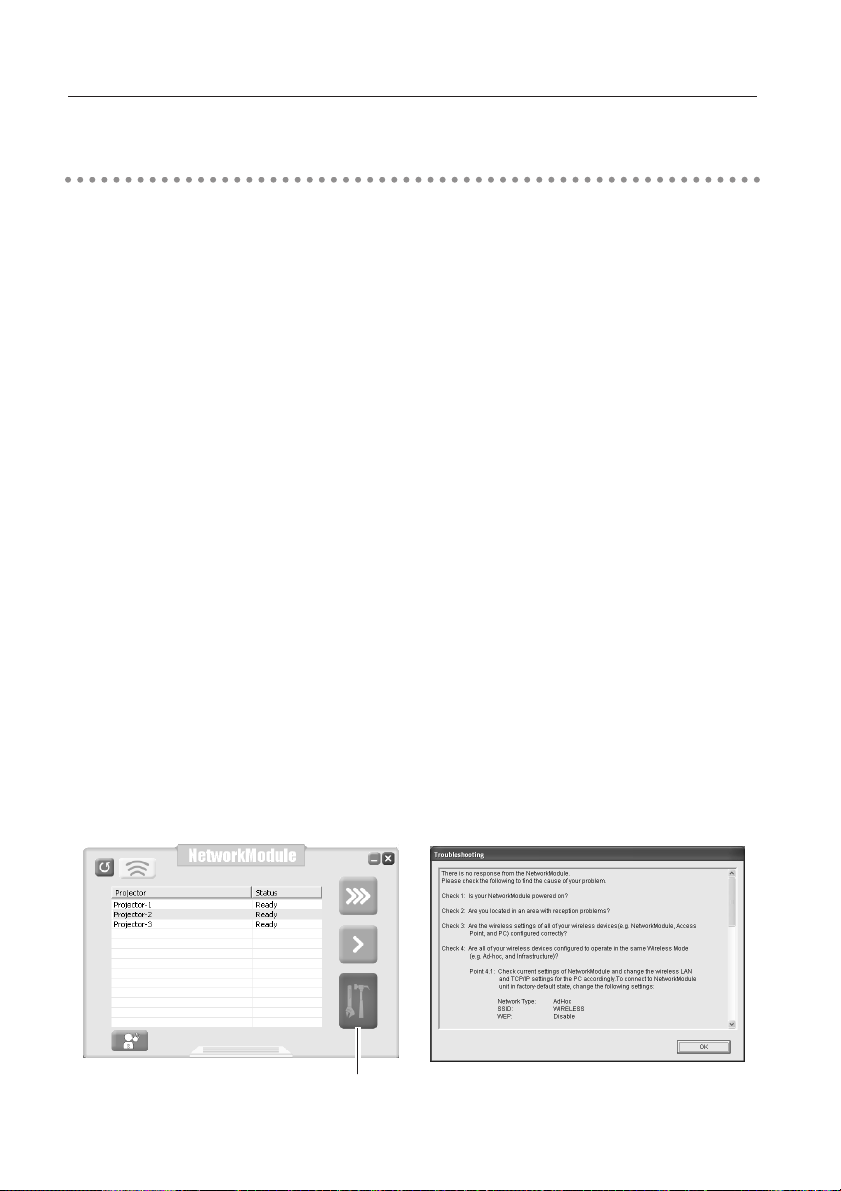

Troubleshooting .........................................................................................92
Terminology ...............................................................................................95
Setting up the IP address with “arp” + “ping”command .........................96
English
5
Operating Environment and Configuration
Required Operating Environment for Computers
When operating the projector via the networks, computers should meet the operating
environment below.
Microsoft Windows 98SE/Me or
OS
Microsoft Windows 2000 Professional or
Microsoft Windows XP Home Edition/Professional
CPU
Memory
Free HDD Space
Screen Resolution
Communication Protocol
Network
Correspond
Browser Application
Wireless LAN*
Wired LAN
Pentium III 600MHz or More
(more than 2GHz is recommended)
128MB or More
10MB
Required to support any of VGA(640X480),
SVGA(800X600), XGA(1024X768),
The color number should be either 16 byte(65536
colors) or 24/32 bit(16.77 million colors).
TCP/IP
Correspond to IEEE802.11b/g
Correspond to 100BASE-TX (100Mbpd)
/10BASE-T (10Mbps)
Microsoft Internet Explorer Ver.4.0 or later
Netscape Communications Netscape
Communicator Ver.6.0 or later
* When optionally available USB Wireless LAN Adapter is used.
6
Operating Environment and Configuration
Network Specifications of the Projector
LAN Terminal
Data communication speed
100Base-TX(100Mbps)/10Base-T(10Mbps)
Protocol TCP/IP
USB Wireless LAN Adapter (Optionally available. Model : WL-30)
Interface
Communication Mode
Correspond to IEEE8021b/g, USB 2.0 / 1.1
AdHoc,
Infrastructure
1/2/5.5/11Mbps(IEEE802.11b)
Data Transfer Speed
6/9/12/18/24/36/48/54Mbps(IEEE802.11g)
When using AdHoc mode, only IEEE802.11b is
usable.
Wireless Frequency (Channel)
Modulation Form
2412MHz-2462MHz (CH1-CH11)
IEEE802.11g OFDM
54/4Mbps 64QAM, 36/24Mbps 16QAM, 18/12Mbps
QRSK, 9/6Mbps BPSK
IEEE802.11b DSSS1
11/5Mbps CCK, 2Mbps DQPSK, 1Mbps DBPSK
Protocol TCP/IP
Security
Service area
Operating Voltage DC 5V
WEP 64 Bit/WEP 128Bit/WEP 152Bit,SSID,ESSID, LEAP
about 30m(without disturbance)
Differs according to the operating environment.
English
Compliance
Countries and Standards
Environmental conditions
Operating temperature : 5-35˚C
Storage temperature / Humidity :10-60˚C/5-95%
JAPAN: VCCI ClassB,TELEC(Wireless)
USA: FCC Part15 Subpart C (Wireless)
FCC Part15 Subpart C, Class B
Canada: IC RSS-210(Wireless), IC ICES-003 ClassB
Europe: R&TTE, EMC, LVD
7
8
1. About LAN Functions
This chapter describes the features, the
mechanism, and connection procedures of the
LAN.
Chapter
1
9
English
1. About LAN Functions
LAN Functions and the Features
This product is loaded with a LAN network function which enables you to project an image on
the computer through a projector via Network with dedicated software.
With the software, you can also manipulate the projecting image and the projector.
This software has functions below and you can use the projector under various network
environments to meet the wide-ranging needs of the operation.
Accept both Wired and Wireless LAN environment. When operating via Wireless LAN, there
•
is no need for wire connection.
Remove the burden of LAN settings. Easy LAN setting function is provided.
•
One computer image can be projected up to 5 projectors simultaneously.
•
Project the faithful computer image without any influence by the application.
•
Remote function which allows you to operate the projector from a distance.
•
Monitoring function for the projector operation.
•
E-mail function which reports the operating status to your maintenance management.
•
Network viewer function which remotely operates the image data on the server to project
•
through the projector.
Moderator function with which the moderator can project the image on the participants'
•
computer screen at the meetings or the classes.
Multi control function which can operate multiple projectors (up to 64) simultaneously.
•
Image Projecting System via LAN
The images are projected through an image capturing system which helps to project the faithful
computer images. With this system, you can use the product under various application
environments despite the differences of application software.
Flow of Image Transfer
1. Download the computer image with the dedicated software faithfully to the real image.
2. The downloaded data will be compressed to the digital signal and transferred to the projector
via the LAN (Wired or Wireless). (One computer can operate up to 5 projectors
simultaneously.)
3. Digital signal will be reproduced into RGB image signal and will be projected by the projector.
✳ The image will be transferred to each projector. The time lag can occur between each
projection.
CAUTION: This product does not correspond to the application with DirectX,
MS-Office assistant, and video replay such as DVD.
10
1. About LAN Functions
An Example of the Connection
The illustration below shows an example of the projection via the LAN.
You can project the image on Computer (1) (Wired LAN connection), or Computer (2) (Wireless
LAN connection) through the selected projector .
2.0
1.5
1.0
0.5
0.0
2.0
1.5
1.0
0.5
0.0
2.0
1.5
1.0
0.5
0.0
Access pointComputer (1)
Computer (2)
English
11
1. About LAN Functions
LAN Connection Modes
Connection modes differ depending on the LAN and computer environments.
Connect appropriately for each environment.
■ Wireless LAN, Infrastructure Communication Mode
Communicate over an access point between Wired LAN equipment and Wireless LAN
equipment. Or, communicate over an access point among multiple Wireless LAN equipment.
Wireless LAN equipment will select an access point to communicate SSID/ESSID modes.
These the communication modes are used when both Wireless LAN and Wired LAN are used in
the same network environment.
Computer (1)
■ Wireless LAN, AdHoc 802.11b Communication Mode
Computer (2)
Communication mode between Wireless LAN equipment.
(Communication mode via SSID/ESSID)
Wireless communication mode
corresponded computer: AdHoc
12
Access point
Network Projector
Wireless communication mode :AdHoc
Wireless communication mode
corresponded computer :
Infrastructure
1. About LAN Functions
■ Wired LAN Communication Mode
Communicate via the LAN line.
Computer(1) Computer(2) Computer (3)
✳ Operate the computer mouse with the remote control.
When the projector's remote control employs mouse operating function, you can
operate the computer by the remote control which is provided with the projector. Use
the remote control pointing to the projector. You do not need to connect the USB
cable to operate the computer mouse.
(For details about the remote control operation, refer to the owner's manual of the
projector.)
English
13
14
2. Setup Procedures
This chapter describes how to install the
NetworkModule software and how to set up the
networks.
Chapter
2
15
English
2. Setup Procedures
To use the projector via the networks, follow the setup procedures below.
STEP 1
STEP 2
STEP 3
Install the software on computers.
Install the software recorded in CD-ROM on each computer which will be
operated. Read following pages of this chapter to install.
Select Wired LAN or Wireless LAN then connect
the LAN and set the configuration.
Decide depending on the LAN environment.
Wired LAN .......Refer to "4. Wired LAN Configurations" (p25-31)
Wireless LAN ...Refer to "5. Wireless LAN Configurations" (p33-38)
Detailed LAN configurations need to be done with a browser later.
First, complete the Wired or Wireless LAN connection between computers and
projectors, then start browser configurations.
➔ "6. Configurations with Browser". (p39-54)
Network Configuration has completed.
Follow each chapter to project an image and operate the projector.
■ Project an image on the computer
➔ "7. Project the Image via the Networks" (p55-56)
■ Project an image with the moderator function
➔ "8, How to Use Moderator Function" (p57-62)
■ Project an image on a network server
➔ "9. How to Use Network Viewer" (p63-71)
■ Operate and manage the projector
➔ "10.How to Use PJ Controller" (p73-88)
Multi Control Function (p89-90)
16
2. Setup Procedures
Installing the Software
Three pieces of software is recorded in the supplied CD-ROM.
1. Insert the CD-ROM into the drive.
The software will be activated automatically and "Software License" screen will be displayed.
Read the license carefully and if you agree, check "Agree" then click "OK".
When the screen is not displayed automatically, open "CD-ROM Drive" in "My computer" of
your computer to activate "AutoRun. exe". The software can be displayed both in Japanese
and English. When the English version does not appear, open the English folder in the CDROM and double-click "AutoRun. exe" in it.
2. Main menu will be displayed on the screen.
Three software names will be shown on the left side of the screen.
Refer to the instructions below and select the most suitable software for you.
■ When projecting via a selected computer which is connected to the LAN.
Install "NetworkModule Client".
a Click (Select) "NetworkModule Client" on the left side of the screen.
s Click "Install NetworkModule Client" on the right side of the screen then move to the step f.
English
✳ By clicking the "Activate NetworkModule Client", you can activate the software directly from
the CD-ROM without installing the software into the computer.
17
2. Setup Procedures
■ When projecting with the Moderator function.
For details about Moderator function, refer to the "8. Use the Moderator Function".
a Install "NetworkModule Client" into each client's (participants except for the moderator)
computers. For installation, refer to"■ When projecting via a selected computer which is
connected to the LAN". (p17)
s Click (Select) "NetworkModule Moderator" on the left side of the screen.
d Click "Install NetworkModule Moderator".
✳ By clicking the "Activate NetworkModule Moderator", you can activate the software directly
from the CD-ROM without installing the software into the computer.
f Install each software with following the instructions on the installation screen.
g After the installation, the start-up menu will be displayed or the program icon
will be added on the screen.
h Activate the program to confirm the installation. When the program is activated, the
operation screen will appear.
Refer to "3. Names and Functions of the Operation Screen" (p19-23) to operate each program
screen.
To uninstall (delete) each program, activate the uninstall program in the application start
menu.
18
3. Names and Functions of the
Operation Screen.
This chapter describes the functions of each part of
the operation screen.
Chapter
3
19
English
3. Names and Functions of the Operation Screen
Network Connection Standby Display
Select projector input either "Wired" or "Wireless" and the Network connection standby display
will appear. Network environment will be shown on the screen. With this screen, you can
confirm that the network connection is whether "Wired" or "Wireless", or network environment
of the projector when setting the connection.
After selecting "Wired" or "Wireless", "Please wait..." message will appear and then change into
"Ready for use" message to show the network is ready to project. While "Please wait..."
message is showing, you cannot operate the projector.
You can select to display or not to display the Status bar (shows network environment) from "6.
Configurations with Browser" ➔ "Advanced Setup" ➔ "Miscellaneous". (p52)
Network Connection Standby Display
(✻ The screen below is for the Wireless
LAN setting)
Status bar
q
w
e
q NETWORKMODULE
"NETWORKMODULE" is the projector on the networks.
w The lower stand numbers show last 6 characters of a MAC address.
e Display the Network Mode.
Auto(10/100M) is for Wired mode, 802.11b(11) / 802.11g(11) is for Wireless mode.
r Display the Network Type.
"Wired" for Wired mode, "AdHoc" or "Infrastructure" for Wireless mode.
t SSID (Only for Wireless LAN)
Display the Wireless LAN ID which is set on the projector.
y Packet receive display
Display the communication status of the projector.
When the display is blinking, the projector is properly connecting with the network.
When the display is not blinking, the projector is not connecting to the network.
u Display whether the WEP(Encryption) is effective or ineffective.
The unlocked display means not encrypted, the locked display means encrypted.
(For Wired LAN, unlocked illustration will appear.)
i Display the signal level.
Display the signal level of the Wired and Wireless. When the signal level is strong, there will
be more vertical lines and the signal level is low, there will be less vertical lines.
20
r
y u
t
i
3.Names and Functions of the Operation Screen
NetworkModule Client
This software is to project the computer screen via the networks.
To use the moderator function, install this software into each participant's (except for the
moderator) computers.
Activate "NetworkModule Client" from the application start menu or the shortcut on the desk
top, then following screen will appear. Then the program will start.
q
w
e
r
t
y
u
!5
!4
!3
!2
i
o
!0
!1
Parts Names and Functions of the Screen
q Refresh List button
Search the projector connected to the networks.
w Locator button
Click the button after selecting a projector from the Network Projector List, the operated
computer's nickname will be displayed on the upper part of the projected screen for a certain
period. With this function, you can identify each projector.
e Network Projector List
Display all the projectors connected to the networks.
Show unoccupied projector as "Ready" and occupied projector as "In-use". When registered
in a moderator's group, the projector is shown in pink characters.
English
21
3.Names and Functions of the Operation Screen
r Real time Capture button
Capture (Project) the computer screen in real time. After capturing, the button will change
into the Stop Capture button. Click the Stop Capture button, then the projection will stop
and the screen will disappear.
t One-shot Capture button
Copy and capture (project) the computer screen without modification. After completing the
image transmission, the communication will stop and you can operate other functions.
y Easy Setting button
Configure the Wireless LAN settings just clicking this button. (The settings will be stored as
AdHoc system) For details, refer to "5.Wireless LAN Configurations" ➔ "Easy Setting". (p36-
37)
u Join the moderated session button
Enter the moderator's group which is selected in the Network Projector List.
Advanced Settings
i Advanced Settings button*
Display the Advanced Settings.
o Quality selection
Select the speed and picture quality of the screen to capture.
Faster Speed ----- Screen capturing will be speedy but the picture quality will be lower.
Better Quality------ Screen capturing will be slower but the picture quality will be better.
!0 PJ Controller / Multi control button
Start up the operation screen of the projector. Refer to "10. How to Use the PJ Controller".
(p73-90)
!1 Create Nickname box
Create a nickname for each participant. When using moderator function, each computer's
nickname (up to 16 characters) will be displayed on the client list of the moderator's screen
allowing moderators to recognize the participants.
!2 Close button
Close Advanced Settings. (After closing the Advanced Settings menu, the settings you have
made in o!1!5 will be effective.)
!3 Add NetworkModule button
When connecting the projector which is not displayed on the "Network Projector List ",
because it is separated by the router, click the button to set the connection. Refer to "4.
Wired LAN Configurations" ➔ "Confirming the Operation". (p28-29)
!4 Configure NetworkModule button
For setting the networks with the browser. Refer to "6. Configurations with Browser". (p39-
54)
!5 Set as Default Network Adapter box
When using multiple network adapters with a computer, check here then the selected
adapter will always be used with the software. After exiting the software, the selected
adapter will be cancelled.
*The o!1!5 settings you have made in iAdvanced settings will not be effective until
closing the menu screen with !2Close button.
22
3.Names and Functions of the Operation Screen
NetworkModule Moderator
When using the moderator function, install the software on the moderator's computer.
The function is the same as "NetworkModule Client" and on top of it, the moderator function is
added.
Activate "NetworkModule Moderator" from the application start menu or the shortcut on the
desk top, then following screen will appear. Then the program will start.
!6
!7
!8
@0@1
!9
Parts Names and Functions of the Screen
Refer to "NetworkModule Client" (p21-22) about functions which are not written below.
!6 Moderator Client List Screen
Clients (participants) who joined the moderator's group will be shown. The moderator
selects one of the participants from the list to project his/her computer screen.
When the clients have nicknames, the names will be shown.
!7 Start Remote Capture button
Start capturing the image of the participants and send it to the projector.
The image will be sent in real time.
!8 Stop Remote Capture button
Stop capturing the image of the participants.
!9 Set Session Password
Set or modify the Session Password.
@0 Exit moderator status button
Unregister the moderator.
@1 Moderator login button
Register the computer user as a moderator.
English
23
24
4. Wired LAN Configurations
This chapter describes the preparation for Wired
LAN setting with projectors and how to set the
LAN environment.
Chapter
4
25
English
4. Wired LAN Configurations
Setting procedures and contents differ depending on the LAN installation location.
When installing, consult your system administrator to set up the LAN appropriately.
Connecting to the LAN Line
Connect the LAN cable to the LAN connection terminal of the projector.
LAN Connection Terminal
Access Lamp (Green)
USBUSB
Link Lamp (Orange)
Light orange when the
terminal is correctly
connected to the Network
HUB with the LAN cable.
Network Environment Settings
LAN Cable
Blink green when
exchanging data with the
network.
* When the LAN setting is
"Off", the two lamps will
not be on.
Set the Wired LAN network through the projector menu.
Detailed network settings will be made with browser. Refer to "6. Configurations with
Browser". (p39-54)
First, complete the settings described in this chapter before performing steps in "6. Configurations
with Browser".
Setting Procedure
1. Turn on the projector and select "Wired" from the input menu of the projector.
The projector's Link Lamp will be on and the Access Lamp will start to blink. If the "LAN
setting" is "Off", it will not blink. Follow step 2 and 3 to blink the lamp.
2. Select "Wired Setting" in the projector menu, and press the SELECT button.
Select similar LAN environment among LAN1, 2 and 3 with the Point 7 8 buttons. (LAN1, 2,
and 3 are the factory default setting environments. You can select three different
environment among setting LAN1-3. For each setting, refer to the chart on page 31.)
When selecting "Off" in the "Wired setting", the LAN connection will be cut off. Use the
function when disconnecting the projector from the network.
3. Press the Point button then "Please wait..." message will appear and switching operation will
start. Switching will take a while and after completing the operation, the "Ready for use"
message will appear. During the switching period, the projector cannot be operated.
26
4. Wired LAN Configurations
4. Press the SELECT button.
LAN setting screen will appear and selected LAN settings will be displayed. Adjust each item
to the setting environment. Consult your system administrator about the detailed settings.
Adjust the figures with the Point ed buttons and move among the items with the Point 7 8
buttons.
5. After completing all the settings, select "Set" and press the SELECT button. Now, all
procedures has done. To cancel the adjusted settings, select the CANCEL button before
clicking the SET button.
To confirm whether the settings are correct, follow the procedures from the next page.
You can confirm the LAN settings you have made from "Wired Information". (p30) As in the
case that the LAN cannot be connected, see this screen.
Wired setting
User PIN code
Wired Information
Wired Factory Default
Wired LAN setting screen (Example)
English
27
4. Wired LAN Configurations
Confirming the Operation
Confirm that the projector has connected to the LAN properly.
1. Activate "NetworkModule Client" or "NetworkModule Moderator" which is installed into the
computer connected to the LAN .
2. After appearing "NetworkModule searching" message, the name of the projector* appears on
the Network Projector List, then the network setting has completed properly.
When the name of the projector does not appear and error screen appears, the network has
not connected yet. Try searching again with the Refresh List button. If error screen appears
again, reconfirm the LAN setting. When the projector is set where separated by the router,
see next page.
When Firewall function (Anti-virus software) is effective, network projector may not be found.
In that case, disable the Firewall function and try searching again.
✳ If the projector is named, the name will be displayed. The name can be set with following the
procedures in "6. Configurations with Browser" ➔ "Quick Setup" (p44-45) or "Advanced
Settings" ➔ "Miscellaneous" (p52). If the projector is not named, MAC address of the
projector will be displayed.
NetworkModule Client screen Error screen
Refresh List button Network Projector List
28
4. Wired LAN Configurations
When set up the projector where separated by the router and the segment is different;
Projector will not be found nor displayed. In this case, the projector needs to be searched
directly by the IP address.
1. Click the Add NetworkModule button in the Advanced Settings menu. The Add
NetworkModule screen will appear.
2. Click "Add" then the IP address screen will appear. Enter the IP address and click "OK". The
projector will be added on the Add NetworkModule screen. If you check "Check status", the
connected projector will be checked periodically.
3. Click "OK" then the projector will be added on the Network Projector List.
Network Projector List
Click
the Add NetworkModule button
English
Add NetworkModule screen
Enter IP Address screen
29
