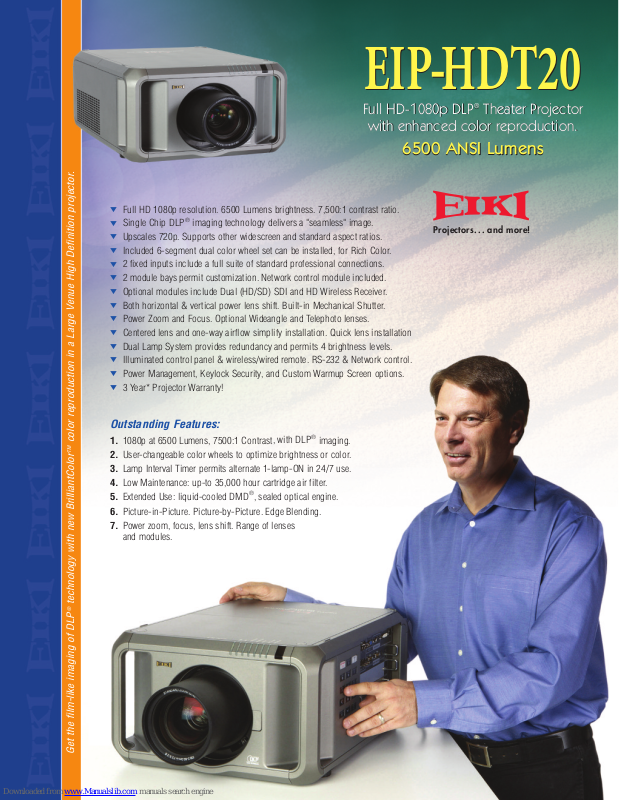

Page 1
▼
Full HD 1080p resolution. 6500 Lumens brightness. 7,500:1 contrast ratio.
▼
Single Chip DLP®imaging technology delivers a "seamless" image.
▼
Upscales 720p. Supports other widescreen and standard aspect ratios.
▼
Included 6-segment dual color wheel set can be installed, for Rich Color.
▼
2 fixed inputs include a full suite of standard professional connections.
▼
2 module bays permit customization. Network control module included.
▼
Optional modules include Dual (HD/SD) SDI and HD Wireless Receiver.
▼
Both horizontal & vertical power lens shift. Built-in Mechanical Shutter.
▼
Power Zoom and Focus. Optional Wideangle and Telephoto lenses.
▼
Centered lens and one-way airflow simplify installation. Quick lens installation
▼
Dual Lamp System provides redundancy and permits 4 brightness levels.
▼
Illuminated control panel & wireless/wired remote. RS-232 & Network control.
▼
Power Management, Keylock Security, and Custom Warmup Screen options.
▼
3 Year* Projector Warranty!
EIP-HDT20
EIP-HDT20
Full HD-1080p DLP®Theater Projector
Full HD-1080p DLP®Theater Projector
with enhanced color reproduction.
with enhanced color reproduction.
6500 ANSI Lumens
6500 ANSI Lumens
2345
Projectors. .. and more!
Outstanding Features:
color reproduction in a Large Venue High Definition projector.
TM
technology with new BrilliantColor
®
1. 1080p at 6500 Lumens, 7500:1 Contrast
2. User-changeable color wheels to optimize brightness or color.
3. Lamp Interval Timer permits alternate 1-lamp-ON in 24/7 use.
4. Low Maintenance: up-to 35,000 hour cartridge air filter.
5. Extended Use: liquid-cooled DMD
6. Picture-in-Picture. Picture-by-Picture. Edge Blending.
7. Power zoom, focus, lens shift. Range of lenses
and modules.
, with DLP
®
, sealed optical engine.
®
imaging.
Get the film-like imaging of DLP
Page 2
EIP-HDT20
Full HD-1080p DLP®Theater Projector
6500 ANSI Lumens
SPECIFICATIONS:
Brightness . .......................... up to 6,500 ANSI Lumens (**w/lens AH-43005S)
Illumination Uniformity . ........................................................ 90%
Color Reproduction ........................................ 10 bit/1.07 Billion Colors
Contrast Ratio . ............................... up to 7,500:1 (w/DynamicBlack™ high)
Projection Lamp . ........................................... 330 Watt VIDI™ UHP x 2
Estimated Lamp Life ......................................... up to 2500 Hours of Use
Imaging System . ................................... 0.95” DarkChip™ 3 DLP
Native Resolution .................................... 1920 x 1080 (16:9 aspect ratio)
Color System . .................... High Brightness 4-segment color wheels x 2 (installed)
Lens . .......................... Not Included (choose from a selection of optional lenses)
Image Diagonal ........................................................ 50~600 in.
Image Width . ........................................ 3.64~43.6 ft. (1.11~13.20 m)
Throw Distance ..................................... See specifications of selected lens
Front Elevation/Maximum Pitch . .................................... up to 5° up/360°
Vertical Anti Keystone ..................... Power Lens Shift (Top:Bottom) 6.65:-1~ -1:6.65
Horizontal Anti Keystone . ..................... Power Lens Shift (L:R~R:L) 10.7:1~1:10.7
Vertical Keystone Correction . ............................. Digital: up-to 30° up or down
Horizontal Keystone Correction ............................ Digital: up-to 30° left or right
Scanning Frequency . ................... Auto: H Sync. 15-120 kHz; V Sync. 48~120 Hz
Dot Clock .......................................................... up to 230 MHz
Image Orientation . ........................................ Normal, Reversed, Inverted
Local Control/Power Management ........................... Full Function/Auto Shut-Off
Remote Projector Control . ........................................ Wireless/Wired x 1
Wired Remote Port ................................................... MiniStereo x 1
Projector Service Port . .................................................... USB-B x 1
RS-232 (Serial) Port/In & Out ............................................. Dsub9 x 2
Computer: Compatibility ............ UXGA (analog only), WUXGA~WXGA, SXGA+~VGA
Computer: Formats .................................. 1920 x 1200 through 640 x 480
Computer: Image Sizing . ................... Normal, or Smart Compressed or Expanded
Video: Color Systems ........................ NTSC/PAL/SECAM/NTSC 4.43/PAL-M/N
Video: Aspect Ratios Supported ................................... 16:9, 4:3 and other
Video: Image Resizing .......................................Video Scaling Technology
Video: Resolutions Supported
SDTV (Composite, S-Video, Component) ........................... 480i/p, 575i/p
HDTV . ..................................... 720p 1080i/p, 1080 psf 30/25/24
Signal Inputs: fixed
1. a. Computer: Analog RGB ........................................ Dsub15 x 1
b. Computer: Digital RGB . .......................................... DVI-D x 1
or Video: Digital Video w/HDCP
c. Video: Digital Video (w/HDCP) . .................................. HDMI x 1
2. a. Computer: Analog RGBHV ....................................... BNC x 5
or Video: Composite/Component: Video/Y-Pb/Cb-Pr/Cr
b. Video: S-Video ................................................ S-Video x 1
Signal Inputs: modules
3. Empty module bay (unpopulated)
4. Network Module ................................................... RJ45 x 1
Signal Outputs:
Data/Video Monitor: Analog RGB/Composite/Component ................... Dsub15 x 1
Operating Noise .................................................. as low as 36 dBA
Cabinet Size (HxWxD) ................ 9.6 x 15.7 x 20.6 in. (242.5 x 400 x 524.2 mm)
Weight ............................................................ 44.1 lb. (20 kg)
Packaged Size (HxWxD) ................. 17.3 x 20.8 x 25.6 in. (439 x 528 x 651 mm)
Packaged Weight ................................................ 55.1 lbs. (25.0 kg)
Power Requirements ......................................... 100-240V AC, 50/60Hz
Power Consumption ..................................... up to 846W Standard Mode
Heat ................................................ up to 2887BTU/hr (727Kcal/hr)
Power Cord ..................................................... Type 3, Detachable
Electrical Safety Compliance ................................................. UL/cUL
Electromagnetic Compatibility .................................... FCC Part 15 Class A
Security ......................... Kensington
Operating Temperature .......................................... 41~104°F (5~40°C)
User Maintenance ................................... Replace Air Filter, Replace Lamps
Warranty: (to the original end-use customer)
Projector: ................. 3 Years/6000 Hour Use* (Parts & Labor to Correct Defects)
Lamp: ..................................... 90 Days (Failed Lamp Replaced Pro-Rata)
(“Dynamic” image mode & DynamicBlack™ Off)
®
chip x 1
& MAC (analog or digital)
complete with external equipment control port Dsub9 x 1
®
Security Slot, Handles (use as Security Bar)
* Whichever occurs first
Talk to your EIKI Dealer... the "pro" in projectors.
20.6"
9.6"
15.7"
EIP-HDT20 – Full HD-1080p DLP®Theater Projector
with enhanced color reproduction.
Complete local control, professional inputs, network module & expansion bay.
Top-accessed color wheels & lamps.
Lamp Contains
Mercury.Donot
put in trash.
Dispose-of-as Hazardous
Waste, according to the
laws in your jurisdiction.
Full-function
remote control.
INCLUDED ACCESSORIES:
Quick Setup Guide. Owner’s Manual on CD-ROM. 6 ft (1.8 M) AC
Power Cord. Lens Cover. VGA-type Computer Input Cable (Dsub15).
Wireless/wired Remote & 2 x AA batteries. Wired Remote Cable.
Real Color Manager Pro Software on CD-ROM x 1. Cable Cover x 1.
Cable Cover Support x 1. Cable tie x 3. Rich Color 6-Segment Color
Wheels x 2. Lens Aperture Cover.
OPTIONAL ACCESSORIES:
Wideangle, Standard and Telephoto Lenses. Replacement Lamps.
Replacement Filter Cartridge. ATA-Style Shipping Case with Wheels
and Telescoping Handle. Dual SDI Module (only HD-SDI can be used).
HD Data Wireless Receiver Module. HD Wireless Transmitter. DVI (only)
Module. DVI-D & Dsub15 Module. 5BNC Module. 5BNC & S-Video
Module. Dsub15 Module. Network Module. Ceiling Mount.
Ceiling Post and Plate.
Eiki International, Inc.
30251 Esperanza, Rancho Santa Margarita, CA 92688-2130
Tel: 800-242-3454; Fax: 800-457-3454, E-mail: [email protected]
In Canada, 310 First St.- Unit 2, P.O. Box 156, Midland, ON L4R 4K8
Phone: 800-563-3454, Fax: 800-567-4069 E-mail: [email protected]
http://www.eiki.com
2345
Projectors. . . and more!
Specifications subject to change without notice.
©2009 EIKI International, Inc. Printed in the USA. 07/15/09
