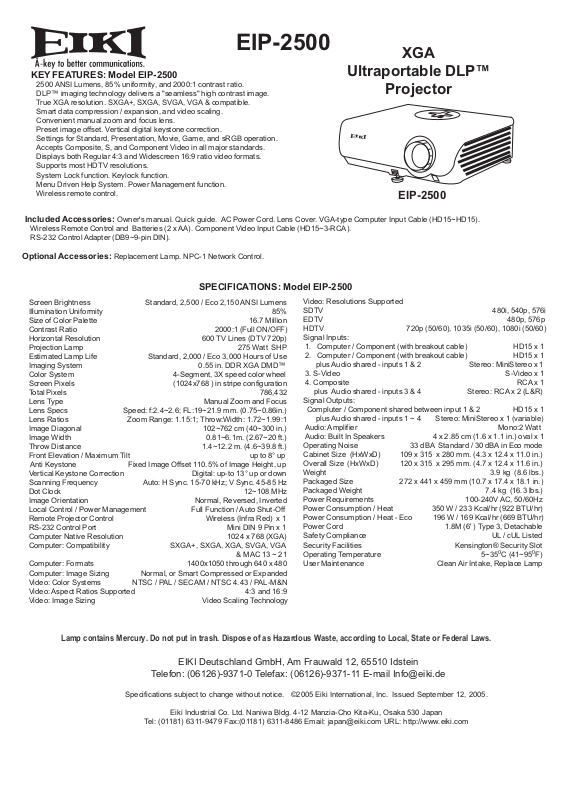

Eiki EIP-2500 User Manual

EIP-2500

XGA

A

KEY FEATURES: Model EIP-2500

2500 ANSI Lumens, 85% uniformity, and 2000:1 contrast ratio.

DLP™ imaging technology delivers a "seamless" high contrast image.
True XGA resolution. SXGA+, SXGA, SVGA, VGA & compatible.

Smart data compression / expansion, and video scaling.
Convenient manual zoom and focus lens.
Preset image offset. Vertical digital keystone correction.
Settings for Standard, Presentation, Movie, Game, and sRGB operation.
Accepts Composite, S, and Component Video in all major standards.
Displays both Regular 4:3 and Widescreen 16:9 ratio video formats.
Supports most HDTV resolutions.
System Lock function. Keylock function.
Menu Driven Help System. Power Management function.
Wireless remote control.

Included Accessories: Owner's manual. Quick guide. AC Power Cord. Lens Cover. VGA-type Computer Input Cable (HD15~HD15).

Wireless Remote Control and Batteries (2 x AA). Component Video Input Cable (HD15~3-RCA).
RS-232 Control Adapter (DB9~9-pin DIN).

Optional Accessories: Replacement Lamp. NPC-1 Network Control.

SPECIFICATIONS: Model EIP-2500

Screen Brightness Standard, 2,500 / Eco 2,150 ANSI Lumens
Illumination Uniformity 85%
Size of Color Palette 16.7 Million
Contrast Ratio 2000:1 (Full ON/OFF)
Horizontal Resolution 600 TV Lines (DTV 720p)
Projection Lamp 275 Watt SHP
Estimated Lamp Life Standard, 2,000 / Eco 3,000 Hours of Use
Imaging System 0.55 in. DDR
Color System 4-Segment, 3X speed color wheel
Screen Pixels (1024x768 ) in stripe configuration
Total Pixels 786,432
Lens Type Manual Zoom and Focus
Lens Specs Speed: f:2.4~2.6; FL:19~21.9 mm. (0.75~0.86in.)
Lens Ratios Zoom Range: 1.15:1; Throw:Width: 1.72~1.99:1
Image Diagonal 102~762 cm (40~300 in.)
Image Width 0.81~6.1m. (2.67~20 ft.)
Throw Distance 1.4~12.2 m. (4.6~39.8 ft.)
Front Elevation / Maximum Tilt up to 8° up
Anti Keystone Fixed Image Offset 110.5% of Image Height, up
Vertical Keystone Correction Digital: up-to 13° up or down
Scanning Frequency Auto: H Sync. 15-70 kHz; V Sync. 45-85 Hz
Dot Clock 12~108 MHz
Image Orientation Normal, Reversed, Inverted
Local Control / Power Management Full Function / Auto Shut-Off
Remote Projector Control Wireless (Infra Red) x 1
RS-232 Control Port Mini DIN 9 Pin x 1
Computer Native Resolution 1024 x 768 (XGA)
Computer: Compatibility SXGA+, SXGA, XGA, SVGA, VGA
& MAC 13 ~ 21
Computer: Formats 1400x1050 through 640 x 480
Computer: Image Sizing Normal, or Smart Compressed or Expanded
Video: Color Systems NTSC / PAL / SECAM / NTSC 4.43 / PAL-M&N
Video: Aspect Ratios Supported 4:3 and 16:9
Video: Image Sizing Video Scaling Technology

XGA DMD™

Video: Resolutions Supported
SDTV 480i, 540p, 576i
EDTV 480p, 576p
HDTV 720p (50/60), 1035i (50/60), 1080i (50/60)
Signal Inputs:

1. Computer / Component (with breakout cable) HD15 x 1

2. Computer / Component (with breakout cable) HD15 x 1
plus Audio shared - inputs 1 & 2 Stereo: MiniStereo x 1

3. S-Video S-Video x 1

4. Composite RCA x 1
plus Audio shared - inputs 3 & 4 Stereo: RCA x 2 (L&R)
Signal Outputs:
Compluter / Component shared between input 1 & 2 HD15 x 1
plus Audio shared - inputs 1 ~ 4 Stereo: MiniStereo x 1 (variable)
Audio: Amplifier Mono:2 Watt
Audio: Built In Speakers 4 x 2.85 cm (1.6 x 1.1 in.) oval x 1
Operating Noise 33 dBA Standard / 30 dBA in Eco mode
Cabinet Size (HxWxD) 109 x 315 x 280 mm. (4.3 x 12.4 x 11.0 in.)
Overall Size (HxWxD) 120 x 315 x 295 mm. (4.7 x 12.4 x 11.6 in.)
Weight 3.9 kg (8.6 lbs.)
Packaged Size 272 x 441 x 459 mm (10.7 x 17.4 x 18.1 in.)
Packaged Weight 7.4 kg (16.3 lbs.)
Power Requirements 100-240V AC, 50/60Hz
Power Consumption / Heat 350 W / 233 Kcal/hr (922 BTU/hr)
Power Consumption / Heat - Eco 196 W / 169 Kcal/hr (669 BTU/hr)
Power Cord 1.8M (6' ) Type 3, Detachable
Safety Compliance UL / cUL Listed
Security Facilities Kensington® Security Slot
Operating Temperature 5~350C (41~950F)
User Maintenance Clean Air Intake, Replace Lamp

Ultraportable DLP™

Projector

2

34

5

EIP-2500
