Eiki EIP-250, EIP-2600 User Manual

®

EIP-2600 EIP-250

Introduction Quick Start Setup

Connections

OWNER’S MANUAL

EIKI INDUSTRIAL CO., LTD.

EIP-2600

Appendix

IMPORTANT

• For your assistance in reporting the loss or theft of your Projector, please record the Model and Serial Number located on the bottom of the projector and retain this information.

• Before recycling the packaging, please ensure that you have checked the contents of the carton thoroughly against the list of “Supplied accessories” on page 10.

SPECIAL NOTE FOR USERS IN THE U.K.

The mains lead of this product is fitted with a non-rewireable (moulded) plug incorporating a 10A fuse. Should the fuse need to be replaced, a BSI or ASTA approved BS 1362 fuse marked or and of the same rating as above, which is also indicated on the pin face of the plug, must be used. Always refit the fuse cover after replacing the fuse. Never use the plug without the fuse cover fitted. In the unlikely event of the socket outlet in your home not being compatible with the plug supplied, cut off the mains plug and fit an appropriate type.

DANGER:

The fuse from the cut-off plug should be removed and the cut-off plug destroyed immediately and disposed of in a safe manner. Under no circumstances should the cut-off plug be inserted elsewhere into a 13A socket outlet, as a serious electric shock may occur. To fit an appropriate plug to the mains lead, follow the instructions below:

WARNING:

THIS APPARATUS MUST BE EARTHED.

IMPORTANT:

The wires in this mains lead are coloured in accordance with the following code:

Green-and-yellow : Earth Blue : Neutral

Brown : Live As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is

•

marked by the letter E or by the safety earth symbol or coloured green or green-and-yellow. The wire which is coloured blue must be connected to the terminal which is marked with the letter N

•

or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or

•

coloured red.

Model No.: Serial No.:

IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELECTRICIAN.

The supplied CD-ROM contains operation instructions in English, German, French, Spanish, Italian and Portuguese. Carefully read through the operation instructions before operating the projector.

Die mitgelieferte CD-ROM enthält Bedienungsanleitungen in Englisch, Deutsch, Französisch, Spanisch, Italienisch und Portugiesisch. Bitte lesen Sie die Bedienungsanleitung vor der Verwendung des Projektors sorgfältig durch.

Le CD-ROM fourni contient les instructions de fonctionnement en anglais, allemand, français, espagnol, italien et portugais. Veuillez lire attentivement ces instructions avant de faire fonctionner le projecteur.

El CD-ROM suministrado contiene instrucciones de operación en inglés, alemán, francés, español, italiano y portugués. Lea cuidadosamente las instrucciones de operación antes de utilizar el proyector.

Il CD-ROM in dotazione contiene istruzioni per l’uso in inglese, tedesco, francese, spagnolo, italiano e portoghese. Leggere attentamente le istruzioni per l’uso prima di usare il proiettore.

O CD-ROM fornecido contém instruções de operação em Inglês, Alemão, Francês, Espanhol, Italiano e Português. Leia cuidadosamente todas as instruções de operação antes de operar o projetor.

ii

Before using the projector, please read this owner’s manual carefully.

Introduction

ENGLISH

1. WARRANTY

This is to assure that you immediately receive the full benefit of the parts, service and labor warranty applicable to your purchase.

2. CONSUMER PRODUCT SAFETY ACT

To ensure that you will promptly receive any safety notification of inspection, modification, or recall that EIKI may be required to give under the 1972 Consumer Product Safety Act, PLEASE READ CAREFULLY THE IMPORTANT “LIMITED WARRANTY” CLAUSE.

U.S.A. ONLY

WARNING: High brightness light source. Do not stare into the beam of light, or view

directly. Be especially careful that children do not stare directly into the beam of light.

WARNING: To reduce the risk of fire or electric shock, do not expose

this product to rain or moisture.

See bottom of projector.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT REMOVE SCREWS

EXCEPT SPECIFIED USER

SERVICE SCREW.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

NO USER-SERVICEABLE PARTS EXCEPT LAMP UNIT.

DO NOT REMOVE COVER.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk or electric shock to persons.

The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

PRODUCT DISPOSAL

This product utilizes tin-lead solder, and lamp containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities, the Electronics Industries Alliance: www.eiae.org, the lamp recycling organization www.lamprecycle.org, or 1-800-242-3454.

U.S.A. ONLY

Caution Concerning Lamp Replacement

See “Replacing the Lamp” on page 52.

Authorized representative responsible for the European Union Community Market

EIKI Deutschland GmbH Am Frauwald 12, 65510 Idstein

E.U. ONLY

1

WARNING: FCC Regulations state that any unauthorized changes or modifications to

this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment.

U.S.A. ONLY

For EIP-2600

INFORMATION

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the owner’s manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

The enclosed computer cable must be used with the device. The cable is provided to ensure that the device complies with FCC Class A verification.

U.S.A. ONLY

WARNING:

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

For EIP-250

INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the owner’s manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

U.S.A. ONLY

Declaration of conformity

EIKI PROJECTOR, MODEL EIP-250 This device complies with Part 15 of the FCC rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Responsible Party:

EIKI INTERNATIONAL, INC. 30251 Esperanza Rancho Santa Margarita, CA 92688-2132 TEL: 800-242-3454

2

U.S.A. ONLY

How to Read this Owner’s Manual

■ The specifications are slightly different, depending on the model. However, you can connect and operate all models in the same manner.

••

• In this owner’s manual, the illustration and the screen display are simplified for explanation, and

••

may differ slightly from the actual display. The examples used throughout this manual are based on the EIP-2600 model.

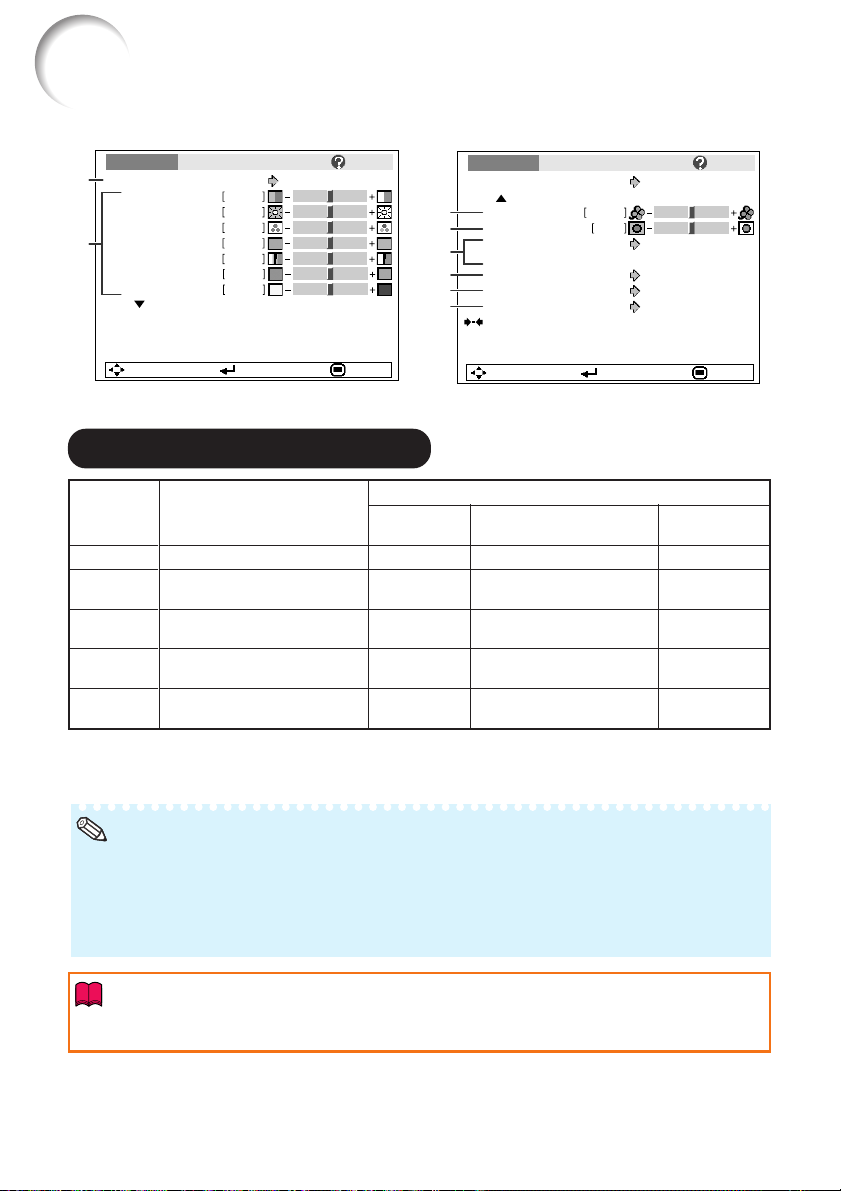

Using the Menu Screen

ENTER button

Adjustment buttons (P/R/O/Q)

MENU/HELP button

ENTER button

Adjustment buttons

Menu Selections (Adjustments)

Example: Adjusting “Bright”.

• This operation can also be performed by using the buttons on the projector.

Press MENU/HELP.

1

• The “Picture” menu screen for the selected input mode is displayed.

Press Q or O and select “Picture”

2

to adjust.

Example: “Picture” screen menu for

COMPUTER (RGB) input (EIP-2600)

Menu item

Picture SCR - ADJ PRJ - ADJ Help

Picture Mode

Contrast 0 Bright Red Blue CLR Temp

TM

BrilliantColor C.M.S. Setting C.M.S. DNR Lamp Setting Reset

SEL./ADJ. ENTER END

(P/R/O/Q)

RETURN button

•Press RETURN to return

to the previous screen when the menu is displayed.

MENU/HELP button

Standard

0 0

0 0 0 1

On

Off Bright

Buttons used in this operation

Button used in this step

On-screen display

38

Info

........Indicates safeguards for using the projector.

.........Indicates additional information for setting up and operating the

Note

projector.

For Future Reference

PP. 63 and 64

IndexMaintenance Troubleshooting

P. 67P. 49

3

IMPORTANT SAFEGUARDS

CAUTION: Please read all of these instructions before you operate this product

and save these instructions for later use.

Electrical energy can perform many useful functions. This product has been engineered and manufactured to assure your personal safety. BUT IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARDS. In order not to defeat the safeguards incorporated in this product, observe the following basic rules for its installation, use and servicing.

1. Read Instructions

All the safety and operating instructions should be read before the product is operated.

2. Retain Instructions

The safety and operating instructions should be retained for future reference.

3. Heed Warnings

All warnings on the product and in the operating instructions should be adhered to.

4. Follow Instructions

All operating and use instructions should be followed.

5. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6. Attachments

Do not use attachments not recommended by the product manufacturer as they may cause hazards.

7. Water and Moisture

Do not use this product near water–for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

8. Accessories

Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.

9. Transportation

A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

10. Ventilation

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

11. Power Sources

This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

12. Grounding or Polarization

This product is provided with one of the following types of plugs. If the plug should fail to fit into the power outlet, please contact your electrician. Do not defeat the safety purpose of the plug.

a. Two-wire type (mains) plug. b. Three-wire grounding type (mains) plug with a

grounding terminal. This plug will only fit into a grounding type power outlet.

13. Power-Cord Protection

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

14. Lightning

For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the cable system. This will prevent damage to the product due to lightning and power-line surges.

15. Overloading

Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

16. Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

17. Servicing

Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

6

18. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is

damaged.

b. If liquid has been spilled, or objects have fallen

into the product. c. If the product has been exposed to rain or water. d. If the product does not operate normally by

following the operating instructions. Adjust only

those controls that are covered by the operating

instructions, as an improper adjustment of other

controls may result in damage and will often

require extensive work by a qualified technician

to restore the product to normal operation. e. If the product has been dropped or damaged

in any way. f. When the product exhibits a distinct change in

performance, this indicates a need for service.

• DLP® and the DLP logo are registered trademarks of Texas Instruments and BrilliantColorTM is a trademark of Texas Instruments.

• Microsoft® and Windows® are registered trademarks of Microsoft Corporation in the United States and/or other countries.

• PC/AT is a registered trademark of International Business Machines Corporation in the United States.

• Adobe® Reader® is a trademark of Adobe Systems Incorporated.

• Macintosh® is a registered trademark of Apple Computer, Inc. in the United States and/or other countries.

•

All other company or product names are trademarks or registered trademarks of their respective companies.

• Some IC chips in this product include confidential and/or trade secret property belonging to Texas Instruments. Therefore you may not copy, modify, adapt, translate, distribute, reverse engineer, reverse assemble or discompile the contents thereof.

Closed Caption uses Bitstream Vera fonts

Permission is hereby granted, free of charge, to any person obtaining a copy of the fonts accompanying this license (“Fonts”) and associated documentation files (the “Font Software”), to reproduce and distribute the Font Software, including without limitation the rights to use, copy, merge, publish, distribute, and/or sell copies of the Font Software, and to permit persons to whom the Font Software is furnished to do so, subject to the following conditions:

The above copyright and trademark notices and this permission notice shall be included in all copies of one or more of the Font Software typefaces.

The Font Software may be modified, altered, or added to, and in particular the designs of glyphs or characters in the Fonts may be modified and additional glyphs or characters may be added to the Fonts, only if the fonts are renamed to names not containing either the words “Bitstream” or the word “Vera”.

This License becomes null and void to the extent applicable to Fonts or Font Software that has been modified and is distributed under the “Bitstream Vera” names.

The Font Software may be sold as part of a larger software package but no copy of one or more of the Font Software typefaces may be sold by itself.

THE FONT SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OF COPYRIGHT, PATENT, TRADEMARK, OR OTHER RIGHT. IN NO EVENT SHALL BITSTREAM OR THE GNOME FOUNDATION BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, INCLUDING ANY GENERAL, SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF THE USE OR INABILITY TO USE THE FONT SOFTWARE OR FROM OTHER DEALINGS IN THE FONT SOFTWARE.

Except as contained in this notice, the names of Gnome, the Gnome Foundation, and Bitstream Inc., shall not be used in advertising or otherwise to promote the sale, use or other dealings in this Font Software without prior written authorization from the Gnome Foundation or Bitstream Inc., respectively. For further information, contact: fonts at gnome dot org.

19. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

20. Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

21. Wall or Ceiling Mounting

This product should be mounted to a wall or ceiling only as recommended by the manufacturer.

22. Heat

This product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

7

Observe the following safeguards when setting up your projector.

Caution concerning the lamp unit

■ Potential hazard of glass particles if lamp ruptures. In case of lamp rupture, contact your nearest EIKI Authorized Dealer or Service Center for replacement. See “Regarding the Lamp” on page

52.

Caution concerning the setup of the projector

■ For minimal servicing and to maintain high image quality, EIKI recommends that this projector be installed in an area free from humidity, dust and cigarette smoke. When the projector is subjected to these environments, the vents and lens must be cleaned more often. As long as the projector is regularly cleaned, use in these environments will not reduce the overall operation life of the unit. Internal cleaning should only be performed by an EIKI Authorized Dealer or Service Center.

Do not set up the projector in places exposed to direct sunlight or bright light.

■ Position the screen so that it is not in direct sunlight or room light. Light falling directly on the screen washes out the colors, making viewing difficult. Close the curtains and dim the lights when setting up the screen in a sunny or bright room.

Caution regarding placing of the projector

■ Place the projector on a level site within the adjustment range (9 degrees) of the adjustment foot.

■ After the projector is purchased, a faint smell from the vent may appear when the power is first turned on. This is normal and is not a malfunction. It will disappear after the projector is used for a while.

When using the projector in high-altitude areas such as mountains (at altitudes of approximately 1,500 meters (4,900 feet) or more)

■ When you use the projector in high-altitude areas with thin air, set “Fan Mode” to “High”. Neglecting this can affect the longevity of the optical system.

Warning about placing the projector in a high position

■ When placing the projector in a high position, make certain it is carefully secure to avoid personal injury caused by the projector falling down.

Do not subject the projector to hard impact and/or vibration.

■ Protect the lens so as not to hit or damage the surface of the lens.

Rest your eyes occasionally.

■ Continuously watching the screen for long hours will cause eye strain. Take regular breaks to rest your eyes.

Avoid locations with extremes of temperature.

■ The operating temperature of the projector is from 41°F to 95°F (+5°C to +35°C).

■ The storage temperature of the projector is from –4°F to 140°F (–20°C to +60°C).

Do not block the exhaust and intake vents.

■ Allow at least 11 13/16 inches (30 cm) of space between the exhaust vent and the nearest wall or obstruction.

■ Ensure that the intake vent and the exhaust vent are not obstructed.

■ If the cooling fan becomes obstructed, a protection circuit will automatically put the projector into standby mode to prevent overheat damage. This does not indicate a malfunction. (See pages 50 and 51.) Remove the projector power cord from the wall outlet and wait at least 10 minutes. Place the projector where the intake and exhaust vents are not blocked, plug the power cord back in and turn on the projector. This will return the projector to the normal operating condition.

8

Caution regarding usage of the projector

■ If you are not to use the projector for a long time or before moving the projector, make certain you unplug the power cord from the wall outlet, and disconnect any other cables connected to it.

■ If the power cord is unplugged while the cooling fan is running, some parts of the projector may still be hot. Use caution when handling the projector.

■ Do not carry the projector by holding the lens.

■ When storing the projector, ensure you at-

tach the lens cap to the projector. (See page

11.)

■ Do not expose the projector to direct sunlight or place next to heat sources. Doing so may affect the cabinet color or cause deformation of the plastic cover.

Other connected equipment

■ When connecting a computer or other audiovisual equipment to the projector, make the connections AFTER unplugging the power cord of the projector from the AC outlet and turning off the equipment to be connected.

■ Please read the owner’s manuals of the projector and the equipment to be connected for instructions on how to make the connections.

Using the projector in other countries

■ The power supply voltage and the shape of the plug may vary depending on the region or country you are using the projector in. When using the projector overseas, make sure you use an appropriate power cord for the country you are in.

Temperature monitor function

■

If the projector starts to overheat due to setup problems or blockage of the air vents, “ “ ” will illuminate in the lower left corner of the picture. If the temperature continues to rise, the lamp will turn off, the temperature warning indicator on the projector will blink, and after a 60-second cooling-off period the projector will enter standby mode. Refer to “Maintenance Indicators” on page 50 for details.

” and

Info

• The cooling fan regulates the internal temperature, and its performance is automatically controlled. The sound of the fan may change during projector operation due to changes in the fan speed. This does not indicate malfunction.

How to Access the PDF Owner’s Manuals

PDF owner’s manuals in several languages are included in the CD-ROM. To utilize these manuals, you need to install Adobe or Macintosh®).

Please download Adobe

®

Reader® from the Internet (http://www.adobe.com).

Accessing the PDF Manuals for Windows

1 Insert the CD-ROM in the CD-ROM drive. 2 Double click the “My Computer” icon. 3 Double click the “CD-ROM” drive. 4 Double click the “MANUALS” folder. 5 Double click the model (name of the folder)

that you want to view.

Note

• If the desired pdf file cannot be opened by double clicking the mouse, start Adobe® Reader® first, then specify the desired file using the “File”, “Open” menu.

®

Reader® on your computer (Windows

®

(For Macintosh®, skip step 2).

6 Double click the language (name of the

folder) that you want to view.

7 Double click the pdf file to access the pro-

jector manuals.

®

9

Accessories

Supplied accessories

Remote control

for EIP-2600

3 RCA to mini D-sub 15 pin cable

(10' (3.0 m))

• QUICK GUIDE

• Owner’s manual (this manual and CD-ROM)

for EIP-250

Optional accessories

Two R-6 batteries

(“AA” size, UM/SUM-3,

HP-7 or similar)

Lens cap (attached)

Power cord*

(1 ) (2)

For U.S. and Canada, etc.

(6' (1.8 m))

* Use the power cord that corresponds to

the wall outlet in your country.

DIN-D-sub RS-232C adaptor

RGB cable

(10' (3.0 m))

57

/64" (15 cm))

(5

For Europe, except U.K.

(6' (1.8 m))

■ Lamp unit AH-62101

■ Storage case AH-62501

10

Part Names and Functions

Numbers in Z refer to the main pages in this owner’s manual where the topic is explained.

Projector

Top View

Power indicator

STANDBY/ON button

For turning the power on and putting the projector into standby mode.

ENTER button

For setting items selected or adjusted on the menu.

KEYSTONE button

For entering the Keystone Correction mode.

Front View

Zoom ring

For enlarging/ reducing the picture.

Remote control sensor

Exhaust vent

25, 50

25

38

28

26

15

49

25, 50

50

32

29

38, 48

38

Lamp indicator

Temperature warning indicator

ECO+QUIET button

For lowering the noise of the cooling fan and extending the lamp life.

VOL (Volume) buttons (–O/Q+)

For adjusting the speaker sound level.

INPUT buttons (P/R)

For switching input mode.

MENU/HELP button

For displaying adjustment and setting screens, and help screen.

Adjustment buttons (P/R/O/Q)

For selecting menu items.

Intake vent

49

Speaker

45

HEIGHT ADJUST lever

27

Focus ring

26

For adjusting the focus.

Push both sides of the lens cap to attach or remove.

11

Part Names and Functions (Continued)

Numbers in Z refer to the main pages in this owner’s manual where the topic is explained.

Rear View

Terminals

*AUDIO 1 input terminal

COMPUTER/ COMPONENT input terminal

Te rminal for computer RGB and component signals.

*DVI-I input

terminal

Te rminal for DVI digital, computer RGB and component signals.

*AUDIO OUT

terminal

Audio output terminal of equipment connected to the audio input terminal.

MONITOR OUT terminal (Output terminal for computer RGB, component signals. Shared for COMPUTER/COMPONENT)

Te rminal for connecting a monitor.

* EIP-2600 only

21 22

23

21 22

23

S-VIDEO input terminal

22

Te rminal for connecting video equipment with an S-video terminal.

RS-232C terminal

24

Te rminal for controlling the projector using a computer.

34

Te rminal connecting with the USB terminal on the computer for using the supplied remote control as the computer mouse.

AUDIO 2 input

23

terminal (AUDIO input

terminal for EIP-250)

22

VIDEO input terminal

Te rminal for connecting video equipment.

USB terminal

AC socket

24

Connect the supplied

Rear adjustment foot

Using the Kensington Lock

• This projector has a Kensington Security Standard connector for use with a Kensington

MicroSaver Security System. Refer to the information that came with the system for instructions on how to use it to secure the projector.

27

power cord.

Kensington Security Standard connector

12

STANDBY button

For putting the projector into the standby mode.

COMPUTER, *DVI, S-VIDEO, VIDEO buttons

For switching to the respective input modes.

BREAK TIMER button

For displaying the break time.

MAGNIFY buttons

For enlarging/reducing part of the image.

PAGE UP/PAGE DOWN buttons

Same as the [Page Down] and [Page Up] keys on a computer keyboard, when with the USB connection (using a USB cable or the optional remote receiver).

POINTER button

For displaying the pointer.

MOUSE/Adjustment buttons (P/R/O/Q)

• For moving the computer cursor when with the USB connection (using a USB cable or the optional remote receiver).

• For selecting and adjusting menu items.

L-CLICK/EFFECT button

• For the Left click when with the USB connection (using a USB cable or the optional remote receiver).

• For changing the pointer or spot area.

KEYSTONE button

For entering the Keystone Correction mode.

AUTO SYNC button

For automatically adjusting images when connected to a computer.

ECO+QUIET button

For lowering the noise of the cooling fan and extending the lamp life.

25

29

32

33

34

32

34 38

34 32

28

33

32

ON button

25

For turning the power on.

FREEZE button

33

For freezing images.

AV MUTE button

29

For temporarily displaying a black screen and turning off the sound.

VOL +/– (Volume)

29

buttons

For adjusting the speaker sound level.

SPOT button

32

For displaying the spotlight.

ENTER button

38

For setting items selected or adjusted on the menu.

R-CLICK/RETURN

34

button

38

• For the Right click when with the USB connection (using a USB cable or the optional remote receiver).

• For returning to the previous menu screen during menu operations.

MENU/HELP button

38

For displaying

48

adjustment and setting screens, and help screen.

RESIZE button

30

For switching the picture size (NORMAL, BORDER, etc.).

PICTURE MODE

33

button

For selecting the appropriate picture.

* EIP-2600 only

13

Part Names and Functions (Continued)

Inserting the Batteries

Pull down the tab on the cover and remove the cover

1

towards the direction of the arrow.

Insert the batteries.

2

• Insert the batteries making sure the polarities correctly match

the m and n marks inside the battery compartment.

Insert the lower tab of the cover into the opening,

3

and lower the cover until it clicks in place.

Incorrect use of the batteries may cause them to leak or explode. Please follow the precautions below.

Caution

• Danger of explosion if battery is incorrectly replaced. Replace only with alkaline or manganese batteries.

• Insert the batteries making sure the polarities correctly match the m and n marks inside the battery compartment.

• Batteries of different types have different properties, therefore do not mix batteries of different types.

• Do not mix new and old batteries. This may shorten the life of new batteries or may cause old batteries to leak.

• Remove the batteries from the remote control once they have run out, as leaving them in can cause them to leak. Battery fluid from leaked batteries is harmful to skin, therefore ensure you wipe them first and then remove them using a cloth.

• The batteries included with this projector may run down in a short period, depending on how they are kept. Be sure to replace them as soon as possible with new batteries.

• Remove the batteries from the remote control if you will not be using the remote control for a long time.

• Comply with the rules (ordinance) of each local government when disposing of worn-out batteries.

14

Usable Range

The remote control can be used to control the projector within the ranges shown in the illustration.

Note

• The signal from the remote control can be reflected off a screen for easy operation. However, the effective distance of the signal may differ depending on the screen material.

When using the remote control

• Ensure that you do not drop it or expose it to moisture or high temperature.

• The remote control may malfunction under a fluorescent lamp. In this case, move the projector away from the fluorescent lamp.

Remote control

30°

Remote control signal transmitters

Remote control sensor

23n (7 m)

15

Quick Start

This section shows the basic operation (projector connecting with the computer). For details, see the page described below for each step.

Setup and Projection

In this section, connection of the projector and the computer is explained using one example.

3

STANDBY/ON

8

button

INPUT buttons

6

ENTER button

4

Adjustment buttons

5

(P/R/O/Q)

KEYSTONE

5

button Zoom ring

4

Focus ring

4

HEIGHT

4

ADJUST lever

STANDBY button

8

ON button

3

COMPUTER button

6

ENTER button

4

Adjustment buttons

5

(P/R/O/Q)

KEYSTONE button

5

1. Place the projector facing a wall or a screen

_P. 18

2. Connect the projector to the computer and plug the power cord into the AC socket of the projector

When connecting equipment other than a computer, see pages 22 and 23.

_PP. 21, 24

3. Remove the lens cap and turn the projector on

On the projector On the remote control

_P. 25

16

4. Adjust the projected image with the Setup Guide

RGB 1024 × 768

COMPUTER

1 After the projector turns on, the Setup Guide appears.

(When “Setup Guide” is set to “On”. See page 44.)

2 Follow the steps in the Setup Guide and adjust the focus, height (angle) and picture size. 3 After adjusting the focus, height (angle) and picture size, press ENTER to finish the Setup

Guide.

_PP. 26, 27

5. Correct trapezoidal distortion

Correcting trapezoidal distortion using Keystone Correction.

On the projector

On the remote control

Shrinks

upper side.

Shrinks

lower side.

_P. 28

6. Select the INPUT mode

Select the “COMPUTER” using INPUT on the projector or COMPUTER on the remote control.

On the

projector

• When you press INPUT on the projector, the INPUT list appears.

Press '/" to switch the INPUT mode.

On the remote

control

INPUT list

INPUT

COMPUTER

D

DVI-D Computer

D

DVI-D Video

On-screen display (RGB)

*

EIP-2600 only

*

_P. 29

7. Turn the computer on

8. Turn the power off

Press STANDBY/ON on the projector or STANDBY on the remote control, and then press the button again while the confirmation message is displayed to put the projector into standby mode.

On-screen display

_P. 25

On the

projector

On the remote

control

17

Setting up the Projector

For optimal image quality, position the projector perpendicular to the screen with the projector’s feet flat and level. Doing so will eliminate the need for Keystone correction and provide the best image quality. (See page 28.)

Standard Setup (Front Projection)

■ Place the projector at the required distance from the screen according

to the desired picture size. (See page 20.)

Example of standard setup

Side View

Screen

H

Lens center

L

Note

• Refer to page 20 for additional information concerning “Screen Size and Projection Distance”.

Ceiling-mount Setup

■ It is recommended that you use the optional EIKI ceiling-mount adaptor and unit for this installation. Before mounting the projector, contact your nearest EIKI Authorized Dealer or Service Center to obtain the recommended ceiling-mount adaptor and unit (sold separately).

18

Projection (PRJ) Mode

The projector can use any of the 4 projection modes shown in the diagram below. Select the mode most appropriate for the projection setting in use. (You can set the PRJ mode in “SCR-ADJ” menu. See page 44.)

■ Ta ble mounted, front projection

[Menu item ➞ “Front”]

■ Ta ble mounted, rear projection

(with a translucent screen)

[Menu item ➞ “Rear”]

■ Ceiling mounted, front projection

[Menu item ➞ “Ceiling + Front”]

■ Ceiling mounted, rear projection

(with a translucent screen)

[Menu item ➞ “Ceiling + Rear”]

Indication of the Projection Image Size and Projection Distance

Example: NORMAL Mode (4:3)

Picture Size

300"

200"

100"

80"

40"

32"

80"

×

64"

×

48"

×

24"

160"

60"

×

120"

240"×180"

"

5'8

"–

4'11

(1.5 m – 1.7 m)

9'10

11'4

"–

(3.0 m

"

3.5 m)

–

12'3

14'2

"–

(3.7 m

"

4.3 m)

–

24'7

28'4

"–

(7.5 m

"

8.6 m)

–

36'10

(11.2 m)

Projection Distance

"

19

Setting up the Projector (Continued)

Screen Size and Projection Distance

NORMAL Mode (4:3)

Picture (Screen) size

Diag. [χ] Width Height

300 (762 cm)

250 (635 cm)

200 (508 cm)

150 (381 cm)

120 (305 cm)

100 (254 cm)

80 (203 cm)

70 (178 cm)

60 (152 cm)

40 (102 cm)

χ

: Picture size (diag.) (in/cm) L: Projection distance (m/ft) L1: Minimum projection distance (m/ft) L2: Maximum projection distance (m/ft) H: Distance from the lens center to the bottom of the image (cm/in)

610 cm (240)

508 cm (200)

406 cm (160)

305 cm (120)

244 cm (96)

203 cm (80)

163 cm (64)

142 cm (56)

122 cm (48)

81 cm (32)

457 cm (180)

381 cm (150)

305 cm (120)

229 cm (90)

183 cm (72)

152 cm (60)

122 cm (48)

107 cm (42)

91 cm (36)

61 cm (24)

STRETCH Mode (16:9)

Picture (Screen) size

Diag. [χ] Width Height

250 (635 cm)

200 (508 cm)

150 (381 cm)

120 (305 cm)

100 (254 cm)

80 (203 cm)

60 (152 cm)

40 (102 cm)

χ

: Picture size (diag.) (in/cm) L: Projection distance (m/ft) L1: Minimum projection distance (m/ft) L2: Maximum projection distance (m/ft) H: Distance from the lens center to the bottom of the image (cm/in) S: Adjustable range of image position (cm/in) See page 43.

553 cm (218)

443 cm (174)

332 cm (131)

266 cm (105)

221 cm (87)

177 cm (70)

133 cm (52)

89 cm (35)

311 cm (123)

249 cm (98)

187 cm (74)

149 cm (59)

125 cm (49)

100 cm (39)

75 cm (29)

50 cm (20)

Projection distance [L]

Minimum [L1] Maximum [L2]

11.2 m (36 10)

9.4 m (30 9)

7.5 m (24 7)

5.6 m (18 5)

4.5 m (14 9)

3.7 m (12 3)

3.0 m (9 10)

2.6 m (8 7)

2.2 m (7 4)

1.5 m (4 11)

—

10.8 m (35 5)

8.6 m (28 4)

6.5 m (21 3)

5.2 m (17 0)

4.3 m (14 2)

3.5 m (11 4)

3.0 m (9 11)

2.6 m (8 6)

1.7 m (5 8)

The formula for picture size and projection distance

[m/cm]

L1 (m) = 0.03745 L2 (m) = 0.04323 H (cm) = 0.064

Projection distance [L]

Minimum [L1] Maximum [L2]

10.2 m (33 6)

8.2 m (26 9)

6.1 m (20 1)

4.9 m (16 1)

4.1 m (13 5)

3.3 m (10 9)

2.4 m (8 0)

1.6 m (5 4)

11.8 m (38 8)

9.4 m (30 11)

7.1 m (23 2)

5.7 m (18 7)

4.7 m (15 5)

3.8 m (12 4)

2.8 m (9 3)

1.9 m (6 2)

The formula for picture size and projection distance

[m/cm]

L1 (m) = 0.0408 L2 (m) = 0.0471 H (cm) = 0.27727 S (cm) = ±0.20754

Distance from the lens center to the bottom of the image [H]

19 cm

(7

(6

16 cm

(5

13 cm

(3

10 cm

(3

8 cm

(2

6 cm

(2

5 cm

(1

4 cm

(1

4 cm

(1

3 cm

χ χ

χ

Distance from the lens center to

the bottom of the image [H]

69 cm

(27

(21

55 cm

(16

42 cm

(13

33 cm

(10

28 cm

(8

22 cm

(6

17 cm

(4

11 cm

χ χ

χ

9

/16)

19

/64)

3

/64)

25

/32)

1

/32)

33

/64)

1

/64)

49

/64)

33

/64)

1

/64)

[Feet/inches]

L1 (ft) = 0.03745χ / 0.3048 L2 (ft) = 0.04323χ / 0.3048 H (in) = 0.064χ / 2.54

Adjustable range of

image position [S]

19

52 cm

/64)

53

/64)

42 cm

3

/8)

31 cm

3

/32)

25 cm

59

/64)

47

35

23

21 cm

/64)

17 cm

/64)

12 cm

/64)

 8 cm

[Feet/inches]

L1 (ft) = 0.0408χ / 0.3048 L2 (ft) = 0.0471χ / 0.3048 H (in) = 0.27727χ / 2.54 S (in) = ±0.20754χ / 2.54

(20

(16

(12

(9

(8

(6

(4

(3

27

/64)

11

/32)

1

/4)

13

/16)

11

/64)

17

/32)

29

/32)

17

/64)

Note

• Refer to page 18 concerning “Projection distance [L]” and “Distance from the lens center to the

bottom of the image [H]”.

• Allow a margin of error in the values in the diagrams above.

20

Connecting the Projector to Other Equipment

Before connecting, ensure that the power cord of the projector is unplugged from the AC outlet and turn off the equipment to be connected. After making all connections, turn on the projector and then the other pieces of equipment. When connecting a computer, ensure that it is the last equipment to be turned on after all the connections are made.

IMPORTANT:

Ensure that the appropriate input mode has been selected on the projector before you turn on the connected equipment.

•

For more details of connection and cables, refer to the owner’s manual of the connecting equipment.

•You may need other cables or connectors not listed below.

Terminals on the Projector

Example: Terminals of EIP-2600

Equipment

Computer

Terminal on

connected equipment

RGB

output

terminal

RGB

output

terminal

DVI digital

output

terminal

RGB cable (supplied)

mini D-sub 15 pin to DVI cable (commercially available)

DVI Digital cable (commercially available)

Cable

Terminal on the

projector

COMPUTER/ COMPONENT

DVI-I

is only for EIP-2600.

Note

• See page 62 “Computer Compatibility Chart” for a list of computer signals compatible with the projec-

tor. Use with computer signals other than those listed may cause some of the functions to not work.

•A Macintosh adaptor may be required for use with some Macintosh computers. Contact your near-

est Macintosh Dealer.

• Depending on the computer you are using, an image may not be projected unless the

computer’s external output port is switched on. Refer to the specific instructions in your computer owner’s manual to enable your computer’s external output port.

21

Connecting the Projector to Other Equipment (Continued)

Equipment

Video equipment

Camera/Video game

Terminal on

connected equipment

HDMI

output

terminal

DVI digital

output

terminal

Component

video

output

terminal

S-video

output

terminal

Video

output

terminal

Component

video

output

terminal

S-video

output

terminal

HDMI to DVI cable (commercially available)

DVI Digital cable (commercially available)

3 RCA to mini D-sub 15 pin cable (supplied)

S-video cable (commercially available)

Video cable (commercially available)

Cables for a camera or a video game/3 RCA to mini D-sub 15 pin cable (supplied)

Cables for a camera or a video game

Cable

RCA adaptor plug (commercially available)

Terminal on the

projector

DVI-I

COMPUTER/ COMPONENT

S-VIDEO

VIDEO

COMPUTER/ COMPONENT

S-VIDEO

Video

output

terminal

Cables for a camera or a video game

VIDEO

is only for EIP-2600.

Note

• Only for EIP-2600:

- While the projector is connected to video equipment that has an HDMI output terminal, only the video signal can be input to the projector. (Connect the AUDIO input terminal for audio input.)

- Depending on specifications of video equipment or HDMI to DVI digital cable, the signal transmission may not work property. (The HDMI specification does not support all connections to video equipment that has HDMI digital output terminal using HDMI to DVI digital cable.)

- For details on compatibility for connection, see support information on DVI connection provided by the video equipment manufacturer.

• When you connect video equipment with a 21-pin RGB output (Euro-scart) to the projector, use a commercially available cable that fits in the projector terminal you want to connect.

• The projector does not support RGBC signals via the Euro-scart.

22

Equipment Cable

Audio equipment

Terminal on

connected equipment

ø3.5 mm

audio output

terminal

ø3.5 mm stereo or mono audio cable (commercially available)

Terminal on the

projector

AUDIO 1

Monitor

Amplifier

RCA audio

output

terminal

Audio

output

terminal

RGB input

terminal

ø3.5 mm

audio input

terminal

RCA audio

input

terminal

RCA audio cable (commercially available)

Cables for a camera or a video game

RGB cable (supplied or commercially available)

ø3.5 mm stereo or mono audio cable (commercially available)

ø3.5 mm stereo minijack to RCA audio cable (commercially available)

AUDIO 2 (EIP-2600) AUDIO (EIP-250)

MONITOR OUT

AUDIO OUT

is only for EIP-2600.

Note

• Only for EIP-2600:

- When using the ø3.5 mm mono audio cable, the volume level will be half of when using the ø3.5 mm stereo audio cable.

-You can select “Audio 1” or “Audio 2” for “Audio Input” in the “PRJ-ADJ” menu. (See page 46.)

• RGB signals and Component signals can be output to the monitor.

23

Controlling the Projector by a Computer

When the RS-232C terminal on the projector is connected to a computer with a DIN-D-sub RS232C adaptor and an RS-232C serial control cable (cross type, commercially available), the computer can be used to control the projector and check the status of the projector. See page 57 for details.

When connecting to a computer using an RS-232C serial control cable and a DIND-sub RS-232C adaptor

To RS-232C terminal

DIN-D-sub RS-232C adaptor (supplied)

Computer

To RS-232C terminal

RS-232C serial control cable (cross type, commercially available)

Note

• The RS-232C function may not operate if your computer terminal is not correctly set up. Refer to the owner’s manual of the computer for details.

• See page 56 for connection of an RS-232C serial control cable.

Info

• Do not connect the RS-232C cable to a port other than the RS-232C terminal on the computer. This may damage your computer or projector.

• Do not connect or disconnect an RS-232C serial control cable to or from the computer while it is on. This may damage your computer.

Connecting the Power Cord

Plug the supplied power cord into the AC socket on the rear of the projector. Then plug into AC outlet.

AC socket

To AC outlet

24

Power cord (supplied)

Turning the Projector On/Off

Tur ning the Projector on

Note that the connections to external equipment and power outlet should be done before performing the operations written below. (See pages 21 to 24.)

Remove the lens cap and press STANDBY/ON on the projector or ON on the remote control.

• The power indicator illuminates red.

• After the lamp indicator illuminates, the projec-

tor is ready to start operation.

• When “Auto Restart” is set to “On”:

If the power cord is unplugged from the outlet or the breaker switch is turned off when the projector is on, then the projector automatically turns on when the power cord is plugged into the AC outlet or the breaker switch is turned on. (See page 45.)

• English is the factory default language. If you want to change the on-screen display to another language, change the language according to the procedure on page 44.

Info

Lamp indicator

Note

• About the Lamp Indicator

The lamp indicator illuminates to indicate the status of the lamp.

Green: The lamp is on. Blinking in green: The lamp is warming up. Red: The lamp is shut down abnormally

• When switching on the projector, a slight flick-

• If the projector is put into standby mode and

•

or the lamp should be replaced.

ering of the image may be experienced within the first minute after the lamp has been illuminated. This is normal operation as the lamp’s control circuitry is stabilising the lamp output characteristics. It should not be regarded as faulty operation.

immediately turned on again, the lamp may take some time to start projection. When System Lock is set, the keycode input box appears. To cancel the keycode setting, input the keycode that you have already set. See page

46 for details.

Tur ning the Power off (Putting the Projector into Standby Mode)

Press STANDBY/ON on the projector or STANDBY on the remote control, then

press that button again while the confirmation message is displayed, to put the projector into standby mode.

• The projector cannot be turned on while cooling.

Power indicator

STANDBY/ON button

STANDBY button

ON button

On-screen display (confirmation message)

Info

• Direct Power Off function:

You can unplug the power cord from the AC outlet even if the cooling fan is still running.

25

Image Projection

About the Setup Guide

After turning on the projector, the Setup Guide screen appears to assist you with projector setup.

Guidance items

1 FOCUS 2 HEIGHT ADJUST 3 ZOOM

Press ENTER to exit the Setup Guide screen.

Note

• The Setup Guide screen automatically highlights the items in the following order:

1 FOCUS

However, you can adjust the focus, height (angle), or zoom regardless of the highlighted item.

• If you do not want to display the Setup Guide for the next time, set “Menu” - “SCR - ADJ” “Setup Guide” to “Off”. (See page 44.)

2 HEIGHT ADJUST

3 ZOOM4 ENTER

Setup Guide screen

STANDBY/ON button

ENTER button

Adjusting the Projected Image

1 Adjusting the Focus

You can adjust the focus with the focus ring on the projector.

Rotate the focus ring to adjust the focus while watching the projected image.

2 Adjusting the Picture Size

You can adjust the picture size using the zoom ring on the projector.

Rotate the zoom ring to enlarge or shrink the picture size.

26

Zoom ring

Focus ring

3 Adjusting the Height

The height of the projector can be adjusted using the adjustment feet at the front and rear of the projector.

When the screen is above the projector, the projection image can be made higher by adjusting the projector.

Lift the projector to adjust its

1

height while lifting the HEIGHT ADJUST lever.

Remove your hands from the

2

HEIGHT ADJUST lever of the projector after its height has been finely adjusted.

• The angle of projection is adjustable up to 9 degrees from the surface on which the projector is placed.

Use the rear adjustment foot to

3

make the projector level.

• The projector is adjustable ±2 degrees from the standard position.

HEIGHT ADJUST lever

Make small adjustments.

Note

• When adjusting the height of the projector, trapezoidal distortion occurs. Follow the procedures in Keystone Correction to correct the distortion. (See pages 28 and 43.)

Info

• Do not apply too much pressure on the projector when the front adjustment foot comes out.

• When lowering the projector, be careful not to get your fingers caught in the area between the adjustment foot and the projector.

•

Hold the projector firmly while lifting or carrying.

• Do not hold by the lens area.

Rear adjustment foot

27

Image Projection (Continued)

Correcting Trapezoidal Distortion

When the image is projected either from the top or from the bottom towards the screen at an angle, the image becomes distorted trapezoidally. The function for correcting trapezoidal distortion is called Keystone Correction.

Adjustment buttons (P/R/O/Q)

Note

• The Keystone Correction can be adjusted up to an angle of approximately ±40 (EIP-2600)/ ±20 (EIP-250) degrees and the screen can also be set up to an angle of approximately ±40 (EIP-2600)/±20 (EIP-250) degrees (when the resize mode is set to “NORMAL” (see page

30)).

Press KEYSTONE to enter the

1

Keystone Correction mode.

•You can also display the on-screen display of the Keystone Correction mode with KEYSTONE on the projector.

Press P/Q or O/R to adjust the

2

Keystone Correction.

•You can also adjust the Keystone Correction using the adjustment buttons on the projector.

Note

•To return to the default setting, press RETURN

while the on-screen display of the Keystone Correction mode is on the screen.

Press KEYSTONE.

3

• The on-screen display of the Keystone Correction mode will disappear.

•You can also use KEYSTONE on the pro- jector.

RETURN button

KEYSTONE button

On-screen display (Keystone Correction mode)

0KEYSTONE

ADJUST END

Shrinks upper side. (Move the slide bar in the + direction.)

Shrinks lower side. (Move the slide bar in the - direction.)

Info

• While adjusting the image using Keystone Correction, straight lines and the edges of the image may appear jagged.

28

Switching the Input Mode

Select the appropriate input mode for the connected equipment.

Press COMPUTER, DVI (EIP-2600 only), S-VIDEO or VIDEO on the remote

control to select the input mode.

• When you press INPUT on the projector or DVI

on the remote control (EIP-2600 only), the INPUT list appears. Press P/R to switch the INPUT mode.

Adjusting the Volume

Press VOL +/– on the remote control or –O/Q+ on the projector to adjust the vol-

ume.

Note

•Pressing VOL–/–O will lower the volume.

•Pressing VOL+/Q+ will raise the volume.

• When the projector is connected to external equipment, the volume level of the external equipment changes in accordance with the volume level of the projector. Set the projector’s volume to the lowest level when turning the projector on/ off or when changing the input signal.

• When you do not want to output the sound from the projector’s speaker while the projector is connected to external equipment, set “Speaker” in “PRJ-ADJ” menu to “Off”. (See page 45.)

COMPUTER, DVI (EIP-2600 only), S-VIDEO, VIDEO buttons

AV MUTE button

VOL +/– (Volume) buttons

On-screen display

Displaying the Black Screen and Turning off the Sound Temporarily

Press AV MUTE on the remote control to temporarily display a black screen and turn off the sound.

Note

•Pressing AV MUTE again will turn the projected image back on.

On-screen display

29

Image Projection (Continued)

Resize Mode

This function allows you to modify or customize the resize mode to enhance the input image. Depending on the input signal, you can choose a desired image.

Press RESIZE.

• See page 43 for setting on menu screen.

COMPUTER

NORMAL

1024 x 768

968 x 768

1024 x 640

800 x 600

750 x 600

800 x 500

NORMAL FULL BORDERDOT BY DOT

EIP-2600

EIP-250

EIP-2600 EIP-250

Resolution lower than

XGA

XGA SVGA

Resolution

higher than

XGA

SXGA (1280 x 1024)

Computer

Resolution lower than

SVGA

Resolution

higher

than

SVGA

Main resolution

SVGA (800 x 600)

XGA (1024 x 768)

1280 x 800

SVGA (800 x 600)

XGA (1024 x 768)

1280 x 800

Image type

4:3 aspect ratio

FULL

1024 x 768

800 x 600

For 4:3 screen For 16:9 screenInput signal

2

*

DOT BY DOT

800 x 600

1280 x 1024

1280 x 800

1024 x 768

1280 x 1024

1280 x 800

BORDER

768 x 576

720 x 576

922 x 576

600 x 450

720 x 450

2

*

1, *3

RESIZE button

STRETCH

1024 x 576

800 x 450

STRETCH

*

1

SXGA (1280 × 1024)

5:4 aspect ratio

1

1280 × 720

1360 × 768 1366 × 768

1280 × 768

1280 × 800

: Cutout area on which images cannot be projected : Area where the signals are off screen

1

The Image Shift function can be used for these images.

*

2

Same as NORMAL mode.

*

3

For EIP-250 model, “Border” cannot be selected with certain resolution selections in which the horizontal part of aspect ratio becomes smaller than

*

4:3 (such as 1280 × 1024, among others).

16:9 aspect ratio

16:10 aspect ratio

*

1

*

2

*

1

*

30

2

*

1

*

VIDEO

VIDEO/DTV

Input signal

Image type NORMALVideo/DTV

4:3 aspect ratio

480I, 480P, 576I, 576P,

NTSC, PAL,

SECAM

720P, 1035I,

1080I, 1080P

540P

: Cutout area on which images cannot be projected : Area on which the image is not included in the original signals

1

The Image Shift function can be used for these images.

*

2

Same as NORMAL mode.

*

Squeeze

Letter box

16:9 aspect ratio

(4:3 aspect ratio in 16:9)

For 4:3 screen For 16:9 screen

V-STRETCH

BORDER STRETCH

*

AREA ZOOM

1

*

1

*

1

*

2

*

1

*

1

*

1

*

2

*

About Copyrights

• When using the RESIZE function to select an image size with a different aspect ratio to a TV program or video image, the image will look different from its original appearance. Keep this in mind while choosing an image size.

• The use of the Resize or Keystone Correction function to compress or stretch the image for commercial purposes/public displays in a café, hotel, etc. may be an infringement of copyright protected by law for copyright holders. Please use caution.

31

Operating with the Remote Control

Star

Finger1 Finger2 Hear t Underline

1/9 1/25 1/8

BREAK TIMER button

FREEZE button

MAGNIFY buttons

POINTER button

SPOT button

Adjustment buttons (P/R/O/Q)

EFFECT button PICTURE MODE button

ECO+QUIET button

AUTO SYNC button

Displaying and Setting the Break Timer

Press BREAK TIMER.

1

• The timer starts to count down from 5 minutes.

On-screen display

Press P /R /O /Q to adjust the

2

length of the break time.

• Increases with P or Q

5 minutes s 6 minutes s 60 minutes

• Shortens with O or R

4 minutes s 3 minutes s1 minute

• The break time can be set in units of one minute (up to 60 minutes).

Displaying the Pointer

Press POINTER and press P/R/

1

O/Qon the remote control to move the pointer.

•Press EFFECT to change the pointer icon

(5 types).

Press POINTER again.

2

• The pointer will disappear.

Using the Spot Function

Press SPOT and press P/R/O/Q

1

on the remote control to move the spot area.

•Press EFFECT to change the spot area

size (3 types).

Press SPOT again.

2

• The spot area will disappear.

Switching the Eco+Quiet Mode

Canceling the break timer display function

Press BREAK TIMER.

Note

•Break Timer does not function while the projector is operating the “Auto Sync”, “FREEZE” or “AV MUTE” functions.

32

Press ECO+QUIET to switch the Eco+Quiet mode between on and off.

• When the Eco+Quiet Mode is set to “ON”, the sound of the cooling fan will turn down, the power consumption will decrease, and the lamp life will extend.

Note

• Refer to “Lamp Setting” on page 42 for de-

tails of the Eco+Quiet mode.

Auto Sync (Auto Sync Adjustment)

Displaying an Enlarged Portion of an Image

Auto Sync function works when detecting input signal after the projector turns on. Press AUTO SYNC to manually adjust with Auto Sync function.

Note

• When the optimum image cannot be achieved with Auto Sync adjustment, use the help menu for manual adjustments. (See page 48.)

Freezing a Moving Image

Press FREEZE.

1

• The projected image is frozen.

Press FREEZE again to return to

2

the moving image from the currently connected device.

Selecting the Picture Mode

You can select the appropriate picture mode for the projected image, such as movie or video game.

Press PICTURE MODE.

• When pressing PICTURE MODE, the picture

mode changes in the following order:

STANDARD PRESENTATION MOVIE GAME sRGB

*

Graphs, tables and other portions of projected images can be enlarged. This is helpful when providing more detailed explanations.

Press MAGNIFY on the remote

1

control.

• Enlarges the image.

•Pressing or MAGNIFY enlarges

or reduces the projected image.

Note

Press

´1´2´3´

Press .

•You can change the location of the en-

larged image using P, R, O and Q.

Press RETURN on the remote con-

2

.

4

trol to cancel the operation.

• The magnification then returns to ×1.

Note

• The selectable magnifications differ depending on the input signal.

• In the following cases, the image will return to the normal size (×1).

- When switching the INPUT mode.

- When RETURN has been pressed.

- When the input signal is changed.

- When the input signal resolution and

refresh rate (vertical frequency) change.

- When the Resize mode is changed.

- When the Picture mode is changed.

- When the Progressive mode is changed.

Note

• See page 40 for details on the picture mode.

* “sRGB” is displayed only when RGB signal is

input.

33

Operating with the Remote Control (Continued)

Using the Remote Control as the Wireless Computer Mouse

When connecting the projector and the computer with a USB cable, you can use the remote control as the computer mouse.

Connecting with a USB cable

Computer

To USB terminal

USB cable (commercially available)

The mouse pointer can be operated in the following way after it is connected.

To USB terminal

PA GE UP/ PA GE DOWN buttons

MOUSE/Adjustment buttons ('/"/\/|)

■ When moving the cursor

Press MOUSE/Adjustment buttons (P/R/O/Q).

■ When left-clicking

Press L-CLICK.

■ When right-clicking

Press R-CLICK.

■

When your computer supports only a

R-CLICK button

one-click mouse (such as Macintosh)

Press L-CLICK or R-CLICK. L-CLICK and R-CLICK have common function.

L-CLICK button

■ When using [Page Up] or [Page Down]

Same as the [Page Up] and [Page Down] keys on a computer keyboard. Press PAGE UP or PAGE DOWN.

Note

• This function only works with the Microsoft® Windows® OS and Mac OS®. However, this function does not work with the following operation systems that do not support USB.

• Versions earlier than Windows® 95

• Versions earlier than Windows® NT4.0

• Versions earlier than Mac OS® 8.5

•You cannot use this function when displaying the menu screen.

• Confirm that the computer recognizes the USB connection.

34

Menu Items

Main menu Sub menu


Page 40 Page 40

Page 41

Page 42

+30-30

Contrast

+30-30

1-1

20

+30-30

Tint

Color

Sharp

Bright

Progressive

Lamp Setting

Reset

2D Progressive 3D Progressive Film Mode

CLR Temp

BrilliantColor™

C.M.S. Setting [On/Off]

C.M.S.

Standard Presentation Movie Game sRGB*1

Picture Mode

*2

Red

Blue

*2

*3

Page 42

DNR Off

Level 1 Level 2

Bright Eco + Quiet

C.M.S.-Hue

C.M.S.-Saturation

C.M.S.-Value

Page 41

Reset

+30-30

R

+30-30

C

G

B

Y

M

Reset

The following shows the items that can be set in the projector.

“Picture” menu

PAGE 1

Picture SCR - ADJ PRJ - ADJ Help

Picture Mode

Contrast 0 Bright Color Tint

Red Blue

Standard

0 0 0 0Sharp 0 0

SEL./ADJ. ENTER END

0 1

0 0 0 0 0 0

Standard

On

3D Progressive Off Bright

ENTER END

PAGE 2

Picture SCR - ADJ PRJ - ADJ Help

Picture Mode

CLR Temp BrilliantColor C.M.S. Setting C.M.S. Progressive DNR Lamp Setting Reset

SEL./ADJ. ENTER END

“C.M.S.”

C. M. S. - Hu e

C. M. S. - Saturation C. M. S. - Value

Reset

SEL./ADJ. Return

*1 Items when inputting RGB signal through

COMPUTER or DVI (EIP-2600 only).

*2 Items when inputting component signal through

TM

C. M. S.

R Y G C B M

Reset

COMPUTER or DVI (EIP-2600 only), or when selecting S-VIDEO or VIDEO.

*3 On model EIP-250, this item is “Bright Boost”.

35

Menu Items (Continued)

Off CC1 CC2

Main menu Sub menu

SCR - ADJ

Page 43

Language

Image Shift

Resize

Page 43

Page 44

Keystone

OSD Display [On/Off]

Page 44

Closed Caption

Background

Setup Guide

[On/Off]

PRJ Mode

Logo Blue None

Front Ceiling + Front Rear Ceiling + Rear

+96-96 +75-75

+80-80 +40-40

Normal Full Dot By Dot Area Zoom V-Stretch Border Stretch

Normal Area Zoom V-Stretch Border Stretch

COMPUTER/ DTV

VIDEO/ S-VIDEO

English Deutsch Español Nederlands Français Italiano Svenska Português

polski Magyar Türkçe

*3 *4

Main menu Sub menu

PRJ - ADJ

Page 45

STANDBY Mode

System Sound [On/Off]

Speaker [On/Off]

System Lock [Enable/Disable]

Lamp Timer(Life)

Page 45

Auto Restart [On/Off]

Page 45

Auto Power Off [On/Off]

Page 45

Page 46

Page 47

Fan Mode

Page 46

Normal High

RS-232C

Page 46

9600bps 115200bps

Audio Input

Page 46

Audio 1 Audio 2

Standard Eco

Auto Sync [On/Off]

Page 45

*5

“Screen adjustment (SCR-ADJ)” menu

Picture SCR - ADJ PRJ - ADJ Help

Resize Image Shift 0 Keystone

OSD Display Closed Caption Background Setup Guide PRJ Mode Language

SEL./ADJ. ENTER END

*3 Adjustment range for EIP-2600. *4 Adjustment range for EIP-250.

Normal

0

On CC1 Logo On Front English

36

“Projector adjustment (PRJ-ADJ)” menu

Picture SCR - ADJ PRJ - ADJ Help

Auto Sync On Auto Power Off Auto Restart On STANDBY Mode Standard System Sound Speaker On Audio Input Audio 1 RS-232C 9600bps Fan Mode Normal System Lock

*5 This item is available for EIP-2600 only.

SEL./ADJ. ENTER END

On

Disable

h

0 min0Lamp Timer(Life) 100%

“Help” menu

Picture SCR - ADJ PRJ - ADJ Help

There is no picture or audio Vertical stripes or flickering image appear Data image is not centered Color is faded or poor Picture is dark The image is distorted

Reset all adjustments to default settings

SEL ENTER END

SEL.

The items you can set with the “Help” menu

“Help” menu n Page 48

•Vertical stripes or flickering image appear Auto Sync Clock Phase

• Data image is not centered Auto Sync H-Pos V-Pos

• Color is faded or poor COMPUTER/COMPONENT or DVI (EIP-2600 only) input

Signal type: Auto/RGB/Component

S-VIDEO or VIDEO input

Video System: Auto/PAL/SECAM/

NTSC3.58/NTSC4.43/ PAL-M/PAL-N/PAL-60

DVI (Digital) input (EIP-2600 only)

Dynamic range: Auto/Standard/Enhanced

* The selectable items vary depending on the in-

put signal and the selected input mode.

37

Picture Mode

Contrast 0

0 0

Bright

Standard

SEL./ADJ. ENTER END

0 0

Red Blue CLR Temp BrilliantColor

TM

C.M.S. Setting C.M.S.

Lamp Setting

0 1

On

Bright

DNR

Off

Reset

Picture SCR - ADJ PRJ - ADJ Help

Using the Menu Screen

ENTER button

Adjustment buttons (P/R/O/Q)

MENU/HELP button

ENTER button

Adjustment buttons (P/R/O/Q)

RETURN button

•Press RETURN to return

to the previous screen when the menu is displayed.

MENU/HELP button

Menu Selections (Adjustments)

Example: Adjusting “Bright”.

• This operation can also be performed by using the buttons on the projector.

Press MENU/HELP.

1

• The “Picture” menu screen for the selected input mode is displayed.

Press Q or O and select “Picture”

2

to adjust.

38

Example: “Picture” screen menu for

COMPUTER (RGB) input (EIP-2600)

Menu item

Press P or R and select “Bright”

0Bright


SEL./ADJ. Rtn. Menu END

Picture Mode

Contrast 0

0

Standard

SEL./ADJ. Single ADJ END

0 0

Red Blue CLR Temp BrilliantColor

TM

C.M.S. Setting C.M.S.

Lamp Setting

0 1

On

Bright

Reset

15Bright

Picture SCR - ADJ PRJ - ADJ Help

DNR

Off

Picture Mode

Standard

SEL./ADJ. Single ADJ END

Resize Image Shift 0

0

Keystone

Border

Picture Mode

Contrast 0

0

Standard

SEL./ADJ. END

0 0

Red Blue CLR Temp BrilliantColor

TM

C.M.S. Setting C.M.S.

Lamp Setting

0 1

On

Bright

Reset

Bright 0

Picture SCR - ADJ PRJ - ADJ Help

DNR

Off

3

to adjust.

• The selected item is highlighted.

To adjust the projected image while watching it

Press ENTER.

• The selected item (e.g. “Bright”) is displayed by itself at the bottom of the screen.

• When pressing P or R, the following item (“Red” after “Bright”) will be displayed.

Note

•Press ENTER again to return to the pre-

vious screen.

Items to be adjusted

Press ENTER.

The item displayed by itself

Press O or Q to adjust the item

4

selected.

• The adjustment is stored.

Press MENU/HELP.

5

• The menu screen will disappear.

Note

• Menu buttons do not function while the projector is operating the “Auto Sync”, “Break Timer”, “FREEZE”, or “AV MUTE” functions.

39

Picture Adjustment (“Picture” Menu)

Picture Mode

CLR Temp BrilliantColor

TM

C.M.S. Setting C.M.S.

Standard

SEL./ADJ. ENTER END

Progressive

Lamp Setting

0 1

On

3D Progressive

Bright

DNR

Off

Reset

Picture SCR - ADJ PRJ - ADJ Help

7

6

5

4

2

3

Menu operation n Page 38

Q PAGE1 Q PAGE2

Picture SCR - ADJ PRJ - ADJ Help

1

Picture Mode

Contrast 0 Bright Color Tint

2

Red Blue

SEL./ADJ. ENTER END

1 1

1 Selecting the Picture Mode

1 1

Standard

0 0 0 0Sharp 0 0

Selectable

items

Standard

Presentation

Movie

Game

For standard image

Brightens portions of image for more enhanced presentations.

Gives natural tint to the projected image.

Gives sharpness to the projected image.

*sRGB

For high fidelity reproduction of images from a computer.

• “sRGB” is displayed only when RGB signal is input.

•You can set or adjust each item in the “Picture” menu to your preference. Any changes you make are retained in memory.

Note

•

You can also press PICTURE MODE on the remote control to select the picture mode. (See page 33.)

• *sRGB is an international standard of color reproduction regulated by the IEC (International Electrotechnical Commission). As the fixed color area has been decided by the IEC, the images are displayed in a natural tint based on an original image, when “sRGB” is selected. For additional information about the sRGB function, visit “http://www.srgb.com/”. You cannot set the items, “Red”, “Blue”, “CLR Temp”, “Bright Boost”, when “sRGB” is selected.

Info

• When “sRGB” is selected, the projected image may become dark, but this does not indicate a malfunction.

40

Description

The default settings of each item when selecting Picture Mode

CLR Temp

0

–1

0

–

BrilliantColorTM (EIP-2600)

Bright Boost (EIP-250)

1

2

0

1

–

Lamp Setting

Bright

Eco + Quiet

Bright

Menu operation n Page 38

22

2 Adjusting the Image

22

Adjustment

items

Contrast

Bright

1

Color*

1

Tint*

1

Sharp*

2

Red*

2

Blue* BrilliantColor™

(EIP-2600) Bright Boost* (EIP-250)

*1 Not displayed in the RGB input mode. *2 Not adjustable/selectable when selecting “sRGB”. *3 BrilliantColor™ uses Texas Instruments’

BrilliantColor™ technology. As the BrilliantColor™ level is increased, the image becomes brighter while the color reproduction is kept at a high level.

O button

For less contrast.

For less brightness.

For less color intensity.

For making skin tones purplish.

For less sharpness.

For weaker red. For weaker blue.

3

*2 *

For making the effect weaker.

2

Q button

For more contrast.

For more brightness.

For more color intensity.

For making skin tones greenish.

For more sharpness.

For stronger red. For stronger blue. For making the

effect stronger.

Note

• “Red”, “Blue”, “BrilliantColorTM” (EIP-2600), “Bright Boost” (EIP-250) and “CLR Temp” cannot be set when “sRGB” is selected.

•To reset all adjustment items, select “Reset” and press ENTER.

33

3 Adjusting the Color

33

Temperature

Selectable

items

–1

0

1

For lower color temperature for warmer, reddish incandescent-like images.

For higher color temperature for cooler, bluish, fluorescent-like images.

Description

P R

44

4 Adjusting the Colors

44

This function adjusts each of the six main colors that comprise the color wheel, altering their “Hue”, “Saturation”, or “Value”.

Selectable items

C.M.S.-Hue

C.M.S.-Saturation

C.M.S.-Value

Reset

Sets the hue of the main colors.

Sets the saturation of the main colors

Sets the brightness of the main colors.

The adjustments of “Hue”, “Saturation” and “Value” of all colors are reset to the default setting.

Description

Adjusting “Hue”, “Saturation”, or “Value”.

1Select “On” for “C.M.S. Setting” in the “Picture”

menu and then press ENTER.

2Select “C.M.S.” in the “Picture” menu and then

press ENTER.

3Press P or R to select either “Hue”, “Saturation”, or

“Value” and then press ENTER.

4Select the color to be adjusted with P or R and

adjust it with O or Q.

Example of adjusting the “Hue”

Main colors

R (Red)

Y (Yellow)

G (Green)

C (Cyan)

B (Blue)

M (Magenta)

O button

Closer to magenta

Closer to red

Closer to yellow

Closer to green

Closer to cyan

Closer to blue

Q button

Closer to yellow

Closer to green

Closer to cyan

Closer to blue

Closer to magenta

Closer to red

• When “Saturation” is selected, the selected

color becomes O: lighter. Q: thicker.

• When “Value” is selected, the selected color becomes O: darker. Q: brighter.

• To reset the adjustment values of each color to the default settings, select “Reset” and press

ENTER.

Note

•Values on “CLR Temp” are only for general standard purposes.

41

Picture Adjustment (“Picture” Menu) (Continued)

Menu operation n Page 38

55

5 Progressive

55

Selectable

items

2D Progressive

3D Progressive

Film Mode

* The film source is a digital video recording with the

original encoded as is at 24 frames/second. The projector can convert this film source to progressive video at 60 frames/second with NTSC and PAL60Hz or at 50 frames/second with PAL50Hz and SECAM to play back a high-definition image.

• In NTSC or PAL60Hz, even if the 3D Progressive mode has been set, the three-two pull down enhancement will be enabled automatically when the film source has been entered.

• When the image is blurred or noisy, switch to the optimal mode.

Useful to display fast-moving images such as sports.

Useful to display relatively slowmoving images such as drama and documentary more clearly.

Reproduces the image of film source* clearly. Displays the optimized image of film transformed with three-two pull down (NTSC and PAL60Hz) or two-two pull down (PAL50Hz and SECAM) enhancement to progressive mode images.

Note

Description

Info

• This function is available for 480I and 576I signals using COMPUTER/COMPONENT or DVI (EIP-2600 only) input.

• This function is available for all signals with S-VIDEO and VIDEO input.

66

6

Reducing Image Noise (DNR)

66

Video digital noise reduction (DNR) provides high quality images with minimal dot crawl and cross color noise.

Selectable

items

Off

Level 1

Level 2

Set “DNR” to “Off” in the following cases:

• When the image is blurry.

• When the contours and colors of moving images drag.

• When TV broadcasts with weak signals are projected.

77

7 Lamp Setting

77

Selectable

items

Eco + Quiet

Bright

• In the Eco + Quiet mode, the fan sound and power consumption are lower than those in the Bright mode. (Projection brightness decreases as shown in the chart.)

The DNR function is not activated.

Sets the DNR level for viewing a clearer picture.

Note

Brightness and Power consumption

EIP-2600 Approx. 70%

EIP-250 Approx. 80%

Note

Description

100%

42

Adjusting the Projected Image (“SCR - ADJ” Menu)

Picture SCR - ADJ PRJ - ADJ Help

Resize

1

Image Shift 0

2

Keystone

3

4

OSD Display

5

Closed Caption

6

Background

7

Setup Guide PRJ Mode

8

Language

9

SEL./ADJ. ENTER END

11

1 Setting the Resize Mode

11

Note

• For details of the Resize mode, see pages

30 and 31.

•You can also press RESIZE on the remote con- trol to set the resize mode. (See page 30.)

22

2 Adjusting the Image

22

Position

Normal

0

On CC1 Logo On Front English

33

3 Keystone Correction

33

When the image is projected either from the top or from the bottom towards the screen at an angle, the image becomes distorted trapezoidally. The function for correcting trapezoidal distortion is called Keystone Correction.

Select “Keystone” on the “SCR-ADJ” menu and adjust with the slide bar.

See page 28 for details of Keystone Correction.

Menu operation n Page 38

O buttonQ button

You can move the projected image vertically.

O button

Note

• This function only works in some RESIZE modes. (See pages 30 and 31.)

Q button

Note

• The Keystone Correction can be adjusted up to an angle of approximately ±40 (EIP-2600)/ ±20 (EIP-250) degrees (when “Resize” is set to “Normal”).

•You can also press KEYSTONE on the remote control or on the projector to adjust Keystone Correction.

44

4 Setting the On-screen

44

Display

Selectable

items

On

Off

All on-screen displays are displayed.

INPUT/VOLUME/AV MUTE/FREEZE/ AUTO SYNC/RESIZE/PICTURE MODE/ ECO+QUIET/MAGNIFY/ “An invalid button has been pressed.” are not displayed.

Description

43

Adjusting the Projected Image (“SCR - ADJ” Menu) (Continued)

5 5

5 Closed Caption

5 5

77

7

Selecting the Setup Guide

77

Menu operation n Page 38

Info

• This function is available for NTSC3.58 and 480I signals.

• This function does not work when the resize mode is set to “Border”.

• This function is available in the following cases only:

Resize mode

Normal Area Zoom V-Stretch Stretch

• “Closed Caption” is a system which allows

conversations, narration, and sound effects in TV programs (Limited regions) and home videos to be viewed as captions on the screen.

• Not all programs and videos will offer closed captioning. Please look for the symbol to ensure that captions will be shown.

• Tw o channels are available: CC1 and CC2.

• The Closed Caption letters of this projector

are displayed in black and white.

Selectable items

Off CC1 CC2

Note

• Closed Caption may malfunction (white blocks, strange characters, etc.) if signal conditions are poor or if there are problems at the broadcast source. This does not necessarily indicate a problem with the projector.

• If any button is pressed to call up the on-screen display while viewing a Closed Caption broadcast, the closed captions will disappear.

66

6

Selecting the Background

66

Keystone Correction

-40 – +40

-12 – +12

Description

— Closed Caption mode for CH1 data Closed Caption mode for CH2 data


Selectable items

Logo Blue None

EIKI logo screen Blue screen —

Description

Selectable items

On

Off

88

8 Reversing/Inverting

88

Displaying the Setup Guide when turning the projector on.

Not displaying the Setup Guide.

Description

Projected Images

Selectable items

Front

Ceiling + Front

Rear

Ceiling + Rear

See page 19 for details of Projection (PRJ) Mode.

99

9

Selecting the On-screen

99

Normal image (Projected from the front of the screen)

Inverted image (Projected from the front of the screen with an inverted projector)

Reversed image (Projected from the rear of the screen or with a mirror)

Reversed and inverted image (Projected with a mirror)

Description

Display Language

The projector can switch the on-screen display language among 17 languages.

English Deutsch Español Nederlands Français Italiano Svenska Português

polski Magyar

Türkçe

44

Adjusting the Projector Function (“PRJ - ADJ” Menu)

Menu operation n Page 38

Picture SCR - ADJ PRJ - ADJ Help

1

Auto Sync On

2

Auto Power Off

3

Auto Restart On STANDBY Mode Standard

4

System Sound

5

Speaker On

6

Audio Input Audio 1

7

RS-232C 9600bps

8

Fan Mode Normal

9

System Lock

0

SEL./ADJ. ENTER END

11

1

Auto Sync (Auto Sync

11

0 min0Lamp Timer(Life) 100%

On

Disable

h

Adjustment)

Selectable

items

On

Off

• Auto Sync adjustment is also performed by pressing AUTO SYNC on the remote control.

• The Auto Sync adjustment may take some time to complete, depending on the image of the computer connected to the projector.

• When the optimum image cannot be achieved with Auto Sync adjustment, use manual adjustments. (See page 48.)

22

2

22

Selectable

items

On

Off

• When the Auto Power Off function is set to “On”, 5 minutes before the projector enters standby mode, the message “Enter STANDBY mode in X min.” will appear on the screen to indicate the remaining minutes.

Auto Sync adjustment will occur when the projector is turned on or when the input signals are switched, when connected to a computer.

Auto Sync adjustment is not automatically performed.

Note

Auto Power Off Function

When no input signal is detected for more than 15 minutes, the projector will automatically enter standby mode.

The Auto Power Off function will be disabled.

Note

Description

33

3 Auto Restart Function

33

Selectable

items

On

Off

4 4

4 STANDBY Mode

4 4

If the power cord is unplugged from the outlet or the breaker switch is turned off when the projector is on, then the projector automatically turns on when the power cord is plugged into the AC outlet or the breaker switch is turned on.

The projector does not turn on automatically when the power cord is plugged into the AC outlet or the breaker switch is turned on.

Description

When set to “Eco”, power consumption is reduced in standby mode.

Selectable

items

Eco

Standard

55

5

55

The monitor output and RS-232C functions are switched off in standby mode.

The monitor output and RS-232C functions are activated even if the projector is in standby mode.

Setting the Confirmation

Description

Sound (System Sound)

Selectable

items

On

Off

66

6 Speaker Setting

66

Selectable

items

On

Off

A confirmation sound is made when the projector turns on/off.

No confirmation sound is made.

The audio signal is output from the internal speaker.

The audio signal is not output from the internal speaker.

Description

45

Adjusting the Projector Function (“PRJ - ADJ” Menu)

Setting the System Lock

PRJ - ADJ

Old Code

New Code Reconfirm

––––

–––– ––––

Setting the System Lock

PRJ - ADJ

Old Code

New Code

Reconfirm

****

– ––– ––––

(Continued)

7 7

7

Audio Input (EIP-2600 only)

7 7

66

6

66

Monitor Output

This function allows you to select an appropriate combination of audio input terminals for each input mode.

Selectable

items

Audio 1

Audio 2

88

8

88

The AUDIO 1 input terminal is used as an audio input terminal.

The AUDIO 2 input terminal is used as an audio input terminal.

Selecting the Transmission Speed (RS-232C)

Make sure that both the projector and computer are set for the same baud rate.

Selectable

items

9600bps

115200bps

9 9

9 Fan Mode Setting

9 9

This function changes the fan rotation speed.

Selectable

items

Normal

High

When “Fan Mode” is set to “High”, the fan rotation speeds up, and the fan noise becomes louder.

0 0

0 System Lock Function

0 0

This function prevents unauthorized use of the projector. Once this function is activated, users must enter the correct keycode each time the projector is turned on. We suggest you record

the keycode in a safe place where only authorized users have access.

•

If you lose or forget your keycode, contact your nearest EIKI Authorized Dealer or Service Center. Even if the product warranty is valid, the keycode reset will incur a charge.

46

Transmission speed is slow.

Transmission speed is rapid.

Suitable for normal environments.

Select this when using the projector at altitudes of approximately 1,500 meters (4,900 feet) or more.

Info

Description

P R

Description

a Setting/Changing the keycode

Select “System Lock”, then press

1

ENTER or Q.

Select “Next”, then press ENTER.

2

• The screen for entering the keycode appears.

Press the 4 buttons on the remote

3

control or on the projector to enter the preset keycode in “Old Code”.

•

When setting the keycode for the first time, press R on the projector for four times.

Note

• If you input a wrong keycode, the cursor returns to the first point of the “Old Code”.

• The preset keycode is 4 R buttons on the projector. When you press the R but- ton four times, the keycord input screen disappears.

Press the 4 buttons on the remote

4

control or on the projector to enter the new keycode in “New Code”.

Note

•You cannot use the following buttons for keycode:

ENTER, L-CLICK, R-CLICK/RETURN and MENU/HELP

•

System lock function recognizes each button on the remote control or on the projector as an individual button, even if they share the same button name. If you used the buttons on the projector in setting your keycode, the keycode cannot be canceled with the remote control.

Menu operation n Page 38

STANDBY/ON, ON, STANDBY,

Enter the same keycode in “Re-

5

confirm”.

Note

To cancel the keycode that you have already set

•Press R on the projector for four times in steps

4 and 5 above.

When the System Lock is set

• When System Lock is set, the keycode input screen appears after the power is turned on. When it appears, enter the right keycode to start projection.

Input screen for keycode

System Lock

––––

Checking the Lamp Life Status

You can confirm the cumulative lamp usage time and the remaining lamp life (percentage).

Lamp usage condition

“Life”

Operated exclusively with Lamp Setting set to “Eco +Quiet”

Operated exclusively with Lamp Setting set to “Bright”

Note

• It is recommended that the lamp be changed when the remaining lamp life becomes 5%.

• The lamp life may vary depending on the usage condition.

Remaining lamp life

100%

Approx. 4,000 hours

Approx. 2,000 hours

Approx. 200 hours

Approx. 100 hours

5%

Keylock Function

Locking the Operation Buttons on the Projector

Use this function to lock the operation buttons on the projector.

a Locking the Operation Buttons

Hold down ENTER on the projector for about 5 seconds while the projector is being turned on.

On-screen display

• The keylock function does not affect the operation with the remote control buttons.

•You cannot use the keylock function while the projector is warming up.

a Taking the Keylock off

Hold down ENTER on the projector for about 5 seconds.

On-screen display

• When the projector is in standby mode, you can release the keylock by holding down ENTER and STANDBY/ON on the projector simultaneously for about 5 seconds.

Info

• Keylock cannot be set while the projector is: displaying the “Setup Guide” or “Menu” screens, in standby mode, warming up, changing input signals, operating “Auto Sync” function, in “FREEZE” mode or on the “System Lock” screen during warming up.

47

Troubleshooting with the “Help” Menu

0Phase

SEL./ADJ. Rtn. Menu END

Help

This function advises you to solve the problems during usage.

Utilizing the “Help” Menu Functions

ENTER button

Example: When image flickering appears

Operation to solve image flickering when projecting the computer RGB signal.

Press MENU/HELP.

1

Press O or Q to select “Help”, then

2

press ENTER.

Press P or R to select “Vertical

3

stripes or flickering image appears” on Help menu, then press ENTER.

Picture SCR - ADJ PRJ - ADJ Help

Vertical stripes or flickering image appear

There is no picture or audio

Vertical stripes or flickering image appear

Data image is not centered Color is faded or poor Picture is dark The image is distorted

Reset all adjustments to default settings

SEL. ENTER END

Press ENTER.

Vertical stripes or flickering image appear

Initiate “Auto Sync” Adjustments.

If there is no change after performing "Auto Sync" adjustments, adjust the following items.

Adjust vertical noise

Adjust horizontal noise

Reset the 2 items above

Return

Signal Info 1024768

H 48.3 kHz / V 59.9 Hz

SEL. ENTER END

Help

Adjustment buttons (P/R/O/Q)

MENU/HELP button

Select “Initiate “Auto Sync” Ad-

4

justments”, then press ENTER.

If the image is not improved, se-

5

lect “Adjust horizontal noise”, then press ENTER.

Press O or Q to adjust.

6

Note

•You can adjust the items with check marks (✔).

• The items in the “Help” menu change, depending on the input signal or setting that you have selected.

• If the problem is not solved, refer to

“Troubleshooting” (see pages 63 and 64).

• When selecting “sRGB” in “Picture Mode”, the item “Color is faded or poor” is not displayed. This means you cannot change input signal types.

48

Maintenance

Cleaning the projector

■ Ensure that you have unplugged the power cord before cleaning the projector.

■ The cabinet as well as the operation panel is made of plastic. Avoid using benzene or thinner, as these can damage the finish on the cabinet.

■ Do not use volatile agents such as insecticides on the projector. Do not attach rubber or plastic items to the projector for long periods. The effects of some of the agents in the plastic may cause damage to the quality or finish of the projector.

■ Wipe off dirt gently with a soft flannel cloth.

■ When the dirt is hard to remove, soak a cloth in

a mild detergent diluted with water, wring the cloth well and then wipe the projector. Strong cleaning detergents may discolor, warp or damage the coating on the projector. Make sure to test on a small, inconspicuous area on the projector before use.

Mild detergent

Mild detergent diluted

with water

Cleaning the lens

■ Use a commercially available blower or lens cleaning paper (for glasses and camera lenses) for cleaning the lens. Do not use any liquid type cleaning agents, as they may wear off the coating film on the surface of the lens.

■ As the surface of the lens can easily get damaged, be careful not to scrape or hit the lens.

Cleaning the exhaust and intake vents

■ Use a vacuum cleaner to clean dust from the exhaust vent and the intake vent.

Info

• If you want to clean the air vents during projec-

tor operation, ensure you press STANDBY/ON on the projector or STANDBY on the remote control and put the projector into standby

Thinner

Wax

mode. After the cooling fan has stopped, clean the vents.

49

Maintenance Indicators

■ The warning lights (power indicator, lamp indicator and temperature warning indicator) on the projector indicate problems inside the projector.

■ If a problem occurs, either the temperature warning indicator or the lamp indicator will illuminate red, and the projector will enter standby mode. After the projector has entered standby mode, follow the procedures given below.

Top View

Temperature warning indicator

Lamp indicator

Power indicator

About the temperature warning indicator

If the temperature inside the projector increases, due to blockage of the air vents, or the setting location, “ ” will illuminate in the lower left corner of the picture. If the temperature keeps on rising, the lamp will turn off and the temperature warning indicator will blink, the cooling fan will run, and then the projector will enter standby mode. After “ ” appears, ensure you perform the measures described on page 51.

About the lamp indicator

■ When the remaining lamp life becomes 5% or less, (yellow) and “Change The Lamp” will be displayed on the screen. When the percentage becomes 0%, it will change to (red), the lamp will automatically turn off and then the projector will automatically enter standby mode. At this time, the lamp indicator will illuminate in red.

■ If you try to turn on the projector a fourth time without replacing the lamp, the projector will not turn on.

Indicators on the Projector

Power indicator

Lamp indicator

Temperature warning indicator

Green on

Red on Green blinks

Red blinks Green on

Green blinks Red on

Off Red on

Normal (Standby)

Normal (Power on) Abnormal (See page 51.)

Normal (Cooling) Normal

The lamp is warming up. The lamp is shut down abnormally or requires to be

changed. (See page 51.)

Normal The internal temperature is abnormally high. (See page 51.)

50

Maintenance indicator

Normal

Tempera-

ture

warning

indicator

Lamp

indicator

Power

indicator

Green on

(Green

when the

lamp is

warming

turning

Red on/

Green on

(Cooling)

Off

blinks

up or

off.)

Red

blinks

Abnormal

Red on

(Standby)

Red on

(Standby)

Green blinks

Problem

The internal temperature is abnormally high.

The lamp does not illuminate.

Time to change the lamp.

The lamp does not illuminate.

The power indicator blinks in green when the projector is on.

Cause

• Blocked air intake

• Cooling fan breakdown

• Internal circuit failure

• Clogged air intake

• The lamp is shut down abnormally.

• Remaining lamp life becomes 5% or less.

• Burnt-out lamp

• Lamp circuit failure

• The lamp unit cover is open.

Possible Solution

• Relocate the projector to an area with proper ventilation. (See page 8.)

•Take the projector to your nearest EIKI Authorized Dealer or Service Center for repair.

• Disconnect the power cord from the AC outlet, and then connect it again.

• Carefully replace the lamp. (See page 52.)

•Take the projector to your nearest EIKI Authorized Dealer or Service Center for repair.

• Please exercise care when replacing the lamp.

• Securely install the cover.

• If the power indicator blinks in green even when the lamp unit cover are securely installed, contact your nearest EIKI Authorized Dealer or Service Center for advice.

Info

• If the temperature warning indicator illuminates, and the projector enters standby mode, follow the possible solutions above and then wait until the projector has cooled down completely before plugging in the power cord and turning the power back on. (At least 10 minutes.)

• If the power is turned off for a brief moment due to power outage or some other cause while using the projector, and the power supply recovers immediately after that, the lamp indicator will illuminate in red and the lamp may not be lit. In this case, unplug the power cord from the AC outlet, replace the power cord in the AC outlet and then turn the power on again.

• The cooling fan keeps the internal temperature of the projector constant and this function is controlled automatically. The sound of the cooling fan may change during operation because the fan speed may change and this is not a malfunction.

51

Regarding the Lamp

Lamp

■ It is recommended that the lamp (sold separately) be replaced when the remaining lamp life becomes 5% or less, or when you notice a significant deterioration in the picture and color quality. The lamp life (percentage) can be checked with the on-screen display. (See page 47.)

■ Purchase a replacement lamp of type AH-62101 from your place of purchase, nearest EIKI Authorized Dealer or Service Center.

Hg LAMP CONTAINS MERCURY For State Lamp Disposal Information www.lamprecycle.org or 1-800-242-3454

Caution Concerning the Lamp

■ This projector utilizes a pressurized mercury lamp. A loud sound may indicate lamp failure. Lamp failure can be attributed to numerous sources such as: excessive shock, improper cooling, surface scratches or deterioration of the lamp due to a lapse of usage time. The period of time up to failure largely varies depending on the individual lamp and/or the condition and the frequency of use. It is important to note that failure can often result in the bulb cracking.

■ When the lamp replacement indicator and on-screen display icon are illuminated, it is recommended that the lamp be replaced with a new one immediately, even if the lamp appears to be operating normally.

■ Should the lamp break, there is also a possibility that glass particles may spread inside of the projector. In such a case, it is recommended you contact your nearest EIKI Authorized Dealer or Service Center to assure safe operation.

■ Should the lamp break, the glass particles may spread inside the lamp cage or gas contained in the lamp may be vented into the room from the exhaust vent. Because the gas in this lamp includes mercury, ventilate the room well if the lamp breaks and avoid all exposure to the released gas. In case of exposure to the gas, consult a doctor as soon as possible.

U.S.A. ONLY

Replacing the Lamp

Caution

• Do not remove the lamp unit from the projector right after use. The lamp will be very hot and may cause burns or injury.

•Wait at least one hour after the power cord is disconnected to allow the surface of the lamp unit to fully cool before removing the lamp unit.

■ Carefully change the lamp by following the instructions described in this section. * If you wish, you may have the lamp replaced at your nearest EIKI Authorized Dealer or Service Center.

* If the new lamp does not light after replacement, take your projector to the nearest EIKI Authorized

Dealer or Service Center for repair.

52

Removing and Installing the Lamp Unit

Warning!

• Do not remove the lamp unit from the projector right after use. The lamp and parts around the lamp will be very hot and may cause burns or injury.

Info

• Do not touch the glass surface of the lamp

unit or the inside of the projector.

•To avoid injury to yourself and damage to the

lamp, make sure you carefully follow the steps below.

• Do not loosen other screws except for the

lamp unit cover and lamp unit.

Press STANDBY/ON on the projec-

1

tor or STANDBY on the remote control to put the projector into standby mode.

•Wait until the cooling fan stops.

Disconnect the power cord.

2

• Unplug the power cord from the AC socket.

• Leave the lamp until it has fully cooled down (about 1 hour).

Remove the lamp unit cover.

3

•Turn the projector over. Loosen the user service screw (1) that secures the lamp unit cover. Remove the lamp unit cover (2).

Optional

accessory

STANDBY/ON button

User service screw (for lamp unit cover)

1

2

Lamp unit AH-62101

AC socket

53

Regarding the Lamp (Continued)

Remove the lamp unit.

4

• Loosen the securing screws from the lamp unit. Hold the lamp unit and pull it in the direction of the arrow. At this time, keep the lamp unit horizontal and do not tilt it.

Insert the new lamp unit.

5

•Press the lamp unit firmly into the lamp unit compartment. Fasten the securing screws.

Replace the lamp unit cover.

6

• Align the tab on the lamp unit cover (1) and place it while pressing the tab (2) to close it. Then tighten the user service screw (3) to secure the lamp unit cover.

Info

• If the lamp unit and lamp unit cover are not correctly installed, the power will not turn on, even if the power cord is connected to the projector.

Securing screws

Resetting the Lamp Timer

Reset the lamp timer after replacing the lamp.

Info

• Make sure to reset the lamp timer only when replacing the lamp. If you reset the lamp timer and continue to use the same lamp, this may cause the lamp to become damaged or explode.

Connect the power cord.

1

• Plug the power cord into the AC socket of the projector.

Reset the lamp timer.

2

• While simultaneously holding down MENU/HELP, ENTER and R on the pro- jector, press STANDBY/ON on the projector.

• “LAMP 0000H” is displayed, indicating that the lamp timer is reset.

54

AC socket

STANDBY/ON button

ENTER button

R button

MENU/HELP button

Connecting Pin Assignments

COMPUTER/COMPONENT input and COMPUTER/COMPONENT output Terminals : mini D-

sub 15 pin female connector

COMPUTER Input/Output

Pin No. Signal

11

1

6

15

5

10

1. Video input (red)

2. Video input (green/sync on green)

3. Video input (blue)

4. Not connected

5. Not connected

6. Earth (red)

7. Earth (green/sync on green)

8. Earth (blue)

9. Not connected

10. GND

11. Not connected

12. Bi-directional data

13. Horizontal sync signal: TTL level

14. Vertical sync signal: TTL level

15. Data clock

DVI-I Terminal : 29 pin connector (EIP-2600 only)

• DVI Digital Input

Pin No. Signal Pin No. Signal

1. T.M.D.S data 2– 16. Hot plug detection

2. T.M.D.S data 2+ 17. T.M.D.S data 0–

3. T.M.D.S data 2 shield 18. T.M.D.S data 0+

4. Not connected 19. T.M.D.S data 0 shield

5. Not connected 20. Not connected

6. DDC clock 21. Not connected

7. DDC data 22. T.M.D.S clock shield

8. Not connected 23. T.M.D.S clock+

9. T.M.D.S data 1– 24. T.M.D.S clock–

10. T.M.D.S data 1+ C1. Not connected

11. T.M.D.S data 1 shield C2. Not connected

12. Not connected C3. Not connected

13. Not connected C4. Not connected

14. +5V power C5. Ground

15. Ground

C3 C5

C4 C2

C1

24

87

16

17

2

1

9

1823

COMPONENT Input/Output

Pin No. Signal

1. PR (CR)

2. Y

3. PB (CB)

4. Not connected

5. Not connected

6. Earth (PR)

7. Earth (Y)

8. Earth (PB)

9. Not connected

10. Not connected

11. Not connected

12. Not connected

13. Not connected

14. Not connected

15. Not connected

• DVI Analog RGB Input Pin No. Signal Pin No. Signal

1. Not connected 16. Hot plug detection

2. Not connected 17. Not connected

3. Not connected 18. Not connected

4. Not connected 19. Not connected

5. Not connected 20. Not connected

6. DDC clock 21. Not connected

7. DDC data 22. Not connected

8. Vertical sync 23. Not connected

9. Not connected 24. Not connected

10. Not connected C1. Analog input Red

11. Not connected C2. Analog input Green

12. Not connected C3. Analog input Blue

13. Not connected C4. Horizontal sync

14. +5V power C5. Ground

15. Ground

(Sync On Green)

(Composite Sync)

• DVI Analog Component Input Pin No. Signal Pin No. Signal

1. Not connected 16. Not connected

2. Not connected 17. Not connected

3. Not connected 18. Not connected

4. Not connected 19. Not connected

5. Not connected 20. Not connected

6. Not connected 21. Not connected

7. Not connected 22. Not connected

8. Not connected 23. Not connected

9. Not connected 24. Not connected

10. Not connected C1. Analog input Pr/Cr

11. Not connected C2. Analog input Y

12. Not connected C3. Analog input Pb/Cb

13. Not connected C4. Not connected

14. Not connected C5. Ground

15. Ground

55

Connecting Pin Assignments (Continued)

RS-232C Terminal : mini DIN 9 pin female connector

8

9

7

6

5

4

21

RS-232C Terminal : D-sub 9 pin male connector of the DIN-D-sub RS-232C adaptor

15

69

RS-232C Cable recommended connection : D-sub 9 pin female connector

51

96

Pin No.

Signal Name

1. RD

2.

3.

4.

5.

3

6.

7.

8.

9.

Signal NamePin No.

1.

2.

3.

4.

5.

6.

7.

8.

9.

SignalPin No.

1.

2.

3.

4.

5.

6.

7.

8.

9.

SD

SG

RS CS

RD SD

SG

RS CS

CD RD SD ER SG DR RS CS CI

Receive Data Send Data

Signal Ground

Request to Send Clear to Send

Receive Data Send Data

Signal Ground

Request to Send Clear to Send

I/O Reference

Not connected Input Output

Input Output

Connected to internal circuit

Not connected

Connected to internal circuit

Not connected

Connected to CS in internal circuit

Connected to RS in internal circuit

Not connected

I/O Reference

Not connected Connected to internal circuit Connected to internal circuit Not connected Connected to internal circuit Not connected Connected to CS in internal circuit Connected to RS in internal circuit Not connected

SignalPin No.

CD

1. RD

2. SD

3. ER

4. SG

5. DR

6. RS

7. CS

8. CI

9.

Note

• Depending on the controlling device used, it may be necessary to connect Pin 4 and Pin 6 on the controlling device (e.g. computer).

Projector

Pin No.

4 5 6

Computer

Pin No.

4 5 6

USB Terminal : Type B USB connector

43

12

Signal NamePin No.

VCC

1.

2.

3.

4.

USB– USB+ SG

USB power USB data– USB data+ Signal Ground

56

RS-232C Specifications and Commands

Computer control

A computer can be used to control the projector by connecting an RS-232C serial control cable (cross type, commercially available) to the projector. (See page 24 for connection.)

Communication conditions

Set the serial port settings of the computer to match that of the table. Signal format: Conforms to RS-232C standard. Parity bit: None Baud rate*: 9,600 bps / 115,200 bps Stop bit: 1 bit Data length: 8 bits Flow control: None

*Set the projector’s baud rate to the same rate as used by the computer.

Basic format

Commands from the computer are sent in the following order: command, parameter, and return code. After the projector processes the command from the computer, it sends a response code to the computer.

Command format

C1 C2 C3 C4 P1 P2 P3 P4

Response code format

Normal response

Command 4-digit Parameter 4-digit

O K

Return code (

0DH

Problem response (communication error or incorrect command)

)

E R R

Info

• When controlling the projector using RS-232C commands from a computer, wait for at least 30 seconds after the power has been turned on, and then transmit the commands.

• After sending an input selection or picture adjustment command and then receiving an “OK” response code, the projector may take some time to process the command. If a second command is sent while the projector is still processing the first command, you may receive an “ERR” response code. If this happens, try resending the second command.

• When more than one code is being sent, send each command only after the response code for the previous command from the projector is verified.

• “POWR????” “TABN _ _ _ 1” “TLPS _ _ _ 1” “TPOW _ _ _ 1” “TLPN _ _ _ 1” “TLTT _ _ _ 1” “TLTM _ _ _ 1” “TLTL _ _ _ 1” “TNAM _ _ _ 1” “MNRD _ _ _ 1” “PJN0 _ _ _ 1”

- When the projector receives the special commands shown above:

* The on-screen display will not disappear. * The “Auto Power Off” timer will not be reset.

- The special commands are available for applications that require continuous polling.

Return code (

0DH

)

0DH

)

Note

• If an underbar (_) appears in the parameter column, enter a space.

• If an asterisk (*) appears in the parameter column, enter a value in the range indicated in brackets

under Control Contents.

*1 For setting the projector name, send the commands in the order of PJN1, PJN2 and PJN3. *2 This command should be sent only after the “IRGB _ _ _ 2” command is sent and an “OK” response

code is received.

*3 The Lamp Timer Reset command is available only in standby mode.

57

RS-232C Specifications and Commands (Continued)

Commands

Example: When turning on the projector, make the following setting.

Power

Projector Condition

Lamp

Name

Input Change

Volume

Keystone AV Mute

Freeze

Auto Sync Resize

POWR _ 1__

CONTROL CONTENTS

On Off Status

Status

Power Status Quantity Usage Time(Hour) Usage Time(Minute) Life(Percentage) Model Name Check Model Name Check Projector Name Setting 1 (First 4 characters) *1 Projector Name Setting 2 (Middle 4 characters) *1 Projector Name Setting 3 (Last 4 characters) *1 Projector Name Check Computer DVI DVI-D-Computer select *2 DVI-D-Video select *2 DVI-Analog select *2 S-Video Video Input RGB Check Input Video Check Input Mode Check Input Check

Volume(0 – 60) Volume up/down(-10 – +10)

-80 – +80 (XGA)/-40 – +40 (SVGA) On Off On Off Start

Computer

DVI

Normal Stretch Dot By Dot Full Border Area Zoom V-Stretch Normal Stretch Dot By Dot Full Border Area Zoom V-Stretch

COMMAND

O

P

O

P

O

P

A

T

L

T

P

T

L

T

L

T

L

T

L

T

N

T

N

M

J

P

J

P

J

P

J

P

R

I

R

I

B

I

B

I

B

I

V

I

V

I

R

I

V

I

M

I

C

I

O

V

O

V

E

K

M

I

M

I

R

F

R

F

D

A

R

A

R

A

R

A

R

A

R

A

R

A

R

B

R

B

R

B

R

B

R

B

R

B

R

B

R

W W W

O

R N

N

N G G D D D

G

O H

U

B

P

P T T T A

E E

E

L

Y B B E E J S S S S S S S S S S S S S S

_

R

_

R

?

R

_

N

_

S

_

W

_

N

_

T

_

M

_

L

_

M

_

D

*

1

*

2

*

3

_

0

_

B

_

B

_

S

_

S

_

S

_

D

_

D

?

B

?

D

?

D

?

K

_

A

_

D

*

S

_

K

_

K

_

Z

_

Z

_

S

_

R

_

R

_

R

_

R

_

R

_

R

_

R

_

R

_

R

_

R

_

R

_

R

_

R

_

R

→

←

PARAMETER

_

?

_

*

_

?

_

* *

*

_

_ _

1

_

1 _

_

_ _

1

_

1

1 0 ? 1

1

1 1 1 1 1 1 1 *

*

1 1 2 1 2 3 1 2 ? ? ? ?

* * * 1 0 1 0 1 1 2 3 5 6 0 1 1 2 3 5 6 0 1

is only for EIP-2600.

ProjectorComputer

OK

RETURN

Power ON

OK or ERR OK 1 0: Normal 1: Temp High 8: Lamp Life 5% or less 16: Lamp Burn-out 32: Lamp Ignition Failure

0:Off, 1:On, 2:Retry 3:Waiting, 4:Lamp Error 1:On, 2:Cooling

1 0 – 9999(Integer) 0, 15, 30, 45 0% – 100%(Integer) EIP2600/EIP250 EIP-2600/EIP-250 OK or ERR

OK or ERR

Projector Name OK or ERR OK or ERR OK or ERR OK or ERR OK or ERR OK or ERR OK or ERR 1: Computer, 2: DVI (EIP-2600 only) or ERR 1:

S-Video, 2: Video or ERR 1: RGB, 2: Video 1: Computer 2: DVI (EIP-2600 only) 3: S-Video 4: Video OK or ERR OK or ERR OK or ERR OK or ERR OK or ERR OK or ERR OK or ERR OK or ERR OK or ERR OK or ERR OK or ERR OK or ERR OK or ERR OK or ERR OK or ERR OK or ERR OK or ERR OK or ERR OK or ERR OK or ERR OK or ERR OK or ERR

Standby mode

(or 30-second startup time)

OK OK or ERR 0 0: Normal 1: Temp High 2: Fan Error 4: Cover Open 8: Lamp Life 5% or less 16: Lamp Burn-out 32: Lamp Ignition Failure 64: Temp Abnormally High 0:Off, 4:Lamp Error

0:Standby

ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR

ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR

58

Resize

ALL Reset Computer INPUT

DVI INPUT

is only for EIP-2600.

CONTROL CONTENTS

S-Video

Video

Picture Mode

Contrast Bright Red Blue Color Tint Sharp CLR Temp

TM

BrilliantColor

(EIP-2600) Bright Boost (EIP-250) Progressive

DNR

Picture Reset Signal Type

Audio Input

Picture Mode

Contrast Bright Red Blue Color Tint Sharp CLR Temp

TM

BrilliantColor (EIP-2600) Bright Boost (EIP-250) Progressive

DNR

Picture Reset Signal Type

Audio Input

Dynamic Range

Normal Stretch Border Area Zoom V-Stretch Normal Stretch Border Area Zoom V-Stretch

Standard Presentation Movie Game sRGB

-30 – +30

-1 – +1 0 – +2

2D Progressive 3D Progressive Film Mode Off Level 1 Level 2

Auto RGB Compontent Audio 1 Audio 2 Standard Presentation Movie Game sRGB

-30 – +30

-1 – +1 0 – +2

2D Progressive 3D Progressive Film Mode Off Level 1 Level 2

Auto RGB Compontent Audio 1 Audio 2 Auto Standard Enhanced

COMMAND

A

R

A

R

A

R

A

R

A

R

B

R

B

R

B

R

B

R

B

R

L

A

R

A

R

A

R

A

R

A

R

A

R

A

R

A

R

A

R

A

R

A

R

A

R

A

R

A

R

A

R

A

R

A

R

A

R

A

R

A

R

A

R

A

I

A

I

A

I

A

R

A

R

B

R

B

R

B

R

B

R

B

R

B

R

B

R

B

R

B

R

B

R

B

R

B

R

B

R

B

R

B

R

B

R

B

R

B

R

B

R

B

R

B

R

B

I

B

I

B

I

B

R

B

R

M

H

M

H

M

H

R

C

C W

N N N R

R

C

C W

N N N R

S S S S S S S S S S

P P P P P P B

B

T S

S S S A A P P P P P P B

B

T S

S S S A A B B B

I I I

_

V

_

V

_

V

_

V

_

V

_

V

_

V

_

V

_

V

_

V

_

E

_

S

_

S

_

S

_

S

_

S

_

I

_

R

_

D

_

E

_

O

_

I

_

H

_

T

_

E

_

P

_

P

_

P

_

R

_

R

_

R

_

E

_

I

_

I

_

I

_

I

_

I

_

S

_

S

_

S

_

S

_

S

_

I

_

R

_

D

_

E

_

O

_

I

_

H

_

T

_

E

_

P

_

P

_

P

_

R

_

R

_

R

_

E

_

I

_

I

_

I

_

I

_

I

_

D

_

D

_

D

PARAMETER

_

_ _

1

_

1 _

_

_ _

1

_

1 _

_ _

1

_

1

_

1

_

1

_

1 *

*

_

* _

_

_ _

1

_

1

_

1

_

1

_

1 *

*

_

* _

_

1

OK or ERR

2

OK or ERR

3

OK or ERR

0

OK or ERR

1

OK or ERR

1

OK or ERR

2

OK or ERR

3

OK or ERR

0

OK or ERR

1

OK or ERR

1

OK or ERR

0

OK or ERR

1

OK or ERR

2

OK or ERR

3

OK or ERR

4

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

0

OK or ERR

1

OK or ERR

2

OK or ERR

0

OK or ERR

1

OK or ERR

2

OK or ERR

1

OK or ERR

0

OK or ERR

1

OK or ERR

2

OK or ERR

1

OK or ERR

2

OK or ERR

0

OK or ERR

1

OK or ERR

2

OK or ERR

3

OK or ERR

4

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

0

OK or ERR

1

OK or ERR

2

OK or ERR

0

OK or ERR

1

OK or ERR

2

OK or ERR

1

OK or ERR

0

OK or ERR

1

OK or ERR

2

OK or ERR

1

OK or ERR

2

OK or ERR

0

OK or ERR

1

OK or ERR

2

OK or ERR

Power ON

RETURN

Standby mode

(or 30-second startup time)

ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR

ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR

ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR

59

RS-232C Specifications and Commands (Continued)

60

S-Video INPUT

Video INPUT

C.M.S. Setting

C.M.S.

is only for EIP-2600.

CONTROL CONTENTS

Picture Mode

Contrast Bright Red Blue Color Tint Sharp CLR Temp BrilliantColor

(EIP-2600) Bright Boost (EIP-250) Progressive

DNR

Picture Reset Audio Input

Picture Mode

Contrast Bright Red Blue Color Tint Sharp CLR Temp BrilliantColor (EIP-2600) Bright Boost (EIP-250) Progressive

DNR

Picture Reset Audio Input

On Off Hue

Saturation

Value

C.M.S. All Reset

Standard Presentation Movie Game

-30 – +30

-1 – +1

TM

0 – +2

2D Progressive 3D Progressive Film Mode Off Level 1 Level 2

Audio 1 Audio 2 Standard Presentation Movie Game

-30 – +30

-1 – +1

TM

0 – +2

2D Progressive 3D Progressive Film Mode Off Level 1 Level 2

Audio 1 Audio 2

Red Yellow Green Cyan Blue Magenta Reset Red Yellow Green Cyan Blue Magenta Reset Red Yellow Green Cyan Blue Magenta Reset

COMMAND

A

V

A

V

A

V

A

V

A

V

A

V

A

V

A

V

A

V

A

V

A

V

A

V

A

V

A

V

A

V

A

V

A

V

A

V

A

V

A

V

A

V

A

V

B

V

B

V

B

V

B

V

B

V

B

V

B

V

B

V

B

V

B

V

B

V

B

V

B

V

B

V

B

V

B

V

B

V

B

V

B

V

B

V

B

V

B

V

M

C

M

C

M

C

M

C

M

C

M

C

M

C

M

C

M

C

M

C

M

C

M

C

M

C

M

C

M

C

M

C

M

C

M

C

M

C

M

C

M

C

M

C

M

C

M

C

P P P P P B R B C T S C W

I I

I N N N R A A P P P P P B R B C T S C W

I

I N N N R A A C C H H H H H H R S S S S S S R V V V V V V R R

S S S S

I R D E O

I H

T E

P P P R R R E

I

I S S S S

I R D E O

I H

T E

P P P R R R E

I

I S S R Y G C B M E R Y G C B M E R Y G C B M E E

PARAMETER

_

1

_

1

_

1

_

1

_

*

_

*

_

*

_

*

_

*

_

*

_

*

* _

_

* _

_

1

_

1

_

1

_

1

_

*

_

*

_

*

_

*

_

*

_

*

_

*

* _

_

* _

_

1

_

0

_

*

_

*

_

*

_

*

_

*

_

*

_

_ _

*

_

*

_

*

_

*

_

*

_

*

_

_ _

*

_

*

_

*

_

*

_

*

_

*

_

0

OK or ERR

1

OK or ERR

2

OK or ERR

3

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

0

OK or ERR

1

OK or ERR

2

OK or ERR

0

OK or ERR

1

OK or ERR

2

OK or ERR

1

OK or ERR

1

OK or ERR

2

OK or ERR

0

OK or ERR

1

OK or ERR

2

OK or ERR

3

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

0

OK or ERR

1

OK or ERR

2

OK or ERR

0

OK or ERR

1

OK or ERR

2

OK or ERR

1

OK or ERR

1

OK or ERR

2

OK or ERR

1

OK or ERR

0

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

2

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

3

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

4

OK or ERR

1

OK or ERR

Power ON

RETURN

Standby mode

(or 30-second startup time)

ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR

ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR

ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR

Clock Phase H-position V-position Fine Sync Adjustment Reset Image Shift OSD Display

Closed Caption

Video System

Background

Lamp Setting

Auto Sync

Auto Power Off

Auto Restart

STANDBY Mode

PRJ Mode

Language

Setup Guide

System Sound

Internal Speaker

RGB Frequency Check Fan Mode

Lamp Timer Reset *3

CONTROL CONTENTS

-150 – +150

-30 – +30

-150 – +150

-60 – +60

-96 – +96 (XGA)/-75 – +75 (SVGA) On Off Off CC1 CC2 Auto PAL SECAM NTSC4.43 NTSC3.58 PAL-M PAL-N PAL-60 Logo Blue None Bright Eco + Quiet On Off On Off On Off Standard Eco Reverse

Invert

English Deutsch Español Nederlands Français Italiano Svenska

Português

polski Türkçe

Magyer On Off On Off On Off Horizontal Vertical Normal High

On Off On Off

COMMAND

N

I

N

I

A

I

A

I

A

I

N

L

M

I

M

I

L

C

L

C

L

C

E

M

E

M

E

M

E

M

E

M

E

M

E

M

E

M

I

M

I

M

I

H

T

H

T

A

P

A

P

A

R

A

R

A

O

M

O

M

I

M

I

M

I

M

I

E

M

E

M

E

M

E

M

E

M

E

M

E

M

E

M

E

M

E

M

E

M

E

M

E

M

E

M

E

M

E

M

E

M

E

S

E

S

A

S

A

F

T

F

T

L

H

L

H

P

L

C

P

H

V R D D D C C C

S

B

B M M D D O O

E

E U U R R

L

L G G N N

P

P R R M M R

I I

L H P P E S

I

I A A A Y Y Y Y Y Y Y Y G G G D D J J

W W

S S T T E E N N A A A A A A A A A A A A A A A A A U U D D K K Q Q D D E

PARAMETER

*

* _

*

* _

*

_

_ _

*

_

1

_

1

_

1

_

1

_

1

_

1

_

1

_

1 _

_

0

*

OK or ERR

*

OK or ERR

*

OK or ERR

*

OK or ERR

1

OK or ERR

*

OK or ERR

1

OK or ERR

0

OK or ERR

0

OK or ERR

1

OK or ERR

2

OK or ERR

1

OK or ERR

2

OK or ERR

3

OK or ERR

4

OK or ERR

5

OK or ERR

6

OK or ERR

7

OK or ERR

8

OK or ERR

1

OK or ERR

3

OK or ERR

4

OK or ERR

0

OK or ERR

1

OK or ERR

1

OK or ERR

0

OK or ERR

1

OK or ERR

0

OK or ERR

1

OK or ERR

0

OK or ERR

1

OK or ERR

0

OK or ERR

1

OK or ERR

0

OK or ERR

1

OK or ERR

0

OK or ERR

1

OK or ERR

2

OK or ERR

3

OK or ERR

4

OK or ERR

5

OK or ERR

6

OK or ERR

7

OK or ERR

8

OK or ERR

9

OK or ERR

0

OK or ERR

1

OK or ERR

2

OK or ERR

3

OK or ERR

4

OK or ERR

5

OK or ERR

6

OK or ERR

7

OK or ERR

1

OK or ERR

0

OK or ERR

1

OK or ERR

0

OK or ERR

1

OK or ERR

0

OK or ERR

1

kHz(***.* or ERR)

2

Hz(***.* or ERR)

0

OK or ERR

1

OK or ERR

1

ERR

Power ON

RETURN

Standby mode

(or 30-second startup time)

ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR ERR OK or ERR

61

Computer Compatibility Chart

Computer

• Multiple signal support Horizontal Frequency: 15-110 kHz, Ver tical Frequency: 45-85 Hz,

The following is a list of modes that conform to VESA. However, this projector supports other signals that are not VESA standards.

PC/MAC

PC

MAC 13" MAC 16" MAC 19"

MAC 21"

* EIP-2600 only

VGA

SVGA

XGA

WXGA

SXGA

SXGA+

UXGA

VGA

SVGA

XGA

SXGA

Resolution

640 × 350

640 × 400

720 × 350

720 × 400

640 × 480

800 × 600

1024 × 768

1280 × 720 1280 × 768 1280 × 800 1280 × 800 1360 × 768 1366 × 768

1152 × 864

1280 × 1024 1280 × 1024

1400 × 1050 1600 × 1200

640 × 480 832 × 624

1024 × 768

1152 × 870

Horizontal Frequency

(kHz)

27.0

31.5

37.5

27.0

31.5

37.9

27.0

31.5

27.0

31.5

37.9

26.2

31.5

34.7

37.9

37.5

43.3

31.4

35.2

37.9

46.6

48.1

46.9

53.7

40.3

48.4

56.5

60.0

68.7

45.0

47.8

49.7

62.8

47.7

47.8

55.0

66.2

67.5

64.0

80.0

64.0

65.3

75.0

34.9

49.7

60.2

68.7

Pixel Clock: 12-170 MHz Sync signal: Compatible with TTL level

• Compatible with sync on green signal

Vertical Frequency

(Hz)

60 70 85 60 70 85 60 70 60 70 85 50 60 70 72 75 85 50 56 60 70 72 75 85 50 60 70 75 85 60 60 60 75 60 60 60 70 75 60 75 60 60 60 67 75 75

75

VESA

Standard

✔

✔ ✔ ✔

✔ ✔

✔ ✔ ✔

✔ ✔ ✔ ✔

✔ ✔ ✔

✔ ✔

* DVI-D Support

✔

EIP-2600 EIP-250

Upscale

True

Intelligent

Compression

Upscale

True

Intelligent

Compression

Display

Upscale

True

Intelligent

Compression

Upscale

Intelligent

Compression

Note

• When this projector receives 640K350 VESA format VGA signals, “640 × 400” appears on the screen.

• Optimum image quality will be achieved by matching your computer’s output resolution to the resolution

that corresponds to “True” in the “Display” column shown above.

• When “Screen resolution" of the computer is different from the resolution displayed on the projected im-

age, follow the procedures shown below. –Refer to “Select the resolution” for “Data image is not centered” on the Help menu and select the same

resolution as the resolution in “Screen resolution” of the computer.

–Depending on the computer you are using, the output signal may not be faithful to the “Screen resolution”

adjustment. Check the settings of the computer’s signal output. If the settings cannot be changed, it is recommended that the resolution be set to the one that corresponds to “True” in the “Display” column.

DTV

Horizontal

Signal

Frequency (kHz)

480I 480P 540P

576I 576P 720P

* EIP-2600 only

15.7

31.5

33.8

15.6

31.3

37.5

Ver tical

Frequency (Hz)

60 60 60 50 50 50

DVI-D Support

*

(Compatible with HDCP)

✔

✔ ✔

Signal

720P 1035I 1080I 1080I 1080P 1080P

Horizontal

Frequency (kHz)

45.0

33.8

28.1

33.8

56.3

67.5

Ver tical

Frequency (Hz)

60 60 50 60 50 60

DVI-D Support

*

(Compatible with HDCP)

62

✔ ✔ ✔ ✔ ✔ ✔

Troubleshooting

Problem Check

No picture and no sound

or projector does not

start.

Sound is heard but no

picture appears

(or picture is dark).

Color is faded or poor.

Picture is blurred;

noise appears.

•Projector power cord is not plugged into the wall outlet.

• Power to the external connected devices is off.

• The selected input mode is wrong.

• Cables are incorrectly connected to the projector.

• Remote control battery has run out.

•

External output has not been set when connecting notebook computer.

• The lamp unit cover is not installed correctly. EIP-2600 only: If the connected DVI digital equipment is turned on

• before the “DVI-D” input mode is selected on the projector, the image may not be projected properly or may not be displayed at all. Ensure that the appropriate input mode has been selected on the projector before you turn on the connected equipment.

• Cables are incorrectly connected to the projector.

• “Bright” is set to minimum position.

• Depending on the computer you are using, an image may not be projected unless the signal output setting of the computer is switched to the external output. Refer to the computer owner’s manual for how to switch its signal output settings.

• Image adjustments are incorrectly set.

• Make adjustments of “Color” and “Tint” in “Picture Mode” and lower the “BrilliantColorTM” (EIP-2600)/“Bright Boost” (EIP-250) value.

(Video Input only)

•Video input system is incorrectly set.

• Adjust the focus.

• The projection distance exceeds the focus range. There is fog on the lens. If the projector is carried from a cold room into a

• warm room, or if it is suddenly heated, condensation may form on the surface of the lens and the image will become blurred. Set up the projector at least one hour before it is to be used. If condensation should form, remove the power cord from the wall outlet and wait for it to clear.

(Computer Input only)

• Perform “Fine Sync” Adjustments (“Clock” Adjustment)

• Perform “Fine Sync” Adjustments (“Phase” Adjustment)

• Noise may appear depending on the computer.

• Cables are incorrectly connected to the projector.

Page

24

–

29 21–24 14 21 53, 54 21

21–24 41

–

41

48

26 20

–

48 48

–

21–24

Picture appears but no

sound is heard.

Data image is not

centered.

•Volume is set to minimum.

• When the projector is connected to an external device and the volume is set to minimum, the sound is not output even if you turn up the volume of the external device.

• “Speaker” is set to “Off”.

• Select “Data image is not centered” in the “Help” menu and make the necessary adjustments.

• Depending on the computer you are using, the output resolution signal may be different from the one you have set. For details, refer to the owner’s manual of the computer.

29

45

48

–

63

Troubleshooting (Continued)

Problem

An unusual sound is

occasionally heard from

the cabinet.

Maintenance indicator on

the projector illuminates

or blinks in red.

The projector cannot

be turned on or put into

the standby mode

using STANDBY/ON on

the projector.

Picture is green on

COMPUTER

(Component)/

*DVI (Component).

Picture is pink

(no green) on

COMPUTER (RGB)/

*DVI (RGB).

Picture is too bright and

whitish.

The cooling fan becomes

* EIP-2600 only

This unit is equipped with a microprocessor. Its performance could be adversely affected by incorrect operation or interference. If this should happen, unplug the Unit and plug it in again after more than 5 minutes.

noisy.

The lamp does not light

up even after the

projector turns on.

The lamp suddenly turns

off during projection.

The image sometimes

flickers.

The lamp needs much

time to turn on. Picture is dark.

The remote control

cannot be used.

• If the picture is normal, the sound is due to cabinet shrinkage caused by room temperature changes. This will not affect operation or performance.

• See “Maintenance Indicators”.

• The keylock is set. If the keylock is set to “ON”, all the buttons are locked.

• Change the input signal type setting.

• When you cannot select an input signal type, select “Color is faded or poor” in the “Help” menu, after selecting an item other than “sRGB” in “Picture Mode”, and then select an input signal type.

• Image adjustments are incorrectly set.

• When temperature inside the projector increases, the cooling fan runs faster.

• The lamp indicator is illuminating in red. Replace the lamp.

• Cables are incorrectly connected to the projector or the connected equipment works improperly.

• Select “Vertical stripes or flickering image appear” in the “Help” menu and make the necessary adjustments.

• If this happens frequently, replace the lamp.

• The lamp will eventually need to be changed. While the remaining lamp life draws to a close, replace the lamp.

• Operate the remote control while pointing it at the projector’s remote control sensor.

• The remote control may be too far away from the projector.

• If direct sunlight or a strong fluorescent lamp is shining on the projector’s remote control sensor, place the projector where it will not be affected by strong light.

• The batteries may be depleted or inserted incorrectly. Make sure the batteries are inserted correctly or insert new ones.

Check

Page

–

50

47

48 40, 48

41

8, 9 49, 50, 51

50, 53

21–24

48

53 53

15

14

64

Specifications

Model Display devices Resolution Lens

Input terminals

Output terminals

Control, others

Speakers Projection lamp Rated voltage Rated frequency Input current Power consumption (Standby)

Operation temperature Cabinet Dimensions (main body only) [W × H × D]

Weight (approx.)

F number Zoom Focus DVI-I (Compatible with HDCP) RGB/Component (mini D-sub 15 pin) S-Video (mini DIN 4 pin) Video (RCA) Audio (ø3.5 mm stereo minijack) Audio (RCA) RGB/Component (mini D-sub 15 pin) Audio (ø3.5 mm stereo minijack) USB (Type B) RS-232C (mini DIN 9 pin)

EIP-2600 EIP-250

0.55" DLP XGA (1024×768) SVGA (800×600) F 2.5 – 2.6 Manual, ×1.15 (f = 20.4 – 23.5 mm) Manual

×1– ×1 ×1 ×1 ×1– ×1 (L/R) ×1 ×1 (variable audio output) – ×1 ×1

2 W (Mono) 230 W 200W AC 100 – 240 V 50/60 Hz

3.2 A 2.9 A 303 W (5.0 W) with AC 100 V 267 W (5.0 W) with AC 100 V 293 W (5.7 W) with AC 240 V 259 W (5.7 W) with AC 240 V 41°F to 95°F (+5°C to +35°C) Plastic 10 (270 × 89 × 265 mm)

6.4 lbs. (2.9 kg)

®

Chip

41

/64" × 3 33/64" × 10 7/16"

As a part of policy of continuous improvement, EIKI reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

This EIKI projector uses a DLP® chip. This very sophisticated panel contains 786,432 (EIP-2600)/480,000 (EIP-250) pixels (micromirrors). As with any high technology electronic equipment such as large screen TVs, video systems and video cameras, there are certain acceptable tolerances that the equipment must conform to. This unit has some inactive pixels within acceptable tolerances which may result in inactive dots on the picture screen. This will not affect the picture quality or the life expectancy of the unit.

65

Dimensions

Units: inches (mm)

(89)

64

/

33

3

64

/

31

1

(6)

4

/

1

(265)

16

/

7

10

(10)

32

/

13

(37.65)

(66.35)

8

/

5

2

66

41

10

/64 (270)

M4

M4 M4

13

/32 (10)

2 61/64 (75)

13

/32 (10)

2 61/64 (75)

2

3

1

(36)

/8 (60)

M4

27

/

64

(104)

64

/

7

4

16

/

16

15

/

(49)

3

1

(30)

1

Index

3 RCA to mini D-sub 15 pin cable .......................... 22

Accessories ............................................................. 10

AC socket ................................................................ 24

Adjustment buttons ................................................. 38

AREA ZOOM ........................................................... 31

Aspect ratio ............................................................. 30

Audio Input .............................................................. 46

AUDIO 1, 2 terminal ................................................ 23

AUDIO OUT terminal .............................................. 23

Auto Power Off ........................................................ 45

Auto Restart ............................................................ 45

Auto Sync (Auto Sync adjustment) ....... 33, 37, 45, 48

AUTO SYNC button ................................................. 33

AV MUTE button ...................................................... 29

Background ............................................................. 44

Batteries .................................................................. 14

Blue .......................................................................... 41

BORDER ........................................................... 30, 31

BREAK TIMER button ............................................. 32

Bright ....................................................................... 41

Bright Boost ............................................................. 41

BrilliantColor

Closed Caption ........................................................ 44

CLR Temp (Color Temperature) .............................. 41

C.M.S. ...................................................................... 41

Color ........................................................................ 41

COMPUTER button ................................................. 29

COMPUTER/COMPONENT input terminal ...... 21, 22

Contrast ................................................................... 41

DIN-D-sub RS-232C adaptor .................................. 24

DNR ......................................................................... 42

DOT BY DOT ........................................................... 30

DVI button ................................................................ 29

DVI-I input terminal ........................................... 21, 22

ECO+QUIET button ................................................ 32

ENTER button ......................................................... 38

Exhaust vent ...................................................... 11, 49

Fan Mode ................................................................. 46

Fine Sync ................................................................. 48

Focus ring ................................................................ 26

FREEZE button ....................................................... 33

Front adjustment foot .............................................. 27

FULL ........................................................................ 30

HEIGHT ADJUST lever ........................................... 27

Help ......................................................................... 48

H-Pos ................................................................. 37, 48

Image shift ............................................................... 43

INPUT modes .......................................................... 29

Intake vent ......................................................... 11, 49

Kensington Security Standard connector ............... 12

Keycode ................................................................... 46

Keylock .................................................................... 47

KEYSTONE button .................................................. 28

Keystone Correction .......................................... 28, 43

Lamp ........................................................................ 52

Lamp indicator ......................................................... 50

Lamp Setting ........................................................... 42

Lamp Timer (Life) .................................................... 47

TM

......................................................... 41

Lamp unit ................................................................. 53

Language (on-screen display language) ................ 44

L-CLICK/EFFECT button .................................. 32, 34

Lens Cap ................................................................. 11

MAGNIFY buttons ................................................... 33

MENU/HELP button .......................................... 38, 48

MONITOR OUT terminal ......................................... 23

MOUSE/Adjustment buttons ............................. 34, 38

NORMAL ........................................................... 30, 31

ON button ................................................................ 25

Optional accessories ............................................... 10

OSD Display ............................................................ 43

PAGE DOWN button ................................................ 34

PAGE UP button ...................................................... 34

PDF ............................................................................ 9

Picture Adjustment .................................................. 40

Picture Mode ..................................................... 33, 40

PICTURE MODE button .......................................... 33

POINTER button ..................................................... 32

Power cord ............................................................... 24

Power indicator ........................................................ 50

PRJ - ADJ ................................................................ 45

PRJ Mode .......................................................... 19, 44

Progressive .............................................................. 42

R-CLICK/RETURN button ................................. 34, 38

Rear adjustment foot ............................................... 27

Red .......................................................................... 41

Remote control ........................................................ 13

Remote control sensor ............................................ 15

Replacing the lamp ........................................... 52, 53

Resize ................................................................ 30, 43

RESIZE button ........................................................ 30

RGB cable ............................................................... 21

RS-232C terminal .................................................... 24

SCR - ADJ ............................................................... 43

Screen Size and Projection Distance ..................... 20

Setup Guide ....................................................... 26, 44

Sharp ....................................................................... 41

Speaker ................................................................... 45

SPOT button ............................................................ 32

STANDBY button ..................................................... 25

STANDBY Mode ...................................................... 45

STANDBY/ON button .............................................. 25

STRETCH .......................................................... 30, 31

Supplied accessories .............................................. 10

S-VIDEO button ....................................................... 29

S-VIDEO terminal .................................................... 22

System Lock ............................................................ 46

System Sound ......................................................... 45

Temperature warning indicator ............................... 50

Tint ........................................................................... 41

USB terminal ........................................................... 34

VIDEO button .......................................................... 29

VIDEO terminal ....................................................... 22

VOL (Volume) buttons ............................................. 29

V-Po s ................................................................. 37, 48

V-STRETCH ............................................................ 31

Zoom ring ................................................................ 26

67

U.S.A.

EIKI International, Inc. 30251 Esperanza Rancho Santa Margarita CA 92688-2132 U.S.A. Te l: 800-242-3454 (949)-457-0200 Fax: 800-457-3454 (949)-457-7878 E-Mail : usa@eiki.com

Canada

EIKI CANADA - Eiki International, Inc. P. O. Box 156, 310 First St. - Unit 2, Midland, ON, L4R 4K8, Canada Te l: 800-563-3454 (705)-527-4084 Fax: 800-567-4069 (705)-527-4087 E-Mail : canada@eiki.com

Deutschland & Österreich

EIKI Deutschland GmbH Am Frauwald 12 65510 Idstein Deutschland Te l: 06126-9371-0 Fax: 06126-9371-14 E-Mail : info@eiki.de

China

EIKI (Shanghai) Co.,LTD

1. Dapu Road, Golden Magnolia Plaza #2109 Shanghai, 200023 China

Te l :

86-21-5396-0088

Fax : 86-21-5396-0318 E-Mail : info@eiki-china.com

WorldWide Website http://www.eiki.com

Eastern Europe

EIKI CZECH spol. s.r.o. Umelecká 15 170 00 Praha 7 Czech Republic Te l: +42 02 20570024

+42 02 20571413 Fax: +42 02 20571411 E-Mail : easterneurope@eiki.de

Japan & Worldwide

EIKI Industrial Company Limited. 4-12 Banzai-Cho, Kita-Ku, Osaka, 530-0028 Japan Te l: +81-6-6311-9479 Fax: +81-6-6311-8486

Eiki EIP-250, EIP-2600 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Introduction

How to Read this Owner’s Manual

Contents

IMPORTANT SAFEGUARDS

How to Access the PDF Owner’s Manuals

Accessories

Part Names and Functions

Projector

Rear View

Inserting the Batteries

Usable Range

Quick Start

Setup and Projection

Setting up the Projector

Setting up the Projector

Standard Setup (Front Projection)

Ceiling-mount Setup

Projection (PRJ) Mode

Screen Size and Projection Distance

Connecting the Projector to Other Equipment

Controlling the Projector by a Computer

Connecting the Power Cord

Turning the Projector On/Off

Tur ning the Projector on

Tur ning the Power off (Putting the Projector into Standby Mode)

Image Projection

About the Setup Guide

Adjusting the Projected Image

Correcting Trapezoidal Distortion

Switching the Input Mode

Adjusting the Volume

Displaying the Black Screen and Turning off the Sound Temporarily

Resize Mode

Operating with the Remote Control

Displaying and Setting the Break Timer

Displaying the Pointer

Using the Spot Function

Switching the Eco+Quiet Mode

Auto Sync (Auto Sync Adjustment)

Displaying an Enlarged Portion of an Image

Freezing a Moving Image

Selecting the Picture Mode

Using the Remote Control as the Wireless Computer Mouse

Menu Items

Using the Menu Screen

Menu Selections (Adjustments)

Picture Adjustment (“Picture” Menu)

1 Selecting the Picture Mode

2 Adjusting the Image

4 Adjusting the Colors

5 Progressive

Reducing Image Noise (DNR)

7 Lamp Setting

Adjusting the Projected Image (“SCR - ADJ” Menu)

1 Setting the Resize Mode

3 Keystone Correction

5 Closed Caption

Selecting the Setup Guide

Adjusting the Projector Function (“PRJ - ADJ” Menu)

Auto Power Off Function

3 Auto Restart Function

4 STANDBY Mode

6 Speaker Setting

Audio Input (EIP-2600 only)

Selecting the Transmission Speed (RS-232C)

9 Fan Mode Setting

0 System Lock Function

Checking the Lamp Life Status

Keylock Function

Troubleshooting with the “Help” Menu

Utilizing the “Help” Menu Functions

Maintenance

Maintenance Indicators

Regarding the Lamp

Lamp

Caution Concerning the Lamp
