Eiki EIP-1000T User Manual

EIP-1000T

OWNER’S MANUAL

EIKI INDUSTRIAL CO., LTD.

IMPORTANT

• For your assistance in reporting the loss or theft of your Projector, please record the Serial Number located on the bottom of the projector and retain this information.

• Before recycling the packaging, please ensure that you have checked the contents of the carton thoroughly against the list of “Supplied accessories” on page 10.

SPECIAL NOTE FOR USERS IN THE U.K.

The mains lead of this product is fitted with a non-rewireable (moulded) plug incorporating a 10A fuse. Should the fuse need to be replaced, a BSI or ASTA approved BS 1362 fuse marked face of the plug, must be used. Always refit the fuse cover after replacing the fuse. Never use the plug without the fuse cover fitted. In the unlikely event of the socket outlet in your home not being compatible with the plug supplied, cut off the mains plug and fit an appropriate type.

DANGER:

The fuse from the cut-off plug should be removed and the cut-off plug destroyed immediately and disposed of in a safe manner. Under no circumstances should the cut-off plug be inserted elsewhere into a 13A socket outlet, as a serious electric shock may occur. To fit an appropriate plug to the mains lead, follow the instructions below:

WARNING:

THIS APPARATUS MUST BE EARTHED.

IMPORTANT:

The wires in this mains lead are coloured in accordance with the following code:

Green-and-yellow : Earth Blue : Neutral

Brown : Live As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

or and of the same rating as above, which is also indicated on the pin

Model No.: EIP-1000T

Serial No.:

• The wire which is coloured green-and-yellow must be connected to the terminal in the

plug which is marked by the letter E or by the safety earth symbol green-and-yellow.

or coloured green or

• The wire which is coloured blue must be connected to the terminal which is marked with

the letter N or coloured black.

• The wire which is coloured brown must be connected to the terminal which is marked with

the letter L or coloured red.

IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELECTRICIAN.

Before using the projector, please read this owner’s manual carefully.

Introduction

ENGLISH

1. WARRANTY

This is to assure that you immediately receive the full benefit of the parts, service and labor warranty applicable to your purchase.

2. CONSUMER PRODUCT SAFETY ACT

To ensure that you will promptly receive any safety notification of inspection, modification, or recall that EIKI may be required to give under the 1972 Consumer Product Safety Act, PLEASE READ CAREFULLY THE IMPORTANT “LIMITED WARRANTY” CLAUSE.

U.S.A. ONLY

WARNING: High brightness light source. Do not stare into the beam of light, or view

directly. Be especially careful that children do not stare directly into the beam of light.

WARNING: To reduce the risk of fire or electric shock, do not expose

this product to rain or moisture.

See bottom of projector.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT REMOVE SCREWS

EXCEPT SPECIFIED USER

SERVICE SCREW.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

NO USER-SERVICEABLE PARTS EXCEPT LAMP UNIT.

DO NOT REMOVE COVER.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk or electric shock to persons.

The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING: FCC Regulations state that any unauthorized changes or modifications to

this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment.

U.S.A. ONLY

WARNING:

The cooling fan in this projector continues to run for about 90 seconds after the projector enters standby mode. During normal operation, when putting the projector into standby mode always use the STANDBY-ON button on the projector or the STANDBY button on the remote control. Ensure the cooling fan has stopped before disconnecting the power cord. DURING NORMAL OPERATION, NEVER TURN THE PROJECTOR OFF BY DISCONNECTING THE POWER CORD. FAILURE TO OBSERVE THIS WILL RESULT IN PREMATURE LAMP FAILURE.

INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the owner’s manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

U.S.A. ONLY

Declaration of conformity

EIKI PROJECTOR, MODEL EIP-1000T This device complies with Part 15 of the FCC rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Responsible Party:

EIKI INTERNATIONAL, INC. 30251 Esperanza Rancho Santa Margarita, CA 92688-2132 TEL: 800-242-3454

PRODUCT DISPOSAL

This projector utilizes tin-lead solder, and a pressurized lamp containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or, if you are located in the United States of America, the Electronic Industries Alliance: www.eiae.org .

Caution Concerning Lamp Replacement

See “Replacing the Lamp” on page 50.

This EIKI projector uses a DMD panel. This very sophisticated panel contains 409,920 pixels (micromirrors). As with any high technology electronic equipment such as large screen TVs, video systems and video cameras, there are certain acceptable tolerances that the equipment must conform to. This unit has some inactive pixels within acceptable tolerances which may result in inactive dots on the picture screen. This will not affect the picture quality or the life expectancy of the unit.

U.S.A. ONLY

How to Read this Owner’s Manual

■ The specifications are slightly different, depending on the model. However, you can connect and operate all models in the same manner.

• In this owner’s manual, the illustration and the screen display are simplified for explanation, and may differ slightly from the actual display.

Using the Menu Screen

ENTER button

Adjustment buttons (P/R/O/Q)

MENU/HELP button

Adjustment buttons (P/R/O/Q)

MENU/HELP button

ENTER button

• Press l RETURN to

return to the previous screen when the menu is displayed.

Menu Selections (Adjustments)

Example: Adjusting “Bright”.

• This operation can also be performed by using the buttons on the projector.

Press BMENU.

• The “Picture” menu screen for the selected input mode is displayed.

Press Q or O and select “Picture”

to adjust.

Info

........Indicates safeguards for using the projector.

.........Indicates additional information for setting up and operating the

Note

Example: “Picture” screen menu for INPUT 1 (Component) mode

Menu item


SCR - ADJ PRJ - ADJ Help Picture Mode Contrast 0 Bright Color Tint

CLR Temp Bright Boost Progressive 3D Progressive Lamp Setting Bright Reset SEL./ADJ. ENTER END

0 0 0 0Sharp K7500 1

projector.

For Future Reference

RETURN button

Standard

Buttons used in this operation

Button used in this step

On-screen display

PP. 55 and 56

IndexMaintenance Troubleshooting

P. 5 9P. 4 7

Contents

Preparing

Introduction

How to Read this Owner’s Manual ....... 3

Contents ............................................... 4

IMPORTANT SAFEGUARDS ............... 6

Accessories ........................................ 10

Part Names and Functions ................. 11

Inserting the Batteries .......................... 14

Usable Range ...................................... 15

Quick Start

Quick Start .......................................... 16

Using

Basic Operation

Turning the Projector On/Off .............. 28

Connecting the Power Cord ................ 28

Turning the Projector on ....................... 28

Turning the Power off (Putting the

Projector into Standby Mode) ........... 29

Locking the Operation Buttons on the

Projector (Keylock Function) ............. 29

Image Projection................................. 30

Switching the Input Mode .................... 30

Adjusting the Projected Image ............ 30

Adjusting the Volume ........................... 32

Displaying the Black Screen and Turning

off the Sound Temporarily ................. 32

Correcting Trapezoidal Distortion ........ 33

Resize Mode ......................................... 34

Useful Features

Operating with the Remote Control .... 36

Freezing a Moving Image .................... 36

Selecting the Picture Mode .................. 36

Auto Sync (Auto Sync Adjustment) ..... 36

Menu Items ......................................... 37

Using the Menu Screen ...................... 39

Menu Selections (Adjustments) ........... 39

Picture Adjustment (“Picture” menu) .. 41

Selecting the Picture Mode .................. 41

Setup

Setting up the Projector ...................... 18

Setting up the Projector ....................... 18

Standard Setup (Front Projection) ....... 18

Ceiling-mount Setup ............................ 18

Projection (PRJ) Mode ......................... 19

Screen Size and Projection Distance .. 20

Connections

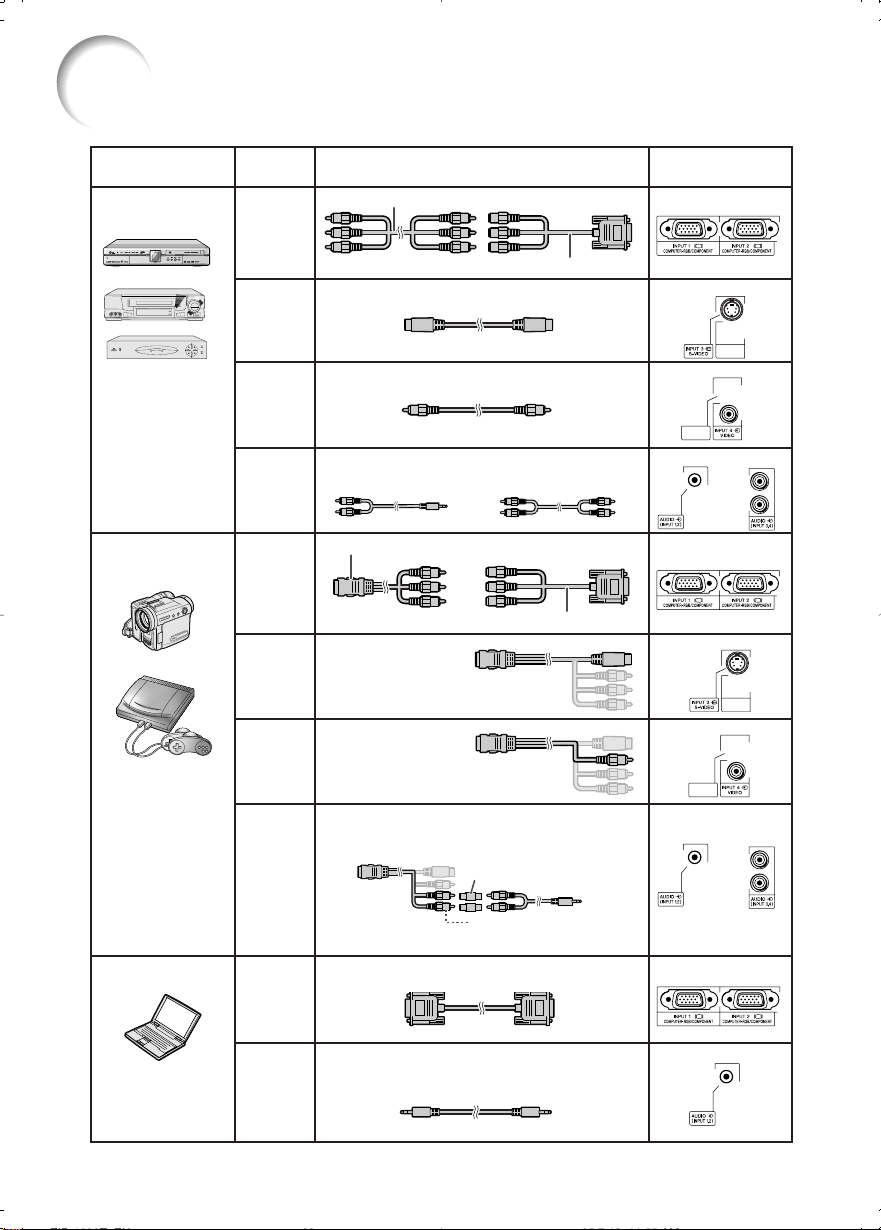

Samples of Cables for Connection..... 22

Connecting to Video Equipment......... 23

Connecting to a Computer ................. 25

Connecting to a Monitor with RGB Input

Terminal ............................................ 26

Connecting to an Amplifier or Other

Audio Equipment .............................. 27

Adjusting the Image ............................. 42

Adjusting the Color Temperature ......... 42

Progressive ........................................... 42

Lamp Setting ........................................ 42

Adjusting the Projected Image

(“SCR - ADJ” menu) ......................... 43

Setting the Resize Mode ...................... 43

Keystone Correction ............................ 43

Setting On-screen Display ................... 43

Selecting the Background Image ........ 43

Reversing/Inverting Projected

Images ............................................... 43

Selecting the On-screen Display

Language ........................................... 43

Adjusting the Projector Function

(“PRJ - ADJ” menu) .......................... 44

Auto Search Function ........................... 44

Auto Sync (Auto Sync Adjustment) ..... 44

Auto Power Off Function ...................... 45

Setting the Confirmation Sound

(System Sound) ................................. 45

Speaker Setting .................................... 45

Fan Mode Setting ................................. 45

Checking the Lamp Life Status ........... 45

Troubleshooting with “Help” menu ...... 46

Utilizing “Help” menu functions ........... 46

Reference

Appendix

Maintenance ....................................... 47

Maintenance Indicators ...................... 48

Regarding the Lamp ........................... 50

Lamp ..................................................... 50

Caution Concerning the Lamp ............ 50

Replacing the Lamp ............................. 50

Removing and Installing

the Lamp Unit .................................... 51

Resetting the Lamp Timer .................... 52

Connecting Pin Assignments ............. 53

Computer Compatibility Chart ............ 54

Troubleshooting .................................. 55

Specifications ..................................... 57

Dimensions ......................................... 58

Index ................................................... 59

IMPORTANT SAFEGUARDS

CAUTION: Please read all of these instructions before you operate this product

and save these instructions for later use.

Electrical energy can perform many useful functions. This product has been engineered and manufactured to assure your personal safety. BUT IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARDS. In order not to defeat the safeguards incorporated in this product, observe the following basic rules for its installation, use and servicing.

1. Read Instructions

All the safety and operating instructions should be read before the product is operated.

2. Retain Instructions

The safety and operating instructions should be retained for future reference.

3. Heed Warnings

All warnings on the product and in the operating instructions should be adhered to.

4. Follow Instructions

All operating and use instructions should be followed.

5. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6. Attachments

Do not use attachments not recommended by the product manufacturer as they may cause hazards.

7. Water and Moisture

Do not use this product near water–for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

8. Accessories

Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.

9. Transportation

A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

10. Ventilation

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

11. Power Sources

This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

12. Grounding or Polarization

This product is provided with one of the following types of plugs. If the plug should fail to fit into the power outlet, please contact your electrician. Do not defeat the safety purpose of the plug.

a. Two-wire type (mains) plug. b. Three-wire grounding type (mains) plug with

a grounding terminal. This plug will only fit into a grounding type power outlet.

13. Power-Cord Protection

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

14. Lightning

For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the cable system. This will prevent damage to the product due to lightning and power-line surges.

15. Overloading

Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

16. Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

17. Servicing

Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

18. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is

damaged.

b. If liquid has been spilled, or objects have fallen

into the product.

c. If the product has been exposed to rain or

water.

d. If the product does not operate normally by

following the operating instructions. Adjust only those controls that are covered by the operating instructions, as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation.

e. If the product has been dropped or damaged

in any way.

f. When the product exhibits a distinct change

in performance, this indicates a need for service.

19. Replacement Parts

When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

20. Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

21. Wall or Ceiling Mounting

This product should be mounted to a wall or ceiling only as recommended by the manufacturer.

22. Heat

This product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

• DLP\ (Digital Light Processing) and DMD\ (Digital Micromirror Device) are trademarks of Texas Instruments, Inc.

• Microsoft

and Windows® are registered trademarks of Microsoft Corporation in the United

States and/or other countries.

• PC/AT is a registered trademark of International Business Machines Corporation in the United States.

• Macintosh

is a registered trademark of Apple Computer, Inc. in the United States and/or

other countries.

• All other company or product names are trademarks or registered trademarks of their respective companies.

• Some IC chips in this product include confidential and/or trade secret property belonging to Texas Instruments. Therefore you may not copy, modify, adapt, translate, distribute, reverse engineer, reverse assemble or discompile the contents thereof.

Observe the following safeguards when setting up your projector.

Caution concerning the lamp unit

■ Potential hazard of glass particles if lamp ruptures. In case of lamp rupture, contact your nearest EIKI Authorized Dealer or Service Center for replacement. See “Replacing the Lamp” on page 50.

Caution concerning the setup of the projector

■ For minimal servicing and to maintain high image quality, EIKI recommends that this projector be installed in an area free from humidity, dust and cigarette smoke. When the projector is subjected to these environments, the vents and lens must be cleaned more often. As long as the projector is regularly cleaned, use in these environments will not reduce the overall operation life of the unit. Internal cleaning should only be performed by a EIKI Authorized Dealer or Service Center.

Do not set up the projector in places exposed to direct sunlight or bright light.

■ Position the screen so that it is not in direct sunlight or room light. Light falling directly on the screen washes out the colors, making viewing difficult. Close the curtains and dim the lights when setting up the screen in a sunny or bright room.

Caution regarding placing of the projector

■ Place the projector on a level site within the adjustment range (8 degrees) of the adjustment foot.

When using the projector in high-altitude areas such as mountains (at altitudes of approximately 4,900 feet (1,500 meters) or more)

■ When you use the projector in high-altitude areas with thin air, set “Fan Mode” to “High”. Neglecting this can affect the longevity of the optical system.

Warning about placing the projector in a high position

■ When placing the projector in a high position, ensure that it is secured carefully to avoid personal injury caused by the projector falling down.

Do not subject the projector to hard impact and/or vibration.

■ Protect the lens so as not to hit or damage the surface of the lens.

Rest your eyes occasionally.

■ Continuously watching the screen for long hours will cause eye strain. Be sure to occasionally rest your eyes.

Avoid locations with extremes of temperature.

■ The operating temperature of the projector is from 41°F to 95°F (+5°C to +35°C).

■ The storage temperature of the projector is from –4°F to 140°F (–20°C to +60°C).

Do not block the exhaust and intake vents.

■ Allow at least 11 13/16 inches (30 cm) of space between the exhaust vent and the nearest wall or obstruction.

■ Be sure that the intake vent and the exhaust vent are not obstructed.

■ If the cooling fan becomes obstructed, a protection circuit will automatically put the projector into standby mode to prevent overheat damage. This does not indicate a malfunction. (See pages 48 and 49.) Remove the projector power cord from the wall outlet and wait at least 10 minutes. Place the projector where the intake and exhaust vents are not blocked, plug the power cord back in and turn on the projector. This will return the projector to the normal operating condition.

■ When turning off the projector, the cooling fan runs to decrease the internal temperature for a while. Unplug the power cord after the cooling fan stops. The period the cooling fan runs will vary, depending on the circumstances and the internal temperature.

Caution regarding usage of the projector

■ When using the projector, be sure not to subject it to hard impact and/or vibration, as this can result in damage. Take extra care with the lens. Before moving the projector, be sure to unplug the power cord from the wall outlet, and disconnect any other cables connected to it.

■ Do not carry the projector by holding the lens.

■ When storing the projector, re-attach the lens

cap. (See page 11).

■ Do not expose the projector to direct sunlight or place next to heat sources. Doing so may affect the cabinet color or cause deformation of the plastic cover.

Other connected equipment

■ When connecting a computer or other audiovisual equipment to the projector, make the connections AFTER unplugging the power cord of the projector from the AC outlet and turning off the equipment to be connected.

■ Please read the owner’s manuals of the pro- jector and the equipment to be connected for instructions on how to make the connections.

Using the projector in other countries

■ The power supply voltage and the shape of the plug may vary depending on the region or country you are using the projector in. When using the projector overseas, be sure to use an appropriate power cord for the country you are in.

Temperature monitor function

■

If the projector starts to overheat due to setup problems or blockage of the air vents, “ ” and “ ” will illuminate in the lower left corner of the picture. If the temperature continues to rise, the lamp will turn off, the temperature warning indicator on the projector will blink, and after a 90-second cooling-off period the projector will enter standby mode. Refer to “Maintenance Indicators” on page 48 for details.

Info

• The cooling fan regulates the internal temperature, and its performance is automatically controlled. The sound of the fan may change during projector operation due to changes in the fan speed. This does not indicate malfunction.

• Do not unplug the power cord during projection or cooling fan operation. This can cause damage due to rise in internal temperature, as the cooling fan also stops.

Accessories

Supplied accessories

Remote control

Power cord*

(1) (2)

For U.S. and Canada, etc.

(6' (1.8 m))

QACCDA007WJPZ

* Use the power cord that corresponds to the wall outlet in your country.

Two R-6 batteries

(“AA” size, UM/SUM-3,

HP-7 or similar)

For Europe, except U.K.

(6' (1.8 m))

QACCVA011WJPZ

3 RCA to 15-pin

D-sub adaptor (11.8" (30 cm))

QCNWGA075WJPZ

DIN-D-sub

RS-232C adaptor

(5 57/64" (15 cm))

QCNWGA015WJPZ

Optional accessory

■ Lamp unit

AH-11201

Lens cap (attached)

• Owner’s manual (this manual)

Part Names and Function

Numbers in Z refer to the main pages in this owner’s manual where the topic is explained.

Projector

Top View

Power indicator

28, 48

Lamp indicator

Temperature warning indicator

STANDBY-ON button

For turning the power on and putting the projector into standby mode.

ENTER button

For setting items selected or adjusted on the menu.

KEYSTONE button

For entering the Keystone Correction mode.

Front View

Focus ring

For adjusting the focus.

Volume buttons

(–O/Q+)

For adjusting the speaker sound level.

INPUT buttons (P/R)

For switching input mode 1, 2, 3 or 4.

39, 46

MENU/HELP button

For displaying adjustment and setting screens, and help screen.

Adjustment buttons (P/R/O/Q)

For selecting menu items.

Intake vent

Zoom ring

For enlarging/ reducing the picture.

Remote control

sensor

HEIGHT ADJUST lever

Push both sides of the lens cap to attach or remove.

Part Names and Functions (Continued)

Numbers in Z refer to the main pages in this owner’s manual where the topic is explained.

Rear View

Exhaust vent

Speaker

Intake vent AC socket

Connect the supplied Power cord.

Rear adjustment foot

Terminals

Terminal Description Page

INPUT 1, 2 terminal

■ Connecting video equipment with component output terminal

■

AUDIO (INPUT 1, 2) terminal

Connecting an audio cable (Shared audio input terminal for INPUT 1 and 2).

OUTPUT (INPUT 1, 2) terminal

Connecting the monitor when you want to simultaneously watch the

projection image on the monitor. (Shared computer RGB and component signals output terminal for INPUT 1 and 2).

INPUT 3 terminal

Connecting video equipment with S-video output terminal (VCR, DVD

player, etc.).

RS-232C terminal Serviceman only

Use the DIN-D-sub RS-232C adaptor (supplied) to connect to the RS-232C port of the computer.

AUDIO OUTPUT terminal

Connecting to an amplifier or other audio equipment with an audio cable

(commercially available) (Shared audio output terminal for INPUT 1, 2, 3 and 4).

INPUT 4 terminal

Connecting video equipment without S-video output terminal.

AUDIO (INPUT 3, 4) terminal

Connecting an audio cable (Shared audio input terminal for INPUT 3 and 4).

Using the Kensington Lock

• This projector has a

345

678

(DVD player, DTV decoder, DVD recorder with hard disc, etc.).

Connecting the computer.

Kensington Security Standard connector for use with a Kensington MicroSaver Security System. Refer to the information that came with the system for instructions on how to use it to secure the projector.

Kensington Security Standard connector

–

Numbers in Z refer to the main pages in this owner’s manual where the topic is explained.

STANDBY button

For putting the projector into the standby mode.

KEYSTONE button

For entering the Keystone Correction mode.

RETURN button

For returning to the previous menu screen during menu operations.

AV MUTE button

For temporarily displaying the black screen and turning off the sound.

PICTURE MODE button

For selecting the appropriate picture.

ON button

For turning the power on.

MENU/HELP button

For displaying adjustment

and setting screens, and help screen.

Adjustment buttons

(P/R/O/Q)

• For selecting menu items.

• For adjusting the Keystone Correction when in the Keystone Correction mode.

ENTER button

For setting items selected or adjusted on the menu.

FREEZE button

For freezing images.

Volume buttons

For adjusting the speaker sound level.

AUTO SYNC button

For automatically adjusting images when connected to a computer.

RESIZE button

For switching the screen size (STRETCH, SIDE BAR, CINEMA ZOOM).

INPUT 1, 2, 3 and 4

buttons

For switching to the respective input modes.

Part Names and Functions (Continued)

Inserting the Batteries

Press the P mark on the cover and slide it in the

direction of the arrow.

Insert the batteries.

• Insert the batteries making sure the polarities correctly match

the m and n marks inside the battery compartment.

Attach the cover and slide it until it clicks into place.

Incorrect use of the batteries may cause them to leak or explode. Please follow the precautions below.

Caution

• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

• Insert the batteries making sure the polarities correctly match the m and n marks inside the battery compartment.

• Batteries of different types have different properties, therefore do not mix batteries of different types.

• Do not mix new and old batteries. This may shorten the life of new batteries or may cause old batteries to leak.

• Remove the batteries from the remote control once they have run out, as leaving them in can cause them to leak. Battery fluid from leaked batteries is harmful to skin, therefore ensure that you first wipe them and then remove them using a cloth.

• The batteries included with this projector may run down in a short period, depending on how they are kept.

Be sure to replace them as soon as possible with new batteries.

• Remove the batteries from the remote control if you will not be using the remote control for a long time.

• Comply with the rules (ordinance) of each local government when disposing of worn-out batteries.

Usable Range

The remote control can be used to control the projector within the ranges shown in the illustration.

Note

• The signal from the remote control can be reflected off a screen for easy operation. However, the effective distance of the signal may differ depending on the screen material.

When using the remote control

• Ensure that you do not drop, expose to moisture or high temperature.

• The remote control may malfunction under a fluorescent lamp. In this case, move the projector away from the fluorescent lamp.

Remote control signal transmitters

Remote control

30°

Remote control sensor

23n (7 m)

Quick Start

This section shows the basic operation (projector connecting with the video equipment). For details, see the page described below for each step.

Setup and Projection

In this section, connection of the projector and the video equipment is explained using one example.

STANDBY-ON

button

INPUT buttons

STANDBY button

ON button

Adjustment buttons

(P/R/O/Q)

KEYSTONE

button

Focus ring

Zoom ring

HEIGHT

ADJUST lever

1. Place the projector facing a wall or a screen

KEYSTONE button

Adjustment buttons

(P/R/O/Q)

INPUT 3 button

_P. 18

2. Connect the projector to the video equipment and plug the power cord into the AC socket of the projector

To AUDIO (INPUT 3, 4) terminal

To INPUT 3 terminal

AC socket

_PP. 22–28

3. Remove the lens cap and turn the projector on

On the projector On the remote control

_P. 28

4. Turn the video equipment on and start playback

5. Select the INPUT mode

Select the “INPUT 3” using the INPUT button on the projector or D INPUT 3 on the remote control.

On the projector

On the remote control

On-screen display

INPUT 3

• When pressing the INPUT button on the projector, input mode switches in the following order:

• When using the remote control, press the CINPUT 1/CINPUT 2/DINPUT 3/EINPUT 4 button to switch the INPUT mode.

INPUT1 INPUT2 INPUT3 INPUT4

_P. 30

6. Adjust the focus, image size, and projector angle

1. Adjust the focus by turning the focus ring.

Focus ring

2. Adjust the projection image size by turning the zoom ring.

Zoom ring

3. Adjust the projector angle using the HEIGHT ADJUST lever.

_PP. 30, 31

7. Correct trapezoidal distortion

Correcting trapezoidal distortion using the Keystone Correction.

On the projector

Shrinks

upper side.

On the remote control

Shrinks

lower side.

_P. 33

8. Turn the Power off

Press the STANDBY-ON button on the projector or the STANDBY button on the remote control, and then press the button again while the confirmation message is displayed, to put the projector into standby mode.

On the

projector

• Unplug the power cord from the AC outlet after the cooling fan stops.

On the remote

control

On-screen Display

_P. 29

Setting up the Projector

For optimal image quality, position the projector perpendicular to the screen with the projector’s feet flat and level. Doing so will eliminate the need for Keystone correction and provide the best image quality. (See page 33.)

Standard Setup (Front Projection)

■ Place the projector at the required distance from the screen according to the desired picture size. (See page 20.)

Example of standard setup

Side View

Screen

Lens center

Note

• Refer to page 20 for additional information concerning “Screen Size and Projection Distance”.

Ceiling-mount Setup

■ It is recommended that you use the optional EIKI ceiling-mount bracket for this installation. Before mounting the projector, contact your nearest EIKI Authorized Dealer or Service Center to obtain the recommended ceilingmount bracket (sold separately).

■ Invert the image by setting “Ceiling + Front” in “PRJ Mode”. See page 43 for use of this function.

Projection (PRJ) Mode

The projector can use any of the 4 projection modes, shown in the diagram below. Select the mode most appropriate for the projection setting in use. (You can set the PRJ mode in “SCR-ADJ” menu. See page 43.)

■ Table mounted, front projection

Menu item ➞ “Front”

■ Table mounted, rear projection (with a translucent screen)

■ Ceiling mounted, front projection

Menu item ➞ “Ceiling + Front”

■ Ceiling mounted, rear projection (with a translucent screen)

Menu item ➞ “Rear” Menu item ➞ “Ceiling + Rear”

Indication of the Projection Image Size and Projection Distance

Example: STRETCH Mode (16:9)

Picture Size

300"

200"

100"

80" 60"

52"

70"

29"

87"

39"

49"

174"

261"

147"

98"

8'1

"–

7'0

(2.1 m – 2.5 m)

9'4

(2.8 m

"–

10'9

3.3 m)

–

11'7

13'5

"–

(3.5 m

4.1 m)

–

23'3

26'11

"–

(7.1 m

8.2 m)

–

34'10

(10.6 m – 12.3 m)

Projection Distance

40'

–

Setting up the Projector (Continued)

Screen Size and Projection Distance

When using a wide screen (16:9) and projecting 16:9 image

Diag. [χ] Width Height Minimum [L1] Maximum [L2]

Picture (Screen) size Projection distance [L]

300⬙ (762 cm) 270⬙ (686 cm) 250⬙ (635 cm) 200⬙ (508 cm) 150⬙ (381 cm) 100⬙ (254 cm)

80⬙ (203 cm) 70⬙ (178 cm) 60⬙ (152 cm) 40⬙ (102 cm)

: Picture size (diag.) (in/cm) L: Projection distance (ft/m) L1: Minimum projection distance (ft/m) L2: Maximum projection distance (ft/m) H: Distance from the lens center to the bottom of the image (in/cm)

261⬙ (664 cm) 235⬙ (598 cm) 218⬙ (553 cm) 174⬙ (443 cm) 131⬙ (332 cm)

87⬙ (221 cm) 70⬙ (177 cm) 61⬙ (155 cm) 52⬙ (133 cm) 35⬙ (89 cm)

147⬙ (374 cm) 132⬙ (336 cm) 123⬙ (311 cm)

98⬙ (249 cm) 74⬙ (187 cm) 49⬙ (125 cm) 39⬙ (100 cm) 34⬙ (87 cm) 29⬙ (75 cm) 20⬙ (50 cm)

⬘

31 29 23 17 11

9 8 7 4

10⬙ (10.6 m)

⬘

4⬙ (9.6 m)

⬘

1⬙ (8.9 m)

⬘

3⬙ (7.1 m)

⬘

5⬙ (5.3 m)

⬘

7⬙ (3.5 m)

⬘

4⬙ (2.8 m)

⬘

2⬙ (2.5 m)

⬘

0⬙ (2.1 m)

⬘

8⬙ (1.4 m)

⬘

4⬙ (12.3 m)

⬘

4⬙ (11.1 m)

⬘

7⬙ (10.2 m)

⬘

11⬙ (8.2 m)

⬘

2⬙ (6.1 m)

⬘

5⬙ (4.1 m)

⬘

9⬙ (3.3 m)

⬘

5⬙ (2.9 m)

⬘

1⬙ (2.5 m)

⬘

5⬙ (1.6 m)

The formula for picture size and projection distance

[Feet/inches]

L1 (ft) = 0.03541χ / 0.3048 L2 (ft) = 0.04098χ / 0.3048 H (in) = - 0.32249χ / 2.54

When using a normal screen (4:3) and projecting 4:3 image (SIDE BAR Mode)

Diag. [χ] Width Height Minimum [L1] Maximum [L2]

300⬙ (762 cm) 270⬙ (686 cm) 250⬙ (635 cm) 200⬙ (508 cm) 150⬙ (381 cm) 100⬙ (254 cm)

80⬙ (203 cm) 70⬙ (178 cm) 60⬙ (152 cm) 40⬙ (102 cm)

Picture (Screen) size Projection distance [L]

⬘

240⬙ (610 cm) 216⬙ (549 cm) 200⬙ (508 cm) 160⬙ (406 cm) 120⬙ (305 cm)

80⬙ (203 cm) 64⬙ (163 cm) 56⬙ (142 cm) 48⬙ (122 cm) 32⬙ (81 cm)

180⬙ (457 cm) 162⬙ (411 cm) 150⬙ (381 cm) 120⬙ (305 cm)

90⬙ (229 cm) 60⬙ (152 cm) 48⬙ (122 cm) 42⬙ (107 cm) 36⬙ (91 cm) 24⬙ (61 cm)

8⬙ (13.0 m)

⬘

5⬙ (11.7 m)

⬘

7⬙ (10.8 m)

⬘

5⬙ (8.7 m)

⬘

4⬙ (6.5 m)

⬘

3⬙ (4.3 m)

⬘

5⬙ (3.5 m)

⬘

11⬙ (3.0 m)

⬘

6⬙ (2.6 m)

⬘

8⬙ (1.7 m)

⬘

4⬙ (15.0 m)

⬘

5⬙ (13.5 m)

⬘

2⬙ (12.5 m)

⬘

11⬙ (10.0 m)

⬘

8⬙ (7.5 m)

⬘

5⬙ (5.0 m)

⬘

2⬙ (4.0 m)

⬘

6⬙ (3.5 m)

⬘

10⬙ (3.0 m)

⬘

7⬙ (2.0 m)

The formula for picture size and projection distance

[Feet/inches]

L1 (ft) = 0.04334χ / 0.3048 L2 (ft) = 0.05015χ / 0.3048 H (in) = - 0.39468χ / 2.54

Distance from the lens center to

the bottom of the image [H]

/32⬙ (ⳮ97 cm)

ⳮ38

/32⬙ (ⳮ87 cm)

ⳮ34

/64⬙ (ⳮ81 cm)

ⳮ31

/64⬙ (ⳮ64 cm)

ⳮ25

/64⬙ (ⳮ48 cm)

ⳮ19

/64⬙ (ⳮ32 cm)

ⳮ12

/32⬙ (ⳮ26 cm)

ⳮ10

/64⬙ (ⳮ23 cm)

ⳮ8

/8⬙ (ⳮ19 cm)

ⳮ7

/64⬙ (ⳮ13 cm)

ⳮ5

[m/cm]

L1 (m) = 0.03541 L2 (m) = 0.04098 H (cm) = - 0.32249

Distance from the lens center to

the bottom of the image [H]

/64⬙ (ⳮ118 cm)

ⳮ46

/64⬙ (ⳮ107 cm)

ⳮ41

/32⬙ (ⳮ99 cm)

ⳮ38

/64⬙ (ⳮ79 cm)

ⳮ31

/16⬙ (ⳮ59 cm)

ⳮ23

/32⬙ (ⳮ39 cm)

ⳮ15

/16⬙ (ⳮ32 cm)

ⳮ12

/8⬙ (ⳮ28 cm)

ⳮ10

/64⬙ (ⳮ24 cm)

ⳮ9

/32⬙ (ⳮ16 cm)

ⳮ6

[m/cm]

L1 (m) = 0.04334 L2 (m) = 0.05015 H (cm) = - 0.39468

χ χ

When using a normal screen (4:3) and projecting 16:9 image

Picture (Screen) size Projection distance [L]

Diag. [χ] Width Height Minimum [L1] Maximum [L2]

300⬙ (762 cm) 270⬙ (686 cm) 250⬙ (635 cm) 200⬙ (508 cm) 150⬙ (381 cm) 100⬙ (254 cm)

80⬙ (203 cm) 70⬙ (178 cm) 60⬙ (152 cm) 40⬙ (102 cm)

240⬙ (610 cm) 216⬙ (549 cm) 200⬙ (508 cm) 160⬙ (406 cm) 120⬙ (305 cm)

80⬙ (203 cm) 64⬙ (163 cm) 56⬙ (142 cm) 48⬙ (122 cm) 32⬙ (81 cm)

180⬙ (457 cm) 162⬙ (411 cm) 150⬙ (381 cm) 120⬙ (305 cm)

90⬙ (229 cm) 60⬙ (152 cm) 48⬙ (122 cm) 42⬙ (107 cm) 36⬙ (91 cm) 24⬙ (61 cm)

32 28 26 21

16 10 8

7 6 4

⬘

0⬙ (9.8 m)

⬘

9⬙ (8.8 m)

⬘

8⬙ (8.1 m)

⬘

4⬙ (6.5 m)

⬘

0⬙ (4.9 m)

⬘

8⬙ (3.3 m)

⬘

6⬙ (2.6 m)

⬘

6⬙ (2.3 m)

⬘

5⬙ (2.0 m)

⬘

3⬙ (1.3 m)

⬘

0⬙ (11.3 m)

⬘

4⬙ (10.2 m)

⬘

10⬙ (9.4 m)

⬘

8⬙ (7.5 m)

⬘

6⬙ (5.6 m)

⬘

4⬙ (3.8 m)

⬘

10⬙ (3.0 m)

⬘

8⬙ (2.6 m)

⬘

5⬙ (2.3 m)

⬘

11⬙ (1.5 m)

The formula for picture size and projection distance

[Feet/inches]

L1 (ft) = 0.0325χ / 0.3048 L2 (ft) = 0.03761χ / 0.3048 H (in) = - 0.29601χ / 2.54

Note

• Refer to page 18 concerning “Projection distance [L]” and “Distance from the lens center to the bottom of the image [H]”.

• There are some errors in the values in the diagrams above.

• Values with a minus (-) sign indicate the distance from the lens center below the bottom of the image.

Distance from the lens center to

the bottom of the image [H]

/32⬙ (ⳮ89 cm)

ⳮ34

/32⬙ (ⳮ80 cm)

ⳮ31

/64⬙ (ⳮ74 cm)

ⳮ29

/16⬙ (ⳮ59 cm)

ⳮ23

/64⬙ (ⳮ44 cm)

ⳮ17

/32⬙ (ⳮ30 cm)

ⳮ11

/64⬙ (ⳮ24 cm)

ⳮ9

/32⬙ (ⳮ21 cm)

ⳮ8

ⳮ7⬙ (ⳮ18 cm)

/32⬙ (ⳮ12 cm)

ⳮ4

[m/cm]

L1 (m) = 0.0325 L2 (m) = 0.03761 H (cm) = - 0.29601

Samples of Cables for Connection

•

For more details of connection and cables, refer to the owner’s manual of the connecting equipment.

• You may need other cables or connectors not listed below.

Equipment

Audio-visual equipment

Input

Signal

Compo-

nent

video

S-video

Cable

Component cable (commercially available)

3 RCA to 15-pin D-sub adaptor (supplied)

S-video cable (commercially available)

Terminal on the

projector

INPUT1, 2

INPUT3

Camera/ video game

Computer

Video

Audio

Compo-

nent

video

S-video

Video

Audio

RGB

video

Video cable (commercially available)

ø3.5 mm minijack to RCA audio cable (commercially available)

Cables for a camera or a video game

3 RCA to 15-pin D-sub adaptor (supplied)

Cables for a camera or a video game

Cables for a camera or a video game/ø3.5 mm minijack to RCA audio cable (commercially available)

RGB cable (commercially available)

RCA adaptor plug (commercially available)

or connect directly to AUDIO (INPUT 3, 4).

INPUT4

AUDIO INPUT

INPUT1, 2

INPUT3

INPUT4

AUDIO INPUT

INPUT1, 2

Computer

audio

ø3.5 mm stereo audio cable (commercially available)

AUDIO INPUT

Connecting to Video Equipment

Before connecting, ensure that the power cord of the projector is unplugged from the AC outlet and turn off the devices to be connected. After making all connections, turn on the projector first and then the other devices.

The projector is equipped with input terminals that support component, S-video, and video signals. See the illustration below to connect with the audio-visual equipment. The image quality is highest in the order of the component signal, the S-video signal and the video signal. If your audio-visual equipment has a component output terminal, use the COMPUTER/ COMPONENT terminal (INPUT1 or INPUT 2) on the projector for video connection.

When connecting to equipment with component output terminal (INPUT1 or INPUT2)

To audio output terminal

ø3.5 mm minijack to RCA audio cable* (commercially available) *Use the cable when you want to enjoy the sound from the projector’s speaker.

To component output (Y, CB/PB, CR/PR) terminal

DVD, etc.

Supplied

accessory

To INPUT1 terminal

Component cable (commercially available)

3 RCA to 15-pin D-sub adaptor

To AUDIO (INPUT1, 2)

terminal

3 RCA to 15pin D-sub adaptor

Connecting to Video Equipment (Continued)

When connecting to equipment with S-video output terminal (INPUT3)

To audio output terminal

To S-video output terminal

DVD, etc.

To INPUT3 terminal

(INPUT3, 4)

To AUDIO

terminal

RCA audio cable* (commercially available)

*Use the cable when you want to enjoy the sound from the projector’s speaker.

S-video cable (commercially available)

When connecting to equipment with video output terminal (INPUT4)

To audio output terminal

To video output terminal

RCA audio cable* (commercially available)

*Use the cable when you want to enjoy the sound from the projector’s speaker.

DVD, etc.

To INPUT4 terminal

Composite video cable (commercially available)

To AUDIO (INPUT

3, 4) terminal

Connecting to a Computer

When connecting a computer, ensure that it is the last device to be turned on after all the connections are made.

Ensure that you have read the owner’s manuals of the devices to be connected before making connections.

To audio output terminal

To RGB output terminal

* ø3.5 mm stereo or mono audio cable (commercially available)

* When using the ø3.5 mm mono audio cable, the volume level will be half of

when using the ø3.5 mm stereo audio cable.

Note

• See page 54 “Computer Compatibility Chart” for a list of computer signals compatible with the projector. Use with computer signals other than those listed may cause some of the functions to not work.

• A Macintosh adaptor may be required for use with some Macintosh computers. Contact your nearest Macintosh Dealer.

• Depending on the computer you are using, an image may not be projected unless the computer’s external output port is switched on. Refer to the specific instructions in the owner’s manual of your computer to enable your computer’s external output port.

Computer

RGB Cable (commercially available)

Supplied

accessory

To INPUT1 terminal

To AUDIO

(INPUT1, 2)

terminal

Connecting to a Monitor with RGB Input Terminal

You can display computer images on both the projector and a separate monitor using two sets of RGB cables.

Computer

Monitor

To RGB output terminal

Note

• RGB signals and Component signals can be output to the monitor.

To INPUT 1

terminal

To OUTPUT

(INPUT 1, 2)

terminal

RGB cable (commercially available)RGB cable (commercially available)

To RGB input terminal

Connecting to an Amplifier or Other Audio Equipment

The audio input from devices connected to the AUDIO INPUT terminals on the projector can be output to audio equipment. The audio output is determined according to the selected input mode.

Amplifier

To audio input terminal

ø3.5 mm minijack to RCA audio cable (commercially available)

Note

• ø3.5 mm minijack to RCA audio cable (commercially available) is required.

• Before connecting, ensure that both the projector and the audio equipment to be connected are turned off.

• When turning off the projector while it is connected to audio equipment, ensure that you turn off the audio equipment first and then the projector.

• The volume level of external equipment changes in accordance with the volume level of the projector.

To AUDIO OUTPUT terminal

Turning the Projector On/Off

Connecting the Power Cord

Plug the supplied power cord into the AC socket on the rear of the projector.

Turning the Projector on

Note that the connections to external equipment and power outlet should be done before performing the operations written below. (See pages 23 to 28.)

Remove the lens cap and press

o STANDBY-ON on the projector or fON on the remote control.

Note

• About the Lamp Indicator The lamp indicator illuminates to indicate the status of the lamp.

Red: The lamp is on. Blinking in red: The lamp is warming up

or shutting down.

Green: The lamp is shut down abnor-

mally or the lamp should be replaced.

• When switching on the projector, a slight flickering of the image may be experienced within the first minute after the lamp has been illuminated. This is normal operation as the lamp’s control circuitry is stabilising the lamp output characteristics. It should not be regarded as faulty operation.

• If the projector is put into standby mode and immediately turned on again, the lamp may take some time to start projection.

Supplied

accessory

AC socket

Power cord

Info

• English is the factory default language. If you want to change the on-screen display to another language, change the language according to the procedure on page 43.

Lamp indicator

Power indicator

STANDBY-ON button

ON button

Turning the Power off (Putting the Projector into Standby Mode)

Press oSTANDBY-ON on the pro-

jector or eSTANDBY on the remote control, then press that button again while the confirmation message is displayed, to put the projector into standby mode.

Unplug the power cord from the AC

outlet after the cooling fan stops.

• The power indicator on the projector blinks in red while cooling.

• The power indicator changes to green when the projector finishes cooling.

Info

• Do not unplug the power cord during projection or cooling fan operation. This can cause damage due to rise in internal temperature, as the cooling fan also stops.

Locking the Operation Buttons on the Projector (Keylock Function)

STANDBY button

On-screen Display (confirmation message)

Use this function to lock the operation buttons on the projector.

a Locking the Operation Buttons

Hold down p ENTER on the projector for about 5 seconds while the projector is being turned on.

• The keylock function does not affect the operation with the remote control buttons.

• You cannot use the keylock function while the projector is warming up.

a Taking the Keylock off

Hold down p ENTER on the projector for about 5 seconds.

• When the projector is in standby mode, you can release the keylock by holding down p ENTER and o STANDBY-ON on the projector simultaneously for about 5 seconds.

Info

• Keylock does not function while the projector is: displaying “Menu” screens, in standby mode, warming up, changing input signals, operating “Auto Sync” function, or in “Freeze” mode.

ROn-screen Display

Image Projection

Switching the Input Mode

Select the appropriate input mode for the connected equipment.

PressC INPUT 1, C INPUT 2, DINPUT 3 or EINPUT 4 on the remote

control to select the input mode.

• When pressing INPUT (P/R) on the projector,

input mode switches in the following order:

INPUT1 INPUT2 INPUT3 INPUT4

• When “Auto Search” is set to “On”, INPUT (P/ R) on the projector functions as the Auto Search

buttons. (See page 44.)

INPUT buttons

Adjusting the Projected Image

1 Adjusting the Focus

You can adjust the focus with the focus ring on the projector.

Rotate the focus ring to adjust the focus while watching the projected image.

2 Adjusting the Screen Size

You can adjust the screen size using the zoom ring on the projector.

Rotate the zoom ring to enlarge or shrink the screen size.

Zoom ring

Focus ring

3 Adjusting the Height

The height of the projector can be adjusted using the adjustment feet at the front and rear of the projector.

When the screen is above the projector, the projection image can be made higher by adjusting the projector.

Lift the projector to adjust its

height while lifting the HEIGHT ADJUST lever.

Remove your hands from the

HEIGHT ADJUST lever of the projector after its height has been finely adjusted.

• The angle of projection is adjustable up to 8 degrees from the surface on which the projector is placed.

Use the rear adjustment foot to

make the projector level.

• The projector is adjustable ±1 degree from the standard position.

Note

• When adjusting the height of the projector, trapezoidal distortion occurs. Follow the procedures in Keystone Correction to correct the distortion. (See pages 33 and 43.)

HEIGHT ADJUST lever

Make small adjustments.

Rear adjustment foot

Info

• Do not apply too much pressure on the projector when the front adjustment foot comes out.

• When lowering the projector, be careful not to get your fingers caught in the area between the adjustment foot and the projector.

• Hold the projector firmly while lifting or carrying.

• Do not hold by the lens area.

Image Projection (Continued)

Adjusting the Volume

Press K/L on the remote control or –O/Q+ on the projector to adjust the vol- ume.

Note

• Pressing K/–O will lower the volume.

• Pressing L/Q+ will raise the volume.

• When the projector is connected to external equipment, the volume level of the external equipment changes in accordance with the volume level of the projector. Set the projector’s volume to the lowest level when turning the projector on/off or changing the input signal.

• When you do not want to output the sound from the projector’s speaker while the projector is connected to external equipment, set “Speaker” in “PRJ-ADJ” menu to “Off”. (See page 45.)

Displaying the Black Screen and Turning off the Sound Temporarily

Press MAV MUTE on the remote control to temporarily display a black screen and turn off the sound.

Note

• Pressing MAV MUTE again will turn the projected image back on.

AV MUTE button

Volume buttons

On-screen Display

Correcting Trapezoidal Distortion

When the image is projected either from the top or from the bottom towards the screen at an angle, the image becomes distorted trapezoidally. The function for correcting trapezoidal distortion is called Keystone Correction.

Note

• The Keystone Correction can be adjusted up to an angle of approximately ±13 degrees and the screen can also be set up to an angle of approximately ±13 degrees (when the resize mode is set to “STRETCH” (see page 34)).

Press g KEYSTONE to enter the

Keystone Correction mode.

• You can also display the on-screen display of the Keystone Correction mode with q KEYSTONE on the projector.

Press P/Q or O/R to adjust the

Keystone Correction.

• You can also adjust the Keystone Correction using the adjustment buttons on the projector.

KEYSTONE button

Adjustment buttons (P/R/O/Q)

RETURN button

R On-screen display

(Keystone Correction mode)

0Keystone

ADJ. END

Shrinks upper side. (Move the slide bar in the + direction.)

Note

• Press l RETURN while the on-screen dis-

play of the Keystone Correction mode is on the screen to return to the default setting.

Press g KEYSTONE.

• The on-screen display of the Keystone Correction mode will disappear.

• You can also use q KEYSTONE on the projector.

Shrinks lower side. (Move the slide bar in the - direction.)

Info

• While adjusting the image using Keystone Correction, straight lines and the edges of the image may appear jagged.

Image Projection (Continued)

Resize Mode

This function allows you to modify or customize the resize mode to enhance the input image. Depending on the input signal, you can choose “STRETCH”, “SIDE BAR” or “CINEMA ZOOM” image.

Press HRESIZE.

• See page 43 for setting on menu screen.

VIDEO

• “STRETCH” is fixed when 540P, 720P or 1080I signals are entered.

Input Signal

DVD / Video Image type

4:3 aspect ratio

STRETCH SIDE BAR

Output screen image

RESIZE button

CINEMA ZOOM

480I, 480P, 576I,

576P, NTSC, PAL,

540P, 720P, 1080I

Letter box

SECAM

Squeezed

16:9 aspect ratio

: Cutout area on which images cannot be projected.

Computer

SVGA (800 K 600)

4:3 aspect ratio

Other aspect ratios

XGA (1024 K 768)

SXGA (1280 K 960)

SXGA L (1400

SXGA (1280

1280 K 720

1024)

1050)

Input Signal

Computer Image type SIDE BAR

STRETCH

STRETCH SIDE BAR

854

Output screen image

Resolution lower than

SVGA

4:3 aspect ratio

Resolution higher than

SVGA

SXGA

(1280K1024)

5:4 aspect ratio

480

480 480

640

480

480854

640

CINEMA ZOOM

1280K720

16:9 aspect

ratio

: Cutout area on which images cannot be projected.

Operating with the Remote Control

Freezing a Moving Image

Press NFREEZE.

• The projected image is frozen.

Press NFREEZE again to return

to the moving image from the currently connected device.

FREEZE button

Selecting the Picture Mode

You can select the appropriate picture mode to best match the projected image you are watching.

Press GPICTURE MODE.

• When pressing GPICTURE MODE, the picture

mode changes in the following order:

Standard Natural Dynamic Movie1 Movie2

Note

• See page 41 for details on the picture mode.

Auto Sync (Auto Sync Adjustment)

Auto Sync function works when detecting input signal after the projector turns on. Press FAUTO SYNC to manually adjust with Auto Sync function.

Note

• When the optimum image cannot be achieved with Auto Sync adjustment, use the help menu for manual adjustments. (See page 46.)

PICTURE MODE button

AUTO SYNC button

Menu Items

The following shows the items that can be set in the projector.

“Picture” menu

INPUT 1 (Component)/INPUT 2 (Component)/INPUT 3/INPUT 4


Picture Mode Contrast 0 Bright Color Tint

CLR Temp Bright Boost Progressive 3D Progressive Lamp Setting Bright Reset

SCR - ADJ PRJ - ADJ Help

SEL./ADJ. ENTER END

Standard

0 0 0 0Sharp K7500 1

INPUT 1 (RGB)/INPUT2 (RGB)


Picture Mode Contrast 0 Bright Red Blue CLR Temp Bright Boost Lamp Setting Reset

SCR - ADJ PRJ - ADJ Help

SEL./ADJ. ENTER END

Standard

0 0 0 K7500 1

Bright

“Screen adjustment (SCR-ADJ)” menu


Resize

Keystone OSD Display Background PRJ Mode Language

SCR - ADJ PRJ - ADJ Help

Stretch

On Logo Front English

Main menu Sub menu


Page 41

Picture Mode

Page 41

Contrast

Bright

Color

Tint

Sharp

Red

Blue

Page 42

CLR Temp

Page 42

Bright Boost [0/1/2]

Page 42

Progressive

Page 42

Lamp Setting

Page 42

Main menu Sub menu

SCR - ADJ

Page 43

Reset

Resize

Page 43

Keystone

Page 43

OSD Display [On/Off]

Page 43

Background

Page 43

PRJ Mode

Page 43

SEL./ADJ. ENTER END

• You can adjust the menu items with icons ( , , and ) using the respective buttons on the remote control.

*1 Items when inputting component signal through INPUT 1 or

INPUT 2, or when selecting INPUT 3 or INPUT 4.

*2 “Tone” will appear on the menu screen only when PAL or

SECAM signals are input (including when forcibly changed to those input signals). There is basically no need to adjust “Tone”, but you can adjust the picture tone with this adjustment when inputting PAL or SECAM signals.

*3 Items when inputting RGB signal through INPUT 1 or

INPUT 2.

Language

Page 43

Standard Natural Dynamic Movie1 Movie2

+30-30

*1*2

+30-30

5500K 6500K 7500K 8500K 9300K 10500K

2D Progressive

3D Progressive Film Mode

Bright Eco + Quiet

Stretch Side Bar Cinema Zoom

+100-100

Logo Blue None

Front Ceiling + Front Rear Ceiling + Rear

English Deutsch Español Nederlands Français Italiano Svenska Português

Menu Items (Continued)

“Projection adjustment (PRJ-ADJ)” menu


Auto Search Auto Sync Auto Power Off System Sound Speaker On RS-232C 9600 bps Fan Mode Normal

SCR - ADJ PRJ - ADJ Help

SEL./ADJ. ENTER END

Off On On Off

0Lamp Timer(Life) 100%

Main menu Sub menu

PRJ - ADJ

Page 44

Auto Search

Page 44

Auto Sync

[On/Off]

Page 44

Auto Power Off [On/Off]

Page 45

System Sound [On/Off]

Page 45

Speaker [On/Off]

Page 45

RS-232C

Fan Mode

Page 45

Lamp Timer(Life)

9600 bps 115200 bps

Normal High

Page 45

*1Serviceman only

“Help” menu


There is no picture or audio Vertical stripes or flickering image appear Data image is not centered Color is faded or poor Picture is dark The image is distorted

Reset all adjustments to default settings

SCR - ADJ PRJ - ADJ Help

SEL. ENTER END

The items you can set with “Help” menu

“Help” menu n Page 46

• Vertical stripes or flickering image appear Auto Sync Adjust vertical noise Adjust horizontal noise

• Data image is not centered Auto Sync H-Pos V-Pos

• Color is faded or poor INPUT 1 or INPUT 2

Signal type: Auto/RGB/Component

INPUT 3 or INPUT 4

Video System: Auto/PAL/SECAM/

NTSC4.43/NTSC3.58/PALM/PAL-N/PAL-60

* The selectable items vary depending on the in-

put signal and the selected input mode.

Using the Menu Screen

ENTER button

Adjustment buttons (P/R/O/Q)

MENU/HELP button

Menu Selections (Adjustments)

Example: Adjusting “Bright”.

• This operation can also be performed by using the buttons on the projector.

Press BMENU.

• The “Picture” menu screen for the selected input mode is displayed.

Press Q or O and select “Picture”

to adjust.

Example: “Picture” screen menu for INPUT 1 (Component) mode

Menu item


Picture Mode Contrast 0 Bright Color Tint

CLR Temp Bright Boost Progressive 3D Progressive Lamp Setting Bright Reset

SEL./ADJ. ENTER END

SCR - ADJ PRJ - ADJ Help

Adjustment buttons (P/R/O/Q)

MENU/HELP button

ENTER button

RETURN button

• Press lRETURN to

return to the previous screen when the menu is displayed.

Standard

0 0 0 0Sharp

K7500

Using the Menu Screen (Continued)

Press P or R and select “Bright”

to adjust.

• The selected item is highlighted.

To adjust the projected image while watching it

Press hENTER.

• The selected item (e.g. “Bright”) is displayed by itself at the bottom of the screen.

• When pressing P or R, the following item (“Color” after “Bright”) will be displayed.

Note

• Press hENTER again to return to the

previous screen.


Picture Mode Contrast 0

Bright

Color Tint

CLR Temp Bright Boost Progressive 3D Progressive Lamp Setting Reset

SEL./ADJ. Single ADJ END

SCR - ADJ PRJ - ADJ Help

Standard

0 0 0Sharp K7500 1

Bright

Items to be adjusted


Resize

Keystone OSD Display Back

SCR - ADJ PRJ - ADJ Help

round Logo

Stretch

The item displayed by itself


SEL./ADJ. Rtn. Menu END

0Bright

Press O or Q to adjust the item

selected.

• The adjustment is stored.

Press BMENU/HELP.

• The menu screen will disappear.


Picture Mode Contrast 0

Color Tint

CLR Temp Bright Boost Progressive 3D Progressive Lamp Setting Bright Reset

SEL./ADJ. ENTER END

SCR - ADJ PRJ - ADJ Help

Standard

15Bright

0 0 0Sharp

K7500

Note

• Menu buttons do not function while the projector is operating the “Auto Sync”, “FREEZE”, or “AV MUTE” functions.

Picture Adjustment (“Picture” menu)

Menu operation n Page 39

Q Example: “Picture” screen menu for

INPUT 3 mode


Picture Mode Contrast 0 Bright

Color Tint

CLR Temp

Bright Boost

Progressive 3D Progressive

Lamp Setting Bright

Reset

SEL./ADJ. ENTER END

1 1

1 Selecting the Picture Mode

1 1

SCR - ADJ PRJ - ADJ Help

Standard

0 0 0 0Sharp K7500 1

Q Example: “Picture” screen menu for

INPUT 1 (RGB) mode


Picture Mode Contrast 0 Bright Red Blue CLR Temp Bright Boost Lamp Setting Reset

SEL./ADJ. ENTER END

SCR - ADJ PRJ - ADJ Help

Standard

0 0 0 K7500 1

Bright

Selectable items

Standard

Natural

Dynamic

Movie1

Movie2

Description

For standard image

A balanced color image is obtained.

A vivid image is obtained.

Gives greater depth to darker portions of images.

Brightness is toned down and the image becomes more balanced.

The default settings of each item when selecting Picture Mode

CLR Temp

7500K

6500K

Bright Boost

Lamp Setting

Bright

Eco + Quiet

• You can set or adjust each item in the “Picture” menu to your preference. Any changes you make are retained in memory.

Note

• You can also press G PICTURE MODE on the remote control to select the picture mode. (See

page 36.)

Picture Adjustment (“Picture” menu) (Continued)

Menu operation n Page 39

4 Progressive

2 Adjusting the Image

Adjustment

Items

Contrast

Bright

Color*

Tint*1 *

Sharp*

Red

Blue

Bright Boost

*1 Not displayed in the RGB input mode. *2 “Tone” will appear on the menu screen only when

PAL or SECAM signals are input (including when forcibly changed to those input signals). There is basically no need to adjust “Tone”, but you can adjust the picture tone with this adjustment when inputting PAL or SECAM signals .

Note

• To reset all adjustment items, select “Reset”

and press hENTER.

O button

For less contrast.

For less brightness.

For less color intensity.

For making skin tones purplish.

For less sharpness.

For weaker red.

For weaker blue.

For high fidelity color reproduction.

Q button

For more contrast.

For more brightness.

For more color intensity.

For making skin tones greenish.

For more sharpness.

For stronger red.

For stronger blue.

For more vividness.

Selectable

items

2D Progressive

3D Progressive

Film Mode

* The film source is a digital video recording with the

original encoded as is at 24 frames/second. The projector can convert this film source to progressive video at 60 frames/second with NTSC and PAL60Hz or at 50 frames/second with PAL50Hz and SECAM to play back a high-definition image.

• In NTSC or PAL60Hz, even if the 3D Progressive mode has been set, the three-two pull down enhancement will be enabled automatically when the film source has been entered.

• When the image is blurred or noisy, switch to the optimal mode.

• When using progressive inputs, inputs are directly displayed so that 2D Progressive, 3D Progressive and Film Mode cannot be selected.

Useful to display fast-moving images such as sports.

Useful to display relatively slowmoving images such as drama and documentary more clearly.

Reproduces the image of film source* clearly. Displays the optimized image of film transformed with three-two pull down (NTSC and PAL60Hz) or two-two pull down (PAL50Hz and SECAM) enhancement to progressive mode images.

Note

Description

3 Adjusting the Color

Temperature

Selectable

items

5500K 6500K 7500K 8500K 9300K 10500K

• Values on “CLR Temp” are only for general standard purposes.

For lower color temperature for warmer, reddish incandescent-like images.

For higher color temperature for cooler, bluish, fluorescent-like images.

Note

Description

P R

5 Lamp Setting

Select-

Bright-

able

ness

items

Approx.

Eco +

Quiet

87%

100%

Bright

Note

• When “Lamp Setting” is set to “Eco+Quiet”, the power consumption will decrease and the lamp life will extend. (Projection brightness decreases approximately 13%.)

Fan

sound

Low

Normal

Power consumption (When using

AC 100V)

305W

350W

Lamp Life

Approx.

3,000 hours

Approx.

2,000 hours

Adjusting the Projected Image (“SCR - ADJ” menu)

1 2 3 4 5 6


Resize

Keystone OSD Display Background PRJ Mode Language

SCR - ADJ PRJ - ADJ Help

Stretch

On Logo Front English

Menu operation n Page 39

1 Setting the Resize Mode

Note

• For details of the Resize mode, see pages 34 and 35.

• You can also press HRESIZE on the remote control to set the resize mode. (See page 34.)

2 Keystone Correction

Select “Keystone” on the “SCR-ADJ” menu and adjust with the slide bar.

Q or P button

See page 33 for details of Keystone Correction.

Note

• The Keystone Correction can be adjusted up to an angle of approximately ±13 degrees (when “Resize” is set to “Stretch”).

Setting On-screen Display

Selectable

items

Off

All On-screen Displays are displayed.

INPUT/VOLUME/AV MUTE/FREEZE/ AUTO SYNC/RESIZE/PICTURE MODE/ “An invalid button has been pressed.” are not displayed.

O or R button

Description

Selecting the Background


Selectable items

Logo

Blue

None

5 Reversing/Inverting

EIKI logo screen

Blue screen

—

Description

Projected Images

Selectable items

Front

Ceiling + Front

Rear

Ceiling + Rear

See page 19 for details of Projection (PRJ) Mode.

Selecting the On-screen

Normal image (Projected from the front of the screen)

Inverted image (Projected from the front of the screen with an inverted projector)

Reversed image (Projected from the rear of the screen or with a mirror)

Reversed and inverted image (Projected with a mirror)

Description

Display Language

The projector can switch the on-screen display language among 11 languages.

English Deutsch Español Nederlands Français Italiano

Svenska Português

Adjusting the Projector Function (“PRJ - ADJ” menu)

Menu operation n Page 39


Auto Search Auto Sync Auto Power Off System Sound Speaker On RS-232C 9600 bps Fan Mode Normal

SEL./ADJ. ENTER END

Serviceman only

1 Auto Search Function

This function automatically searches for and switches to the input mode in which signals are being received, when the projector is turned on, or when the INPUT button is pressed.

Note

When “Auto Search” is set to “On”

• If two or more input signals are found, the projector selects the input source in the order of INPUT 1 n INPUT 2 n INPUT 3 n INPUT 4 when you press INPUT (P/R) on the projector.

• While “Auto Search” is set to “On”, press

C INPUT 1,C INPUT 2, D INPUT 3 or EINPUT 4 on the remote control to select

an input mode other than the input mode selected by the projector.

SCR - ADJ PRJ - ADJ Help

Off On On Off

0Lamp Timer(Life) 100%

2 Auto Sync (Auto Sync

Adjustment)

Selectable items

Off

Note

• Auto Sync adjustment is also performed by

pressing F AUTO SYNC on the remote con- trol.

• The Auto Sync adjustment may take some time to complete, depending on the image of the computer connected to the projector.

• When the optimum image cannot be achieved with Auto Sync adjustment, use manual adjustments. (See page 46.)

Description

Auto Sync adjustment will occur when the projector is turned on or when the input signals are switched, when connected to a computer.

Auto Sync adjustment is not automatically performed.

Menu operation n Page 39

3 Auto Power Off

Function

Selectable

items

Off

• When the Auto Power Off function is set to “On”, 5 minutes before the projector enters standby mode, the message “Enter STANDBY mode in X min.” will appear on the screen to indicate the remaining minutes.

When no input signal is detected for more than 15 minutes, the projector will automatically enter standby mode.

The Auto Power Off function will be disabled.

Note

Setting the Confirmation

Description

Sound (System Sound)

Selectable

items

Off

5 Speaker Setting

Selectable

items

Off

A confirmation sound is made when the projector turns on/off.

No confirmation sound is made.

The audio signal is output from the internal speaker.

The audio signal is not output from the internal speaker.

Description

6 Fan Mode Setting

This function changes the fan rotation speed.

Selectable

items

Normal

High

When “Fan Mode” is set to “High”, the fan rotation speeds up, and the fan noise becomes louder.

7 Checking the Lamp Life

Suitable for normal environments.

Select this when using the projector at altitudes of approximately 4,900 feet (1,500 meters) or more.

Description

Status

You can confirm the cumulative lamp usage time and the remaining lamp life (percentage).

Lamp usage condition

“Life”

Operated exclusively with Lamp Setting set to “Eco + Quiet”

Operated exclusively with Lamp Setting set to “Bright”

Note

• It is recommended that the lamp be changed when the remaining lamp life becomes 5%.

• The lamp life may vary depending on the usage condition.

Remaining lamp life

100%

Approx. 3,000 hours

Approx. 2,000 hours

Approx. 150 hours

Approx. 100 hours

Troubleshooting with “Help” menu

This function advises you to solve the problems during usage.

Utilizing “Help” menu functions

Example: When the picture has a green tint

When the picture has a green tint on INPUT 1 (Component)/INPUT 2 (Component).

Press BMENU/HELP.

Press O or Q to select “Help”, then

press hENTER.

Press P or R to select “Color is

faded or poor” on Help menu, then press hENTER.


SCR - ADJ PRJ - ADJ Help

There is no picture or audio

Color is faded or poor

Picture is dark The image is distorted

Reset all adjustments to default settings

SEL. ENTER END

Select “Select the signal type”,

then press hENTER.

Select “Component”, then press

hENTER.

• If there are more items to be set after this, follow the instructions on the screen and select the best item for your needs.

Note

• You can adjust the items with check marks (✔).

• The items in the “Help” menu change, depending on the input signal or setting that you have selected.

• If the problem is not solved, refer to

“Troubleshooting”. (see pages 55 and 56)

Adjustment buttons (P/R/O/Q)

MENU/HELP button

ENTER button

Color is faded or poor The picture has a green or pink tint

Select the signal type

Adjust “Color” or “Tint”, and change “Bright Boost”

setting to off (“PICTURE” menu).

Return

SEL. ENTER END

Help

Maintenance

Cleaning the projector

■ Ensure that you have unplugged the power cord before cleaning the projector.

■ The cabinet as well as the operation panel is made of plastic. Avoid using benzene or thinner, as these can damage the finish on the cabinet.

■ Do not use volatile agents such as insecticides on the projector. Do not attach rubber or plastic items to the projector for long periods. The effects of some of the agents in the plastic may cause damage to the quality or finish of the projector.

■ Wipe off dirt gently with a soft flannel cloth.

■ When the dirt is hard to remove, soak a cloth in

a mild detergent diluted with water, wring the cloth well and then wipe the projector. Strong cleaning detergents may discolor, warp or damage the coating on the projector. Make sure to test on a small, inconspicuous area on the projector before use.

Mild detergent

Mild detergent diluted

with water

Cleaning the lens

■ Use a commercially available blower or lens cleaning paper (for glasses and camera lenses) for cleaning the lens. Do not use any liquid type cleaning agents, as they may wear off the coating film on the surface of the lens.

■ As the surface of the lens can easily get damaged, be sure not to scrape or hit the lens.

Cleaning the exhaust and intake vents

■ Use a vacuum cleaner to clean dust from the exhaust vent and the intake vent.

Thinner

Wax

Info

• If you want to clean the air vents during pro-

jector operation, be sure to press o STANDBY-ON on the projector or eSTANDBY on the remote control and put the projector into standby mode. After the cooling fan has stopped, clean the vents.

Maintenance Indicators

■ The warning lights (power indicator, lamp indicator and temperature warning indicator) on the projector indicate problems inside the projector.

■ If a problem occurs, either the temperature warning indicator or the lamp indicator will illuminate red, and the projector will enter standby mode. After the projector has entered standby mode, follow the procedures given below.

Top View

Temperature warning indicator

Lamp indicator

Power indicator

About the temperature warning indicator

If the temperature inside the projector increases, due to blockage of the air vents, or the setting location, “ ” will illuminate in the lower left corner of the picture. If the temperature keeps on rising, the lamp will turn off and the temperature warning indicator will blink, the cooling fan will run, and then the projector will enter standby mode. After “ ” appears, be sure to perform the measures described on page

49.

About the lamp indicator

■ When the remaining lamp life becomes 5% or less, (yellow) and “Change The Lamp” will be displayed on the screen. When the percentage becomes 0%, it will change to (red), the lamp will automatically turn off and then the projector will automatically enter standby mode. At this time, the lamp indicator will illuminate in red.

■ If you try to turn on the projector a fourth time without replacing the lamp, the projector will not turn on.

Indicators on the Projector

Power indicator

Lamp indicator

Temperature warning indicator

Green on

Red on

Green blinks Abnormal (See page 49.)

Red blinks

Green on

Green blinks

Red on The lamp is shut down abnormally or

Off

Red on

Normal (Standby)

Normal (Power on)

Normal (Cooling)

Normal

The lamp is warming up or shutting down.

requires to be changed. (See page 49.)

Normal

The internal temperature is abnormally high. (See page 49.)

Maintenance indicator

Tempera-

ture

warning

indicator

Lamp

indicator

Power

indicator

Green on

when the

warming

Green on/

(Cooling)

Normal

Off

(Green

blinks

lamp is

up or

turning

off.)

Red on

Red

blinks

Abnormal

Red on

(Standby)

Red on

(Standby)

Green blinks

Problem

The internal temperature is abnormally high.

The lamp does not illuminate.

Time to change the lamp.

The lamp does not illuminate.

The power indicator blinks in green when the projector is on.

Cause

• Blocked air intake

• Cooling fan breakdown

• Internal circuit failure

• Clogged air intake

• The lamp is shut down abnormally.

• Remaining lamp life becomes 5% or less.

• Burnt-out lamp

• Lamp circuit failure

• The lamp unit cover is open.

Possible Solution

• Relocate the projector to an area with proper ventilation. (see page 8)

• Take the projector to your nearest EIKI Authorized Dealer or Service Center for repair.

• Disconnect the power cord from the AC outlet, and then connect it again.

• Carefully replace the lamp. (See page 51.)

• Take the projector to your nearest EIKI Authorized Dealer or Service Center for repair.

• Please exercise care when replacing the lamp.

• Securely install the cover.

• If the power indicator blinks in green even when the lamp unit cover is securely installed, contact your nearest EIKI Authorized Dealer or Service Center for advice.

Info

• If the temperature warning indicator illuminates, and the projector enters standby mode, follow the possible solutions above and then wait until the projector has cooled down completely before plugging in the power cord and turning the power back on. (At least 10 minutes.)

• If the power is turned off for a brief moment due to power outage or some other cause while using the projector, and the power supply recovers immediately after that, the lamp indicator will illuminate in red and the lamp may not be lit. In this case, unplug the power cord from the AC outlet, replace the power cord in the AC outlet and then turn the power on again.

• The cooling fan keeps the internal temperature of the projector constant and this function is controlled automatically. The sound of the cooling fan may change during operation because the fan speed may change and this is not a malfunction.

• Do not unplug the power cord after the projector has entered standby mode and while the cooling fan is running. The cooling fan runs for about 90 seconds.

Regarding the Lamp

Lamp

■ It is recommended that the lamp (sold separately) be replaced when the remaining lamp life becomes 5% or less, or when you notice a significant deterioration in the picture and color quality. The lamp life (percentage) can be checked with the on-screen display. (see page 45)

■ Purchase a replacement lamp of type AH-11201 from your place of purchase, nearest EIKI Authorized Dealer or Service Center.

Caution Concerning the Lamp

■ This projector utilizes a pressurized mercury lamp. A loud sound may indicate lamp failure. Lamp failure can be attributed to numerous sources such as: excessive shock, improper cooling, surface scratches or deterioration of the lamp due to a lapse of usage time. The period of time up to failure largely varies depending on the individual lamp and/or the condition and the frequency of use. It is important to note that failure can often result in the bulb cracking.

■ When the lamp replacement indicator and on-screen display icon are illuminated, it is recommended that the lamp be replaced with a new one immediately, even if the lamp appears to be operating normally.

■ Should the lamp break, there is also a possibility that glass particles may spread inside of the projector. In such a case, it is recommended you contact your nearest EIKI Authorized Dealer or Service Center to assure safe operation.

■ Should the lamp break, the glass particles may spread inside the lamp cage or gas contained in the lamp may be vented into the room from the exhaust vent. Because the gas in this lamp includes mercury, ventilate the room well if the lamp breaks and avoid all exposure to the released gas. In case of exposure to the gas, consult a doctor as soon as possible.

Replacing the Lamp

• Do not remove the lamp unit from the projector right after use. The lamp will be very hot and may cause burn or injury.

■ Carefully change the lamp by following the instructions described in this section. * If you wish, you may have the lamp replaced at your nearest EIKI Authorized Dealer or Service Center.

* If the new lamp does not light after replacement, take your projector to the nearest EIKI Authorized

Dealer or Service Center for repair.

Removing and Installing the Lamp Unit

Warning!

• Do not remove the lamp unit from the projector right after use. The lamp and parts around the lamp will be very hot and may cause burns or injury.

Info

• Make sure that you remove the lamp unit by

the handle. Do not touch the glass surface of the lamp unit or the inside of the projector.

• To avoid injury to yourself and damage to the

lamp, be sure to carefully follow the steps below.

• Do not loosen other screws except for the

lamp unit cover and lamp unit.

Press oSTANDBY-ON on the pro-

jector or eSTANDBY on the remote control to put the projector into standby mode.

• Wait until the cooling fan stops.

Disconnect the power cord.

• Unplug the power cord from the AC socket.

• Leave the lamp until it has fully cooled down (about 1 hour).

Optional

accessory

STANDBY-ON button

AC socket

Lamp unit AH-11201

Remove the lamp unit cover.

• Turn the projector over. Loosen the user service screw (1) that secures the lamp unit cover. Remove the lamp unit cover (2).

User service screw (for lamp unit cover)

Regarding the Lamp (Continued)

Remove the lamp unit.

• Loosen the securing screws from the lamp unit. Hold the lamp unit by the handle and pull it in the direction of the arrow. At this time, keep the lamp unit horizontal and do not tilt it.

Insert the new lamp unit.

• Press the lamp unit firmly into the lamp unit compartment. Fasten the securing screws.

Replace the lamp unit cover.

• Align the tab on the lamp unit cover (1)and place it while pressing the tab (2) to close it. Then tighten the user service screw to secure the lamp unit cover.

Info

• If the lamp unit and lamp unit cover are not correctly installed, the power will not turn on, even if the power cord is connected to the projector.

Handle

Securing screws

Resetting the Lamp Timer

Reset the lamp timer after replacing the lamp.

Info

• Make sure to reset the lamp timer only when replacing the lamp. If you reset the lamp timer and continue to use the same lamp, this may cause the lamp to become damaged or explode.

Connect the power cord.

• Plug the power cord into the AC socket of the projector.

Reset the lamp timer.

• While simultaneously holding down rMENU/HELP, pENTER and R on the projector, press oSTANDBY-ON on the projector.

• “LAMP 0000H” is displayed, indicating that the lamp timer is reset.

AC socket

STANDBY-ON button

ENTER button

MENU/HELP button

R button

Connecting Pin Assignments

COMPUTER-RGB/COMPONENT INPUT1, 2 and COMPUTER-RGB/COMPONENT OUTPUT Terminals:

15-pin Mini D-sub female connector

COMPUTER-RGB Input/Output

1. Video input (red)

2. Video input (green/sync on green)

3. Video input (blue)

4. Not connected

5. Not connected

6. Earth (red)

7. Earth (green/sync on green)

8. Earth (blue)

9. Not connected

10. GND

11. Not connected

12. Bi-directional data

13. Horizontal sync signal: TTL level

14. Vertical sync signal: TTL level

15. Data clock

Component Input/Output

1. PR (CR)

2. Y

3. PB (CB)

4. Not connected

5. Not connected

6. Earth (PR)

7. Earth (Y)

8. Earth (PB)

9. Not connected

10. Not connected

11. Not connected

12. Not connected

13. Not connected

14. Not connected

15. Not connected

Computer Compatibility Chart

Computer

• Multiple signal support Horizontal Frequency: 15-70 kHz, Vertical Frequency: 45-85 Hz, Pixel Clock: 12-108 MHz Sync signal: Compatible with TTL level

• Compatible with sync on green signal

The following is a list of modes that conform to VESA. However, this projector supports other signals that are not VESA standards.

PC/MAC

MAC 13" MAC 16" MAC 19"

MAC 21"

VGA

SVGA

XGA

SXGA

SXGA+

VGA

SVGA

XGA

SXGA

Resolution

640 × 350

640 × 400

720 × 350

720 × 400

640 × 480

800 × 600

1,024 × 768

1,152 × 864

1,280 × 1,024 1,400 × 1,050

640 × 480 800 × 600

832 × 624 1,024 × 768 1,152 × 870

Horizontal Frequency

(kHz)

27.0

31.5

37.5

27.0

31.5

37.9

27.0

31.5

27.0

31.5

37.9

26.2

31.5

34.7

37.9

37.5

43.3

31.4

35.1

37.9

46.6

48.1

46.9

53.7

40.3

48.4

56.5

60.0

68.7

55.0

66.2

67.5

64.0

34.9

37.8

49.7

60.2

68.7

• Compatible with the signals below in intelligent compression

SVGA, XGA, SXGA, SXGA+

• Intelligent Compression and Expansion System resizing technology

Vertical Frequency

(Hz)

60 70 85 60 70 85 60 70 60 70 85 50 60 70 72 75 85 50 56 60 70 72 75 85 50 60 70 75 85 60 70 75 60 60 67 60 75 75 75

VESA Standard

✔

✔ ✔ ✔

✔ ✔

✔ ✔ ✔

✔ ✔ ✔ ✔

✔ ✔

Intelligent Compression

Display

Upscale

Note

• When this projector receives 640K350 VESA format VGA signals, “640K400” appears on the screen.

DTV

Signal

480I

480P

540P

576I

576P

720P

1035I

1080I

Horizontal Frequency (kHz)

15.7

31.5

33.8

15.6

31.3

45.0

28.1

33.8

28.1

33.8

Vertical Frequency (Hz)

Troubleshooting

Problem Check

• Projector power cord is not plugged into the wall outlet.

• Power to the external connected devices is off.

• The selected input mode is wrong.

• Cables incorrectly connected to the projector.

• Remote control battery has run out.

No picture and no sound

or projector does not

start.

Sound is heard but no

picture appears (or picture

is dark).

Color is faded or poor.

Picture is blurred;

noise appears.

• External output has not been set when connecting notebook computer.

• The lamp unit cover is not installed correctly.

• Cables incorrectly connected to the projector.

• “Bright” is set to minimum position.

• Depending on the computer you are using, an image may not be projected unless the signal output setting of the computer is switched to the external output. Refer to the owner’s manual of the computer for how to switch its signal output settings.

• Image adjustments are incorrectly set.

• Make adjustments of “Color” and “Tint” in “Picture Mode” and lower the “Bright Boost” value.

(Video Input only)

• Video input system is incorrectly set.

• Adjust the focus.

• The projection distance exceeds the focus range.

(Computer Input only)

• Perform “Fine Sync” Adjustments (“Clock” Adjustment)

• Perform “Fine Sync” Adjustments (“Phase” Adjustment)

• Noise may appear depending on the computer.

• Cables incorrectly connected to the projector.

• Volume is set to minimum.

• When the projector is connected to an external device and the volume is set to minimum, the sound is not output even if you turn up the volume of the external device.

Page

–

23–27

51, 52

23–27

–

23–27

Picture appears but no

sound is heard.

An unusual sound is

occasionally heard from

the cabinet.

Maintenance indicator on

the projector illuminates

or blinks in red.

The projector cannot be turned on or put into the standby mode using the

STANDBY-ON button on

the projector.

• “Speaker" is set to “Off”.

• If the picture is normal, the sound is due to cabinet shrinkage caused by room temperature changes. This will not affect operation or performance.

• See “Maintenance Indicators”.

• The keylock is set. If the keylock is set to “ON”, all the buttons are locked.

–

Troubleshooting (Continued)

Problem

Picture is green on INPUT 1 (Component)/ INPUT 2 (Component).

Picture is pink (no green)

on INPUT 1 (RGB)/INPUT

2 (RGB).

Picture flickers on INPUT

1 (RGB)/INPUT 2 (RGB).

Picture is too bright and

whitish.

The cooling fan becomes

The lamp suddenly turns

This unit is equipped with a microprocessor. Its performance could be adversely affected by incorrect operation or interference. If this should happen, unplug the Unit and plug it in again after more than 5 minutes.

noisy.

The lamp does not light

up even after the

projector turns on.

off during projection.

The image sometimes

flickers.

The lamp needs much

time to turn on.

Picture is dark.

• Change the input signal type setting. Select “Color is faded or poor” in the “Help” menu, and then select an input signal type.

• Select “Initiate “Auto Sync” Adjustments” after selecting “Vertical stripes or flickering image appear” in the “Help” menu, and then press ENTER. If the picture hasn't improved, select “Adjust horizontal noise”, and then press ENTER. After that, press O or Q to adjust.

• Image adjustments are incorrectly set.

• When temperature inside the projector increases, the cooling fan runs faster.

• The lamp indicator is illuminating in red. Replace the lamp.

• Cables incorrectly connected to the projector or the connected equipment works improperly.

• Select “Vertical stripes or flickering image appear” in the “Help” menu and make the necessary adjustments.

• If this happens frequently, replace the lamp.

• The lamp will eventually need to be changed. While the remaining lamp life draws to a close, replace the lamp.

Check

Page

–

48, 51

23–27

Specifications

Product type

Model

Video system

Display method

DMD panel

Projection lamp

Component input signal

Horizontal resolution

Computer RGB input

(INPUT 1/2)/output

(OUTPUT) signal

S-video input signal

Video input signal

Vertical frequency

Horizontal frequency

Audio input signal

Audio output signal

(AUDIO OUTPUT 1-4)

Speaker system

Rated frequency

Power consumption

Power consumption (standby)

Heat dissipation

Operating temperature

Storage temperature

I/R carrier frequency

Dimensions (approx.)

Weight (approx.)

Replacement parts

Lens

(INPUT1/2)

(INPUT 3)

(INPUT 4)

Pixel clock

Rated voltage

Input current

Cabinet

Projector EIP-1000T NTSC3.58/NTSC4.43/PAL/PAL-M/PAL-N/PAL-60/SECAM/DTV480I/DTV480P/ DTV540P/DTV576I/DTV576P/DTV720P/DTV1035I/DTV1080I/DTV1080I-50 Single Chip Digital Micromirror DeviceTM (DMDTM) by Texas Instruments Panel size: 0.53", 1chip DMD No. of dots: 409,920 dots (854 [H] × 480 [V]) 1–1.15 × zoom lens, F2.4–2.6, f = 19.0–21.9 mm 275 W DC lamp 15-pin mini D-sub connector Y: 1.0 Vp-p, sync negative, 75 Ω terminated PB: 0.7 Vp-p, 75 Ω terminated PR: 0.7 Vp-p, 75 Ω terminated 520 TV lines (DTV720P) 15-pin mini D-sub connector RGB separate/sync on green type analog input: 0–0.7 Vp-p, positive, 75 Ω terminated HORIZONTAL SYNC. SIGNAL: TTL level (positive/negative) VERTICAL SYNC. SIGNAL: Same as above 4-pin mini DIN connector Y (luminance signal): 1.0 Vp-p, sync negative, 75 Ω terminated C (chrominance signal): Burst 0.286 Vp-p, 75 Ω terminated RCA connector: VIDEO, composite video, 1.0 Vp-p, sync negative, 75 Ω terminated 45–85 Hz 15–70 kHz 12–108 MHz ø3.5 mm minijack or RCA terminal: 0.5 Vrms, more than 22 kΩ (stereo) ø3.5 mm minijack: 0.5 Vrms, less than 2.2 kΩ

4 cm × 2.85 cm oval × 1 AC 100–240 V

3.6 A 50/60 Hz 350 W (Lamp Setting “Bright”)/ 305 W (Lamp Setting “Eco + Quiet”) 330 W (Lamp Setting “Bright”)/ 285 W (Lamp Setting “Eco + Quiet”) 4 W (AC 100 V) – 5 W (AC 240 V) 1,315 BTU/hour (Lamp Setting “Bright”)/ 1,145 BTU/hour (Lamp Setting “Eco + Quiet”) with AC 100 V 1,240 BTU/hour (Lamp Setting “Bright”)/ 1,070 BTU/hour (Lamp Setting “Eco + Quiet”) with AC 240 V 41°F to 95°F (+5°C to +35°C) –4°F to 140°F (–20°C to +60°C) Plastic 38 kHz 12 13/32" × 4 19/64" × 11 1/32" (315 (W) × 109 (H) × 280 (D) mm) (main body only) 12 13/32" × 4 47/64" × 11 37/64" (315 (W) × 120 (H) × 294 (D) mm) (including adjustment foot and projecting parts)

8.6 lbs. (3.9 kg) Remote control, Power cord for U.S. and Canada, etc., Power cord for Europe, except U.K., 3 RCA to 15-pin D-sub adaptor, DIN-D-sub RS-232C adaptor, Owner’s manual

with AC 100 V

with AC 240 V

As a part of policy of continuous improvement, EIKI reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

Dimensions

Units: inches (mm)

(109)

/ 4

(5)

(280)

/ 11

(9)

(105)

/ 4

(47)2

(73)

(11)

12 13/

2 61/

(75)

(315)

(33.8)

(46.2)

(80)

(77.5)

(104)

(65.5)

(47.5) 4

(11)

Index

AC socket ....................................................... 28

Accessories ................................................... 10

Adjustment buttons ........................................ 39

Adjust horizontal noise ........................... 38, 46

Adjust vertical noise ............................... 38, 46

Aspect ratio .................................................... 34

AUDIO INPUT terminal .................... 23, 24, 25

AUDIO OUTPUT terminal ............................. 27

Auto Power Off............................................... 45

Auto Search ...................................................44

Auto Sync

(Auto Sync adjustment) ................. 36, 38, 44

AUTO SYNC button ....................................... 36

AV MUTE button ............................................ 32

Background.................................................... 43

Blue ................................................................ 42

Bright ............................................................. 42

Bright Boost ...................................................42

CINEMA ZOOM ...................................... 34, 35

Clock ..............................................................46

CLR Temp (Color Temperature) .................... 42

Color .............................................................. 42

Contrast ......................................................... 42

ENTER button................................................ 39

Exhaust vent ........................................... 12, 47

Fan Mode ....................................................... 45

Fine Sync .......................................................46

Focus ring ......................................................30

FREEZE button .............................................36

Front adjustment foot.....................................31

H-Pos ...................................................... 38, 46

HEIGHT ADJUST lever .................................31

Help................................................................ 46

INPUT 1 terminal .............................. 23, 25, 26

INPUT 1 – 4 modes .......................................30

INPUT 2 terminal .............................. 23, 25, 26

INPUT 3 terminal ...........................................24

INPUT 4 terminal ...........................................24

INPUT buttons ...............................................30

Intake vent ........................................ 11, 12, 47

Kensington Security

Standard connector .................................... 12

Keylock........................................................... 29

KEYSTONE button ........................................33

Keystone Correction ......................................43

Lamp ....................................................... 10, 50

Lamp indicator ...............................................48

Lamp Setting .................................................42

Lamp Timer (Life) .......................................... 45

Lamp unit .......................................................51

Language (on-screen display language) ...... 43

Lens Cap .......................................................11

MENU/HELP button................................ 39, 46

ON button ...................................................... 28
