Eight AUDIO D-A User Manual

V.18.04

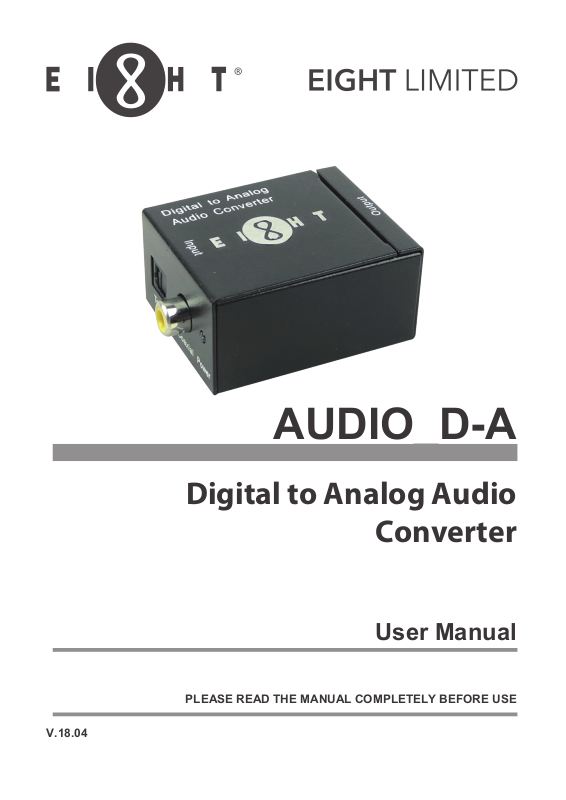

AUDIO_D-A

Digital to Analog Audio

Converter

User Manual

PLEASE READ THE MANUAL COMPLETELY BEFORE USE

INTRODUCTION

The Digital to Analog Converter is designed for either home or professional audio application. It converts
Toslinkl/SPDIF or Coaxial digital audio signal analog L/R RCA audio; it can support an external device such as
amplier via standard RCA-style L/R.
This small converter is plug and play.

FEATURES

1.

Converts SPDIF l or coaxial digital PCM audio input to analog stereo L/R RCA outputs simultaneously.

2.

Supported sample rates including 32 kHz, 44.1kHz and 192 kHz, up to 24-bit resolution.

3.

Ultra low jitter and high delity design using new receiver & D/A converter chips.

4.

Auto sensing input selection with priority given to SPDIF; disable/disconnect SPDIF input for coaxial
input application.

PACKAGES

1x Digital to Analog Audio Converter
1x Power adapter
1x User Manual

SPECIFICATIONS

Input ports:1x TOSLINK/SPDIF, 1x Coaxial
Output ports: 2x RCA(L/R)
Sampling Rate: 32kHz, 44.1kHz, 48kHz, 96kHz and 192kHz
Dimensions(mm): 51.5(L)x41(W)x25.5(H)
Weight(g): 71g

PANEL DESCRIPTIONS

Please study the panel drawings below and become familiar with signal input(s), output(s) and power
requirements.

Back Panel: Upper Panel: Front Panel:
