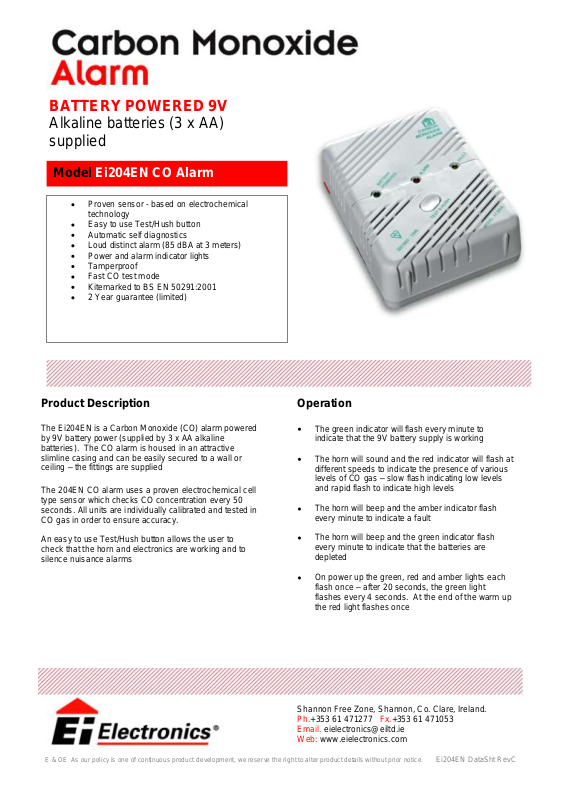

Model Ei204EN CO Alarm

Proven sensor - based on electrochemical

technology

Easy to use Test/Hush button
Automatic self diagnostics
Loud distinct alarm (85 dBA at 3 meters)
Power and alarm indicator lights
Tamperproof
Fast CO test mode
Kitemarked to BS EN 50291:2001
2 Year guarantee (limited)

Product Description

The Ei204EN is a Carbon Monoxide (CO) alarm powered
by 9V battery power (supplied by 3 x AA alkaline
batteries). The CO alarm is housed in an attractive
slimline casing and can be easily secured to a wall or
ceiling – the fittings are supplied

The 204EN CO alarm uses a proven electrochemical cell
type sensor which checks CO concentration every 50
seconds. All units are individually calibrated and tested in
CO gas in order to ensure accuracy.

An easy to use Test/Hush button allows the user to
check that the horn and electronics are working and to
silence nuisance alarms

Operation

The green indicator will flash every minute to

indicate that the 9V battery supply is working

The horn will sound and the red indicator will flash at

different speeds to indicate the presence of various
levels of CO gas – slow flash indicating low levels
and rapid flash to indicate high levels

The horn will beep and the amber indicator flash

every minute to indicate a fault

The horn will beep and the green indicator flash

every minute to indicate that the batteries are
depleted

On power up the green, red and amber lights each

flash once – after 20 seconds, the green light
flashes every 4 seconds. At the end of the warm up
the red light flashes once

BATTERY POWERED 9V

Alkaline batteries (3 x AA)
supplied

Shannon Free Zone, Shannon, Co. Clare, Ireland.

Ph.+353 61 471277 Fx.+353 61 471053
Email. [e-mail]
Web: www.eielectronics.com

E & OE As our policy is one of continuous product development, we reserve the right to alter product details without prior notice. Ei204EN DataSht RevC

Model Ei204EN CO Alarm

Installation & Placement

To mount onto a wall or ceiling, simple remove the battery compartment and mark the position of the two mounting holes.
Drill two holes using a 6mm drill for the plastic plugs (supplied) and screw the unit home with the screws supplied

If locating the CO alarm in a room with an appliance

- the alarm should be located between 1m and 3m horizontally from the appliance and between 1.85m and 3m from the
appliance

- the alarm should be located preferably on the ceiling, at least 300mm from any wall

- if placed on a wall, the CO alarm should be as a high as possible but not within 150mm of the ceiling

If locating the CO alarm in a room remote from the appliance

- the alarm should be located at a level similar to the breathing zone of the occupant (typically 1.5m to 2m above floor
level and in bedrooms at the height of the bed)

More specific details are found in the Use & Care Instruction Booklet.

Technical Specification

Sensor Electrochemical sensor
Sensitivity: Meets BS EN50291:2001
Button Test: Checks the electronics and horn
Automatic Self-Test: Horn beep and amber fault light

flashes every minute if a fault is
found

Supply Voltage: 9 Volt Alkaline battery

Dimensions: 135 x 105 x 71 mm
Weight: 260g

Power-On Indicator: Flashing green LED every minute
Alarm: Electronic Piezoelectric horn
Alarm Sound Output: 85dB (minimum) at 3m
Alarm Status: Red LED flashes and horn sounds
Temperature Range: -5o to 40oC
Humidity Range: 15% to 95% Relative Humidity

Fixing: Simple screw fixings

Plastic material: UL94VO flame retardant
Warranty: 2 year (limited) warranty
Approvals: Kitemarked to BS EN50291:2001

Specifications are subject to change
