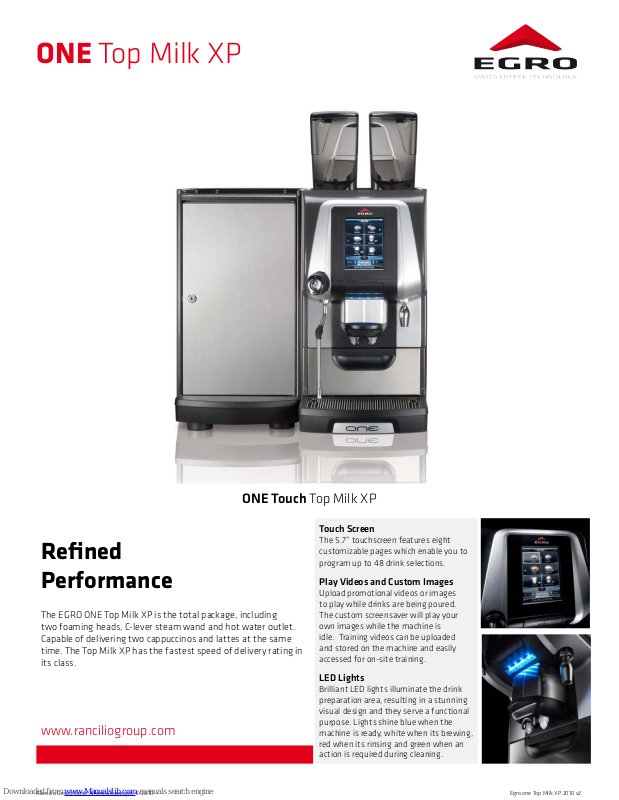

Page 1
ONE Top Milk XP
ONE Touch Top Milk XP
Touch Screen
The 5.7” touchscreen features eight
Refi ned
Performance
The EGRO ONE Top Milk XP is the total package, including
two foaming heads, C-lever steam wand and hot water outlet.
Capable of delivering two cappuccinos and lattes at the same
time. The Top Milk XP has the fastest speed of delivery rating in
its class.
www.ranciliogroup.com
Rancilio Group North America Copyright © 2010 Egro one Top Milk XP 2010 v2
customizable pages which enable you to
program up to 48 drink selections.
Play Videos and Custom Images
Upload promotional videos or images
to play while drinks are being poured.
The custom screensaver will play your
own images while the machine is
idle. Training videos can be uploaded
and stored on the machine and easily
accessed for on-site training.
LED Lights
Brilliant LED lights illuminate the drink
preparation area, resulting in a stunning
visual design and they serve a functional
purpose. Lights shine blue when the
machine is ready, white when its brewing,
red when its rinsing and green when an
action is required during cleaning.
Page 2
ONE Top Milk XP
Coffee, Hot Water, C-lever Steam & Milk
up to
250
espressos/h
Technical Data
Weight (kg/lb)
Standard Electrical Connection (v)
Standard Power Rating (kW)
Dimensions W x D x H (in)
Steam/Coffee Boiler (lt)
up to
250
cappuccinos/h
ONE Touch
Top Milk XP
86 / 190 86 / 190
230 / 110 230 / 110
6.7 / 0.5 6.7 / 0.5
24 x 23 x 31 24 x 23 x 31
1.9/0.5 1.9/0.5
ONE Keypad
Top Milk XP
Standard Features
Hot Water Outlet
Hot water temperature control system for tea
4-Tea /
C-Lever Steam / Manual steam wand
iSteam™ / Totally automatic intelligent steam wand
Simultaneous coffee, hot water and steam delivery
By-pass for Americanos
Number of Selectable Products
Second Grinder
Number of Boilers
ABM.07 / Electronic control of the boiler and water system
V-Flex / Voltage stablizer
Easy-Fix / Advanced diagnostics
Load & Show / Automatic start-up for loading graphics using USB
Functional Lights
Powder Inlet
Dura-Brew /
Milk Foamer Heads 22
Fridge
Included Optional - Not available
Patented brew unit sealing technology for extended life
up to 48 up to 16
22
-
-
Dual Milk Delivery
Due to the optimal dual pump
technology the Top Milk XP has
the highest milk drink output
rating in its class.
The patented milk line rinsing
system ensures the milk delivery
lines are always clean and only
the freshest milk is used to
make a drink.
Rancilio Group North America / 8102 S. Lemont Road #1200 / Woodridge, IL 60517 USA
Toll Free: 877-726-2454 / Tel: 630-427-1703 / Fax: 630-427-1713 / [email protected] / www.ranciliogroup.com
Rancilio Group North America Copyright © 2010 Egro one Top Milk XP 2010 v2
Dura-Brew
The ONE’s brew unit features
a patented Dura-Brew sealing
technology which extends
the life of the brew unit,
reducing the number of PM
visits needed and lowering the
cost of ownership. In most
applications only one PM per
year is needed.
