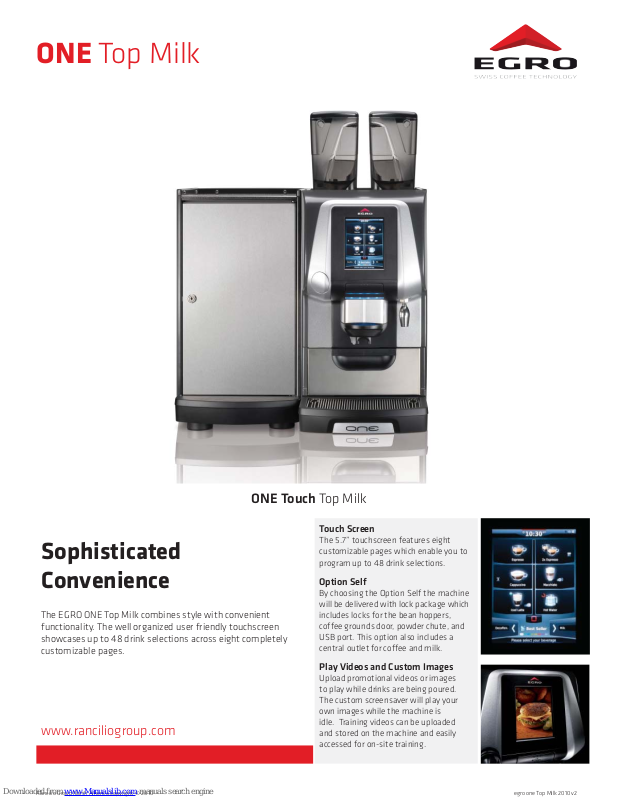

Page 1
ONE Top Milk
ONE Touch Top Milk
Touch Screen
The 5.7” touchscreen features eight
Sophisticated
Convenience
The EGRO ONE Top Milk combines style with convenient
functionality. The well organized user friendly touchscreen
showcases up to 48 drink selections across eight completely
customizable pages.
www.ranciliogroup.com
Rancilio Group North America Copyright © 2010 egro one Top Milk 2010 v2
customizable pages which enable you to
program up to 48 drink selections.
Option Self
By choosing the Option Self the machine
will be delivered with lock package which
includes locks for the bean hoppers,
coffee grounds door, powder chute, and
USB port. This option also includes a
central outlet for coffee and milk.
Play Videos and Custom Images
Upload promotional videos or images
to play while drinks are being poured.
The custom screensaver will play your
own images while the machine is
idle. Training videos can be uploaded
and stored on the machine and easily
accessed for on-site training.
Page 2
ONE Top Milk
Coffee, Hot Water, & Milk
up to
250
espressos/h
Technical Data
Weight (kg/lb)
Standard Electrical Connection (v)
Standard Power Rating (kW)
Dimensions W x D x H (in)
Steam/Coffee Boiler (lt)
up to
150
cappuccinos/h
ONE Touch
Top Milk
86 / 190 86 / 190
230 / 110 230 / 110
6.7 / 0.5 6.7 / 0.5
24 x 23 x 31 24 x 23 x 31
1.9/0.5 1.9/0.5
ONE Keypad
Top Milk
Standard Features
Hot Water Outlet
Hot water temperature control system for tea
4-Tea /
C-Lever Steam / Manual steam wand
iSteam™ / Totally automatic intelligent steam wand
Simultaneous coffee, hot water and steam delivery
By-pass for Americanos
Number of Selectable Products
Second Grinder
Number of Boilers
ABM.07 / Electronic control of the boiler and water system
V-Flex / Voltage stablizer
Easy-Fix / Advanced diagnostics
Load & Show / Automatic start-up for loading graphics using USB
Functional Lights
Powder Inlet
Dura-Brew /
Milk Foamer Heads 11
Fridge
Included Optional - Not available
Patented brew unit sealing technology for extended life
up to 48 up to 16
22
-
-
LED Lights
Brilliant LED lights illuminate the
drink preparation area, resulting
in a stunning visual design and
they serve a functional purpose.
Lights shine blue when the
machine is ready, white when its
brewing, red when its rinsing and
green when an action is required
during cleaning.
Rancilio Group North America / 8102 S. Lemont Road #1200 / Woodridge, IL 60517 USA
Toll Free: 877-726-2454 / Tel: 630-427-1703 / Fax: 630-427-1713 / [email protected] / www.ranciliogroup.com
Rancilio Group North America Copyright © 2010 egro one Top Milk 2010 v2
Dura-Brew
The ONE’s brew unit features
a patented Dura-Brew sealing
technology which extends
the life of the brew unit,
reducing the number of PM
visits needed and lowering the
cost of ownership. In most
applications only one PM per
year is needed.
