LINE TRIMMER
OPERATOR'S MANUAL
56 VOLT LITHIUM-ION
CORDLESS LINE TRIMMER
MODEL NUMBER STX3800
WARNING: To reduce the risk of injury, the user must read and understand the
Operator’s Manual before using this product. Save these instructions for future reference.
A
5. Trimmer Line
3. Threshold Ring
4. Loop handle
1. Socket
2. Lock-off Lever
9. Rear handle
8. Trigger
7. Shaft
6. Guard Assembly
10. Trimmer Head
(Bump head)
12. Line-cutting
blade
11. Release tab
15.Out ange
(These all for brushcutter head only)
B C
17. Combi-wrench
18. Allen key
13. Safety barrier bar
14. Locking pole for
safety barrier bar
16. Nut
Loop
handle
Clamping
block
Wing nut
ED
Locking pole
Safety barrier bar
(Only for brushcutter
head)
F G
H I
Inner Flange
J K1
Upper Housing ASSY
Flange Cover
Nut
Spring
Cutting Line
Lower
Housing
ASSY
Spool Retainer
K2
K3
K4 K5
L1
L3
N O1
L2
M
Lock-off Lever
Switch Trigger
Locking tongue
11cm
O2 O4
13cm
O3
READ ALL INSTRUCTIONS!
38cm
15m
READ OPERATOR’S MANUAL
Residual risk! People with electronic devices, such
as pacemakers, should consult their physician(s) before
using this product. Operation of electrical equipment
in close proximity to a heart pacemaker could cause
interference or failure of the pacemaker.
WARNING: To ensure safety and reliability, all
repairs and replacements should be performed by a
qualied service technician.
SAFETY SYMBOLS
The purpose of safety symbols is to attract your attention
to possible dangers. The safety symbols and the
explanations with them deserve your careful attention and
understanding. The symbol warnings do not, by themselves,
eliminate any danger. The instructions and warnings they
give are no substitutes for proper accident prevention
measures.
WARNING: Be sure to read and understand
all safety instructions in this Operator’s Manual,
including all safety alert symbols such as “DANGER,”
“WARNING,” and “CAUTION” before using this tool.
Failure to follow all instructions listed below may
result in electric shock, re, and/or serious personal
injury.
SYMBOL MEANING
SAFETY ALERT SYMBOL: Indicates DANGER,
WARNING, or CAUTION. May be used in conjunction
with other symbols or pictographs.
WARNING: The operation of any power tools can
result in foreign objects being thrown into your eyes,
which can result in severe eye damage. Before beginning
power tool operation, always wear safety goggles or
safety glasses with side shields and a full face shield
when needed. We recommend a Wide Vision Safety Mask
for use over eyeglasses or standard safety glasses with
side shields.
SAFETY INSTRUCTIONS
This page depicts and describes safety symbols that may
appear on this product. Read, understand, and follow
all instructions on the machine before attempting to
assemble and operate it.
2.4mm
Safety Alert
Read
Operator’s
Manual
Wear Eye
Protection
Wear Ear
Protection
Wear Head
Protection
Line
Diameter
Cutting
Width
Wear
Protective
Gloves
Wear
Safety
Footwear
Beware
of blade
thrust
Do Not
Expose To
Rain
Ricochet
and Keep
Bystanders
Away
Keep
Bystanders
Away
Precautions that involve your
safety.
To reduce the risk of
injury, user must read and
understand operator’s
manual before using this
product.
Always wear safety goggles
or safety glasses with side
shields and a full face shield
when operating this product.
Always wear ear protection
when operating this product.
Wear an approved safety
hard hat to protect your
head.
The Diameter of the nylon
cutting line
The Max. cutting width of
line trimmer
Protect your hands with
gloves when handling blade
or blade guard.
Wear non-slip safety
footwear when using this
equipment.
Warn the operator of the
danger of blade thrust.
Do not use in the rain or
leave outdoors while it is
raining.
Thrown objects can ricochet
and result in personal injury
or property damage. Ensure
that other people and pets
remain away from the
brushcutter when it is in use.
Ensure that other people and
pets remain at least 15m
away from the line trimmer
when it is in use.
56 VOLT LITHIUM-ION CORDLESS LINE TRIMMER — STX38006
No round
blade
Noise Sound pressure level
XX
NOISE dB
WEEE
IPX5 IP Symbol
V Volt Voltage
No Load
n
0
Speed
-1
Per Minute Revolutions per minute
min
Direct
Current
Kg Kilogram Weight
GENERAL POWER TOOL SAFETY WARNINGS
WARNING: Read all safety warnings,
instructions, illustrations and specications
provided with this power tool. Failure to follow all
instructions listed below may result in electric shock,
re and/or serious injury.
Save all warnings and instructions for future
reference.
The term “power tool” in the warnings refers to your
mains-operated (corded) power tool or batteryoperated (cordless) power tool.
WORK AREA SAFETY
Do not install round cutting
blades.

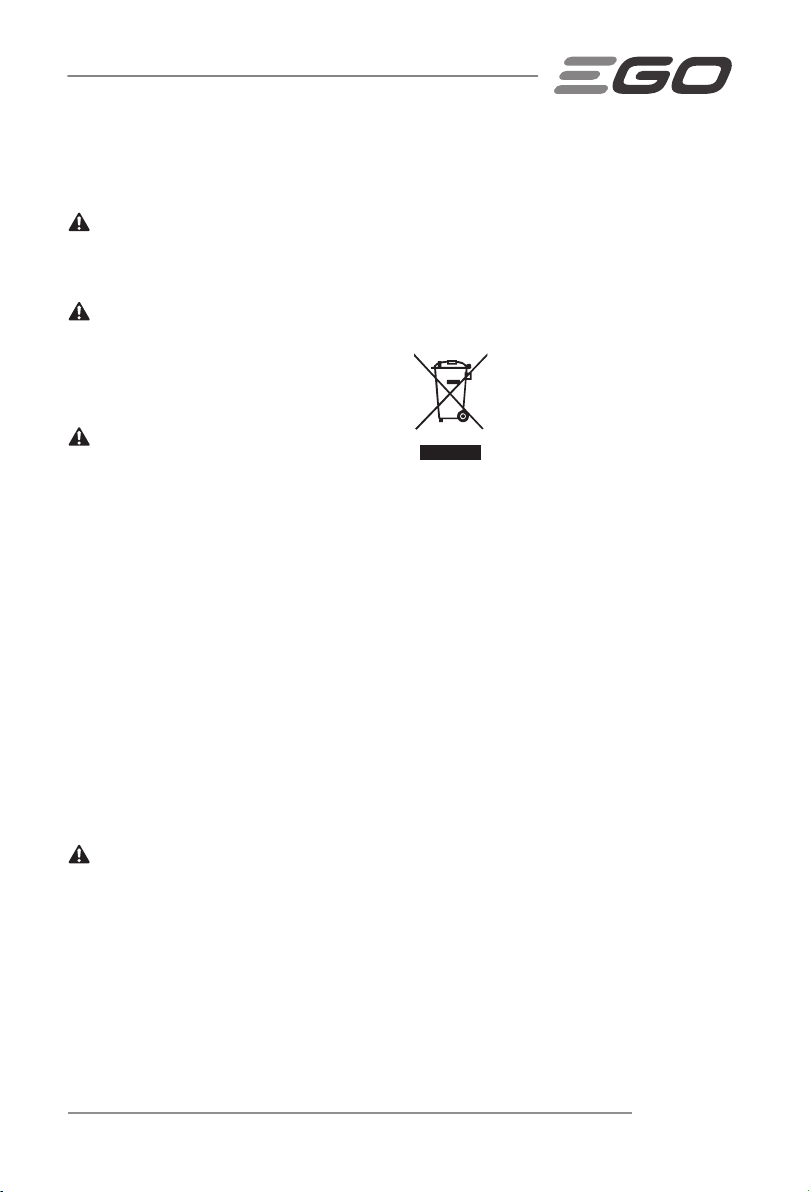

Waste electrical products
should not be disposed of
with household waste. Take
to an authorized recycler.
Protection against ingress of
water degree 5
Rotational speed, at no load
Type or a characteristic of
current
◾ Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
◾ Do not operate power tools in explosive atmospheres,
such as in the presence of ammable liquids, petrols
or dust. Power tools create sparks which may ignite
the dust or fumes.
◾ Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
PERSONAL SAFETY
◾ Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the inuence of drugs, alcohol medication. A
moment of inattention while operating power tools may
result in serious personal injury.
◾ Use personal protective equipment. Always wear
eye protection. Protective equipment such as a dust
mask, non-skid safety shoes, hard hat or hearing
protection used for appropriate conditions will reduce
personal injuries.
◾ Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your nger on the
switch or energising power tools that have the switch
on invites accidents.
◾ Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result
in personal injury.
◾ Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
◾ Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewelry or long hair
can be caught in moving parts.
◾ If devices are provided for the connection of dust
extraction and collection facilities, ensure these
are connected and properly used. Use of dust
devices can reduce dust-related hazards.
◾ Do not let familiarity gained from frequent use of
tools allow you to become complacent and ignore
tool safety principles. A careless action can cause
severe injury within a fraction of a second.
POWER TOOL USE AND CARE
◾ Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
◾ Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be
repaired.
56 VOLT LITHIUM-ION CORDLESS LINE TRIMMER — STX3800
7
◾ Remove the battery pack, if detachable, from the
power tool and/or activate any battery disabling
device before clearing jammed material, making
any adjustments, changing accessories, cleaning,
or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool
accidentally.
◾ Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the
power tool or these instructions to operate the
power tool. Power tools are dangerous in the hands of
untrained users.
◾ Maintain power tools and accessories. Check for
misalignment or binding of moving parts, breakage
of parts and any other condition that may affect
the power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents are
caused by poorly maintained power tools.
◾ Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
◾ Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations different
from those intended could result in a hazardous situation.
◾ Keep handles and grasping surface dry, clean
and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and
control of the tool in unexpected situations.
◾ Keep cables away from the working area of the
tool. During operation cables may be hidden from view
and can be accidentally damaged by the tool.
BATTERY TOOL USE AND CARE
◾ Recharge only with the charger specied by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of re when used with
another battery pack.
◾ Use power tools only with specically designated
battery packs. Use of any other battery packs may
create a risk of injury and re.
◾ When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause
burns or a re.
◾ Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, ush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation
or burns.
◾ Do not use a battery pack or tool that is damaged
or modied. Damaged or modied batteries may
exhibit unpredictable behavior resulting in re,
explosion or risk of injury.
◾ Do not expose a battery pack or tool to re
or excessive temperature. Exposure to re or
temperature above 100 °C may cause explosion.
◾ Follow all charging instructions and do not charge
the battery pack or tool outside the temperature
range specied in the instructions. Charging
improperly or at temperatures outside the specied
range may damage the battery and increase the risk
of re.
SERVICE
◾ Have your power tool serviced by a qualied repair
person using only identical replacement parts.
This will ensure that the safety of the power tool is
maintained.
◾ Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorised service providers.
WARNING: Read all safety warnings,
instructions, illustrations and specications
provided with this power tool. Failure to follow all
instructions listed below may result in electric shock,
re and/or serious injury.
Save all warnings and instructions for future
reference.
TRAINING
◾ Read the instructions carefully. Be familiar with the
controls and the proper use of the machine.
◾ Never allow people unfamiliar or children with these
instructions to use the appliance. Local regulations can
restrict the age of the operator.
◾ Keep in mind that the operator or user is responsible for
accidents or hazards occurring to other people or their
property.
PREPARATION
◾ Never operate the machine while people, especially
children, or pets are nearby.
◾ Wear eye protection and stout shoes at all times while
operating the machine.
56 VOLT LITHIUM-ION CORDLESS LINE TRIMMER — STX38008
◾ The distance between the machine and bystanders shall
be at least 15m.
◾ Never operate the machine while the operator is tired, ill
or under the inuence of alcohol or other drugs.
OPERATION
◾ Use the machine only in daylight or good articial light.
◾ Never operate the machine with damaged guards or
shields or without guards or shields in place.
◾ Switch on the motor only when the hands and feet are
away from the cutting means.
◾ Always disconnect the machine from the power supply
(i.e. remove the battery pack).
◾ whenever leaving the machine unattended;
◾ before clearing a blockage;
◾ before checking, cleaning or working on the
machine.
◾ after striking a foreign object;
◾ whenever the machine starts vibrating abnormally.
◾ Take care against injury to feet and hands from the
cutting means.
◾ Always ensure that the ventilation openings are kept
clear of debris.
MAINTENACE AND STORAGE
◾ Disconnect the machine from the power supply
(i.e. remove the battery pack) before carrying out
maintenance or cleaning work.
◾ Use only the manufacturer’s recommended
replacement parts and accessories.
◾ Inspect and maintain the machine regularly. Have the
machine repaired only by an authorised repairer.
◾ When not in use, store the machine out of the reach
of children.
OTHER SAFETY WARNINGS
◾ Avoid Dangerous Environments – Don’t use
appliances on damp or wet slope.
◾ Keep guards in place and in working order.
◾ Keep hands and feet away from the cutting area.
◾ To reduce the risk of injury, never work on a ladder
or on any other insecure support. Never hold the
cutting unit above waist height.
◾ Check the cutting unit at regular short intervals
during operation, or immediately if there is a
noticeable change in cutting behavior.
◾ For best results, your battery should be charged in
a location where the temperature is greater than
5° C and less than 40° C. Do not store it outside or
in vehicles.
◾ If you are approached, stop the motor and cutting
unit.
◾ Warn the operator of the danger of blade thrust
(only using with 3-teeth blade).
◾ Blade thrust may occur when the spinning blade
contacts an object that it does not immediately cut.
◾ Blade thrust can be violent enough to cause the unit
and/or operator to be propelled in any direction, and
possibly lose control of the unit.
◾ Blade thrust can occur without warning if the blade
snags, stalls or binds.
◾ Blade thrust is more likely to occur in areas where it
is difcult to see the material being cut.
◾ Do not attach any blade to a unit without proper
installation of all required parts. Failure to use the
proper parts can cause the blade to y off and
seriously injure the operator and/or bystanders.
Discard blades that are bent, warped, cracked,
broken, or damaged in any way. Use a sharp blade
A dull blade is more likely to snag and thrust (only
using with 3-teeth blade).
◾ A coasting blade/line can cause injury while it
continues to spin after the motor is stopped or
trigger is released. Maintain proper control until
the blade/line has completely stopped rotating.
◾ Use only with EGO’s battery packs and chargers listed
below:
BATTERY PACK CHARGER
BAX1500 BH1000 CHX5500E
◾ Battery tools do not have to be plugged into an
electrical outlet; therefore, they are always in
operating condition. Be aware of possible hazards
even when the tool is not operating. Take care when
performing maintenance or service.
◾ Do not wash with a hose; avoid getting water in
motor and electrical connections.
◾ If situations occur that are not covered in this
manual, use care and good judgment. Contact the
EGO Customer Service Center for assistance.
SAVE THESE INSTRUCTIONS!
56 VOLT LITHIUM-ION CORDLESS LINE TRIMMER — STX3800
9
SPECIFICATIONS
Voltage
No-load Speed Up to 5800 /min
Cutting Mechanism Bump Head
Cutting Line Type
Cutting Width 38 cm
Recommended Operating
Temperature
Recommended Storage Temperature -20°C-70°C
Weight (without battery pack) 5.8 kg
Guaranteed sound power level 70dB(A)
56 V
2.4mm nylon
twist line
0°C-40°C
PACKING LIST
PART NAME
Line Trimmer
Guard assembly
Loop handle assembly
Safety barrier bar
Locking pole for safety barrier bar
Screw
Combi-wrench
Allen key
Operator’s manual
Out ange
Nut
QUANTITY
1
1
1
1
1
2
1
1
1
1
1
7. Shaft
8. Trigger
9. Rear handle
10. Trimmer Head(Bump head)
11. Release tab
12. Line-cutting blade
13. Safety barrier bar (For brushcutter head only)
14. Locking pole for safety barrier bar (For brushcutter
head only)
15. Out ange (For brushcutter head only)
16. Nut (For brushcutter head only)
17. Combi-wrench
18. Allen key
ASSEMBLY
WARNING: If any parts are damaged or missing,
do not operate this product until the parts are
replaced. Use of this product with damaged or missing
parts could result in serious personal injury.
WARNING: Do not attempt to modify this product
or create accessories not recommended for use with
this line trimmer. Any such alteration or modication
is misuse and could result in a hazardous condition
leading to possible serious personal injury.
WARNING: To prevent accidental starting that
could cause serious personal injury, always unplug the
batter y connector from the socket when assembling
parts.
WARNING: When the tool is equipped with
brushcutter head, the safety barrier bar should be
mounted.
MOUNTING THE GUARD
DESCRIPTION
KNOW YOUR LINE TRIMMER (Fig. A)
1. Socket
2. Lock-off Lever
3. Threshold Ring
4. Loop handle
5. Trimmer Line
6. Guard Assembly
56 VOLT LITHIUM-ION CORDLESS LINE TRIMMER — STX380010
WARNING: Always wear gloves when mounting
or replacing the guard. Take care of the blade on the
guard and protect your hand from cutting.
WARNING: Never operate the tool without the
guard rmly in place. The guard must always be on
the tool to protect the user! When the guard is xed,
never attempt to remove or adjust the guard, if a
replacement is needed, it should be performed by a
qualied service technician!
Loosen and remove the two screws from the guard
(Fig. B), align the guard mounting holes with the assembly
holes and then lock the guard onto the shaft base with the
two screws, together with two spring washers (Fig. C).
WARNING: Make sure the guard is xed
according to Fig. B & C, any reverse xing will cause
great danger!
MOUNTING AND ADJUSTING THE LOOP HANDLE
1. Stop the motor and unplug the battery connector
from the socket., if installed.
2. Loosen the wing nut to separate the adjustable loop
handle (Fig. D).
NOTICE: Install the safet y barrier bar assembly onto
the loop handle with the two screws when the tool is
equipped with brushcutter head.
NOTICE: There are two kinds of locking pole, the
shorter one is for trimmer head. The longer one is for
brushcut ter head. Be carefully to choose the correct
locking pole when using the tool.
3. Push the loop handle onto the shaft at the front of
threshold ring. Never place it between the threshold
ring and rear handle area.(Fig. E).
NOTICE: Adjust the loop handle bet ween the threshold
ring and the warning label when the tool is equipped
with brushcutter head (Fig. F).
4. Insert the clamping block into the handle slot
(Fig. G).
5. Mount the locking pole, and pre-tighten them with
the wing nut. Make sure that the loop handle is
upwards and points toward the top of the rear handle
(Fig. H).
6. Adjust the loop handle between the threshold ring
and the label until nd the comfortable position when
using the trimmer. .
7. Lock the lever of the locking pole (Fig. I).
WARNING: Never operate the tool without the
loop handle rmly in place.
1. Press the release tabs on the spool retainer and
remove the spool retainer by pulling it straight out
(Fig. K1 & K2).
2. Rotate the upper housing assembly to align the slot
in the ange with the shaft-locking hole in the gear
case and insert a stabiliser into the hole (Fig. K3).
3. Rotate the socket wrench clockwise to remove the
nut and upper housing assembly (Fig. K4).
4. Remove the guard accessory by loosening the three
screws with washer (Fig. K5).
NOTICE: To protect against injury, you have to wear
gloves prior to any operation with the 3-teeth blade.
5. Mount the inner ange and ange cover into its place
(Fig. L1).
6. Mount the blade onto the motor shaft, ensuring
that the surface of the blade is ush with the
surface of the inner ange bulge. Mount the outer
ange and the nut (Fig. L2). Pre-tighten the nut in a
COUNTERCLOCKWISE direction by hand.
7. Position the gear case against a solid surface for
support. With one hand hold the brushcutter shaft
and the other hand grasp the multi-function wrench
to tighten the nut following the directional arrow icon
marked on the outer ange (Fig. L3).
OPERATION
WARNING: Do not allow familiarity with this
product to make you careless. Remember that a
careless fraction of a second is sufcient to inict
serious injury.
WARNING: Always wear eye protection, along
with hearing protection. Failure to do so could result in
objects being thrown into your eyes and other possible
serious injuries.
WARNING: Do not use any attachments or
accessories not recommended by the manufacturer of
this product. The use of attachments or accessories
not recommended can result in serious personal injury.
WARNING: Only x the loop handle between the
threshold ring and the label.
REPLACE THE TRIMMER HEAD WITH THE 3-TEETH
BLADE
Know the trimmer head as Fig. J shown. Then
disassemble the trimmer head and mount the 3-teeth
blade on the brushcutter.
56 VOLT LITHIUM-ION CORDLESS LINE TRIMMER — STX3800
WARNING: To prevent serious personal injury,
unplug the battery connector from the socket before
servicing, cleaning, changing attachments or removing
material from the unit.
You may use this product for the purposes listed below:
Trimming: used for removing grass and weeds up against
walls, fences, trees and borders.
11
Cutting: used for cutting the grass that is difcult to
reach using a normal mower.
NOTICE: The tool is to be used only for its prescribed
purpose. Any other use, for example hedge trimming,
is deemed to be a case of misuse.
ATTACHING/DETACHING THE BATTERY CABLE
Fully charge before rst use.
To Install Battery cable (Fig.M)
Align of plug with of line trimmer. Insert the plug into
the machine until the green seal completely disappeared
into the socket.
To Remove
Release the battery cord from the mounting groove and pull
out the plug from the line trimmer.
STARTING/STOPPING THE LINE TRIMMER (Fig. N)
To Start
Push the lock-off Lever to position “ON”, push the locking
tongue forward then depress the switch trigger. The trigger
is stepless speed adjusting. The more you pull up the
trigger, the higher speed it is.
To Stop
Release the switch trigger and push the lock-off button
back to position “OFF”.
WARNING: Always unplug the battery connector
from the socket during work breaks and after nishing
work.
USING THE LINE TRIMMER
WARNING: To avoid serious personal injury, wear
goggles or safety glasses at all times when operating
this unit. Wear a face mask or dust mask in dusty
locations.
Clear the area to be cut before each use. Remove all
objects, such as rocks, broken glass, nails, wire, or line,
that can be thrown or become entangled in the cutting
attachment. Clear the area of children, bystanders,
and pets. At a minimum, keep all children, bystanders
and pets at least 15m away; there still may be risk to
bystanders from thrown objects. Bystanders should be
encouraged to wear eye protection. If you are approached,
stop the motor and cutting attachment immediately.
Before each use, check for damage/worn parts
Check the bump head, guard and loop handle and replace
the parts that are cracked, warped, bent, or damaged in
any away.
The line-cutting blade on the edge of the guard can
dull over time. It is recommended that you periodically
sharpen it with a le or replace it with a new blade.
After each use, clean the trimmer.
CAUTION: Obstructions in the vents will prevent
the air from owing into the motor housing and result in
overheating or damaged of the motor.
◾ Use only mild soap and a damp cloth to clean the tool.
Never let any liquid get inside the tool; never immerse
any part of the tool into a liquid.
◾ Keep air vents in the motor housing from debris at all
times.
WARNING: Never use water for cleaning your
trimmer. Avoid using solvents when cleaning plastic
parts. Most plastics are susceptible to damage from
various types of commercial solvents. Use clean cloths
to remove dirt, dust, oil, grease, etc.
ADJUSTING CUTTING LINE LENGTH
The trimmer head allows the operator to release more
cutting line without stopping the motor. As line becomes
frayed or worn, additional line can be released by lightly
tapping the bump knob on the ground while operating the
trimmer.
NOTICE: Line release will become more difcult if the
cutting line becomes too short.
WARNING: Do not remove or alter the line-
cutting blade assembly. Excessive line length will
cause the motor to overheat and may result in serious
personal injury.
Line replacement
NOTICE:
Always use the recommended nylon cutting
line with a diameter that does not exceed 3.0 mm.
Using line other than that specied may cause the line
trimmer to overheat or become damaged
WARNING: Never use metal-reinforced line,
wire, or rope, etc. These can break off and become
dangerous projectiles.
1. Press the release tabs on the spool retainer and pull
the spool retainer out (Fig. K1 & K2).
2. Fold and wind trimmer line onto the spool as Fig.
O1 shown. Then place the line ends through the two
opposite notches in the spool (Fig. O2)
3. Place the spool into its retainer with notches aligned
with retainer eyelets (Fig. O3).
.
56 VOLT LITHIUM-ION CORDLESS LINE TRIMMER — STX380012
4. Align the retainer slots with the tabs on the spool
base and press the retainer evenly, ensuring that it
snaps into place (Fig.O4).
MAINTENANCE
WARNING: When servicing, use only identical
replacement parts. Inspect and maintain the machine
regularly. To ensure safet y and reliability, all repairs
should be performed by a qualied service technician.
WARNING: Battery tools do not have to be
plugged into an electrical outlet; therefore, they are
always in operating condition. To prevent serious
personal injury, take extra precautions and care when
performing maintenance, service or for changing the
cutting attachment or other attachments.
WARNING: To prevent serious personal injury,
unplug the battery connector from the socket before
servicing, cleaning, changing add-on attachments or
removing material from the unit.
LUBRICATE THE GEAR CASE
For best operation and longer lifetime, lubricate the gear
case with a special grease (4-5g each time) af ter every
50 hours operation.
The special grease should meet the following
requirements.
1. Belong to DIN51818: NLGI-1 cone penetration
degree.
2. Ester base grease.
3. Excellent low-temperature startup, EP, mechanical
shearing, abrasion resistance and oxidative stability
properties.
4. Operation temperature must contain -40~180°C.
Remove the battery plug and the sealing screw.
Lubricating the gear case through the oil-hole.
WARNING: Do not lubricate while the brushcutter is
still connected with battery or running.
CLEANING THE UNIT
◾ Clean the unit using a damp cloth with a mild detergent.
◾ Do not use any strong detergents on the plastic
housing or the handle. They can be damaged by certain
aromatic oils, such as pine and lemon, and by solvents
such as kerosene. Moisture can also cause a shock
hazard. Wipe off any moisture with a soft dry cloth.
STORING THE UNIT
◾ Unplug the battery connector from the socket from the
line trimmer when it is not in use.
◾ Clean the tool thoroughly before storing it.
◾ Store the unit in a dry, well-ventilated area, locked-up
or up high, out of the reach of children. Do not store
the unit on or adjacent to fertilisers, petrol, or other
chemicals.
◾ Use of a transport cover for metal blades during
transport and storage.
Protecting the environment
Do not dispose of electrical appliances
as unsorted municipal waste, use
separate collection facilities.
Contact your local government for
information regarding the collection
systems available.
If electrical appliances are disposed
of in landlls or dumps, hazardous
substances can leak into the
groundwater and get into the food
chain, damaging your health and
well-being.
56 VOLT LITHIUM-ION CORDLESS LINE TRIMMER — STX3800
13
TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
Fail to start
Stop working
The cutting line
can’t be released.
Grass wraps around
trimmer head and
motor housing
◾ The battery pack is not attached
to the line trimmer.
◾ No electrical contact between
the trimmer and battery.
◾ The battery pack is depleted. ◾ Charge the battery pack.
◾ The guard is not mounted on the
trimmer, resulting in an overly
long cutting line and motor
overload.
◾ Heavy cutting line is used. ◾ Use recommended nylon cutting line with diameter
◾ The motor shaft or trimmer head
is winded with grass.
◾ The motor is overloaded. ◾ The machine will recover when the load is
◾ The battery pack or line trimmer
is too hot.
◾ The connector of battery pack is
disconnected from the tool.
◾ The battery pack is depleted. ◾ Charge the battery pack.
◾ The motor shaft or trimmer head
is wound with grass.
◾ There is not enough line in the
trimmer head.
◾ The trimmer head is dirty. ◾ Remove the battery and clean the lower cover
◾ Line is tangled in the trimmer
head
◾ The line is too short. ◾ Remove the battery and pull the lines while
◾ Cutting tall grass at ground
level.
◾ Attach the battery pack to the line trimmer.
◾ Re insert the battery pack with the specied
charger.
◾ Unplug the battery connector from the socket and
mount the guard on the trimmer.
no greater than 3.0mm.
◾ Stop the trimmer, remove the battery, and remove
the grass from the shaft and trimmer head.
removed. For continuous working, reduce the load
of the machine.
◾ Allow the battery pack or trimmer to cool until the
temperature drops below 67°C.
◾ Re-plug in the connector again.
◾ Stop the trimmer, remove the battery and remove
the grass from the motor shaft and trimmer head.
◾ Remove the battery and replace the cutting line;
follow the section “LINE REPLACEMENT” in this
manual.
assembly, spool and upper cover.
◾ Remove the battery, remove the line from the
spool and rewind; follow the section “LINE
REPLACEMENT” in this manual.
alternately pressing down on and releasing the
trimmer head.
◾ Cut out the weeds into several sections from top to
ground level.
56 VOLT LITHIUM-ION CORDLESS LINE TRIMMER — STX380014
WARRANTY
EGO WARRANTY POLICY
1 year warranty on EGO outdoor power equipment and 1 year warranty on EGO Power+ System battery packs and
chargers.
Please contact EGO customer service on Australia 1300 000 EGO(1300 000 346),
New Zealand 0508 000 EGO (0508 000 346) any time you have questions or warranty claims.
LIMITED SERVICE WARRANTY
FOR ONE YEAR from the date of original retail purchase, this EGO product is warranted against defects in material or
workmanship. Defective product will receive free repair.
FOR ONE YEAR from the date of original retail purchase, the EGO Power+ System battery pack and charger are
warranted against defects in material or workmanship. Defective product will receive free repair.
This warranty does not cover the blade, which is a part that can wear out from normal use within the warranty period.
◾ This warranty applies only to the original purchaser at retail and may not be transferred.
◾ The warranty period for any EGO product or part used for industrial, professional or commercial purpose is one year.
◾ This warranty is void if the product has been used for rental purpose.
◾ This warranty does not cover the damage resulting from modication, alteration or unauthorised repair.
◾ This warranty only covers defects arising under normal usage and does not cover any malfunction, failure or defect
resulting from misuse, abuse (including overloading of the product beyond capacity and exposure to water or rain),
accidents, neglect or lack of proper installation, and improper maintenance or storage.
◾ This warranty does not cover normal deterioration of the exterior nish, including but not limited to scratches, dents,
paint chips, or to any corrosion or discoloring by heat, abrasive and chemical cleaners.
HOW TO OBTAIN SERVICE
For warranty service, please contact EGO customer service on Australia 1300 000 EGO(1300 000 346),
New Zealand 0508 000 EGO (0508 000 346). When requesting warranty service, you must present the original dated
sales receipt. An authorised service center will be selected to repair the product according to the stated warranty terms.
ADDITIONAL LIMITATIONS
Chervon Australia Pty Ltd ABN 36 165 077 501(“Chervon”) warrants to the original domestic purchaser that this product
will be free from defects in materials and workmanship for 1 year from date of purchase, and any battery or charger will
be free from defects in materials and workmanship for 1 year from date of purchase. To make a claim, return the faulty
item together with proof of purchase directly to your closest service agent or to the place of purchase. Any handling and
transportation costs (and other expenses incurred in claiming this warranty) are not covered by this warranty and will
not be borne by Chervon. The replacement product or part or repaired product will be made available for your collection
at an address nominated by Chervon. Where a valid warranty claim is made, Chervon will replace the defective product
or repair the fault. Where the product is repaired, Chervon may use refurbished parts. This warranty does not cover
normal wear and tear, misuse or abuse. This warranty may also be further limited or voided as specically detailed in
the product Manual. Chervon has no other liability under this warranty.The benets to you given by this warranty are
in addition to other rights and remedies imposed by State and Federal legislation that cannot be excluded. Our goods
come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or
refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled
to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a
major failure. Chervon Australia Pty Ltd, Unit 14, 5 Kelletts Road, Rowville, VIC 3178.
Phone Number: Australia 1300 000 EGO(1300 000 346), New Zealand 0508 000 EGO (0508 000 346).
Email address: support@egopowerplus.com.au.
56 VOLT LITHIUM-ION CORDLESS LINE TRIMMER — STX3800
15
Loading...
