EGO TS Installation Instructions Manual
Installation instructions
Toyota Hiace
128 8229 1.02
(Built from 1996)
GB
English
EGO TS
Table of contents
1 Introduction / Preface ................................................................... 3
2 Safety Instructions ...................................................................... 4
3 Conformity statement ................................................................. 5
4 Scope of Delivery / Package content ........................................... 6
5 Installation instructions .............................................................. 7
5.1 Preparation ............................................................................................ 7
5.2 Installation locations ............................................................................. 7
5.2.1 Checking cable lengths ................................................................................................ 7
5.2.2 Selection of the installation location for the electronics box ...................................... 7
5.2.3 Selection of the point of installation for the microphone ............................................ 8
5.3 Mounting Components ........................................................................... 9
5.3.1 Mounting the electronics box ....................................................................................... 9
5.3.2 Mounting the microphone ............................................................................................ 9
5.4 Connection Concept ............................................................................... 10

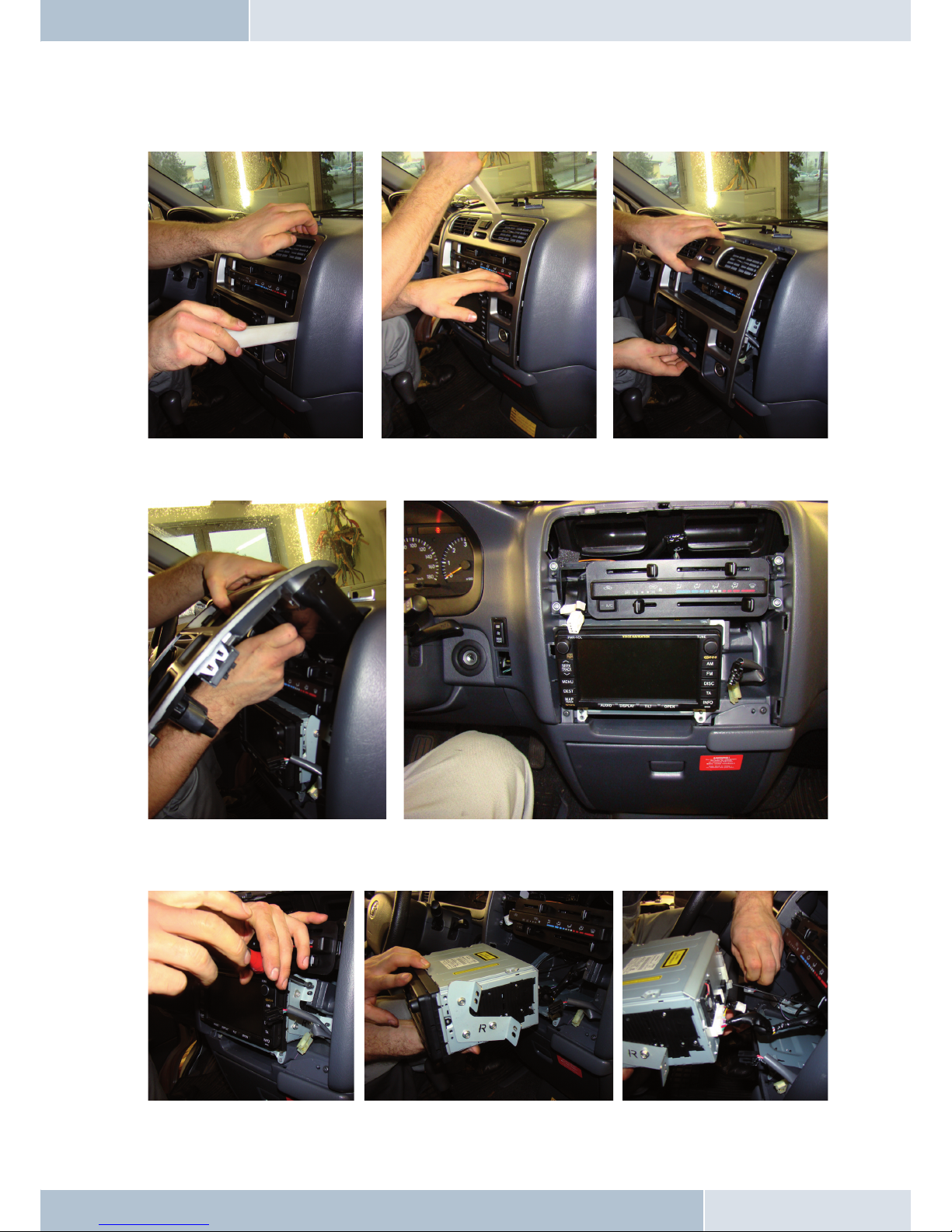

5.5 Installation of the components .............................................................. 10
5.6 Functional Test ...................................................................................... 15
5.7 Symbols ................................................................................................. 15
5.7.1 Key functions ................................................................................................................ 15
5.8 Getting started ....................................................................................... 15
5.8.1 On / Off function ........................................................................................................... 15
5.8.2 Coupling ........................................................................................................................ 16
5.8.3 Automatic coupling ....................................................................................................... 16
5.8.4 LED status .................................................................................................................... 16
6 Troubleshooting .......................................................................... 17
7 Spares and accessories .............................................................. 18
8 Technical specifications .............................................................. 19
9 Certification ................................................................................ 19
10 Hotline ......................................................................................... 20
Introduction / Preface1
Congratulations on your new EGO!
EGO TS is the intelligent entry-level solution for telephone use in your car: simple to operate,
elegant and compact – with Bluetooth and audio enjoyment too.
The installation of your EGO TS in your car requires specialist knowledge and skills. We recommend that the installation be carried out in a qualified professional workshop.
Before installation in your car, please make sure that your mobile phone is fully compatible with
EGO TS. If you are uncertain, please consult your dealer or a professional workshop. Our service
team will also be happy to help you with any information you may require. You can find further
information on compatibility between EGO TS and various mobile phones on our website.
2 | 3
EGO TS
Safety Instructions2
Incorrect installation1. – Incorrect installation may lead to damage to the units and/or your
car! Special knowledge and skills are required for installing the system. We strongly recommend that the system be installed by a qualified professional workshop.
2. Risk of injury – Unsuitable installation locations may become a source of injury in an acci-
dent situation, or may inhibit the correct functioning of essential safety equipment. Please
read the notes in the „Installation“ chapter carefully!
3. Risk of injury/material damage – the removal of cladding within the vehicle with sharp or
pointed tools may lead to injuries or material damage.
4. Road safety risk – Distracted attention can lead to dangerous situations in traffic. Even
when using hands-free phone sy stems, your complete attention must be concentrated on
your driving and other road users. It is always advisable to do without phone calls in difficult traffic situations!
5. Damage to airbags – The wrong choice of location for installation may cause damage to
or inhibit the correct function of your airbags. Always install the components in a position
where they will not hinder the correct operation of airbags!
6. Insulation damage – Damaged insulation can lead to equipment and wiring damage. The
cables and leads may not be under tension when installed. Install the cables and leads in
such a way as to avoid pinching or abrasion.
7. Polarity and shorting damage – Cables connected with reversed polarity, or in such a way
as to produce a short circuit, can lead to serious damage to your equipment. Before commencing installation, make sure that the car battery is disconnected.
8. Damage to essential vehicle components – Essential vehicle components or wiring can be
damaged when drilling mounting holes or screwing in self-threading screws. Please make
sure there is always sufficient space behind the screw holes and drilled holes!
9. Interference with on-board electronics – Despite the extreme protection against interfe-
rence, incorrect installation can lead to interference with the vehicle electronic systems.
Please read the vehicle manufacturer’s notes to this effect!
Appropriate use10. – This equipment is intended solely for use with mobile telephones in motor vehicles.
11. Damage caused by inappropriate replacement parts – Inappropriate spare or replacement
parts may lead to malfunctions. Please use only the approved parts listed in the section
„Spares and accessories“!
Road safety risk12. – For your own safety, never initiate the coupling procedure while your
vehicle is in motion!
Conformity statement3
This equipment employs Bluetooth® wireless technology. In some countries, the use of this
equipment may be restricted or forbidden. Please make sure you are familiar with such restrictions and do not use your equipment if you are unsure whether its use is permitted in particular
countries you may be visiting.
Bluetooth® is a registered brand name of Bluetooth SIG, Inc.
The firm of Funkwerk Dabendorf GmbH
Märkische Straße
D-15806 Dabendorf
herewith declares that the hands-free system „EGO TS“
in accordance with the essential requirements and other relevant provisions
of the Directive 1999/5/EC.
0681
4 | 5
EGO TS
Scope of Delivery / Package content4
À Electronics box
Á Control unit
 Microphone
à Extension cable
Ä Quick Guide
À
Á
Â
Ã
Ä
