EGO LBX6000 Operator's Manual

OPERATOR’S MANUAL
56-VOLT LITHIUM-ION
CORDLESS BLOWER
Français p. 29
MODEL NUMBER LBX6000
Español p. 59
WARNING: To reduce the risk of injury, the user must read and understand the
Operator’s Manual before using this product. Save these instructions for future reference.
TABLE OF CONTENTS
Safety Guidelines .........................................4
Important Safety Instructions ............................5-10
Introduction ............................................10
Specications ..........................................11
Packing List ............................................11
Recommended Accessories ...............................12
Description .........................................13-14
Assembly ...........................................15-18
Operation ........................................... 19-23
Maintenance ...........................................24
Troubleshooting ...................................... 25-26
Warranty ........................................... 27-28
56V LITHIUM-ION CORDLESS BLOWER — LBX60002
READ ALL INSTRUCTIONS!
READ & UNDERSTAND OPERATOR'S MANUAL
WARNING:
and other construction activities contains chemicals known to the state of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:
 Lead from lead-based paints,
 Crystalline silica from bricks and cement and other masonry products,and
 Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemical: work in a well-ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to lter out microscopic particles.
Some dust created by power sanding, sawing, grinding, drilling
56V LITHIUM-ION CORDLESS BLOWER — LBX6000 3
SAFETY GUIDELINES
SAFETY SYMBOLS
The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols and the explanations with them deserve your careful attention and understanding. The symbol warnings do not, by themselves, eliminate any danger. The instructions and warnings they give are no substitutes for proper accident prevention measures.
WARNING:
Operator’s Manual, including all safety alert symbols such as “DANGER,” “WARNING,” and “CAUTION” before using this tool. Failure to following all instructions listed below may result in electric shock, re, and/or serious personal injury.
Be sure to read and understand all safety instructions in this
DAMAGE PREVENTION AND INFORMATION MESSAGES
These inform the user of important information and/or instructions that could lead to equipment or other property damage if they are not followed. Each message is preceded by the word “NOTICE”, as in the example below:
NOTICE: Equipment and/or property damage may result if these instructions are not
followed.
WARNING:
foreign objects being thrown into your eyes, which can result in severe eye damage. Before beginning power tool operation, always wear safety goggles or safety glasses with side shields and a full face shield when needed. We recommend a Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields. Always use eye protection which is marked to comply with ANSI Z87.1.
The operation of any power tools can result in
56V LITHIUM-ION CORDLESS BLOWER — LBX60004
IMPORTANT SAFETY INSTRUCTIONS

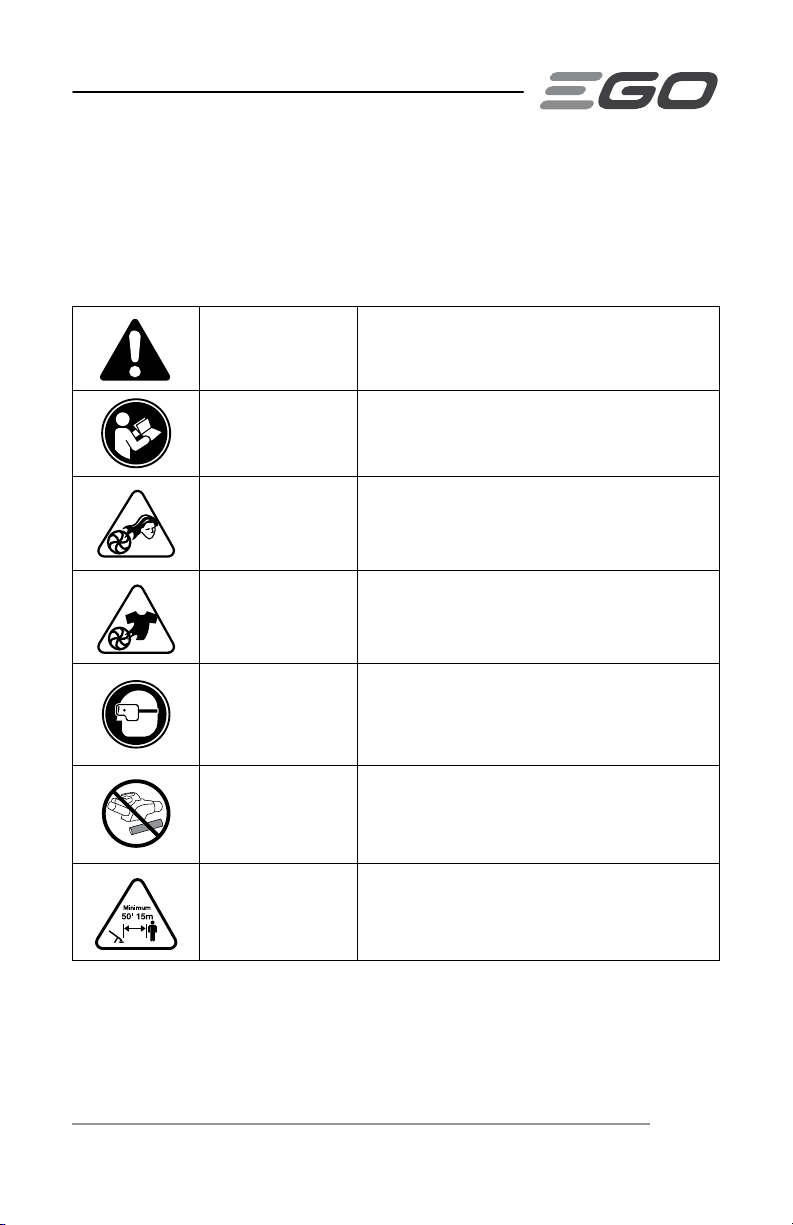

This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate.
Safety Alert Precautions that involve your safety.
Read & Understand Operator’s Manual
Long Hair
Loose Clothing
Eye Protection
Blower Tube Do not operate without tube in place.
Keep Bystanders Away
Recycle Symbols
To reduce the risk of injury, user must read and understand operator’s manual before using this product.
Failure to keep long hair away from the air intake could result in personal injury.
Failure to keep loose clothing from being drawn into air intake vents could result in personal injury.
Always wear safety goggles or safety glasses with side shields and a full face shield when operating this product.
Keep all bystanders at least 50 ft. away.
This product uses lithium-ion (Li-ion) batteries. Local, state, or federal laws may prohibit disposal of batteries in ordinary trash. Consult your local waste authority for information regarding available recycling and/or disposal options.
56V LITHIUM-ION CORDLESS BLOWER — LBX6000 5
IPX5
V Volt Voltage
min Minutes Time
CFM
MPH Miles Per Hour Air velocity
N Newton Magnitude of force
Ingress Protection Degree
Cubic Feet Per Minute
Direct Current Type or a characteristic of current
Protection from water jets
Air volume
GENERAL BATTERY-OPERATED POWER TOOL SAFETY WARNINGS
WARNING:
specications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference.
Read all safety warnings, instructions, illustrations and
WORK AREA SAFETY
Keep work area clean and well lit. Cluttered or dark areas invite accidents.
Do not operate power tools in explosive atmospheres, such as in the presence of ammable liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
PERSONAL SAFETY
Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A moment of inattention
while operating power tools may result in serious personal injury.
Always use personal protective equipment. Personal protective equipment such as eye protection, dust mask, non-skid safety shoes, hard hat and/or hearing protection used for appropriate conditions will reduce personal injuries.
56V LITHIUM-ION CORDLESS BLOWER — LBX60006
Prevent unintentional starting. Ensure the switch is in the off-position before connecting to the battery pack, picking up or carrying the tool.
Carrying power tools with your nger on the switch or energizing power tools that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a moving part of the power tool may result in personal injury.
Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts. Loose clothes, jewelry or longhair can be
caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust
collection can reduce dust-related hazards.
Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause
severe injury within a fraction of a second.
POWER TOOL USE AND CARE
Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
Remove the battery pack, if detachable, from the power tool and/or activate any battery disabling device before clearing jammed material, making any adjustments, changing accessories, cleaning, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool
accidentally.
Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
56V LITHIUM-ION CORDLESS BLOWER — LBX6000 7
Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools and
accessories.
Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
Use the power tool, accessories, tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended
could result in a hazardous situation.
Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces may lead to unsafe handling
and/or loss of control of the tool.
Keep cables away from the working area of the tool. During operation cables may be hidden from view and can be accidentally damaged by the tool.
BATTERY TOOL USE AND CARE
Recharge only with the charger specied by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of re when used with another battery pack. Use only with the battery packs and chargers listed below.
BATTERY PACK CHARGER
BAX1501 CHX5500
Use power tools only with specically designated battery packs. Use of any other battery packs may create a risk of injury and re.
When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the
battery terminals together may cause burns or a re.
Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, ush with water. If liquid contact eyes, additionally seek medical help. Liquid ejected from the battery may
cause irritation or burns.
56V LITHIUM-ION CORDLESS BLOWER — LBX60008
Do not use a battery pack or tool that is damaged or modied. Damaged or modied batteries may exhibit unpredictable behavior resulting in re, explosion or risk of injury.
Do not expose a battery pack or tool to re or excessive temperature. Exposure to re or temperature above 212 °F (100°C) may cause explosion.
Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specied in the instructions. Charging
improperly or at temperatures outside the specied range may damage the battery and increase the risk of re.
SERVICE
Have your power tool serviced by a qualied repair person using only identical replacement parts. This will ensure that the safety of the power tool is
maintained.
Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers
SAFETY INSTRUCTIONS FOR BLOWER
Do not allow the blower to be used as a toy. Close attention is necessary when used by or near children.
Do not put any object into any openings. Do not use with any opening blocked; keep openings free of dust, lint, hair, and anything that may reduce air ow.
Keep hair, loose clothing, ngers, and all parts of body away from openings and moving parts. Loose clothes, jewelry, or long hair can be drawn into air vents.
Secure long hair above shoulder level to prevent entanglement in moving parts.
Do not use on a ladder, rooftop, tree, or other unstable support. Stable footing on a solid surface enables better control of the blower in unexpected situations.
Use extra care when cleaning on stairs.
Do not leave blower unattended when the battery is inserted. Remove the battery when the blower is not in use and before servicing.
Protect your lungs. Wear a face or dust mask if the operation is dusty.
Following this rule will reduce the risk of serious personal injury.
56V LITHIUM-ION CORDLESS BLOWER — LBX6000 9
Do not point the blower tube in the direction of people or pets.
Keep all bystanders, children, and pets at least 50 ft. away.
Never use the blower near res or hot ashes. Use near res or ashes can spread res and result in serious injury and/or property damage.
Never use blower to spread chemicals, fertilizers, or any other toxic substances. Spreading these substances could result in serious injury to the
operator or bystanders.
Never place the blower on any surface, except a hard, clean surface when the engine is running. Gravel, sand, and other debris can be picked up by the air
inlet and thrown at the operator or bystanders, causing possible serious injuries.
Save these instructions. Refer to them frequently and use them to instruct others who may use this tool. If you loan this tool to someone else, also loan these instructions to them to prevent misuse of the product and possible injury.
SAVE THESE INSTRUCTIONS!
INTRODUCTION
Congratulations on your selection of the new 56V Lithium-ion powered blower. It has been designed, engineered and manufactured to give you the best possible dependability and performance.
Should you experience any problem you cannot easily remedy, please contact EGO customer service center 1-855-EGO-5656.
This manual contains important information on the safe assembly, operation and maintenance of your product Read it carefully before using the product. Keep this manual handy so you can refer to it at any time.
SERIAL NUMBER _____________________ DATE OF PURCHASE _________________ YOU SHOULD RECORD BOTH SERIAL NUMBER AND DATE OF PURCHASE AND KEEP THEM IN A
SAFE PLACE FOR FUTURE REFERENCE
56V LITHIUM-ION CORDLESS BLOWER — LBX600010
SPECIFICATIONS
Voltage Maximum Air Volume (without Nozzle) 600 CFM (Boost)
Maximum Air Velocity
Approximate Run Time
(with EGO BAX1501 Backpack Battery)
Maximum Blower Force 19 N Operating Temperature 5°F - 104°F (-15°C - 40°C) Storage Temperature -4°F - 158°F (-20°C - 70°C) Net Weight (without nozzle) 5.95 lbs. (2.7 kg)
56 V
w/o Nozzle 146 MPH w/ Tapered Nozzle 168 MPH w/ Flat Nozzle 142 MPH Boost 1h 10 min. Level 4 1h 36 min. Level 3 2h 16 min. Level 2 4h. Level 1 5h 48 min.
PACKING LIST
PART NAME QUANTITY
Blower 1 Blower Tube 1 Nozzles 2 Operator’s Manual 1
56V LITHIUM-ION CORDLESS BLOWER — LBX6000 11
RECOMMENDED ACCESSORIES
PART NAME MODEL NUMBER
Tapered Nozzle AN6000R Flat Nozzle AN6000F
56V LITHIUM-ION CORDLESS BLOWER — LBX600012
DESCRIPTION

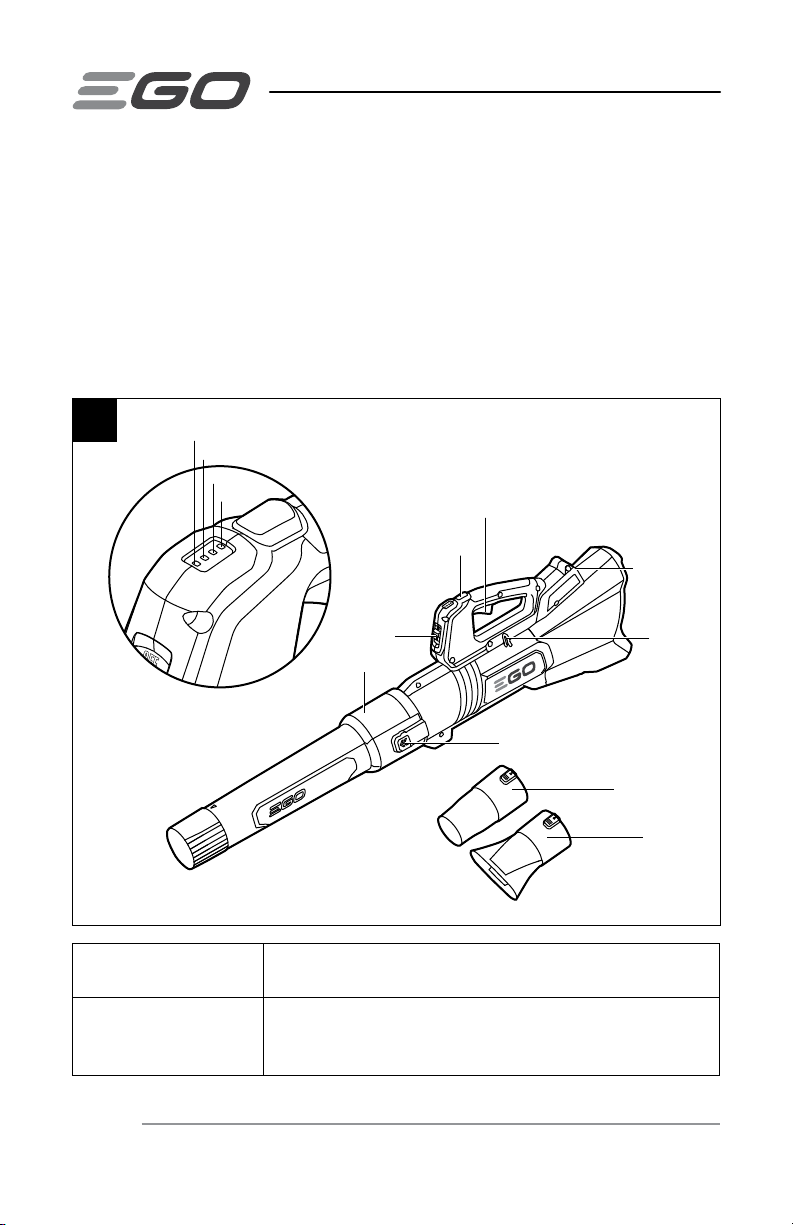

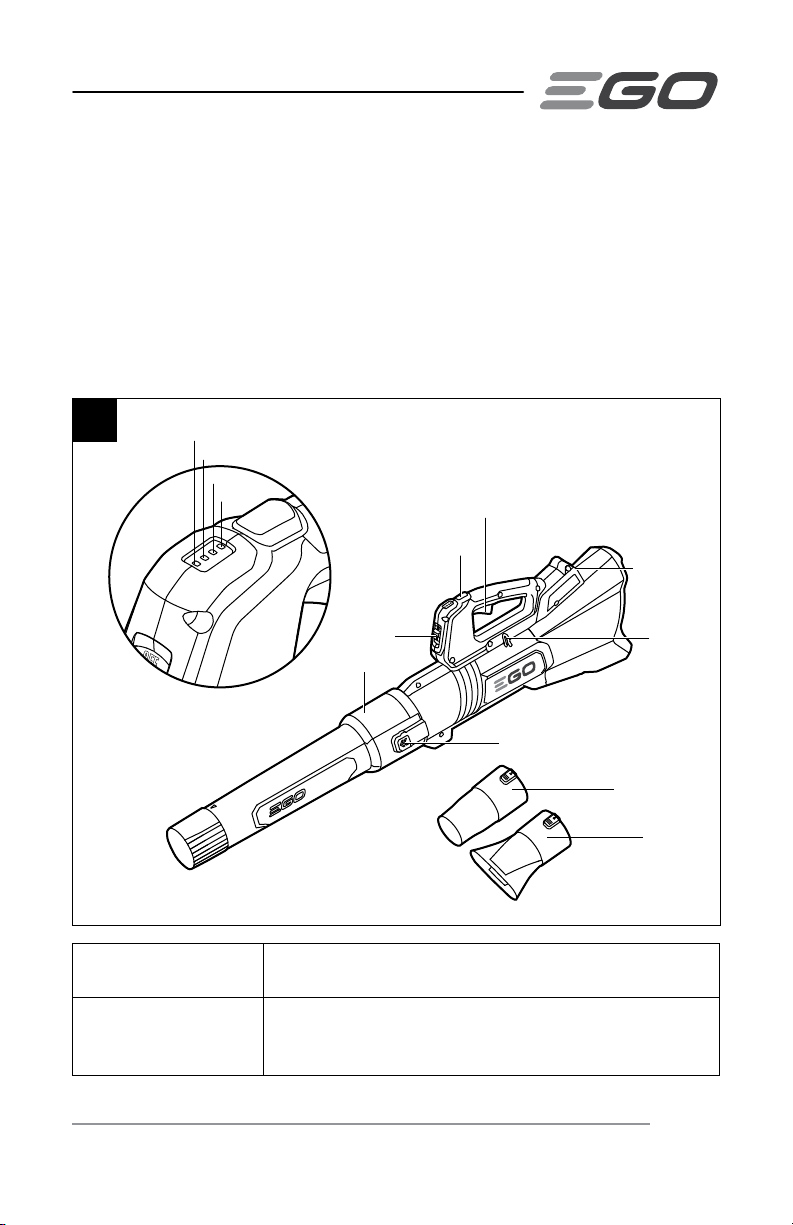

KNOW YOUR BLOWER (Fig. 1)
The safe use of this product requires and understanding of the information on the tool and in this instruction manual, as well as knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features and safety rules.
1
#4 LED
#3 LED
#2 LED
#1 LED
Mode-Selector Button
Lock-off Switch
Tube
Variable-Speed Trigger
Electric Socket
Hook
Tube-release Button
Tapered Nozzle
Flat Nozzle
Variable-Speed Trigger Starts/stops the blower and adjusts the air speed. Lock-off Switch Helps to prevent accidental or unauthorized activation of the
variable-speed trigger. It must be adjusted to "ON" position before the trigger can be activated.
Mode-Selector Button Briey press to select among the four air-speed settings;
press and hold the button to activate the boost mode.
56V LITHIUM-ION CORDLESS BLOWER — LBX6000 13
Tube-release Button Releases the tube from the blower. Electric Socket To directly plug-in the battery plug. Hook To attach the blower strap. Tapered Nozzle Further concentrates the air ow and increases the air
speed. Flat Nozzle Further spreads the air ow and increases the cleaning area. #1LED

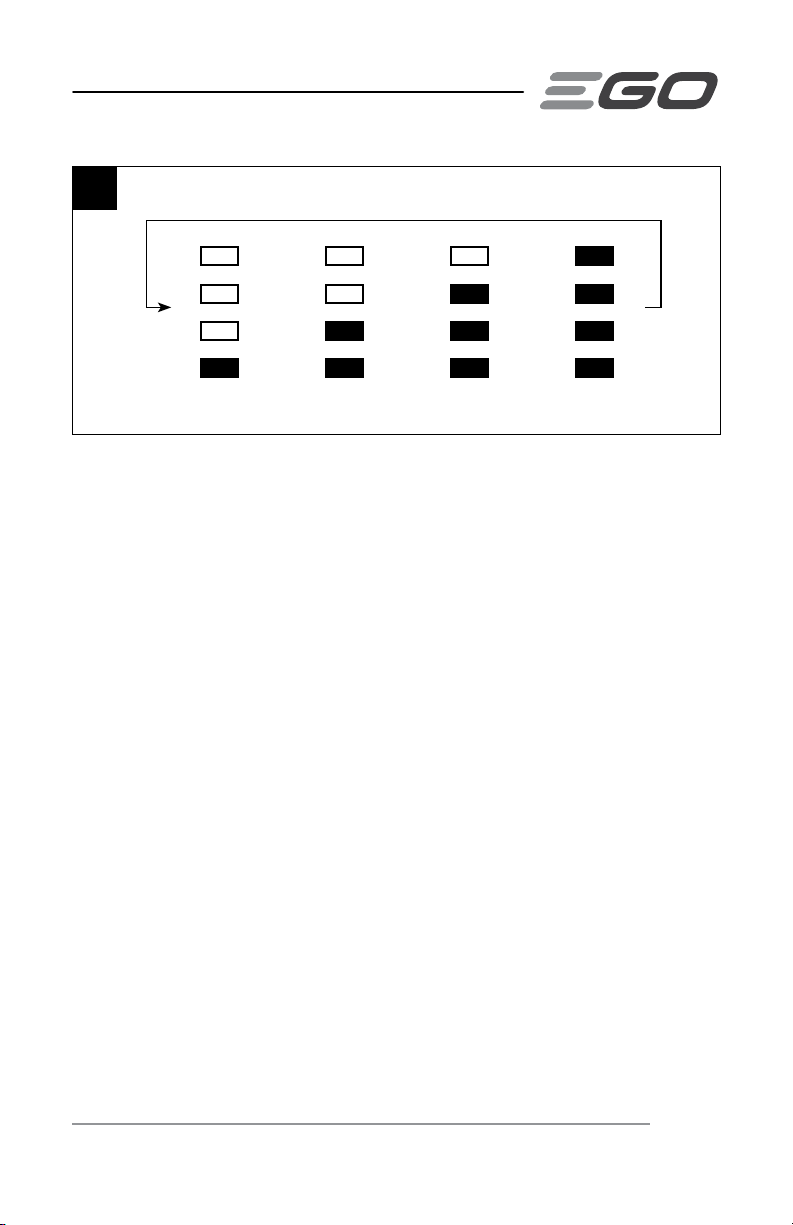

Indicates the different air speed level (4 level settings). (#2LED/#3LED/#4LED)
56V LITHIUM-ION CORDLESS BLOWER — LBX600014
ASSEMBLY
WARNING:
until the parts are replaced. Use of this product with damaged or missing parts could result in serious personal injury.
WARNING:
recommended for use with this blower. Any such alteration or modication is misuse and could result in a hazardous condition leading to possible serious personal injury.
WARNING:
injury, always remove the power cord from the product when assembling parts, making adjustments, cleaning, or when not in use.
If any parts are damaged or missing, do not operate this product
Do not attempt to modify this product or create accessories not
To prevent accidental starting that could cause serious personal
UNPACKING
This product requires assembly.
Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included.
WARNING:
assembled to your product when you unpack it. Parts on this list are not assembled to the product by the manufacturer and require customer installation. Use of a product that may have been improperly assembled could result in serious personal injury.
Inspect the product carefully to make sure no breakage or damage occurred during shipping.
Do not discard the packing material until you have carefully inspected and satisfactorily operated the product.
If any parts are damaged or missing, please return the product to the place of purchase.
Do not use this product if any parts on the packing list are already
56V LITHIUM-ION CORDLESS BLOWER — LBX6000 15

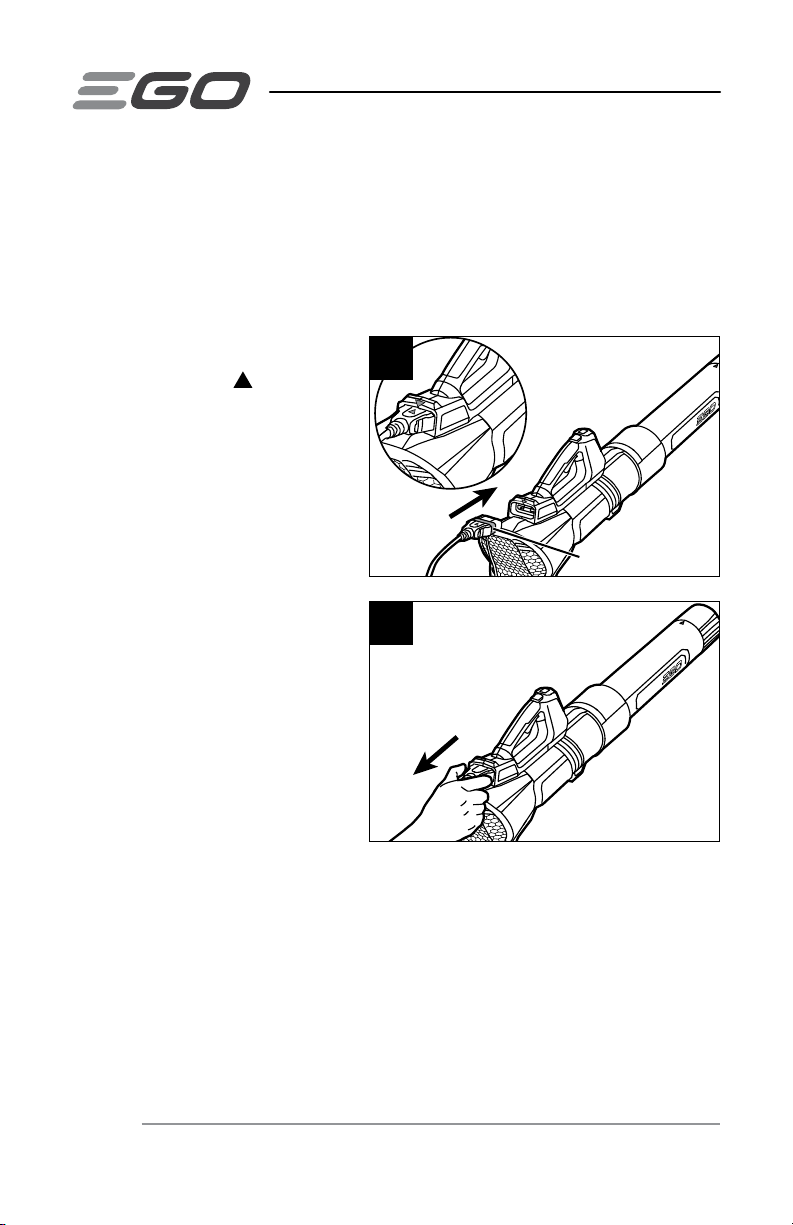

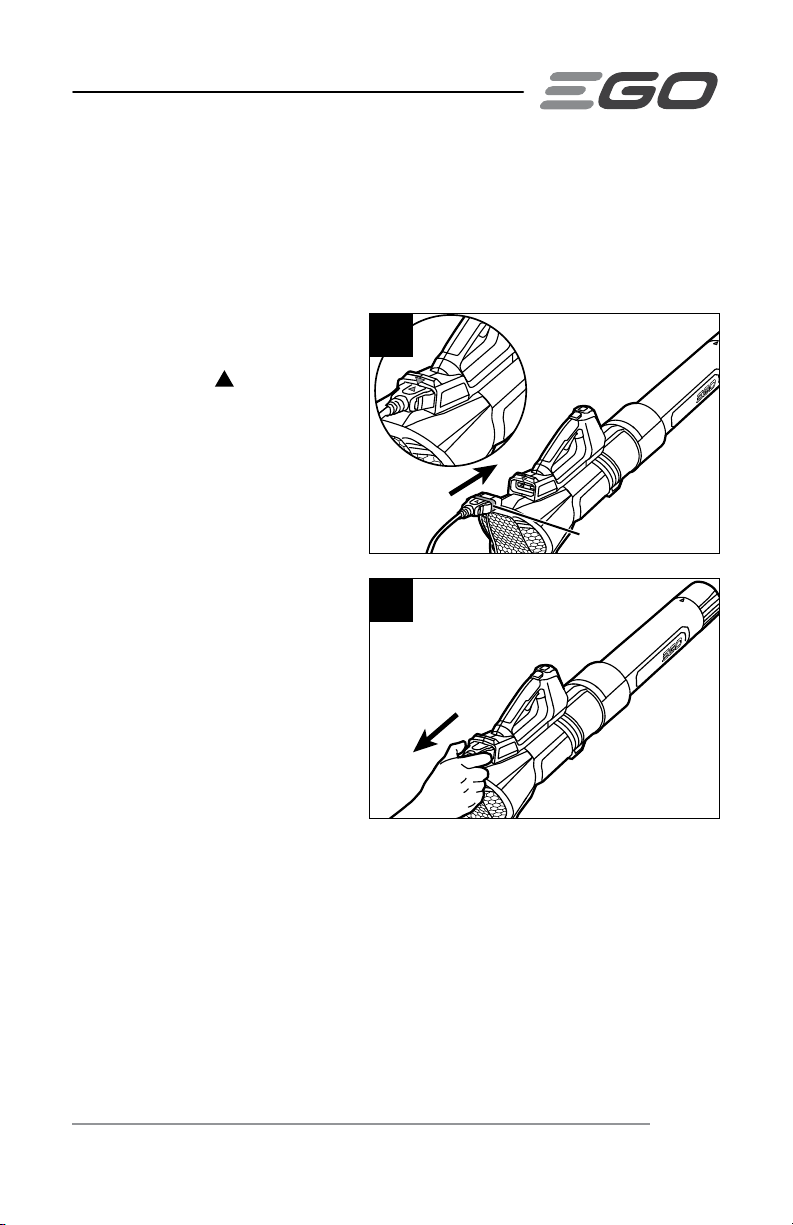

ASSEMBLING THE BLOWER TUBE

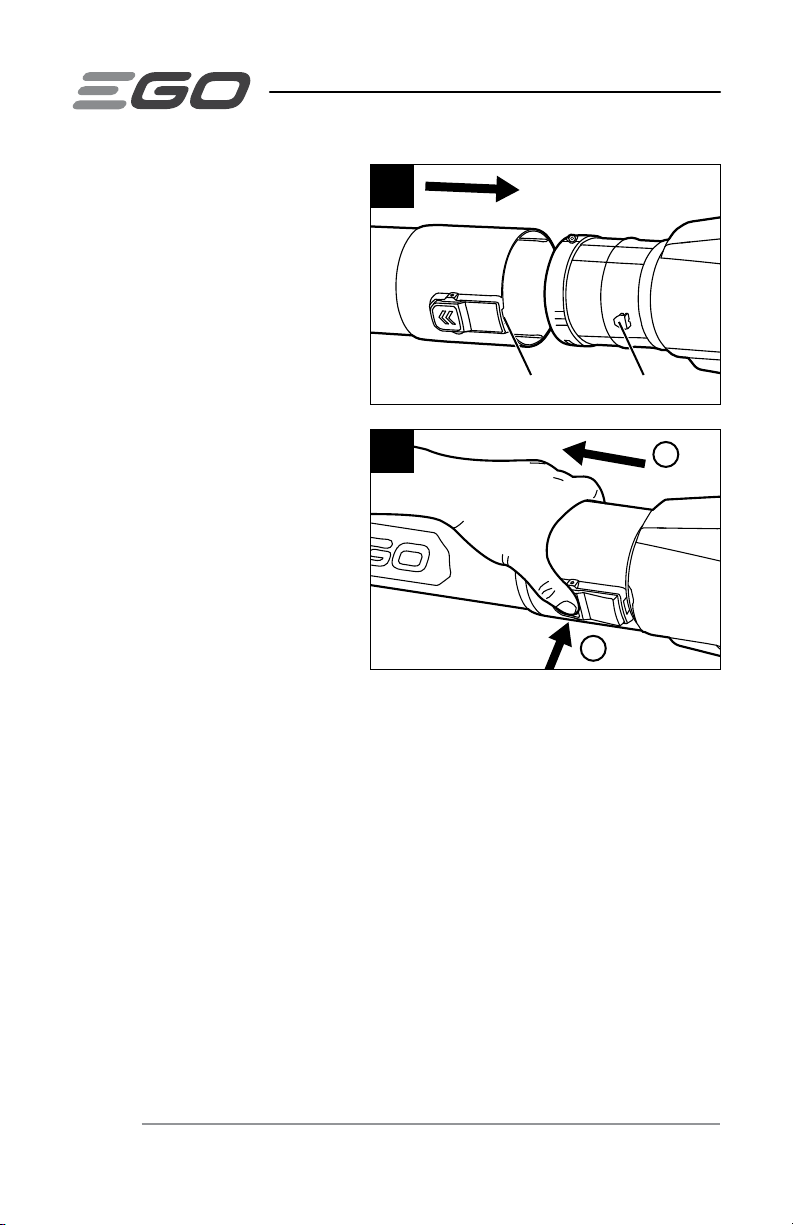

1. Align the groove in the tube with the knob on the blower housing. Push the tube onto the blower housing until the latch snaps into place (Fig. 2).
2
2. To remove the tube, press and hold the tube-release button to disengage the latch, then pull the tube straight out from the blower (Fig. 3).
Groove Knob
3
1
2
56V LITHIUM-ION CORDLESS BLOWER — LBX600016

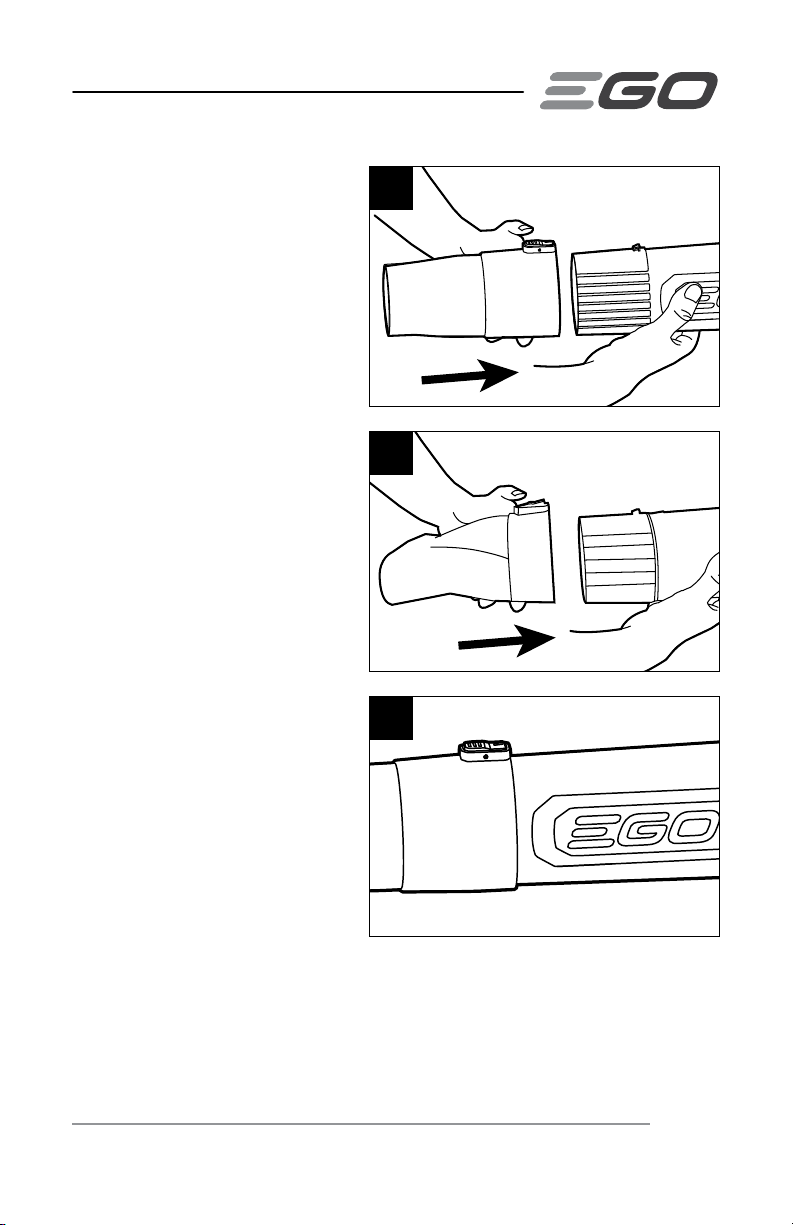

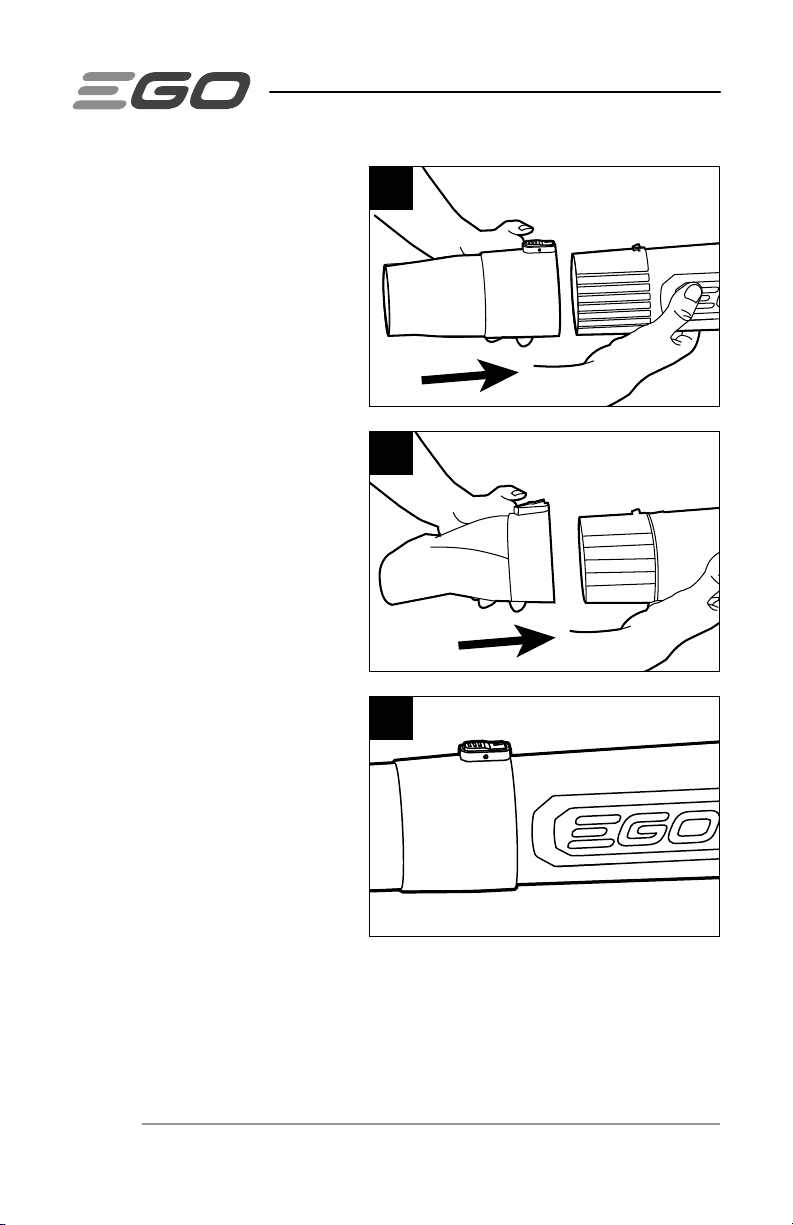

ASSEMBLING THE BLOWER TO THE TAPERED/FLAT NOZZLE
1. Choose the nozzle that is suitable for the task at hand.
2. Align the groove in the nozzle with the knob on the tube (Fig. 4a & 4b). Push the nozzle onto the tube until it snaps into place (Fig. 5).
4a
Tapered Nozzle
4b
5
Flat Nozzle
56V LITHIUM-ION CORDLESS BLOWER — LBX6000 17

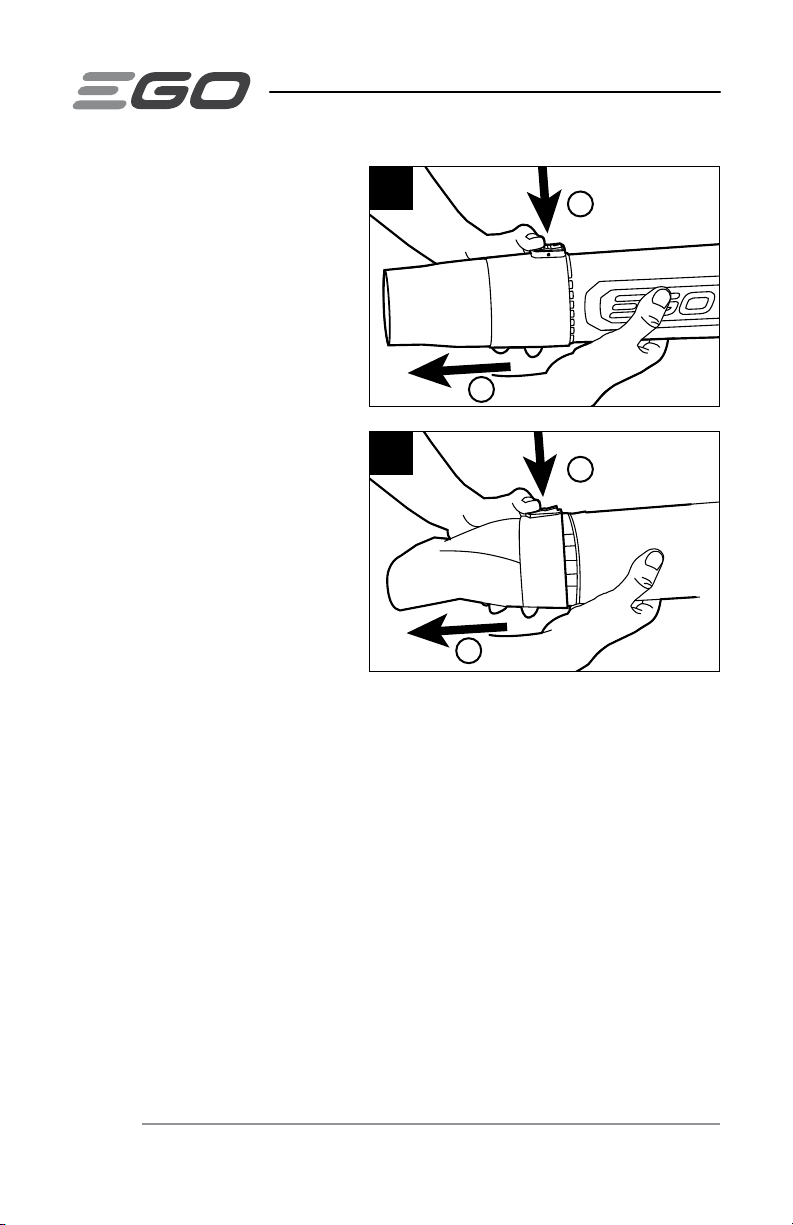

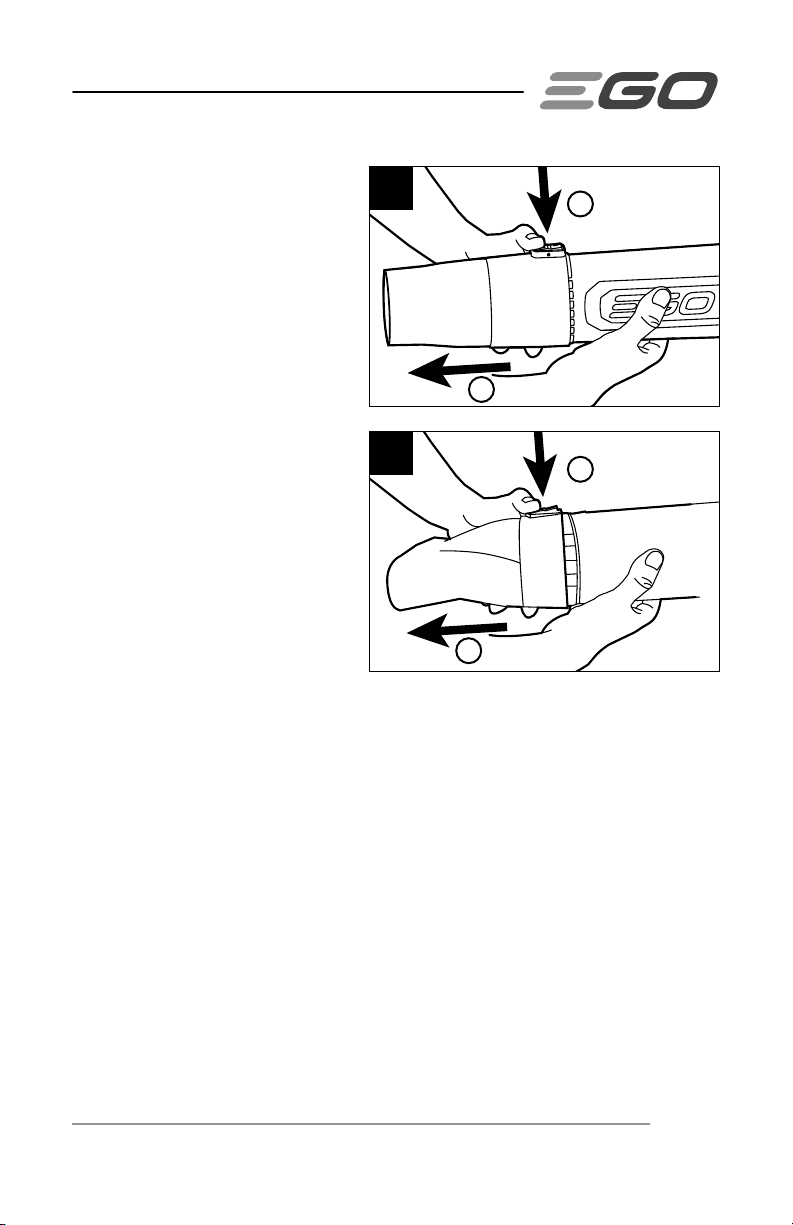

3. To remove the nozzle, press and hold the nozzle-release button to disengage the latch, then pull the nozzle straight from the blower (Fig. 6a & 6b).
6a
Tapered Nozzle
1
2
6b
Flat Nozzle
1
2
56V LITHIUM-ION CORDLESS BLOWER — LBX600018
OPERATION
WARNING:
Remember that a careless fraction of a second is sufcient to inict serious injury.
WARNING:
Z87.1. Failure to do so could result in objects being thrown into your eyes and other possibly serious injuries.
WARNING:
manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury.
Before each use, inspect the entire product for damaged, missing, or loose parts, such as screws, nuts, bolts, caps,etc. Tighten securely all fasteners and caps and do not operate this product until all missing or damaged parts are replaced.
Do not allow familiarity with this product to make you careless.
Always wear eye protection that is marked to comply with ANSI
Do not use any attachments or accessories not recommended by the
APPLICATION
You may use this product for the purposes listed below:
Clearing debris from hard surfaces such as driveways, walkways, and decks.
Keeping yards, grounds, and lawns free from tree leaves and pine needles.
Blowing cut-lawn grass debris out of the street.
56V LITHIUM-ION CORDLESS BLOWER — LBX6000 19
CONNECTING WITH/DISCONNECTING FROM THE BATTERY
NOTE: Fully charge the battery before rst use.
This blower has a dedicated plug-in connection. Please use it with the EGO BAX1501 backpack battery or with EGO portable batteries via the backpack link.
TO CONNECT WITH THE BATTERY
Align the “ ” marks on the battery plug with the blower’s electric socket, then insert the plug into the blower until the GREEN sealing on the plug COMPLETELY disappears into the socket (Fig. 7).
TO DISCONNECT FROM THE BATTERY
Hold the blower with one hand and use the other hand to grasp the plug and pull it out from the socket (Fig. 8).
7
Green Sealing
8
56V LITHIUM-ION CORDLESS BLOWER — LBX600020

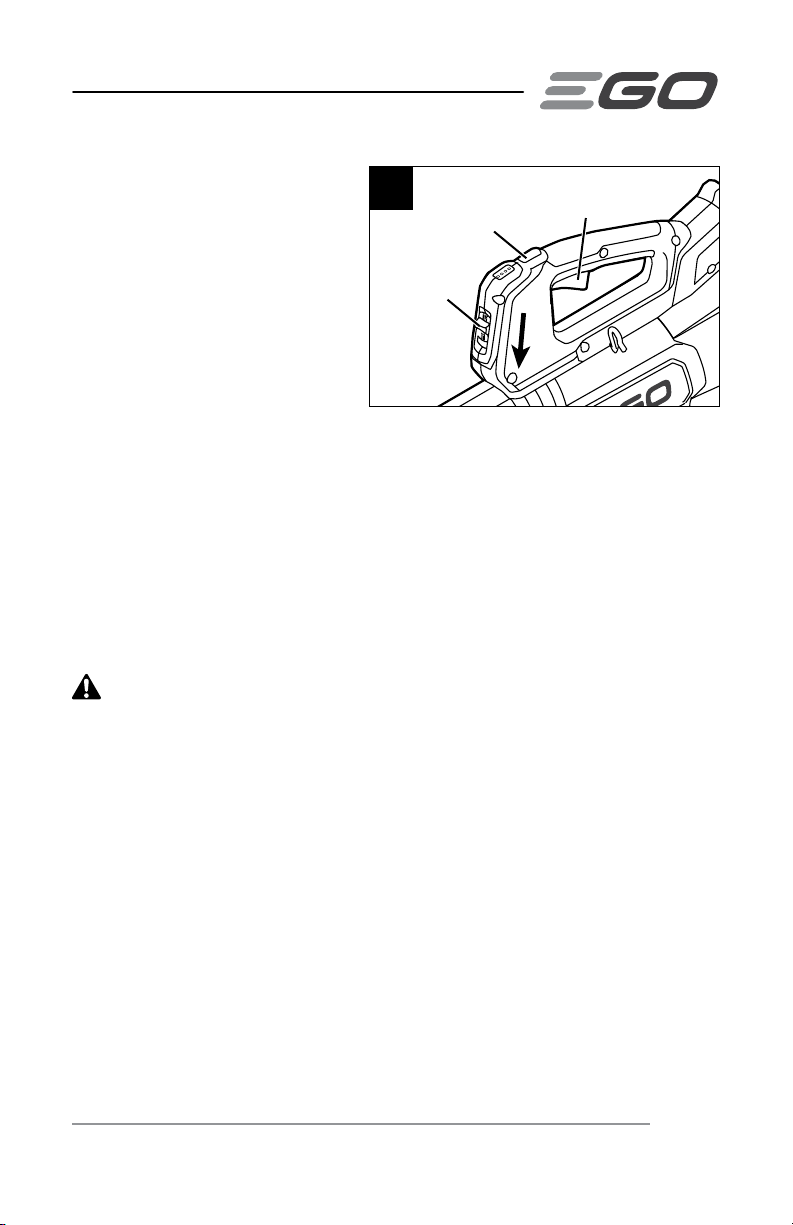

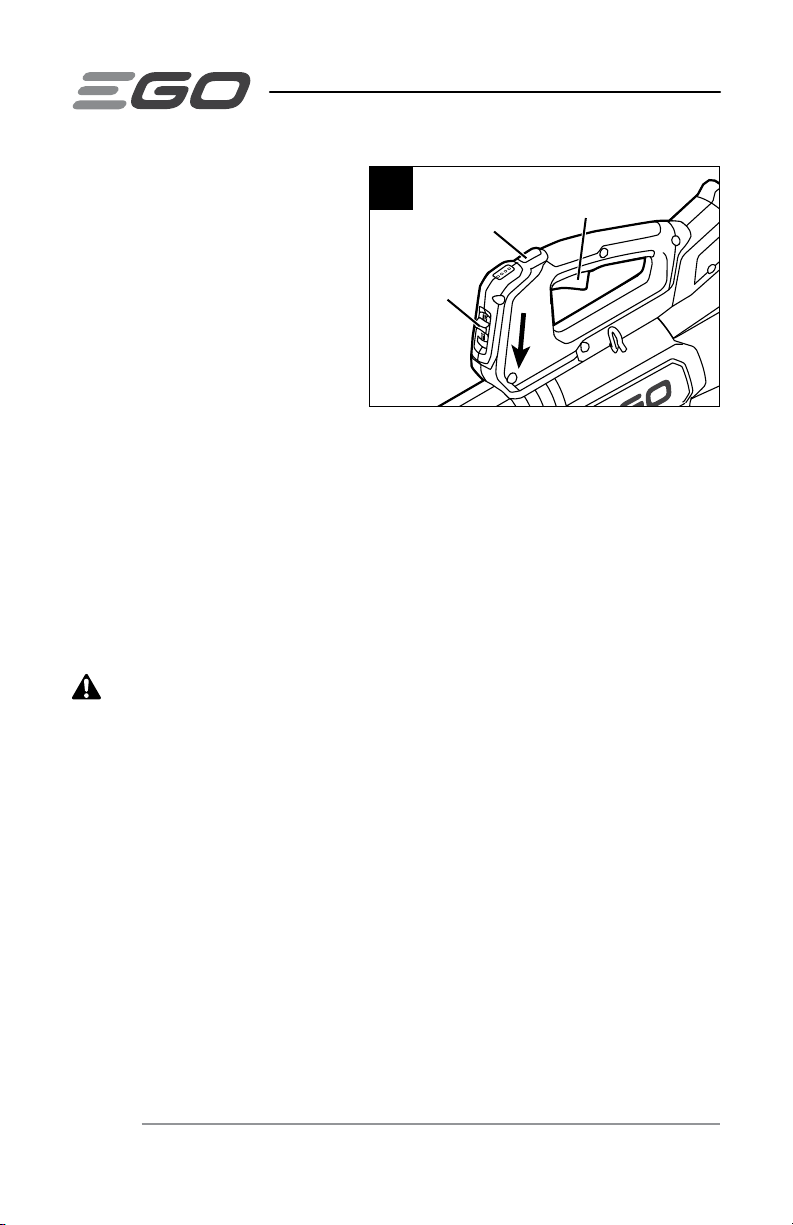

STARTING/STOPPING THE BLOWER (Fig. 9)
9
Mode-Selector Button
Variable-Speed Trigger
TO START
1. Push the lock-off switch to the “ON” position (Fig. 9).
2. Press the variable-speed trigger to turn on the blower.
3. The air speed of the blower is controlled with the variable­speed trigger. The more increased pressure on the variable-speed trigger results in higher speeds. Adjust the speed to suit the task at hand.
Lock-off Switch
TO STOP
1. Release the variable-speed trigger to turn off the blower.
2. Push the lock-off switch to the “OFF” position to help to avoid accidental starting.
WARNING:
position before next use to avoid serious personal injury.
Make sure that the lock-off switch is placed exactly in the “OFF”
56V LITHIUM-ION CORDLESS BLOWER — LBX6000 21
ADJUSTING THE AIR VELOCITY
In addition to the variable-speed trigger adjustiment described above, the blower is equipped with a mode-selector button.
Briey press to select among the four air-speed settings; press and hold the button to activate the boost mode. The LED indicators will note the selected speeds.
NOTICE: The blower has a memory function. When the air speed is adjusted among the 4 designated speed levels and the blower is stopped any reason, the blower will maintain the previously selected speed level when you start it next time.The boost function is temporary; the blower will reseume the previously selected speed level when the blower is released from boost mode.
AIR SPEED LEVEL
#1 LED #2 LED #3 LED #4 LED
Speed-1 On Off Off Off Speed-2 On On Off Off Speed-3 On On On Off Speed-4 On On On On
Boost
LED INDICATOR POSITIONS
#1 LED #2 LED #3 LED #4 LED
Single LED shines in sequence in loop
56V LITHIUM-ION CORDLESS BLOWER — LBX600022
10
Cycle
Speed-1 Speed-2
Speed-3 Speed-4
OPERATING TIPS
To keep from scattering debris, blow around the outer edges of a debris pile. Never blow directly into the center of a pile.
To reduce sound levels, limit the number of pieces of equipment used at any one time.
Use rakes and/or brooms to loosen debris before blowing. In dusty conditions, slightly dampen surfaces if water is available.
Conserve water by using power blowers instead of hoses for many lawn and garden applications, including areas such as gutters, screens, patios, grills, porches, and gardens.
Watch out for children, pets, open windows, or freshly washed cars, and blow debris safely away.
After using blowers or other equipment, clean up! Dispose of debris properly.
56V LITHIUM-ION CORDLESS BLOWER — LBX6000 23
MAINTENANCE
WARNING:
other parts may create a hazard or cause product damage. To ensure safety and reliability, all repairs should be performed by EGO authorized dealer/distributor.
WARNING:
injury, always remove the power cord from the product when cleaning or performing any maintenance.
All blower service, other than the items listed in this manual, should be performed by EGO authorized dealer/distributor.
When servicing, use only identical replacement parts. Use of any
To prevent accidental starting that could cause serious personal
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc.
WARNING:
products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal injury.
STORAGE
Clean all foreign material from the air intakes of the blower.
Store the blower indoors in a place that is inaccessible to children. Keep it away from corrosive agents, such as garden chemicals and de-icing salts.
Do not at any time let brake uids, gasoline, petroleum-based
56V LITHIUM-ION CORDLESS BLOWER — LBX600024
TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
The power cord from
the battery is not attached to the blower correctly.
Reinsert the power
cord plug, ensuring that the GREEN seal on the plug is COMPLETELY disappearing into the socket.
Blower cannot turn on or stops working during operation.
No electrical contact
between the blower and power cord.
The EGO portable
battery pack or the EGO backpack battery is depleted.
The lock-off switch is
not placed to the “ON” position before starting.
The battery or blower is
too hot.
The blower is overload.
Check all the contacts
and reconnect the blower with the power cord.
Depending on
battery type, choose appropriate charger to charge the battery.
Before starting, make
sure that the lock-off switch is placed to the “ON” position.
Disconnect the battery
from the blower and allow the battery or the blower to cool until its temperature drops below 152°F (67°C).
Reduce the load on the
blower, such as leaving the current working area.
56V LITHIUM-ION CORDLESS BLOWER — LBX6000 25
PROBLEM CAUSE SOLUTION
Excessive wearing of
motor fan.
The air velocity decreases
Contact EGO authorized
dealer/distributor for repair.
signicantly.
The air intake is
blocked by debris.
Remove the power cord,
clear the debris.
56V LITHIUM-ION CORDLESS BLOWER — LBX600026
WARRANTY
EGO WARRANTY POLICY
5-year limited warranty on EGO POWER+ outdoor power equipment and portable power for personal, household use.
3-year limited warranty on EGO POWER+ System battery packs and chargers for personal, household use.
2 year/1year limited warranty on EGO outdoor power equipment, portable power, battery packs, and chargers for professional and commercial use.
The detailed warranty periods by products can be found online at
http://egopowerplus.com/pages/warranty-policy.
Please contact EGO Customer Service Toll-Free at 1-855-EGO-5656 any time you have questions or warranty claims.
LIMITED SERVICE WARRANTY
EGO products are warranted against defects in material or workmanship from the date of original retail purchase for the applicable warranty period. Defective product will receive free repair.
a) This warranty applies only to the original purchaser from an authorized EGO
retailer and may not be transferred. Authorized EGO retailers are identied online at http://egopowerplus.com/pages/warranty-policy.
b) The warranty period for reconditioned or factory certied products used for
residential purpose is 1 year, for industrial, professional or commercial purpose is 90 days.
c) The warranty period for routine maintenance parts, such as, but not limited
to, blades, trimmer heads, chain bars, saw chains, belts, scraper bars, blower nozzles, and all other EGO accessories is 90 days for residential purpose, 30 days for industrial, professional or commercial purpose. These parts are covered for 90/30 days from manufacture defects in normal working conditions.
d) This warranty is void if the product has been used for rental purpose.
e) This warranty does not cover the damage resulting from modication, alteration
or unauthorized repair.
56V LITHIUM-ION CORDLESS BLOWER — LBX6000 27
Loading...
+ 61 hidden pages
