EGO LB4800, LB5300 Operating Manual
• WARNING: To reduce the risk of injury, the user must read and understand the
Operator’s Manual before using this product. Save these instructions for future reference.
OPERATING MANUAL
56V-VOLT LITHIUM-ION
CORDLESS BLOWER
MODEL NUMBER LB4800
Español p. 25
Notice: The Blower is intended for household or commercial use
56V LITHIUM-ION CORDLESS BLOWER — LB48002
table of contents
FCC Statement ...........................................4
Safety Symbols ..........................................5
Important Safety Instructions ............................6-11
Specications ..........................................12
Assembly ...........................................13-14
Description ............................................15
Operation ...........................................16-19
Maintenance ...........................................20
Troubleshooting .........................................21
Warranty ...........................................22-23
Parts List ..............................................24
56V LITHIUM-ION CORDLESS BLOWER — LB4800 3
read all instructions!
WARNING:
Some dust created by power sanding, sawing, grinding, drilling
and other construction activities contains chemicals known to the state of California
to cause cancer, birth defects or other reproductive harm. Some examples of these
chemicals are:
Lead from lead-based paints,
Crystalline silica from bricks and cement and other masonry products, and
Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of
work. To reduce your exposure to these chemical: work in a well ventilated area, and
work with approved safety equipment, such as those dust masks that are specially
designed to lter out microscopic particles.
56V LITHIUM-ION CORDLESS BLOWER — LB48004
fcc statement
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference
that may cause undesired operation.
2. Changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTICE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following measures: Reorient or relocate the receiving antenna. Increase
the separation between the equipment and receiver. Connect the equipment into an
outlet on a circuit different from that to which the receiver is connected. Consult the
dealer or an experienced radio/TV technician for help.
56V LITHIUM-ION CORDLESS BLOWER — LB4800 5
safety Guidelines
SAFETY SYMBOLS
The purpose of safety symbols is to attract your attention to possible dangers. The
safety symbols and the explanations with them deserve your careful attention and
understanding. The symbol warnings do not, by themselves, eliminate any danger. The
instructions and warnings they give are no substitutes for proper accident prevention
measures.
WARNING:
Be sure to read and understand all safety instructions in this
Operator’s Manual, including all safety alert symbols such as “DANGER,” “WARNING,”
and “CAUTION” before using this tool. Failure to following all instructions listed below
may result in electric shock, re, and/or serious personal injury.
DAMAGE PREVENTION AND INFORMATION MESSAGES
These inform the user of important information and/or instructions that could lead
to equipment or other property damage if they are not followed. Each message is
preceded by the word “NOTICE”, as in the example below:
NOTICE: Equipment and/or property damage may result if these instructions are not
followed.
WARNING:
The operation of any power tools can result in foreign objects being
thrown into your eyes, which can result in severe eye damage. Before beginning power
tool operation, always wear safety goggles or safety glasses with
side shields and a full face shield when needed. We recommend a
Wide Vision Safety Mask for use over eyeglasses or standard safety
glasses with side shields. Always use eye protection which is marked
to comply with ANSI Z87.1.
56V LITHIUM-ION CORDLESS BLOWER — LB48006
important safety instructions

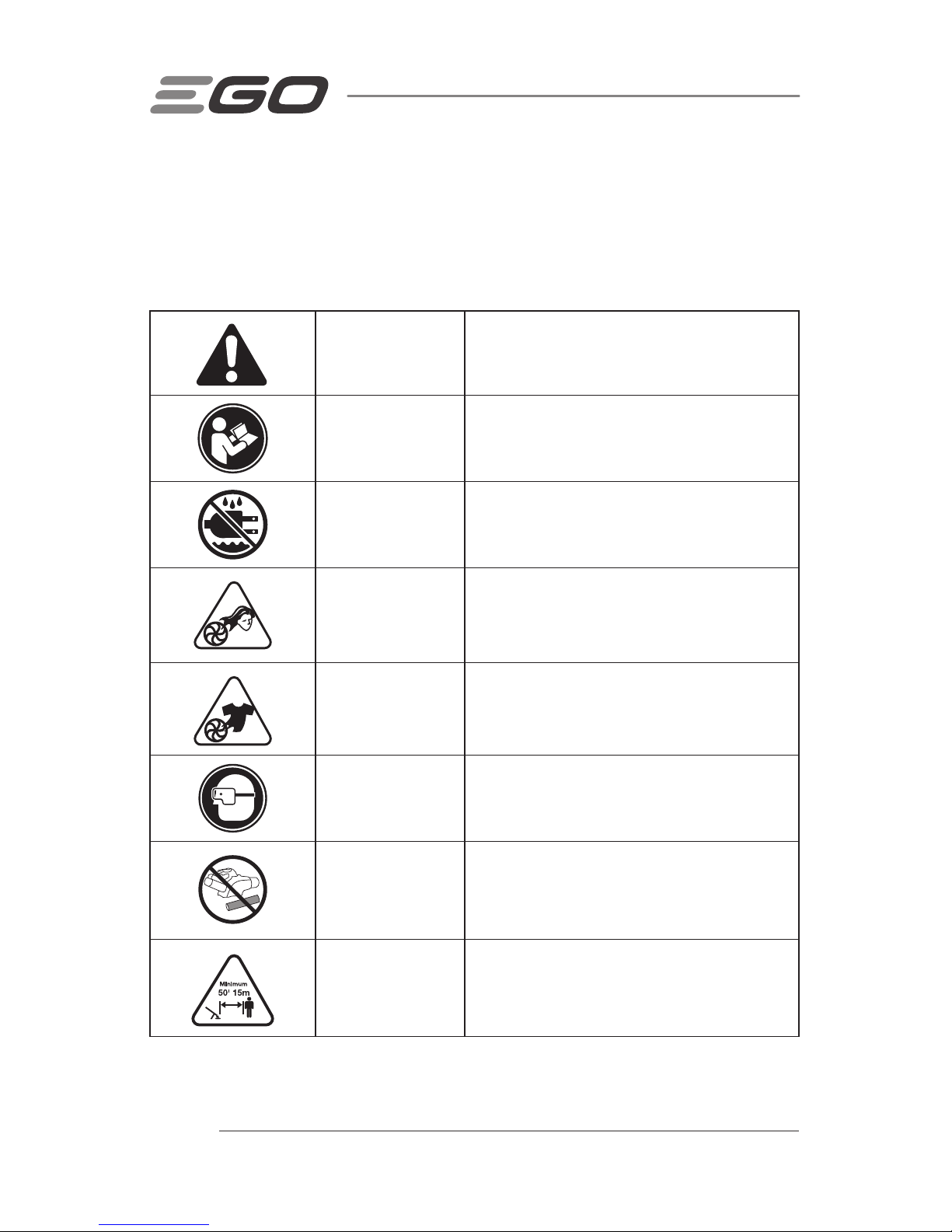

This page depicts and describes safety symbols that may appear on this product.
Read, understand, and follow all instructions on the machine before attempting to
assemble and operate.
Safety Alert Precautions that involve your safety.
Read Operator’s
Manual
To reduce the risk of injury, user must read
and understand operator’s manual before
using this product.
Wet Conditions
Alert
Do not expose to rain or use in damp
locations.
Long Hair
Failure to keep long hair away from the air
inlet could result in personal injury.
Loose Clothing
Failure to keep loose clothing from being
drawn into air intake could result in
personal injury.
Eye Protection
Always wear safety goggles or safety
glasses with side shields and a full face
shield when operating this product.
Blower Tube Do not operate without tube in place.
Keep Bystanders
Away
Keep all bystanders at least 50 ft. away.
56V LITHIUM-ION CORDLESS BLOWER — LB4800 7
Recycle Symbols
This product uses lithium-ion (Li-ion)
batteries. Local, state, or federal laws may
prohibit disposal of batteries in ordinary
trash. Consult your local waste authority
for information regarding available
recycling and/or disposal options.
V Volt Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
min Minutes Time
CFM
cubic feet per
minute
Air volume
MPH miles per hour Air velocity
Alternating
Current
Type of current
Direct Current Type or a characteristic of current
n
0
No Load Speed Rotational speed, at no load
... /min Per Minute
Revolutions, strokes, surface speed, orbits,
etc., per minute
When using an electrical appliance, basic precautions should always be followed,
including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS PRODUCT!
DANGER: People with electronic devices, such as pacemakers, should consult
their physician(s) before using this product. Operation of electrical equipment in close
proximity to a heart pacemaker could cause interference or failure of the pacemaker.
56V LITHIUM-ION CORDLESS BLOWER — LB48008
WARNING:
To ensure safety and reliability, all repairs should be performed by a
qualied service technician.
WARNING:
To reduce risk of re, electric shock, or injury:
Know your power blower. Read the instruction manual carefully. Learn
the blower’s applications and limitations, as well as the specic potential
hazards related to this blower. Following this rule will reduce the risk of electric
shock, re, or serious injury.
Do not use outdoors or on wet surfaces. Don’t expose the blower to rain or
wet conditions. Water entering a blower will increase the risk of electric shock.
Do not allow the blower to be used as a toy. Close attention is necessary when
used by or near children.
Use only as described in this manual. Use only manufacturer’s
recommended attachments.
If the blower is not working as it should, has been dropped, damaged, left
outdoors, or dropped into water, return it to a service center.
Do not handle the charger, including charger plug, or charger terminals with
wet hands.
Do not put any object into any openings. Do not use with any opening
blocked; keep openings free of dust, lint, hair, and anything that may reduce
air ow.
Keep hair, loose clothing, ngers, and all parts of body away from openings
and moving parts. Loose clothes, jewelry, or long hair can be drawn into air
vents.
Secure long hair above shoulder level to prevent entanglement in moving
parts.
Use extra care when cleaning on stairs.
Do not charge the battery pack outdoors.
Use only the charger supplied by the manufacturer to recharge.
Do not leave blower unattended when the battery is inserted. Remove the
battery when the blower is not in use and before servicing.
56V LITHIUM-ION CORDLESS BLOWER — LB4800 9
Do not operate blowers in explosive atmospheres, such as in the presence of
ammable liquids, gases, or dust. Blowers create sparks which may ignite the
dust or fumes.
Use the battery operated blower only with specically designated battery
pack. Use of any other batteries may create a risk of re.
Use only with battery packs and chargers listed below.
BATTERY PACK CHARGER
BA2240
BA1120
CH5500
CH2100
Stay alert, watch what you are doing and use common sense when
operating a power blower. Do not use the blower while tired, upset, or under
the inuence of drugs, alcohol, or medication. A moment of inattention while
operating blowers may result in serious personal injury.
Avoid accidental starting. Be sure that the switch is in the locked or off
position before inserting the battery pack. Carrying blowers with your nger
on the switch or inserting the battery pack into a blower with the switch on invites
accidents.
Use safety equipment. Always wear eye protection. Dust mask, non-skid
safety shoes, hard hat, or hearing protection must be used for appropriate
conditions.
Do not use on a ladder, rooftop, tree, or other unstable support. Stable footing
on a solid surface enables better control of the blower in unexpected situations.
Always take care of your feet, children, or pets around you when removing the
battery pack from blower. Serious injury could result if the battery pack falls.
NEVER remove the battery pack when in a high position.
Do not use the blower if switch does not turn it on or off. A blower that cannot
be controlled with the switch is dangerous and must be repaired.
Disconnect the battery pack from the blower before making any
adjustments, changing accessories, or storing the blower. Such preventive
safety measures reduce the risk of starting the blower accidentally.
Turn off all controls before removing the battery.
56V LITHIUM-ION CORDLESS BLOWER — LB480010
DO NOT attempt to clear clogs from the unit without rst removing the battery.
Check for misalignment or binding of moving parts, breakage of parts, and
any other condition that may affect the blower’s operation. If damaged,
have the blower serviced before using. Many accidents are caused by poorly
maintained blowers.
Keep the blower and its handle dry, clean and free from oil and grease.
Always use a clean cloth when cleaning. Never use brake uids, gasoline,
petroleum-based products, or any strong solvents to clean your blower. Following
this rule will reduce the risk of loss of control and deterioration of the enclosure
plastic.
Always wear safety glasses with side shields. Everyday glasses have only
impact resistant lenses. They are NOT safety glasses. Following this rule will
reduce the risk of eye injury.
Always wear eye protection with side shields marked to comply with ANSI
Z87.1 along with hearing protec tion when operating this equipment.
Protect your lungs. Wear a face or dust mask if the operation is dusty.
Following this rule will reduce the risk of serious personal injury.
Protect your hearing. Wear hearing protection during extended periods of
operation. Following this rule will reduce the risk of serious personal injury.
Battery powered blowers do not have to be plugged into an electrical outlet;
therefore, they are always in operating condition. Be aware of possible
hazards when not using your battery powered blower or when changing
accessories. Following this rule will reduce the risk of electric shock, re, or
serious personal injury.
Wear heavy long pants, long sleeves, boots, and gloves. Avoid loose garments
or jewelry that could get caught in moving parts of the machine or its motor.
Do not operate the equipment while barefoot or when wearing sandals or
similar lightweight footwear. Wear protective footwear that will protect your feet
and improve your footing on slippery surfaces.
Batteries can explode in the presence of a source of ignition, such as a
pilot light. To reduce the risk of serious personal injury, never use any cordless
product in the presence of open ame. An exploded battery can propel debris and
chemicals. If exposed, ush with water immediately.
56V LITHIUM-ION CORDLESS BLOWER — LB4800 11
Keep rm footing and balance. Do not overreach. Overreaching can result in
loss of balance.
Check the work area before each use. Remove all objects such as rocks,
broken glass, nails, wire, or string which can be thrown by or become entangled
in the machine.
Do not point the blower tube in the direction of people or pets.
Never run the unit without the proper equipment attached. Always ensure that
the blower tube is installed.
When not in use, the blower should be stored indoors in a dry, secure place
out of the reach of children.
Keep all bystanders, children, and pets at least 50 ft. away.
Blower service must be performed only by qualied repair personnel. Service
or maintenance performed by unqualied personnel may result in a risk of injury.
When servicing a blower, use only identical replacement parts. Follow
instructions in the Maintenance section of this manual. Use of unauthorized parts
or failure to follow Maintenance Instructions may create a risk of shock or injury.
Never use the blower near res or hot ashes. Use near res or ashes can
spread res and result in serious injury and/or property damage.
Never use blower to spread chemicals, fertilizers, or any other toxic
substances. Spreading these substances could result in serious injury to the
operator or bystanders.
Never place the blower on any surface, except a hard, clean surface when
the engine is running. Gravel, sand, and other debris can be picked up by the air
inlet and thrown at the operator or bystanders, causing possible serious injuries.
Save these instructions. Refer to them frequently and use them to instruct
others who may use this tool. If you loan this tool to someone else, also loan these
instructions to them to prevent misuse of the product and possible injury.
SAVE THESE INSTRUCTIONS!
56V LITHIUM-ION CORDLESS BLOWER — LB480012
specifications
Voltage 56V DC
No Load Speed
Boost: 21000RPM
High:18000 RPM
Low:10000 RPM
Air Volume
Boost: 480 CFM
High: 385 CFM
Low: 250 CFM
Air Velocity
Boost: 92 MPH
High: 72 MPH
Low:45 MPH
Approx. Run Time
(with EGO BA1120 56V Battery 2.0Ah)
10 min.(Boost)
18 min. (High speed)
60 min. (Low speed)
Blower Weight (Without battery pack,
with tube)
5.16 lbs. (2.34 kg)
56V LITHIUM-ION CORDLESS BLOWER — LB4800 13
assembly
WARNING:
If any parts are damaged or missing, do not operate this product
until the parts are replaced. Use of this product with damaged or missing parts could
result in serious personal injury.
WARNING:
Do not attempt to modify this product or create accessories not
recommended for use with this blower. Any such alteration or modication is misuse
and could result in a hazardous condition leading to possible serious personal injury.
UNPACKING
Carefully remove the product and any accessories from the box. Make sure that
all items listed in the packing list are included.
WARNING:
Do not use this product if any parts on the packing list are already
assembled to your product when you unpack it. Parts on this list are not assembled to
the product by the manufacturer and require customer installation. Use of a product
that may have been improperly assembled could result in serious personal injury.
Inspect the tool carefully to make sure no breakage or damage occurred during
shipping.
Do not discard the packing material until you have carefully inspected and
satisfactorily operated the tool.
If any parts are damaged or missing, please return the product to the place of
purchase.

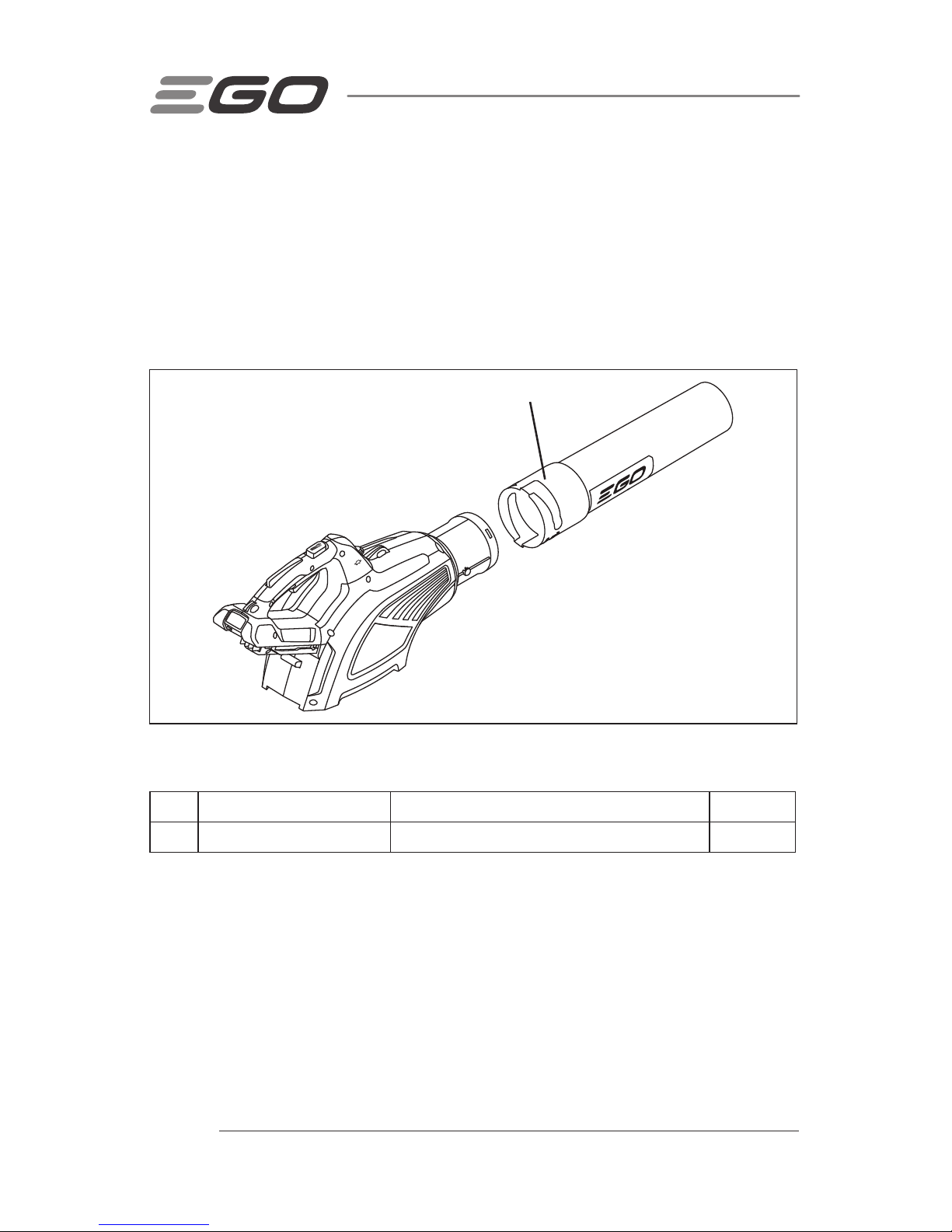

PACKING LIST
PART NAME QUANTITY
Blower 1
Blower tube 1
Instruction manual 1
56V LITHIUM-ION CORDLESS BLOWER — LB480014

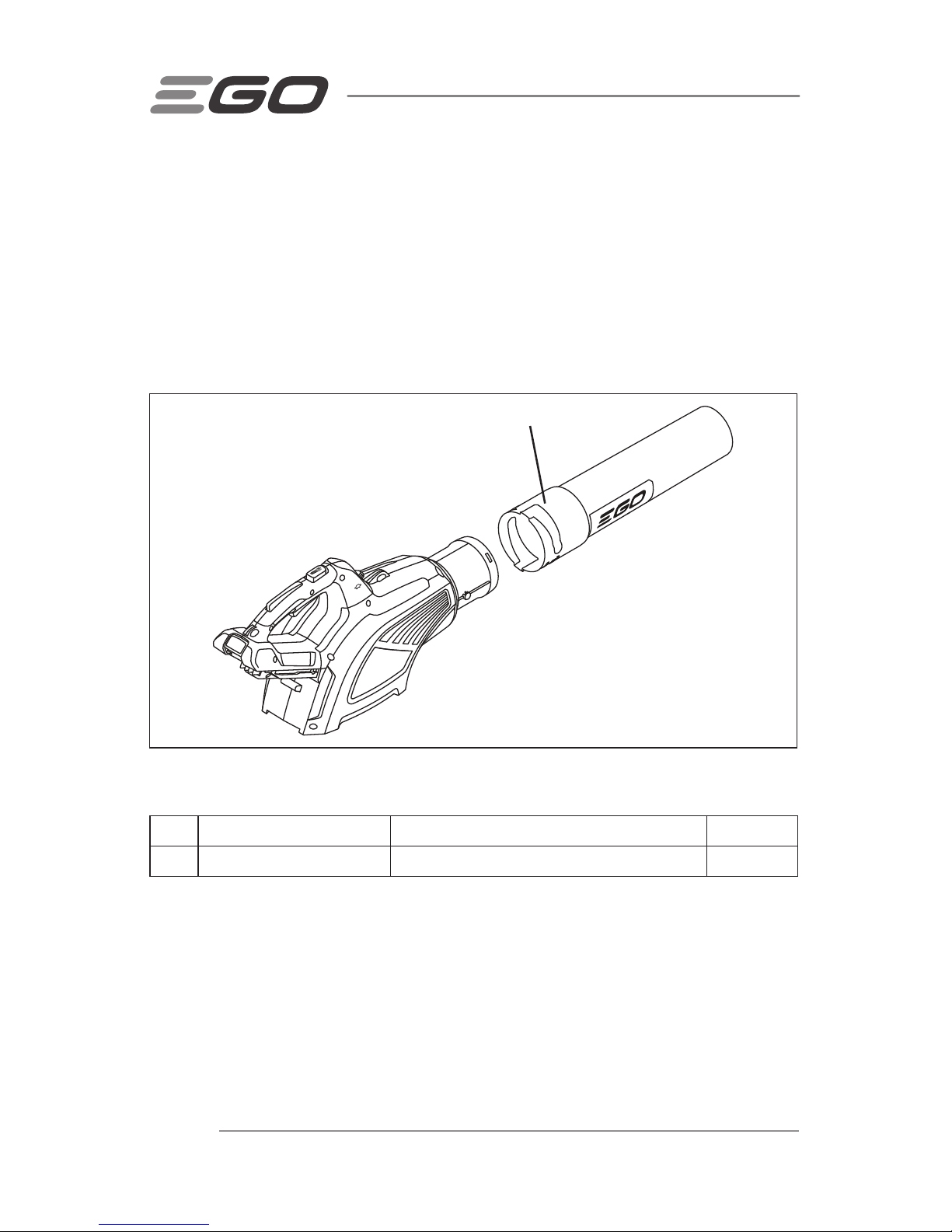

ASSEMBLING THE BLOWER TUBE
WARNING:
To prevent accidental starting that could cause serious personal
injury, always remove the battery pack from the tool when assembling parts.

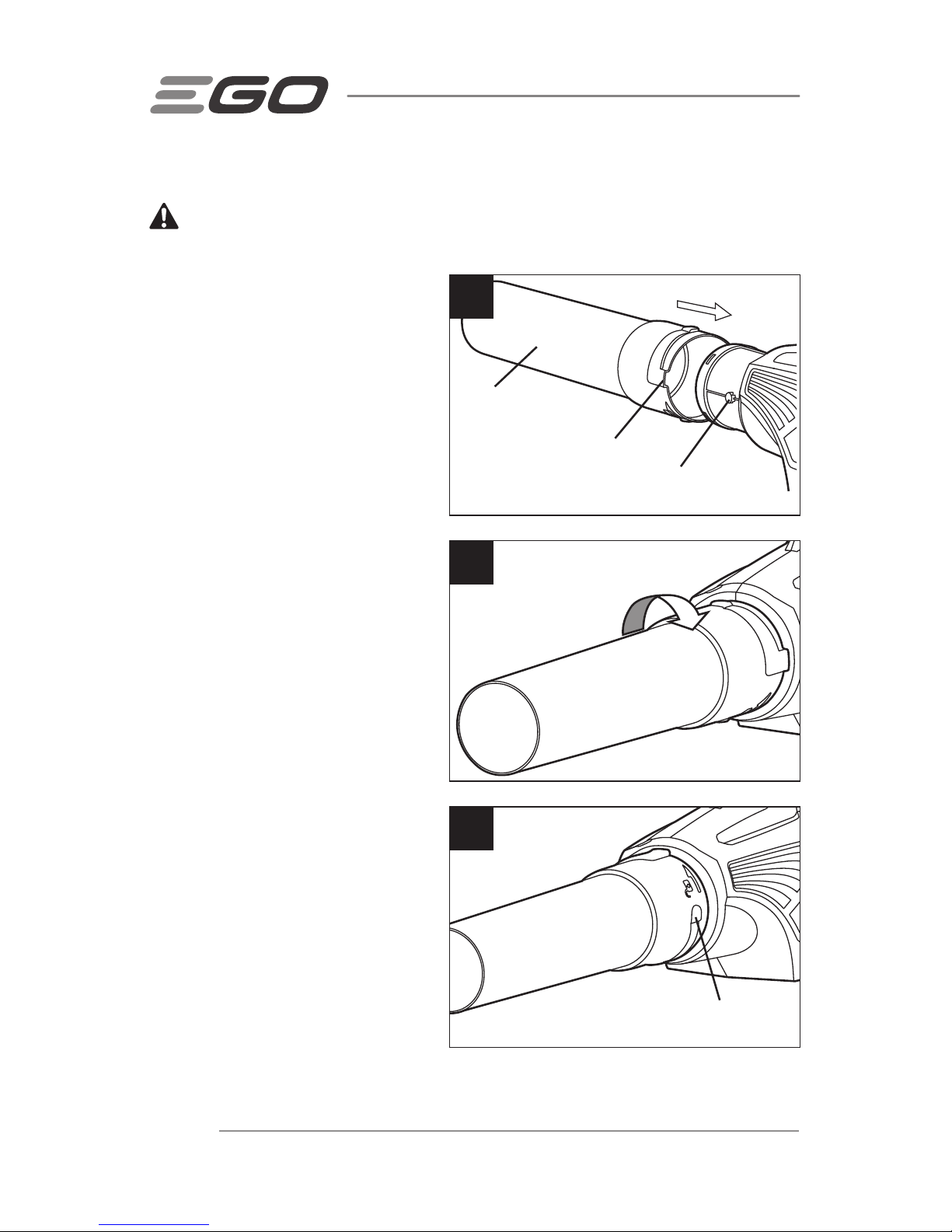

1. Align either of the grooves in
the tube with the knob on the
blower housing. Push the tube
onto the blower housing until
the knob engages the grooves
(Fig. 1&2).
2. Turn the tube in the direction
of the arrow until both of
the knobs slide into the lock
positions (Fig. 2&3).
Tube
Groove
Knob
1
2
3
Lock Position
56V LITHIUM-ION CORDLESS BLOWER — LB4800 15
description

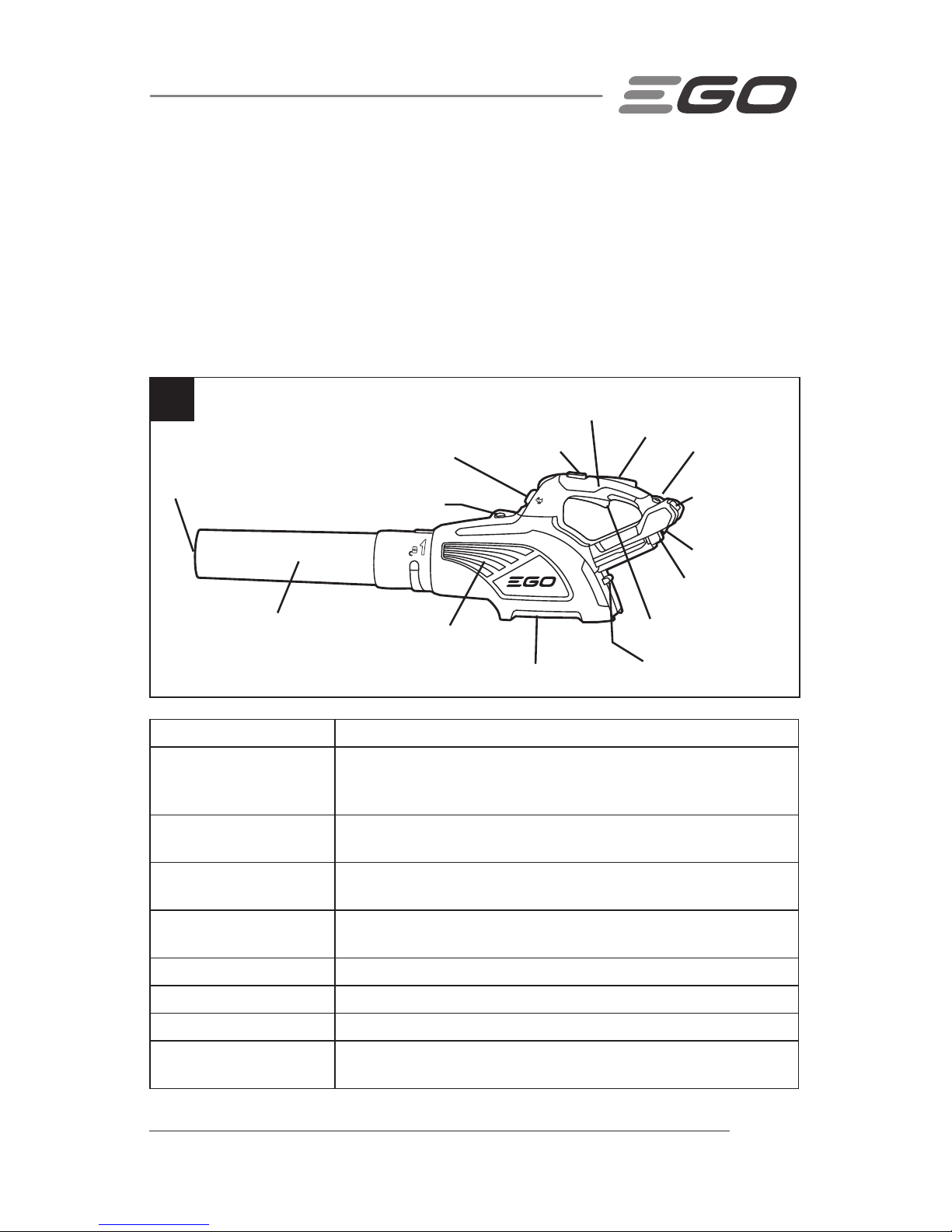

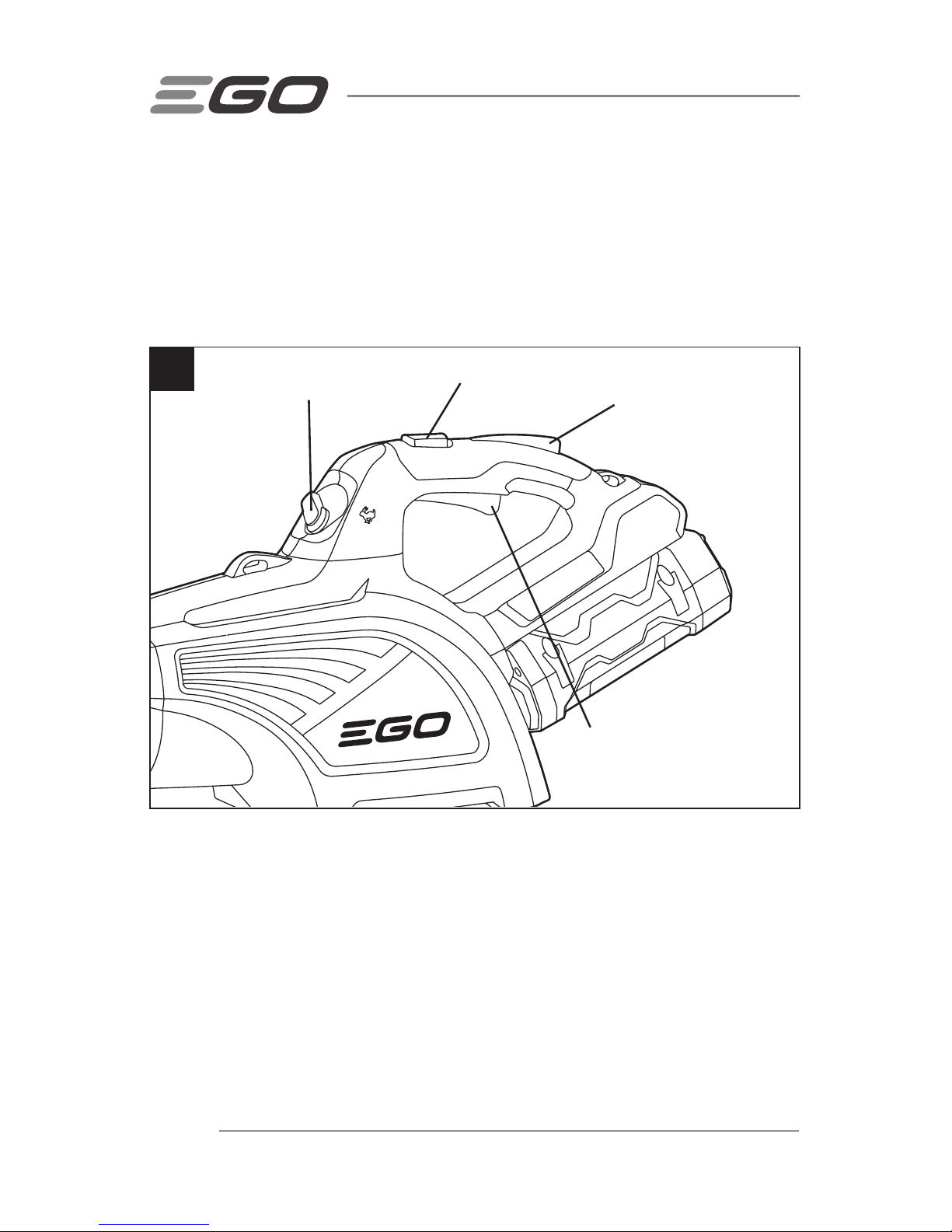

KNOW YOUR BLOWER (Fig. 4)
The safe use of this product requires and understanding of the information on the tool
and in this instruction manual as well as knowledge of the project you are attempting.
Before use of this product, familiarize yourself with all operating features and safety
rules.
Electric Contacts
Latch
Battery Release
Button
Hanging Hole
Hanging Hole
Lock-off Lever
Overmold
Handle
Boost Button
Air-Velocity
Adjustment Knob
Ejection
Mechanism
Trigger
Air Inlet
Air Inlet
Blower Tube
Air Outlet
4
Trigger Starts/stops the blower
Lock-off Lever Helps prevent accidental or unauthorized activating of
the trigger. It must be depressed before the trigger can
be activated
Air-Velocity
Adjustment Knob
Increases or reduces the air velocity of the blower
Boost Button Amplies the air velocity to the maximum
Battery Release Button Releases the battery pack from the blower
Latch Locks the battery pack when installing it on the blower
Hanging Holes For use with a strap (not included)
Overmold Handle Ergonomic handle with overmold improves comfort and
grip
Loading...
