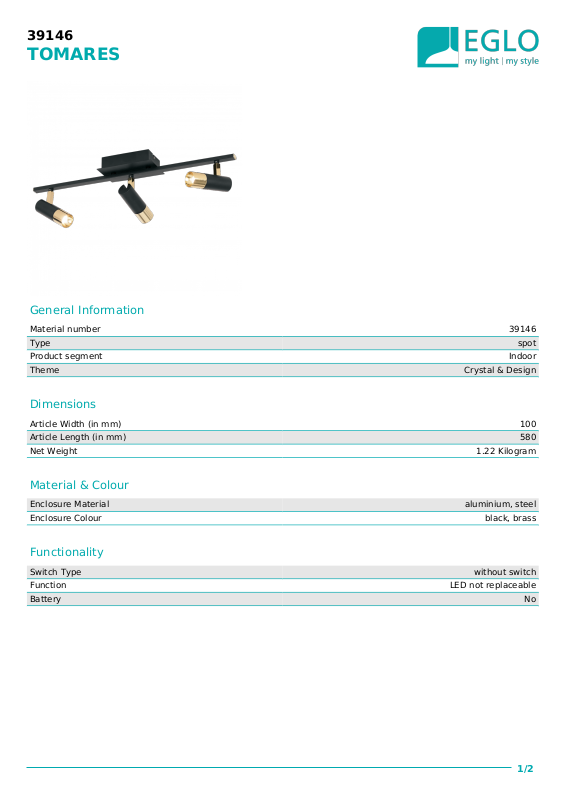

Page 1
39146
TOMARES
General Information
Material number 39146
Type spot
Product segment Indoor
Theme Crystal & Design
Dimensions
Article Width (in mm) 100
Article Length (in mm) 580
Net Weight 1.22 Kilogram
Material & Colour
Enclosure Material aluminium, steel
Enclosure Colour black, brass
Functionality
Switch Type without switch
Function LED not replaceable
Battery No
1/2
Page 2
39146
TOMARES
Technical Information
Protection Degree IP20
Protection Class 2
Mains Voltage 220-240V,50/60Hz
Operation Voltage 12V
Dimmable No
max. Wattage (1) 3X5W
Illuminant 1
Socket Type (1) LED
Illuminant Type (1) LED
Illuminant incl. (1) Inclusive
Nominal Luminous Flux (in lm) 480
Equivalence With Incandescent Lamp (W) 40
Colour Temperature 3000K warm white
Nominal Lifetime (in h) 25000
Switching Cycles 15000
Colour Rendering Index (Ra, CRI) >80
Energy Efficiency Class LED - A+
Dimmable No
Function LED not replaceable
Rated Lamp Power (0,1W precision) 4.6000
Colour Tolerance (LED, SDCM) <6
3X5W 1440l
m
Technical changes reserved
2/2
