Instruction Manual
Bedienungsanleitung
Manuel d’utilisation
Manuale di Istruzioni
EFLU03000, EFLU03050
Created 02/24
Scan the QR code and select the Manuals and Support quick links
from the product page for the most up-to-date manual information.
Scannen Sie den QR-Code und wählen Sie auf der Produktseite
die Quicklinks Handbücher und Unterstützung, um die aktuellsten
Scannez le code QR et sélectionnez les liens rapides Manuals and
Support sur la page du produit pour obtenir les informations les plus
Scannerizzare il codice QR e selezionare i Link veloci Manuali e
Supporto dalla pagina del prodotto per le informazioni manuali più
Informationen zu Handbücher.
récentes sur le manuel.
aggiornate.
EFLU03000 EFLU03050
Page 2
EN
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon
Hobby, LLC. For up-to-date product literature, visit horizonhobby.com or towerhobbies.com and click on the support or
resources tab for this product.
MEANING OF SPECIAL LANGUAGE
The following terms are used throughout the product literature to indicate various levels of potential harm when
operating this product:
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage,
and serious injury OR create a high probability of supercial injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no
possibility of injury.
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before
operating. Failure to operate the product correctly can result in damage to the product, personal property and
cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic
mechanical ability. Failure to operate this Product in a safe and responsible manner could result in injury or damage
to the product or other property. This product is not intended for use by children without direct adult supervision. Do
not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon
Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow
all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid
damage or serious injury.
Age Recommendation: Not for children under 14 years. This is not a toy.
Safety Precautions and Warnings
As the user of this product, you are solely responsible for operating in a manner that does not endanger yourself and others or result in damage to the product or the property of others.
• Always keep a safe distance in all directions around
your model to avoid collisions or injury. This model is
controlled by a radio signal subject to interference from
many sources outside your control. Interference can
cause momentary loss of control.
• Always operate your model in open spaces away from
full-size vehicles, trafc and people.
• Always carefully follow the directions and warnings
for this and any optional support equipment (chargers,
rechargeable battery packs, etc.).
• Always keep all chemicals, small parts and anything
electrical out of the reach of children.
• Always avoid water exposure to all equipment not
specically designed and protected for this purpose.
Moisture causes damage to electronics.
• Never place any portion of the model in your mouth as
it could cause serious injury or even death.
WARNING AGAINST COUNTERFEIT PRODUCTS: If you ever need to replace your Spektrum receiver found in a
Horizon Hobby product, always purchase from Horizon Hobby, LLC or a Horizon Hobby authorized dealer to
ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support and warranty with regards,
but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM
or Spektrum technology.
• Never operate your model with low transmitter batteries.
• Always keep aircraft in sight and under control.
• Always use fully charged batteries.
• Always keep transmitter powered on while aircraft is
powered.
• Always remove batteries before disassembly.
• Always keep moving parts clean.
• Always keep parts dry.
• Always let parts cool after use before touching.
• Always remove batteries after use.
• Always ensure failsafe is properly set before ying.
• Never operate aircraft with damaged wiring.
• Never touch moving parts.
2
UMX Slow Ultra Stick
Page 3
Registration
Register your product today to
join our mailing list and keep up
to date with product updates,
offers and E-ite® news.
Table of Contents
Charging Warning ............................................................3
Aircraft Assembly .............................................................4
General Binding Tips and Failsafe, BNF ............................5
Low Voltage Cutoff (LVC) ..................................................5
Install the Transmitter Batteries ........................................5
Transmitter Switches and LEDs ........................................6
Power ON / OFF the Transmitter .......................................6
Transmitter Setup, BNF ................................................7–8
Bind the Transmitter and Receiver ....................................8
Charge the Aircraft Battery ...............................................9
Install the Aircraft Battery ................................................9
Control Direction Test .....................................................10
Control Centering ...........................................................10
Control Horn Settings .....................................................11
Center of Gravity (CG) ....................................................11
Flying Tips and Repairs ..................................................11
Hand Launching .............................................................12
Post Flight Checklist ......................................................12
Power System Servicing ................................................12
AS3X® System Trouble Shooting Guide ...........................13
Troubleshooting Guide .............................................13–14
Replacement Parts .........................................................14
Optional Parts ................................................................14
Recommended Parts ......................................................14
Important Federal Aviation Administration (FAA)
Information ..................................................................15
AMA National Model Aircraft Safety Code .......................15
Limited Warranty .....................................................15–16
Contact Information .......................................................16
FCC Information .............................................................17
IC Information ................................................................17
Compliance Information for the European Union .............17
Specications
Wingspan 19.74" (501.5mm)
Length 17.39" (441.5mm)
Weight*
Without Battery: 1.48oz (42g)
With Recommended 1S 150mAh Flight
Battery: 1.62oz (46g)
Included Equipment
Receiver / ESC Spektrum™ Receiver / ESC (SPM-1002)
Motor
Propeller 130 x 70mm (EFL-1098)
Battery Charger USB-C Power Supply and Charge Cable
Spektrum™ Brushed Motor: 8.5mm
(SPMX-1019)
RTF Included Equipment
Flight Battery
Battery Charger
Transmitter
Transmitter Batteries 4 AA Alkaline
150mAh 1S 3.7V 50C LiPo;
JST-PH 1.25 Connector
(SPMX1501S50)
Mini USB-C 1S Battery Charger
(SPMXC0010)
Spektrum™ SLT6LP 2.4GHz
(SPMR1275)
BNF Required Equipment
Flight Battery
Battery Charger
Transmitter
* The weight provided is for the aircraft and ight control
components. No additional payload is allowed. MTOM is
weight with recommended battery.
This product is a class C4 UAS as dened by the
European Union Aviation Safety Agency (EASA).
150mAh 1S 3.7V 50C LiPo; JST-PH
1.25 Connector (SPMX1501S50)
S63 Micro 6-Port DC/USB 1S LiPo
Smart Charger (SPMXC1060)
Spektrum™ DSMX Transmitter
or Spektrum™ SLT6LP 2.4GHz
(SPMR1275)
EN
Charging Warning
CAUTION: All instructions and warnings must
be followed exactly. Mishandling of Li-Po
batteries can result in a re, personal injury and/or
property damage.
• By handling, charging or using the included Li-Po
battery, you assume all risks associated with lithium
batteries.
• If at any time the battery begins to balloon or swell,
discontinue use immediately. If charging or discharging, discontinue and disconnect. Continuing to use,
charge or discharge a battery that is ballooning or
swelling can result in re.
• Always store the battery at room temperature in a dry
area for best results.
• Always transport or temporarily store the battery in a
temperature range of 40–120° F. Do not store the battery or model in a car or direct sunlight. If stored in a
hot car, the battery can be damaged or even catch re.
• Always charge batteries away from ammable materials.
• Always inspect the battery before charging.
• Always disconnect the battery after charging, and let
the charger cool between charges.
• Always constantly monitor the temperature of the battery pack while charging.
• ONLY USE A CHARGER SPECIFICALLY DESIGNED TO
CHARGE LI-PO BATTERIES. Failure to charge the battery
with a compatible charger may cause a re resulting in
personal injury and/or property damage.
• Never discharge Li-Po cells to below 3V under load.
• Never cover warning labels with hook and loop strips.
• Never leave charging batteries unattended.
• Never charge batteries outside recommended levels.
• Never charge damaged batteries.
• Never attempt to dismantle or alter the charger.
• Never allow minors to charge battery packs.
• Never charge batteries in extremely hot or cold places
(recommended between 40–120° F or 5–49° C) or
place in direct sunlight.
3
Page 4
EN

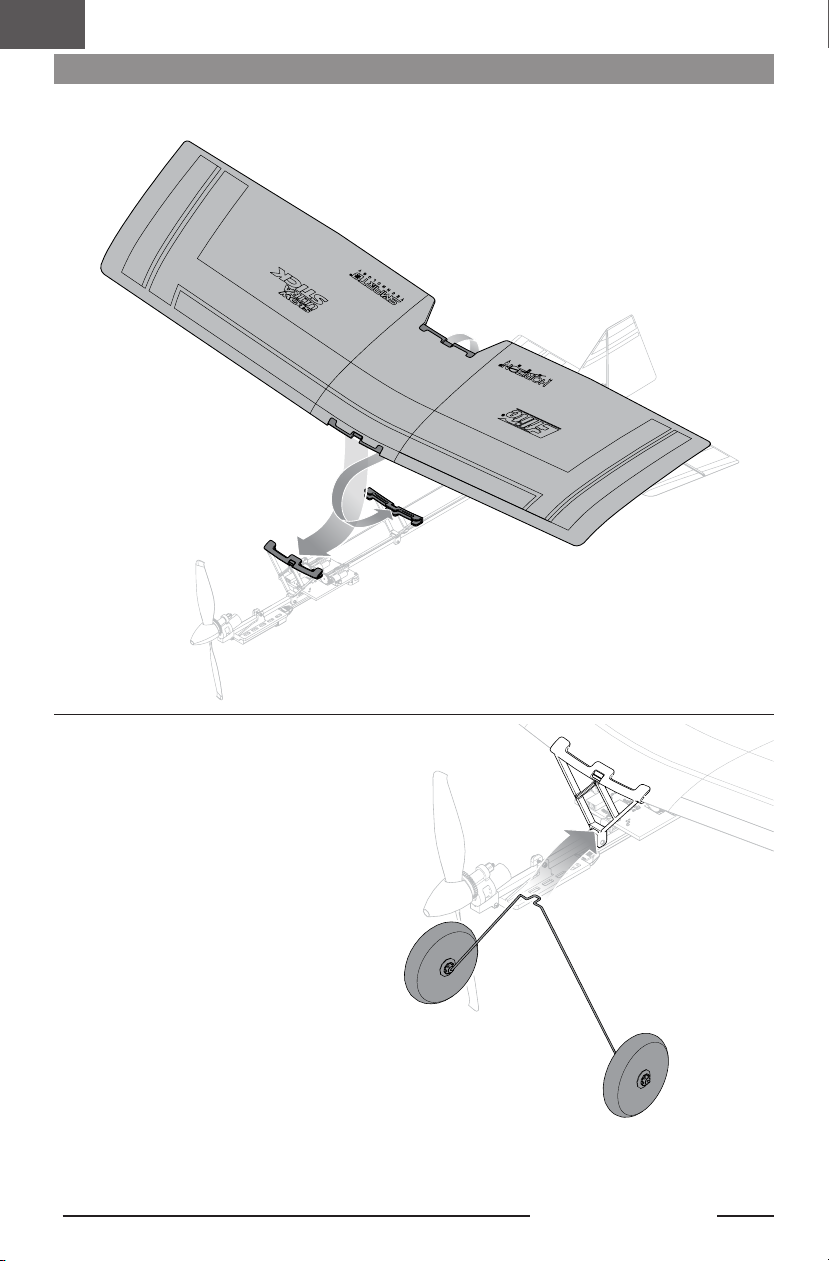

Aircraft Assembly
Install the Wing
1. Clip the front section of the wing into the front wing
mount.
2. Clip the rear section of the wing into the rear wing
mount.
Install the Landing Gear
The UMX Slow Ultra Stick includes landing gear that does
not require hardware to hold it into place.
1. Squeeze the landing gear legs together.
2. Install the main landing gear assembly into the landing
gear mount.
4
UMX Slow Ultra Stick
Page 5
General Binding Tips and Failsafe, BNF
• The included receiver has been specically programmed for operation of this aircraft. Refer to the
receiver manual for correct setup if the receiver is
replaced.
• Keep away from large metal objects while binding.
• Do not point the transmitter’s antenna directly at the
receiver while binding.
• The orange LED on the receiver will ash rapidly when
the receiver enters bind mode.
Low Voltage Cutoff (LVC)
When a Li-Po battery is discharged below 3V per cell, it
will not hold a charge. The aircraft’s ESC protects the ight
battery from over-discharge using Low Voltage Cutoff (LVC).
Once the battery discharges to 3V per cell, the LVC will
reduce the power to the motor in order to leave adequate
power to the receiver and servos to land the airplane.
When the motor power decreases, land the aircraft immediately and replace or recharge the ight battery.
Always disconnect and remove the Li-Po battery from
the aircraft after each ight. Charge your Li-Po battery to

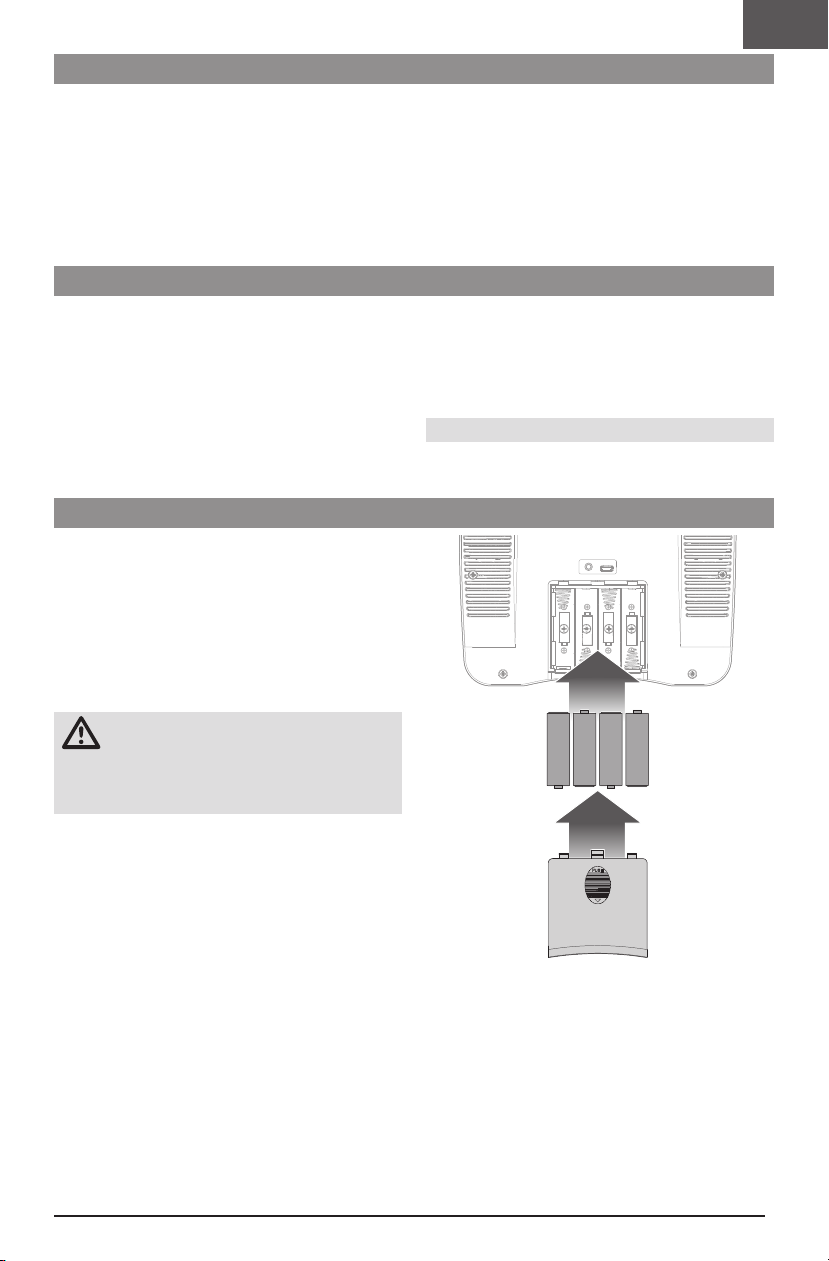

Install the Transmitter Batteries
1. Remove the battery cover.
2. Install the included four AA batteries, noting proper
polarity.
3. Reinstall the battery cover.
Low Battery Alarm
When the transmitter battery voltage drops below 4.7
volts, an alarm sounds and the voltage LEDs ash. Replace
the batteries immediately. If the alarm sounds while ying,
land your aircraft as soon as possible.
CAUTION: Do not attempt to recharge the
included AA batteries. These batteries are not
rechargeable. Charging non-rechargeable batteries may
cause the batteries to burst, resulting in injury to
persons and/or damage to property.
EN
• Once bound, the receiver will retain its bind settings for
that transmitter until you re-bind.
• If the receiver loses transmitter communication, the
failsafe will activate. Failsafe moves the throttle channel to low throttle. Pitch and roll channels move to
actively stabilize the aircraft in a descending turn.
• If problems occur, refer to the troubleshooting guide
or if needed, contact the appropriate Horizon Product
Support ofce.
about half capacity before storage. Make sure the battery
charge does not fall below 3V per cell. Failure to unplug a
connected battery will result in trickle discharge.
For your rst ights, set your transmitter timer or a stopwatch to 4 minutes. Adjust your timer for longer or shorter
ights once you have own the model.
NOTICE: Repeated ying to LVC will damage the battery.
5
Page 6
EN
Transmitter Switches and LEDs
Bind/Panic Button: This button is used to control the Bind
and Panic Recovery Mode functions.
See the Binding section for information on re-binding
your transmitter and aircraft if necessary. The included
transmitter comes bound to the receiver/aircraft from the
factory, therefore binding is not typically necessary.
See the Sensor Assisted Flight Envelope (SAFE) Technology
section for information about Panic Recovery mode.
Hi/Lo Rate Switch: This switch supports high and low
rate functions on the elevator and aileron channels.
We recommend using low rates when rst learning to y or
for smooth and more precise maneuvering, and high rates
for more aggressive maneuvers and aerobatics.
In the upper, or “HI” position, servo travel is 100% on
these channels.
In the lower, or “LO,” position, servo travel decreases to 70%.
Flight Mode Switch: This switch is used to select the
SAFE ight mode. See the Sensor Assisted Flight Envelope
(SAFE) Technology section for information about the
various SAFE ight modes.
Throttle Cut Switch: This switch activates throttle cut.
With the throttle cut on (switch position 1), throttle input
from the throttle stick is deactivated. This safety feature
ensures any accidental bump of the throttle stick will not
activate the motor while the ight battery is connected.
With the throttle cut off (switch position 0), any position of
the throttle stick above the lowest setting will activate the
aircraft motor.
NOTICE: Always ensure the throttle stick is at the
lowest setting before switching the throttle cut function
off. Failure to do so will result in the motor activating.
LED and Audible Indications
Flashing with beeps: The transmitter is in bind mode,
because the bind button was held down while the
transmitter was powered on. See the Binding section for
more information.
Pulsates with one low tone beep every 2 seconds:
The transmitter battery voltage has dropped below 4.7
volts. Replace the transmitter batteries immediately. If this
happens while ying, land the aircraft as soon as possible.
Inactivity Alarm: If the transmitter is left inactive for 10
minutes, it will begin to beep until the sticks are moved or
the power is turned off.

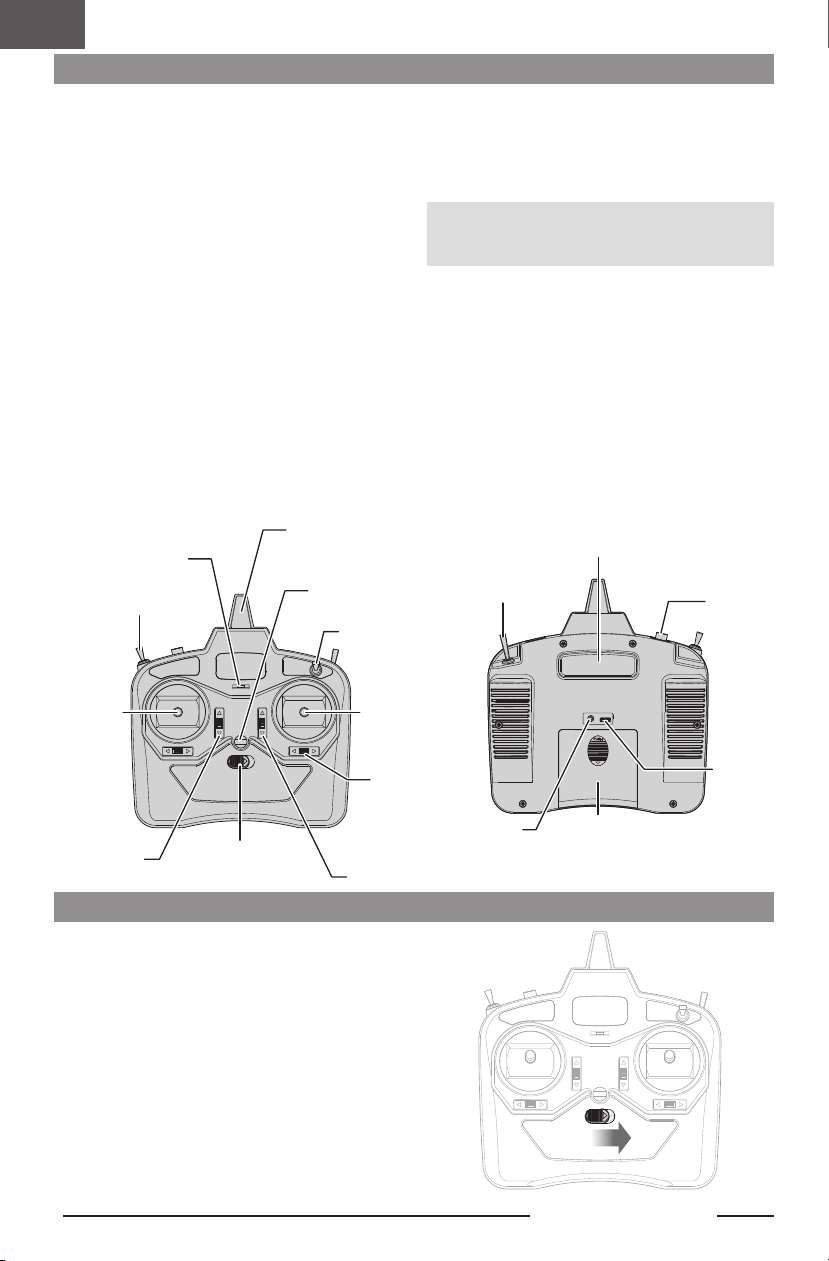

Antenna
1 Green LED
Flight Mode Switch
Throttle/
Rudder
Stick
Throttle Trim
Power Switch
Neck Strap Hook
Dual Rate
Switch
Elevator/
Aileron Stick
Aileron Trim
Elevator Trim
Power ON / OFF the Transmitter
Slide the power button to power the transmitter ON. The
LED indicator will illuminate green when the transmitter is
ON and transmitting. To power the transmitter OFF, slide
the power button to the OFF position.
Throttle Cut
Switch
3.5mm jack
(factory use only)
Integrated Handle
Battery
Compartment
Bind /
Panic
Button
USB-C
Port
(data
output
only)
6
UMX Slow Ultra Stick
Page 7
Transmitter Setup, BNF
IMPORTANT: This aircraft is compatible with Spektrum
transmitters. Binding to an SLT transmitter other than the
Spektrum SLT6LP will not provide full functionality.
To use a Spektrum DSMX transmitter, follow the setup
instructions on this page which corresponds to your DX,
NX or iX series transmitter.
When using the recommended setup, the transmitter
switch layout is as follows:
• Switch A controls SAFE Select.
• Switch C controls the elevator dual rates.
• Switch F controls the aileron dual rates.
• Switch H controls the throttle cut.
Telemetry Alarms
Smart ESC : Low Voltage Alarm 3.2V
EN
Dual Rates
Make the initial ights in low rate, changing to high rate
elevator for landing.
NOTICE: To ensure AS3X technology functions properly,
do not lower rate values below 50%. If less control
deection is desired, manually adjust the position of the
pushrods on the servo arm
NOTICE: If oscillation occurs at high speed, refer to the
Troubleshooting Guide for more information.
Exponential
After rst ights, adjust the exponential settings in the
transmitter to ne tune the responsiveness of the aircraft
around neutral to your preference.
NX Series Transmitter Setup
1. Power ON your transmitter, click on scroll wheel, roll to
System Setup and click the scroll wheel. Choose yes.
2. Go to Model Select and choose <Add New Model>
near the bottom of the list. Select Airplane Model
Type by choosing the airplane, select Create
3. Set Model Name: Input a name for your model le
4. Go to Channel Assign
5 Gear: Switch A
Click List to exit
5. Select <Main Screen>, Click the scroll wheel to
enter the Function List
6. Go to D/R (Dual Rate) and Expo;
Channel: Elevator
Set Switch: Switch C
Set Switch Positions 0 and 1: Rate 100%, Expo 10%
Set Switch Position 2: Rate 70%, Expo 5%
7. Go to D/R (Dual Rate) and Expo; Channel : Aileron
Set Switch: Switch F
Set Switch Positions 0 and 1: Rate 100%, Expo 10%
Set Switch Position 2: Rate 70%, Expo 5%
8. Select List to go back to the Function List
9. Select Throttle Cut; Switch: Switch H Position: -100%
DX Series Transmitter Setup
1. Power ON your transmitter, click on scroll wheel, roll
to System Setup and click the scroll wheel.
Choose yes.
2. Go to Model Select and choose <Add New Model>
at the bottom of the list. The system asks if you want
to create a new model, select Create
3. Set Model Type: Select Airplane Model Type by
choosing the airplane.
The system asks you to conrm model type, data will
be reset. Select YES
4. Set Model Name: Input a name for your model le
5. Go to Channel Assign
5 Gear: Switch A
Click List to exit
6. Select <Main Screen>, Click the scroll wheel to
enter the Function List
7. Go to D/R (Dual Rate) and Expo; Channel : Elevator
Set Switch: Switch C
Set Switch Positions 0 and 1: Rate 100%, Expo 10%
Set Switch Position 2: Rate 70%, Expo 5%
8. Go to D/R (Dual Rate) and Expo; Channel : Aileron
Set Switch: Switch F
Set Switch Positions 0 and 1: Rate 100%, Expo 10%
Set Switch Position 2: Rate 70%, Expo 5%
9. Select List to go back to the Function List
10. Select Throttle Cut; Switch: Switch H Position: -100%
7
Page 8
EN
Transmitter Setup, BNF
iX Series Transmitter Setup
1. Power ON your transmitter and begin once the
Spektrtum Airware app is open. Select the orange
pen icon in the upper left corner of the screen, the
system asks for permission to Turn Off RF, select
PROCEED
2. Select the three dots in the upper right corner of the
screen, select Add a New Model
3. Select Model Option, choose DEFAULT, select
Airplane. The system asks if you want to create a
new acro model, select Create
4. Select the last model on the list, named Acro. Ta p
on the word Acro and rename the le to a name of
your choice
5. Tap and hold the back arrow icon in the upper left
corner of the screen to return to the main screen
6. Go to Model Setup; Select Channel Assign, select
PROCEED
5 Gear: Switch A
Press and hold the back arrow icon in the upper left
corner of the screen to return to the main screen

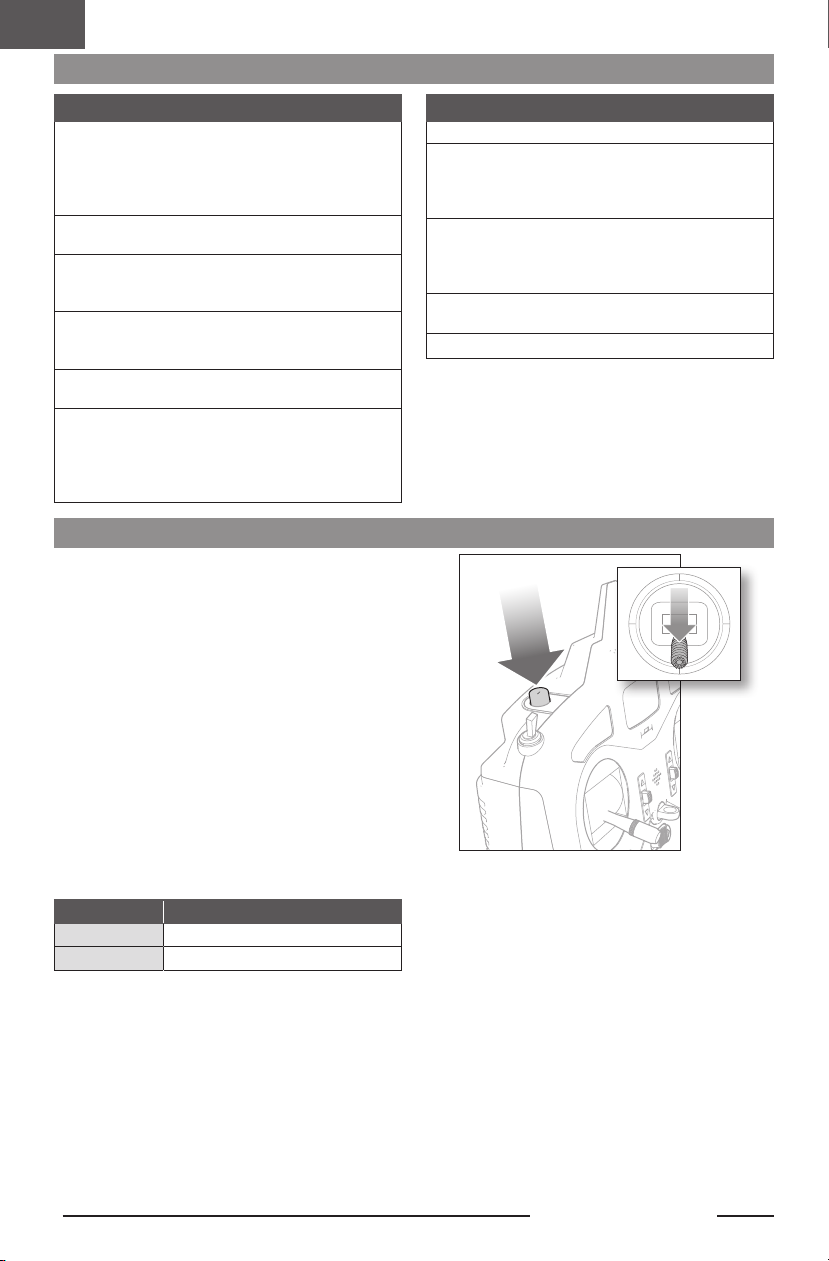

Bind the Transmitter and Receiver
Binding is the process of programming the aircraft receiver with the identication code of the transmitter so the
receiver will only connect to that specic transmitter.
The included transmitter was bound to the aircraft at the
factory. If the aircraft does not respond to transmitter control
inputs when the batteries in the aircraft and transmitter are
fully charged, the aircraft receiver and transmitter may need
to be re-bound.
To re-bind the transmitter and receiver:
1. Power OFF the transmitter.
2. Set the throttle stick to the low position and all other
controls to neutral.* Ensure the aircraft is immobile.
IMPORTANT: The throttle will only arm if the transmitter
throttle control is at the lowest position.
3. Connect the ight battery to the ESC. The receiver will
cycle between DSMX and SLT approximately every
20 seconds. The receiver LED is visible with the wing
removed.
Transmitter LED Pattern
DSMX rapid constant ashes
SLT 3 rapid ashes, 1 pause (repeat)
4. Press and hold the bind button (button A) on the trans-
mitter while powering ON the transmitter. The receiver
LED will glow solid when the receiver and transmitter
are bound. The aircraft will initialize and the controls
will function normally.
Once properly bound, the receiver and transmitter will
retain their bind for future ights.
If you encounter problems, refer to the troubleshooting
guide. If necessary, contact the appropriate Horizon Hobby
product support ofce.
iX Series Transmitter Setup
7. Go to the Model Adjust menu
8. Channel: Elevator
Switch: Switch C
Set Switch Positions 0 and 1: Rate 100%, Expo 10%
Set Switch Position 2: Rate 70%, Expo 5%
9. Channel: Aileron
Switch: Switch F
Set Switch Positions 0 and 1: Rate 100%, Expo 10%
Set Switch Position 2: Rate 70%, Expo 5%
10. Tap the back arrow to return to the Model Adjust
menu
11. Select Throttle Cut; Switch: Switch H Position: -100%
HOLD
* Failsafe
The receiver stores the position of the transmitter throttle control
at the time of binding as the failsafe position. If the receiver
should ever lose communication with the transmitter, the failsafe
function will activate. Failsafe moves the throttle channel to
its preset failsafe position (low throttle) that was stored during
binding. All other control channels move to put the aircraft in a
slowly descending circle until radio link is re-established.
8
UMX Slow Ultra Stick
Page 9

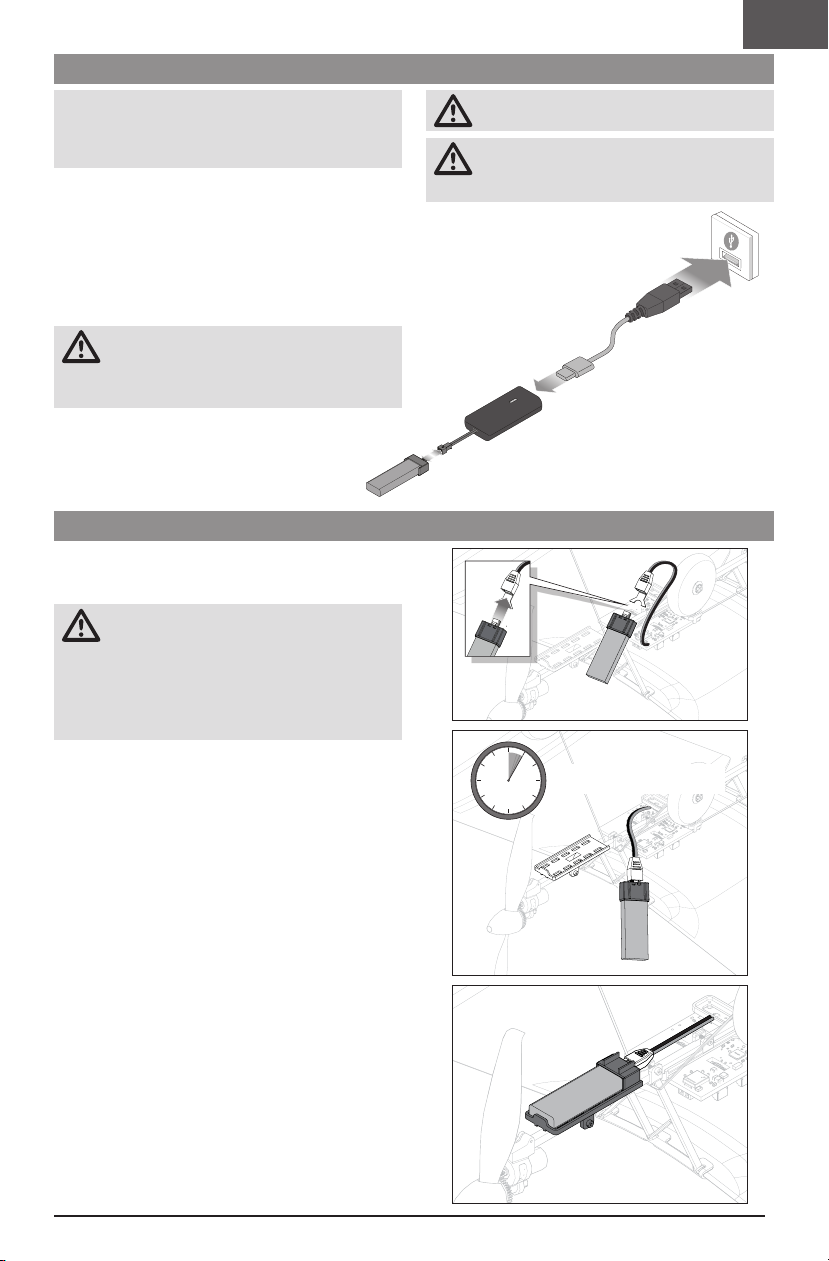

Charge the Aircraft Battery
NOTICE: Inspect the battery to make sure it is not dam-
aged e.g., swollen, bent, broken or punctured. Charge
only batteries that are cool to the touch and are not
damaged.
Always charge the aircraft battery before ying.
1. Insert the charger into a USB port.
2. Connect the battery to the charger.
CHARGING (Solid Orange LED)
MAX CHARGE (Solid Green LED)
Disconnect the ight battery from the charger immediately
upon completion of charging.
CAUTION: Only use chargers specically
designed to charge the included Li-Po battery.
Failure to do so could result in re, causing injury or
property damage.
Install the Aircraft Battery
Keep the aircraft and transmitter away from large metal
objects, wireless sources or other transmitters while
installing the battery.
CAUTION: Always disconnect the Li-Po ight
battery from the aircraft receiver when not
ying to avoid over-discharging the battery. Batteries
discharged to a voltage lower than the lowest approved
voltage may become damaged, resulting in loss of
performance and potential re when batteries are
charged.
EN
CAUTION: Never exceed the recommended
charge rate.
CAUTION: Once charging is complete,
immediately remove the battery.Never leave a
battery connected to the charger.
Keep immobile and out of
5
the wind for 5 seconds.
Sec.
9
Page 10
EN

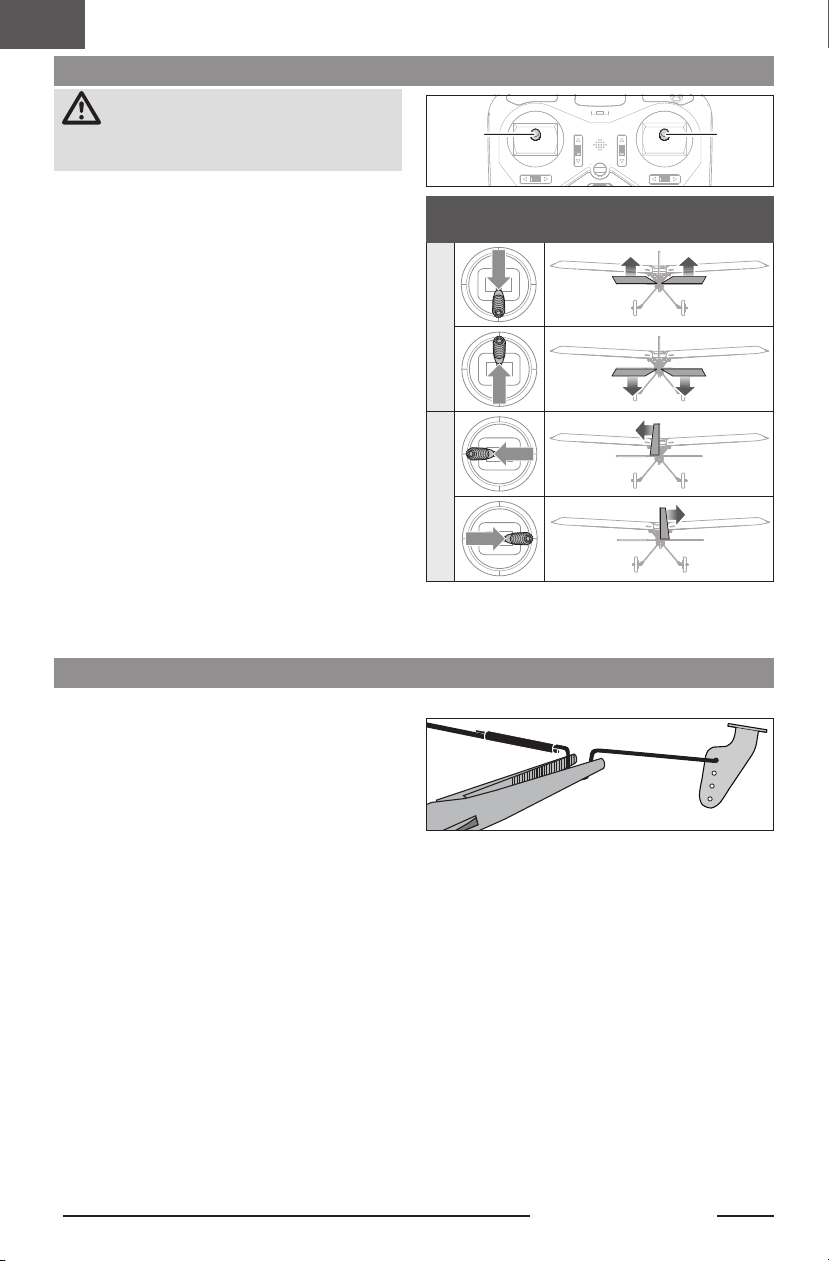

Control Direction Test
WARNING: Do not perform this or any other
equipment test without turning on throttle cut.
Serious injury or property damage could result from the
motor starting inadvertently.
If the control surfaces do not respond as shown, DO NOT
FLY. Refer to the Troubleshooting Guide for more informa-
tion. If you need more assistance, contact the appropriate
Horizon Hobby Product Support department.
1. Power on the transmitter.
2. Turn on throttle cut.
3. Set the ight mode switch to Experienced Mode.
IMPORTANT: Do NOT check the controls in the Beginner
or Intermediate Modes.
4. Place the model on level ground away from obstacles.
5. Power on the aircraft, and wait for it to fully initialize.
6. Move the sticks on the transmitter as shown in the
table and observe the control surfaces on the aircraft.
Ensure the aircraft control surfaces respond as
shown and return to neutral when the control input is
released.
7. Check for any binding in the control surfaces.
TIP: The transmitter emits a faint beep with each click
of the trim buttons in either direction. Holding the button
in either direction quickly adjusts the trim several steps
until the button is released or until the trim reaches the
end of its travel. If the trim button does not beep when
clicked, the trim is at the far end of its travel. Center trim
is indicated by a slightly louder beep.
Throttle
Stick
Transmitter
Pitch
Roll
Command
Elevator/
Aileron
Stick
Control Surface Response
(viewed from the rear)
Control Centering
Before the rst ights, or in the event of an accident,
make sure the ight control surfaces are centered. Ad-
just the linkages mechanically if the control surfaces are
not centered, avoid excessive use of transmitter sub-trims.
Control surface centering must be done with SAFE off, and
AS3X not active. Keep the throttle at zero after powering
on to prevent AS3X from activating.
IMPORTANT: Enable throttle cut to help prevent accidental
throttle activation.
1. Verify the trims and subtrims on your transmitter are
neutral.
2. Connect a battery to the model with SAFE off and keep
throttle at zero.
3. When needed, use a pair of pliers to carefully bend the
metal linkage (see illustration).
4. Make the U-shape narrower to make the linkage
shorter. Make the U-shape wider to make the linkage
longer.
10
Centering Controls After First Flights
For best performance with AS3X, it is important that
excessive trim is not used. If the aircraft requires exces-
sive transmitter trim (4 or more clicks of trim per channel),
return the transmitter trim to zero and adjust the linkages
mechanically so that the control surfaces are in the ight
trimmed position.
UMX Slow Ultra Stick
Page 11

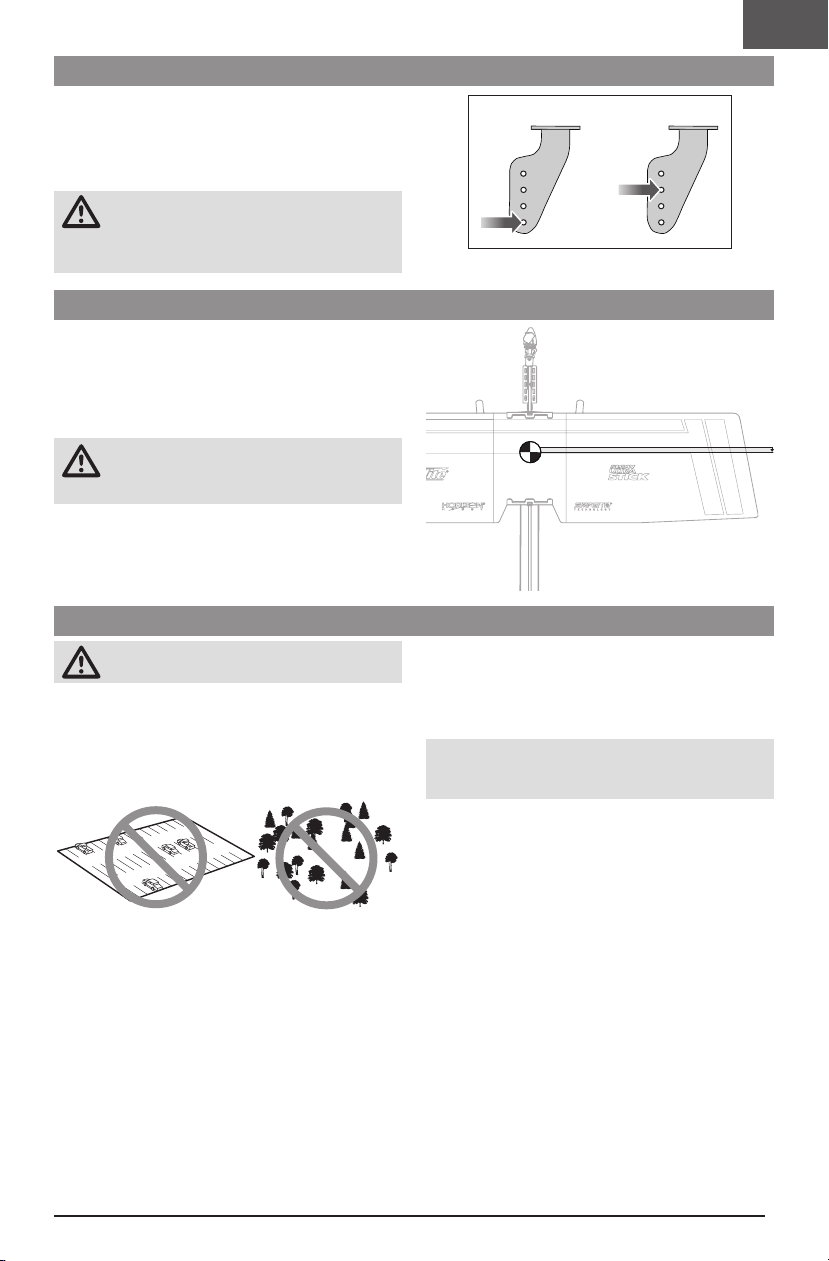

Control Horn Settings
The illustration shows the factory settings for the control
horns. Fly the aircraft at factory settings before making
changes.
After ying, you may choose to adjust the linkage positions
for the desired control response.
CAUTION: When these are incorrectly
connected for the pilot’s skill level, unexpected
aircraft response to controls can result. This can cause
damage to the aircraft and personal injury.
Center of Gravity (CG)
The CG location is measured 43mm ± 3 behind the
leading edge of the wing. This CG location has been determined with the recommended 150mAh 1S 3.7V 50C Li-Po
battery (SPMX1501S50) installed to the front edge of the
battery tray. Adjust the battery forward or aft as needed to
achieve the proper CG location.
CAUTION: Install the battery but do not arm
the ESC while checking the CG. Personal injury
may result.
EN
Elevator Rudder
43mm ± 3
behind the leading edge
Flying Tips and Repairs
WARNING: Always engage throttle cut before
approaching the aircraft.
Range Check the Radio System
Range check the radio system with the aircraft. Refer to
your specic transmitter instruction manual for range test
information.
Flying
We recommend ying your aircraft outside in no greater
than a light breeze or inside in a large gymnasium. Always
avoid ying near houses, trees, wires and buildings. You
should also be careful to avoid ying in areas where there
are many people, such as busy parks, schoolyards or
soccer elds. Consult local laws and ordinances before
choosing a location to y your aircraft.
Takeoff
Place the aircraft in position for takeoff (facing into the
wind if ying outdoors). Set dual rates to low position and
gradually increase the throttle to ¾ to full and steer with
the aileron stick. Pull back gently on the elevator and climb
to check trim. Once the trim is adjusted, begin exploring
the ight envelope of the aircraft.
Landing
Always land into the wind. During the are, keep the wings
level and the aircraft pointed into the wind. Slowly lower
the throttle while easing back on the elevator to bring the
aircraft gently down on all three wheels.
NOTICE: Always fully lower the throttle at touch down
when landing the aircraft to prevent damage to the
propeller and motor.
Failure to lower the throttle stick and trim to the lowest
possible positions during a crash could result in damage to
the ESC in the receiver unit.
Over-Current Protection (OCP)
The aircraft is equipped with over-current protection. OCP
protects the ESC from overheating and stops the motor
when the transmitter throttle is set too high and the propeller cannot turn. OCP will only activate when the throttle
is positioned just above 1/2 throttle. After the ESC stops
the motor, fully lower the throttle to re-arm the ESC.
Repairs
Crash damage is not covered under warranty.
Repair this aircraft using foam-compatible CA glue or clear
tape. Only use foam-compatible CA glue as other types of
glue can damage the foam. When parts are not repairable,
see the Replacement Parts List for ordering by item number.
11
Page 12
EN

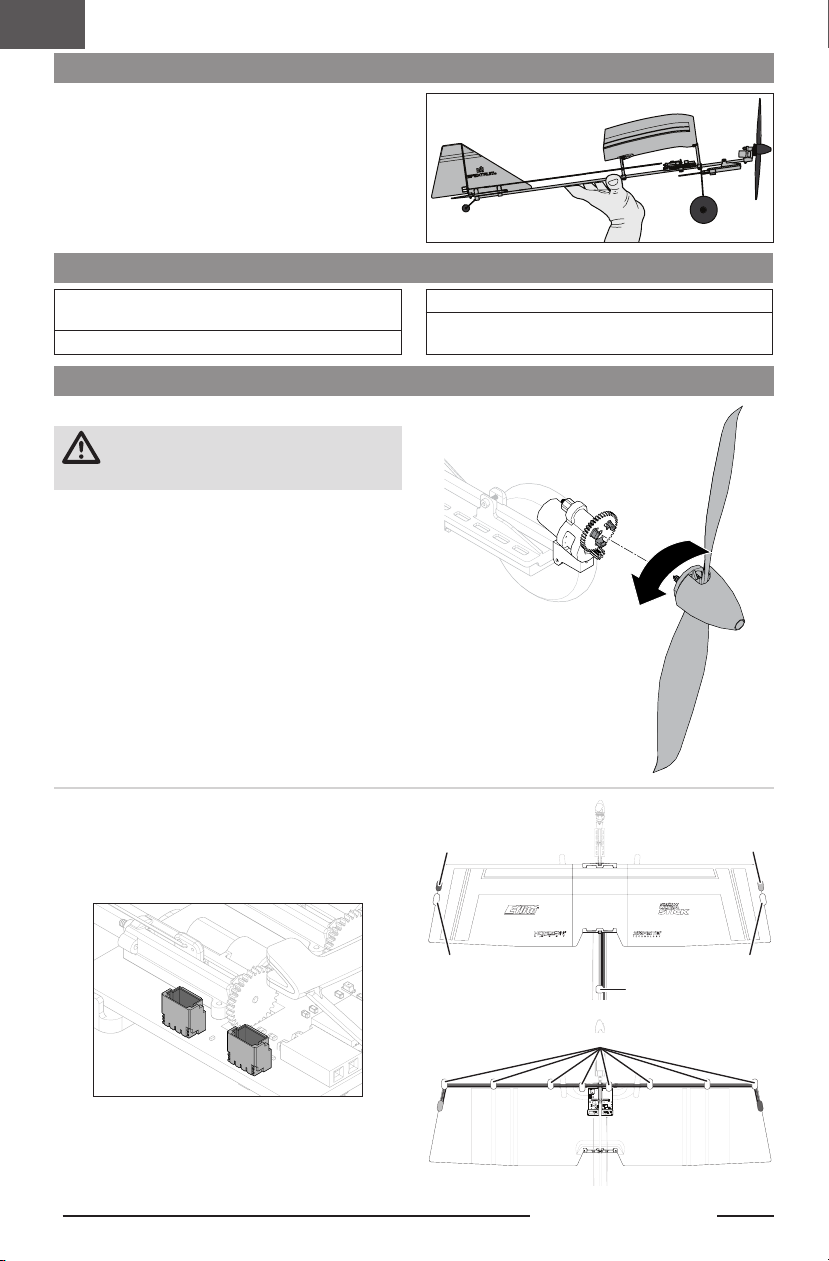

Hand Launching
Grip
We recommend holding the aircraft on the bottom of the
fuselage, just behind the wings, as shown.
Follow Through
Use a gentle toss with the wings level and the nose of the
model slightly upwards. Avoid an arcing toss which can
pull the nose down at release.
Post Flight Checklist
Disconnect the ight battery from the ESC (Required for
safety and battery life).
Power OFF the transmitter.
Power System Servicing
Disassembly
CAUTION: DO NOT handle the propeller
while the ight battery is connected to the ESC.
Personal injury could result.
Rotate the propeller assembly and propeller adaptor
assembly to remove it from the main gear. The motor and
gear remain mounted to the main gear.
Assembly
Replace the propeller assembly and propeller adaptor assembly back onto the main gear, and rotate it ¼ turn until
it snaps into place.
Remove the ight battery from the aircraft.
Store the ight battery apart from the aircraft and
monitor the battery charge.
Optional LED Set Installation
1. Use the included clear tape to afx the LED wiring and
LEDs to the airplane.
2. Plug the LED into the ESC/receiver board in either
empty port.
12
Top
White Flashing
Bottom
Green SolidRed Solid
White Flashing
White Solid LED
Clear Tape
UMX Slow Ultra Stick
Page 13
AS3X® System Trouble Shooting Guide
Problem Possible Cause Solution
Control surfaces not at
neutral position when
transmitter controls are
at neutral
Model flies inconsistently
from flight to flight
Controls oscillate in
flight, (model rapidly
jumps or moves)
Control surfaces may not have been
mechanically centered from factory
Aircraft was moved after the flight battery was
connected and before sensors initialized
Aircraft was not kept immobile for 5
seconds after battery was plugged in
Trims are moved too far from neutral position
Propeller is unbalanced, causing excessive
vibration
Propeller screw is loose, causing vibration Tighten the propeller screw
Center control surfaces mechanically by
adjusting the U-bends on control linkages
Disconnect and reconnect the flight battery
while keeping the aircraft still for 5 seconds
Keep the aircraft immobile for 5 seconds after
plugging in the battery
Neutralize trims and mechanically adjust
linkages to center control surfaces
Remove propeller and rebalance or replace it if
damaged
Troubleshooting Guide
Problem Possible Cause Solution
Reset controls with throttle stick and throttle
trim at lowest setting
Open fuselage and make sure motor is
connected to the receiver
Remove and balance propeller, or replace with a
balanced propeller
Replace flight battery and follow flight battery
instructions
Power off transmitter, move transmitter a larger
distance from aircraft, disconnect and reconnect flight battery to aircraft and follow binding
instructions
Power off transmitter and repeat bind process.
Hold transmitter bind button or switch until
receiver is bound
Move aircraft and transmitter to another
location and attempt binding again
Aircraft will not respond
to throttle but responds
to other controls
Extra propeller noise or
extra vibration
Reduced flight time or
aircraft underpowered
LED on receiver flashes
and aircraft will not bind
to transmitter (during
binding)
Throttle stick and/or throttle trim too high
Throttle channel is reversed Reverse throttle channel on transmitter
Motor disconnected from receiver
Damaged propeller, spinner or motor Replace damaged parts
Propeller screw is loose Tighten the propeller screw
Propeller is out of balance
Flight battery charge is low Completely recharge flight battery
Propeller installed backwards Install propeller with numbers facing forward
Flight battery damaged
Flight conditions may be too cold Make sure battery is warm before use
Battery capacity too low for flight conditions Replace battery or use a larger capacity battery
Transmitter too near aircraft during binding
process
Bind switch or button not held long enough
during bind process
Aircraft or transmitter is too close to large
metal object, wireless source or another
transmitter
EN
13
Page 14
EN
Troubleshooting Guide
Problem Possible Cause Solution
Less than a 5-second wait between first
powering on transmitter and connecting flight
battery to aircraft
Aircraft bound to different model memory
LED on receiver flashes
rapidly and aircraft will
not respond to transmitter (after binding)
Control surface does not
move
Controls reversed Transmitter settings reversed Adjust controls on transmitter appropriately
Motor loses power Damage to motor or power components
Motor power quickly
decreases and increases
then motor loses power
Motor/ESC is not armed
after landing
Servo locks or freezes at
full travel
(ModelMatch™ radios only)
Flight battery/transmitter battery charge is
too low
Transmitter may have been bound to a different model (or with a different DSM Protocol)
Aircraft or transmitter is too close to large
metal object, wireless source or another
transmitter
Control surface, control horn, linkage or
servo damage
Wire damaged or connections loose
Flight battery charge is low Fully recharge flight battery
Control linkage does not move freely Make sure control linkage moves freely
Battery power is down to the point of receiver/
ESC Low Voltage Cutoff (LVC)
Over Current Protection (OCP) stops the
motor when the transmitter throttle is set high
and the propeller cannot turn
Travel adjust value is set above 100%, overdriving the servo
Leaving transmitter on, disconnect and reconnect flight battery to aircraft
Select correct model memory on transmitter
and disconnect and reconnect flight battery to
aircraft
Replace/recharge batteries
Select the right transmitter or bind to the new
one
Move aircraft and transmitter to another
location and attempt linking again
Replace or repair damaged parts and adjust
controls
Do a check of wires and connections, connect
or replace as needed
Do a check of motor and power components for
damage (replace as needed)
Recharge flight battery or replace battery that is
no longer performing
Fully lower throttle and throttle trim to arm ESC
Set travel adjust to 100% or less and/or set subtrims to Zero and adjust linkages mechanically
Replacement Parts
Part # Description
SPMR1275 SLT6LP 6-Channel Transmitter
EFL-1094 Motor Mount
SPM-1002 Receiver/ESC
SPMX-1019 Brushed Motor 8.5mm
EFL-1095 Main Gear
EFL-1096 Prop Adaptor
EFL-1097 Spinner
EFL-1098 Propeller
EFL-1099 Battery Tray
EFL-1100 Receiver Tray
EFL-1101 Wing Mount, Front
EFL-1102 Wing Mount, Rear
EFL-1103 Wing
EFL-1104 Vertical Stabilizer
EFL-1105 Horizontal Stabilizer
EFL-1106 Control Horn Set
EFL-1107 Landing Gear Set
14
Replacement Parts
Part # Description
EFL-1109 Fuselage Boom
EFL-1110 Vertical Stabilizer Mount
EFL-1111 Decal Set
EFL-1112 Pushrod Set
SPMX1501S50
3.7V 150mAh 1S 50C LiPo Battery:
JST PH1.25 Connector
Optional Parts
Part # Description
EFL-1113 LED Set
Recommended Parts
Part # Description
SPMX1501S50
3.7V 150mAh 1S 50C LiPo Battery:
JST PH1.25 Connector
UMX Slow Ultra Stick
Page 15
Important Federal Aviation Administration (FAA) Information
Use the QR code below to learn more about the Recreational UAS Safety Test (TRUST), as was introduced by
the 2018 FAA Reauthorization Bill. This free test is required
by the FAA for all recreational flyers in the United States. The
completed certificate must be presented upon request by any
FAA or law enforcement official.
If your model aircraft weighs more than .55lbs or 250 grams,
you are required by the FAA to register as a recreational flyer
and apply your registration number to the outside of your
aircraft. To learn more about registering with the FAA, use the
QR code below.
AMA National Model Aircraft Safety Code
Effective January 1, 2018
A model aircraft is a non-human-carrying device capable of sustained flight within visual line of sight of the pilot or spotter(s). It
may not exceed limitations of this code and is intended exclusively for sport, recreation, education and/or competition. All model
flights must be conducted in accordance with this safety code and related AMA guidelines, any additional rules specific to the
flying site, as well as all applicable laws and regulations.
As an AMA member I agree:
• I will not fly a model aircraft in a careless or reckless
manner.
• I will not interfere with and will yield the right of way to all
human-carrying aircraft using AMA’s See and Avoid Guidance and a spotter when appropriate.
• I will not operate any model aircraft while I am under the
influence of alcohol or any drug that could adversely affect
my ability to safely control the model.
• I will avoid flying directly over unprotected people, moving
vehicles, and occupied structures.
• I will fly Free Flight (FF) and Control Line (CL) models in
compliance with AMA’s safety programming.
• I will maintain visual contact of an RC model aircraft without
enhancement other than corrective lenses prescribed to
me. When using an advanced flight system, such as an
autopilot, or flying First-Person View (FPV), I will comply
with AMA’s Advanced Flight System programming.
• I will only fly models weighing more than 55 pounds,
including fuel, if certified through AMA’s Large Model
Airplane Program.
• I will only fly a turbine-powered model aircraft in compliance with AMA’s Gas Turbine Program.
• I will not fly a powered model outdoors closer than 25 feet
to any individual, except for myself or my helper(s) located
at the flightline, unless I am taking off and landing, or as
otherwise provided in AMA’s Competition Regulation.
• I will use an established safety line to separate all model
aircraft operations from spectators and bystanders.
EN
Limited Warranty
What this Warranty Covers—Horizon Hobby, LLC, (Horizon)
warrants to the original purchaser that the product purchased
(the “Product”) will be free from defects in materials and
workmanship at the date of purchase.
What is Not Covered—This warranty is not transferable and
does not cover (i) cosmetic damage, (ii) damage due to acts of
God, accident, misuse, abuse, negligence, commercial use, or
due to improper use, installation, operation or maintenance, (iii)
modification of or to any part of the Product, (iv) attempted service by anyone other than a Horizon Hobby authorized service
center, (v) Product not purchased from an authorized Horizon
dealer, (vi) Product not compliant with applicable technical
regulations, or (vii) use that violates any applicable laws, rules,
or regulations.
OTHER THAN THE EXPRESS WARRANTY ABOVE, HORIZON
MAKES NO OTHER WARRANTY OR REPRESENTATION, AND
HEREBY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES,
INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES
OF NON-INFRINGEMENT, MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE. THE PURCHASER ACKNOWLEDGES THAT THEY ALONE HAVE DETERMINED THAT THE
PRODUCT WILL SUITABLY MEET THE REQUIREMENTS OF THE
PURCHASER’S INTENDED USE.
Purchaser’s Remedy—Horizon’s sole obligation and
purchaser’s sole and exclusive remedy shall be that Horizon
will, at its option, either (i) service, or (ii) replace, any Product
determined by Horizon to be defective. Horizon reserves the
right to inspect any and all Product(s) involved in a warranty
claim. Service or replacement decisions are at the sole discretion of Horizon. Proof of purchase is required for all warranty
claims. SERVICE OR REPLACEMENT AS PROVIDED UNDER
THIS WARRANTY IS THE PURCHASER’S SOLE AND EXCLUSIVE
REMEDY.
Limitation of Liability—HORIZON SHALL NOT BE LIABLE
FOR SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL
DAMAGES, LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY, REGARDLESS OF WHETHER
SUCH CLAIM IS BASED IN CONTRACT, WARRANTY, TORT,
15
Page 16
EN
NEGLIGENCE, STRICT LIABILITY OR ANY OTHER THEORY OF
LIABILITY, EVEN IF HORIZON HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. Further, in no event shall the
liability of Horizon exceed the individual price of the Product on
which liability is asserted. As Horizon has no control over use,
setup, final assembly, modification or misuse, no liability shall
be assumed nor accepted for any resulting damage or injury.
By the act of use, setup or assembly, the user accepts all resulting liability. If you as the purchaser or user are not prepared
to accept the liability associated with the use of the Product,
purchaser is advised to return the Product immediately in new
and unused condition to the place of purchase.
Law—These terms are governed by Illinois law (without
regard to conflict of law principals). This warranty gives you
specific legal rights, and you may also have other rights which
vary from state to state. Horizon reserves the right to change or
modify this warranty at any time without notice.
WARRANTY SERVICES
Questions, Assistance, and Services—Your local hobby
store and/or place of purchase cannot provide warranty support or service. Once assembly, setup or use of the Product
has been started, you must contact your local distributor or
Horizon directly. This will enable Horizon to better answer your
questions and service you in the event that you may need
any assistance. For questions or assistance, please visit our
website at www.horizonhobby.com, submit a Product Support
Inquiry, or call the toll free telephone number referenced in the
Warranty and Service Contact Information section to speak
with a Product Support representative.
Inspection or Services—If this Product needs to be
inspected or serviced and is compliant in the country you live
and use the Product in, please use the Horizon Online Service
Request submission process found on our website or call
Horizon to obtain a Return Merchandise Authorization (RMA)
number. Pack the Product securely using a shipping carton.
Please note that original boxes may be included, but are not
designed to withstand the rigors of shipping without additional
protection. Ship via a carrier that provides tracking and insurance for lost or damaged parcels, as Horizon is not responsible
for merchandise until it arrives and is accepted at our facility.
An Online Service Request is available at http://www.horizonhobby.com/content/service-center_render-service-center. If
you do not have internet access, please contact Horizon Product Support to obtain a RMA number along with instructions for
submitting your product for service. When calling Horizon, you
will be asked to provide your complete name, street address,
email address and phone number where you can be reached
during business hours. When sending product into Horizon,
please include your RMA number, a list of the included items,
and a brief summary of the problem. A copy of your original
sales receipt must be included for warranty consideration. Be
sure your name, address, and RMA number are clearly written
on the outside of the shipping carton.
NOTICE: Do not ship LiPo batteries to Horizon. If you have
any issue with a LiPo battery, please contact the appropriate
Horizon Product Support office.
Warranty Requirements—For Warranty consideration, you
must include your original sales receipt verifying the proofof-purchase date. Provided warranty conditions have been
met, your Product will be serviced or replaced free of charge.
Service or replacement decisions are at the sole discretion of
Horizon.
Non-Warranty Service—Should your service not be covered
by warranty, service will be completed and payment will be
required without notification or estimate of the expense unless
the expense exceeds 50% of the retail purchase cost. By
submitting the item for service you are agreeing to payment of
the service without notification. Service estimates are available
upon request. You must include this request with your item
submitted for service. Non-warranty service estimates will
be billed a minimum of ½ hour of labor. In addition you will
be billed for return freight. Horizon accepts money orders
and cashier’s checks, as well as Visa, MasterCard, American
Express, and Discover cards. By submitting any item to Horizon
for service, you are agreeing to Horizon’s Terms and Conditions
found on our website http://www.horizonhobby.com/content/
service-center_render-service-center.
ATTENTION: Horizon service is limited to Product compli-
ant in the country of use and ownership. If received, a
non-compliant Product will not be serviced. Further, the
sender will be responsible for arranging return shipment of
the un-serviced Product, through a carrier of the sender’s
choice and at the sender’s expense. Horizon will hold noncompliant Product for a period of 60days from notification,
after which it will be discarded.
10/15
Contact Information
Country of
Purchase
(Repairs and Repair Requests)
United States
of America
European Union
16
(Product Technical Assistance)
Horizon Hobby Contact Information Address
Horizon Service Center
Horizon Product Support
Sales
servicecenter.horizonhobby.com/Request-
Form/
877-504-0233
800-338-4639
2904 Research Rd
Champaign, Illinois, 61822 USA
Hanskampring 9
D 22885 Barsbüttel, Germany
UMX Slow Ultra Stick
Page 17
FCC Information
Contains FCC ID: BRWSPM1002
Contains FCC ID: BRWSPMR1275
This equipment complies with FCC and IC radiation exposure
limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum
distance 20cm between the radiator and/or antenna and your
body (excluding fingers, hands, wrists, ankles and feet). This
transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Supplier’s Declaration of Conformity
EFL UMX Slow Ultra Stick BNF Basic (EFLU03050): This
device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
CAUTION: Changes or modifications not expressly
approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
Horizon Hobby, LLC
2904 Research Rd.
Champaign, IL 61822
Email: [email protected]
Web: HorizonHobby.com
IC Information
CAN ICES-3 (B)/NMB-3(B)
Contains IC: 6157A-SPM1002
Contains IC: 6157A-SPMR1275
This device contains license-exempt transmitter(s)/receivers(s)
that comply with Innovation, Science, and Economic Development Canada’s license-exempt RSS(s). Operation is subject to
the following 2 conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device.
Compliance Information for the European Union
EU Compliance Statement:
EFL UMX Slow Ultra Stick RTF
(EFLU03000): Hereby, Horizon Hobby, LLC
declares that the device is in compliance with
the following: Low Voltage Directive (LVD) 2014/35/EU; EU
EMC Directive 2014/30/EU; Radio Equipment Directive (RED)
2014/53/EU; RoHS 2 Directive 2011/65/EU; RoHS 3 Directive
- Amending 2011/65/EU Annex II 2015/863.
EFL UMX Slow Ultra Stick BNF Basic (EFLU03050):
Hereby, Horizon Hobby, LLC declares that the device is in
compliance with the following: Radio Equipment Directive (RED)
2014/53/EU; RoHS 2 Directive 2011/65/EU; RoHS 3 Directive
- Amending 2011/65/EU Annex II 2015/863.
The full text of the EU declaration of conformity is available at
the following internet address: https://www.horizonhobby.com/
content/support-render-compliance.
NOTE: This product contains batteries that are covered under
the 2006/66/EC European Directive, which cannot be disposed
of with normal household waste. Please follow local regulations.
Wireless Frequency Range and Wireless Output Power:
Transmitter: Receiver:
2403-2480MHz 2402-2478MHz
16.46dBm 4.82dBm
This product is a class C4 UAS as defined by the
European Union Aviation Safety Agency (EASA).
EU Manufacturer of Record:
Horizon Hobby, LLC
2904 Research Road
Champaign, IL 61822 USA
EU Importer of Record:
Horizon Hobby, GmbH
Hanskampring 9
22885 Barsbüttel Germany
WEEE NOTICE:
enable recovery and recycling.
EN
This appliance is labeled in accordance with
European Directive 2012/19/EU concerning
waste of electrical and electronic equipment
(WEEE). This label indicates that this product
should not be disposed of with household waste.
It should be deposited at an appropriate facility to
17
Page 18
E-ite, Bind-N-Fly, BNF, the BNF logo, DSM, DSM2, DSMX, Spektrum AirWare, EC3, IC3, AS3X, SAFE, the SAFE logo,
ModelMatch, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC.
The Spektrum trademark is used with permission of Bachmann Industries, Inc.
All other trademarks, service marks and logos are property of their respective owners.
US 8,672,726 US 9,056,667 US 9,753,457. US 10,078,329. US 9,930,567. US 10,419,970. Other patents pending.
Created 03/24 892309 EFLU03000 | EFLU03050
©2024 Horizon Hobby, LLC.
http://www.horizonhobby.com/
72
UMX Slow Ultra Stick
Loading...
