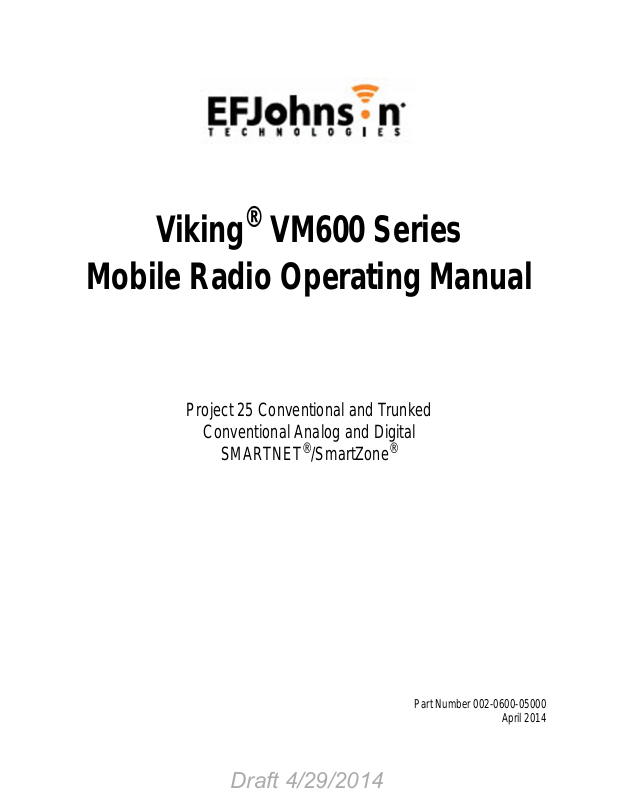

EF Johnson 2425M70 User Manual

Viking® VM600 Series

Draft 4/29/2014

Mobile Radio Operating Manual

Project 25 Conventional and Trunked

Conventional Analog and Digital

SMARTNET

®

/SmartZone

®

Part Number 002-0600-05000

April 2014

Copyright © 2014 by EF Johnson Technologies, Inc.

Draft 4/29/2014

™

The EFJohnson Technologies logo, Armada

EFJohnson Technologies. All other company and/or product names used in this manual are trademarks and/

or registered trademarks of their respective manufacturers.

Information in this manual is subject to change without notice.

, Trunked IP25™, and Call Guard® are trademarks of

Viking VM600 Mobile Radio Operating Manual

April 2014

Viking VM600 Mobile Radio Operating Manual

Draft 4/29/2014

April 2014

Table of Contents

Safety Information xiii

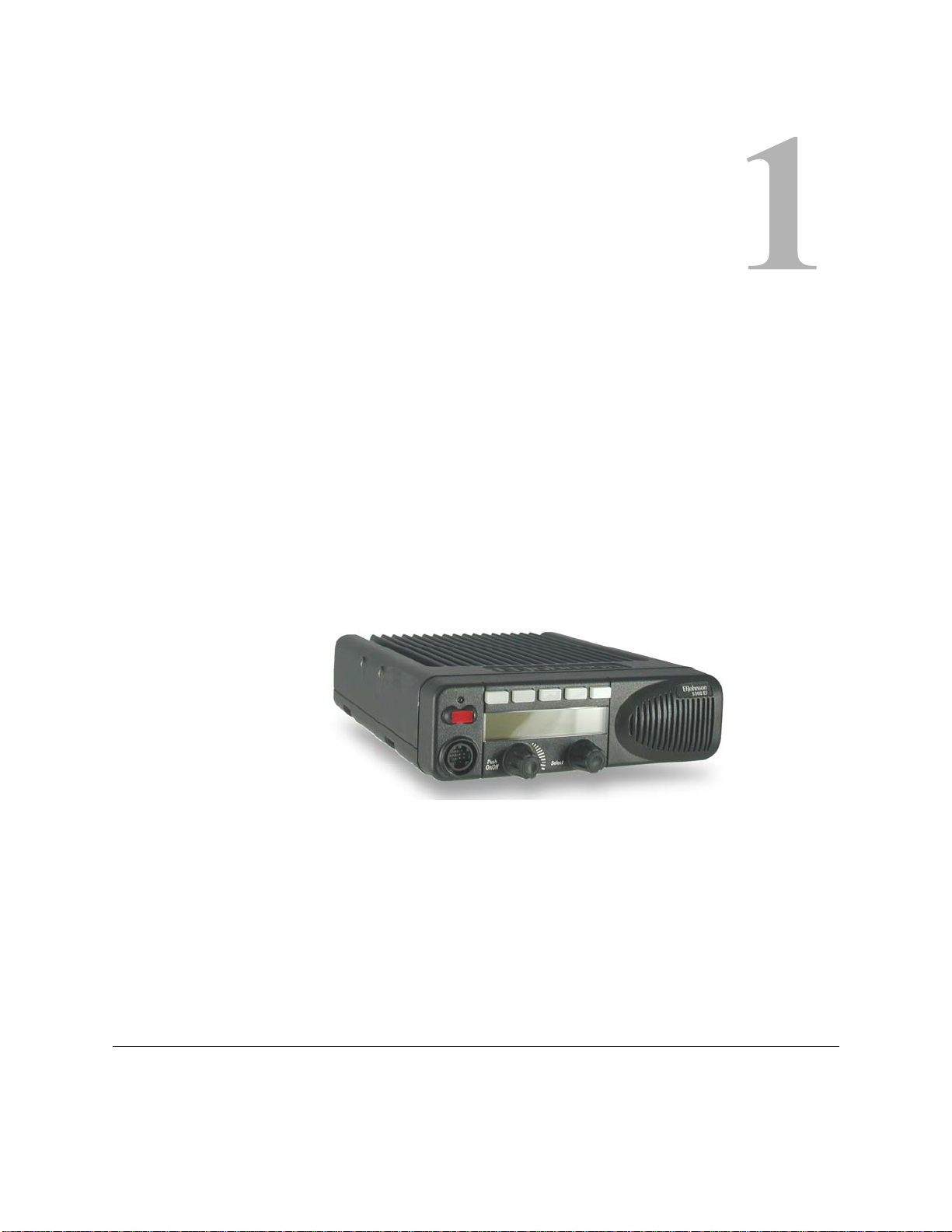

1 Radio Overview 1-1

Capabilities & Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Radio Software and Configuration Programming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Supported Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Available Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Licensing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Radio Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

Digital Keypad Microphone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

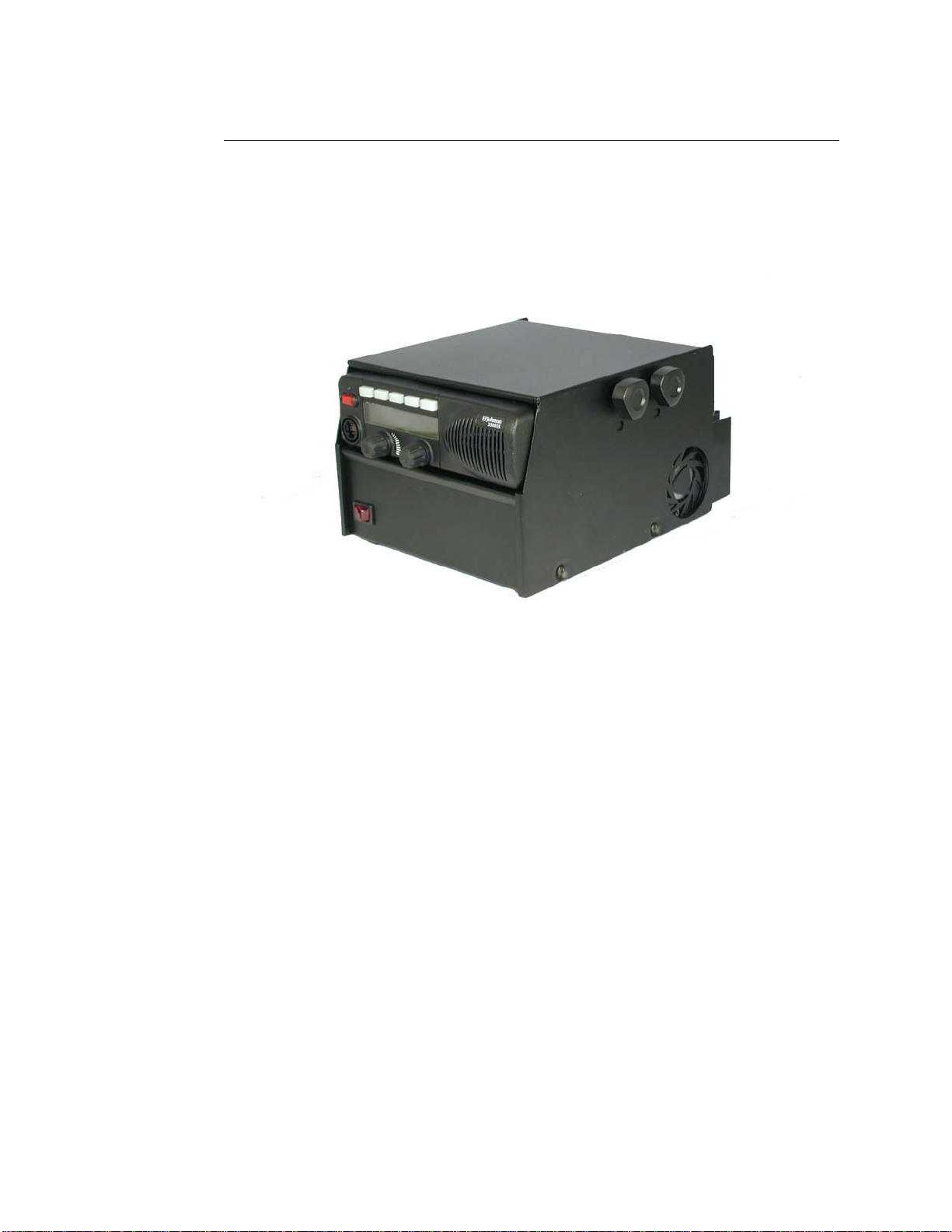

Base Station Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

2 Controls & Display 2-1

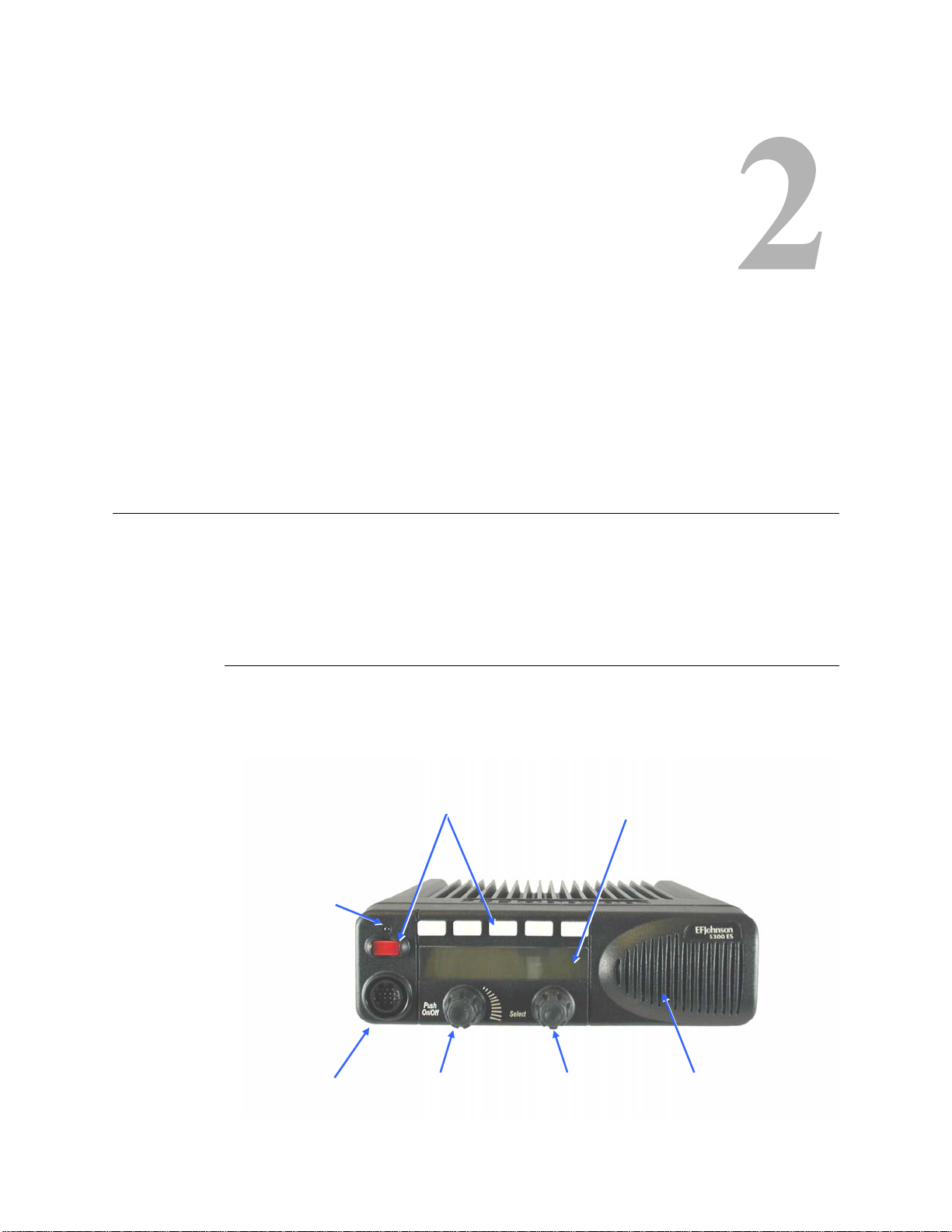

Standard Control Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

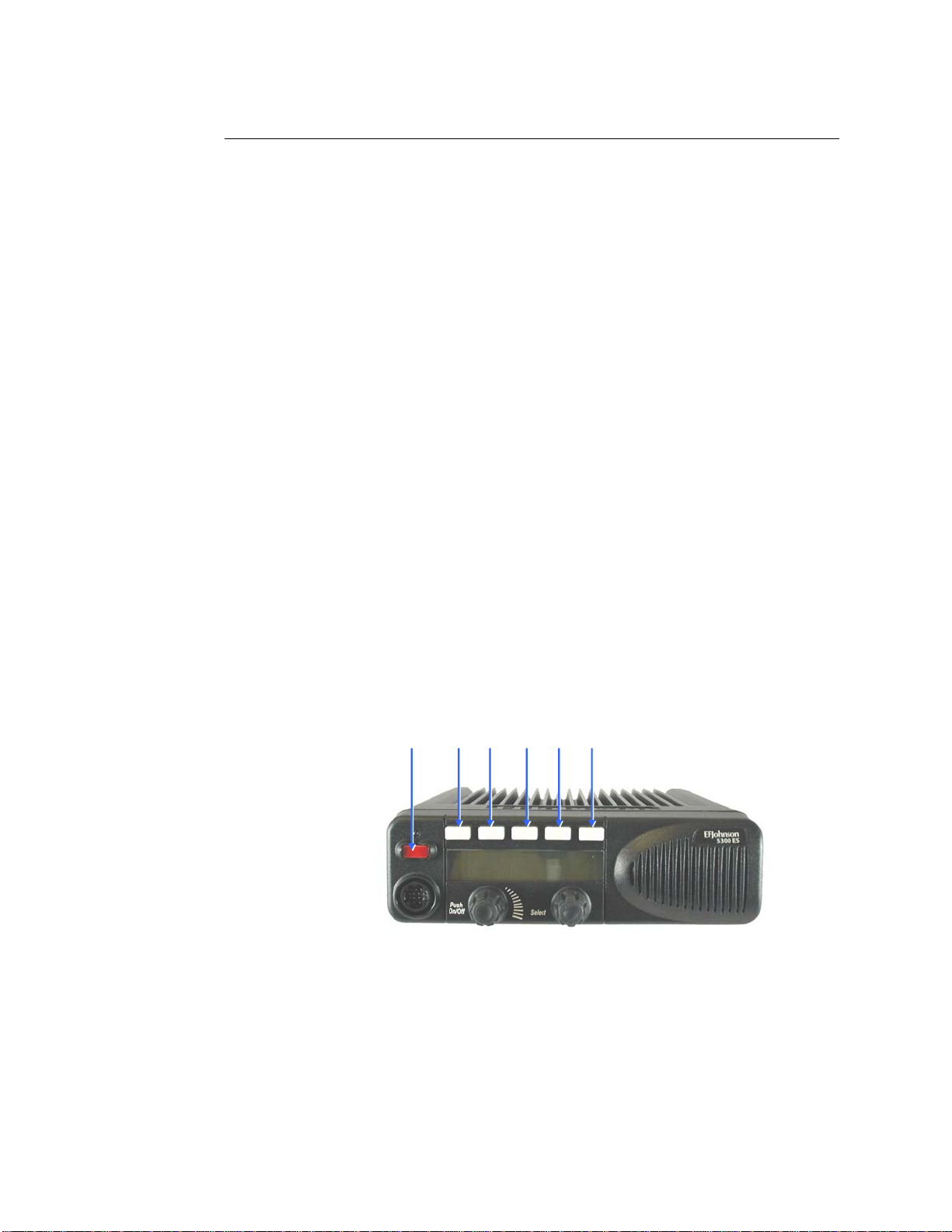

Front Panel Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

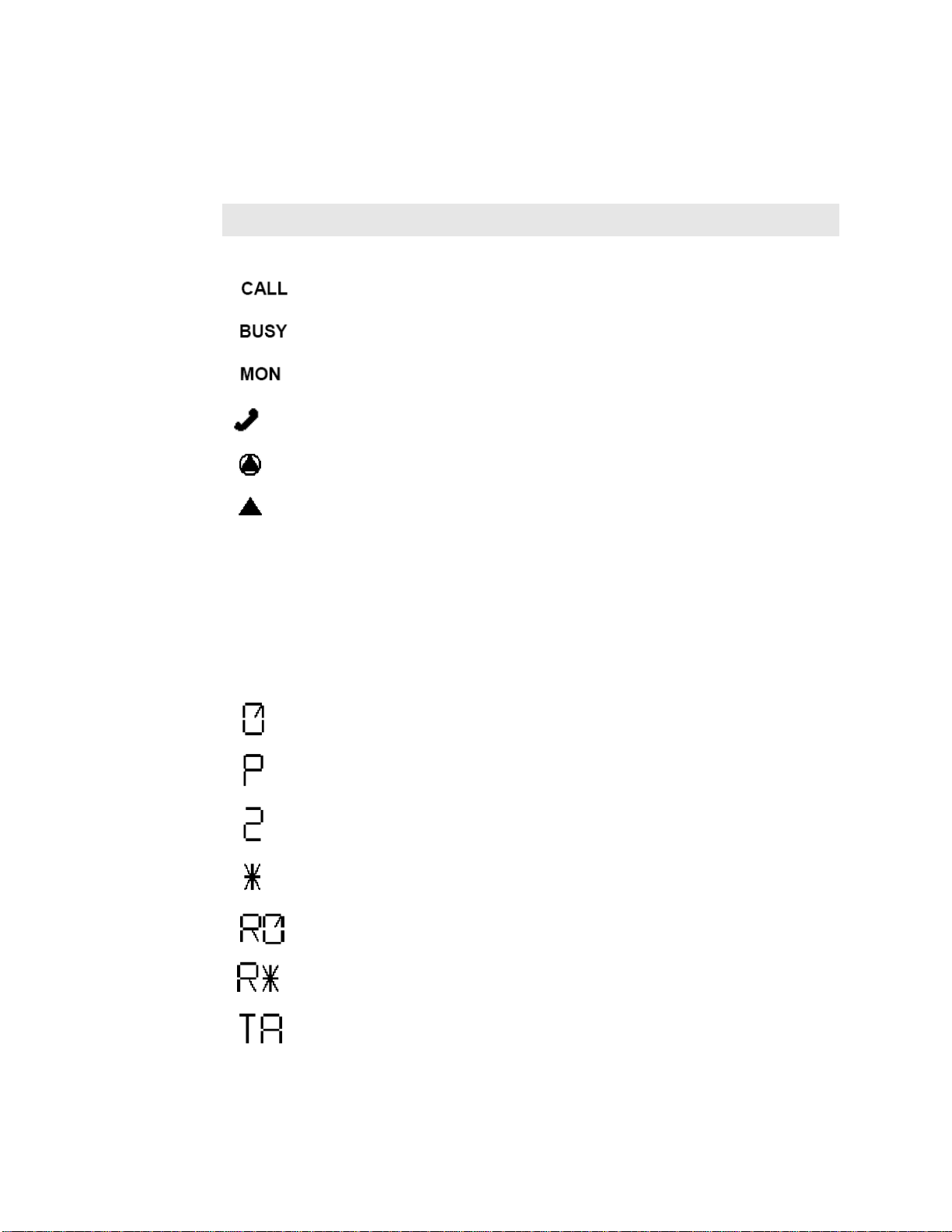

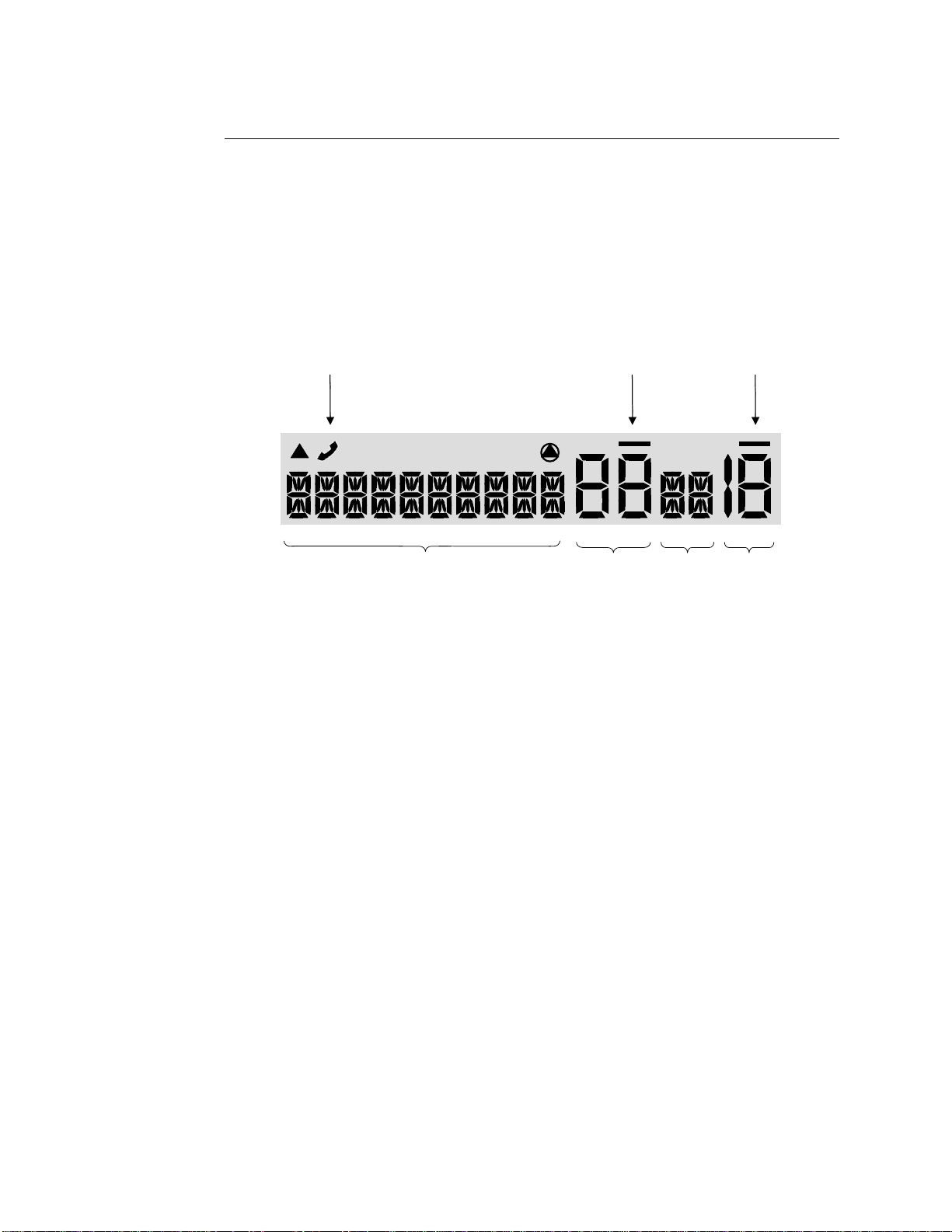

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

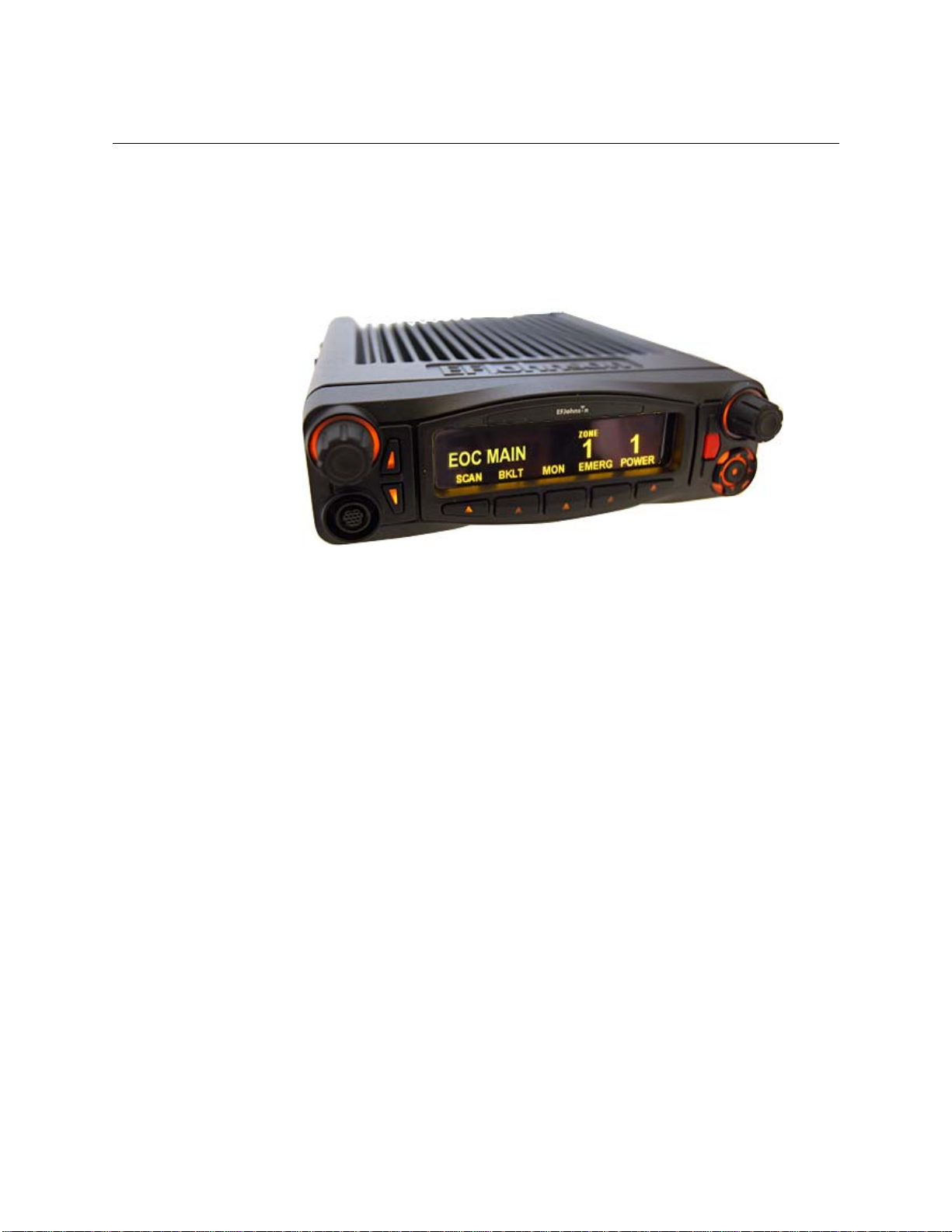

Lightning Control Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Front Panel Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

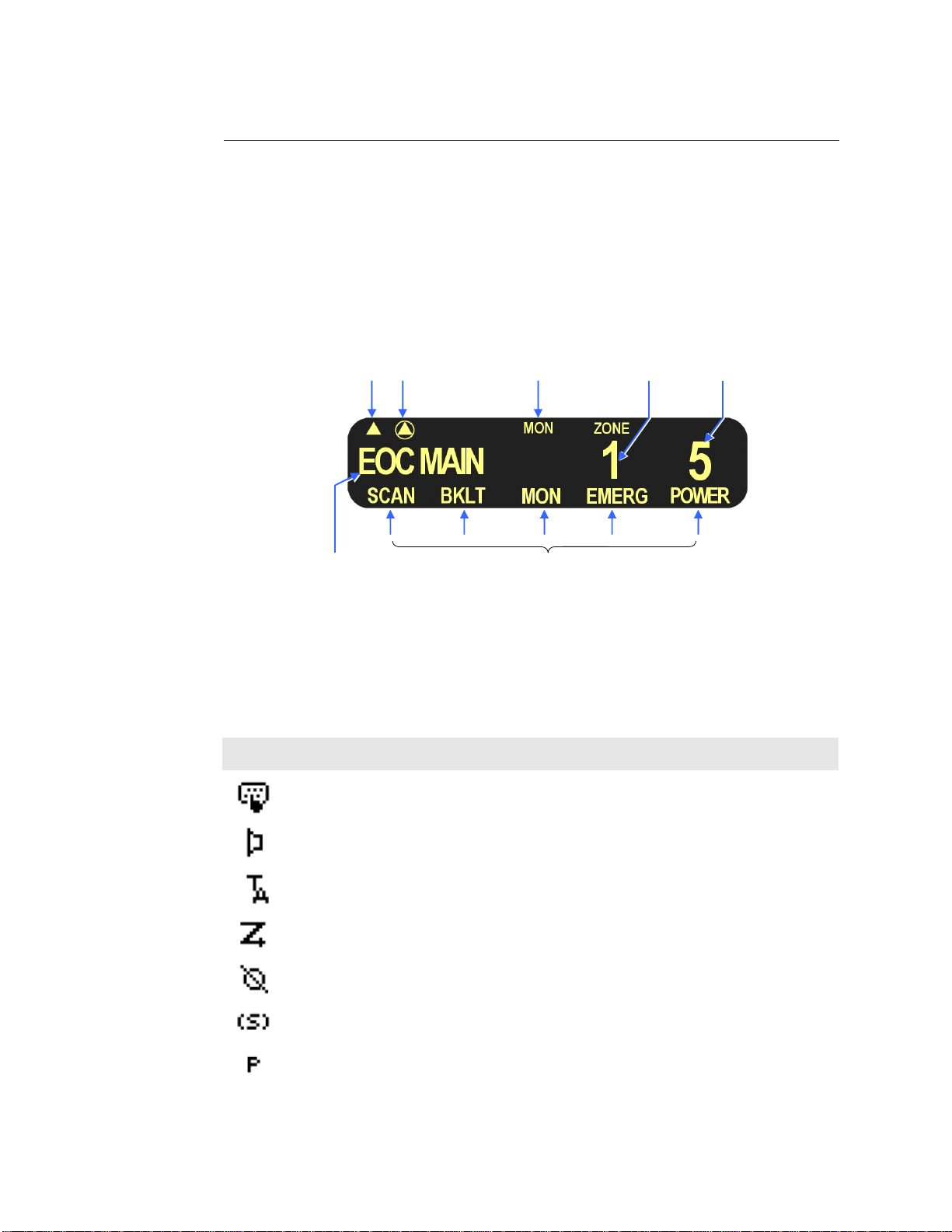

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

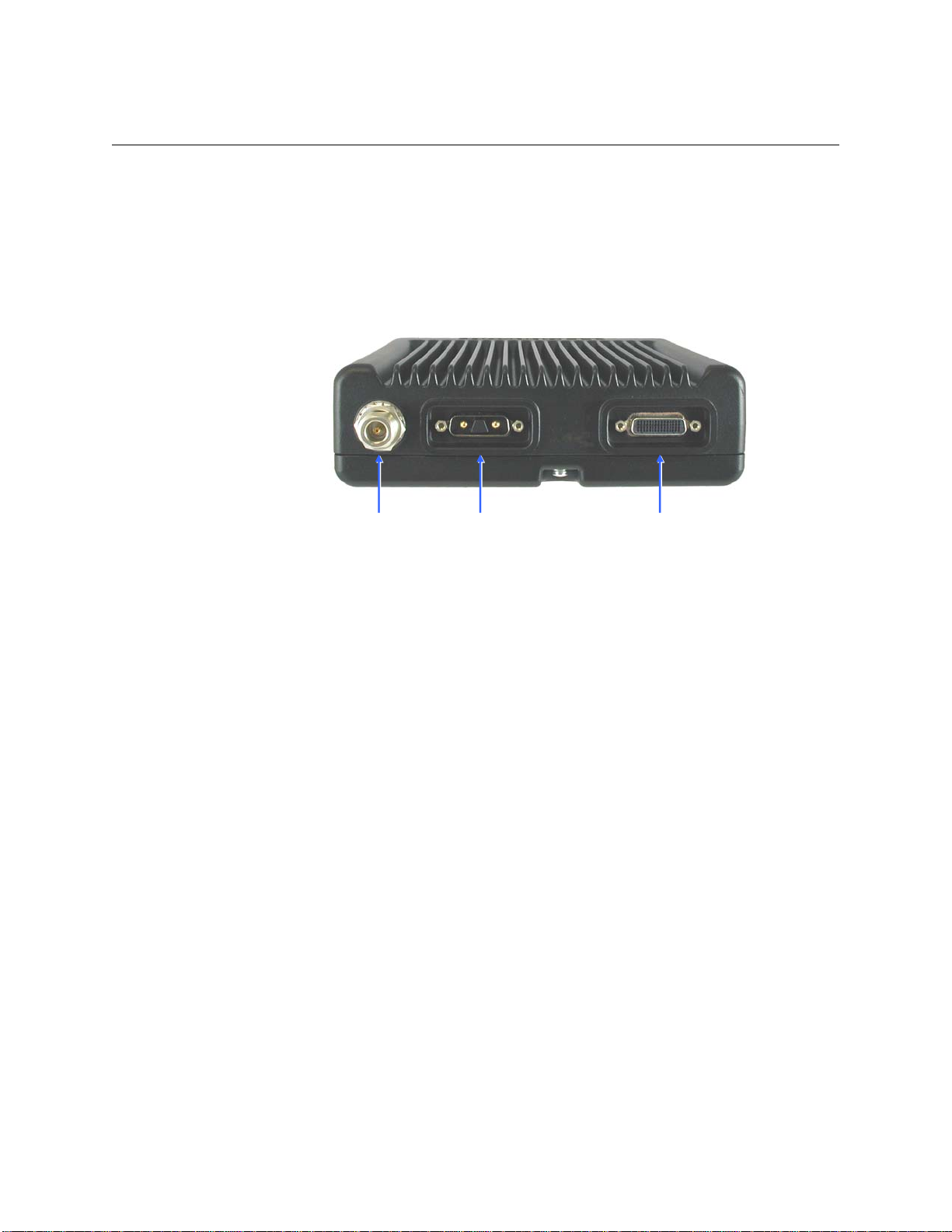

Rear Panel Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10

3 Dual Controls & External Speaker 3-1

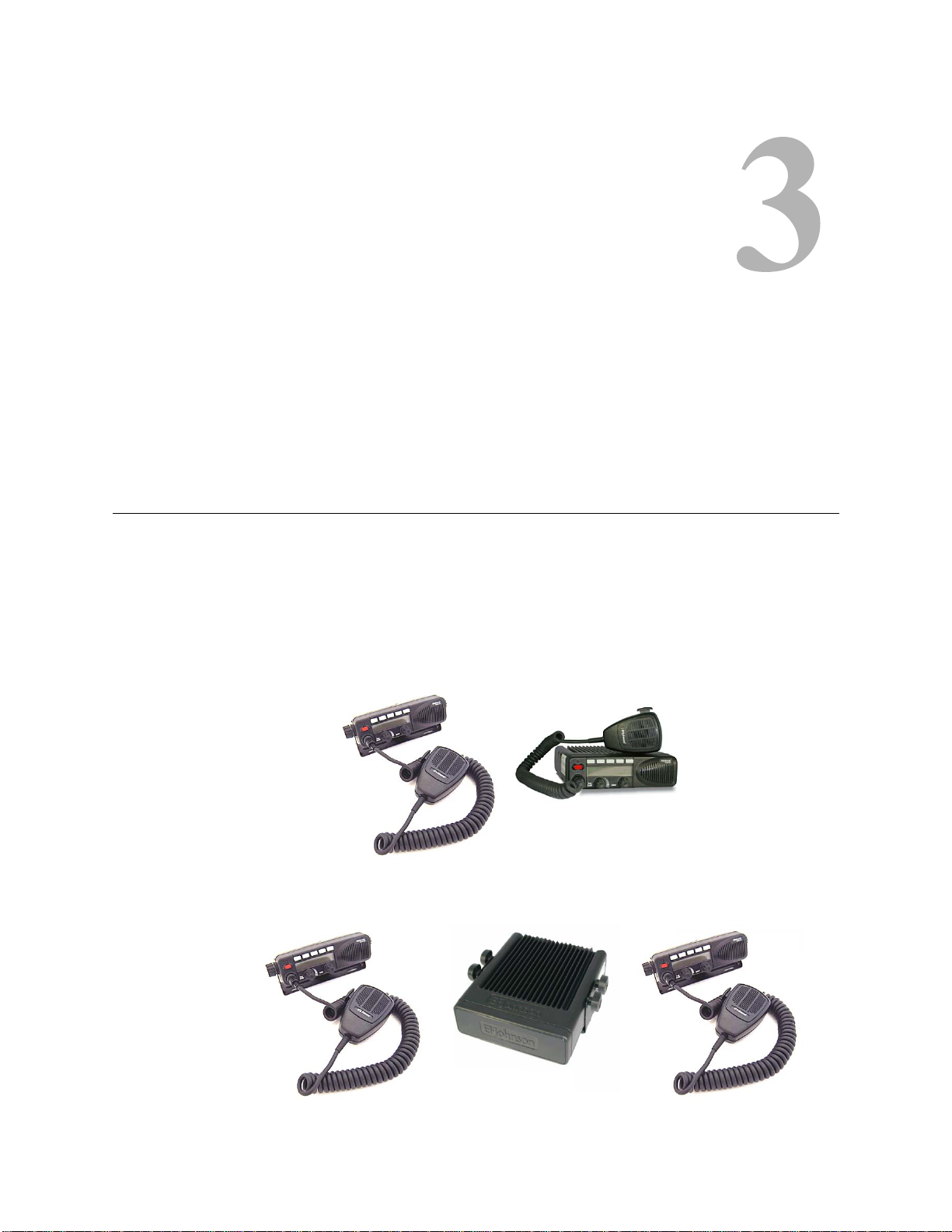

Dual Control Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Remote Conversion Kit 250-5300-002 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Remote Control Head Kit 250-5300-003. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Hardware Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

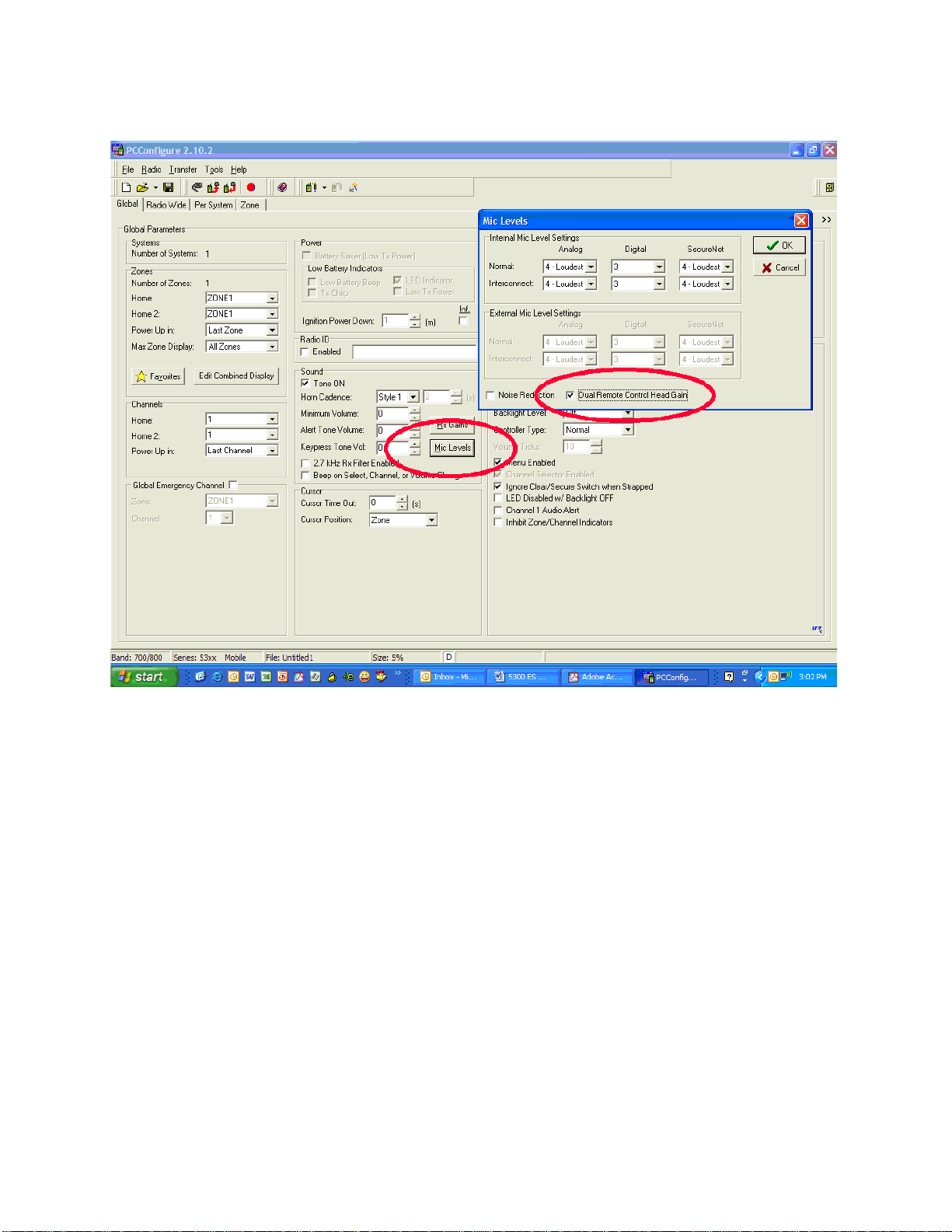

Radio Programming using Armada. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Programming Dual Remote Control Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Master / Slave Programming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Viking VM600 Mobile Radio Operating Manual i

Table of Contents (continued)

Draft 4/29/2014

Dual Control Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

Power On/Off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

Microphone Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

External Speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

Internal / External Speaker Programming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

4 General Operation 4-1

Basic Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Turning Power ON and Setting Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Setting Volume Level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

Standard and Soft Power Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

Power-Up Password. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Programming Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Lost Passwords. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Changing Passwords. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Password Entry Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

User (Power-On) Passwords. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

Master Password. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

Zone Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

Speaking into the Microphone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Display Backlight Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Display Viewing Angle and Contrast Adjust . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Zone / Channel Display and Select. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

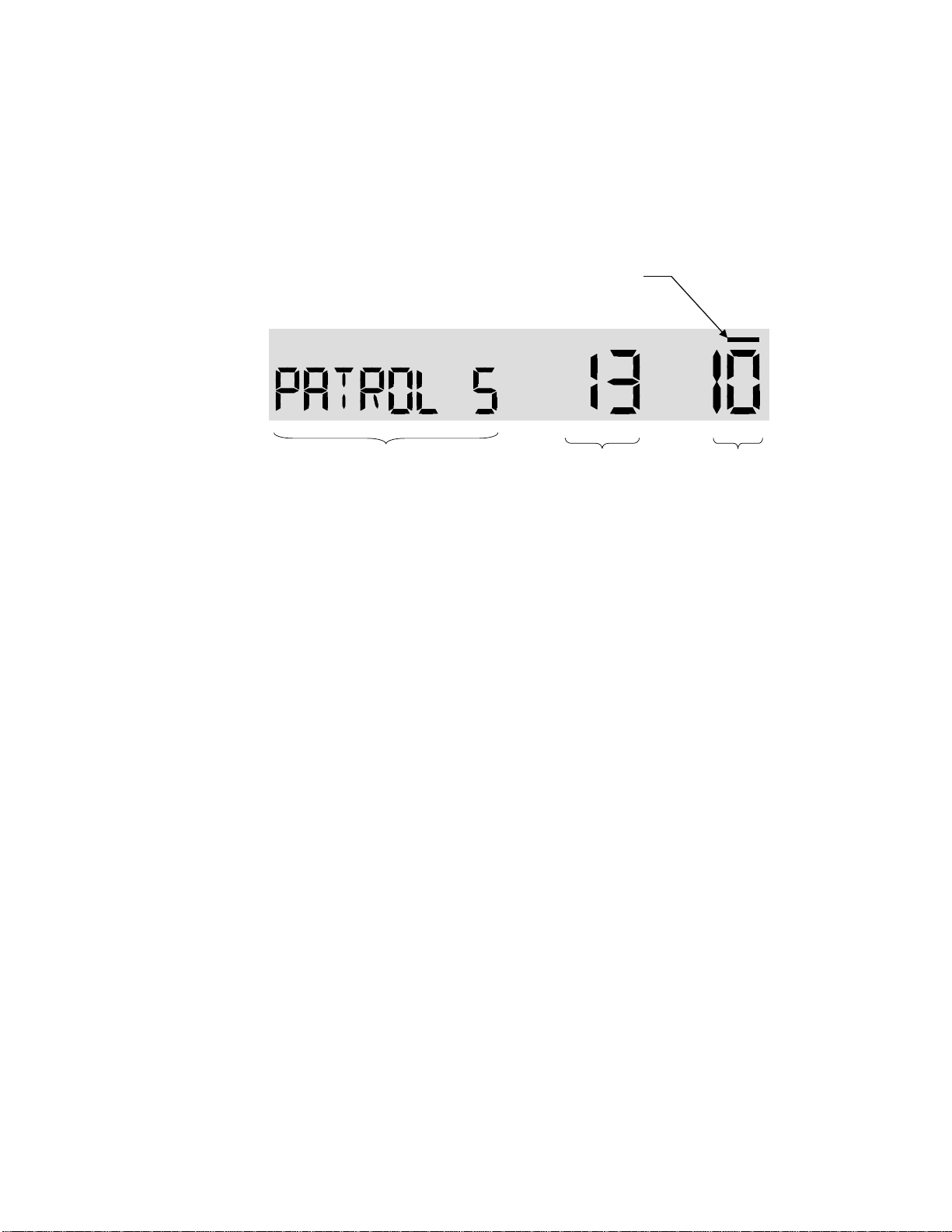

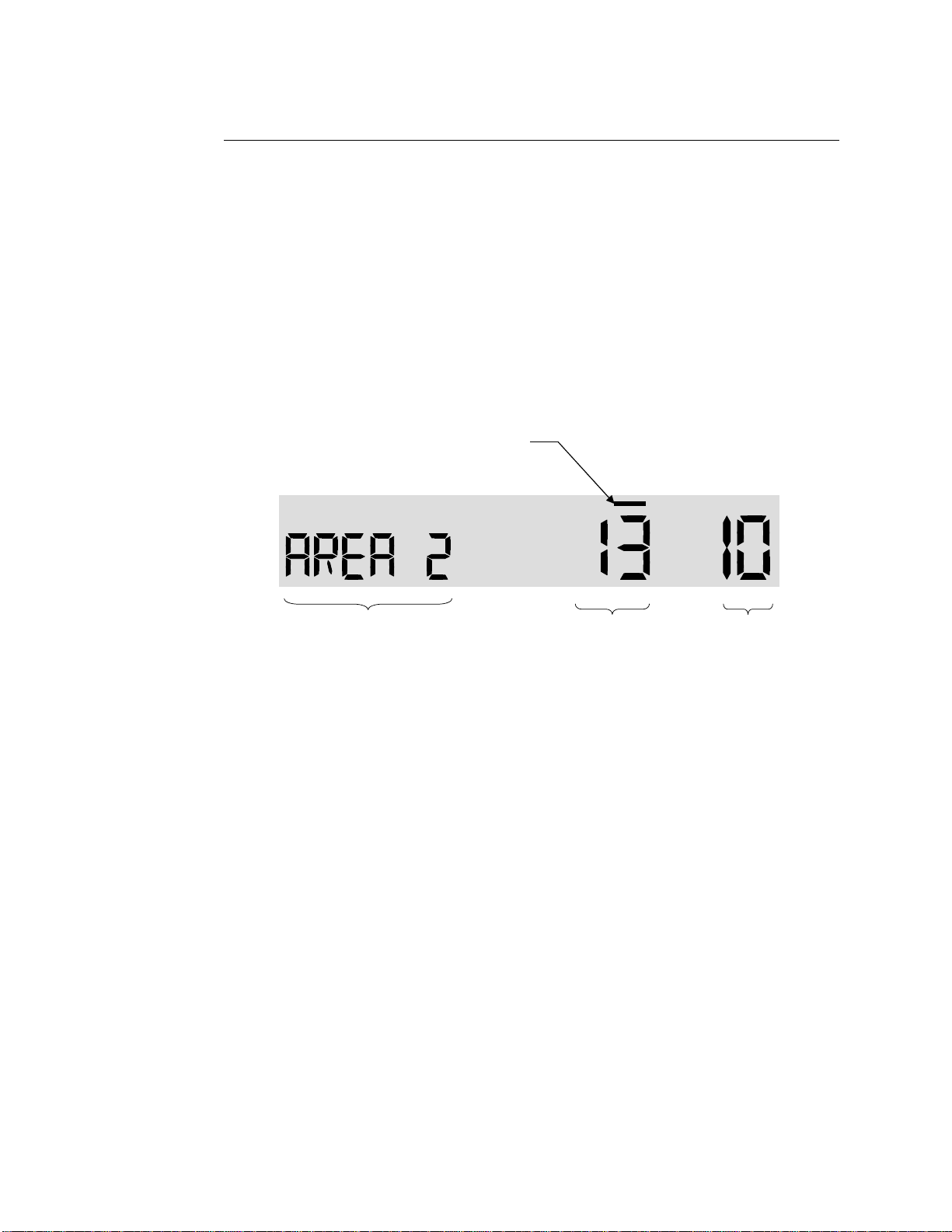

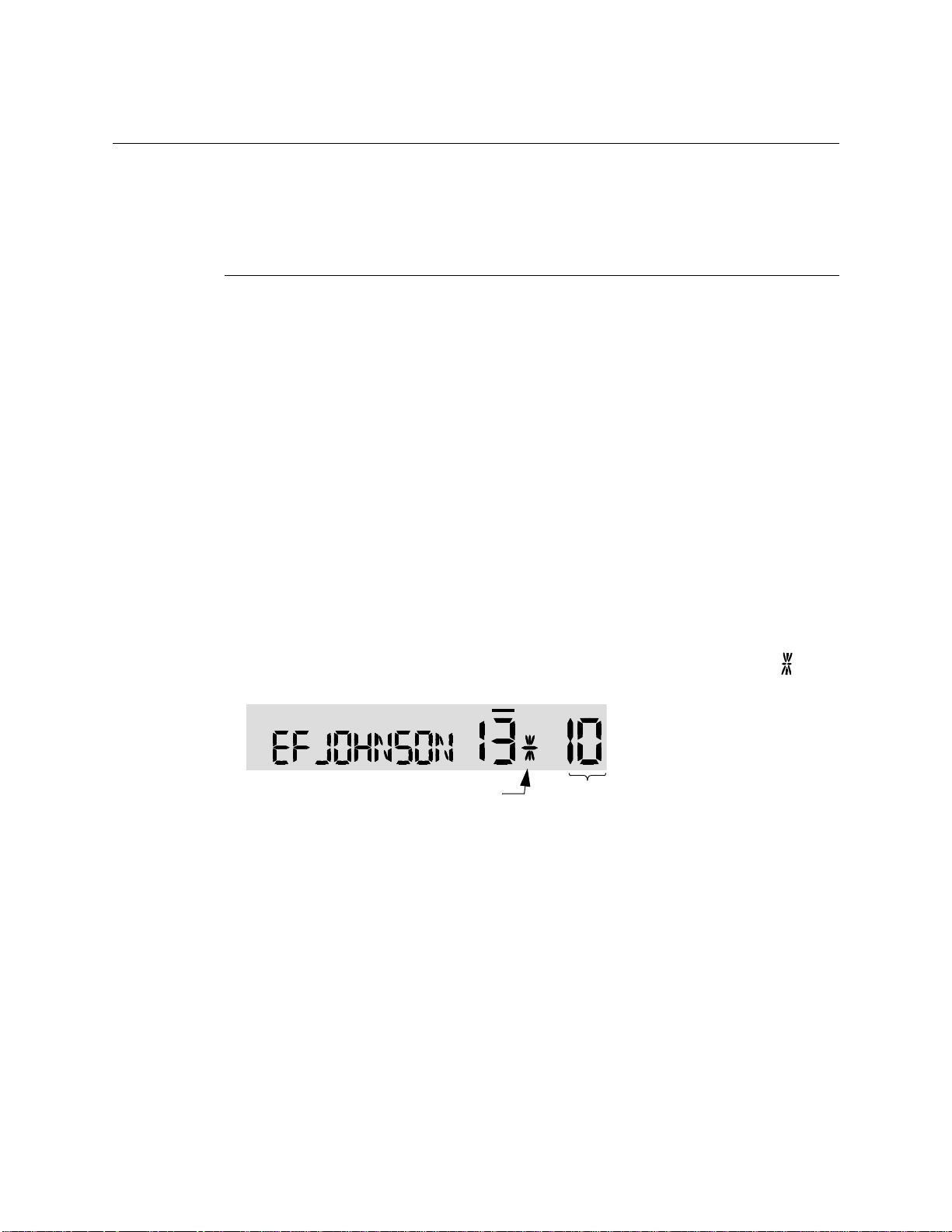

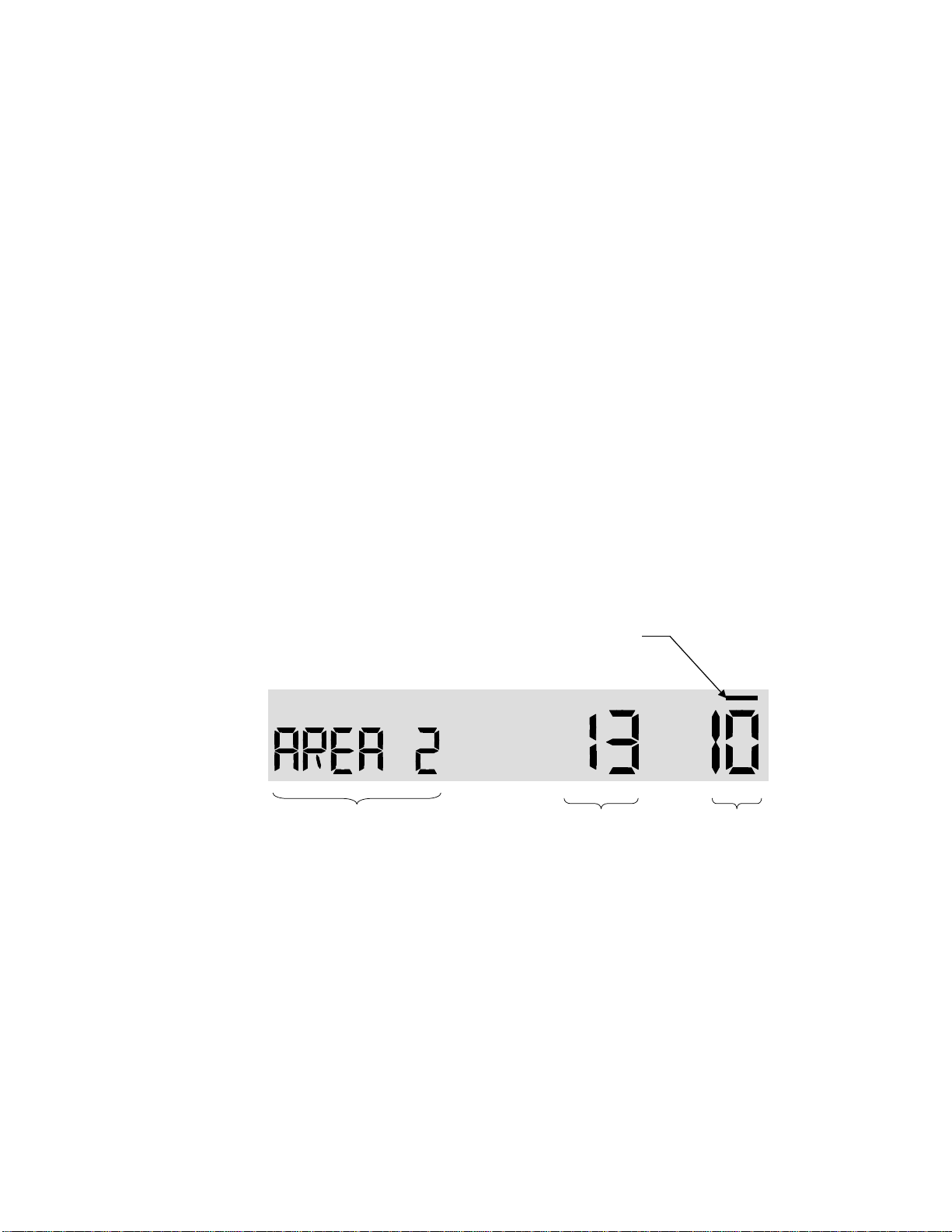

Zone / Channel Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

Channel Lock Option. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

Zone / Channel Select . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

54-channel/16-zone Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

Direct Channel Select . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

Favorite Zone Selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

Setting Squelch Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

Transmit Disable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

Operation At Extended Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10

Preventing Vehicle Battery Discharge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11

Cleaning the Control Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11

Radio Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12

Operating Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13

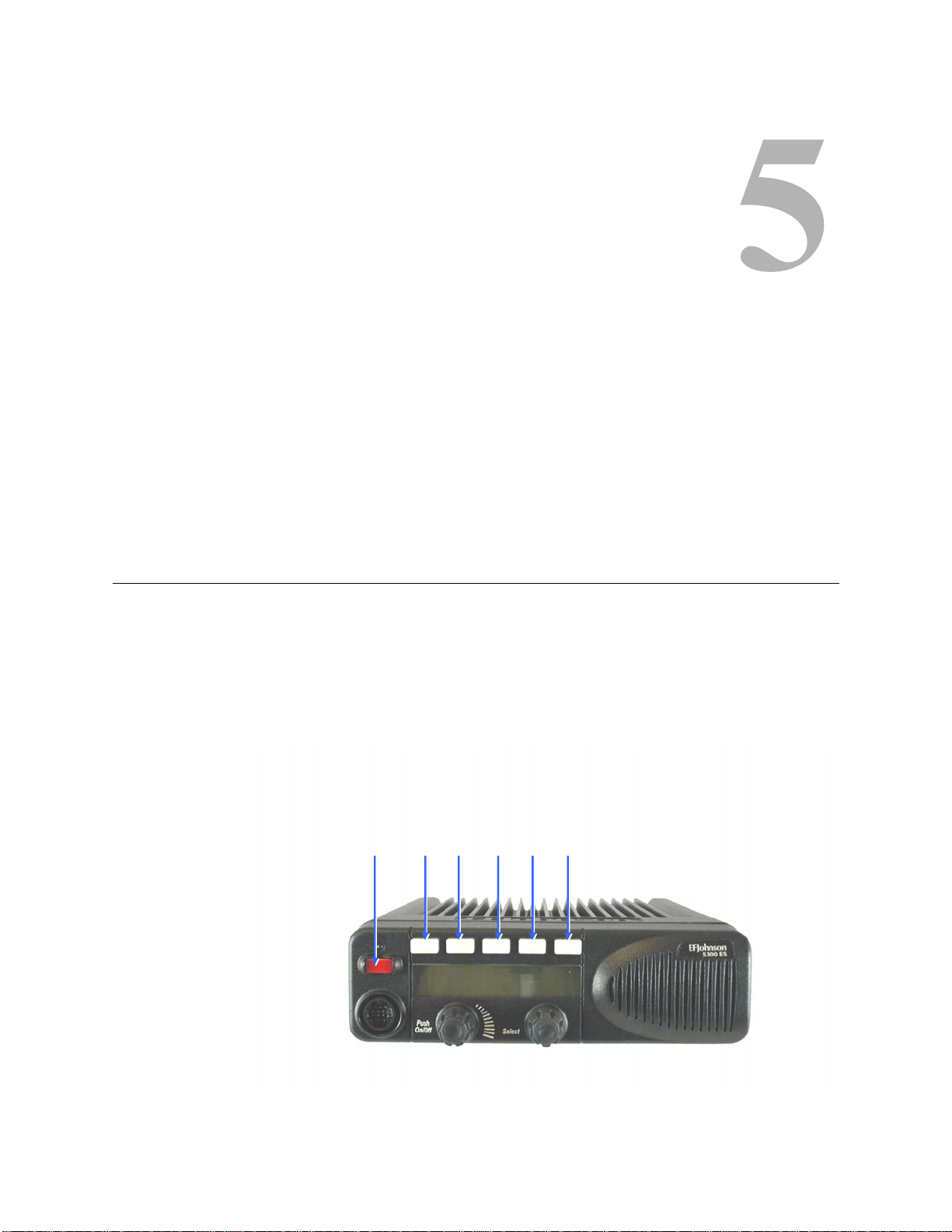

5 Radio Wide Features 5-1

Option Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

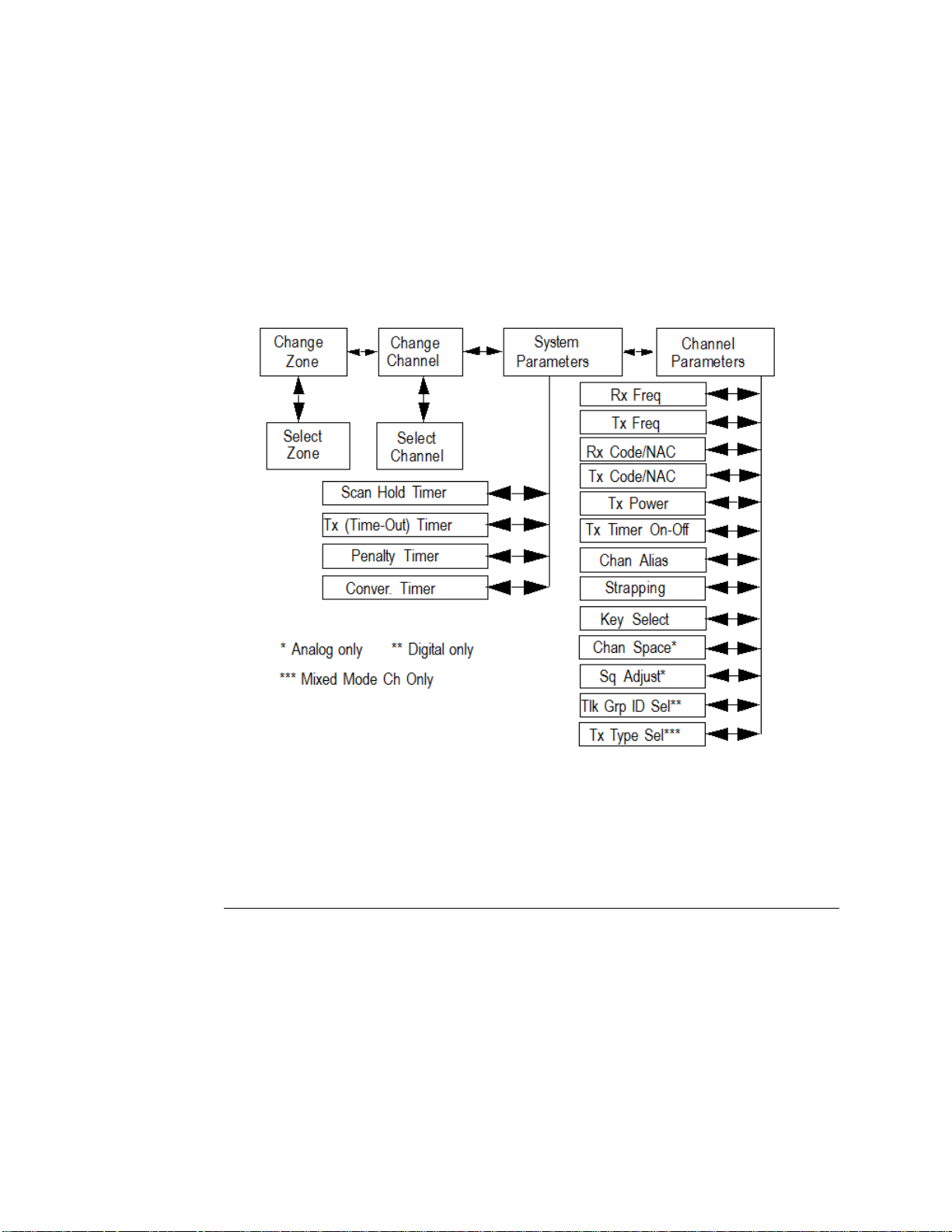

Menu Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

ii Viking VM600 Mobile Radio Operating Manual

Conventional Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13

SMARTNET / SmartZone Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13

P25 Trunked Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14

Systems, Channels, and Zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15

Systems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15

Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15

Zones. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16

Table of Contents (continued)

Draft 4/29/2014

Time-Out Timer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

Home Channel Select. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

Power Output Select . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

Alert Tone Select. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

Power Turn-Off Delay. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

Horn Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

Microphone Off-Hook Detect. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

Surveillance Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7

Public Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7

Scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8

Priority (Standard) Scanning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8

Radio Wide Scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9

Scan Hold Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9

Transmitting in the Scan Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9

Nuisance Channel Delete. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10

Scan Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-11

Priority Mode Scan Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-11

Determining Channels in Priority Scan List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-11

Selecting a Priority Scan List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-11

Editing a Priority Scan List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12

Radio Wide Scan List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-13

Determining Channels in Radio Wide Scan List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-13

Editing a Radio Wide Scan List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-13

Global Positioning System (GPS). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-14

Viewing GPS Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-14

Sending GPS Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-15

Over the Air Programming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-15

Radio Set Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-15

OTAP Transfer Times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-16

6 Conventional Features 6-1

Monitoring Before Transmitting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Automatic Channel Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Manual Channel Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Monitor Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2

Busy Channel Lockout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3

Call Guard Squelch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3

Call Guard Squelch Enable / Disable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4

Tone Call Guard Squelch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4

Digital Call Guard Squelch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4

Disable Call Guard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5

Selective Squelch Code Select (CTCSS / DSC / NAC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5

Viking VM600 Mobile Radio Operating Manual iii

Table of Contents (continued)

Draft 4/29/2014

Penalty Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6

Conversation Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6

Repeater Talk-Around . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7

Displaying Transmit / Receive Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7

Emergency Alarm and Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8

Emergency Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8

Emergency Call Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9

Emergency Calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9

Emergency Hot Mic. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9

Placing an Emergency Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9

Conventional Mode Channel Scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-10

Selecting a Scan List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-10

Conventional Scan List Select Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-10

Transmitting in Scan Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-11

Priority Channel Sampling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-11

Changing The Priority Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-12

Talkgroup Scanning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13

Standard Conventional Calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13

Placing a Standard Conventional Call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-14

Receiving a Standard Conventional Call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-14

DTMF / ANI Signaling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-14

Single Tone Encoder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-15

Five Tone Encoder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-15

MDC1200 Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-15

Project 25 Mode Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-16

Digital Unit ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-16

Talkgroup ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-16

Network Access Code (NAC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-16

EFJohnson System Out of Range Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-16

EFJohnson System Automatic Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-17

P25 Group Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-17

Changing Talkgroup Assigned To a Channel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-17

P25 Unit Calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-18

P25 Conventional Telephone Calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-18

Access / De-Access Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-19

Placing a Telephone Call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-19

Answering a Telephone Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-20

Call Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-20

Call History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-21

Messaging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-22

Status Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-22

P25 Packet Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-23

Keypad Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-23

Menu Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-23

Zone Password. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-24

Zone Change Parameter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-25

Channel Change Parameter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-25

System Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-25

Channel Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-26

iv Viking VM600 Mobile Radio Operating Manual

Table of Contents (continued)

Draft 4/29/2014

Text Messaging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-28

Data Setup for Text Messaging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-28

Receiving a Text Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-29

Viewing Previously Received Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-29

Sending Global Positioning System (GPS) Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-30

Manually Sending GPS Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-30

Automatically Sending GPS Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-30

Sending GPS Data in Response to System Request. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-31

7 SMARTNET / SmartZone / P25 Trunked Features 7-1

Analog and Digital Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

Viewing Unit ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

Radio Info Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2

Standard Group Calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2

Placing a Standard Group Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2

Receiving a Standard Group Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4

Private (Unit-To-Unit) Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4

Placing an Enhanced Private Conversation Call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5

Placing a Standard Private Conversation Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6

Receiving a Private Call (All Types) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7

Telephone Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7

Placing a Telephone Call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8

Receiving A Telephone Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-9

Call Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-9

Answering a Page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-10

Initiating a Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-10

Messaging. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-11

Sending Status Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-11

Emergency Alarm and Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-12

Emergency Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-12

Emergency Call Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-13

Emergency Calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-13

Emergency Hot Mic. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-14

Placing an Emergency Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-14

Failsoft Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-15

Programmable Failsoft Connect Tone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-15

SMARTNET / SmartZone / P25 Trunked Scanning Features . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-15

Priority Talkgroup Sampling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-17

Scan List Editing and Selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-17

Dynamic Regrouping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-18

SmartZone and P25 Trunking Unique Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-19

Busy Override. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-19

Site Trunking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-19

Determining Current Site and Searching for a New Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-20

Viking VM600 Mobile Radio Operating Manual v

Table of Contents (continued)

Draft 4/29/2014

Locking / Unlocking a Site. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-20

Auto Site Search. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-20

ZoneFail Site Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-20

P25 Wide Area Scan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-21

Normal P25 and SmartZone Control Channel Hunt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-21

Talkgroup Steering through System Access Permissions. . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-21

P25 Wide Area Scan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-22

Radio Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-23

8 Secure Communication (Encryption) 8-1

Encryption Algorithms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

SecureNet™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

AES (Advanced Encryption Standard) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2

Encryption Available With Various Channel Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2

FIPS and Non-FIPS Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2

Encryption Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2

Key and Algorithm IDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3

PID / SLN Key Management Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3

Maintaining Keys in Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4

Encryption Key Select. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4

Encryption Key Erase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5

Encryption Icon Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5

Clear / Secure Strapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5

Transmit Mode Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5

Analog Receive Mode Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6

Security Settings Override . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7

Conventional (P25) Talkgroup Security Override . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7

Secure Call Behavior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7

Failsoft, Group Regroup or Dynamic Regroup Call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7

Channel with only a Talkgroup Specified. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7

Channel with both a Talkgroup and Announcement Group Specified. . . . . . . . . . . . . . . 8-8

Channel with only an Announcement Group Specified. . . . . . . . . . . . . . . . . . . . . . . . . . 8-8

Announcement Group Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-8

Emergency Calls on Emergency Groups. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-8

Scan Mode Behavior. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-8

Over-The-Air Rekeying (OTAR). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10

Encryption Key Types. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10

Keysets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10

Key Management Facility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11

Message Number Period (MNP). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-12

Definitions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-12

Radio Setup For Encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-15

Motorola Third Party RNC Registration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-15

Programming By Keyloader. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-16

Radio OTAR Capabilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-16

OTAR Option Switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-17

P25 Trunking Icons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-18

vi Viking VM600 Mobile Radio Operating Manual

Table of Contents (continued)

Draft 4/29/2014

9 Data Features 9-1

P25 Packet Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1

P25 Trunking Data Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-2

Radio Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-2

Interface Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3

Context Activation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3

PPP Link Establishment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-4

Connection and Testing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-20

10 Tones & Error Messages 10-1

Supervisory Tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1

Error Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-3

11 Service Information 11-1

Product Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1

Online Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1

Telephone Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-2

BEFORE Contacting Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-2

Factory Customer Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-2

Returns for Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-3

Replacement Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-4

Internet Home Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-4

Viking VM600 Mobile Radio Operating Manual vii

Table of Contents (continued)

Draft 4/29/2014

viii Viking VM600 Mobile Radio Operating Manual

List of Figures

Draft 4/29/2014

Figure Page

1.1 Viking VM600 Mobile Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

1.2 Digital Keypad Microphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 -5

1.3 Viking VM600 Mobile Radio Mounted in Base Station . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

2.1 Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

2.2 Option Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

2.3 Front Panel Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

2.4 Radio with Lightning Control Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

2.5 Light Control Head Control s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

2.6 Lightning Option Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

2.7 Lightning Control Head Disp lay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

2.8 Rear Panel Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10

3.1 Dash-Mount Radio with Remote Control Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

3.2 Remote-Mount Radio with Two Remote Control Heads . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

3.3 Programming Microphone Gain Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

3.4 Control Head Option Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

3.5 EFJohnson External Speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

4.1 Zone Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

4.2 Channel Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

4.3 54 Channel/16 Zone Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8

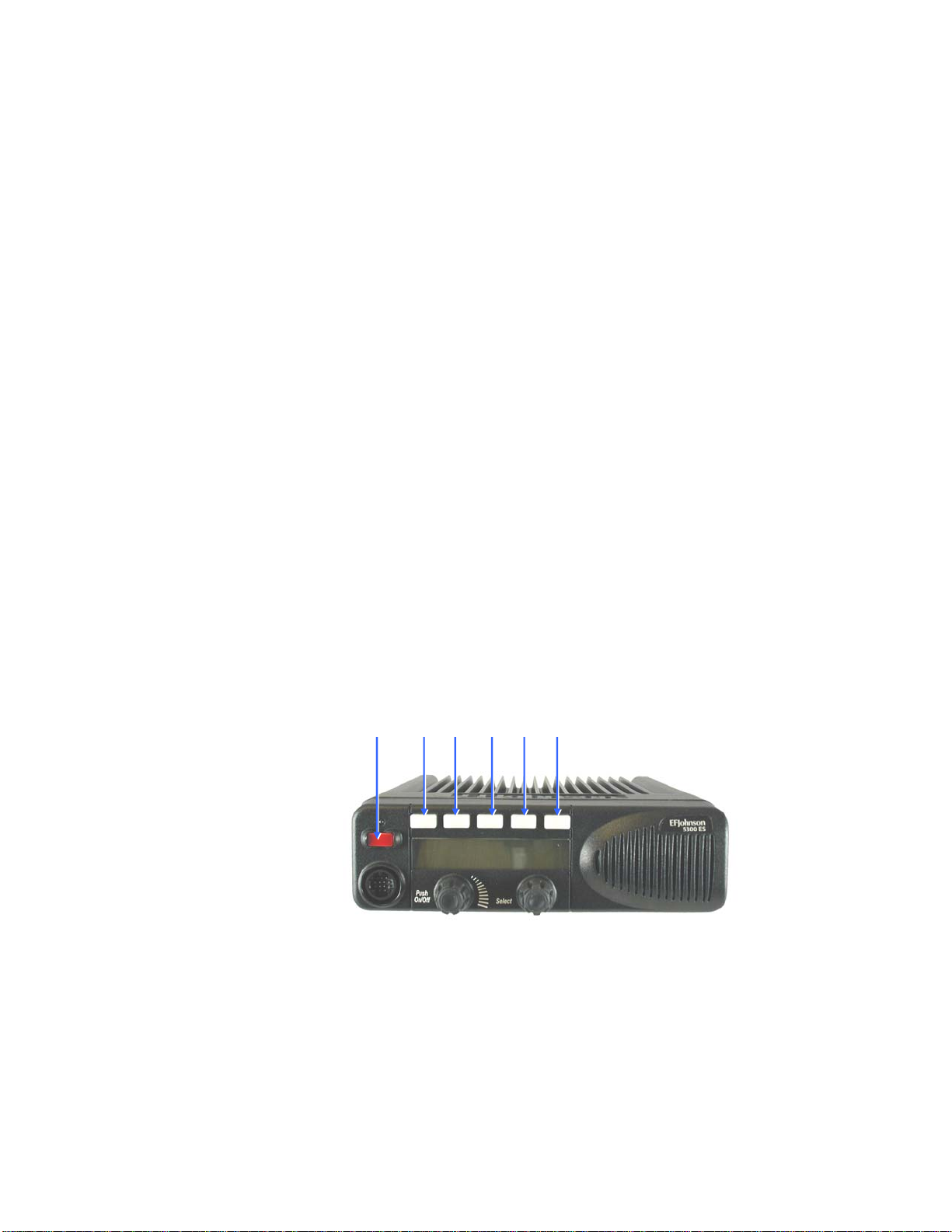

5.1 Option Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

6.1 Viking VM600 Keypad Programming Menu Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . 6-24

8.1 Key Selection Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3

8.2 Scan Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9

9.1 Network Connection Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-4

9.2 New Connection Wizard Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-5

9.3 Network Connection Type Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-6

9.4 Advanced Connection Options Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-7

9.5 Host or Guest Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-8

9.6 Connection Name Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-9

9.7 Select a Device Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-10

9.8 Connection Availability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-11

9.9 Completing New Connection Wizard Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-11

9.10 Connect Radio Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-12

9.11 Radio Properties Screen: Gen eral Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-13

9.12 Modem Configuration Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-14

9.13 Radio Properties Screen: Options Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-15

9.14 Radio Properties Screen: Networking Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-16

9.15 Internet Protocol (TCP/IP) Properties Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-17

9.16 Advanced TCP/IP Settings Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-18

9.17 Internet Protocol (TCP/IP) Properties Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-19

9.18 Radio Properties Screen: Networking Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-20

Viking VM600 Mobile Radio Operating Manual ix

List of Figures (continued)

Draft 4/29/2014

Figure Page

9.19 Radio Connection Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-21

9.20 Command Prompt Screen: Sending “Ping” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-21

9.21 Command Prompt Screen: Replies to Successful “Ping” . . . . . . . . . . . . . . . . . . . . . . .9-22

x Viking VM600 Mobile Radio Operating Manual

List of Tables

Draft 4/29/2014

Table Page

2.1 Standard Control Head Display Symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

2.2 Lightning Display Operating/Status Mode Symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

5.1 Programmable Option Button and Menu Mode Functions. . . . . . . . . . . . . . . . . . . . . . . . 5-2

Viking VM600 Mobile Radio Operating Manual xi

List of Tables (continued)

Draft 4/29/2014

Table Page

xii Viking VM600 Mobile Radio Operating Manual

Section0Safety Information

Draft 4/29/2014

RF Energy Exposure Awareness and Control Information, and
Operational Instructions for FCC Occupational Use Requirements

Before using your mobile two-way radio, read this important RF energy awareness and
control information and operational instructions to ensure compliance with the FCC’s RF
exposure guidelines.

Note This radio is intended for use in occupational/controlled conditions, where users have full

knowledge of their exposure and can exercise control over their exposure to meet FCC
limits. This radio device is NOT authorized for general population, consumer, or any
other use.

This two-way radio uses electromagnetic energy in the radio frequency (RF) spectrum to
provide communications between two or more users over a distance. It uses radio
frequency (RF) energy or radio waves to send and receive calls. RF energy is one form of
electromagnetic energy. Other forms include, but are not limited to, electric power,
sunlight and x-rays. RF energy, however, should not be confused with these other forms of
electromagnetic energy, which when used improperly can cause biological damage. Very
high levels of x-rays, for example, can damage tissues and genetic material.

Experts in science, engineering, medicine, health and industry work with organizations to
develop standards for exposure to RF energy. These standards provide recommended
levels of RF exposure for both workers and the general public. These recommended RF
exposure levels include substantial margins of protection. All two-way radios marketed in
North America are designed, manufactured and tested to ensure they meet government
established RF exposure levels. In addition, manufacturers also recommend specific
operating instructions to users of two-way radios. These instructions are important
because they inform users about RF energy exposure and provide simple procedures on
how to control it. Please refer to the following web sites for more information on what RF
energy exposure is and how to control your exposure to assure compliance with
established RF exposure limits.

http://www.fcc.gov/oet/rfsafety/rf-faqs.html

http://www.osha.gov/SLTC/radiofrequencyradiation/index.html

Viking VM600 Mobile Radio Operating Manual xiii

Safety Information

Draft 4/29/2014

Federal Communications Commission Regulations

The FCC rules require manufacturers to comply with the FCC RF energy exposure limits
for mobile two-way radios before they can be marketed in the U.S. When two-way radios
are used as a consequence of employment, the FCC requires users to be fully aware of and
able to control their exposure to meet occupational requirements. Exposure awareness can
be facilitated by the use of a label directing users to specific user awareness information.
Your EFJohnson Technologies two-way radio has a RF exposure product label. Also, your
EFJohnson Technologies user manual, or product manual, or separate safety booklet
includes information and operating instructions required to control your RF exposure and
to satisfy compliance requirements.

Compliance with RF Exposure Standards

Your EFJohnson Technologies two-way radio is designed and tested to comply with a
number of national and international standards and guidelines (listed below) regarding
human exposure to radio frequency electromagnetic energy. This radio complies with the
IEEE and ICNIRP exposure limits for occupational/controlled RF exposure environment
at duty factors of up to 50% talk and 100% listen and is authorized by the FCC for
occupational use. In terms of measuring RF energy for compliance with the FCC exposure
guidelines, your radio antenna radiates measurable RF energy only while it is transmitting
(during talking), not when it is receiving (listening) or in standby mode.

Your EFJohnson Technologies two-way radio complies with the following RF energy
exposure standards and guidelines:

• United States Federal Communications Commission, Code of Federal Regulations; 47
CFR §§ 2 sub-part J.

• American National Standards Institute (ANSI) / Institute of Electrical and Electronic
Engineers (IEEE) C95. 1-1992.

• Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition.

RF Exposure Compliance and Control Guidelines and Operating
Instructions

To control exposure to yourself and others and ensure compliance with the occupational/
controlled environment exposure limits always adhere to the following procedures.

xiv Viking VM600 Mobile Radio Operating Manual

Safety Information

Draft 4/29/2014

Guidelines

• User awareness instructions should accompany device when transferred to other users.

• Do not use this device if the operational requirements described herein are not met.

Instructions

Transmit no more than the rated duty factor of 50% of the time. To transmit (talk), push
the Push-To-Talk (PTT) button. To receive calls, release the PTT button. Transmitting
50% of the time, or less, is important because this radio generates measurable RF energy
exposure only when transmitting (in terms of measuring for standards compliance).

Transmit only when people outside the vehicle are at least the recommended minimum
lateral distance away, as shown in Table 1, from a properly installed according to
installation instructions, externally-mounted antenna.

Note The following table lists the recommended minimum lateral distance for bystanders in an

uncontrolled environment from transmitting types of antennas (i.e., monopoles over a
ground plane, or dipoles) at several different ranges of rated radio power for mobile
radios installed in a vehicle.

Rated Power of Vehicle-Installed

Two-Way Radio

Up to 50 watts 1.0 meter

50-110 watts 1.5 meter

Recommended Minimum Lateral Distance

From Transmitting Antenna

Mobile Antennas

• Install antennas at the center of the roof or the center of the trunk deck taking into
account the bystander exposure conditions of backseat passengers and the
recommended minimum lateral distances in Table 1. These mobile antenna installation
guidelines are limited to metal body motor vehicles or vehicles with appropriate ground
planes. The antenna installation should additionally be in accordance with:

- The requirements of the antenna manufacturer/supplier.

- Instructions in the Radio Installation Manual, including minimum antenna cable
lengths.

- The installation manual should provide specific information of how to install the
antennas to facilitate recommended operating distances to all potentially exposed
persons.

Viking VM600 Mobile Radio Operating Manual xv

Safety Information

Draft 4/29/2014

• Use only EFJohnson Technologies-approved supplied antenna or EFJohnson
Technologies-approved replacement antenna. Unauthorized antennas, modifications, or
attachments could damage the radio and may violate FCC regulations.

Frequency Manufacturer Base Model No.

762-869 MHz PCTEL Z2165S
762-869 MHz MAXRAD MAX7603S

Approved Accessories

This radio has been tested and meets the FCC RF exposure guidelines when used with the
EFJohnson Technologies accessories supplied or designated for this product. Use of other
accessories may not ensure compliance with the FCC’s RF exposure guidelines, and may
violate FCC regulations.

For a list of EFJohnson Technologies approved accessories, refer to the radio service
manual or contact EFJohnson Technologies as follows.

Contact Information

For additional information on exposure requirements or other information, contact
EFJohnson Technologies at the following address or telephone number:

Customer Service Department
EFJohnson Technologies
8050 Jetstar # 175
Irving, TX 75063

Telephone Toll Free: [phone]

Electromagnetic Interference

This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.

Note The grantee is not responsible for any changes or modifications not expressly approved by

the party responsible for compliance. Such modifications could void the user's authority to
operate the equipment.

Note Under Industry Canada regulations, this radio transmitter may only operate using an

antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry

xvi Viking VM600 Mobile Radio Operating Manual

Safety Information

Draft 4/29/2014

Canada. To reduce potential radio interference to other users, ate antenna type and its
gain should be chosen that the equivalent isotropically radiated power (e.i.r.p.) is not
more than necessary for successful communication.

Conformement a Ia reglementation d’Industrie Canada, le present emetteur radio peut
fonctionner avec une antenne d'un type et d’un gain maximal (ou inferieur) approuve pour
l’emetteur par Industrie Canada. Dans le but de reduire les risques de brouillage
radim:ilectrique a l’intention des autres utilisateurs, il faut choisir le type d’antenne et son
gain de sorte que Ia puissance isotrope rayonnee quivalente (p.i.r.e.) ne depassepas
l’intensite mScessaire a retablissement d’une communication satisfaisante.

Viking VM600 Mobile Radio Operating Manual xvii

Safety Information

Draft 4/29/2014

xviii Viking VM600 Mobile Radio Operating Manual

S ECTION

Draft 4/29/2014

Section1Radio Overview

The Viking® VM600 Mobile radio is designed specifically for critical land mobile radio
applications. Whether for police and fire first responders or public service and government
communications, the Viking
operating modes. Seamless interoperability with analog and digital, wideband and
narrowband, and a wide variety of trunking protocols – all available simult aneously in the
same radio.

®

VM600 provides the features and capabilities for all

Figure 1.1 Viking VM600 Mobile Radio

Depending on the specific model (and options), the Viking VM600 mobile radio operates
in the VHF (136-174 MHz), UHF 380 (380-470 MHZ), UHF Low (403-470 MHz), UHF
High (450-512 MHz), and 700/800 (762-870 MHz) frequency bands at 15 -35 output watts
transmitter power. The Viking VM600 uses the Enhanced (AMBE+2) P25 Vocoder for
outstanding voice quality and noise reduction.

1.1 Capabilities & Features

Viking VM600 Mobile Radio Operating Manual 1-1

The Viking VM600 mobile radio is designed to provide an extensive list of features and
capabilities for most any communications application.

Radio Overview

Draft 4/29/2014

- Up to 1024 Channels / Talkgroups

- SMARTNET II

- All Supported Protocols Available Simultaneously

- DES, DES-OFB, & AES Encryption with 64 keys

- 54-channel/16-zone Feature

- P25 Conventional & Trunked OTAR

- Conventional Vote Scan is Standard

- Supports Key Elements of MDC1200

- Compatible with Motorola Astro®

- Simplified cabling with a single multi-function accessory connection in the rear

• Operating Modes

®

, SmartZone® P25 Digital and Analog, P25 Digital and Analog

- Conventional Analog and Project 25 Digital

- Trunking Mode Project 25 (P25) Digital

- SMARTNET II / SmartZone

• Data and Control Interfaces

- Supports P25 Conventional IP Packet Data

- P25 (Astro) IV & D

- Supports GPS AVL Data

• Simplified Feature Updates and Option Selection

- Over the Air Programming (OTAP) option enables you to program radios without
connecting them to a computer

- Easy radio programming and feature updating for portable and mobile radios

• Multiple Configuration Options

1-2 Viking VM600 Mobile Radio Operating Manual

- Dash Mount, Remote Mount, and Motorcycle Configurations

- Two Control Heads

- Internal or External Speaker

- Fixed Control Stations

- Siren Option

Note The availability of many features is controlled by field programming and by the options

Draft 4/29/2014

ordered. See the EFJohnson Technologies product description and the following sections
in this manual for additional information.

1.2 Radio Software and Configuration Programming

The radio operating software can be easily updated to accommodate new releases and
updates issued from EFJohnson technical support.

1.3 Supported Software

Radio Overview

This manual was prepared to support subscriber radio software release 9.1 used on this
radio. Some information in this manual may not be compatible with earlier subscriber
radio software releases.

1.4 Available Options

Availability of optional features is controlled by factory programming of the control logic.
Only those features that are specifically ordered and enabled in a particular radio are
available for use and can be programmed. The optional features controlled by factory
programming are as follows.

P25 Options

• P25 conventional mobile data

• P25 trunked mobile data

• P25 conventional operation

• P25 trunked operation

Viking VM600 Mobile Radio Operating Manual 1-3

Encryption Options

•DES

• DES OFB

Radio Overview

Draft 4/29/2014

OTAR Options

• OTAR P25 conventional

• OTAR P25 trunked

Trunking Options

• SMARTNET analog operation

• SmartZone analog operation

• Digital SMARTNET/SmartZone

• EFJohnson MultiNet

Feature Options

• Keypad programming (Federal Government users only)

• Full Keypad support

• 512 or 864 talkgroups, depending on the option enabled

• 54-Channel/16-Zone mode

• Custom icons

• Zonefail site lock

• MDC1200

•700 MHz Band

• Conventional Vote Scan

Currently, the only operating mode that is standard with all models is the conventional
analog mode. Other variables such as frequency range are hardware dependent instead of
software dependent.

Radios in the field may be upgraded with new features. A new feature can be purchased
and a special encrypted code string keyed to the Electronic Serial Number (ESN) of the
radio is then provided by EFJohnson Technologies. This string is in the form of a
computer file which enables the feature, and is downloaded to the radio using Armada.

1.5 Licensing

This radio operates on radio spectrum frequencies assigned and licensed by the Federal
Communications Commission (FCC). The FCC can penalize anyone operating an
unlicensed radio. It is the radio operator’s responsibility to obtain the necessary license for
this radio equipment.

1-4 Viking VM600 Mobile Radio Operating Manual

1.6 Radio Accessories

Draft 4/29/2014

Various accessories are available from EFJohnson that will provide added capability and
enhanced operation for this radio. The following describes some of the accessories
available.

1.6.1 Digital Keypad Microphone

An optional accessory microphone is available with an integral Digital Keypad. You can
program various radio features to the keys. This can place often used functions
conveniently on the microphone.

Figure 1.2 Digital Keypad Microphone

Radio Overview

Viking VM600 Mobile Radio Operating Manual 1-5

Radio Overview

Draft 4/29/2014

1.6.2 Base Station Unit

A Base Unit power supply is available that can be used to power the Viking VM600 radio
from 110 volt AC line voltage. This lets the Viking VM600 be used in a field office, base
station, or headquarters building.

Figure 1.3 Viking VM600 Mobile Radio Mounted in Base Station

Consult with your EFJohnson representative for additional accessories that can be used
with your EFJohnson mobile radio.

1-6 Viking VM600 Mobile Radio Operating Manual

2.1 Standard Control Head

Programmable Buttons

Speaker

Display

Multi-function

Indicator

On-Off / Volume Select / ZoneMicrophone

Connection

Draft 4/29/2014

The standard control head provides the primary controls, display, and speaker for the
mobile radio.

S ECTION

Section2Controls & Display

2.1.1 Front Panel Controls

Figure 2.1 shows the controls for the Viking VM600 Mobile radio.

Figure 2.1 Front Panel Controls

Viking VM600 Mobile Radio Operating Manual 2-1

Controls & Display

Programmable Option Buttons

F1 F2 F3 F4 F5 F6

Draft 4/29/2014

Note This indicator is disabled when the Surveillance mode is programmed (see Section 5.10).

ON-OFF /Volume - Pressing this control turns power ON and OFF (soft power down can
be programmed as in Section 3.1.1.3), and rotating it sets the volume level.

Select Switch - This switch can be pressed or rotated. An optional beep can be
programmed to sound when it is pressed. Selects zones/channels and is also used for other
functions such as selecting names from a call list. When selecting zones/channels, a bar
above the zone or channel display (see Figure 2.3) indicates which is being changed. This
bar is switched between displays by pressing this switch, and zone and channels are
selected by rotating it (see Section 4.1.6.3). If this switch is pressed and held, the radio
enters Menu Mode.

Multi-function Indicator - This is a two-color LED that indicates the following:

Red (constant) - Transmitter keyed (PTT switch pressed).
Green (constant) - Busy condition (carrier detected in receive mode).

Option Buttons - Each of the six options buttons on the front panel (including the one

located to the left of the display) can be programmed by your system operator to control
some function. The button functions can be different for each operating mode
(conventional, SMARTNET/SmartZone, and Project 25 Trunked). Therefore, up to 18
functions can be controlled by these buttons. Refer to Section 5.1 for more information on
option button functions.

Figure 2.2 Option Buttons

Speaker - An internal 16-ohm, 5-watt speaker is located behind the grille. An optional 4­ohm, 12-watt external speaker may be used if desired. The internal speaker should be
disabled when an external speaker is used.

2-2 Viking VM600 Mobile Radio Operating Manual

2.1.2 Display

10 - Cha racter Alphanumeric Display Zone

Number

Status

Display

Channel

Number

MON

Operating Mode

Symbols

Zone/Channel Select Indicators

Draft 4/29/2014

Figure 2.3 shows the front panel display.

Note Radios are capable of displaying messages in English, French or Spanish.

Figure 2.3 Front Panel Display

Controls & Display

Alphanumeric Display - This ten-character area of the display indicates the alias (unique
identification) for the selected zone, channel or combined aliases, depending on which
select mode is active. It may also indicate such things as the channel frequency, ID
numbers, and status and error messages.

Zone Number - Indicates the currently selected zone from 1 up to 255, depending on the
options installed. A zone is a collection of channels that can be any combination of the
conventional, P25 Trunked, and SMARTNET/SmartZone types.

Note The zone/channel numeric display and the zone/channel select bars in all supported

protocols and display operating modes can be inhibited by programming.

Status Display - Two characters indicate various status information. See Table 2.1.

Channel Number - Indicates the currently selected channel (conventional) or talkgroup

(other modes). The lines above the zone and channel displays indicate which displa y is
changed if the Select switch is turned. To switch between displays, press the Select switch.

Viking VM600 Mobile Radio Operating Manual 2-3

Controls & Display

Draft 4/29/2014

Table 2.2 lists the symbols used on the display to indicate various operating modes and
status.

Table 2.1 Standard Control Head Display Symbols

Standard Control Head Display Symbols

Operating Mode Symbols

Unit (or Private) call mode active

Busy (displayed when radio enters a busy transmit state)

Monitor mode enabled

Interconnect mode enabled

Security enabled

• Keypad programming/edit mode - displayed when the radio is in a mode where
the user can edit radio parameters.

• P25 data context enabled - radio is ready for data operations or call history
(only when radio is in conventional unit call, call alert or text messaging and an
applicable unit ID is selected.)

• P25 data channel grant (radio is operating on a data channel) or text message
mode active.

Status Display Symbols

Scan enabled

The current channel is the priority channel in the enabled scan list (only when scan is on or
when in scan edit mode; located in left position)

The current channel is the priority 2 channel in the enabled scan list (only when scan is on
or when in scan edit mode; located in left position)

The current channel is in the enabled scan list (only when scan is on or when in scan edit
mode; located in left position)

Radio wide scan mode enabled

Selected channel is in radio wide scan list (only when radio wide scan is on or when in radio
wide scan edit mode)

Repeater talk-around enabled

2-4 Viking VM600 Mobile Radio Operating Manual

2.2 Lightning Control Head

Draft 4/29/2014

An optional component for the Viking VM600 mobile radios is the Lightning Control
Head illustrated in Figure 2.4. The Lightning Control Head offers superior readability and
display options for the radio user. The control head can be fitted to both dash and remote
mount mobile radio installations.

Figure 2.4 Radio with Lightning Control Head

Controls & Display

Viking VM600 Mobile Radio Operating Manual 2-5

Controls & Display

One-Touch

Programmable Buttons

(8)

4-Way

Navigation Pad

Display

On-Off / Volume

Switch

Select Zone/Channel

Switch

Microphone

Connection

Multi-function

Indicator

Draft 4/29/2014

2.2.1 Front Panel Controls

The Lightning Control Head front panel controls are illustrated in Figure 2.5.

Figure 2.5 Light Control Head Controls

On-Off Volume - This control has two actions: rotation and press. Press the control to
turn power on/off function to the radio. Rotate the control (when power is on) to adjust the
radio speaker volume.

Display - The display shows all primary operating information such as active channel,
zone, along with channel/zone alias, status symbols, and labels for the five function
buttons under the display.

Multi-function Indicator - The halo light surrounding the Select Control is used to
indicate radio transmit and receive status.

- Steady Red - Radio transmitting

- Steady Green - Radio receiving

- Steady Orange - Radio idle

Select Zone / Channel - This control has two actions: rotation and press. In normal non­menu mode, press the control to select either the zone or the channel. Then rotate the
control to change either the zone or channel depending on the selection. (It is indicated on
the display whether zone or channel is selected.)

Microphone Connection - A compatible microphone plugs into this jack connector.

2-6 Viking VM600 Mobile Radio Operating Manual

Controls & Display

One-Touch Programmable Buttons

*4-Way Navigation Pad

F7 F8 F2 F3 F4 F5 F6 F1 F9*

Draft 4/29/2014

One-Touch Buttons - The control head has 8 one-touch buttons: two on the left of the
display, five under the display, and an orange button on the right of the display. These
buttons can be programmed with different radio functions. (See the Armada Programming
manual for information on programming these button functions.)

Figure 2.6 Lightning Option Buttons

4-Way Navigation Pad - This button pad is used to naviga te through various radio
functions and menus. The pad can be programmed with different radio functions.

Viking VM600 Mobile Radio Operating Manual 2-7

Controls & Display

Zone

Number

Channel

NumberOperating Mode Symbols / Status

One-Touch Button LabelsChannel

Name

Draft 4/29/2014

2.2.2 Display

The Lightning Control Head includes a highly readable display. The display is a mono­chrome display with 320 x 80 pixels. The display supports both the Classic Single Line
display mode or enhanced Dual Line functionality. In Classic Single Line mode, display
will have primary fields corresponding to the fields available on the mobile Viking control
head, with the addition of the soft menu keys. Figure 2.7 shows the front panel display.

Figure 2.7 Lightning Control Head Display

Table 2.2 lists the symbols used on the display to indicate various operating modes and
status.

Table 2.2 Lightning Display Operating/Status Mode Symbols

Lightning Control Head Symbol s

Keypad programming/edit mode. Displayed when the radio is in a mode where you can edit
radio settings.

Monitor mode enabled

Repeater Talk-Around mode enabled

Scan Enabled

Security Enabled

The current channel is in the enabled scan list (only when scan is on or when in scan edit
mode)

The current channel is the priority channel in the enabled scan list (only when scan is on or
when in scan edit mode)

2-8 Viking VM600 Mobile Radio Operating Manual

Controls & Display

Draft 4/29/2014

Lightning Control Head Symbols (Continued)

The current channel is the priority 2 channel in the enabled scan list (only when scan is on or
when in scan edit mode)

Interconnect mode enabled

Private call mode enabled

Radio is in Roaming mode

P25 data context enabled (radio is ready for data operations)

P25 data channel grant (radio is operating on a data channel)

Site lock mode

Multi-Net trunking group scan enabled

Signal strength (indicates an acceptable site, and may range from 4 bars to no bars)

GPS link active

Call history (only when radio is in conventional unit call, call alert or text messaging and an
applicable unit ID is selected.

Text message mode active

Radio wide scan mode enabled

Busy (displayed when radio enters a busy transmit state)

Viking VM600 Mobile Radio Operating Manual 2-9

Controls & Display

AccessoryAntenna DC Power

Draft 4/29/2014

2.3 Rear Panel Connectors

The mobile rear panel connectors are shown in Figure 2.8. These are applicable to both the
Standard and Lightning control heads.

Figure 2.8 Rear Panel Connectors

DC Power - Connection point for the nominal 12-volt, negativ e ground power so urce (see
Figure 2.8).

Antenna - Type N for connecting the antenna.

Accessory - Black connector for connecting optional accessories such as an external

speaker (4-ohm, 12-watt), horn alert, siren control, and ignition sense line.

2-10 Viking VM600 Mobile Radio Operating Manual

Section3Dual Controls & External Speaker

Draft 4/29/2014

3.1 Dual Control Configurations

The Viking VM600 series mobile radio is available in two dual-control configurations,
each with different programming and setup requirements:

S ECTION

- Dash-mount radio with a remote mount control head

- Remote-mount radio with two remote control heads

Figure 3.1 Dash-Mount Radio with Remote Control Head

Figure 3.2 Remote-Mount Radio with Two Remote Control Heads

Viking VM600 Mobile Radio Operating Manual 3-1

Dual Control Configurations Section 3 - Dual Controls & External Speaker

Draft 4/29/2014

Both dual control configurations can be configured and ordered as a complete kit. Existing
Viking mobiles can also be converted to dual control configurations by the purchase of
accessory kits, as described in the EFJohnson Subscriber Radio Accessories Catalog.
Contact your EFJohnson Sales Representative for additional information.

3.1.1 Remote Conversion Kit 250-5300-002

This kit provides the material required to convert an existing dash-mount mobile to a
remote-mount configuration. The kit includes:

- Blank faceplate for mobile unit

- Rear shroud for remote control head

- Remote control head mounting bracket

- Single remote accessory cable (part number 597-5357-706)

- 17 ft. remote control cable (part number 597-5357-775-02)

The kit does not include the control head removal tool (part number 721-5100-010) which
must be ordered separately if required.

The remote control cable is also available in 6 ft. (part number 597-5357-775-01) and 50
ft. (part number 597-5357-775-03) lengths, but these must be ordered separately.

3.1.2 Remote Control Head Kit 250-5300-003

This kit includes the material required to add a remote control head to an existing dash­mount or remote-mount configuration. The kit includes:

- ES Remote control head with mounting bracket.

Due to differing operational requirements, the following items are not included in the kit
and must be ordered separately:

- Microphone - see section 3 for further details

- Remote control cable - order 6 ft., 17 ft. or 50 ft. cable as required

- Remote accessory cable - see section 2.3 for further details

Configurations using two remote control heads require the Dual Remote / Accessory /
Data / Siren cable (part number 597-5357-741).

Configurations using a dash-mount mobile with one remote control head can use the
following remote accessory cables, depending on the application:

3-2 Viking VM600 Mobile Radio Operating Manual

- Single Remote / Accessory cable (part number 597-5357-706)

- Single Remote / Accessory / UDDI cable (part number 597-5357-736)

- Single Remote / Accessory / Data / Siren cable (part number 597-5357-716)

Dual Control Configurations Section 3 - Dual Controls & External Speaker

Draft 4/29/2014

3.1.3 Hardware Setup

When shipped, the dual remote-mount configuration consists of a dash-mount radio, a
remote control head, a conversion kit for the second control head, and required cabling.
Upon receipt, the installer must convert the dash-mount mobile radio into a remote-mount
configuration using instructions contained in the installation manual (part number 004­5300-73001) which is supplied with the unit.

In the dual remote control configuration, the EFJohnson noise-cancelling microphone
(part number 589-0016-592) or compatible should be used on both control heads. This
microphone can be identified by the small circular metal grill above the hang-up button on
the rear of the microphone. Use of other microphones in this configuration will result in
degraded operational performance.

3.1.4 Radio Programming using Armada

No special programming is required for dash-mount mobiles with a single remote control
head.

3.1.5 Programming Dual Remote Control Configurations

The Dual Remote configuration requires special programming to accommodate both
remote control heads in the mobile radio system. Radios used in the dual remote control
configuration must have application software of 6.8.6 or later, and must be programmed
using Armada.

To program, follow the steps:

1 Start PCConfigure 2.10.2 or later
2 Open the programming file (codeplug) to be used with the radio
3 Select the Global page
4 Click on the Mic. Levels button near the center bottom of the screen (see Figure 3.3)
5 Check the "Dual Remote Control Head" gain box
6 Click OK
7 Write the programming file to the radio

Viking VM600 Mobile Radio Operating Manual 3-3

Dual Control Configurations Section 3 - Dual Controls & External Speaker

Draft 4/29/2014

Figure 3.3 Programming Microphone Gain Settings

Removal of either control head will affect system performance. If there is a need to later
convert the system to a single control head application, Armada must be used to un-check
the "Dual Remote Control Head Gain" on the Mic Levels screen.

3-4 Viking VM600 Mobile Radio Operating Manual

Dual Control Configurations Section 3 - Dual Controls & External Speaker

Programmable Option Buttons

F1 F2 F3 F4 F5 F6

Draft 4/29/2014

3.1.6 Master / Slave Programming

In both dual control configurations, either control head can be designated as the Master
and the other as the Slave. The Master control head controls the volume of its internal
speaker and any external speakers that are connected to the radio's 8-pin accessory
connector (see installation manual for connection details).

All Viking VM600 mobile radios ship from the factory with the dash-mount control head
and any remote control heads set as Master, so in all dual-control configurations, one
control head must be set as the Slave to ensure correct operation.

Control head addressing is set as follows:

1 Power up the mobile radio
2 Press buttons F3, F4 and F5 at the same time, and release (see Figure 3.4).
3 The display will read "ADDRESS 21" if the control head is configured as the Master,

or "ADDRESS 22" thru "ADDRESS 27" if the control head is configured as the Slave.

4 Rotate the Select knob to select the appropriate address.
5 After a short time-out period, display will read "CYCLE PWR"
6 Power the radio off and back on, and the configuration will be updated.

Figure 3.4 Control Head Option Buttons

Viking VM600 Mobile Radio Operating Manual 3-5

Dual Control Configurations Section 3 - Dual Controls & External Speaker

Draft 4/29/2014

3.1.7 Dual Control Operation

3.1.7.1 Power On/Off

The power switching in dual configurations is such that either control head can switch the
radio on, but both control heads must be off to turn the radio off.

If the power button on both control heads is pressed, then the power button on both control
heads must be pressed again to turn the radio off.

It is therefore recommended to always turn the radio on and off using one control head, to
simplify operation and avoid confusion.

3.1.7.2 Microphone Audio

In the dual remote control configuration, when transmitting from one of the control heads,
it is possible for the push-to-talk (PTT) on the microphone of the second remote head to
also be active. In this case, the voice transmissions of both users will be transmitted,
resulting in a "party line" operation. This is done to allow either control unit access to the
voice channel, and to eliminate the circumstance where one operator may be prevented
from having their transmission heard because the other control head is already
transmitting.

To prevent a second operator from interrupting a transmission already in progress, the user
should look at the transmit indicator on the control head prior to pushing PTT to verify that
the mobile radio is not already transmitting from the other control head.

3-6 Viking VM600 Mobile Radio Operating Manual

External Speaker Section 3 - Dual Controls & External Speaker

Draft 4/29/2014

3.2 External Speaker

An optional 4 ohm, 15 watt external speaker is available from EFJohnson (Part No. 250­0151-006). This can be used to enhance radio audio or to provide primary audio for a
remote-mount radio. Refer to the Viking VM600 Series Mobile Radio Installation guides
for additional installation information.

Figure 3.5 EFJohnson External Speaker

3.2.1 Internal / External Speaker Programming

All Viking VM600 mobile radios ship from the factory with the internal speaker in the
control head enabled, and audio is also routed to the 8-pin accessory connector at the rear
of the radio.

If you connect an external speaker to the 8-pin accessory connector (as described in the
installation manual), the internal speaker will not be automatically disabled, and both
speakers will be active.

To disable the internal speaker, proceed as follows:

1 Power up the mobile radio
2 Press buttons F2 and F5 at the same time, and release (see Figure 3.4).
3 Rotate the Select knob, until display reads "SPKR DSABL"
4 After a short time-out period, display will read "CYCLE PWR"
5 Power the radio off and back on, and the internal speaker will be disabled.

Viking VM600 Mobile Radio Operating Manual 3-7

External Speaker Section 3 - Dual Controls & External Speaker

Draft 4/29/2014

To re-enable the internal speaker, proceed as follows:

1 Power up the mobile radio
2 Press buttons F2 and F5 at the same time, and release (see Figure 3.4).
3 Rotate the Select knob, until display reads "SPKR ENABL"
4 After a short time-out period, display will read "CYCLE PWR"
5 Power the radio off and back on, and the internal speaker will be enabled

3-8 Viking VM600 Mobile Radio Operating Manual

4.1 Basic Operation

Draft 4/29/2014

S ECTION

Section4General Operation

4.1.1 Turning Power ON and Setting Volume

Power is turned ON and OFF by pressing the ON-OFF /Volume knob. When power is
turned ON, the radio goes through a self test. When that is successfully completed,
software version, unit ID, zone, then channel are briefly displayed (except when a
conventional analog channel is selected), a tone sounds (if tones are enabled), and the
radio is ready for normal operation. If “ENTER PSWD” is briefly displayed, refer to the
next section.

The radio can be programmed so that one of the following combinations are selected at
power up:

• Last Zone/Last Channel

• Last Zone/Home Channel

• Home Zone/Last Channel

• Home Zone/Home Channel

The Home Zone and Channel are pre programmed. With the “Last Zone”/“Home
Channel” configuration, the programmed home channel number of the last active zone is
selected. If this channel number is not programmed in the active zone, “UNPROGRAMD”
is displayed.

Viking VM600 Mobile Radio Operating Manual 4-1

General Operation

Draft 4/29/2014

Note In dual control configurations (front mount radio with remote control unit), the power

If the Radio ID feature is enabled, the radio will display the Radio ID alias in place of the
Self Test message during startup. Radio ID identifies the personality file used to program
the radio, the service area for which the radio is programmed, or functional grouping for
which the radio is programmed. The Radio ID alias display will be included with the
Radio Info display items in both button/scroll and menu modes. If disabled, the Radio ID
menu mode will display a blank line.

switch at either control point can be OFF for power to turn OFF.

4.1.1.1 Setting Volume Level

The relative volume setting can be determined using a reference tone as follows:

• If the key press tones are enabled (see Section 5.6), a short tone sounds when an option
switch is pressed or the Select switch is pressed or rotated.

• If a conventional channel is selected, take the microphone off-hook and if someone is
talking, voice may be heard. If the MON (Monitor) option switch is programmed (see
Section 5.3 on page 25), pressing it unsquelches the radio and either voice or
background noise is heard. If a SMARTNET/SmartZone or P25 trunked channel is
selected, the radio cannot be manually unsquelched.

The minimum volume level that the volume control can select can be programmed. This
can be used to prevent missed messages caused by unintentionally turning the volume
down too far. Relative levels of 0-255 can be set in steps of 1 (“0” sets the lowest
minimum volume).

Note This setting is applicable to Viking mobiles with Viking Series Remote Control Heads. The

minimum volume setting has no effect on the volume of a pre-ES Series model remote
control head using an internal speaker whether it is attached to a pre-ES Series or an
Viking Series mobile radio.

4.1.1.2 Standard and Soft Power Down

To turn power off, press the ON-OFF/Volume knob.

A soft feature can be programmed to prevent radio power from being turned off by
accidentally pressing the on-off/volume knob. If the user presses the ON-OFF/Volume
knob, “POWERDOWN” will be displayed. The display message portion of the display
stops updating. The user is able to receive, transmit, and use function buttons, but the
display message will not change. If the channel is changed the Zone/Channel indication
will update.

4-2 Viking VM600 Mobile Radio Operating Manual

General Operation

Draft 4/29/2014

The user can power the radio completely down by pressing the option button programmed
for this purpose (F2 or F6).

If the user presses the ON/OFF/Volume knob while soft is in effect, the radio returns to
full power up operation.

4.1.2 Power-Up Password

The power-up password feature prevents unauthorized use of the radio by requiring that an
eight-digit password be entered to make it operational. This feature is enabled or disabled
by programming.

When it is enabled, “ENTER PSWD” is briefly displayed when power is turned on, the
eight-digit numeric password must be entered by pressing and rotating the Select switch.
A single beep sounds when the switch is pressed (if that option is enabled). If an incorrect
password is entered, “INCORRECT” is displayed and it must be re-entered.

An enhanced password scheme allows up to four power-on (user) passwords, download
and upload passwords, and a master password to be programmed.

The current User password can be changed if the “PW CHG” option switch is
programmed. Selecting this function displays prompts for entering and confirming a new
password.

4.1.2.1 Programming Passwords

Passwords are programmed using Armada. The applicable radio must be connected to the
computer and powered up to display this screen.

Note Any password changes made to the radio will be immediately applicable when Password

Management is exited.

4.1.2.2 Lost Passwords

If a password is lost, contact customer service.

Viking VM600 Mobile Radio Operating Manual 4-3

4.1.2.3 Changing Passwords

An assigned password can be changed by the user if the PW CHG option switch is
programmed. Selecting this function displays prompts for entering and confirming a new
password.

General Operation

Draft 4/29/2014

4.1.2.4 Password Entry Procedure

When a password is requested, it is entered as follows:

• Rotate and press the Select switch. A single beep sounds when the switch is pressed (if
that option is selected)

4.1.2.5 User (Power-On) Passwords

Separate Download (write) and Upload (read) passwords can be programmed to prevent
unauthorized downloading or uploading of radio programming parameters. When one or
both of these passwords are used, the proper password must be entered to perform the
operation. A “User” password is not required to upload or download parameters.

4.1.2.6 Master Password

The Master Password overrides all the preceding passwords. It can be used by a system
administrator as a “pass key” to a password controlled function or to change a lost or
inadvertently changed password. Master passwords are set up and changed the same as the
other passwords. It does not override the following Zone Password.

4.1.2.7 Zone Password

A zone password can be programmed with the Viking VM600 mob i le. It prevents
unauthorized reprogramming of zones by keypad programming.

Note The programming and usage of this password has not changed. It is independent from the

preceding passwords, and programmed using Armada.

4-4 Viking VM600 Mobile Radio Operating Manual

General Operation

Draft 4/29/2014

4.1.3 Speaking into the Microphone

For best results, hold the microphone about 1-2 inches from your mouth and speak at a
normal conversational level. Do not shout since it distorts your voice and does not
increase range.

Note If excessive background noise consistently interferes with communications, Microphone

Sensitivity should be adjusted (using Armada).

Make sure that the PTT (push-to-talk) switch is pressed before you begin to speak and
released as soon as the message is complete.

4.1.4 Display Backlight Control

If the BKLHT option button is programmed, it can be used to select h igh, medium, or OFF
backlight modes. Otherwise, the keypad and display backlight is fixed in one of these
modes by programming. The backlight is totally disabled when the Surveillance mode is
programmed (see Section 5.10).

4.1.5 Display Viewing Angle and Contrast Adjust

If the display is difficult to read from the angle you normally view it, the viewing angle
can be adjusted as follows: Press and hold F2 and F6 to enter angle change mode. If you
do not rotate the select switch for three seconds, it times out and goes back to zone or
channel change.

Note If the display appears blank or all icons are continuously displayed, the viewing angle is

probably improperly adjusted.

Viking VM600 Mobile Radio Operating Manual 4-5

General Operation

Zone

Number

Channel

Number

Zone Select Indicator

Zone Identifier Alias

Draft 4/29/2014

4.1.6 Zone / Channel Display and Select

Zone / Channel Display and Select operate as follows:

4.1.6.1 Zone / Channel Display

The selected zone is shown on the radio display (Figure 4.1). When selected by the Zone/
Channel switch (see Section 4.1.6.3), the select bar will display above the Zone Number.
In addition, the alias text identifier for the selected zone will be shown on the display
screen.

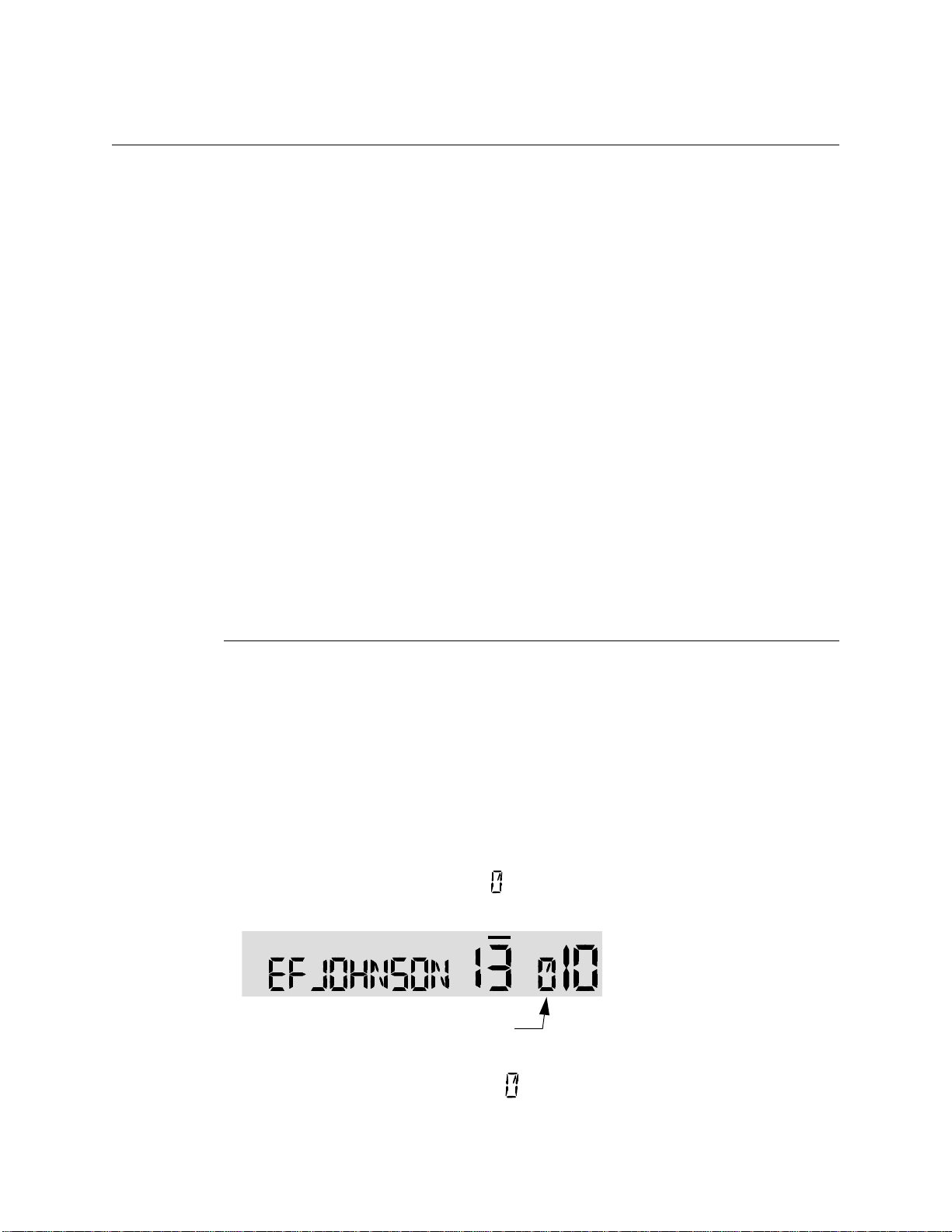

Figure 4.1 Zone Display

Similar to the selected zone, the selected channel is shown on the radio display (Figure

4.2). When selected by the Zone/Channel switch (see Section 4.1.6.3), the select bar will

display above the Channel Number. In addition, the alias text identifier for the selected
channel will be shown on the display screen.

4-6 Viking VM600 Mobile Radio Operating Manual

General Operation

Zone

Number

Channel

Number

Channel Select Indicator

Channel Identifier Alias

Draft 4/29/2014

Channel alias can be a combination of zone and channel aliases. With conventional
channels, the channel frequency may be displayed instead of the alias if the Display
Information option switch is programmed (see Section 6.8).

Figure 4.2 Channel Display

If channel scanning is enabled, the channel number will change to show the current active
channel being scanned. The Channel Identifier Alias will also change to identify the
current active scanned channel.

4.1.6.2 Channel Lock Option

A programming option will lock the channel display during scanning. This feature lets the
radio user always see and confirm the selected operating channel for the radio. (The
default is disabled.)

When the option is programmed, the channel number will continue to show the selected
channel only. The Channel Identifier Alias will change to show the current scanned active
channel. If the option is not enabled, then the channel number and alias will both change to
indicate the current scanned active channel as described.

4.1.6.3 Zone / Channel Select

The front panel Select switch is used to change the zone and channel. Pressing this switch
toggles between the zone and channel select modes, and rotating it changes the zone or
channel. An optional beep can be programmed to sound when the switch is pressed or the
channel is changed.

Viking VM600 Mobile Radio Operating Manual 4-7

The current mode is indicated by the bar over the zone or channel display. For example,
when the bar is over the zone display (see following illustration), the zone select mode is
enabled.

General Operation

Zone

Number

Channel

Number

Zone Select Indicator

Zone Identifier Alias

Draft 4/29/2014

Rotating the Select switch clockwise increases the zone or channel and rotating it
counterclockwise decreases the zone or channel number. A single beep sounds when the
channel is changed (if that option is enabled). After the highest zone or channel is
displayed, wrap-around to the lowest zone or channel occurs and vice versa. If an
unprogrammed channel is selected, “UNPROGRAMD” is displayed and a tone sounds.
The radio may also be programmed so that only programmed channels are selected.

The radio can be programmed so that the bar defaults to either the zone or channel display
when power is turned ON and after a change is made. The delay that occurs before it
returns is programmed for 1-255 seconds. It can also be programmed to remain in the last
selected mode.

4.1.6.4 54-channel/16-zone Feature

This programmable feature allows for more than 16 channels in a zone. When enabled
(using the PCConfigure software), the radio can be configured with up to 16 zones and 54
channels per zone. This feature forces the radio display to switch the zone and channel
number indicators. The zone number will be shown on the far right on the display and
channel number now to the left of the zone number as illustrated in Figure 4.3. The Zone/
Channel Select switch continues to select these functions.

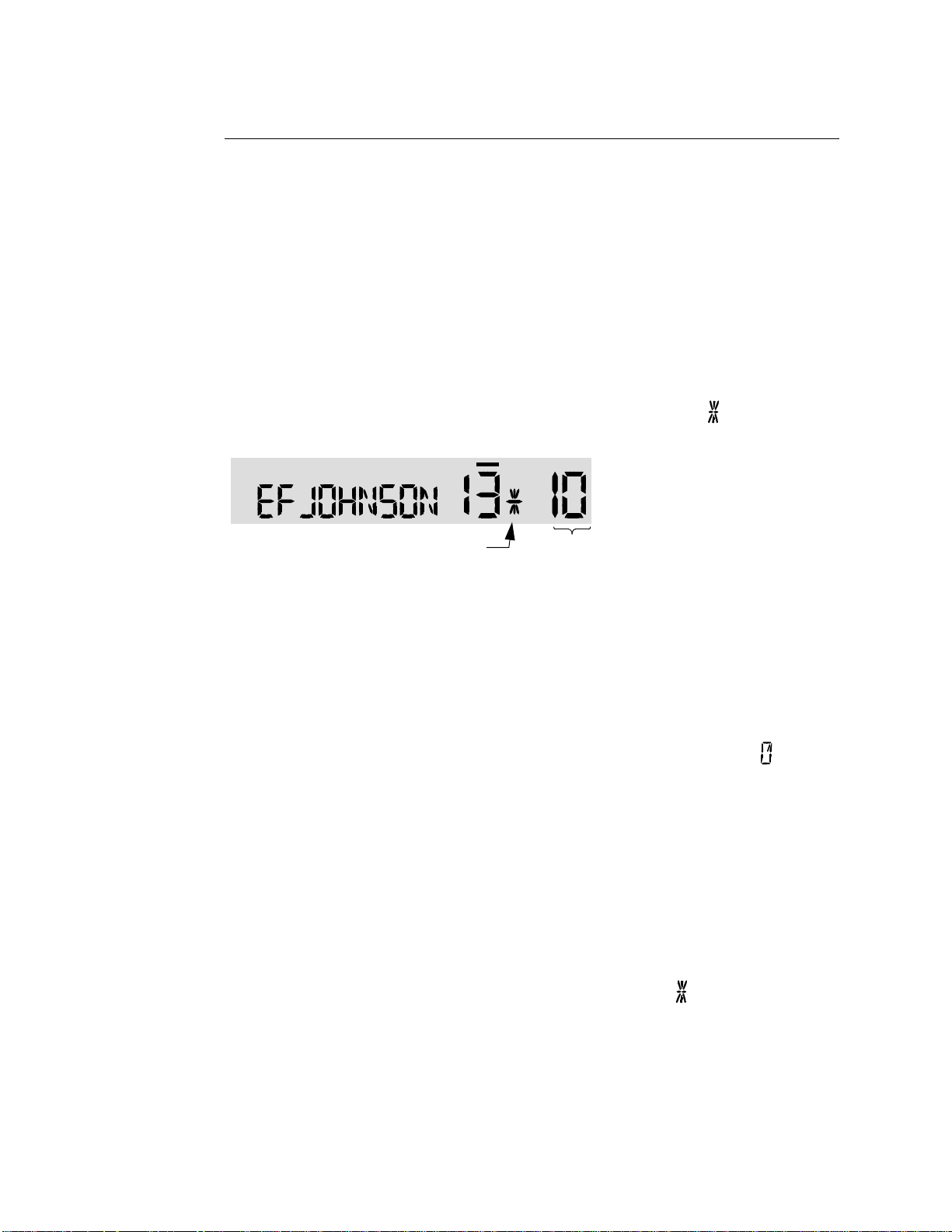

Figure 4.3 54 Channel/16 Zone Display

4.1.6.5 Direct Channel Select

The direct Channel Select feature is available if the Channel Select option switch
parameter is programmed. This feature allows channels to be directly selected using the
HHC numeric keys or Digital Keypad Microphone.

For direct selection purposes, channels are numbered sequentially starting with the lowest
zone. Each zone can be programmed with up to 16 channels, so Zone 1 channels are
numbered 1-16, Zone 2 channels 17-32, and so on as shown below.

4-8 Viking VM600 Mobile Radio Operating Manual

General Operation

Draft 4/29/2014

For example, Zone 1/Channel 16 is selected by Channel 16, and Zone 2/Channel 16 is
selected by Channel 32.

Seq. Ch. No. Zone Channel

1 - 16 1 1 - 16
17 - 32 2 1 - 16
33 - 48 3 1 - 16

Proceed as follows to select channels using this mode:
1 Enable the direct Channel Select mode selecting it via the menu or by pressing the

Channel Select option switch. A single beep sounds when the switch is pressed (if that
option is enabled). The alias and sequential number of the current channel are
alternately displayed.

2 Select the desired channel using the Up/Down keys or directly enter it using the 0-9

keys. A single beep sounds when the channel is changed (if that option is enabled). If
using the 0-9 keys, the radio attempts to display the entered number after the third digit
is entered or approximately two seconds after the last key is pressed.

3 To exit this mode and select the entered channel, press the Channel Select switch again.

This mode is also exited automatically without changing the channel after
approximately one minute of no activity.

Note The Channel Select function should probably not be assigned to a number key because

pressing that key to select a channel then exits the select mode.

Other features of this mode are as follows:

• When using the Up/Down keys, wrap-around to the lowest zone/channel occurs after
the last channel in the highest programmed zone is displayed and vice versa. For
example, if Zone 1/Channel 5 is the highest programmed channel, wrap-around occurs
after Zone 1/Channel 16 is displayed if the “Programmed Channels Only On Display” is
not selected. If “Programmed Channels Only on Display” is selected, the wrap around
occurs at Channel 5.

• When an unprogrammed channel is displayed, the sequential channel number and
“UNPROGRAMD” are alternately displayed.

• If an invalid channel number is entered using the 0-9 keys, or the Channel Select option
switch is pressed with “UNPROGRAMD” displayed, an error tones sounds,
“INVALID” is briefly displayed, and the displayed channel does not change.

Viking VM600 Mobile Radio Operating Manual 4-9

4.1.6.6 Favorite Zone Selection

The Favorite Zone feature allows the radio to be programmed to provide users the ability
to setup “Favorite Channels” in one Favorite Zone, and lets the user to edit the channels
without impacting any of the channels already programmed to the zone.

General Operation

Draft 4/29/2014

A “Favorites” button in the Viking VM600 allows the user to add channels to the Favorite
Zone. If The Favorite Zone is enabled, the user has the ability to change the channels that
are in his favorites list, as follows:

1 Select the zone / channel to be placed into Favorites, using the zone/channel selectors.
2 Press the “Favorites” button (the radio remembers the current zone/channel).
3 Turn the Selector knob to the location (1-16) where you want to store this favorite. The

radio will automatically start at the first unprogrammed channel and if all channels are
programmed, the radio will start at Channel 1.

4 To store the new channel to the favorites list, press the Select button. The radio will

remain on the channel that was just added to the Favorites list.

5 To exit without saving, press the programmed Favorite button (the button you pressed

to enter this mode).

6 Upon exit, the radio will remain on the channel that was just added to the Favorites list.

4.1.7 Setting Squelch Control

This radio does not have a squelch control. The squelch level is preset and usually does not
require readjustment. However, if the squelch threshold needs to be changed on a
conventional analog channel, it can be changed using keypad programming if available
(see Section 5.17 on page 36).

Note The Keypad programming feature is available to Federal Government users only.

4.1.8 Transmit Disable

Transmitting can be disabled on each conventional, SMARTNET, SmartZone, and P25
Trunked channel so that the channel is monitor-only. When transmitting is attempted on a
receive-only channel, “RX ONLY” is displayed and an error tone sounds.

4.1.9 Operation At Extended Range

When approaching the limits of radio range, the other party may not be able to hear your
transmissions and there may be an increase in background noise when messages are
received. You may still be out of range even though you can hear a message. The reason
for this is that the signal you are receiving is usually transmitted at a higher power level
than the one transmitted by your radio. Communication may be improved by moving to
higher ground or away from shielding objects such as tall buildings or hills.

4-10 Viking VM600 Mobile Radio Operating Manual

General Operation

CAUTION

!

Draft 4/29/2014

4.1.10 Preventing Vehicle Battery Discharge

In the standby mode (power on, not transmitting), radio power consumption is relatively
low. Therefore, you can probably leave the radio ON for one or two days without
operating the vehicle and the battery should not become seriously discharged. However, if
the outdoor temperature is low enough to significantly decrease battery capacity, the radio
should be turned OFF when not in use.

Since power consumption is significantly higher when transmitting, it is good practice to
have the vehicle running while transmitting. This ensures that optimum power is being
delivered to the radio and that the battery does not become discharged.

4.1.11 Cleaning the Control Head

The radio Control Head requires periodic cleaning, depending upon the operating
environment.

You will need a soft brush of a size that can access all exposed areas of the Control Head.
You will also need a vacuum cleaner that is portable enough to easily access the Control
Head.

To clean the Control Head:
1 Use the brush to remove the bulk of sand and dust from the Control Head.

Ensure that this is done in an environment that does not allow other equipment to be
affected by the removed sand and dust. If necessary, use the vacuum to collect material as
it is removed.

2 When the bulk of sand and dust is removed, use the brush to clean the interface joint

between the buttons and Control Head plastic.

3 Position the vacuum nozzle two inches (or more, as required) from the face of the

Control Head. Use the brush to remove any remaining sand and dust.

4 Repeat this procedure until the Control Head is completely clean.

Viking VM600 Mobile Radio Operating Manual 4-11

General Operation

Draft 4/29/2014

4.1.12 Radio Service

If “UNPROGRAMD” is displayed, the cause can be any of the following:

• An unprogrammed channel is selected. Select a programmed channel.

• The selected channel is programmed for an option that is not installed or an error in
programming was detected. Contact your system operator for service.

If no characters or all characters appear in the display, the viewing angle may be
improperly adjusted. Refer to Section 4.1.4 for more information. If some other problem is
occurring, turn power OFF and then ON again to reset the control logic. Also make sure
that the controls are properly set and that the power, external speaker, and accessory cables
(if used) are securely plugged into the back of the radio.

If the radio is completely inoperative, check the power cable fuse that is usually located
near the vehicle battery. If it is blown, remedy the cause if possible and replace it with the
same type (15A). If the radio still does not operate properly, return it to your system
operator for service.

Note There are no user-serviceable components in the radio. Altering internal adjustments can

cause illegal emissions, void the warranty, and result in improper operation that can
seriously damage the radio.

4-12 Viking VM600 Mobile Radio Operating Manual

4.2 Operating Modes

Draft 4/29/2014

Each selectable channel can be programmed for the conventional (analog or Project 25
digital), SMARTNET/SmartZone, or Project 25 digital trunked operating mode. For
example, Zone 1/Channel 1 could be a conventional channel, Zone 1/Channel 2 a
SMARTNET channel, and so on. More information on these modes follows.

Note All operating modes utilize certain functions that are activated/deactivated by pressing

and holding a particular button or switch. The “hold” interval is preset. When instructed
to “press and hold”, do so until the desired action occurs. For other operations (not
specified “press and hold”) only momentary pressing is required.

4.2.1 Conventional Mode

This is a non-trunked operating mode which accesses independent radio channels. There is
no automatic access to several channels. Selecting a conventional channel selects a
transmit and receive frequency and other channel parameters such as squelch control
coding.

General Operation

Conventional channels can be either standard (analog) or Project 25 (digital). With digital
operation, the DSP (Digital Signal Processor) converts the audio signal to digital data
packets. Another difference is that analog channels use Call Guard (CTCSS/DCS) squelch
control and Project 25 channels use a NAC (Network Access Code) and talkgroup ID
codes.

With Project 25 operation, a NAC is transmitted which must match the NAC programmed
in the Repeater or Base Station equipment and the radio(s) being called for
communication to occur. In addition, to receive standard group calls, the receiving radio
must be programmed to detect the transmitted talkgroup ID code.

With conventional operation, a busy channel condition is detected automatically if the
busy channel lockout (transmit disable on busy) feature is programmed. Otherwise, it must
be detected manually. An out-of-range condition is not indicated by special tones or
messages as with SMARTNET operation because there is no initial data exchange with
the repeater that allows this condition to be detected. Operating features unique to
conventional channels are described in Section 6.

4.2.2 SMARTNET / SmartZone Mode

Viking VM600 Mobile Radio Operating Manual 4-13

This is a trunked operating mode in which automatic access is provided to several RF
channels. ID codes are used to select what radios are being called and what calls are
received. Monitoring is performed automatically and special messages and tones indicate
busy and out-of-range conditions.

General Operation

Draft 4/29/2014

SMARTNET and SmartZone operation and programming is very similar. Basically,
SMARTNET operation is limited to a single repeater site and SmartZone operation allo ws
automatic roaming between sites. SMARTNET/SmartZone features include roaming
(SmartZone only), telephone, private, and emergency calls, Call Alert
Either analog or digital signaling may be used. Enhanced SMARTNET/SmartZone
features provide the same, plus gives you responses from the system. For example, if the
ID you are calling is turned OFF, the system will display “NOT AVAILABLE”.

When a SMARTNET or SmartZone channel is selected or the radio is powered up on one
of those channels, it searches for a control channel. While searching, the alias (name) of
the selected channel is displayed and the radio attempts to register on the trunked system.
If a control channel could not be found (because of an out of range condition or the system
ID is not correct, for example), “NO SYS” (early units) or “OUT OF RNG” (later units) is
displayed and the radio continues to search for a control channel.

The control channel transmits and receives system information to and from all radios
registered on the system. Therefore, once a control channel is found, it is continuously
monitored for incoming call information and is used to make call requests. When the radio
is keyed, a channel grant request is sent through the control channel. The system then
informs the requesting radio what traffic channel to use, through the control channel. Once
the request is granted by the system, the radio moves to the designated traffic channel for
the actual talkgroup call. Once the transmission has ended, the radio returns to the control
channel.

™

, and messaging.

Operating features unique to SMARTNET/SmartZone channels are described in
Section 7.

4.2.3 P25 Trunked Mode

The P25 Trunked operating features are very similar to the SmartZone type just described.
Since SmartZone features are also similar to SMARTNET features, all three modes are
described in Section 7. Some differences between the P25 Trunking and SmartZone
modes are as follows:

• Digital signaling is always used with P25 calls. Either analog or digital signaling may be
used for SmartZone calls.

• Calls made to a specific radio in the P25 mode are called Unit Calls. In the
SMARTNET/SmartZone mode they are called Private Calls.

• Messaging is not available with P25 calls.

• Telephone calls are available in this mode.

• The P25 control channel data rate is 9600 baud and the digital voice data rate is also
9600 baud. With SmartZone operation, the co nt ro l chan nel d ata rate is 360 0 baud (b oth
digital and analog calls) and the narrowband digital voice data rate is 9600 baud.

4-14 Viking VM600 Mobile Radio Operating Manual

General Operation

Draft 4/29/2014

• The P25 mode uses a system ID, Wide Area Communications Network (WACN) ID,
and RF Subsystem ID (RFSS). The SmartZone mode does not use the WACN and
RFSS IDs.

• P25 Unit IDs can be 1-16,777,215 (000001-FFFFFF hex) and SmartZone Unit IDs can
be 1-65,535 (0001-FFFF hex).

4.2.4 Systems, Channels, and Zones

A zone and channel are selected to place and receive calls. The following describes the
relationship between systems, channels, and zones.

4.2.4.1 Systems

A system is a collection of channels or talkgroups belonging to the same repeater site. It
defines all the parameters and protocol (system) information required to access a site.
When a system is added, you specify the type belonging to the same repeater site or
“multi-site” network - i.e., Conventional, SmartNet, SmartZone or P25 Trunking. Up to 16
systems of any type can be programmed.

The maximum number of channels assignable to a system is limited to 864, depending on
the option enabled. Channels may also be limited by available memory space as described
in the following information.

4.2.4.2 Channels

A channel selects a radio (RF) channel or talkgroup as follows:

Conventional Analog Mode - A channel selects a specific radio channel, Call Guard
(CTCSS/DCS) squelch coding, and other parameters unique to that channel.

Conventional Project 25 Mode - A channel selects a specific radio channel, NAC
squelch coding, talkgroup ID, and other parameters unique to that channel.

SMARTNET/SmartZone and Trunked Project 25 Modes - A channel selects a
specific talkgroup, announcement group, emergency group, and other param eters
unique to that talkgroup.

A maximum of up to approximately 864 channels (depending on the option enabled) can
be programmed with the preceding modes. These channels can belong to a single system
or multiple systems. The maximum number is also limited by the available memory. For
example, since more memory is required to program a SMARTNET system than a
conventional system, the total number of channels decreases as the number of
SMARTNET channels increases.

Viking VM600 Mobile Radio Operating Manual 4-15

General Operation

Draft 4/29/2014

4.2.4.3 Zones

A zone is a collection of up to 16 channels of any type. For example, a zone could include
12 conventional channels and four SMARTNET channels. One use of zones may be to
program the channels used for operation in a different geographical areas. The maximum
number of zones is 32 or 54 depending on the option enabled.

4-16 Viking VM600 Mobile Radio Operating Manual

Radio wide features are features common to all operating modes.

Programmable Option Buttons

F1 F2 F3 F4 F5 F6

Draft 4/29/2014

5.1 Option Buttons

S ECTION

Section5Radio Wide Features

Six option buttons on the front panel (one is located to the left of the display) can be
programmed to control a different set of functions for each of the three operating modes.
Therefore, up to 18 different functions can be controlled by these buttons (six each for
conventional, SMARTNET/SmartZone, and P25 Trunking).

Figure 5.1 Option Buttons

Viking VM600 Mobile Radio Operating Manual 5-1

Radio Wide Features

Draft 4/29/2014

The available functions in each mode are shown in Table 5.1.

Table 5.1 Programmable Option Button and Menu Mode Functions

X = Available in Mode:

Project 25

Function

Activate OTAP X ACTV OTAP
Alert tones On-Off X X X X TONES
Auto Site Search X X X AUTO SITE
Backlight Hi/Med/Off X X X X BACKLIGHT
Call Alert Select (Paging) X X X X CALL ALERT
Call Response Select X X X CALL RSP
Cancel Dynamic Regroup X X X CANCEL DR
Change Keyset (OTAR) X X X X CHG KEYSET
Channel Select X X X X CHAN SELCT
Clear/Secure Encryption Select X X X X SECURITY
Data Modes X DATA MODES
Digital (Project 25) Talkgroup

Select
Disable Call Guard X
Display GPS XXX XGPS
Display Information Select

(frequency or channel display)
Emergency Mode Select X X X XEMERGENCY
Emergency Clear X EMERG CLR
Erase Keys, OTAR X X X X ERASE KEYS
External Public Address X X X X EXTERNAL PA
Favorite Channels X X X X FAVORITES
Group Scan GRP SCAN
High/Low Power Select X X X X TX POWER
Home X X X XHOME
Home 2 X X X XHOME 2
Horn Honk Select X X X X
Key Select, OTAR X X KEY SELECT
Keypad Programming Select X KEYPAD PRG
Messaging Select X X X MESSAGE
Monitor Mode Select XMONITOR
Mute/Unmute X X X X AUDIO MUTE
Normal/Selective Squelch Select X SQUELCH
P25 Packet Data XX DATA MODES
Phone Call Select X X X X PHONE
Priority Channel Select X PRIORITY
Private Call Select X X PRIV CALL
Radio Information X X X X RADIO INFO

Shaded features support the secondary press and hold function.

XSELECT TG

X DISPLAY

Trunking

SMARTNET SmartZone

Menu DisplayConventional

5-2 Viking VM600 Mobile Radio Operating Manual

Radio Wide Features

Draft 4/29/2014

Table 5.1 Programmable Option Button and Menu Mode Functions (Continued)

X = Available in Mode:

Project 25

Function

Radio Wide Scan Select X X X X RW SCAN
Rekey Request X OTAR REKEY
Remote Access (Pyramid

Repeater)
Repeater Talk-Around Select X TALK ARND
Request to Talk XRTT
RWS List Edit X X X X RWS EDIT
Scan Mode Select X X X XSCAN
Scan List Edit Select X X X X SCAN EDIT
Scan List Select X X X SCAN SELCT
Set User Password X X X X SET PASWD
Site Lock Select X X SITE LOCK
Site Search Select X XSITE SRCH
Squelch (Code) Select List X SQLCH CODE
Status Select X X X X STATUS
Surveillance Mode Select X X X X SURV MODE
Text Messaging XTEXT MSG
Tone Volume Edit - Alert X X X X ALERT VOL
Tone Volume Edit - Keypad X X X X KEYPRS VOL
Unit Call Select X X UNIT CALL
Unprogrammed

Note The button is not used.)

(
Zone Select X X X X ZONE SELCT

Shaded features support the secondary press and hold function.

X X X X RMT ACCESS

XXX X

Trunking SMARTNET SmartZone

Menu DisplayConventional

5.2 Menu Mode

Viking VM600 Mobile Radio Operating Manual 5-3

To enter menu mode on the Viking VM600, press and hold the “Select” button.

To scroll through the items on the menu list, turn the select switch to the desired item.

To select the desired item, once again press the “Select” button. A single beep sounds
when the switch is pressed (if that option is enabled).

To exit menu mode on the standard control head, press <F6> (<F5> for Lightning head).
To exit menu mode on the HHC, press <F5>.

Radio Wide Features

Draft 4/29/2014

5.3 Time-Out Timer

The time-out timer disables the transmitter if it is keyed for longer than the programmed
time. It can be programmed on each channel for times of 15 seconds to 3 minutes, 45
seconds or it can be disabled.

If the transmitter is keyed continuously for longer than the programmed time, the
transmitter is disabled, a continuous tone sounds, and “TX TIMEOUT” is displayed. Five
seconds before time-out occurs, a warning beep sounds to indicate that time-out is
approaching. The timer and tone are reset by releasing the PTT switch.

A different time can be programmed for each system, and the timer can be enabled or
disabled on each conventional channel. With conventional channels, a penalty time can
also be programmed that prevents further transmissions for a certain time after the
transmitter is disabled (see Section 6.5).

One use of this feature is to prevent a channel from being kept busy for an extended period
by an accidentally keyed transmitter. It can also prevent possible transmitter damage
caused by transmitting for an excessively long period.

5.4 Home Channel Select

If the HOME option switch is programmed, pressing it selects the preprogrammed home
channel. This provides a quick way of returning to a frequently used channel. Pressing and
holding this switch until a tone sounds makes the currently selected channel the new
Home. (The radio can be programmed to ignore this press-and-hold function). The radio is
also programmed so that either the home or last selected channel is automatically selected
when power is turned on (see Section 4.1.1). A secondary Home, Home2, may also be
programmed.

Note The radio can be optionally programmed so that Pressing and holding the Home option

switch causes the radio to switch to the existing Home or Home 2 instead of making the
current selection the new Home.

5.5 Power Output Select

Each conventional channel and SMARTNET/SmartZone and P25 Trunked system can be
programmed for High, Low, or Switchable transmit power. If Switchable power is
programmed on the channel or system, the Tx PWR option switch can then be used to
select high or low transmitter power. All models support switchable power.

5-4 Viking VM600 Mobile Radio Operating Manual

Pressing the TX PWR switch toggles the power setting. The new level is flashed in the

Draft 4/29/2014

display when this switch is pressed as “HI POWER” or “LOW POWER”. If selectable
power is not permitted on the current channel or system, the fixed power level is flashed
and no power change occurs. The selected power level is permanent until it is manually
changed again. The power levels are set at the factory or when the radio is tuned using the
PCTune™ software.

5.6 Alert Tone Select

The various alert tones that sound are described in Section 10.1. These tones can be
enabled and disabled if the TONE option switch is programmed. To turn all tones OFF,
press this switch and “TONE OFF” is displayed. Then to turn all tones on again, press it
and “TONE ON” is displayed. If this switch is not programmed, tones are fixed in the ON
or OFF condition by programming. Alert tones can be disabled depending on
programming.

Radio Wide Features

The Alert Tone volume can be adjusted relative to the volume control setting. This is done
by programming and also by the user if the TN VOL option switch is programmed.
Relative levels of –170 to +170 can be set with “0” the default setting. A minus value
decreases the tone volume and a plus value increases it. The user adjusted level
permanently overrides the programmed level if applicable.

5.7 Power Turn-Off Delay

The radio can be installed so that the vehicle ignition switch as well as the front panel
power switch of the radio control power. This is done by connecting the accessory cable
ignition switch input to the vehicle ignition switch. Refer to the Viking VM600
Installation Manual for more information. A power-off delay of up to 510 minutes can
then be programmed, or this feature can be disabled by programming “Infinite” delay so
that there is no automatic power-off.

Both the ignition switch and the power switch must then be on for radio power to turn on.
The delay can be overridden at any time by turning power OFF using the front panel
power switch or turning the ignition switch back ON.

Viking VM600 Mobile Radio Operating Manual 5-5

This turn-off delay can allow calls to be received or the horn alert to be active for a time
after the ignition switch is turned OFF. At the same time, advantages of ignition switch
control are used such as preventing the battery discharge that may occur if the radio is left
ON for an extended period.

Radio Wide Features

Draft 4/29/2014

5.8 Horn Alert

The horn alert feature sounds an external alert such as the vehicle horn when certain calls
are received. It is available if a Horn option switch is programmed and the proper
connection has been made to the external alert. The horn alert output is pin 4 of the
accessory cable, and an external driver circuit of some type is usually required. Refer to
the Viking VM600 Installation Manual for more information on how to install this feature.

Additional information on the horn alert feature follows:

• It activates when receiving any Unit call in the P25 conventional mode and any Private/
Unit and Call Alert (paging) call in the SMARTNET/SmartZone and P25 Trunked
modes. It does not sound when receiving standard Group or telephone calls, and is not
programmable on a per call basis.

• It must be manually enabled and disabled by the Horn option switch. It is not controlled
by the vehicle ignition switch. When it is enabled, “HORN ON” is briefly displayed,
and when it is disabled, “HORN OFF” is briefly displayed. It defaults to the OFF mode
whenever power is turned on.

• If a power turn-off delay is programmed as just described, it is functional during that
delay.

• When activated, it can be programmed to sound for three 1-second beeps or
continuously for 2-90 seconds. It then turns OFF until another Unit call is received.

5.9 Microphone Off-Hook Detect

The microphone hanger can be connected to chassis ground and the radio programmed to
detect an off-hook condition (Hangup Box Monitor selected). The following operation
then occurs when the microphone is taken off-hook:

Conventional Channel Selected - Scanning temporarily halts (if applicable) and the
Monitor Mode described in Section 6.2 is enabled. However, the receiver unsquelches
only if a carrier is detected.

SMARTNET/SmartZone/P25 Trunked Channel Selected - Scanning temporarily
halts if applicable.

If the off-hook condition is not detected (Hangup Box Monitor not selected), the
microphone hook state has no affect on radio operation.

5-6 Viking VM600 Mobile Radio Operating Manual

5.10 Surveillance Mode

Draft 4/29/2014

If the Surveillance mode is programmed, the backlight, all alert tones, and front panel
LED indicator can be disabled individually or totally, based on programming.

The transmit/receive LED indicator, display and keypad backlight, and all alert tones can
be disabled. When setting is enabled, the radio will power up in Surveillance mode with
the selected options active. A function button can also be assigned which will activate and
deactivate surveillance mode at the user’s discretion. It overrides any other programming
of these functions such as a Tone or Backlight option switch.

This feature can be turned ON and OFF by the user via menu selection or by the SURVLC
option button (if programmed). The user selected mode permanently overrides the
programmed mode if applicable.

Radio Wide Features

5.11 Public Address

This feature allows a single microphone to be used for either radio or public address. An
external public address system can be connected to pin 7 of the radio accessory pigtail
cable. This is a low level output, so some sort of PA amplifier is required. The External PA
option button (or menu selection) control this feature.

In the public address mode, microphone audio is always routed to the PA system, and the
radio can be programmed so that receive audio is also routed. When the PA is enabled/
disabled, “EXT PA ON/OFF” is displayed momentarily. The radio can also be
programmed to display “EXT PA ON” continuously.

If “Ext P A Mute” is enabled by Armada, when the radio code toggles the external P A mute
line, the auxiliary B output line will also be toggled. This allows users to mute their own
PA at the same time that the radio throws the eternal PA switch.

Viking VM600 Mobile Radio Operating Manual 5-7

Radio Wide Features

Scan Enable Indicator

Draft 4/29/2014

5.12 Scanning

Scanning monitors the channels in the scan list for messages the radio is programmed to
receive. When a message is detected, scanning stops and the message is received. Shortly
after the message is complete, scanning resumes.

If the microphone off-hook condition is detected (Hangup Box Monitor selected by
programming), scanning stops and selective squelch (such as Call Guard CTCSS or NAC/
group ID detect) is disabled on conventional channels. If the microphone off-hook
condition is not detected (Hangup Box Monitor is not programmed), taking the
microphone off-hook has no affect on radio operation. When a call is received in the scan
mode, the alias of the channel on which a call is received (and any other display
parameters that may be programmed) are displayed until scanning resumes. The selected
channel alias is then displayed if applicable.

There are two scan modes available: Priority (standard) and Radio Wide. The operation of
the priority type is unique to the system type programmed on the selected channel, and the
operation of the Radio Wide type is the same regardless of the system type programmed
on the selected channel. Only one type of scanning can be enabled at a time. For example,
if priority scanning is enabled and Radio Wide Scan is enabled, priority scanning is
automatically disabled and vice versa. Refer to the following for more information.

5.12.1 Priority (Standard) Scanning

Priority scanning (also referred to as standard scanning) monitors only channels that are
the same type as that currently selected. For example, if a conventional channel is selected,
only conventional channels are scanned and likewise for SMARTNET/SmartZone and
Project 25 trunked channels.

For more information on scanning functions in the Conventional mode, refer to Section

6.10, and for more information on how it functions in the other modes, refer to Section

7.11. Scanning is turned ON and OFF by menu selection or (if programmed) by the Scan

option switch as follows.

• To turn priority scanning on, press the SCAN option switch (or select via menu).
Scanning is enabled when a rotating is indicated in the right status display as follows
and “SCAN ON” is briefly displayed.

• To turn scanning OFF, press the SCAN option switch again. Scanning is disabled when
“SCAN OFF” is briefly displayed and is no longer indicated in the status display.

5-8 Viking VM600 Mobile Radio Operating Manual

Radio Wide Features

Draft 4/29/2014

• If the zone or channel is changed while scanning is selected, scanning continues on the
same or a different scan list (see Section 5.13.1).

Note Each SMARTNET/SmartZone and P25 trunked channel can be programmed so that

scanning is automatically enabled when the channel is selected.

5.12.2 Radio Wide Scanning

Radio wide scanning monitors the channels in the preprogrammed radio wide scan list.
This scan list may contain up to 16 channels of any type assigned to any zone (see Section

5.13.2). Radio wide scanning is turned ON and OFF by menu selection or by the RWS

option switch (if programmed) as follows:

Note Use radio wide scanning only if two different types of channels need to be scanned at the

same time such as conventional and SMARTNET/SmartZone. Otherwise, use the more
efficient priority scanning because there is less chance of missed calls.

• To turn radio wide scanning on, press the RWS option switch and “RW SCN ON” is
briefly displayed. In addition, is displayed along with an R in the left Status position.

• To turn radio wide scanning OFF, press the RWS option switch again and “RW SCN
OFF” is briefly displayed and with R is no longer displayed.

• If the zone or channel is changed while radio wide scanning, scanning continues
normally.

5.12.3 Scan Hold Time

When a message is received or transmitted while scanning, there is a delay before
scanning resumes. The delay after receiving a call prevents another message from being
received before a response can be made. The delay after transmitting a call ensures that a
response is heard instead of another message occurring on some other channel.

Separate delay times are programmable for radio wide and priority scanning. With radio
wide scanning, delays of 2-7.5 seconds can be programmed. With priority scanning,
delays of 0-7.5 seconds can be programmed. With SMARTNET/SmartZone and P25
Trunked scanning, scan delays of 0-8 seconds can be programmed.

Viking VM600 Mobile Radio Operating Manual 5-9

5.12.4 Transmitting in the Scan Mode

Priority Scan Mode - When the transmitter is keyed while scanning is enabled, the
transmission may occur on various channels as follows.

Radio Wide Features

Draft 4/29/2014

Radio Wide Scan Mode - The radio can be programmed to transmit on the selected or
active channel similar to SMARTNET/SmartZone and P25 trunked operation just
described.

5.12.5 Nuisance Channel Delete

With priority scanning, channels can be temporarily deleted from the scan list, for
example, if messages become annoying. This feature is not available with radio wide
scanning. Channels can also be permanently added or deleted from a scan list as described
in the next sections. Proceed as follows to temporarily delete a channel:

Conventional Operation - Transmissions can be programmed to always occur on
the priority, selected, or receive channel (if applicable). Refer to Section 6.10 for
more information.

SMARTNET/SmartZone/P25 Trunked Operation - If scanning is halted to
receive a message, programming determines if transmissions occur on the selected or
active channel. Transmissions at other times occur on the selected channel.

Note The selected channel and also conventional priority channels cannot be deleted from the

scan list.

1 While receiving a message on the channel to be deleted, press and hold the SCAN

option switch until a tone sounds (approximately 0.5 second). The channel is then
deleted and scanning of the remaining channels in the scan list resumes.

Note Pressing and holding this switch with scanning OFF may select the scan list. Refer to

Section 6.10.1 for more information.

2 Deleted channels are added back into the scan list if any of the following events occur:

- Scanning is turned OFF and then ON again using the SCAN option switch.

- Radio power is turned OFF and then ON again.

- The scan list is reselected by changing channels (SMARTNET/SmartZone) or using

the SCAN option switch (conventional).

5-10 Viking VM600 Mobile Radio Operating Manual

5.13 Scan Lists

Scan List Indicator

Channe

Number

Draft 4/29/2014

Priority and Radio Wide Scan lists can be programmed.

5.13.1 Priority Mode Scan Lists

A scan list is simply the channels that are scanned when scanning is enabled. With all
operating modes, as many priority scan lists as are required can usually be programmed
(up to 255). The only limitation is the available memory. Each list can include up to 256
channels/talkgroups. More information follows on selecting and editing priority scan lists.

Note The selected channel is always scanned.

5.13.1.1 Determining Channels in Priority Scan List

Radio Wide Features

Channels in the conventional priority scan lists are determined as follows. Channels in the
SMARTNET/SmartZone/P25 Trunked priority scan lists are indicated only when editing a
list (see “Editing a Priority Scan List”).

1 Enable Priority scanning as described in Section 5.12.1. Also select the scan list if

applicable as described in the following “Selecting a Priority Scan List” description.

2 Select the desired zone and then scroll through the channels by rotating the Select

switch. When the displayed channel is in the scan list (scanned normally), the
symbol is displayed next to the zone number as shown in the following illustration.

5.13.1.2 Selecting a Priority Scan List

Conventional Operation - The scan list is user selectable by the SCAN option switch.
Refer to Section 6.10.1 for more information.

Note Only Priority scan lists are selectable.

Viking VM600 Mobile Radio Operating Manual 5-11

SMARTNET/SmartZone/P25 Trunked Operation - The scan list can be temporarily
changed if the Scan (List) Select option switch is programmed or by pressing/holding the
scan button. Refer to Section 7.11.2 for more information.

Both of the above operations are also menu selectable.

Radio Wide Features

Draft 4/29/2014

5.13.1.3 Editing a Priority Scan List

If the SCN ED (Scan Edit) option switch is programmed, priority scan lists can be user
edited as follows (all operating modes). This option is also selectable via the menu.
Changes are permanent (cycling power does not reselect a default condition). Proceed as
follows:

1 Make sure that both priority and radio wide scanning are OFF (the rotating icon is

not indicated in the right status display). Select a conventional, SMARTNET/
SmartZone/P25 Trunked channel corresponding to the scan list being edited.

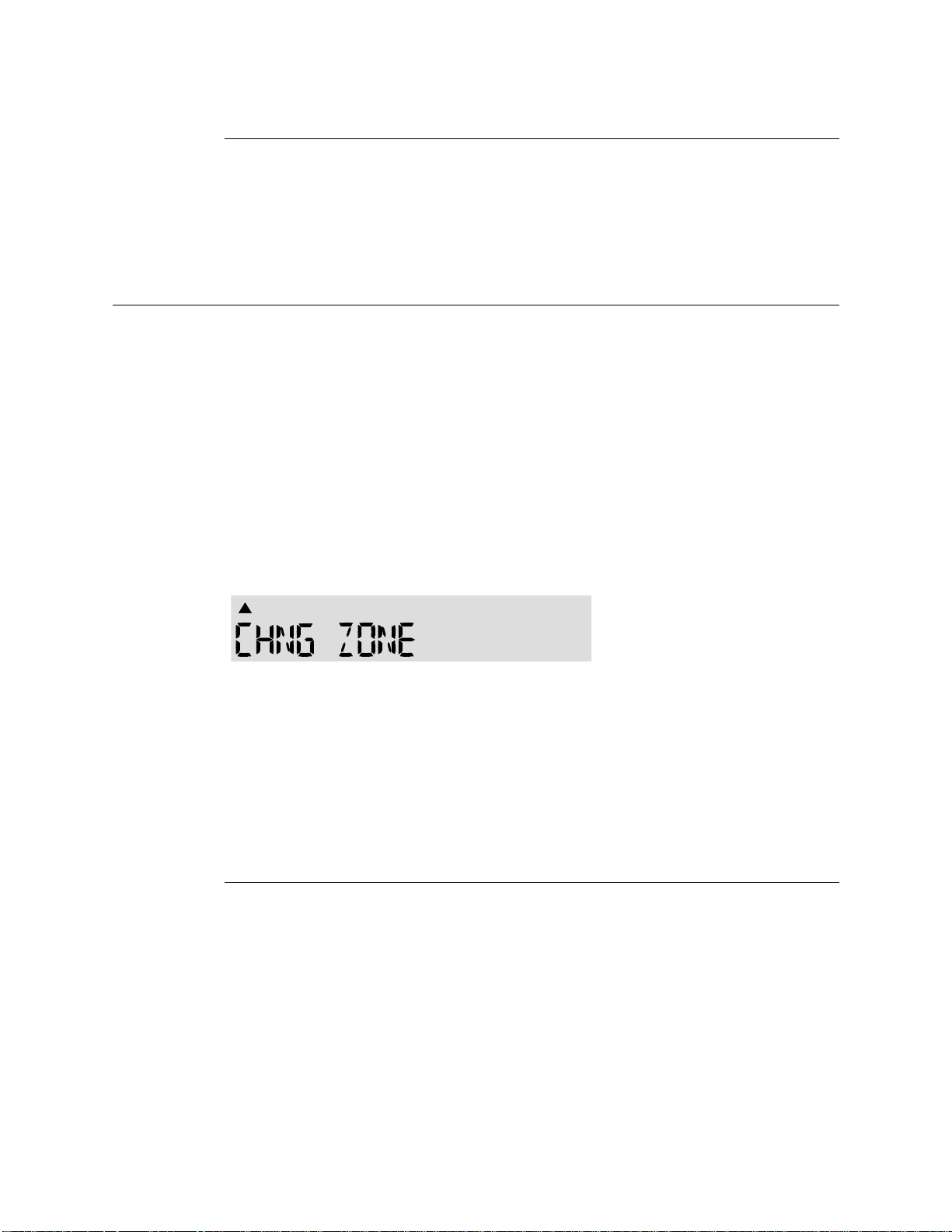

2 Select the scan list edit mode by pressing the

indicated by a triangle in the upper left corner of the display (see Figure 2.3).

3 If applicable, select the list to be edited by rotating and then pressing the Select switch.

A single beep sounds when the switch is pressed (if that option is enabled). The
selected scan list is indicated as “LIST x” as described in the preceding section. If user
programming is disabled on a list (conventional channels only), “NO EDIT” is
momentarily displayed and it cannot be edited.

4 Select the channel you want to add or delete by rotating the Select switch. After the last

channel in the current zone is displayed, the first valid channel in the next zone is
displayed and vice versa. Lists are limited to 256 channels. If an attempt is made to add
more than 256, “LIST FULL” is displayed and a channel must be deleted before
another can be added.

Note Priority channels can be deleted.

5 If the selected channel is in the scan list (scanned), the symbol is displayed next to

the zone number as just described. To change the scan list status of the displayed
channel, press the Select switch. A single beep sounds when the switch is pressed (if
that option is enabled).

With conventional channels only, if the selected scan list is programmed with fixed
priority channel(s), the next press of the Select switch makes the current channel the
priority channel indicated by “P” in the left status display next to the zone number. If
dual priority channels are used, pressing the Select switch again makes it the second
priority channel indicated by “2” in the left status display. Then pressing the Select
switch again takes the channel out of the scan list. Refer to Sections 6.10.2 and 6.10.3
for more information on priority channel sampling.

SCN ED option switch. This mode is

6 To exit this mode and save the changes, press the

5-12 Viking VM600 Mobile Radio Operating Manual

SCN ED option switch again.

Radio Wide Features

Scan List Indicator

Channe

Numbe

Draft 4/29/2014

5.13.2 Radio Wide Scan List

With radio wide scanning, there is only one scan list available regardless of the type of
channel selected. This list is user programmable and can include up to 16 channels of any
type. For example, it could include six conventional channels and ten SMARTNET/
SmartZone channels. More information on selecting and editing radio wide scan lists
follows.

5.13.2.1 Determining Channels in Radio Wide Scan List

The channels can be determined only by selecting the scan list edit mode (see “Editing
Radio Wide Scan List” which follows).

When the displayed channel is in the scan list (scanned normally), the symbol is
displayed next to the zone number as shown in the following illustration.

5.13.2.2 Editing a Radio Wide Scan List

If the RWS ED option switch is programmed, the radio wide scan list can be edited.
Changes are permanent (cycling power does not reselect a default condition). Proceed as
follows:

1 Make sure that both priority and radio wide scanning are OFF (the rotating icon is

not indicated in the right status display). Select the scan edit mode by pressing the RWS
ED option switch. This mode is indicated by a triangle in the upper left corner of the
display (see Figure 2.3).

2 Select the channel you want to add or delete by rotating the Select switch. A single

beep sounds when the channel is changed (if that option is enabled). After the last
channel in the current zone is displayed, the first valid channel in the next zone is
displayed and vice versa. The list is limited to 16 channels. If an attempt is made to add
more than 16, “LIST FULL” is displayed and a channel must be deleted before another
can be added.

3 If the selected channel is in the scan list (scanned), “

next to the zone number. To change the scan list status of the displayed channel, press
the Select switch. A single beep sounds when the switch is pressed (if that option is
enabled).

4 To exit this mode and save the changes, press the RWS ED option switch again.

R” and the symbol are displayed

Viking VM600 Mobile Radio Operating Manual 5-13

Radio Wide Features

Draft 4/29/2014

5.14 Global Positioning System (GPS)

If this feature is enabled, GPS data can be received from satellites when a GPS receiver is
attached to the serial port of the radio. GPS data can be viewed using P25, Conventional,
MultiNet, and SMARTNET/SmartZone Systems.

5.14.1 Viewing GPS Data

To use the GPS feature (on a properly configured radio):
1 Connect the cable from the GPS receiver to the Accessory Cable on the back of the

radio (see Figure 2.8).

2 Press the assigned GPS button (or select GPS from the menu). “NO SAT REC” will

display initially.

3 Wait until the GPS receiver acquires enough satellites to obtain a valid position fix.

Note It may take up to 10 minutes, depending upon signal conditions, for the GPS receiver to

obtain a position fix. During this time “No Sat Rec” is displayed. Failure of data to
appear indicates that the receiver was unable to obtain a fix.

When the system acquires a fix, one of the following GPS data items will appear on the
display:

- Latitude (e.g., 40

- Longitude (e.g., 90

- Altitude in meters (e.g., 390.2)

- Speed (e.g., 55.5 MPH)

- Course Over Ground (e.g., COG 183.4

- Time (e.g., 14:23:15)

- Date (e.g., 26NOV2008)

- Number of satellites that the receiver is currently receiving

4 You can cycle through the data items by turning the Select knob.

- When Time is displayed, you can enter/exit daylight savings time by pressing an d

holding the GPS button.

Note The GPS viewing mode remains active for 60 seconds after the last user input.

5 To exit GPS viewing, press the assigned GPS button.

o

55.32’N)

o

23.41’W)

o

)

5-14 Viking VM600 Mobile Radio Operating Manual

5.14.2 Sending GPS Data

Draft 4/29/2014

The radio can send GPS data in conventional digital mode only. Refer to paragraph 6.16
for more information.

5.15 Over the Air Programming

OTAP is an “Over the Air” programming feature for the subscriber parameter (code plug)
files. Using the OTAP feature, parameter files can be updated and changed in the field,
eliminating the need to take the radio out of service to perform the updates. OTAP
requires conventional P25 data infrastructure. It is not supported in P25 Trunking.
Firmware updates cannot be made using this feature. Firmware version 6.6.x (ES) or later
is required to use this feature.

Radio Wide Features

5.15.1 Radio Set Up

The current profile in the radio controls how an OTAP download is handled. How this is
set in Armada determines the possible actions the radio should take: “Prompt”, “Activate”,
and “Off-line”.

Prompt

- the radio displays the message “ACTIVATE?” after a successful OTAP download,
prompting the radio user to respond.

- On mobile subscriber units, the user should press the Select button to indicate an
affirmative answer or the <F6> button (<F5> on the Lightning control head) to
indicate a negative answer. The radio user has 30 seconds to answer. An affirmative
answer stores the parameters in the EEPROM and resets the radio; a negative answer
or no answer results in the parameters remaining in the Flash memory for activation
at a later time, but also resets the radio.

Activate

- the new parameters are automatically written to the EEPROM upon a successful
download. The user sees a display of “ACTIVATING” followed by a reset of the
radio.

Off-line

Viking VM600 Mobile Radio Operating Manual 5-15

- the parameters are stored in Flash memory until activated with Armada or by the
radio user. The activation method for the radio requires having either a menu item or
a button assigned to the “Activate OTAP” function. The download completion action

Radio Wide Features

Draft 4/29/2014

Note The radio will reset after a successful download in this mode, but the previous radio

profile will remain in use until the radio user or Armada operator activates the OTAP
parameter.

If the OTAP procedure is not successful, the radio will reboot and return to normal
operating mode with the current parameters.

5.15.2 OTAP Transfer Times

and any buttons/menu items must be programmed in Armada prior to beginning an
OTAP procedure if an action other than the default “Prompt” is desired. The radio
must also be registered with the data router for an OTAP procedure to take place.

- If the radio has undergone a successful download, by selecting the menu item or
pressing the button, the radio displays the message “ACTIVATING” followed by a
reset of the radio.

Larger files tie up the radio for a long time. Therefore, any user interface event, such as a
channel change, zone change, button press or toggle switch position change (portable
radios only) stops the OTAP procedure and returns the radio to normal operating mode.
For button presses/toggle switch position changes, the radio exits OTAP mode only if a
function is programmed for the button/toggle switch; otherwise, the bad tone sounds.

Low signal conditions may also cause the radio to exit OTAP. If the radio does not receive
a response from Armada one minute after receiving its last data packet, the radio stops the
OTAP procedure and returns to normal operating mode.

5-16 Viking VM600 Mobile Radio Operating Manual

S ECTION

Draft 4/29/2014

Section6Conventional Features

Conventional mode features are radio features unique or used only when operating in
conventional mode.

6.1 Monitoring Before Transmitting

With conventional operation, you may need to manually monitor the channel before
transmitting to make sure that it is not being used by someone else. If you were to transmit
while someone else was using the channel, you wo uld probably disrup t their conversation.
With SMARTNET/SmartZone and P25 Trunked operation, monitoring is performed
automatically. Monitor conventional channels automatically or manually as follows:

6.1.1 Automatic Channel Monitoring

If the selected channel is programmed for Busy Channel Lockout (also called Transmit
Disable On Busy), monitoring is performed automatically. Refer to Section 6.3 for more
information on this feature.

6.1.2 Manual Channel Monitoring

The automatic monitoring just described may occasionally disable the transmitter when
the channel is not in use, such as if the repeater has extended hang time. In this case, you
may not want to use it and the channel must then be monitored manually as follows:

Viking VM600 Mobile Radio Operating Manual 6-1

Conventional Features

Draft 4/29/2014

Busy Indicator - With scanning disabled, note if the multi-function indicator on the
front panel is steady green. If it is green, a carrier is being detected, so the channel may
be busy. If it is not, the channel is not being used and a call can be transmitted.

Monitor Mode - There may be times when the busy indication is displayed even
though no one is using the channel. Monitoring should then be performed by disabling
Call Guard squelch (or group ID detect on P25 channels). This is usually done by
selecting the Monitor Mode (see following) or by the Normal/Selective option switch
(see Section 6.4.1).

6.2 Monitor Mode

The monitor mode unsquelches the receiver and monitors the channel even if a carrier is
not detected. Other features of this mode are as follows:

• Call Guard (CTCSS/DCS) squelch is disabled on analog channels and NAC and group
ID detect are disabled on P25 (conventional) channels.

• Signalling-dependent Busy Channel Lockout options for Tone/NAC and P25 status are
ovrerridden (see next section). (Noise option is not overridden: Monitor mode disables
the protocol-signalling events that the Busy Channel Lockout option Tone/NAC/Status
depend on, but not carrier events.)

• Scanning temporarily halts.

The Monitor Mode operates as follows:
1 To monitor the transmit frequency for activity before transmitting, briefly press the

MON option switch. The display then indicates “MON” (see Figure 2.3). The receiver
unsquelches and noise is heard even if carrier not present. The transmit frequency can
also be monitored by selecting TX Channel from the menu.

2 To monitor the receive frequency instead, press and hold the MON option switch until a

tone sounds (approximately two seconds). This can be used, for example, to improve
reception if intermittent squelching is making a weak message difficult to understand.
The receive frequency can also be monitored via the Squelch Override option of the
menu.

3 To disable the monitor mode and return to normal operation, press the MON option

switch again (or select Off from the menu).

If off-hook detection is enabled, taking the microphone off-hook monitors the receive
frequency similar to Step 2. However, the receiver unsquelches only if a carrier is detected
(see Section 5.9). Pressing the SEL SQ option switch disables Call Guard squelch/P25
group ID detect but not scanning and P25 NAC detect (see Section 6.4).

6-2 Viking VM600 Mobile Radio Operating Manual

6.3 Busy Channel Lockout

Draft 4/29/2014

The Busy Channel Lockout (also called Transmit Disable on Busy) feature automatically
disables the transmitter if the channel is busy when the PTT switch is pressed. When the
transmitter is disabled by this feature, “BUSY” is displayed, a busy tone sounds, and the
transmitter is disabled.

The Busy Channel Lockout feature can be programmed to operate as follows. Each
conventional channel can be programmed differently.

“Off” - Busy channel lockout is disabled and the transmitter keys even if the channel is
busy.

“Noise” - If a carrier is detected on the channel, the transmitter is disabled when the
PTT switch is pressed.

“Tone (NAC)” - If an incorrect Call Guard (CTCSS/DCS) or P25 NAC code (see
Section 6.13.3) is detected, the transmitter is disabled when the PTT switch is pressed.
An incorrect code is any code other than the one programmed for the current channel.

Conventional Features

“Status” - Indicated status of the radio as seen from the repeater. (If the status shows
Busy, then the mobile is transmitting.)

If Busy Channel Override is permitted by programming, it is possible to transmit even
when the transmitter is disabled by this feature. Release the PTT switch and then quickly
press it again within one second.

6.4 Call Guard Squelch

Tone or digital Call Guard squelch (also called CTCSS/DCS signaling) can be
programmed on each conventional analog transmit and receive channel in any order
desired. The reverse burst and turn-off code are always transmitted and also detected on
channels programmed with Call Guard squelch.

The Call Guard squelch feature eliminates distracting messages intended for others using
the channel. This is done by using a subaudible tone or digital code to control the squelch.
This tone or code is unique to a user or a group on that channel. This to ne or code is
transmitted with the voice signal but is not heard because it is in the subaudible range and
is attenuated by a filter. Call Guard squelch must be used in both the transmitting and
receiving radio to be functional.

Viking VM600 Mobile Radio Operating Manual 6-3

Conventional Features

Draft 4/29/2014

6.4.1 Call Guard Squelch Enable / Disable

The SEL SQ option switch (if programmed) can be used to disable receive Call Guard
squelch (Normal/Selective Squelch) on analog channels or group ID code detection on
P25 channels. This option is also selectable via the menu. When selective squelch is
disabled, “SQ NORMAL” is flashed in the display, and when it is enabled, “SQ SELECT”
is flashed.

When “SQ NORMAL” is selected, the receiver unsquelches only if a carrier is detected.
Scanning and P25 NAC detection are not disabled with this mode selected. The selected
mode remains in effect until it is manually changed. Selecting another channel or cycling
power does not reselect a default condition. There is a programmable option to display
“MON” when the “SQ NORMAL” mode is selected.

6.4.2 Tone Call Guard Squelch

Tone-type Call Guard squelch uses subaudible CTCSS tones from 67-254.1 Hz. Although
there are 42 tones assigned, those above 33 (210.7 Hz) are normally not used because of
their close proximity to the voice band which starts at 300 Hz. In addition, tones 11 (97.4
Hz), 39 (69.3 Hz), 40 (206.5 Hz), 41 229.1 Hz), and 42 (254.1 Hz) are normally not used
because they may cause interference with adjacent tones.

A reverse burst is transmitted when the push-to-talk switch is released and also detected
when calls are received. It is a 180-degree phase reversal for a period of time determined
by the tone frequency, and it eliminates the squelch tail (noise burst) in the receiving radio.
Both the transmitting and receiving radio must be equipped with this feature for it to be
used. Armada can be used to turn OFF the reverse burst feature so that the squelch tail is
not eliminated.

6.4.3 Digital Call Guard Squelch

Digitally Coded Squelch (DCS) uses digital data instead of subaudible tones to control the
squelch. This data consists of continuous repetitions of 23-bit words. No bit or word
synchronization information is used. When the push-to-talk switch is released, a turn-off
code is transmitted which eliminates the squelch tail similar to the reverse burst.

6-4 Viking VM600 Mobile Radio Operating Manual

Conventional Features

Draft 4/29/2014

6.4.4 Disable Call Guard

The Disable Call Guard feature option lets the radio disregard any CTCSS/DCS or NAC/
Talkgroup information on the current channel. This programmable feature is best
described as a monitor mode with no white noise. In analog it is functionally the same as
turning the squelch mode to "normal." In digital mode it is analogous to checking the
"digital squelch" box in PCConfigure. The function can be programmed to any button and
the menu. The mode will stay active though channel changes (between conventional
channels) and during scan. While the feature is active the monitor icon will be displayed.

6.4.5 Selective Squelch Code Select (CTCSS / DSC / NAC)

This feature allows the normal transmit and receive Call Guard (CTCSS/DCS/NAC)
programming to be temporarily overridden with a code selected from a preprogrammed
list. It is available if the SQ LIST option switch and a CTCSS/NAC code list have been
programmed. It is also selectable via the menu.

In addition, with the Handheld Control Unit (HHC) only, conventional systems can be
programmed for the Keypad CTCSS/DSC feature. Codes can then be selected directly
from the table by pressing the key for the code. For example, to select code 3 from the
table, simply press the “3” key. No other conventional mode functions can then be
assigned to these keys.

The CTCSS/DCS/NAC list is programmed with up to 64 tone (CTCSS) or digital (DCS)
Call Guard codes. Different codes can be programmed for the transmit and receive modes,
and carrier squelch (selective squelch disabled) can be programmed if desired. In addition,
each position can be programmed with an NAC code for use with P25 operation.

When the Call Guard code is changed using this feature, it remains selected even if other
channels are selected. However, if radio power is cycled or a talk-around channel is
selected, the normal codes are reselected. When scanning, the selected code also applies to
all scanned channels. Each channel can also be programmed to always ignore the code
selected from this list and use the default code instead.

If both analog and digital (Project 25) channels can be selected or scanned, the CTCSS/
DCS code for the selected position is used for analog channels and the NAC code for the
selected position is used for P25 channels. If a channel is programmed for mixed mode
operation, the selective squelch type (analog or digital) programmed for the transmit mode
determines the selective squelch type used.

Note Call Guard codes may be permanently reprogrammed by keypad programming (see

Viking VM600 Mobile Radio Operating Manual 6-5

Section 6.14).

Proceed as follows to select a code using the SQ LIST option switch:
1 Press the SQ LIST option switch and then rotate the Select switch to select the desired

position. The display indicates “SEL SQ xx” where, “xx” is the selected code from 1-

Conventional Features

Draft 4/29/2014

64. The code number and actual code are alternately displayed (NACs are displayed in
hexadecimal).

2 To select the displayed code and return to the normal display, press the SQ LIST

(Squelch Code Select) switch again.

3 To check which code is selected, press the SQ LIST option switch once to display the

current selection and then again to return to normal operation.

4 To return to the normal selective squelch codes, select “DEFAULT” in this mode. As

previously described, the normal codes are also automatically reselected whenever
radio power is cycled or a talk-around channel is selected.

6.5 Penalty Timer

A penalty timer may be programmed on conventional systems to prevent transmissions for
the programmed time after the time-out timer disables the transmitter (see Section 5.3).
The penalty timer can be programmed for the same times as the time-out timer, and timing
starts when the PTT switch is released. If the PTT switch is pressed while the timer is
running the timer stops, and continues when the PTT switch is released. When the penalty
timer expires, a beep sounds and the transmitter can then be keyed.

6.6 Conversation Timer

A conversation timer can be programmed on conventional systems in addition to the time­out timer (see Section 5.3). This timer limits that total length of a conversation rather than
just the length of each transmission as with the time-out timer. The following is more
information on this timer.

• It can be programmed for times up to 7.5 minutes.

• It is reset when the time between transmissions exceeds the time programmed for the
penalty timer.

• A warning beep sounds five seconds before this timer disables the transmitter.

• When this timer disables the transmitter, a continuous tone sounds and the red transmit
indicator turns OFF. The PTT switch must then be released until the penalty timer
expires (indicated by a beep).

6-6 Viking VM600 Mobile Radio Operating Manual

6.7 Repeater Talk-Around

Draft 4/29/2014

Normally, all transmissions go through a repeater which usually increases range.
However, there may be times when a radio is out of range of the repeater and therefore
unable to talk to anyone even though the radio being called is only a short distance away.
To allow communication in this situation, repeater talk-around can be selected.
Transmissions then occur on the receive frequency which permits direct radio-to-radio
communication.

Repeater talk-around can be selected if the RTA option switch is programmed. This
feature can also be selected via the menu. When talk-around is enabled by this switch,
“RTA ON” is flashed in the display, and when it is disabled, “RTA OFF” is flashed. This
feature remains enabled during scanning, and changing channels or turning power OFF
does not change the selected condition. Talk-around is available on conventional channels
only. The Talkaround capability can be Disabled on a per-channel basis, requiring the user
to use the infrastructure if disabled. (Radio-to-Radio communication is not allowed.)

Conventional Features

6.8 Displaying Transmit / Receive Frequency

If the DISP option switch is programmed, it can be used to display the channel frequency
in megahertz. Pressing this switch toggles between displaying the standard channel alias
and the frequency. The receive frequency is displayed while receiving and the transmit
frequency is displayed while transmitting. This feature may also be selected via the menu.

This feature is available on conventional channels only.

Viking VM600 Mobile Radio Operating Manual 6-7

Conventional Features

Draft 4/29/2014

6.9 Emergency Alarm and Call

Emergency Alarms and Calls are separate functions that can be individually enabled or
disabled on each analog and P25 conventional system. The Emergency option switch (or
menu selection) is required for these functions. Emergency Alarms and Calls are
transmitted on the global (radio wide) emergency zone/channel if one is progra mmed and
a smart console with message receiving capabilities is used. If it is not programmed, the
emergency is transmitted on the selected channel. The emergency programming of the
system to which that channel is linked controls the emergency operation.

6.9.1 Emergency Alarms

An emergency alarm is a special transmission that alerts a dispatcher of an emergency
situation. It is sent automatically by pressing Emergency option switch. The system to
which the emergency channel is linked must have Emergency Alarms enabled. If it does
not, Emergency Alarms are disabled. Emergency alarms and calls can be received on
smart consoles with message receiving capabilities.

In the P25 conventional mode, a special P25 emergency data transmission is sent, and in
the conventional analog mode, an DTMF emergency ID is sent. Refer to Section 6.12.3 for
information on the MDC1200 Emergency Alert.

Proceed as follows to send an emergency alarm:
1 If required, select a channel of a system on which Emergency Alarms are enabled and

then press the EMER option switch. The radio then automatically transmits the
emergency alarm.

2 Either Normal or Silent operation can be programmed. With the Normal mode, the red

LED lights, the emergency tone sounds, and “EMERGNCY” flashes in the display.
This indication continues to flash until the alarm mode is ended (see Step 4).

If silent programmed, none of these indications occur. If “No Receive Activity During
Emergency” is programmed, receive audio, the front panel LED, and receive icons are
disabled in the receive mode.

3 When the emergency alarm is acknowledged by the dispatcher, “ACK RCVD” is

briefly displayed and the emergency acknowledge tone (two beeps) sounds. This alert
tone can be disabled if desired, and neither occur if Silent operation is programmed.

Retries will automatically occur for conventional analog until the retry counter
completes.

4 The emergency alarm mode is exited when radio power is cycled or by pressing and

6-8 Viking VM600 Mobile Radio Operating Manual

holding the Emergency option switch.

Conventional Features

Draft 4/29/2014

6.9.2 Emergency Call Alert

This feature notifies a user when an emergency call is being made on their selected P25
Conventional or P25 Trunking Talkgroup. The radio should also be programmed with an
“Emergency Clear” button.

If an emergency call is received by the radio on the selected channel, the emergency alarm
ACK tone will sound (five consecutive tones), and the Emergency Received message will
display, followed by the unit ID of the emergency radio. If any other emergency calls are
made after this initial one using a different radio, the tone will not sound, but the unit ID
will be updated to reflect the most recent emergency call. To exit out of this state, press the
“Emergency Clear” button. The radio should return to its normal display, and the
Emergency Received message should no longer show.

6.9.3 Emergency Calls

The Emergency Call feature allows a user to place an emergency voice call by pressing the
PTT switch after pressing the Emergency option button. If the Emergency Hot Mic feature
is enabled, the emergency call is automatically transmitted without having to press the
PTT switch (see following description). The system to which the emergency channel is
linked must have Emergency Calls enabled. Analog and Digital (P25) calls can be
individually enabled.

If the emergency call is sent on a P25 channel, an emergency indication is sent according
to the P25 standard (the emergency bit is set in the Common Air Interface). If it is sent on
an analog channel, the DTMF Emergency ID is sent in place of the ANI DTMF PTT ID if
applicable.

Note The DTMF Emergency ID is sent only if pre- or post- DTMF ANI is enabled on the

channel by programming.

6.9.3.1 Emergency Hot Mic

If Emergency Hot Mic has been enabled for emergency calls for the system, automatic
transmitting occurs with microphone audio unmuted without having to manually press the
PTT switch. The automatic transmit period is programmed for 10-120 seconds in ten­second intervals. If this feature or emergency calls are not enabled, automatic transmitting
does not occur. This feature is initiated only on the first press of the Emergency switch.
Subsequent presses do not trigger automatic transmissions. To reset this function, hold
emergency button or cycle power.

6.9.3.2 Placing an Emergency Call

To place an Emergency Call:

Viking VM600 Mobile Radio Operating Manual 6-9

Conventional Features

Draft 4/29/2014

1 If required, select a channel of a system on which Emergency Calls are enabled and

2 If the preceding Emergency Hot Mic feature is enabled, the call is automatically

3 With analog calls, subsequent presses of the PTT switch cause the DTMF emergency

4 If the Surveillance Mode is enabled (see Section 5.10), all indicators, lights, and tones

5 To exit this mode, cycle radio power or press and hold the Emergency switch.

press the EMER option switch. The Emergency Call is then sent as described in Section

6.9.1 if applicable.

transmitted without pressing the PTT switch. If it is disabled, press the PTT switch and
begin speaking as with a standard call. If the channel is changed, operation continues on
the new channel in the emergency mode.

ID to be sent according to the ANI programming (if DTMF ANI is enabled on the
channel). With digital calls, the calls continue to have the emergency bit set.

are disabled. If “No Receive Activity During Emergency” is programmed, receive
audio, the front panel LED, and receive icons are disabled in the receive mode.

6.10 Conventional Mode Channel Scanning

Channel scanning features common to all operating modes are described in Sections 5.12
and 5.13. The following information describes features unique to conventional operation.

6.10.1 Selecting a Scan List

Conventional systems are programmed with a default scan list that is normally selected by
all channels in that system. However, there is a programmable option to slave a particular
conventional scan list to a zone. This then becomes the default list for all conventional
channels in that zone (it overrides the system programming). This slave feature is
programmed on the Edit Zone screen.

The default scan list (which is to be used by all conventional channels except those
belonging to slaved zones), can be temporarily chan ged by using the SCAN option switch
or menu parameters. A scan list selected in this manner is retained through radio power
down.

6.10.1.1 Conventional Scan List Select Procedure

The scan list select procedure is as follows:

6-10 Viking VM600 Mobile Radio Operating Manual

Conventional Features

Draft 4/29/2014

1 With scanning OFF, press and hold the SCAN option switch until a tone sounds (or use

menu selection). Scanning is OFF when the rotating is not indicated in the right
status display. If required, turn scanning OFF by briefly pressing this switch. If the
SCAN option switch is pressed while scanning, Nuisance Channel Delete described in
Section 5.12.5 is performed.

2 The currently selected list is then indicated in the display as “SCAN LIST x”, where

“x” is the scan list number. Rotate the Select switch to select the desired list and then
exit this mode by pressing the Select or SCAN option switch. A single beep sounds
when the Select switch is pressed (if that option is selected).

6.10.2 Transmitting in Scan Mode

Each conventional scan list can be programmed for one of the following modes. These
modes determine if priority sampling occurs and also the channel on which transmissions
occur while scanning. Refer to the next section for more information on priority sampling.

No Priority - No priority channel sampling occurs when the list is selected. The radio
transmits on the selected channel.

Priority/Tx Selected - Priority sampling occurs and the priority channel or channels
are those programmed in the selected scan list. The radio transmits on the selected
channel.

Priority/Tx Priority (1) - Priority sampling occurs and the priority channel or channels
are those programmed in the selected scan list. The radio transmits on the priority (1)
channel.

Priority (1) on Selected - The priority (1) channel is always the selected channel. The
radio transmits on the selected channel.

Talkback - No priority sampling occurs. The radio transmits on the channel of a call
while scanning is halted or during scan hold time. Then once scanning resumes, it
transmits on the selected channel.

6.10.3 Priority Channel Sampling

The following describes priority sampling when scanning conventional channels.

Note Priority sampling when scanning SMARTNET/SmartZone/P25 Trunked channels is

described in Section 7.11.1.

Viking VM600 Mobile Radio Operating Manual 6-11

The priority channel sampling feature ensures that when priority scanning, messages on
the priority channel are not missed while listening to a message on some other channel.
The radio can be programmed as just described so that the priority channel is a fixed
channel programmed in the current scan list, the currently selected channel, or not used.

Conventional Features

Priority Indicator

Draft 4/29/2014

Note Priority channel sampling is not available when receiving analog encrypted (DES) calls.

In addition, the priority channel is not scanned if the active channel is an analog channel
on the same frequency as the priority channel and is programmed with CTCSS/DCS
squelch control.

Either a single or dual priority channels can be programmed if desired. With dual priority,
a call on the second priority channel is interrupted by a call on the first priority channel but
not vice versa. When scanning and the selected channel is a single or first priority channel,
“P” is indicated in the left status display next to the zone number as follows:

This indication is displayed regardless of whether the priority channel is fixed or always
the selected channel. When the second priority channel is displayed, “2” is indicated
instead.

The priority channel sampling frequency is determined by the programmed Priority
Lookback Time A (see description which follows). For example, if 2.0 seconds is
programmed, the priority channel is sampled every 2.0 seconds when listening to a
message on a non-priority channel. When not listening to a message, the priority channels
are scanned in the normal scan sequence. With dual priority, the first and second priority
channels are alternately sampled at the Loopback Time.

Priority channel sampling occurs only with conventional scanning. It does not occur with
radio-wide scanning, when listening to any type of SMARTNET/SmartZone/P25 trunked
call, encrypted call, or when transmitting.

The priority sampling times are programmed by the following parameters:

Lookback Time A - This time determines how often the priority channel is checked for
activity. Times of 0.25-4.00 seconds in 0.25-second steps c an be programmed.

Lookback Time B - This time determines how often the priority channel is checked
once an incorrect Call Guard (CTCSS/DCS) or NAC code is detected. Since it takes
much longer to detect an incorrect Call Guard signal than a carrier, this time should be
relatively long to prevent the interruptions from making a message difficult to
understand. Times of 0.5-8.0 seconds can be programmed in 0.5-second steps.

6.10.3.1 Changing The Priority Channel

If a fixed priority channel is associated with the current scan list, it can be changed to
another channel if the Priority option switch is programmed (or by menu selection). With
dual priority, this changes only the first priority channel. To change both priority channels,
use the Scan List Edit function described in Section 5.13.1. Proceed as follows to change a
priority channel using the Priority option switch:

6-12 Viking VM600 Mobile Radio Operating Manual

Conventional Features

Draft 4/29/2014

1 Make sure that both priority and radio wide scanning are OFF (the rotating icon is

not indicated in the right status display).

2 Select the channel that you want to be the priority channel using the Select switch in the

normal manner. A single beep sounds when the channel is changed (if that option is
enabled). If the channel is in a different zone, also select the appropriate zone.

3 Press the Priority option switch and “PRIORITY” is briefly displayed to indicate that

the selected channel is now the priority channel. Other indications that may occur are as
follows:

- If “NO PRIORITY” is displayed, priority sampling may not be enabled on the scan
list.

- If “SEL CHAN” is displayed, the priority channel is always the selected channel and
cannot be changed.

- If no indication displayed, the scan list may not be user editable or the channel may
not be in the scan list.

6.10.4 Talkgroup Scanning

In additional to conventional channel scanning, a list of talkgroups can be scanned on a
specific channel. Talkgroup scan monitors a single digital conventional channel. When a
call is received, the radio searches the scan list for a talkgroup that matches the received
talkgroup. Audio opens up if a match is found.

The radio can be programmed for "TalkGroup on Active Scan" scan type to return calls on
the received talkgroup if the user talks back during scan hold time. The "TalkGroup on
Selected Scan" scan type will always return calls on the talkgroup from the selected
channel.

6.11 Standard Conventional Calls

Standard conventional calls can be placed to other radios monitoring the selected channel.
The proper coded Call Guard squelch tone or code or P25 NAC may need to be
transmitted by your radio for them to receive your call (see Sections 6.4 and 6.13.3).

Viking VM600 Mobile Radio Operating Manual 6-13

Conventional Features

Draft 4/29/2014

6.11.1 Placing a Standard Conventional Call

To place a standard conventional call, proceed as follows:

1 Turn power ON and set the volume as described in Section 4.1.1. Select the channel

2 Monitor the channel automatically or manually as described in Section 6.1.
3 Press the PTT switch and if the Busy Channel Lockout feature is programmed on the

4 Press (and hold) the PTT switch to talk and release it to listen. When the call is finished,

6.11.2 Receiving a Standard Conventional Call

programmed for the radio you want to call (see Section 4.1.6.3).

channel, the transmitter is automatically disabled if the channel is busy (see Section

6.3). Otherwise, busy and out-of-range conditions are not indicated and speaking can

begin after monitoring the channel.

place the microphone back on-hook.

To receive a standard conventional call, proceed as follows:
1 Select or scan the channel programmed for the call you want to receive (refer to Section

6.10 for more scanning information).

2 After the call is received, take the microphone off-hook and press the PTT switch to

talk and release it to listen. If scanning, responses may occur on the priority, selected, or
receive channel as described in Section 6.10.2.

3 When the call is finished, place the microphone back on-hook.

6.12 DTMF / ANI Signaling

DTMF (Dual Tone Multi-Frequency) tones can be generated for ANI (Automatic Number
Identification) and other purposes on conventional analog channels. One of the following
options may be enabled on each channel:

Pre-Tx ANI - A preprogrammed ANI sequence is automatically sent each time the PTT
switch is pressed.

6-14 Viking VM600 Mobile Radio Operating Manual

Post-Tx ANI - A preprogrammed ANI sequence is automatically sent each time the
PTT switch is released.

Conventional Features

Draft 4/29/2014

When an emergency alarm or call is placed, this ANI signaling is replaced by the
Emergency DTMF ID (see Section 6.9). Refer to Section 6.12.3 for information on
MDC1200 ANI.

6.12.1 Single Tone Encoder

The radio will transmit and send a single tone as programmed in Armada. Single tone ANI
provides call-in signaling, but does not provide identification of individual units, i.e. all
units use the same single tone. Generally 1050 Hz is used for single tone RTT, but the
radios and decoders must be programmable to other tones in the audio range. All tones
must have a +/-0.2% frequency stability, and the tone length must be programmable to a
pre-determined period of time from 0.5 to 2.5 seconds, in increm ents of 100 ms or less.

To use the single tone encoder functionality, program the radio with RTT with Single
Tone Encoder selected as the type of RTT. The radio transmits and sends a tone of the
programmed frequency and duration. When the tone is sent, all other radios on the system
will hear the tone transmitted, and need to open audio.

6.12.2 Five Tone Encoder

The radio transmits five tones. The first four tones are the Five Tone ID of the radio. The
last tone is based on the radio mode (Normal Call, Emergency Call, Secure Call).

6.12.3 MDC1200 Compatibility

MDC1200 is a signaling protocol designed and implemented by Motorola for analog
channels only. The following features of this protocol are supported. Either MDC1200 or
standard DTMF ANI/Emergency signaling can be programmed on each conventional
system.

Note This feature is hardware dependent and therefore cannot be added to others by upgrading

firmware).

MDC1200 ANI - Both pre and post ANI are supported.
MDC1200 Emergency Alert - A retry counter is implemented. Currently, ACKs are

not decoded so the radio retrys the programmed number of times with each emergency.
Inhibit/Uninhibit Commands - Commands to inhibit (disable) and uninhibit (enable)

mobile access to the radio system.

Viking VM600 Mobile Radio Operating Manual 6-15

Conventional Features

Draft 4/29/2014

6.13 Project 25 Mode Features

The following features are unique to conventional P25 channels.

6.13.1 Digital Unit ID

Each radio that operates on Project 25 (digital) channels is programmed with an up-to­eight-digit unit ID. This ID is unique for each radio and can be any number from 1­16,777,215. When power is turned on with a Project 25 channel selected, this ID is briefly
displayed.

6.13.2 Talkgroup ID

Each Project 25 channel is programmed with a group ID that determines which group of
radios will receive the call. A call is received on a channel if a selected or scanned channel
is programmed with that ID and the correct NAC is detected (see following). Group IDs
can be any number from 1-65,535. Group ID detect can be disabled by the Normal/
Selective squelch function described in Section 6.4 and the Monitor Mode described in
Section 6.2.

6.13.3 Network Access Code (NAC)

Project 25 conventional channels also use a NAC (Network Access Code) to control which
calls are received on a channel. The NAC can be 1-4095, and each transmit and receive
channel can be programmed for a different code. Other operation, such as monitoring
before transmitting, is similar to that of analog channels. NAC (and group ID) detect can
be disabled by the monitor mode described in Section 6.2.

6.13.4 EFJohnson System Out of Range Indicator

The radio can be programmed to provide an out of range indicator when used on an
EFJohnson Infrastructure system. If the radio fails to receive the beacon signal from the
system, then (if programmed) an out of range status will be indicated on the radio by a
tone, display, or tone and display.

6-16 Viking VM600 Mobile Radio Operating Manual

Conventional Features

Draft 4/29/2014

6.13.5 EFJohnson System Automatic Registration

When used in a EFJohnson P25 con ventional infrastructure radio system, an option on the
radio can be programmed to provide additional identifying information to the system upon
receipt of a dynamic data registration request. If the "EFJ Affiliation" option is enabled,
the subscriber unit will transmit its current talkgroup and mobile computer IP address to
the system in addition to its unit ID during a dynamic data registration request.

The radio will attempt a data registration on channel change. If the radio does not receive
a registration response after the programmed number of retries it will display Reg Failed.
If the radio is out of range and then returns to within range of a site where it had not yet
registered, it will initiate another registration.

6.13.6 P25 Group Calls

P25 Group calls are placed by simply selecting the channel programmed for the desired
group, monitoring the channel if required, and transmitting. When a P25 group call is
received, the alias (or frequency) of the selected channel is displayed. The radio can be
programmed so that the following are also displayed for 0.5-7.0 seconds or continuously
during the call.

P25 PTT ID - The unit ID of the radio placing the call is displayed.
P25 Talkgroup - The alias of the talkgroup on which the call is being received is

displayed.
User Group ID - If the group ID of the call being received is included in a

preprogrammed User Group ID list, the alias programmed in that list for that group is
displayed.

Received Key ID - The Key ID (or the alias, if programmed) of the key used to decode
the call is displayed.

6.13.6.1 Changing Talkgroup Assigned To a Channel

If the TG SEL option switch is programmed, the talkgroup assigned to a channel can be
changed by the user. The operation can also be selected from the menu as Digital
Talkgroup Select. The new talkgroup continues to be assigned to the channel until it is
manually changed again (cycling power or selecting another channel does not reselect a
default talkgroup). Change the talkgroup assigned to a channel as follows:

1 Select the channel to be changed and then press the TG SEL option switch.
2 Rotate the Select switch to display the talkgroup to be assigned to that channel.

Talkgroups are indicated by a unique identification in the alphanumeric display.

Viking VM600 Mobile Radio Operating Manual 6-17

3 To select that talkgroup and return to normal operation, press the TG SEL switch again

or press the Select switch. A single beep sounds when the Select switch is pressed (if

Conventional Features

Draft 4/29/2014

6.13.7 P25 Unit Calls

Unit calls (also called Individual Calls) can be placed to a specific radio on Project 25
channels using the Unit Call option switch (if programmed) or by menu selection. Only
the individual ID of the target radio is sent (a talkgroup ID is not sent). The radios that can
be called are preprogrammed in the Unit Call list.

To receive a unit call, the RF channel of the call must be selected or scanned and the
correct NAC and unit ID must be detected. The ID of the calling radio is then transmitted
back. To respond to the call, the radio must be programmed with the Unit Call option
switch, and have a Unit Call programmed with the ID of the calling radio.

Place and receive a Unit Call as follows:

that option is enabled). If talkgroup selection has been disabled on the channel by
programming, the talkgroup does not change, “NO LIST” is displayed, and a tone
sounds.

1 To transmit a unit call, press the Unit Call option switch (or select the menu option).

The alias (tag) of the last Unit Call is displayed.

2 If required, rotate the Select switch to display the desired alias/ID. The alias and ID of

the unit calls that have been programmed are alternately displayed.

3 Press and then release the PTT switch. Ringing is then heard and “WAIT” displayed to

indicate that the radio is being rung. To disable this ringing but not the call, briefly
press the PTT switch again. Ringing occurs for 20 seconds or until the call is answered,
whichever occurs first.

4 When a unit ID call is received, two beeps sound (if tones are enabled), and “CALL

RCVD” and the alias of the Unit ID are alternately flashed.

5 To respond, select the Unit Call mode by pressing the Unit Call option key.

- If the call timer times out (set by programming) or the channel is changed before a
response is made, the unit call mode is exited.

6.13.8 P25 Conventional Telephone Calls

Telephone calls can be placed and received on P25 conventional channels. Telephone calls
to be placed and received over the public telephone system using your radio require a
Network Interface Unit (NIU). Telephone calls are programmed to operate in one of the
following modes:

• Disabled

• Answer-only capability

6-18 Viking VM600 Mobile Radio Operating Manual

Conventional Features

Draft 4/29/2014

• List only - Telephone numbers can be selected from a preprogrammed list only (direct
entry as follows is not allowed)

• Unlimited - Telephone numbers can be selected from a list and also dialed directly
entered using the front panel controls or the keypad on the HHC.

All models have the capability to place telephone calls by recalling the number from a list
or dialing it using the front panel controls or using the Handheld Control Unit (HHC)
telephone keypad. More information on how to do this follows.

6.13.8.1 Access / De-Access Codes

P25 conventional telephone calls use an access code to access the system when placing a
telephone call, and a de-access code to terminate the call when it is finished. These codes
are preprogrammed in pairs by the Access/De-Access Code list, and up to 16 pair can be
programmed. Each conventional P25 channel can be programmed to automatically select
one of these code pairs. They must match the system codes, and the default code is *1P#
(the P represents a pause).

6.13.8.2 Placing a Telephone Call

To recall from list:
1 Select the conventional channel that is programmed to select the desired access and de-

access codes.

2 Momentarily press the PHONE option switch (or make the menu selection). The

display indicates the last number dialed by alternately displaying “LAST NUM” and
the telephone number. In addition, the phone mode is indicated by the icon.

3 If required, rotate the Select switch to display the desired number. The alias and

telephone number are alternately displayed.

4 Briefly press the PTT switch to send the access code. A dial tone sound should then be

heard. Briefly press the PTT switch again to send the digits. Proceed to Step 5 (next):

For direct entry using front panel controls or the keypad on the HHC:
5 Select the conventional channel that is programmed to select the desired access and de-

access codes.

Viking VM600 Mobile Radio Operating Manual 6-19

6 Press and hold the PHONE option switch until a tone sounds (approximately one

second). The alias of the last called telephone number is displayed if it is in the phone
number list. Otherwise, only the last eight digits are displayed. In addition, the phone
mode is indicated by the icon.

Conventional Features

Draft 4/29/2014

7 If using the front panel controls, enter the telephone number by rotating and pressing

8 Briefly press the PTT switch to send the access code. A dial tone sound then be heard.

9 Press the PTT switch to talk and release it to listen. Since the radio operates half duplex,

10 When the telephone call is finished or if it could not be completed for some reason, end

the Select switch. The 0-9,
as a “+”). Numbers up to sixteen digits (including pauses) can be entered, and the
number scrolls to the left in the display so that the eight right-most digits are always
displayed. With the HHC, enter the number using the DTMF keypad (a pause indicated
by “P” is entered by

Briefly press the PTT switch again to send the digits.

it is not possible to talk and listen at the same time.

it by pressing the PHONE option switch again and placing the microphone back on­hook. This sends the de-access code which tells the system that the call is finished and
that the repeater can be released.

*, #, and P (pause) characters can be entered (# is displayed

* #).

6.13.8.3 Answering a Telephone Call

To answer a telephone call:
1 When a telephone call is received, “ringing” similar to a standard telephone is heard

and “PHONE” is displayed.

2 To answer the call, press the Phone option switch and press the PTT switch to talk and

release it to listen.

3 When the call is finished, end it as in the preceding Step 6.

6.13.9 Call Alert

The Call Alert™ feature allows pages to be sent and received on P25 conventional
channels. The Call Alert Encode and Decode options must be enabled to send or receive
an alert. Operation is similar to SMARTNET/SmartZone and P25 Trunked channels.

To answer a page:
1 When a page is received, five beeps sound and “PAGE RCVD” is displayed. The ID of

the radio paging you is stored as the last ID received.

2 To clear or ignore the page, press any option switch. If the PTT switch is pressed, a

3 To answer the page as a unit call (see Section 6.13.7), press the CALL (Private/Unit)

6-20 Viking VM600 Mobile Radio Operating Manual

group call is placed on the selected channel.

option switch (or select the option from the menu). The alias of the radio paging you is

Conventional Features

Draft 4/29/2014

displayed. Press the PTT switch and respond. One of the following conditions then
occur:

- If the radio being called is on the air, ringing is heard until the called party answers or
for 20 seconds, whichever occurs first. If no answer occurs within 20 seconds, a
continuous tone sounds and “NO ANS” is displayed.

- If the radio being called is not on the air, a continuous tone is heard instead of ringing
and “NO ACK” is displayed.

4 When the call is finished or if it could not be completed for some reason, end it by

pressing the Unit Call option switch or the F1 (Exit) key.

To initiate a page:
1 With a P25 conventional channel selected, momentarily press the ALERT (Call Alert)

option switch. The alias of the last ID called is displayed. Or press and hold the switch
to directly enter the ID of the radio you wish to page.

2 If required, rotate the Select switch to display the desired radio. The alias of each

number is displayed.

3 Press the PTT switch and one of the following occur:

• If five beeps sound, the system received the page and the paged radio is on the air and

received it. The page mode is automatically exited.

• If the system received the page but the called radio is not on the air, a single beep

sounds and “NO ACK” is displayed six seconds after the PTT switch is pressed. Auto
exit then occurs.

6.13.10 Call History

If programmed, the Call History feature stores the IDs of the last five radios that have
made talkgroup calls, unit calls, or call alerts to the user’s radio. To view the Call History
list:

1 Access Call Alert or Unit Call List from the menu. The first call displayed is the most

recent call received. Calls from other radios are indicated by a triangle symbol.

Viking VM600 Mobile Radio Operating Manual 6-21

2 Scroll through the list to view up to 5 calls, in order from most recent to least recent.

Conventional Features

Draft 4/29/2014

6.13.11 Messaging

The messaging feature allows preprogrammed messages to be sent to a dispatcher on P25
channels. Up to 16 messages can be preprogrammed, and they are identified by an alias. If
a MSG (Message) option switch is programmed, messages are sent as follows:

1 Momentarily press the MSG option switch (or select the option via the menu). The alias

2 If required, rotate the Select switch to display the desired message. Then send the

of the last message sent is displayed.

message by momentarily pressing the PTT or Select switch. A single beep sounds when
the Select switch is pressed (if that option is enabled). One of the following events then
occurs:

• If five beeps sound and “ACK RCVD” is displayed, the message was received and

automatically acknowledged by the system.

• If after five tries the message is not acknowledged, a tone sounds and “NO ACK” is

displayed.

Note A smart console with message receiving capabilities must be used to receive messages.

6.13.12 Status Messaging

The status messaging feature allows you to manually or automatically send your current
status to your dispatcher on P25 channels. Up to eight status conditions can be
preprogrammed, and they are identified by an alias. If the STATUS option switch is
programmed, status conditions are sent as follows:

1 Momentarily press the STATUS option switch (or select the option via the menu). The

alias of the current status condition is displayed.

2 To change the current status, rotate the Select switch until the desired status is

displayed. Then to send the status, momentarily press the PTT switch. One of the
following events then occurs:

- If five beeps sound and “ACK RCVD” is displayed, the status was received and
acknowledged by the system.

- If after five tries the message is not acknowledged, a tone sounds and “NO ACK” is
displayed.

Note A smart console with message receiving capabilities must be used to receive status

messages.

6-22 Viking VM600 Mobile Radio Operating Manual

6.13.13 P25 Packet Data

Draft 4/29/2014

See Section 9 for information on data functions and services.

6.14 Keypad Programming

Since keypad programming is permitted by Federal Government users only, only Federal
models of this radio can be programmed with this feature. It is then available only if it has
been enabled by factory programming and a conventional mo de option switch is
programmed for the “Keypad Programming” function.

Note The Keypad programming feature is available to Federal Government users only. Users

regulated by the Federal Communications Commission (FCC) are not allowed to have
this feature. This feature must be factory enabled to be selected.

Conventional Features

Keypad programming is selected by pressing the PROG option switch or by selecting the
option from the menu (password entry is not required). The keypad programming mode is
indicated by “CHNG ZONE” and a triangle in the display as follows:

Keypad programming allows conventional channel parameters such as the transmit and
receive frequency, Call Guard squelch code, and encryption key to be changed. In
addition, several conventional mode timers can be changed. It cannot be used to
reprogram disabled channels or any P25 Trunked, SMARTNET, or SmartZone
information.

6.14.1 Menu Structure

A menu system is used to select parameters in the keypad programming mode. To enter
the Menu Mode, press and hold the Select button until it beeps and enters the Menu Mode.
Rotate and press the Select switch to scroll through and select the available parameters.
The available parameters and the section in which each is described are as follows:

Viking VM600 Mobile Radio Operating Manual 6-23

• CHNG ZONE (6.14.3)

• CHNG CHAN (6.14.4)

• SYS PARMS (6.14.5)

• CHAN PARMS (6.14.6)

Conventional Features

Draft 4/29/2014

Press the Select switch to select the displayed parameter. A single beep sounds when the
switch is pressed (if that option is enabled). Press the PROG option switch from one of the
main menus to exit keypad programming or from other menus to exit back one level. A
flowchart showing the keypad programming mode menu structure is located Figure 6.1.
Refer to the descriptions which follow for more information.

Figure 6.1 Viking VM600 Keypad Programming Menu Flowchart

6.14.2 Zone Password

Each zone can be programmed with a password to prevent unauthorized reprogramming of
zone by keypad programming. When this password is programmed, it must be entered
before system or channel parameters in that zone can be changed by keypad programmi ng.
A different password can be programmed for each zone.

Note Make sure that the zone passwords are not lost because they cannot be overridden in the

field. Armada must be used to add a new password.

6-24 Viking VM600 Mobile Radio Operating Manual
