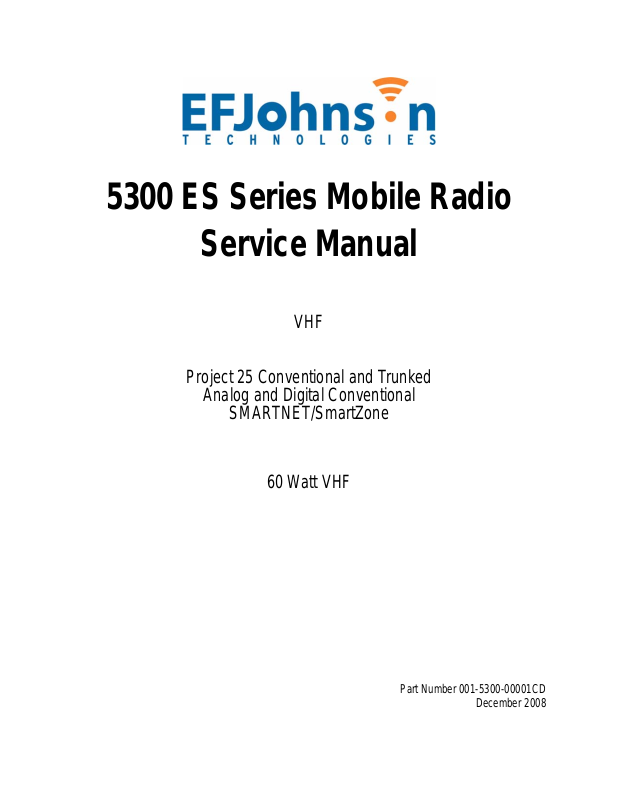

E F Johnson 2425313 Users Manual

5300 ES Series Mobile Radio

Service Manual

VHF

Project 25 Conventional and Trunked

Analog and Digital Conventional

SMARTNET/SmartZone

60 Watt VHF

Part Number 001-5300-00001CD

December 2008

Copyright © 2008 by EFJohnson Technologies

™

The EFJohnson Technologies logo, PC Configur e

, Trunked IP25™, and Call Guard® are trademarks of

EFJohnson Technologies. All other company and/or prod uct names use d in this m anual are tradem arks and/

or registered trademarks of their respective manufacturers.

Information in this manual is subject to change without notice.

5300 ES Series Mobile Radio Service Manual

December 2008

5300 ES Series Mobile Radio Service Manual

December 2008

Table of Contents

1 General Information 1-1

Radio Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Analog / Digital Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Operating Protocols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Available Mounting Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Systems, Channels, and Zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Systems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Zones. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Programming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Alignment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Model Number Breakdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Serial Number Breakdown. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

Secure Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

FIPS 140-2 Approved Encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8

Over-the-Air-Rekeying (OTAR). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8

Key Retention . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8

Typical Performance Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8

Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10

2 Radio Programming 2-1

Programming Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Computer Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Connecting Computer to Radio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Connecting RPI To Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Connecting RPI To Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Handheld Controller Programming Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Siren Programming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Using PC Configure Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

December 2008 5300 ES Series Mobile Radio Service Manual i

Table of Contents (continued)

3 Circuit Description 3-1

General Transceiver Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

PC Boards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Circuit Protection (Fuses) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Analog Mode Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Receive Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Transmit Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Project 25 Digital Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Receive Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Transmit Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

VHF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

VHF RF BOARD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

RECEIVER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

SYNTHESIZER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

TRANSMITTER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9

VHF 60W PA Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9

RF Module Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9

Amplifier Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11

Antenna Switch/Low-Pass Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11

RF Power Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11

Forward Power Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11

Bias Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12

PA Microcontroller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12

Safety Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12

DC Power Distribution. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13

DC Power Distribution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14

Power On Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14

Power Off Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14

Audio / Logic Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15

Control Processor (U21). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15

Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17

Digital Signal Processing Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17

Receive Signal Path . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-18

4 Alignment Procedure 4-1

PC Tune. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

5 Troubleshooting 5-1

User Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

5300 Battery Discharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

5300 Viewing Angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

5300 User Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

User Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

December 2008 5300 ES Series Mobile Radio Service Manual ii

Table of Contents (continued)

Additional Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

6 Service Information 6-1

Product Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Online Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Telephone Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2

Factory Customer Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2

Returns for Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3

Replacement Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4

Internet Home Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4

7 Parts List 7-1

VHF Mobile Radios. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

8 Schematic Diagrams and Component Layouts 8-1

Mechanical Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

Schematics and Board Layouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-13

December 2008 5300 ES Series Mobile Radio Service Manual iii

Table of Contents (continued)

December 2008 5300 ES Series Mobile Radio Service Manual iv

List of Figures

Figure Page

2.1 Programming Setup (Standard Front/Remote Models) . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

2.2 Programming Adapter Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

3.1 VHF RF Board Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

3.2 VHF PA Board Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10

3.3 Logic Board Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16

4.1 Alignment Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

8.1 PA Board Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2

8.2 RF Deck Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3

8.3 Audio / Logic Board - Top View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4

8.4 Audio / Logic Board - Bottom View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4

8.5 RF Deck and Audio/Logic Board Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5

8.6 Assembly with RF Deck and PA Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6

8.7 LCD Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6

8.8 Front Panel Assembly (Part number 587-5357-501-01 . . . . . . . . . . . . . . . . . . . . . . . . . 8-7

8.9 Control Head PCB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7

8.10 Front Panel Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-8

8.11 Radio Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-8

8.12 Remote Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9

8.13 Remote Control Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10

8.14 Handheld Control Unit Junction Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11

8.15 Handheld Control Unit (Part 1 of 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11

8.16 Handheld Control Unit (Part 2 of 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-12

8.17 Amplified Dynamic Microphone Schematic Part No. 25-0740-310 . . . . . . . . . . . . . . . 8-13

8.18 Amplified Dynamic Microphone Exploded View Part No. 250-0740-310 . . . . . . . . . . . 8-13

8.19 Interconnect Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-14

8.20 VHF RF Board Schematic - Logic (025-5510-300 P4 Page 2 of 7) . . . . . . . . . . . . . . . 8-15

8.21 VHF RF Board Schematic - RX Front End (025-5510-300 P4 Page 3 of 7) . . . . . . . . 8-16

8.22 VHF RF Board Schematic - Rx Back End (025-5510-300 P4 Page 4 of 7) . . . . . . . . . 8-17

8.23 VHF RF Board Schematic - PA (025-5510-300 P4 Page 5 of 7) . . . . . . . . . . . . . . . . . 8-18

8.24 VHF RF Board Schematic - RX Synthesizer (025-5510-300 P4 Page 6 of 7) . . . . . . . 8-19

8.25 VHF RF Board Schematic - TX Synthesizer (025-5510-300 P4 Page 7of 7) . . . . . . . 8-20

8.26 VHF RF Board - Top View (027-5510-300 P4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-21

8.27 VHF RF Board - Bottom View (027-5510-530 P4) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-22

8.28 VHF Power Amplifier Board Schematic - Power Input/Filtering/Switch (025-5515-530 P3

Page 2 of 11) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-23

8.29 VHF Power Amplifier Board Schematic - System Power Supply (025-5515-530 P3 Page 3

of 11) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-24

8.30 VHF Power Amplifier Board Schematic - I/O (025-5515-530 P3 Page 4 of 11) . . . . . . 8-25

8.31 VHF Power Amplifier Board Schematic - Microcontroller (025-5515-530 P3 Page 5 of 11)
8-26

8.32 VHF Power Amplifier Board Schematic - Power Control (025-5515-530 P3 Page 6 of 11) .

December 2008 5300 ES Series Mobile Radio Service Manual v

List of Figures (continued)

Figure Page

8-27

8.33 VHF Power Amplifier Board Schematic - Driver (025-5515-530 P3 Page 7 of 11) . . . . 8-28

8.34 VHF Power Amplifier Board Schematic - PA (025-5515-530 P3 Page 8 of 11) . . . . . . 8-29

8.35 VHF Power Amplifier Board Schematic - Directional Coupler (025-5515-530 P3 Page 9 of

11) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-30

8.36 VHF Power Amplifier Board Schematic - RF Switch (025-5515-530 P3 Page 10 of 11) . 8­31

8.37 VHF Power Amplifier Board Schematic - Harmonic Filter (025 -5515-530 P3 P age 11 o f 11)
8-32

8.38 VHF PA Board Layout - Top View (027-5515-530 P3)) . . . . . . . . . . . . . . . . . . . . . . . . 8-33

8.39 VHF PA Board Layout Bottom View (027-5515-530 P3) . . . . . . . . . . . . . . . . . . . . . . . 8-34

8.40 Audio / Logic Schematic (DSP) (1 of 14) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-35

8.41 Audio / Logic Schematic (CODEC) (2 of 14) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-36

8.42 Audio / Logic Schematic (General Logic) (3 of 14) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-37

8.43 Audio / Logic Schematic (Power Supply) (4 of 14) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-38

8.44 Audio / Logic Schematic (Control Processor) (5 of 14) . . . . . . . . . . . . . . . . . . . . . . . . . 8-39

8.45 Audio / Logic Schematic (Memory) (6 of 14) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-40

8.46 Audio / Logic Schematic (Pull Ups - Pull Downs) (7 of 14) . . . . . . . . . . . . . . . . . . . . . . 8-41

8.47 Audio / Logic Schematic (Bus Exchange) (8 of 14) . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-42

8.48 Audio / Logic Schematic (Line Drivers) (9 of 14) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-43

8.49 Audio / Logic Schematic (Audio) (10 of 14) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-44

8.50 Audio / Logic Schematic (Microcontroller) (11 of 14) . . . . . . . . . . . . . . . . . . . . . . . . . . 8-45

8.51 Audio / Logic Schematic (Ethernet) (12 of 14) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-46

8.52 Audio / Logic Schematic (External Interface) (13 of 14) . . . . . . . . . . . . . . . . . . . . . . . . 8-47

8.53 Audio / Logic Schematic (PA / Logic Connectors) (14 of 14) . . . . . . . . . . . . . . . . . . . . 8-48

8.54 Audio / Logic Board Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-49

8.55 Remote Control Head Schematic (LCD Display & Drivers) . . . . . . . . . . . . . . . . . . . . . 8-50

8.56 Remote Control Head Schematic (LEDs & Power) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-51

8.57 Remote Control Head Schematic (Microcontroller) . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-52

8.58 Remote Control Head Schematic (Audio) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-53

8.59 Remote Control Head Schematic (Connector Interfaces) . . . . . . . . . . . . . . . . . . . . . . . 8-54

8.60 Remote Control Head Board Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-55

December 2008 5300 ES Series Mobile Radio Service Manual vi

List of Tables

Table Page

1.1 5300 ES Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

1.2 5300 ES Mobile Radio General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9

1.3 5300 ES Mobile Radio Transmitter Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9

1.4 5300 ES Mobile Radio Receiver Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9

December 2008 5300 ES Series Mobile Radio Service Manual vii

List of Tables (continued)

Table Page

December 2008 5300 ES Series Mobile Radio Service Manual viii

S ECTION

1

Section1General Information

This service manual cont ains oper ation, prog ramming, a lignment, an d service i nformati on
for the EFJohnson Technologies 5300 ES Series mobile radio. The 53SL and Ascend
(Multi-Net) models are similar in appearance and covered by sep arate manuals. The
distinguishing characteristics of the 5300, 53SL, and Ascend models are as follows:

5300 Series Mobile

• Part No. 242-53xx-xxx (see Section 1.2)

• “RS-5300” label on top edge of front panel

• Black front panel bezel

53SL Series Mobile

• Part No. 242-54xx-xxx (see Section 1.2)

• “53SL” label on top edge of front panel

• Black front panel bezel

Ascend Series Mobile

• Part No. 242-5580-xxx (see Section 1.2)

• “ASCEND” label on top edge of front panel

• Black front panel bezel

1.1 Radio Description

The 5300 ES Series mobile radios can operate on various types of channels and with
various signaling protocols. Repeater talk-around is also available.

December 2008 5300 ES Series Mobile Radio Service Manual 1-1

General Information

1.1.1 Analog / Digital Operation

The 5300 ES Series mobile radios use a digital signal processor (DSP) to provide IF and
audio filtering and signal modulation functions. This allows operation on the following
types of channels, backwar ds compatibil ity with exis ting equip ment, and also the ability to
operate on various types of radio systems.

Narrow Band Analog - FM modulation is used with a maximum deviation of 2.5 kHz.
This mode is usually used in systems with a channel spacing of 12.5 or 15 kHz.

Wideband Analog - FM modulation is used with a maximum deviation of 5 kHz. This
mode is usually used in systems where the channel spacing is 25 kHz or 30 kHz.

Project 25 Digital - Operates on Project 25 compatible systems. The voice is digitized,
error corrected, optionally encrypted, and then transmitted using C4FM modulation
according to the Project 25 standard. This mode uses a channel spacing of 12.5 kHz.

1.1.2 Operating Protocols

The 5300 ES Series mobile radio can be programmed for all the following operating
protocols. The conventional analog protocol is standard and the others are optional
(available only if enabled by factory programming).

• APCO Project 25 (digital) conventional

• APCO Project 25 (digital) trunked

• SMARTNET

• Analog conventional

Note Multi-Net operation can be programmed with Ascend models only.

®

/SmartZone® trunked analog or digital

1.1.3 Available Mounting Options

Front Mount - The operating controls are on the front on the radio, so the radio must be
mounted within reach of the user.

Remote Mount, Single Control Unit - The operating controls are located on a remote
mounted control unit. The radio does not have operating controls.

Remote Mount, Dual Controls - A remote control unit is connected to the front mount
radio. This allows control from the front panel and the remote control unit.

Remote Mount, Dual Remote Control Units - Two remote control units are connected
to the remote mount radio. This allow s control from both remot e control units.

December 2008 5300 ES Series Mobile Radio Service Manual 1-2

General Information

1.1.4 Systems, Channels, and Zones

A zone and channel are selected to place and receive calls. The following describes the
relationship between systems, channels, and zones.

1.1.4.1 Systems

A system is a collection of channels or talk groups belonging to the same repeater site. It
defines all the parameters and protocol information required to access a site. Up to 16
systems of any type can b e pr ogr amme d. Th e maxi mum number of cha nnel s a ss ignable is
limited to 864 based on the option enabled. Channels may also be limited by available
memory space as described in the following information.

1.1.4.2 Channels

A channel selects a radio channel or talk group in a system as follows:

Conventional Analog Mode - A channel selects a specific radio channel, Call Guard
(CTCSS/DCS) squelch coding, and other parameters unique to that channel.

Conventional Project 25 Mode - A channel selects a specific radio channel, NAC
squelch coding, talk group ID, and other parameters unique to that channel.

Trunked Project 25 Mode - A channel selects a specific talk group ID and other
parameters unique to that talk group.

SmartNet/SmartZone and Project 25 Trunked Operation - A channel selects a specific
talk group, announcement group, emergency group, and other parameters unique to that
talk group.

A maximum of up to 864 channels can be programmed. Although it is theoretically
possible to program any combination of systems that produces up to 864 total channels,
the maximum number may be limited by the available memory. For example, since more
memory is required to program a SMARTNET system than a conventional system, the
total number of channels decreases as the number of SMARTNET syste m s i ncr ea ses. The
programming software disp lays a bar g raph whi ch sho ws th e amount of av aila ble memor y
space that i s used by the current data.

1.1.4.3 Zones

A zone is a collect ion of up to 16 channels of any type. For example, a zone coul d i ncl ude
12 conventional channels and 4 SMARTNET channels. One use of zones may be to
program the channels used for operation in a specific geographical area. Up to 54 zones
can be programmed depending on the option enabled.

December 2008 5300 ES Series Mobile Radio Service Manual 1-3

General Information

53xx

Model Revision

Letter

Manufacture

Date

Warranty

Number

Week No.

of Year

Last 2 Digits of Year

T = MTI

PlantFrom P.N.

A = Waseca
C = CTI

12345 X 43 07 H

1.1.5 Programming

Radio programming is performed using a PC-compatible computer and an EFJohnson
Technologies Remote Programming Interface (RPI) and PC Configure programming
software (see Table 1.1). Programming is described in the PC Configure Programming
Manual included separately.

1.1.5.1 Alignment

Radio alignment is performed using the same computer and RPI used for programming
(see preceding section) and special PC Tune
electronically using the software (no manual adjustments are required). Alignment is
described in Section 6.

1.2 Model Number Breakdown

The radio model number is located on the radio identification label attached to the side of
the radio.

1.3 Serial Number Breakdown

The radio serial number is located on the radio identification label attached to the side of
the radio. The following is a breakdown of this number:

™

software. All adjustments are made

December 2008 5300 ES Series Mobile Radio Service Manual 1-4

1.4 Accessories

The accessories available for this radio are listed in Table 1.1. A brief description of some
of these accessories follows:

Key Cap Kit - The key cap kit includes key caps labeled for various functions and five
plugs that can be inserted in the front panel if a key is not used. Refer to the 5300 ES
Series Mobile Installation Manual for more information.

Mounting Hardware - The mounting har dwar e and DC power cable for sta nda rd mod el s
are shown in Figures 2.1 and 2.2 in Section 2. The mounting hardware and DC power
cable for 100-watt mode ls ar e shown i n the 5300 Ser ies Mobi le Ins tallati on Manual . A 22­foot DC power cable i s used f or both front an d remote mou nt appli cations. The cable is cut
to the required length at installation and any excess discarded.

The accessory cable plugs into the accessory pigtail of the radio, and is used to connect
such things as an external speaker, ignition sense input, and a horn alert. It includes two
22-foot and three 2-foot wires that are connected as required to external points. The
adapter cable is used to connect a 86xx-series power cable to these radios.

General Information

Lockable Mounting Tray - This bracket allows the radio to be locked in place to guard
against theft. In addition, it allows it to be easily unlocked and removed from the vehicle.
This bracket is intended for use with s t andard models only (not 100W). Refer to the 5300
ES Series Mobile Installation Manual for installation information.

Microphones and Speaker - The microphones in Table 1.1 have an impedance of 620
ohms. All DTMF microphones are backlighted. The environmentally sealed microphone
is sealed against such thing s as rain, sand, and dust. The desk microphone can be used for
control station applications.

The external 15-watt speaker can be used in place of the internal 5-watt speaker. It is non­amplified and weatherproof. This speaker is connected to pins 1 and 2 of the accessory
connector pigtail on the back of the radio. Audio power output is 12 watts with this
external sp eaker or 5 watts with the internal speaker.

Control Station Power Supply - With the -4 001- mediu m-dut y power sup plies , the radio
slides into the power supp ly hous ing and r ecei ves power from ban ana jac ks o n the ba ck of
the power supply. The standa rd power cabl e is used for co nnecting powe r, and the inte rnal
radio speaker provides speaker audio. The -004 adapter cable is used to connect the radio
DC and accessory pigtail cables to the power supply power cable and speaker. The radio
internal speaker can also be used if desired.

December 2008 5300 ES Series Mobile Radio Service Manual 1-5

General Information

Programming Hardware and Software - The RPI provides the interface between the
programming computer and radio. The cables from the RPI to computer and radio are not
included with the RPI a nd must b e order ed sepa rate ly. The r adio p rogrammi ng soft ware i s
available only for computers running Windows

®

98/NT/2000/XP.

Table 1.1 5300 ES Accessories

Accessory Part No.

Key Cap Kit 587-5300-001

Mounting Accessories

Mounting bracket and hardware kit (standard) 023-9750-012
Mounting bracket (100W/bottom radio only) 017-9700-009
Mounting bracket (100W/bottom-top radio) 017-9700-008
DC power cable and hardware, 22 foot (standard) 023-9750-010
DC power cable and hardware, 22 foot (100W) 023-5315-100
Accessory wire kit 023-9750-011
Lockable Mounting Tray (standard models only) 585-7000-185

Microphones

Standard amplified dynamic 250-0740-310
DTMF without memory, commercial 589-0016-028
DTMF without memory, env seal WR805 587-9650-015
Noise canceling, weather resistant 589-0016-592
Desk microphone 589-0012-021

Speakers

External, 5 inch 15W 3.2 ohm environmental sealed with plug for HHC 250-0151-005
External, 5 inch 15W 3.2 ohm environmental sealed with terminals for accessory

cable
External, 5 inch, 15W 3.2 ohm motorcycle with mute software 250-0151-015

Handheld Control Unit and Siren Controller

Handheld control unit with junction box and 17 foot control cable 250-5300-101
Handheld control unit junction box only 250-5300-102
Siren controller kit (without loudspeaker) 250-5300-100
Siren loudspeaker, model TS100 for light bar installation 585-5300-007
Siren loudspeaker, model MS100 compact for behind grill installation 585-5300-009

Remote Control Conversion Kit

Dual control kit (convert front mount to remote or dual controls) 250-5300-001
Control station power supplies
15 amp, 117 VAC, 60 Hz (medium duty) 585-4001-202
15 amp, 230 VAC, 50 Hz (medium duty) 585-4001-204
30 amp, heavy duty for 100W models 250-5300-212
DC and speaker cable adapter for -0226- supply 023-9650-004

Programming Accessories

Remote programming interface (RPI) 023-5300-001

250-0151-006

December 2008 5300 ES Series Mobile Radio Service Manual 1-6

General Information

Table 1.1 5300 ES Accessories (Continued)

Accessory Part No.

Cable, RPI to transceiver 023-5300-005
Cable, RPI to computer DB9M-DB9F 6 foot 597-5900-002
PC Configure programming software, CD 023-9998-488
PC Tune software, CD (current logic boards) 023-9998-499
Programming Kit, includes -488 software, -005 cable, RPI, CD programming

manual
Handheld control unit programming cable adapter 023-5300-140

Encryption Keyloader and Accessories

SMA (PDA) keyloader 250-5000-945
SMA keyloader to 5100 radio cable 023-5000-940
SMA keyloader to 5300 radio cable 023-5000-950

Accessory Pigtail Cables

250-5000-004

Encryption Options - In radios that require encryption, the radio is ordered with the
EFJohnson Technologies SEM module. Contact Customer Service for more information
on the availability of encryption modules.

A key loader and an adapter cable are required to load encryption keys. The EFJohnson
Technologies SMA (Subscr iber Management As sistant) key lo ader part number is listed i n
Table 1.1. With OTAR, the key loader is required to perform the initial load of keys and
after that the keys are l oade d over the air. Th e adapte r cable connect s th e key loade r to the
radio microphone jack. Special programming using PC Configure is also required as
described in Section 2.

1.5 Secure Communication

Note Refer to the 5300 ES Mobile Radio Operating Manual for more information on secure

communication.

SecureNet™ and AES voice encryption are used to provide secure communication with
this radio. These protocols digitize the voice and then encrypt it using a DES or AES
algorithm. The following types of encryption are available on analog and digital channels:

Analog Conventional and SMARTNET/SmartZone Analog Channels

-DES
Digital Project 25 and SMARTNET/SmartZone Channels

- DES-OFB (Output Feedback)

- AES (Advanced Encryption Standard). Refer to Section 11 of the Operating Manual
for your radio for more information.

December 2008 5300 ES Series Mobile Radio Service Manual 1-7

General Information

1.5.1 FIPS 140-2 Approved Encryption

All encrypted 5300 ES Series mobile radio models are FIPS certified for the DES-OFB
and AES encryption modes. Encryption on analog channels is not FIPS certified. FIPS
140-02 is a Federal Information Processing Standard recently approved by the United
States Secretary of Commerce. This standard specifies Federal security requirements for
cryptographic modules for a wide range of applications and environments.

1.5.2 Over-the-Air-Rekeying (OTAR)

Encryption keys are loa ded int o the ra dio by OTAR (O ver-the -Air- Rekeying ) using a Key
Management Facility (KMF) and/or a handheld keyloader such as the EFJohnson
Technologies Subscribe r Management Assist ant (SMA) or Mot orola KVL 3000 Plus with
the AES option.

The keyloader is connected directly to the radio using an interconnect cable, and it loads
DES, DES-OFB, and AES keys. Currently, OTAR can be use d to load DES-OFB keys on
Project 25 conventional channels. Refer to Section 10 of the Operating Manual for your
radio for mor e OTAR information.

1.5.3 Key Retention

Note The 5300 ES Series mobile radio has a security feature (push-button switch S1 on the

logic board) that automatically erases the encryption keys when the bottom cover is
removed (except when Infinite Key Retention is programmed as follows).

If Infinite K ey Retention Infinite Ke y Retention i s programmed, the keys are maintained
in memory indefinitely, even without power applied. If it is not programmed, the radio
must be connected to an unswitched power source to preserve the encryption keys in
memory . However, a storage capacitor (C173, 0.22 F) maintains the 5-v olt supply ( and the
encryption keys) for approximately eight hours if power is temporarily lost.

1.6 Typical Performance Specifications.

This section contains specifications intended for use in testing and servicing this mobile
radio. For current advertised specifications, refer to the specification sheet available from
your sales representative. Values are typical and are subject to change without notice.

December 2008 5300 ES Series Mobile Radio Service Manual 1-8

General Information

Table 1.2 contains general specifications for the ES Series Mobile radios.

Table 1.2 5300 ES Mobile Radio General Specifications

Parameter VHF

Frequency Range
Channel Spacing 30 KhZ, 15 kHz
Maximum Frequency

Separation

138-174 MHz

Full Bandsplit

Table 1.3 contains transmitter specifications for the ES Series mobile radios.

Table 1.3 5300 ES Mobile Radio Transmitter Specifications

Parameter VHF

RF Output Power 15 to 60 Watts

Frequency Stability ± 1.5 ppm
Modulation Limiting ±5 kHz w/ 25 and 30 kHz

Emissions (Conducted &
Radiated)

Audio Response +1, -3dB
FM Hum and Noise
Audio Distortion 2%

channels
±2.5kHz w/ 12.5 and 15 kHz

channels

-75 dBc

45 dB

Table 1.4 contains receiver specifications for the ES Series mobile radios.

Table 1.4 5300 ES Mobile Radio Receiver Specifications

Parameter V+HF

Audio Output Power 12 Watts
Frequency Stability ± 1.5 ppm
Sensitivity - Analog (12 dB

SINAD)
Sensitivity - Digital (5% BER) -119 dBm
Selectivity 70 dB w/25 and 30 kHz

Intermodulation 70 dB
Spurious Rejection 75 dB
FM Hum and Noise 45 dB @ 25 kHz

Audio Distortion 2%

-119 dBm

channels
60 dB w/12.5 and 15 kHz

Project 25

39 dB @ 25 kHz

December 2008 5300 ES Series Mobile Radio Service Manual 1-9

1.7 Operation

The operation of the 5300 ES Series mobile radio is described in the 5300 ES Series
Mobile Radio Operatin g Manu al. Ope rati on of the 5 3SL ES a nd Ascen d E S mobile radios
are described in the 53SL ES Series Mobile Radio Operation Manual and the Ascend ES
Series Mobile Radio Operating Manual respectively. These manuals are available from

your EFJohnson Technologies dealer.

General Information

December 2008 5300 ES Series Mobile Radio Service Manual 1-10

2.1 Programming Setup

The following items are required to program the radio. The part numbers of this
equipment are shown in Table 1.1.

®

• A Windows

• Remote Programming Interface (RPI), Part No. 023-5300-001

• Programming cable from RPI to radio (see Section 2.1.2 for more information).

• EFJohnson PC Configure programming software, Part No. 023-9998-488.

-based computer (see next section)

S ECTION

2

Section2Radi o Programmi ng

Figure 2.1 shows the programming setup.

Figure 2.1 Programming Setup (Standard Front/Remote Models)

Note The -005 cable, the -488 so ftware, RPI, and a CD manual are included i n the 5300 Series

Programming Kit, Part No. 250-5000-004.

December 2008 5300 ES Series Mobile Radio Service Manual 2-1

Radio Programming

2.1.1 Computer Description

The computer used to program this radio should meet the following minimum
requirements:

• Windows 95/98/NT/2000/Vista (3.1 cannot be used)

•Pentium

• 16 M B of RAM

• A hard disk drive with at least 5 MB of free space

• A CD-ROM drive

• An available serial port

®

processor or equivalent

2.1.2 Connecting Computer to Radio

Note RPI, Part Number 023-5300-001, should be used to program the 5300 ES Series mobile

radio. Other RPIs such as 023-9800-000 and 023-9750-000 are not compatible with this
radio.

2.1.2.1 Connecting RPI To Computer

The Radio Programming Inte rface (RPI) pr ovides the requ ired l ogic in ter face between t he
computer and radi o. The c able from th e RPI t o comput er i s not inclu ded with the RPI . The
RPI has a female DB9 connector, and most computer serial ports have a male DB9 or
DB25 connector. Therefore, a male DB9 to female DB9 or DB25 is usu ally requi red. Thi s
is a standard cable available at most computer supply stores or order 6 foot. DB9M to
DB9F cable, Part Number 597-5900-002.

2.1.2.2 Connecting RPI To Radio

The programming setup for a front mount radio is shown in Figure 2.1. With radios that
use the standard front or remote control unit, the cable from the RPI plugs into the
microphone jack of t he rad io or contr ol unit. This cabl e is Par t Number 02 3-5300-005, and
it is not included with the RPI. Connecting the programming setup to the handheld
controller is described in the next section.

December 2008 5300 ES Series Mobile Radio Service Manual 2-2

Radio Programming

To Junction Box

To Prog Cable

2.1.3 Handheld Controller Programming Setup

When the Handheld Control Unit is used, the same computer, RPI, and programming
cable are used as with the standard front and remote models. In addition, the following
components are required:

• The junction box, Part Number 023 -53 00-130, i s req uired to pro vid e a conn ectio n po int
for the RPI since the control unit does not have a programming jack. This box may not
be included with some handheld control units.

• Adapter Plug, Part Number 023-5300-140, is required to plug the 5300 programming
cable into the recta ngular 10-pi n progra mming c onnect or on the junct ion box, a s shown
in Figure 2.2.

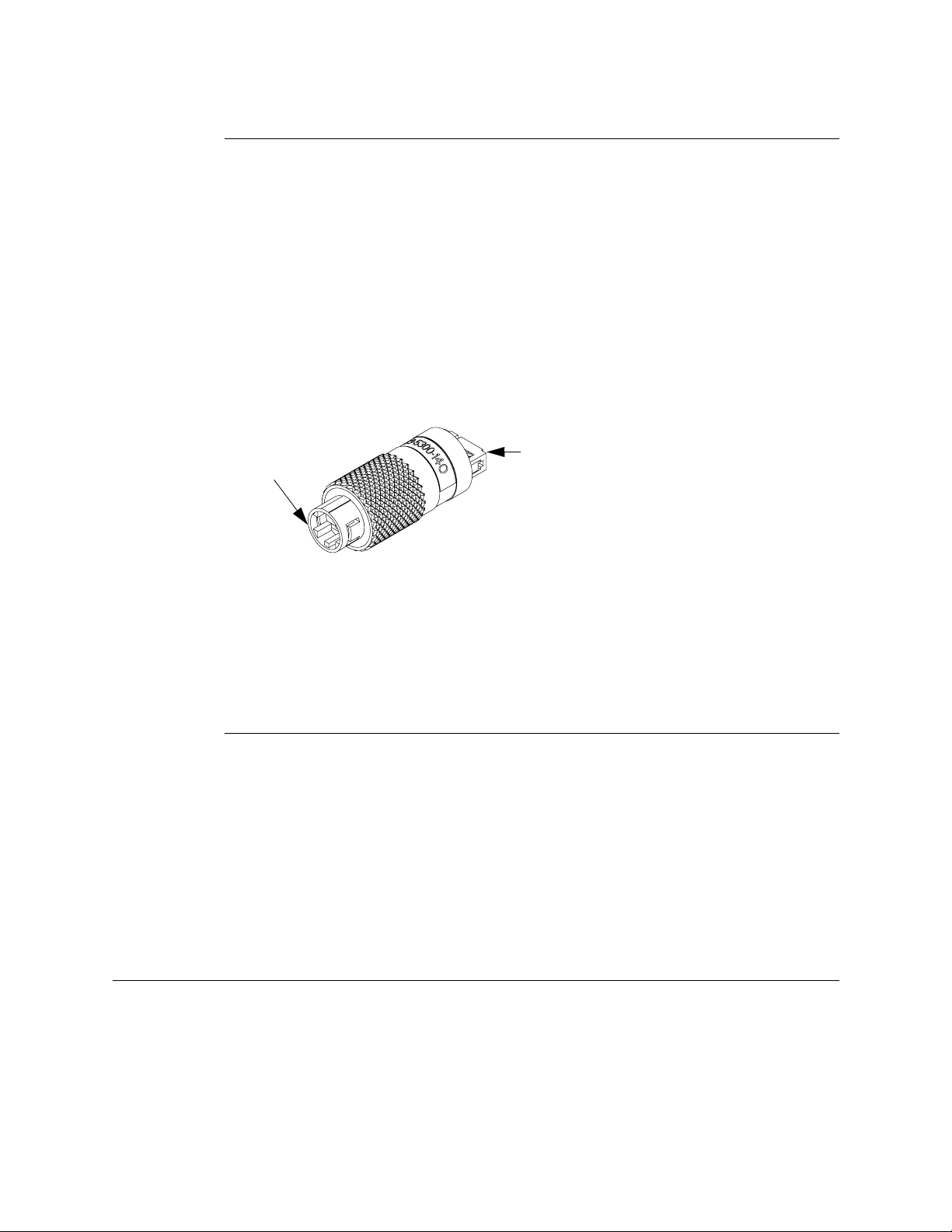

Figure 2.2 Programming Adapter Plug

Only one radio pr ogramming pa rameter must be ch anged wh en the Han dheld Cont rol Unit
is used. Set the “Controller Type” parameter on the Global tab of the PC Configure
programming software for “Handheld” instead of “Normal”.

2.1.4 Siren Programming

When the optional siren feature is installed (see the 5300 Series Mobile Installation
Manual), one radio programmin g para me te r may nee d to be cha nged for pr oper operation

of the siren controller backlight. On the Global tab of the PC Configure programming
software, set the “Auxilia ry B Toggle” parameter fo r “Backlight”. The Si ren Control Head
backlight then turns on and off with the radio control unit backlight.

2.2 Using PC Configure Software

The PC Configure software is described in a separate CD-based manual included on the
CD-ROM with the programming software.

December 2008 5300 ES Series Mobile Radio Service Manual 2-3

Radio Programming

December 2008 5300 ES Series Mobile Radio Service Manual 2-4

5.1 User Troubleshooting

When approaching the limits of radio range, the other party may not be able to hear your
transmissions and there may be an increase in background noise when messages are
received.

S ECTION

5

Section5Troubleshooting

You may still be out of range even though you can hear a message.

• The reason for this is that the signal you are receiving is usually transmitted at a higher
power level than the one transmitted by your trans ceiver.

• Communication may be improved by moving to higher ground or away from shielding
objects such as tall buildings or hills.

5.2 5300 Battery Discharge

In the standby mode (power on, not transmitting), transceiver power consumption is
relatively low. Therefore, you can probably leave the transceiver on for one or two days
without operating the vehicle and the battery should not become seriously discharged.

However, if the outdoor temperature is low enough to significantly decrease battery
capacity, the transcei ver should b e turned off when not in use . Since power consumpt ion is
significantly higher when transmitting, it is good practice to have the vehicle running
while transmitting. This ensures that optimum power is being delivered to the transceiver
and that the battery does not become discharged.

December 2008 5300 ES Series Mobile Radio Service Manual 5-1

5.3 5 300 Viewing Angle

If no characters or all characters appear in the display, the viewing angle may be
improperly adjust ed. If t he dis play i s diff icul t to r ead fr om the ang le you n ormally view it ,
the viewing angle can be adjusted as follows: Press and hold the last option switch above
the display and then pr es s t he fi rst option switch above the display. Release both switches
and turn the Select switch until the best contrast is obtained. This function times out in
three to five seconds.

5.4 5 300 User Troubleshooting

If some other problem is occurring, turn power off and then on again to reset the control
logic. Also make sure that the controls are properly set and that the power, external
speaker, and accessory cables (if used) are securely plugged into the back of the
transceiver.

Troubleshooting

If the transc eiver is completely inoperative, check the power cable fuse that is usually
located near the vehicle battery. If it is blown, remedy the cause if possible and replace it
with the same type (15A). If the transceiver still does not operate properly, return it to your
system operator for service.

5.5 User Troubleshooting

If UNPROGRAMD” is displayed, the cause could be any of the following:

• An unprogrammed channel is selected. Select a programmed channel.

• The selected channel is programmed for an option that is not installed or an error in
programming was detected. The radio needs to be reprogrammed.

5.6 Additional Information

Please refer to the 5300 ES Series Mobile Installation Manual for installation instructions
and information (Part Number 004-5300-011).

December 2008 5300 ES Series Mobile Radio Service Manual 5-2

This section describes how to obtain authorized service for the 5300 Series mobile radio.

6.1 Product Warranty

S ECTION

6

Section6Service Information

The warranty statement for this equipment is available from your product supplier or
from:

Warranty Department
EFJohnson Technologies
8050 Jetstar # 175
Irving, TX 75063

This information may also be requested from the Warranty Department by phone at the
numbers listed in Section 6.4. The Warranty Department may also be contacted for
warranty service reports, claim forms, or any other questions concerning warranties or
warranty service.

6.2 Online Registration

EFJohnson Technologies offers greater convenience through online product warranty
registration. Registering EFJohnson Technologies products online allows customers to
receive warranty service and field service notices more quickl y.

December 2008 5300 ES Series Mobile Radio Service Manual 6-1

To register EFJohnson Technologies products online, visit
www.EFJohnsonTechnologies.com. Click the link for Service & Support, then follow the
instructions for Warranty Registration.

6.3 Telephone Technical Support

Technical support personnel can help resolve many issues over the telephone, such as
display, volume, software, programming. Please refer to Section 6.4 for information to
contact the Customer Service Department.

6.4 Factory Customer Service

Service Information

The EFJohnson Technolo gies Custo mer Servic e Departmen t provide s customer as sistance
on technical problems and the availability of local and factory repair facilities. Regular
customer service hours are 8:00 a.m. - 5:00 p.m. Central Time, Monday- Friday. A
technical support subscription service is available or support can be purchased on an as­needed basis. The Customer Service Department can be reached using the following
telephone numbers:

Toll-Free: [phone] (all except Multi-Net)

[phone] (Multi-Net only)
Fax: [phone]
E-Mail: [e-mail]

You can also e-mail a person dire ctly if you know their f irst initial /last name. For example,
if John Smith is an EFJohnson Technologies employee, then his e-mail address is
probably [e-mail].

Note Emergency 24-hour technical support is also available at the preceding numbers during

off hours, holidays, and weekends.

When your call is answered at EFJohnson Technologies, you will hear a brief message
informing you of numbers that can be entered to reach various departments. This number
may be entered during or after the message using a tone-type telephone. If you have a
pulse-type telephone, wait until the message is finished and an operator will come on the
line to assist you. When you enter some numbers, another number is requested to further
categorize the type of information you need.

You may also contact the Customer Service Department by mail. Please include all
information that may be helpful in solving your problem. The mailing address is as
follows:

December 2008 5300 ES Series Mobile Radio Service Manual 6-2

Customer Service Department
EFJohnson Technologies
8050 Jetstar # 175
Irving, TX 75063

6.5 Returns for Repairs

Before returning equipment for repair, contact the EFJohnson Technologies Customer
Service Department as described in the preceding section. They may be able to suggest a
solution to the problem, making return of the equipment unnecessary.

Repair service is normally available through local authorized EFJohnson Technologies
land mobile radio service centers. If local service is not available, the equipment can be
returned to the EFJohnson Technologies repair depot for repair. However, before
returning equipment, contact the Customer Service Department Repair Depot for the
correct Ship To” address.

Service Information

Be sure to fill out a Factory Repair Request Form #271 for each unit to be repaired,
whether it is in or out of warranty. You can obtain it in any of three ways:

• Download it from the EFJohnson Technologies Web site’s Service & Support” section.

• Call the EFJohnson Technologies Customer Service Department and request it. See
Section 6.4.

• Request it when you send a unit in for repair.

Clearly describe the difficulty experienced in the space provided and also note any prior
physical damage to the equipment. Include this form in the shipping container with each
unit. Your telephone number and contact name are important as there are times when the
technicians may have specific questions that need to be answered to completely identify
and repair a problem.

When returning equipment fo r repair, it is also recommend ed that you use a PO numbe r or
some other reference number on your paperwork in case you need to call the repair lab
about your unit. These numbers are referenced on the repair order and make it easier and
faster to loc ate your unit in the lab.

Return Authorization (RA) numbers are not necessary unless you have been given one by
the Field Service Department. RA numbers are required for exchange units or if the Field
Service Department wants to be aware of a specific problem. If you have been given an
RA number, reference t his numbe r on t he Fac tory Repair Requ est Form s ent with the unit .
The repair lab will then contact the Field Service Department when the unit arrives. For
additional information on factory service, the Depot Service Department can be contacted
at the following e-mail ad dress:

[e-mail]

December 2008 5300 ES Series Mobile Radio Service Manual 6-3

6.6 Replacement Parts

Replacement parts can be ordered directly from the Service Parts Department. To order
parts by phone, dial the toll-free number as described in Section 6.4. When ordering,
please supply the par t number and quantity of eac h part ord ered. EFJ ohnson Te chnolog ies
dealers also need to give their account number. If there is uncertainty about the part
number, include the designator (C512, for example) and the model number of the
equipment the part is from.

You may also send your order by mail or fax. The mailing address is as follows and the
fax number is shown in Section 6.4.

Service Parts Department
EFJohnson Technologies
8050 Jetstar # 175
Irving, TX 75063

Service Information

6.7 I nternet Home Page

EFJohnson Technologies has a site on the World Wide Web that can be accessed for
information on the company about such things as products, systems, and regulations. The
address is

http://www.EFJohnsonTechnologies.com

December 2008 5300 ES Series Mobile Radio Service Manual 6-4
