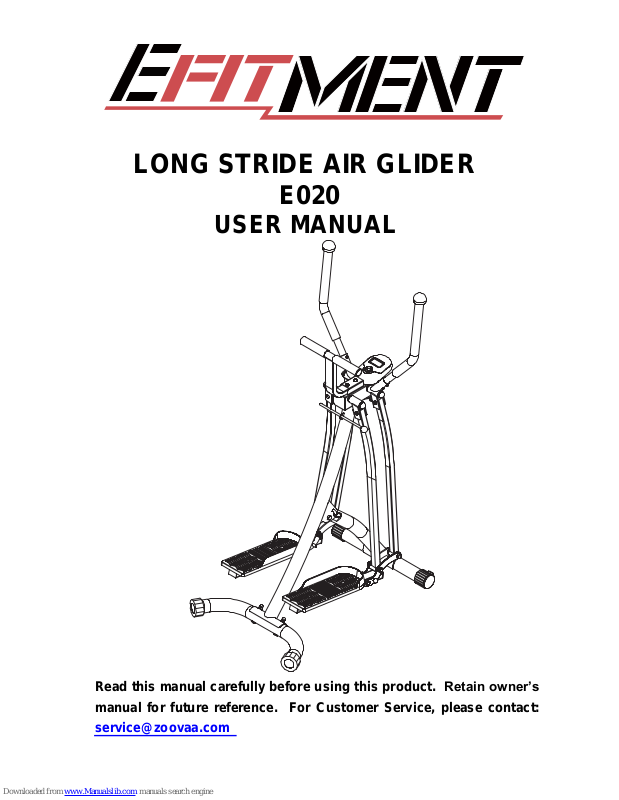

LONG STRIDE AIR GLIDER
E020
USER MANUAL
Read this manual carefully before using this product. Retain owner’s
manual for future reference. For Customer Service, please contact:
service@zoovaa.com
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using
the equipment. Safe and effective use can only be assured if the equipment is assembled,
maintained, and used properly. It is your responsibility to ensure that all users of the
equipment are informed of all warnings and precautions.
1. Before starting any exercise program you should consult your physician to determine if
you have any medical or physical conditions that could put your health and safety at risk
or prevent you from using the equipment properly. Your physician’s advice is essential
if you are taking any medication that may affect your heart rate, blood pressure, or
cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health.
Stop exercising if you experience any of the following symptoms: pain, tightness in your
chest, irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of
nausea. If you do experience any of these conditions, you should consult your physician
before continuing with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult
use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or
carpet. To ensure safety, the equipment should have at least 2 feet of free space all
around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The
safety of the equipment can only be maintained if it is regularly examined for damage
and/or wear and tear.
6. It is recommended that you lubricate all moving parts on a monthly basis.
7. Always use the equipment as indicated. If you find any defective components while
assembling or checking the equipment, or if you hear any unusual noises coming from
the equipment during exercise, stop using the equipment immediately and don’t use the
equipment until the problem has been rectified.
8. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
9. Do not place fingers or objects into the moving parts of the equipment.
10. The maximum weight capacity of this unit is 220 pounds.
11.This equipment is not suitable for therapeutic use.
12. Move with caution when lifting and moving the equipment. Always use proper lifting
technique and seek assistance if necessary.
13.Your product is intended for use in cool, dry conditions. You should avoid storage in
extremely cold, hot, or damp places as this may lead to corrosion and other related
problems.
14.This equipment is designed for indoor use only! It is not intended for commercial use!
1
WARNING: This product can expose you to one or more chemicals known to
the State of California to cause cancer and birth defects or reproductive harm.
For more information go to www.P65Warnings.ca.gov.
EXPLODED DRAWING
HARDWARE PACKAGE
2
mm
mm
Notice: Keep Locking Pin (NO.17). You will need
it when folding the machinese.
PARTS LIST
3
Part No.
Description Qty
1 Rear Stabilizer 1
2
Curved Washer (M10)
4
3
Spring Washer (M10)
4
4
Dome Nut (M10)
4
5 Main Frame 1
6 Pedal Set 2
7
Allen Bolt (M10*50 mm)
2
8
Locking Pin
2
9
Flat Washer (M10)
2
10
Nylon Nut (M10)
2
11 Connection Steel 4
12 U-Pin 1
13 Rear Support Tube 1
14 Front Stabilizer 1
15 Front Foot Plate Arm 2
16 Rear Foot Plate Arm 2
17
Locking Pin
1
18
Handlebar / Front Foot Plate Arm Assembly
2
19
Allen Bolt (M6*35 mm)
4
20 Sensor Wire 1
21 Exercise Monitor 1
22
Handlebar (L&R)
2
23
Flat Washer (M8)
2
24
Allen Bolt (M8)
2
25
T-Shape Handlebar
1
