Efitment E006 User Manual
E006 MAGNETIC ELLIPTICAL BIKE
USER MANUAL
IMPORTANT! Read all instructions carefully before using this product. Save this user
manual for future reference. For customer service, contact: service@efitment.com
IMPORTANT SAFETY NOTICE
Note the following precautions before assembling and using the machine.
1. Assemble the machine exactly as described in the instruction manual.
2. Check all the bolts, nuts and other connections before using the machine for the first time
to ensure the machine is in the safe condition.
3. Set up the machine in a dry level place and keep it away from moisture and water.
4. Place a suitable base (e.g. rubber mat, wooden board etc.) beneath the machine in the
assembly area to avoid dirt.
5. Before beginning exercise, remove all objects within a radius of 4 feet from the machine.
6. Only use the supplied tools or suitable tools of your own to assemble or repair the
machine.
7. Your health can be affected by incorrect or excessive exercise. Consult a doctor before
beginning your exercise program. This machine is not suitable for therapeutic purpose.
8. Only use the elliptical when it is working correctly. Use only original spare parts for any
necessary repairs.
9. This machine can be used by one person at a time.
10. Wear clothes and shoes that are suitable for fitness training with the machine. Do not
wear clothing that could get tangled in the machine.
11. If you have a feeling of dizziness, sickness or other abnormal symptoms, please stop
training and consult a doctor immediately.
12. This elliptical is intended for adult use only. Keep children away from the elliptical.
13. Do not put fingers or objects in the moving parts of the machine.
14. Remove drops of sweat from the machine immediately after finishing training.Do not use
aggressive cleaning articles to clean the machine.
15. Maximum user’s weight is 220 LBS.
CAUTION: Your bike was not designed for reverse pedaling. Reverse pedaling will damage
the bike.
WARNING: This product can expose you to one or more chemicals known to the
State of California to cause cancer and birth defects or reproductive harm. For
more information go to www.P65Warnings.ca.gov.
1
EXPLODED DIAGRAM
2
PARTS LIST
NO.
DESCRIPTION
Q’TY
NO.
DESCRIPTION
Q’TY
1
Main frame
1
30
Hex screw M8x55
2
2
Handlebar post
1
31
Flat washer D8x1.5
2
3
Front Stabilizer
1
32
Nylon nut M8
2
4
Rear Stabilizer
1
33
Hex bolt M10x45
4
5L/R
Pedal support
1pr.
34
Flat washer D10x1.5
6
6 L/R
Swing tube
1pr.
35
Nylon nut M10
6
7 L/R
Handlebar
1pr.
36
Cap S17
4
8
Handrail
1
37
Hex bolt M10x50
2
9

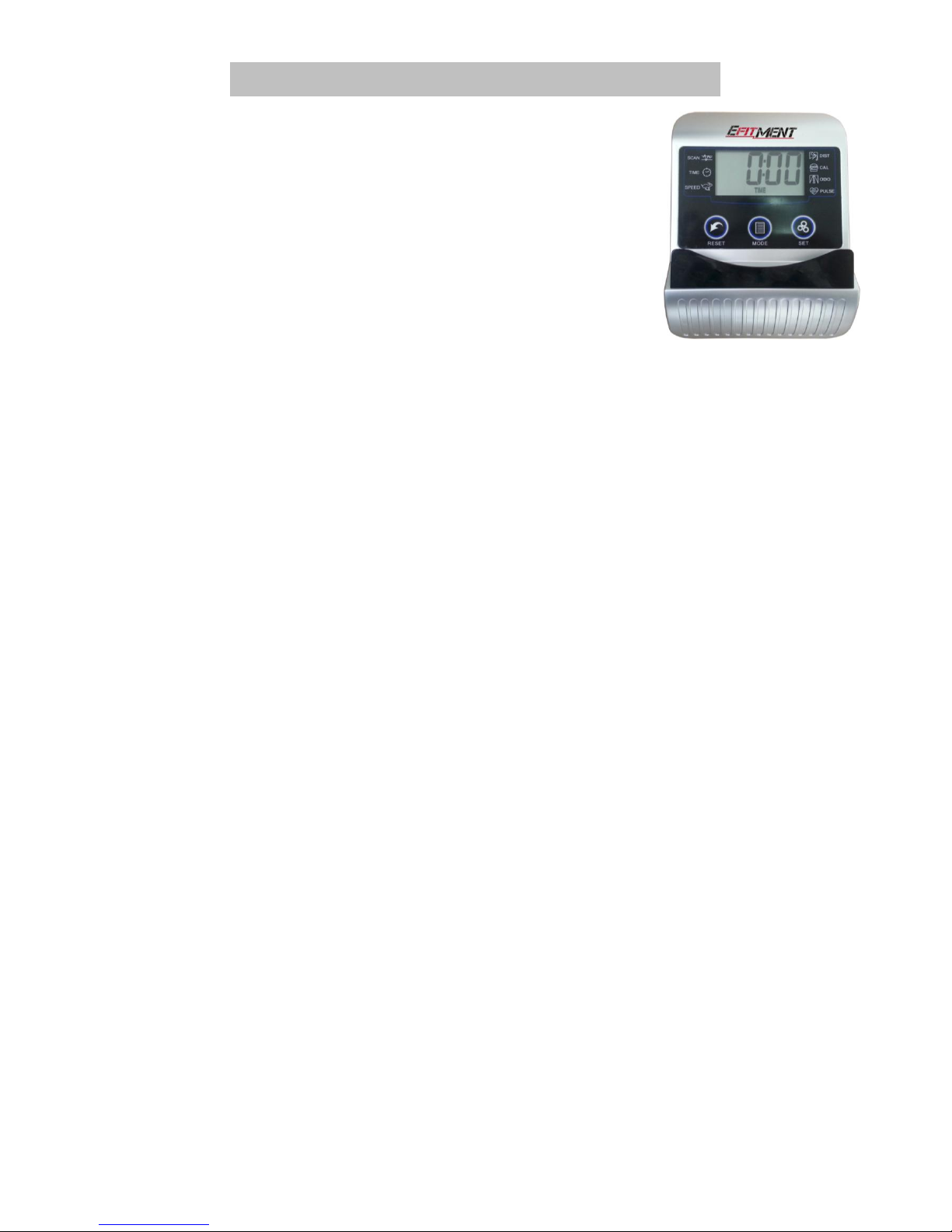

Computer
1
38L/
Pedal bolt
1pr.
10 L/R
Pedal
1pr.
39
Bushing Φ24x20xΦ16.1
4
11
Front end cap
2
40L/
Pedal tube joint
1pr.
12
Carriage boltM8x76
4
41
Spring washer Φ13XB2
2
13
Arc washer Φ20xΦ8.5xR30
10
42
Nylon nut
1pr.
14
Acorn nut M8
4
43
Cap S19
2
15
Rear end cap
2
44
Arc washer Φ20xd8.5XR12.5
4
16
Allen screw M8x16
10
45
Wave washer D17x0.3
2
17
Tension controller
1
46
Mushroom end cap
2
18
Extension sensor wire
1
47
Foam grip
2
19
Tension wire
1
48
Foam grip
2
20
Sensor wire
1
49
Round end capΦ25x1.5
2
21
Cross pan screw M5x55
1
50
Pulse wire
2
22
Crank
1
51
Allen screw M8x30
2
23
Cap S14
4
52
Spring washer D8
18
24
Hex screw M8x20
2
53
Chuck cover
1
25
Flat washer Φ8.2xΦ32x2
2
54
Wave washer Φ20xΦ28x0.3
2
26
Axle bushing Φ32x2.5
6
55
Cross pan screw M4x12
4
27
Long axle
1
56
Arc washer
1
28
Round end cap Φ32x1.5
2
57
Cap S13
2
29
Square end cap □40x25x1.5
4
58
Alloy bushing Φ14x10xΦ10.1
4
NOTE:

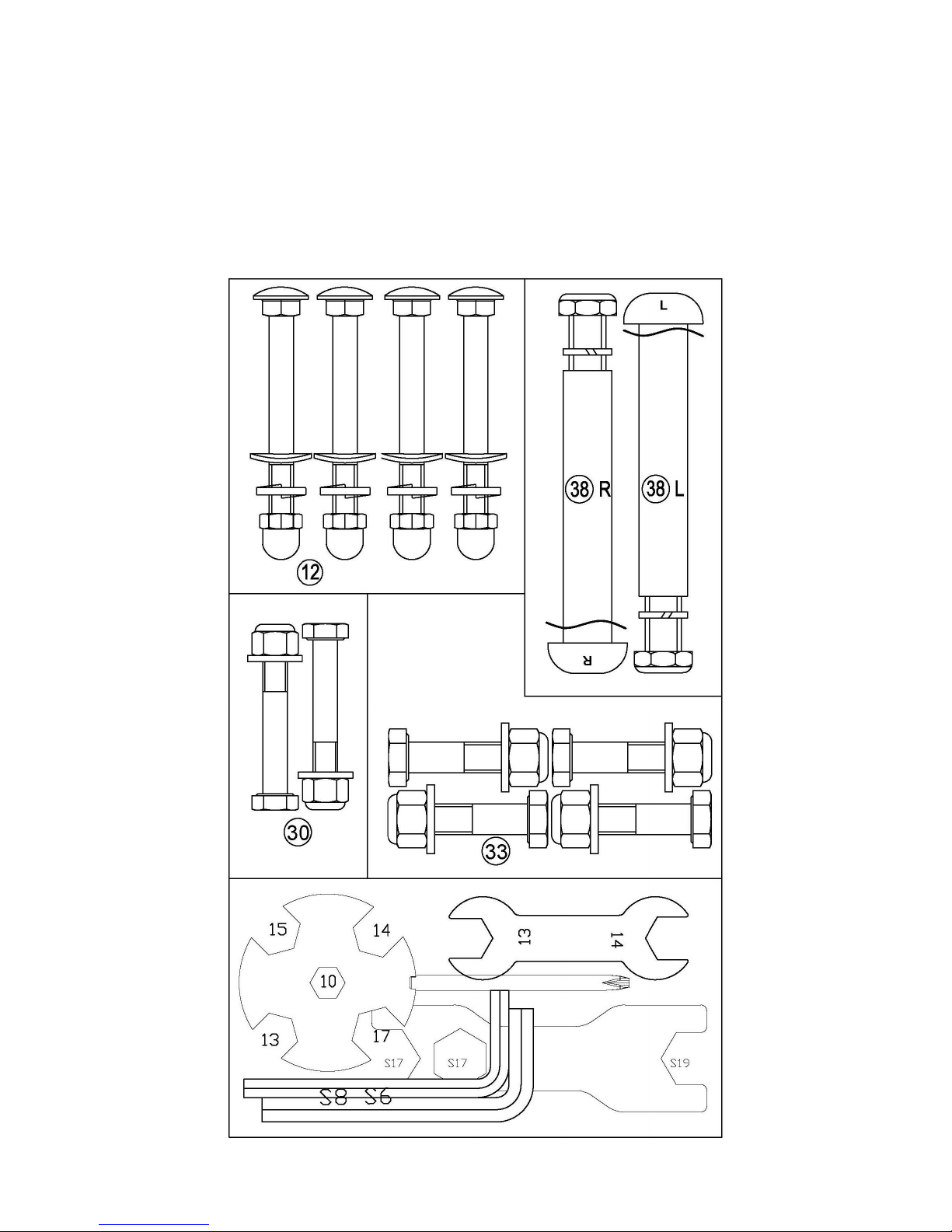

Most of the listed assembly hardware has been packaged separately, but some hardware items
have been preinstalled in the identified assembly parts. In these instances, simply remove and
reinstall the hardware as assembly is required.
Please reference the individual assembly steps and make note of all preinstalled hardware.

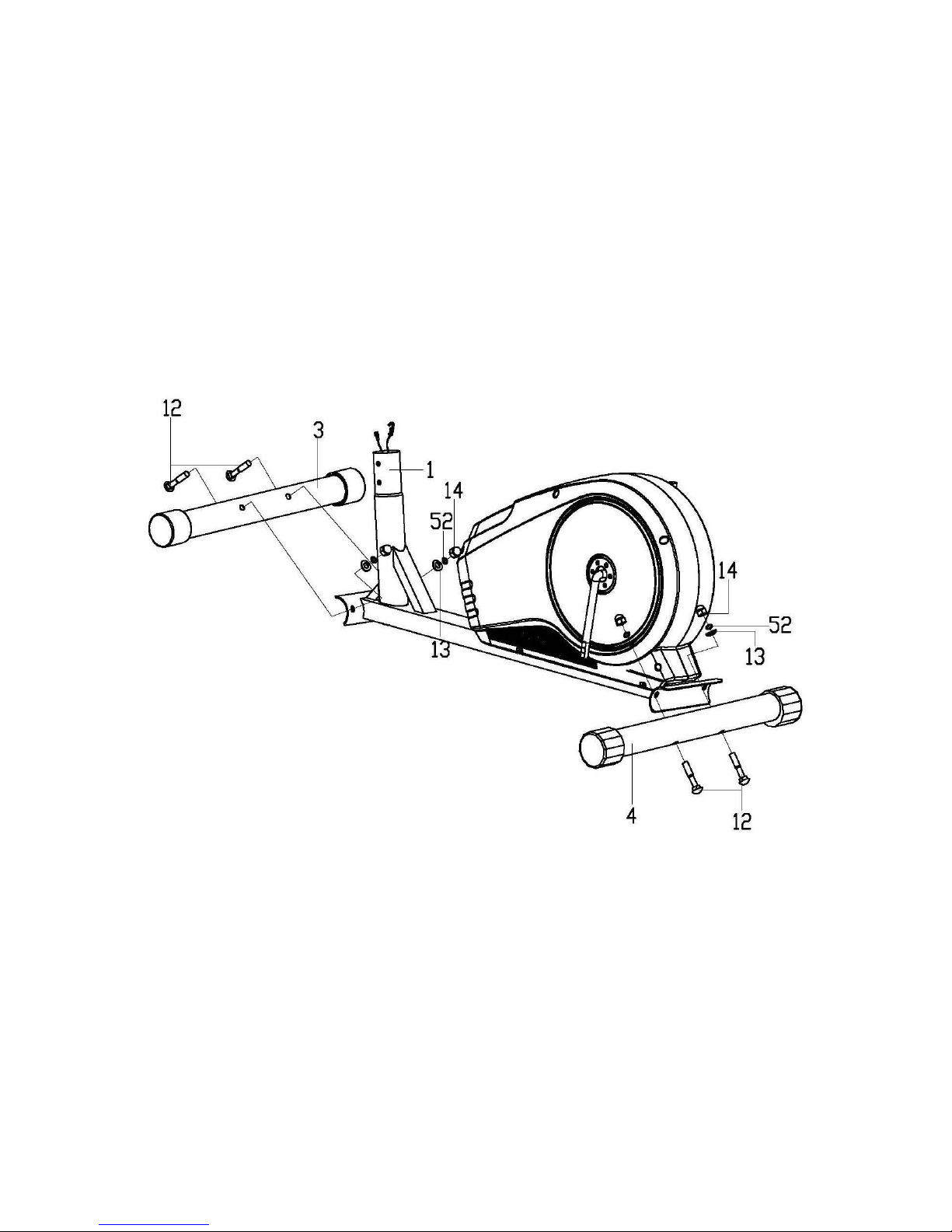

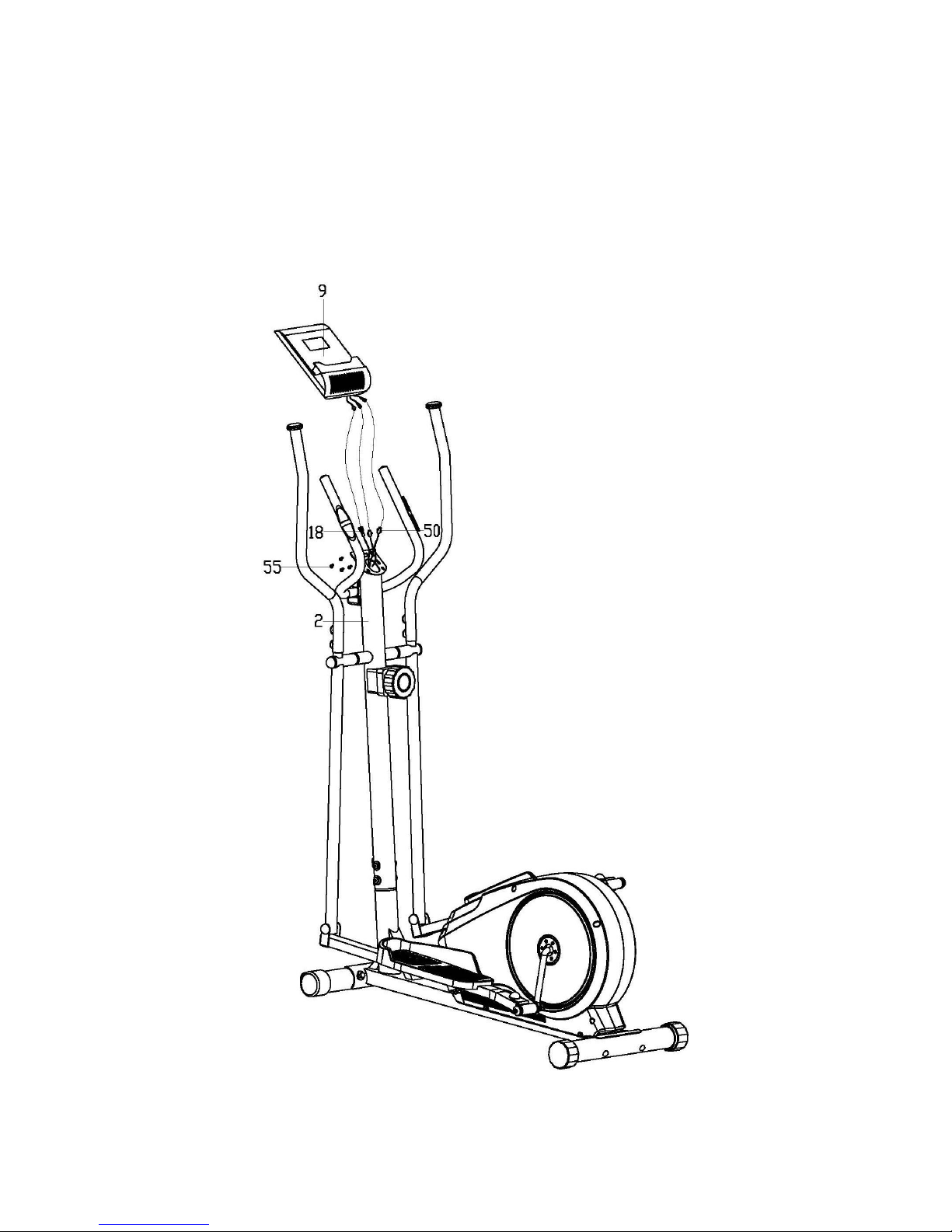

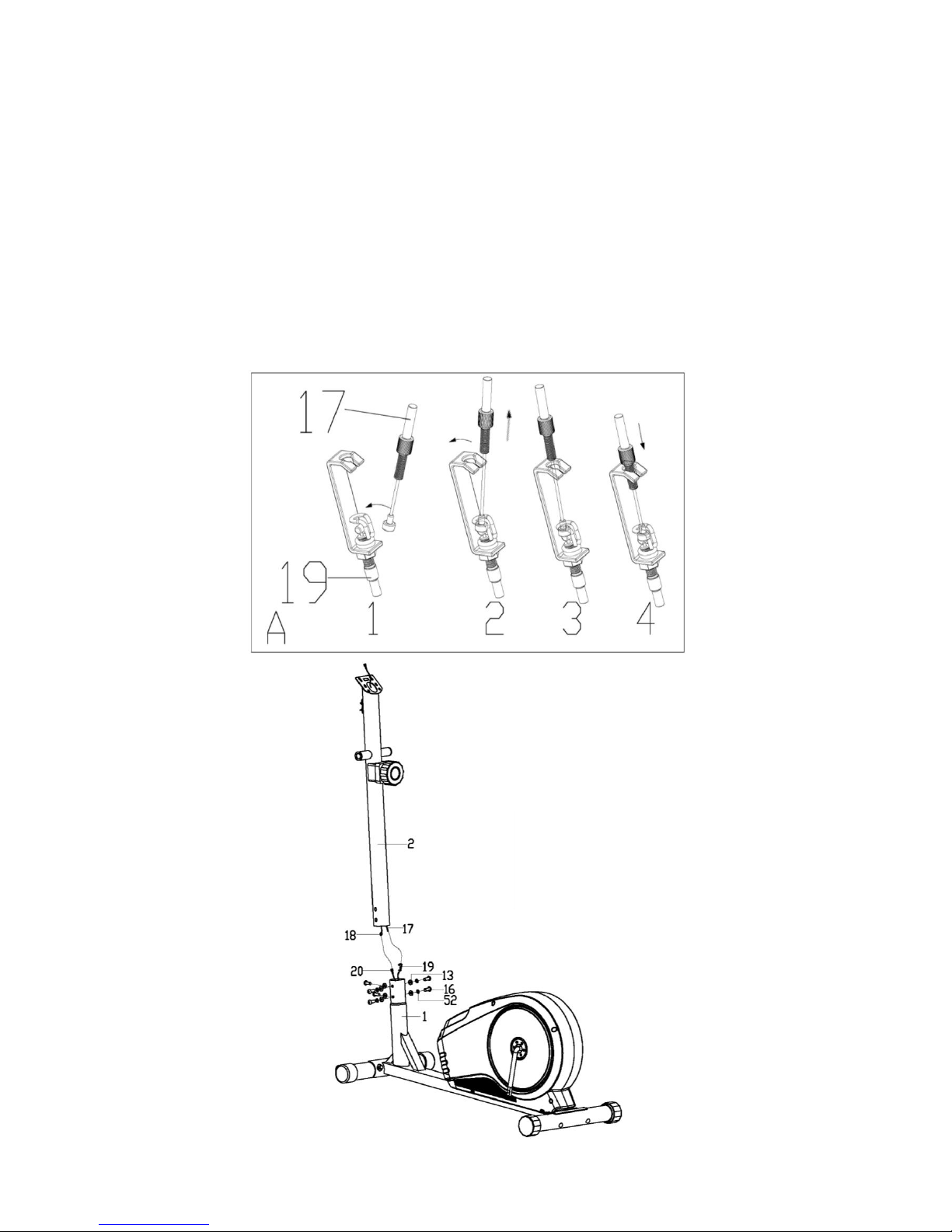

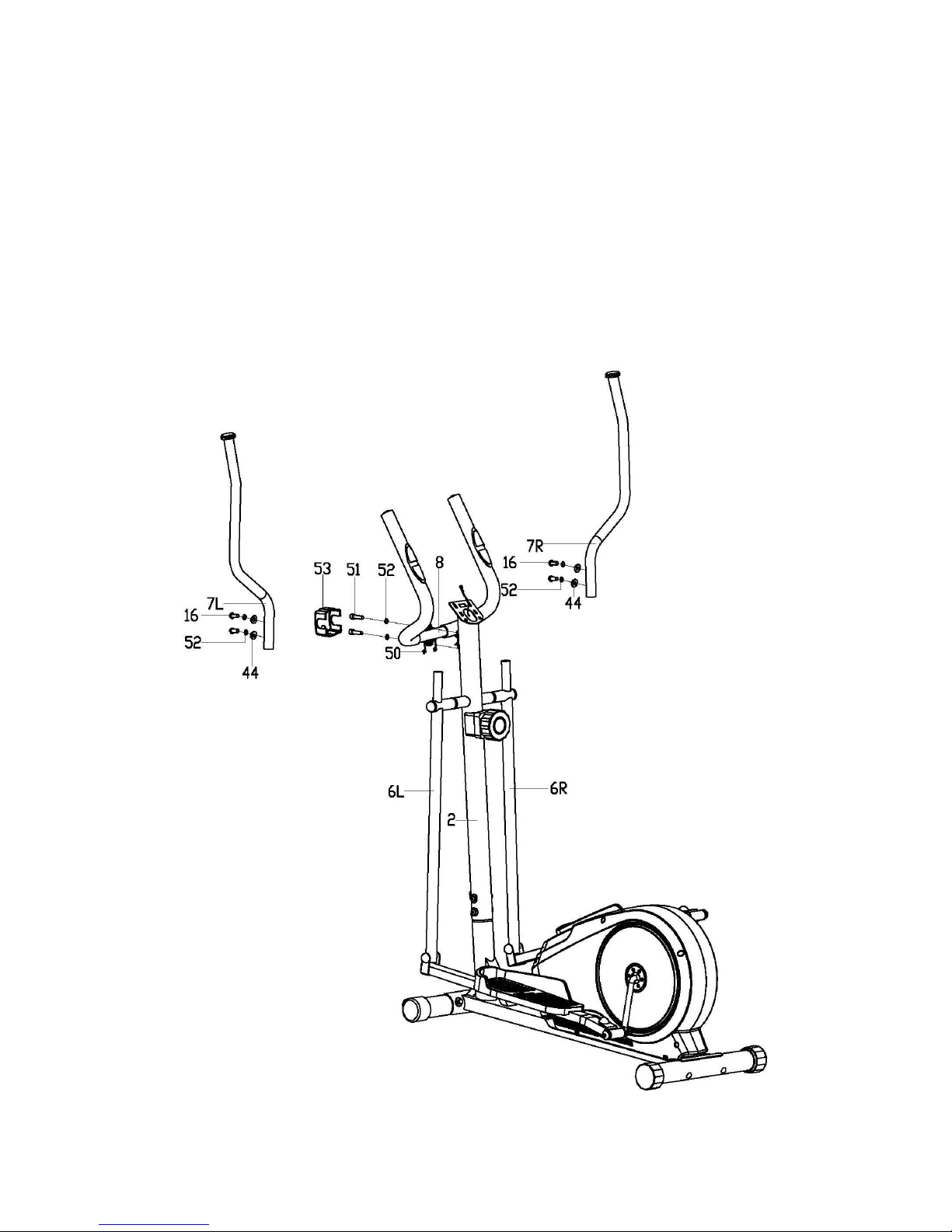

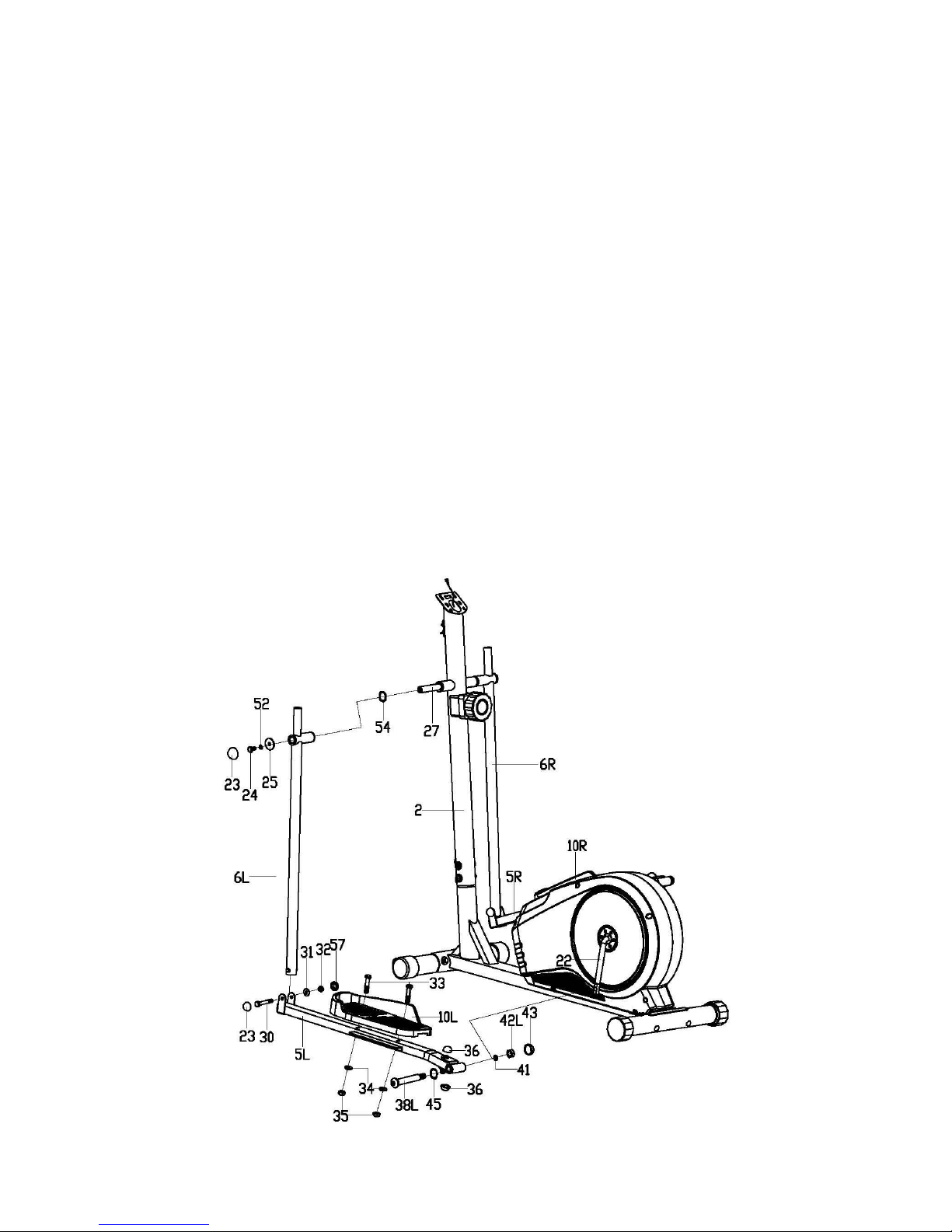

PREPARATION: Before assembling, make sure that you will have enough space
around the item; Use the present tooling for assembling; Before assembling please
check whether all needed parts are available.

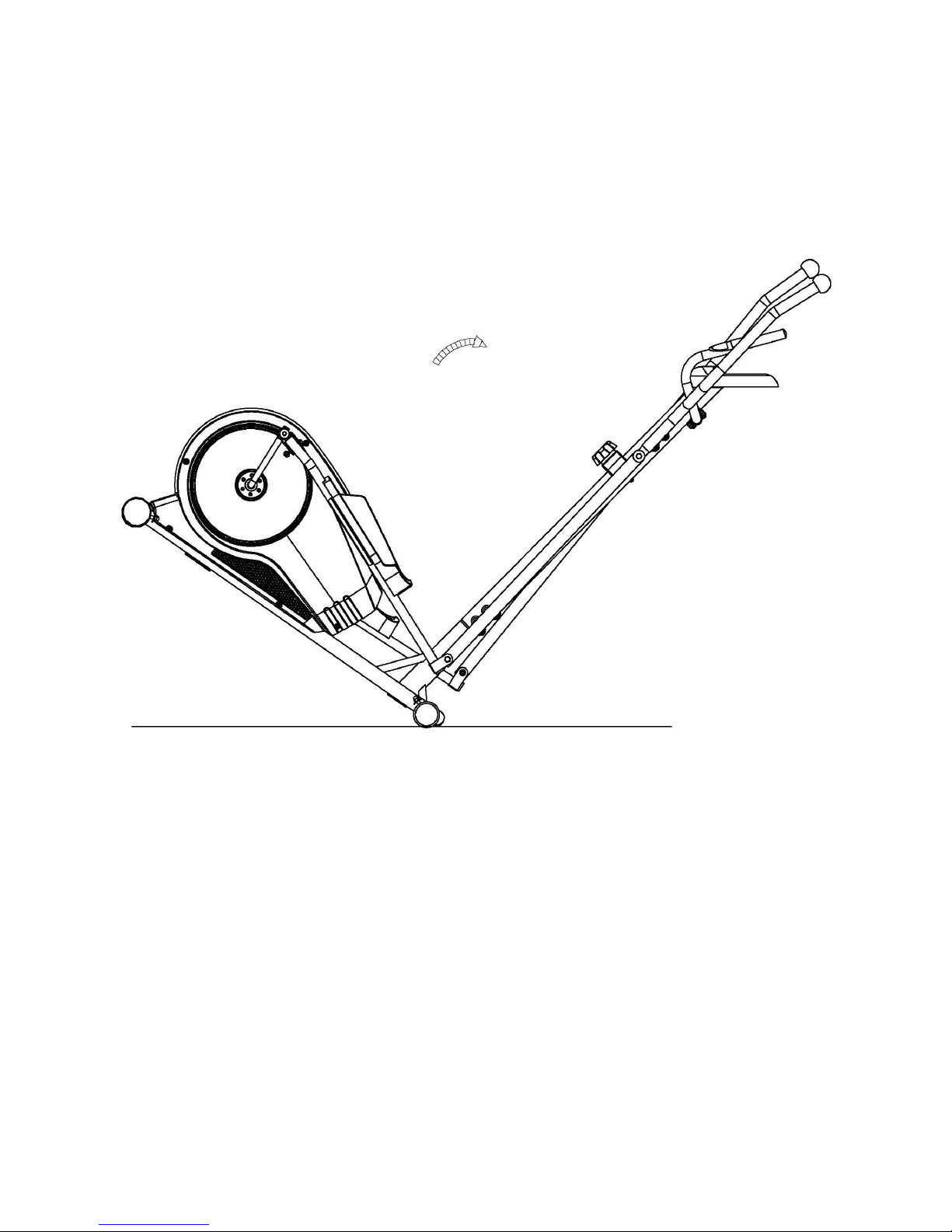

3
