Efitment B004 User Manual
B004 CONVERTIBLE WORKS
UPRIGHT BIKE
USER MANUAL
IMPORTANT! Read all instructions carefully before using this product. Save this user
manual for future reference. For customer service, contact: service@efitment.com
IMPORTANT SAFETY NOTICE
Note the following precautions before assembling and using the machine.
1. Assemble the machine exactly as described in the instruction manual.
2. Check all the bolts, nuts and other connections before using the machine for the first time
to ensure the machine is in the safe condition.
3. Set up the machine in a dry level place and keep it away from moisture and water.
4. Place a suitable base (e.g. rubber mat, wooden board etc.) beneath the machine in the
assembly area to avoid dirt.
5. Before beginning exercise, remove all objects within a radius of 4 feet from the machine.
6. Only use the supplied tools or suitable tools of your own to assemble or repair the achine.
7. Your health can be affected by incorrect or excessive exercise. Consult a doctor before
beginning your exercise program. This machine is not suitable for therapeutic purpose.
8. Only use the elliptical when it is working correctly. Use only original spare parts for any
necessary repairs.
9. This machine can be used by one person at a time.
10. Wear clothes and shoes that are suitable for fitness training with the machine. Do not
wear clothing that could get tangled in the machine.
11. If you have a feeling of dizziness, sickness or other abnormal symptoms, please stop
training and consult a doctor immediately.
12. This elliptical is intended for adult use only. Keep children away from the elliptical.
13. Do not put fingers or objects in the moving parts of the machine.
14. Remove drops of sweat from the machine immediately after finishing training.Do not use
aggressive cleaning articles to clean the machine.
15. Maximum user’s weight is 220 LBS.
CAUTION: Your bike was not designed for reverse pedaling. Reverse pedaling will damage
the bike.
WARNING: This product can expose you to one or more chemicals known to the
State of California to cause cancer and birth defects or reproductive harm. For
more information go to www.P65Warnings.ca.gov.
1
EXPLODED DIAGRAM
2
PARTS LIST
NO.
DESCRIPTION
Q’TY
NO.
DESCRIPTION
Q’TY
1
Main frame
1
23
Cross pan head screw
4
2
Front Stabilizer
1
24
Bottle holder
1
3
Rear Stabilizer
1
25
Handlebar
1
4
Rear End Cap
2
26
Computer
1
5
Carriage bolt M8×L74
4
27
Square End Cap
2
6
Arc WasherФ8.5x1.5xФ25xR33.5
8
28
Saddle Post
1
7
Acorn nut M8
4
29
Knob
1
8
Crank
1
30
U-shaped Slider
1
9L/R
Pedal
1pr.
31
Flat Washer D10
1
10
Front End Cap
2
32
Nut
1
11
Sensor wire
1
33
Saddle
1
12
Tension Cable
1
34
Horizontal Saddle Post
1
13
Extension Wire
1
35
Flat washer D8
3
14
Inner hex bolt M8×16
4
36
Nylon nut M8
3
15
Saddle bushing
1
37
Flat washer
1
16
Cross pan head screw
1
38
Cross pan head screw
2
17
Handlebar Post
1
39
Knob
1
18
Arc Washer
1
40
Computer bracket
1
19
Tension controller
1
41
Fixing bracket
2
20
Desk 1 42
Clamping sheet
2
21
Foam grip
2
43
Spacer
1
22
Round end cap
2

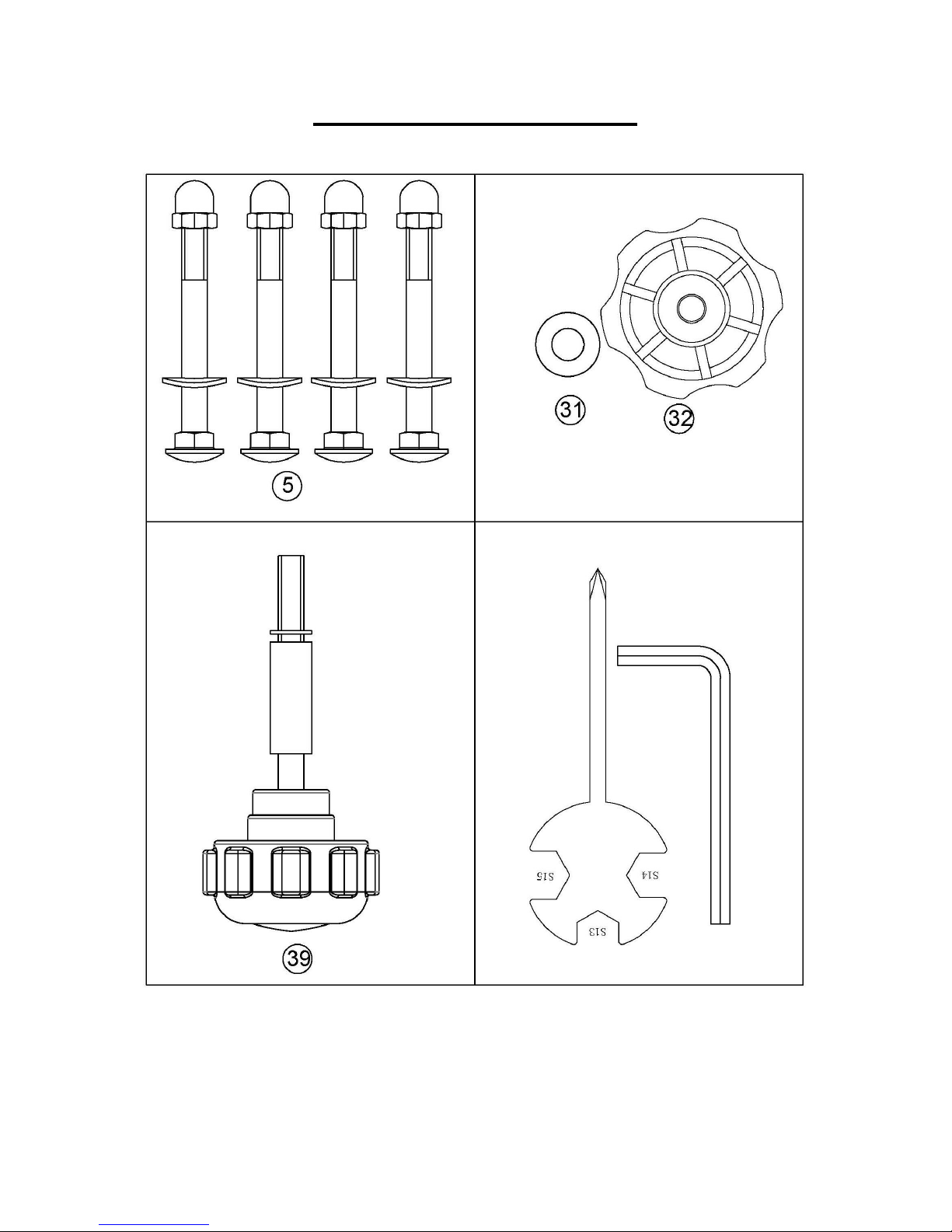

NOTE:
Most of the listed assembly hardware has been packaged separately, but some hardware items
have been preinstalled.
Please reference the individual assembly steps and make note of all preinstalled hardware.
Siimply remove and reinstall the hardware as assembly is required.

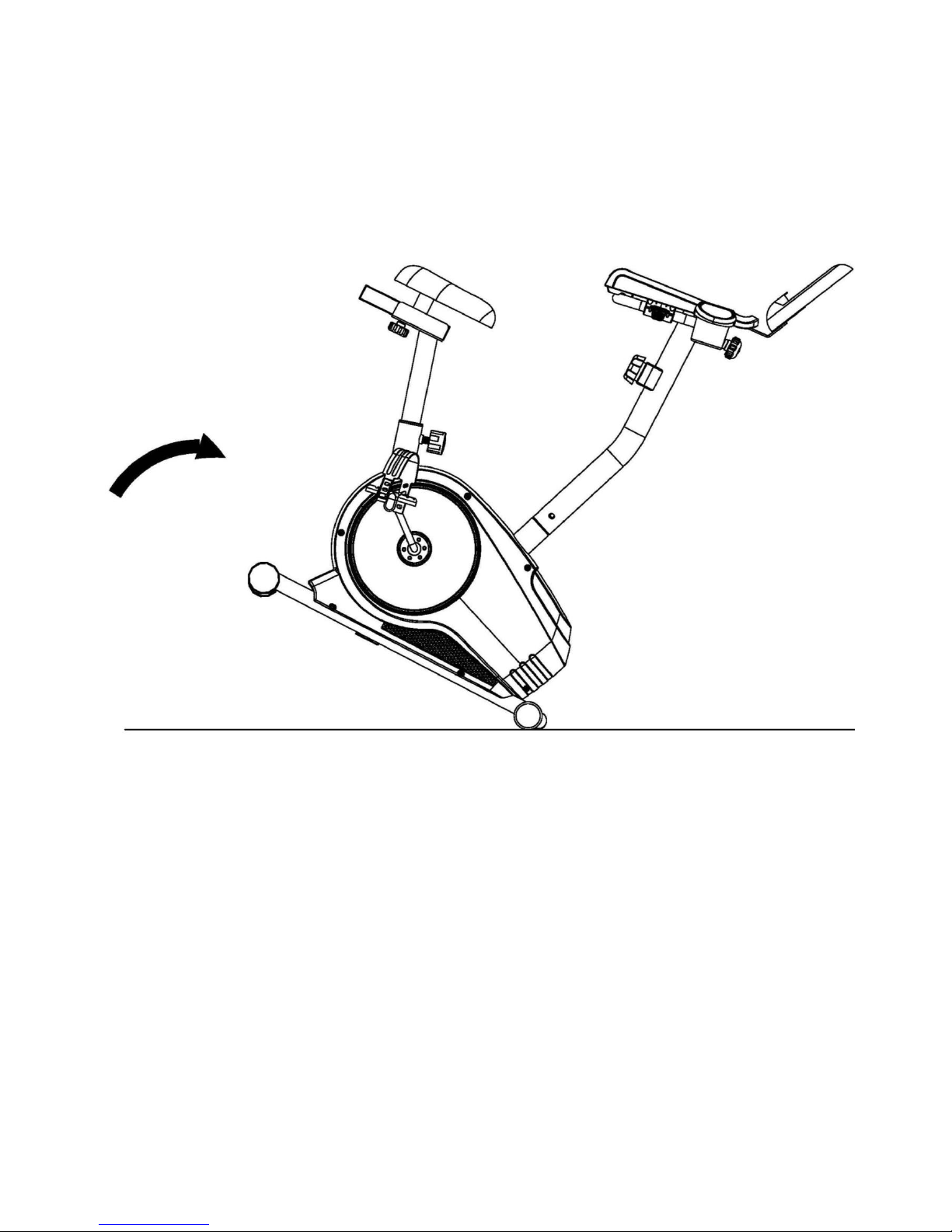

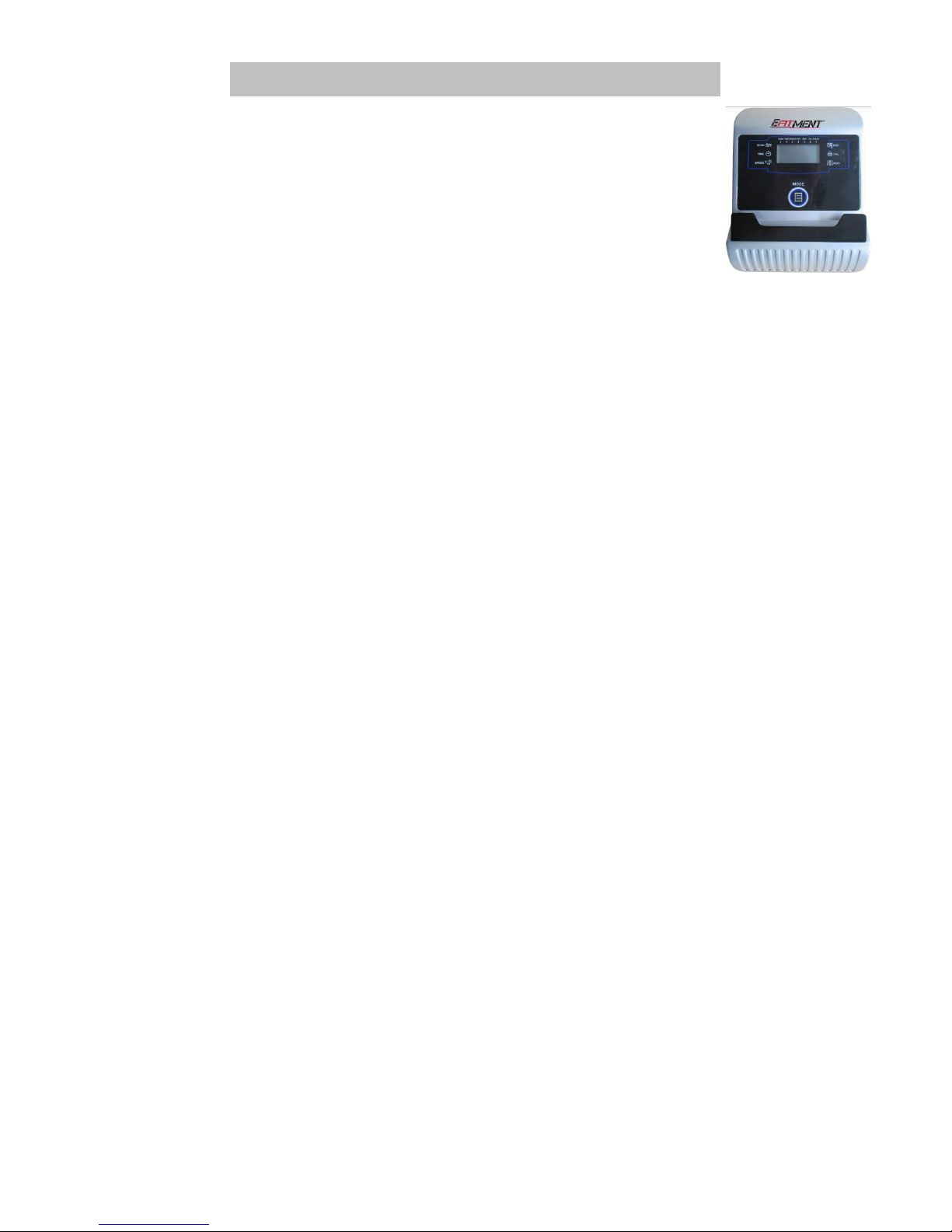

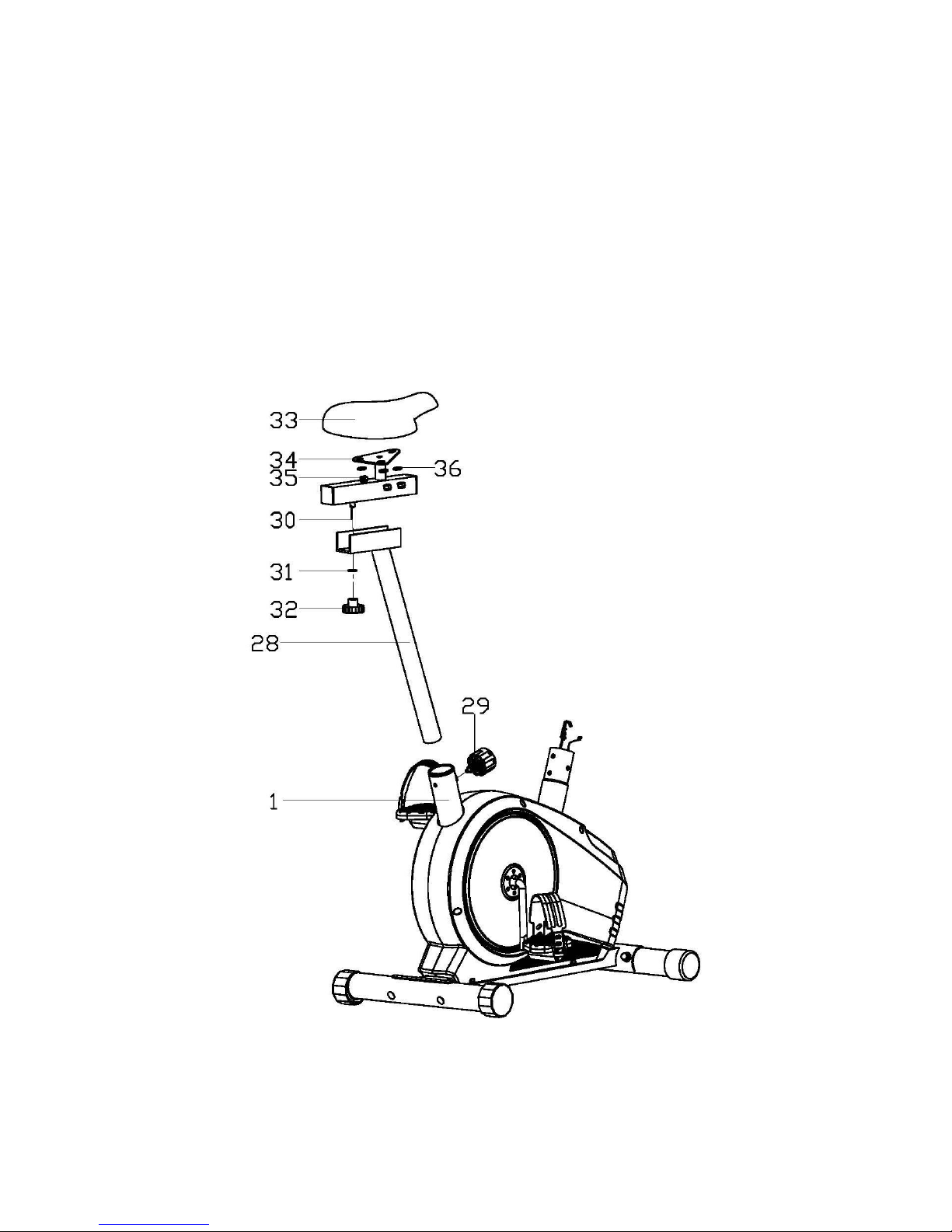

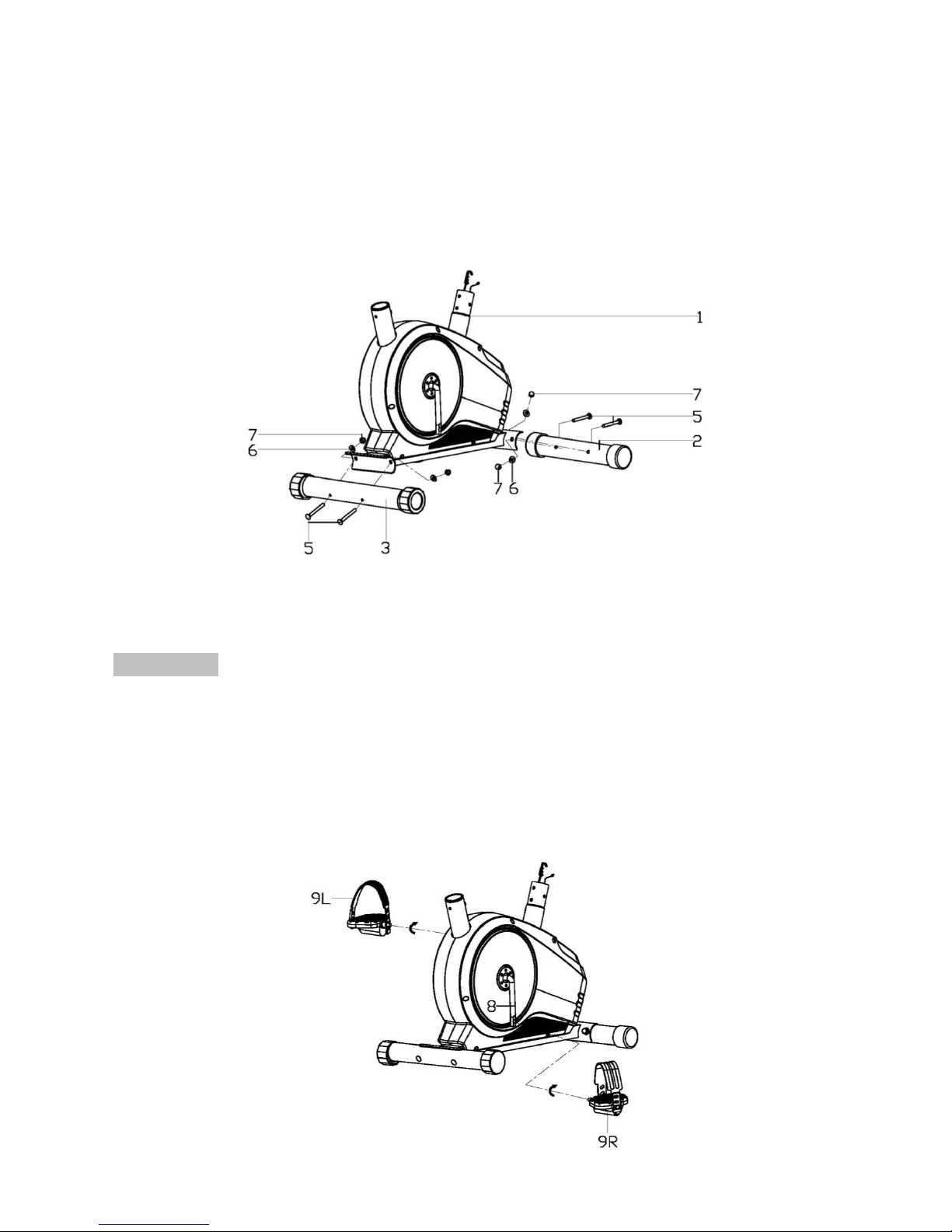

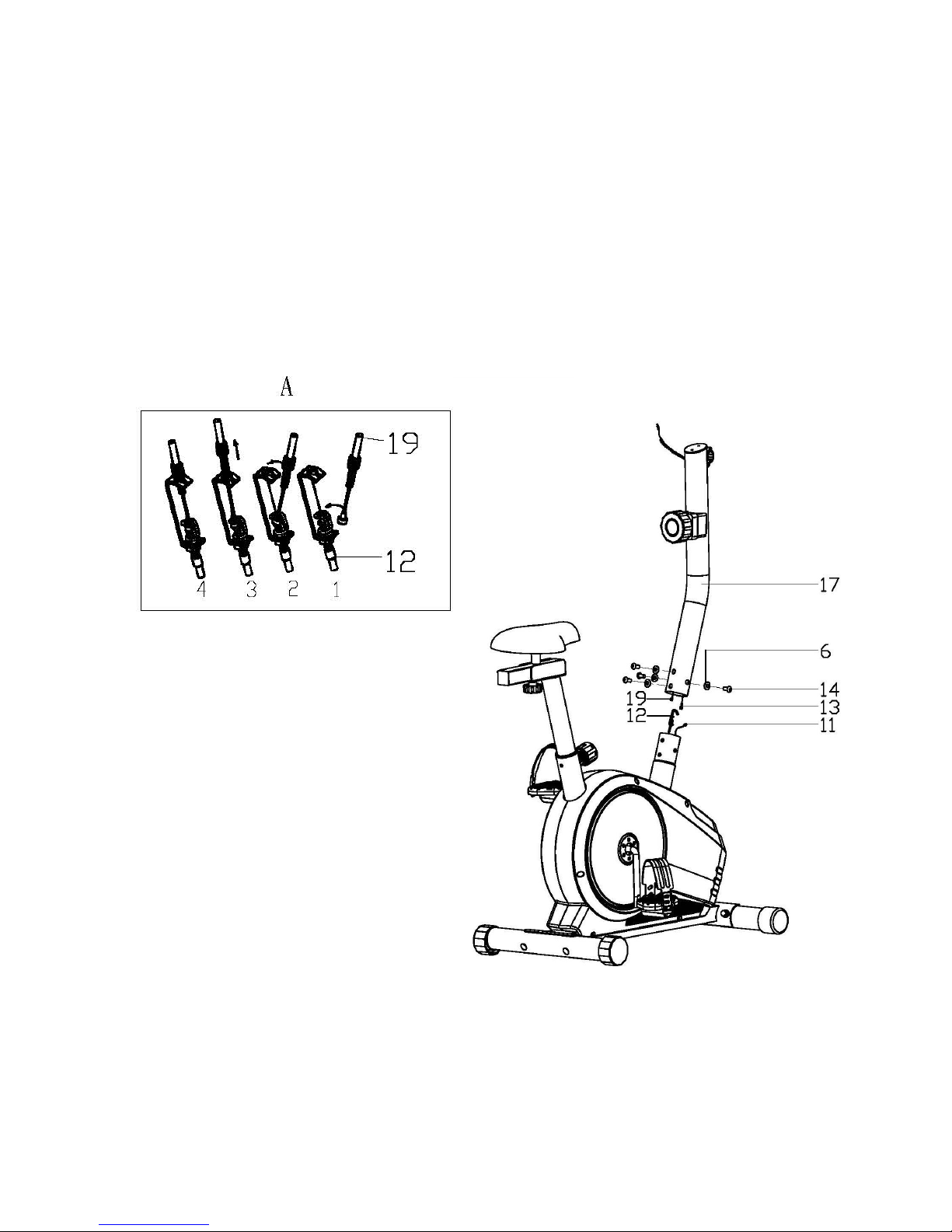

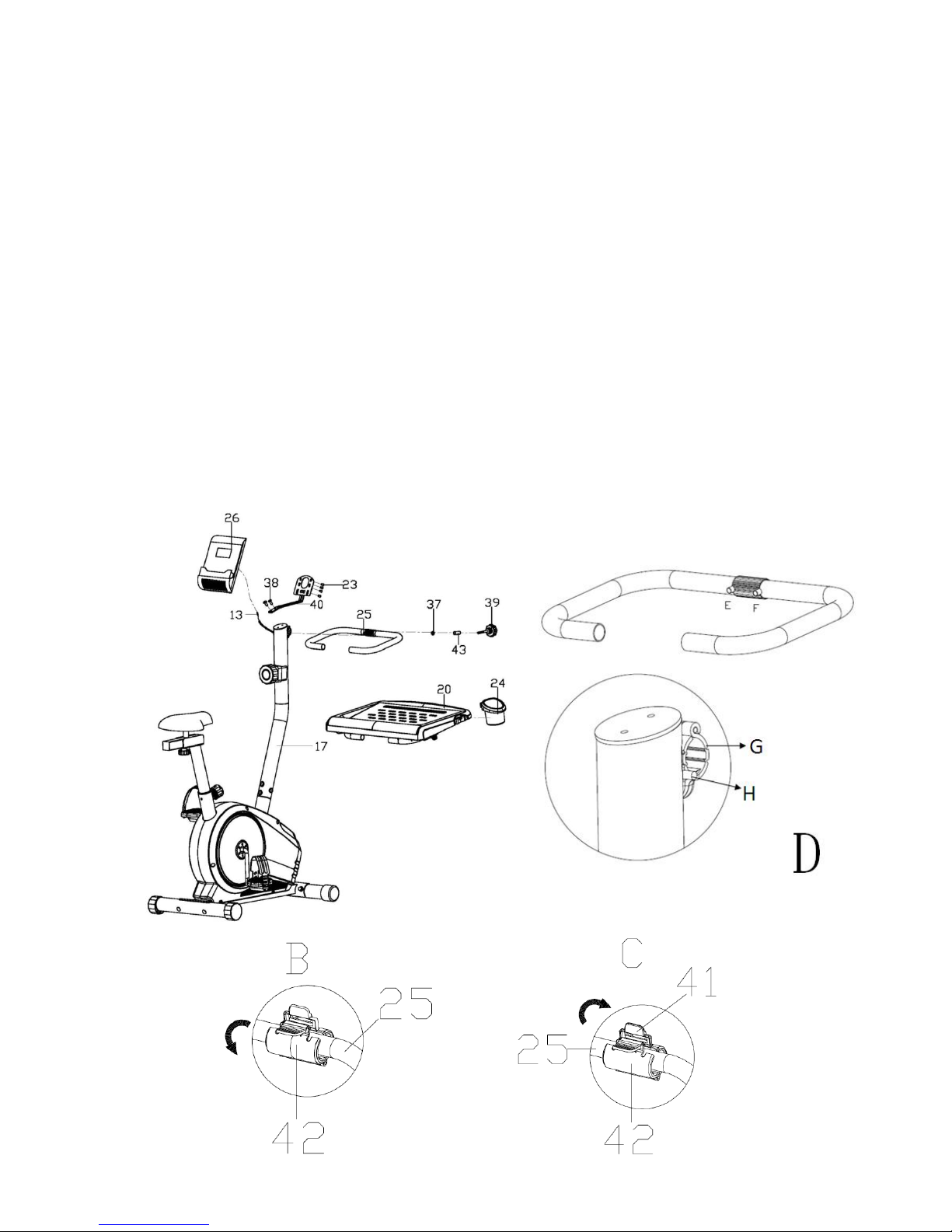

PREPARATION: Before assembling, make sure that you will have enough space
around the item and check that you have all parts.
It is strongly recommended this machine to be assembled by two or more people to
avoid possible injury.
3
