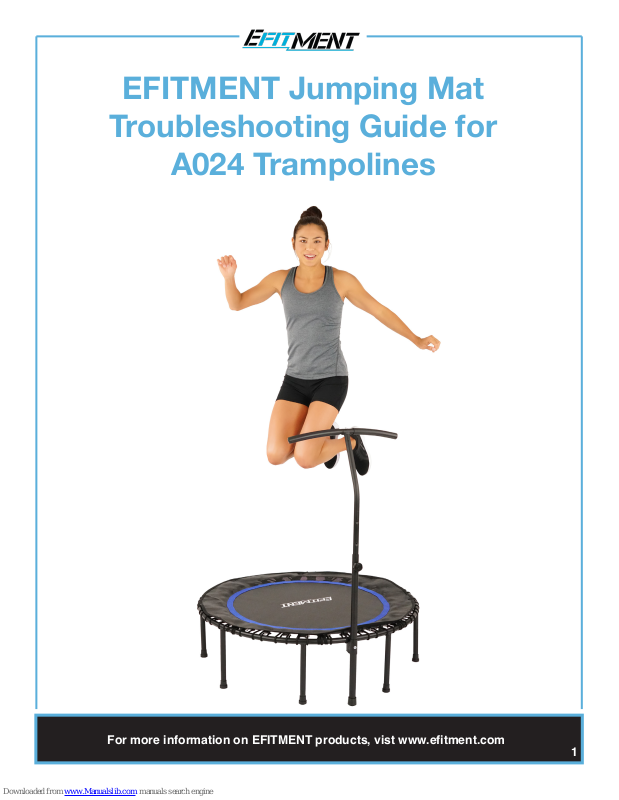

Efitment A024 Troubleshooting Manual

EFITMENT Jumping Mat

Troubleshooting Guide for

A024 Trampolines

For more information on EFITMENT products, vist www.etment.com

1

EFITMENT A024

Trampoline Rebounder

Thank you for selecting the A024 Trampoline Rebounder by EFITMENT. As a distrib-

utor and importor of health and tness products, we are committed to provide you

complete customer satisfaction. We have designed this troubleshooting manual to

guide you through the process of attaching the jumping mat onto the EFitment A024

Trampoline Rebounder.

You will not need any tools to install the jumping mat on the trampoline. For addition-

al assistance, email service@etment.com.

Figure 1

First: Set the jumping mat in the

middle of the A024 trampoline
frame. The EFITMENT logo on
the jumping mat should face up­right as seen in Figure 1.

Second: Using the jumping mat,
connect four of the security rope
ties to form a cross shape around
the trampoline’s steel rim as pic­tured in Figure 2. Each rope
should have one end connect­ed to a plastic hook.Individually

tug the four security ropes rmly.

Once stretched, wrap the rope

Figure 2

around the steel frame and attach
it to the plastic hook.

For more information on EFITMENT products, vist www.etment.com

2

Third: After the cross shape has been
formed with the jumping mat, secure
the remaining 29 security ropes to the
steel from of the trampoline. Tug each

security toper rmly before attaching it

to the plastic hook. Leave at least two
inch of space between each segment of
wrapped security rope as seen in Fig-

ure 3 and Figure 4.

Figure 4

Fourth: After you have in-

stalled the 32 security ropes
to the steel frame, pull the
elastic straps at the bottom
of the jumping mat, and
attach them to the plastic
hooks that are located un­derneath the mat. After you
attach the elastic straps, the
jumping mat is installed. See

Figure 6.

Figure 3

Figure 4

Figure 5

For more information on EFITMENT products, vist www.etment.com

3
