Efficient Networks SpeedStream 5667 User Manual

SpeedStream

Dual USB/Ethernet Router

â

with SecureRoute

Model: SpeedStream 5667

User’s Guide



Part No. 007-0141-002

SpeedStream Dual USB/Ethernet Router User’s Guide

2

Model 5667

 Copyright2001, Efficient Networks,Inc.

All rights reserved.Printed in the U.S.A.

Product names mentioned herein may be trademarks and/or registered trademarks of their respective companies. Efficient Networks, Inc. shall not be liable for
technical or editorial errors or omissions in this documen t; nor for incidental or consequential damages resulting from the furnishing, performance, or use of this
material.

EfficientNetworks,Inc. – End User SoftwareLicense and LimitedWarranty

INSTALLATION OF THE HARDWARE AND SOFTWARE PROVIDED BY EFFICIENT NETWORKS, INC. (“EFFICIENT”) CONSTITUTES ACCEPTANCE
BY YOU OF THE TERMS OF THE FOLLOWING SOFTWARE LICENSE AND LIMITED WARRANTY. IF YOU DO NOT ACCEPT THESE TERMS,
PLEASE RETURN THE HARDWARE AND SOFTWARE IN ITS ORIGINAL PACKAGING TO THE STORE OR OTHER VENDOR FROM WHICH YOU
PURCHASED IT FOR A FULL REFUND OF THE PURCHASE PRICE.

The following describes your license to use the software (the “Software”) that has been provided with your EFFICIENT DSL customer premises equipment
(“Hardware”) and the limited warrantythat EFFICIENT provides on its Software and Hardware.

SoftwareLicense

The Software is protected by copyright laws and international copyright treaties. The Software is licensed and not sold to you. Accordingly, while you own the media
(CD ROM or floppy disk) on which the Software is recorded, EFFICIENT retains ownership of the Software itself.

1. GrantofLicense. You may install and use one (and only one) copy of the Software on the computer on which the Hardware is being installed. If the Hardware is
being installed on a network, you may install the Software on the network server or other server-side device on which the Hardware is being installed and onto the
client-side devices connected to the network as necessary.

2. Restrictions.The license grantedis a limited license. You mayNOT:

sublicense,assign,or distribute copies of the Software to others;
decompile, reverse engineer, disassemble or otherwise reduce the Software or any part thereof to a human perceivable form;
modify, adapt, translate or create derivative works based upon the Software or any part thereof; or
rent, lease, loan or otherwise operate for profit the Software.

3. Transfer. You may transfer the Software only where you are also transferring the Hardware. In such cases, you must remove all copies of the Software from any
devices onto which you have installed it, and must ensure that the party to whom youtransfer the Hardware receives this License Agreement and Limited Warranty.

4. Upgrades Covered. This license covers the Software originally provided to you with the Hardware, and any additional software that you may receive from
EFFICIENT, whether delivered via tangible media (CD ROM or floppy disk), down loaded from EFFICIENT or delivered through customer support. Any such
additional software shall be considered “Software” for all purposes under this License.

5. Export Law Assurance. You acknowledge that the Software may be subject to export control laws and regulations of the U.S.A. You confirm that you will not
export or re-export the Software to any countries that are subject to export restrictions.

6. No Other Rights Granted. Other than the limited license expressly granted herein, no license, whether express or implied, by estoppel or otherwise, is granted to
any copyright, patent, trademark, trade secret, or other proprietary rights of EFFICIENT.

7. Termination. Without limiting EFFICIENT’s other rights, EFFICIENT may terminate this license if you fail to comply with any of these provisions. Upon
termination, you must destroy the Software and all copies thereof.

Limited Warranty

The following limited warranties provided by EFFICIENT extend to the original end user of the Hardware/licensee of the Software and are not assignableor
transferable to any subsequent purchaser/licensee.

1. Hardware. EFFICIENT warrants that the Hardware will be free from defects in materials and workmanship and will perform substantially in compliance with the
user documentation relating to the Hardware for a period of one year from the date the original end user received the Hardware.

2. Software. EFFICIENT warrants that the Software will perform substantially in compliance with the end user documentation provided with the Hardware and
Software for a period of ninety days from the date the original end user received the Hardware and Software. The end user is responsible for the selection of hardware
and software used in the end user’s systems. Given the wide range of third-party hardware and applications, EFFICIENT does not warrant the compatibility or
uninterrupted or error free operation of our Software with the end user’s system.

3. Exclusive Remedy. Your exclusive remedy and EFFICIENT’s exclusive obligation for breach of this limited warranty is, in EFFICIENT’s sole option, either (a) a
refund of the purchase price paid for the Hardware/Software or (b) repair or replacement of the Hardware/Software with new or remanufactured products. Any
replacement Hardware or Software will be warranted for the remainder of the original warrantyperiod or thirty (30) days, which ever is longer.

4. Warranty Procedures. If a problem develops during the limited warrantyperiod,the end user shallfollow the procedure outlined below:
A. Prior to returning a product under this warranty, the end user must first call EFFICIENT at [phone], or send an email to EFFICIENT at

[e-mail] to obtain a return materials authorization (RMA) number. RMAs are issued between 8:00 a.m. and 5:00 p.m. Central Time, excluding
weekends and holidays. The end user must provide the serial number(s) of the products in order to obtain an RMA.

B. After receiving an RMA, the end user shall ship the product, including power supplies and cable, where applicable, freight or postage prepaid and insured, to
EFFICIENT at 4849 Alpha Road, Dallas Texas 75244, U.S.A. Within five (5) days notice from EFFICIENT, the end user shall provide EFFICIENT with any missing
items or, at EFFICIENT’s sole option, EFFICIENT will either (a) replace missing items and charge the end user or (b) return the product to the end user freight
collect. The end user shall include a return address, daytime phone number and/or fax. The RMA number must be clearly marked on the outside of the package.

C. Returned Products will be tested upon receipt by EFFICIENT. Products that pass all functional tests will be returned to the end user.
D. EFFICIENT will return the repaired or replacement Product to the end user at the address provided by the end user at EFFICIENT Network’s expense. For

Products shipped within the United States of America, EFFICIENT will use reasonable efforts to ensure delivery within five (5) business days from the date received
by EFFICIENT. Expedited service is available at additional cost to the end user.

E. Upon request from EFFICIENT, the end user must prove the date of the original purchase of the product by a dated bill of sale or dated itemized receipt.

5.Limitations.

The end user shall have no coverage or benefits under this limited warranty if the product has been subject to abnormal use, abnormal conditions, improper storage,
exposure to moisture or dampness, unauthorized modifications, unauthorized repair, misuse, neglect, abuse, accident, alteration, improper installation, or other acts
which are not the fault of EFFICIENT, including acts of nature and damage caused by shipping.

SpeedStream Dual USB/Ethernet Router User’s Guide

3

Model 5667

EFFICIENT will not honor, and will consider the warranty voided, if: (1) the seal or serial number on the Product have been tampered with; (2) the Product’s case has
been opened; or (3) there has been any attempted or actual repair or modification of the Product by anyone other than an EFFICIENT authorized service provider.

The limited warranty does not cover defects in appearance, cosmetic, decorative or structural items, including framing, and any non-operative parts.

EFFICIENT’s limit of liability under the limited warranty shall be the actual cash value of the product at the time the end user returns the product for repair,
determined by the price paid by the end user for the product less a reasonable amount for usage. EFFICIENT shall not be liable for any other losses or damages.

The end user will be billed for any parts or labor charges not covered by this limited warranty. The end user will be responsible for any expenses related to
reinstallation of the product.

THIS LIMITED WARRANTY IS THE ONLY WARRANTY EFFICIENT MAKES FOR THE PRODUCT AND SOFTWARE. TO THE EXTENT ALLOWED BY
LAW, NO OTHER WARRANTY APPLIES, WHETHER EXPRESS, IMPLIED OR STATUTORY, INCLUDING ANY WARRANTY OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE.

6.OutofWarrantyRepair. Out of warranty repair is available for fixed fee. Please contact EFFICIENT at the numbers provided above to determine the current out
of warranty repair rate. End users seeking out of warranty repair should contact EFFICIENT as described above to obtain an RMA and to arrange for paymentofthe
repaircharge. All shippingcharges will be billed to the end user.

General Provisions

The following general provisions apply to the foregoing Software License and Limited Warranty:

1. No Modification. The foregoing limited warranty is the end user’s sole and exclusive remedy and is in lieu of all other warranties, express or implied. No oral or
written information or advice given by EFFICIENT or its dealers, distributors, employees or agents shall in any way extend, modify or add to the foregoing Software
License and Limited Warranty. This Software License and Limited Warranty constitutes the entire agreement between EFFICIENT and the end user, and supersedes
all prior and contemporaneous representation, agreements or understandings, oral or written. This Software License and Limited Warranty may not be changed or
amendedexcept by a written instrumentexecuted bya duly authorized officer of EFFICIENT.

EFFICIENT neither assumes nor authorizes any author ized service center or any other person or entity to assume for it any other obligation or liabilitybeyondthat
which is expressly provided for in this limited warranty including the provider or seller of anyextended warranty or service agreement.

The limited warranty period for EFFICIENT supplied attachments and accessories is specifically defined within their own warranty cards and packaging.

2. EXCLUSION OF INCIDENTAL, CONSEQUENTIAL AND CERTAIN OTHER DAMAGES. TO THE FULL EXTENT PERMITTED BY LAW, IN NO
EVENT SHALL EFFICIENT BE LIABLE, WHETHER UNDER CONTRACT, WARRANTY, TORT OR ANY OTHER THEORY OF LAW FOR ANY SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES WHATSOEVER, INCLUDING BUT NOT LIMITED TO DAMAGES FOR LOSS OF PROFITS, BUSINESS
INTERRUPTION, PERSONAL INJURY, LOSS OR IMPAIRMENT OF DATA OR BUSINESS INFORMATION, EVEN IF EFFICIENT HAS BEEN NOTIFIED
OF THE POSSIBILITY OF SUCH DAMAGES. EFFICIENT’S LIABILITY TO YOU (IF ANY) FOR ACTUAL DIRECT DAMAGES FOR ANY CAUSE
WHATSOEVER, AND REGARDLESS OF THE FORM OF THE ACTION, WILL BE LIMITED TO, AND SHALL NOT EXCEED, THE AMOUNT PAID FOR
THE HARDWARE/SOFTWARE.

3. General. This Software License and Limited Warranty will be covered by and construed in accordance with the laws of the State of Texas, United States

(excluding conflicts of laws rules), and shall inure to the benefit of EFFICIENT and its successor, assignees and legal representatives. If any provision of this Software
License and Limited Warranty is held by a court of competent jurisdiction to be invalid or unenforceable to any extent under applicable law, that provision will be
enforced to the maximum extent permissible, and the remaining provisions of this Software License and Limited Warranty will remain in full force and effect. Any
notices or other communications to be sent to EFFICIENT must be mailed by certified mail to the following address:

Efficient Networks, Inc.
4849 Alpha Road
Dallas, TX 75244
U.S.A.
Attn: Customer Service

SpeedStream Dual USB/Ethernet Router User’s Guide

4

Model 5667

TABLE OF CONTENTS

Introduction............................................................................................................................................6

About the SpeedStream Dual USB/Ethernet Router...............................................................................6

Features and Benefits.........................................................................................................................6

Applications .......................................................................................................................................7

General SafetyGuidelines ...................................................................................................................... 7

Installing the Router............................................................................................................................... 8

Package Contents ...................................................................................................................................8

Minimum SystemRequirements.............................................................................................................9

HardwareDescription.............................................................................................................................9

Hardware Features..........................................................................................................................10

LED Indicators ................................................................................................................................10

HardwareInstallation...........................................................................................................................10

Before Starting...............................................................................................................................10

Basic InstallationProcedure............................................................................................................11

InstallingLine Filters.....................................................................................................................11

Connectingthe Cables....................................................................................................................12

Configuring Network Settings..............................................................................................................15

Windows 95/98/ME.......................................................................................................................15

Windows NT 4.0............................................................................................................................... 17

Windows 2000.................................................................................................................................. 18

Windows XP..................................................................................................................................... 20

Configuring the Router.........................................................................................................................22

Navigating the Web Interface...............................................................................................................22

Accessing the Web Interface............................................................................................................24

Recording System Settings ..............................................................................................................25

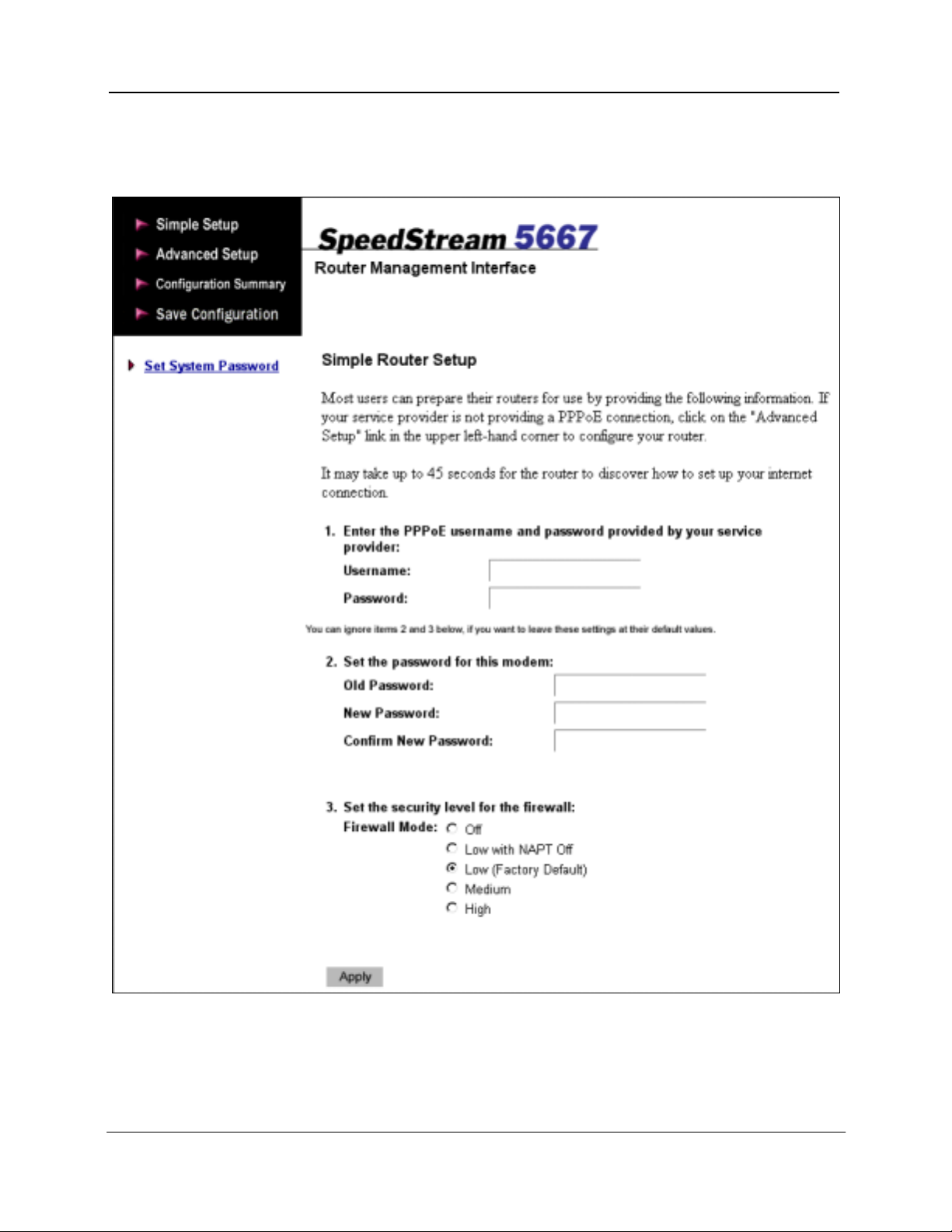

SimpleSetup.........................................................................................................................................26

Advanced Setup .................................................................................................................................... 28

Status and Statistics.........................................................................................................................29

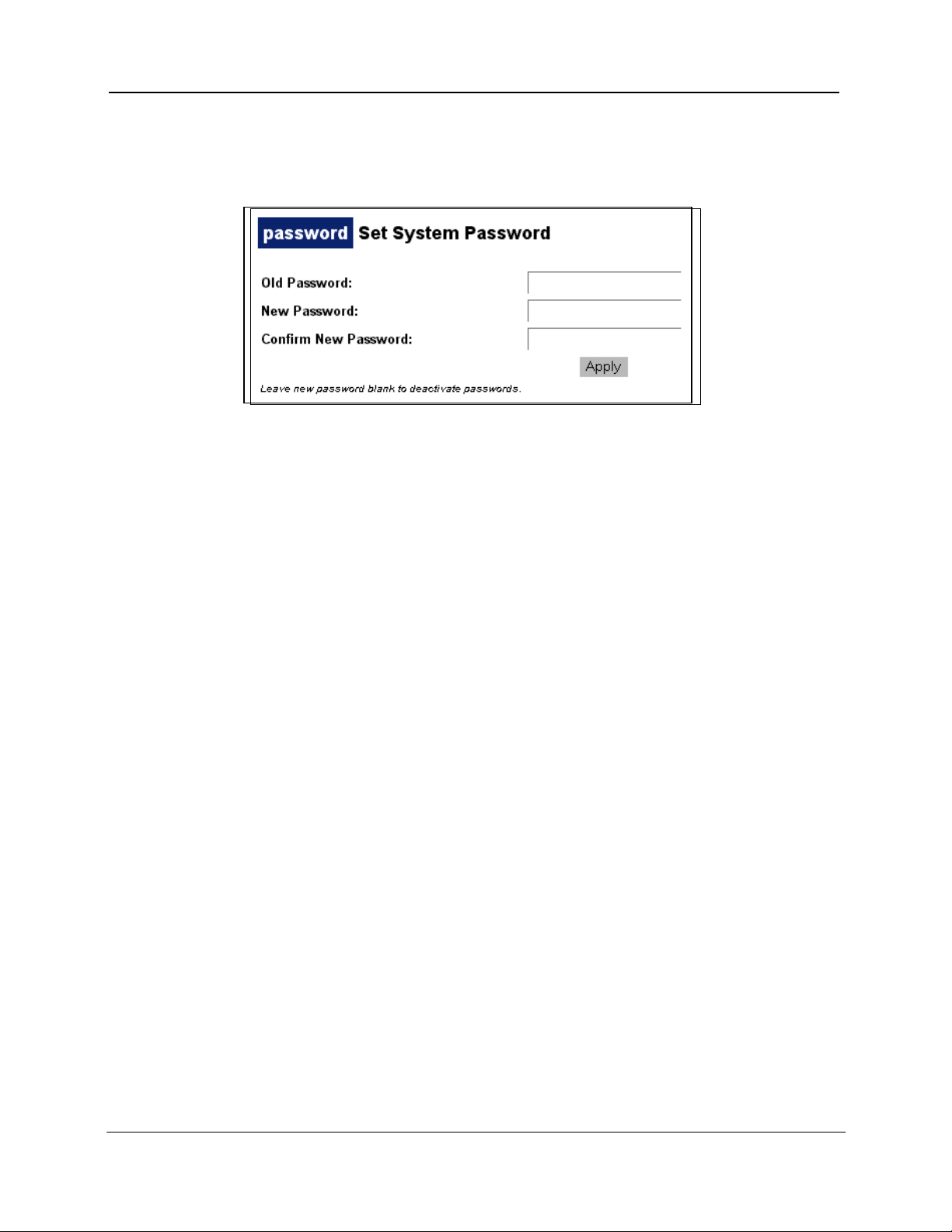

SystemPassword.............................................................................................................................. 30

Configuration Procedures ...............................................................................................................30

WAN Virtual Connection...............................................................................................................31

LAN Configuration........................................................................................................................35

DHCP Configuration......................................................................................................................36

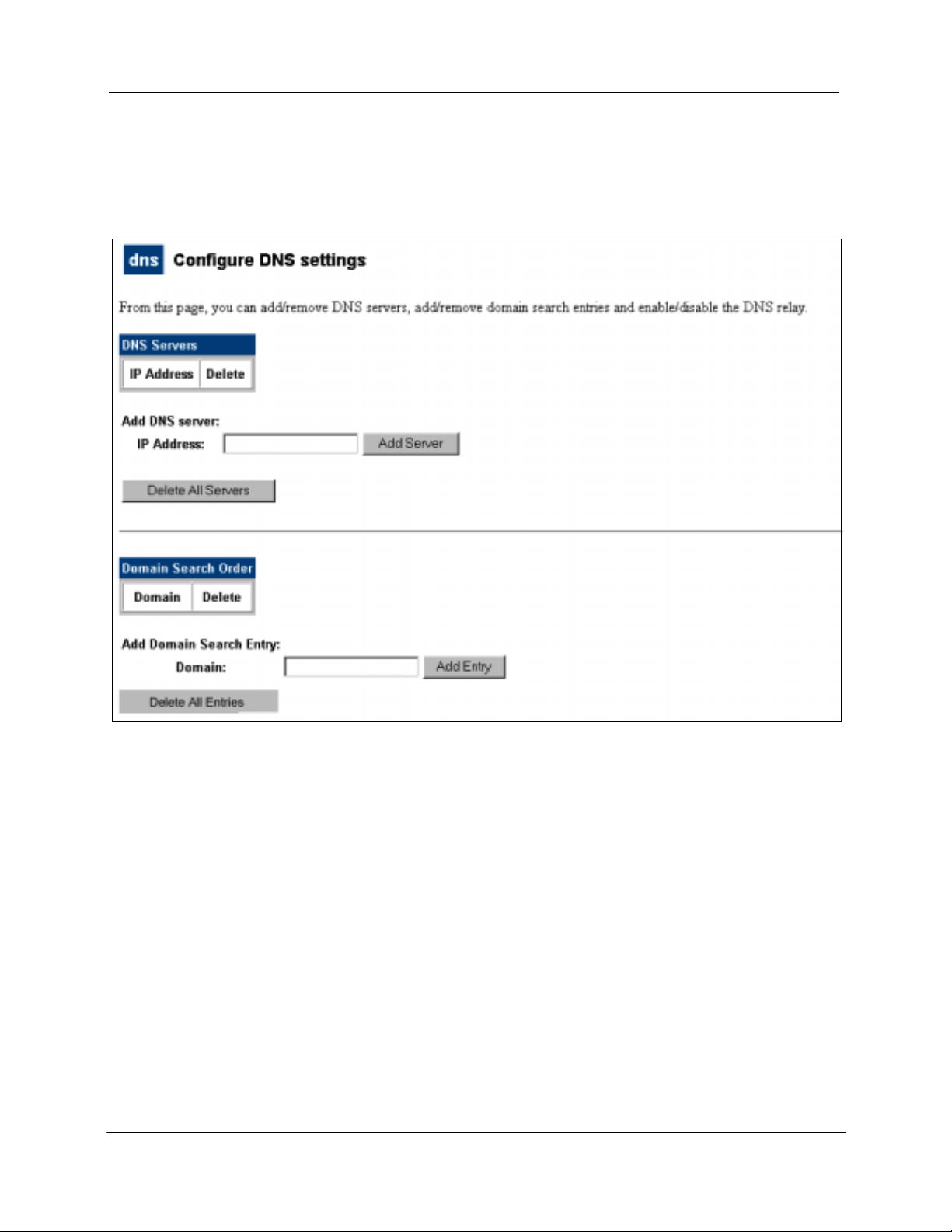

DNS Configuration........................................................................................................................37

Firewall Configuration...................................................................................................................37

Port Forwarding Configuration....................................................................................................... 43

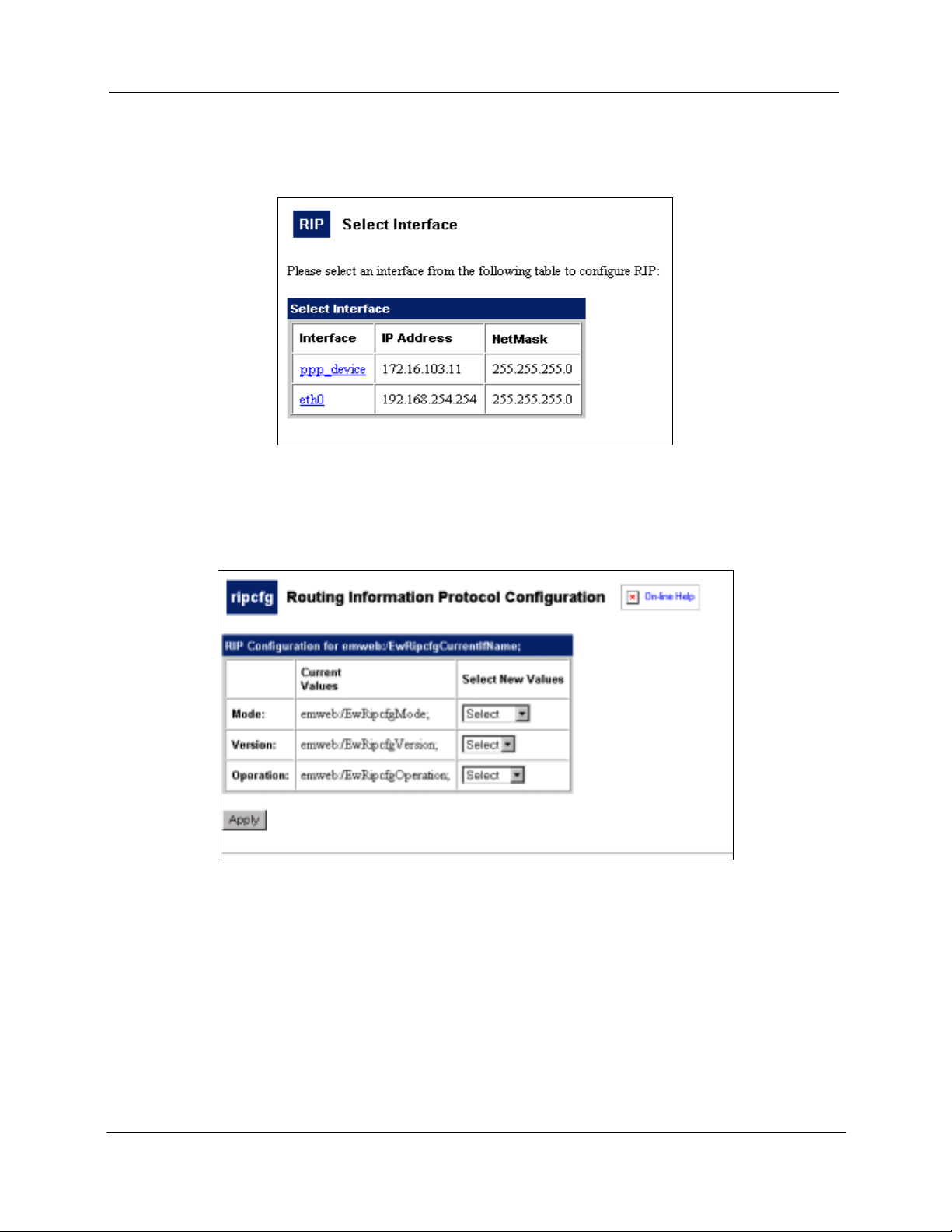

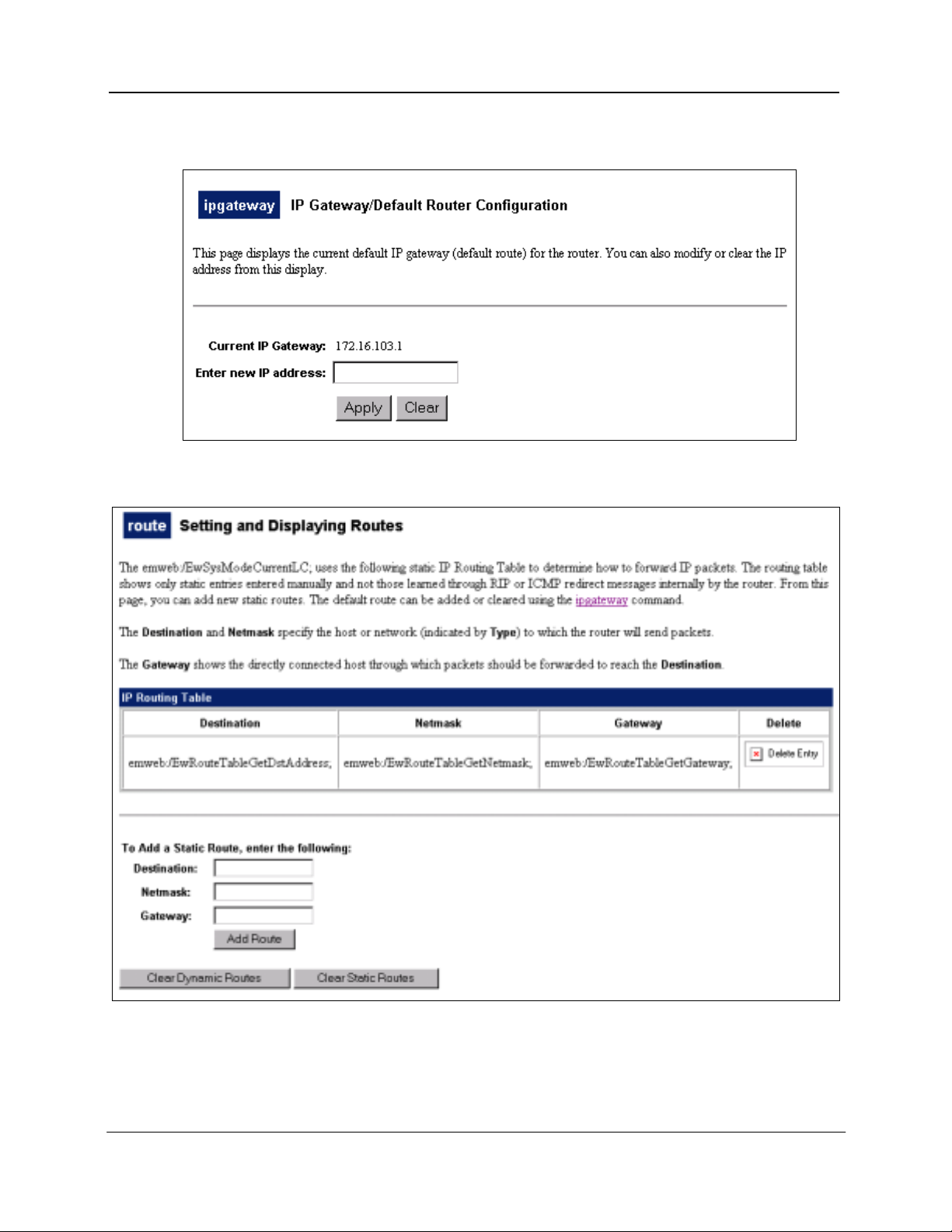

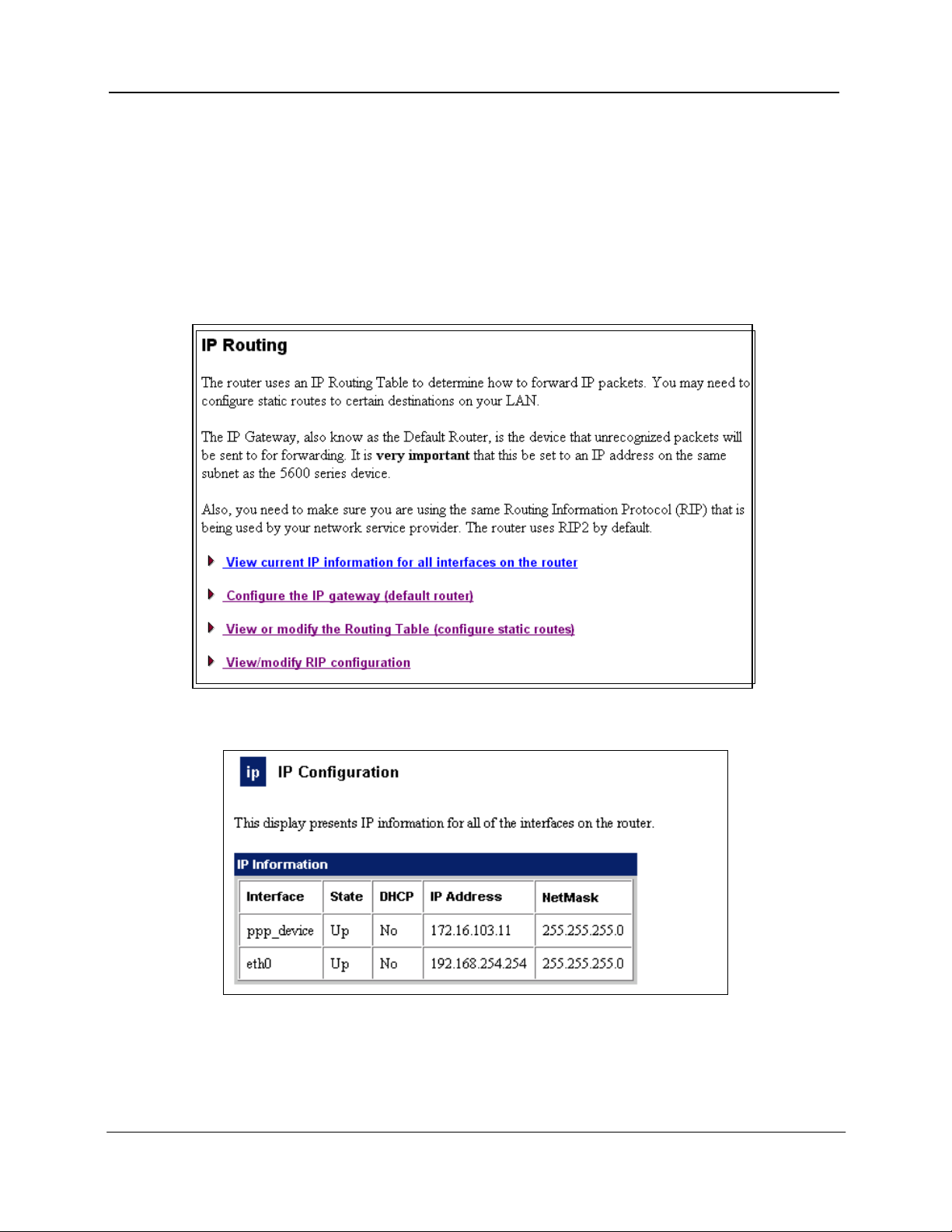

IP Routing and RIP Configuration..................................................................................................44

SpeedStream Dual USB/Ethernet Router User’s Guide

5

Model 5667

Configuration Access.....................................................................................................................46

Troubleshooting....................................................................................................................................48

Using LEDs ......................................................................................................................................48

Connection Problems....................................................................................................................... 49

Troubleshooting: ATM Connectivity.............................................................................................. 50

LoginPassword Problems...............................................................................................................50

DSL LineTraining...........................................................................................................................50

PPP Troubleshooting.......................................................................................................................51

Capturea PPP Trace for Debugging...............................................................................................51

Configuration Data Sheets....................................................................................................................52

Simple Setup....................................................................................................................................52

Router Configuration ......................................................................................................................52

Service/FeatureConfiguration........................................................................................................53

Router Password Settings...............................................................................................................53

LAN IP Settings.............................................................................................................................53

DHCP Settings............................................................................................................................... 53

Technical Specifications....................................................................................................................... 55

Routing.............................................................................................................................................55

Management..................................................................................................................................... 55

MediaInterface................................................................................................................................55

Standards Compliance.....................................................................................................................55

Diagnostic LEDs .............................................................................................................................. 55

Power................................................................................................................................................ 55

Certifications ....................................................................................................................................55

SpeedStream Dual USB/Ethernet Router User’s Guide

6

Model 5667

Chapter 1

Introduction

Congratulations on your purchase of the SpeedStream®Dual USB/Ethernet Router with SecureRouteTM.
Siemens is proud to provide you with a powerful yet simple communication device for connecting your
local area network (LAN) to the Internet.

About the SpeedStream Dual USB/Ethernet Router

This SpeedStream router provides high-speed Internet and corporate network access to small offices,
networked home offices, and branch offices. If you are working from a branch office, the router provides
a fast and effective means of communicating over a remote LAN with the main office. This SpeedStream
router can also be used to connect the corporate local area network (LAN) to the Internet over the wide
area network (WAN).

Features and Benefits

The SpeedStream Dual USB/Ethernet Router with SecureRouteTMprovides the flexibility of connecting
your computer via the Ethernet port, the USB port, or both! Discrete IP addresses allow two different
computers to simultaneously connect to the Ethernet and USB interfaces. Plug and Play USB installation
means you can easily install the router on any computer running Windows

SecureRouteâprovides advanced protection for secure Internet connections. Network Address Port
Translation (NAPT) shields private IP addresses fr om public access.

Plug and Play integration with an intuitive graphical user interface (GUI) makes installation virtually
effortless. Web-based local and remote management t ools simplify operation and support.

Routing: RFC 2864 (formerly1483) Bridged and R outed Ethernet over ATM PVCs

RFC 2364 Point-to-Point Protocol (PPP) over ATM PVCs (PPPoA)
RFC 2516 PPP over Ethernet (PPPoE)
RFC 2225 (formerly 1577) Classical IP over ATM

Bridging: IEEE 802.1.d Transparent Learning Bridges (dynamic learning of up to 1000 addresses)

Spanning Tree support

Management: Intuitive, Web-based GUI management access

SNMP support
Comprehensive hardware diagnostics
Local and remote management console

®

98, 98 SE, ME, 2000 or XP.

SpeedStream Dual USB/Ethernet Router User’s Guide

7

Model 5667

Applications

The SpeedStream Dual USB/Ethernet Router with SecureRouteâprovides many advanced features and
functionality:

• LAN Access – Provides connectivity via USB or Ethernet connection, simplifying network setup for

homes and small offices.

• Sha red IP Address – Provides Internet access for up to 253 users with a single shared IP address,

allowing multiple users to simultaneously browse the Web.

• Port Forwarding – Allows you to set up LAN-side WEB, FTP, telnet, etc. servers at your site while

securing your network from direct attack by hackers. Provides more flexible management by allowing
you to change internal IP addresses without affecting outside access to your network.

• Smart Tracking – Intelligently monitors NAPT – unfriendly traffic and open ports accordingly.

• F i rewa l lSecurity – Supports 3 conveniently pre-set levels of firewall security.

• Stateful Inspection Firewall – Blocks common hackers attacks, including IP Spoofing, Land Attack,

Ping to Death, IP with zero length, Smurf Attack, UDP port loopback, Snork Attack, TCP null scan,
and TCP SYN flooding, and provides many other security features.

• Vi rtualPrivate Network – Supports pass-through of the three most commonly used VPN protocols:

PPTP, L2TP and IPSec, allowing remote users to establish a secure connection to a corporate
network.

General Safety Guidelines

When using the SpeedStream router, observe the following safety guidelines:

• Never install telephone wiring during a storm.

• Avoid using a telephone during an electrical storm. Lightening increases the risk of electrical shock.

• Do not install telephone jacks in wet locations and never use the product near water.

• Do not exceed the maximum power load ratings for the product; otherwise, you risk dangerous

overloading of the power circuit.

SpeedStream Dual USB/Ethernet Router User’s Guide

8

Model 5667

Chapter 2

Installing the Router

Before installing the SpeedStream®Dual USB/Ethernet Router with SecureRouteTM, verify that you have
all the items listed under “Package Contents.” If any items are missing or damaged, contact your local
Siemens distributor. After installing the router, refer to the subsequent chapters in this document for
additional instructions on configuring network and router settings.

Package Contents

By default, we have chosen not to ship the serial cable and the cross-over cable.

SpeedStream 5667 ADSL Router

(Optional, depending upon service provider) Line filters; two-to-one
adapter

Power supply for a 220v or 110v electrical outlet

Telephone cable—This cable is the DSL cable that will be used for your
Internet connection. The end connectors are 4-pin connectors and are
smaller than those of the 8-pin 10BASE-T Ethernet cables.

Ethernet 10BASE-T straight-through cable— This cable is used to
connect your modem directly to an Ethernet port on your PC.

Ethernet 10BASE-T crossover cable—This cable, labeled as “x-over,”
connects to the Ethernet ports on your PC and router and is used for an
Ethernet connection.

Serial cable — This cable is used to connect to the serial ports on your PC
and router.

USB cable—This cable is used if connecting to the router via a USB
connection.

SpeedStream Dual USB/Ethernet Router User’s Guide

9

Model 5667

SpeedStream installation CD-ROM

Documentation: Quick-Start Guide, Safety and Certifications
Information

Minimum System Requirements

Make sure your PC is equipped at minimum with the following:

• A network adapter card that supports Ethernet 10BASE-T/half duplex (if using Ethernet connectivity

option)

• Operating system that supports TCP/IP over Ethernet

• Internet Explorer or Netscape versions 4.0 or later

• If connecting to the router via USB, your system must be equipped with the following:

â

- Windows
Windows

98, Windows

â

Millennium Edition (ME), or Windows XP

- 32 MB R AM

- Pentium-compatible 166 MHz processor for USB installation (or higher, depending upon

Operating System)

- 10 MB available hard disk space (for USB installation)

â

98 Second Edition (SE), Windows

â

2000 Pr ofessional,

Hardware Description

Access speed to the Internet depends on your service type. Full-rate ADSL provides up to 8 Mbps
downstream and 640 Mbps upstream. G.lite provides up to 1.5 Mbps downstream and 512 Kbps upstream

This SpeedStream router includes an LED display on the front panel for system power and port indicators
that simplify installation and network troubleshooting. The rear panel provides port connections (DSL,
USB, Console, 10Base-T), power connections, the Power switch (PWR-SW), and the Reset button.

SpeedStream Dual USB/Ethernet Router User’s Guide

1

Model 5667

Hardware Features

AAL and ATM Support

VCI 0-65535 address range

Connectors

ADSL interface: RJ-11
Ethernet interface: RJ-45
Console interface: 5-pin MiniDIN RS-232
USB Type B interface

Standards Complian ce

DMT, ADSL

LED Indicators

After powering on the router, all LED indicator lights turn a solid green. The LED behavior will change
depending on the various connection states and data activity of the router. Refer to the table below for
details:

power adsl act eth usb

Unlit

Solid

Blinking

All

Off DSL not

connected

On Ready for data

traffic

N/A Searching for

signal

Post failure

DSL not
connected

N/A Ethernet port connected to

DSL traffic
flow

Ethernet port not
connected; check Ethernet
cable connection if using
Ethernet interface

LAN
Ethernet traffic flow USBtraffic flow

USB port not connected;
check USB cable
connection if using USB
interface

USB port connected to
host

Blinking

Hardware Installation

Before Starting

Please collect the following information from your ISP before setting up the SpeedStream Dual
USB/Ethernet Router:

• An ISP account (mayinclude user name and password for PPPoE or PPPoA service)

• IP address for your ISP’s gateway and domain name servers (for non-PPP/non-DHCP services).

• ISP authentication type or script (if not PAP/CHAP).

• IP address and subnet mask (for fixed IP accounts only).

0

SpeedStream Dual USB/Ethernet Router User’s Guide

1

Model 5667

Confirm that you received all the items listed in the previous section, “Package Contents”; then position
the SpeedStream router at any convenient location in your office or home. No special wiring or cooling
requirements are needed. You should, however, comply with the safety guidelines specified in Chapter 1,
“Introduction.”

Basic Installation Procedure

1. Install line filters (if provided).

2. Connect the cables.

3. Power up the modem and verify port status.

4. Configure network settings on your computer.

5. Configure the router via the Web interface.

6. Reboot the computer if prompted.

Another important step is to record the current router configuration in the worksheets provided in
Appendix A. Although the router is already configured for your particular network, it is important to
recordthisconfigurationincaseitmustberestoredforanyreason.

Installing Line Filters

Because DSL may shares the same physical line as your telephone, it may be necessary to separate
the two signals so they do not interfere with each other. This is accomplished through line filters,
which prevent DSL traffic from disrupting the voice signal on the phone line, and vice versa. Follow
the procedure below to install line filters on any device (phones, fax machines, caller ID boxes) that
shares the same phone number as the DSL line. (Note: This section may not apply to you. Consult
your provider if you are unsure.)

Two types of line filters may be used. The wall mount filter is installed onto the telephone wall plate
for use with wall-mounted telephones. The in-line filter is connected to the telephone wall plate and
the telephone cord is connected into the filter. A two-to-one adapter is available and may be used if
more than one device needs to be connected to the telephone wall plate.

In-Line Filter

For each device that shares the DSL phone
number:

1. Unplug the device’s cord from the phone
jack.

2. Plug the filter into the phone jack.

3. Plug the phone cord (or other device cord)
into the filter.

1

SpeedStream Dual USB/Ethernet Router User’s Guide

1

Model 5667

Wall-Mount Filter

For a wall-mounted phone, install a wall mount
filter:

1. Remove the phone.

2. Connect the wall mount filter to the wall
plate.

3. Reconnect the phone.

Two-to-One Adapter

If your DSL router and another device will
share the same phone jack, install a two-to-one
adapter:

1. Plug the two-to-one adapter into the phone
jack.

2. Plug a line filter into one of the sockets of
the two-to-one adapter. The other socket
will be used to connect the DSL cable.

3. Plug the telephone (or other device) cord
into the line filter.

Connecting the Cables

The SpeedStream router may be connected to either an existing USB port or an Ethernet port. Both
connection methods are detailed in this section.

If you choose to attach the SpeedStream modem via the Ethernet Interface, you will need to install an
Ethernet adapter if your computer does not already have one installed. Refer to your Ethernet adapter
manufacturer’s documentation for complete installation instructions.

2

SpeedStream Dual USB/Ethernet Router User’s Guide

1

Model 5667

Determine the cable to use for your physical connection, and then follow the instructions for the
appropriate installation method. The following illustration shows the connectors on the rear panel of
the SpeedStream router.

USB Installation Method

The router power button should be in the OFF (out) position before proceeding:

1. Connect the USB cable to the USB port at the rear of the router.

2. Connect the other end to the USB port on your computer.

3. Plug the phone cable into the DSL port on the router.

4. Plug the other end of the cable into the phone jack.

Note:

If using the two-to-one adapter, plug the cable into the open socket, that should be already be
connected to the phone jack.

3

SpeedStream Dual USB/Ethernet Router User’s Guide

1

Model 5667

5. Plug the power adapter into the power outlet and router.

6. Power on the computer; then power on the router.

Note:

If connecting via USB, the Plug-and-Play process for installing the USB drivers begins as
soon as you turn on your computer and the router device is discovered. Insert the
SpeedStream CD-ROM and follow the instructions on the screens to install the drivers.

Ethernet Installation Method

1. Connect the Ethernet straight through cable to the Ethernet port on the router.

2. Connect the other end of the Ethernet cable to the Ethernet port on your computer.

3. Plug the phone cable into the DSL port on the router.

4. Plug the other end of the phone cable into the phone jack.

Note:

If using a two-to-one adapter, plug the cable into the open socket.

5. Plug the power adapter onto the power outlet and router.

6. Power on the computer; then power on the router.

There is no router software installation required when using the Ethernet connection method.
Refer to your Internet Service Provider’s instructions for installing their software and/or
connecting to the Internet.

You are now ready to configure the TCP/IP settings as detailed in the next chapter.

4

SpeedStream Dual USB/Ethernet Router User’s Guide

1

Model 5667

Chapter 3

Configuring Network Settings

To access the Internet through the SpeedStream Dual USB/Ethernet Router, the TCP/IP protocol must be
installed on your computer and configured with the same IP address and subnet as the router. If TCP/IP is
not already installed on your computer, refer to your system documentation or online help for
instructions.

The default network settings for this SpeedStream router are:

IP Address: 192.168.254.254
Subnet Mask: 255.255.255.0
User Name: admin
Password: admin

You can change these settings to comply with your network requirements; however, you must first
configure at least one computer to access the router’s Web interface (see Chapter 4, “Configuring the
Router”). The Web interface can be used in conjunction with either the USB or Ethernet connection
method.

Windows 95/98/ME

1. On the Windows desktop, click Start |
Settings | Control Panel ; then double-

click the Network icon.

TheNetwork dialog box displays.

2. On the Configuration tab of the Network
dialog box, select the TCP/IP entry for
your Ethernet adapter; then click
Properties.

TheTCP/IP Properties dialog box
displays.

5

SpeedStream Dual USB/Ethernet Router User’s Guide

1

Model 5667

3. In the TCP/IP Properties dialog box, click the IP Address tab.

4. On the IP Address tab, ensure that Obtain

IP address automatically and Detect
connection to network media are selected.

5. Click the DNS Configurationtab.

3. On the DNS Configurat ion tab, ensure that
Disable DNS is selected.

4. Click OK twice to save your settings.

5. Reboot if prompted.

6

SpeedStream Dual USB/Ethernet Router User’s Guide

1

Model 5667

Windows NT 4.0

1. On the Windows desktop, click Start |
Settings | Control Panel ; then double-

click the Network icon.
TheNetwork dialog box displays.

2. In the Network dialog box, click the
Protocols tab.

3. On the Protocols tab, select TCP/IP
Protocol; then click Properties.

TheMicrosoft TCP/IP Properties dialog
box displays.

4. In the Microsoft TCP/IP Properties
dialog box, ensure that the correct network
adapter is selected in the drop-down menu
and that Obtain an IP address from a
DHCP server is selected; then click OK.

7

SpeedStream Dual USB/Ethernet Router User’s Guide

1

Model 5667

5. In the Microsoft TCP/IP Properties dialog

box, click

DNS ta b.

6. On the
listedinthe
box.

7. Click

8. Reboot if prompted.

Windows 2000

1. On the Windows desktop, click Start
| Settings | Control Panel.

DNS tab, delete any IP addresses

DNS Service Search Order

OK twice to save your settings.

2. On the Control Panel menu, double­click Network and Dial-up
Connections.

If the Ethernet card in your computer
is installed correctly, the Local Area
Connectionicon will be present.

3. On the Local Area Connection
Status box, select your LAN
Ethernet adapter; thenclick
Properties.

4. In the dialog box, click to highlight
Internet Protocol(TCP/IP);then
click the Properties.

TheInternet Protocol (TCP/IP)
Properties dialog box displays.

8

SpeedStream Dual USB/Ethernet Router User’s Guide

1

Model 5667

5. In the Internet Protocol (TCP/IP)
Properties dialog box, ensure that
Obtain IP address automatically
and Obtain DNS server address
automaticall y are selected.

6. Click OK twicetosaveyour
settings.

7. Reboot your computer if prompted.

9

SpeedStream Dual USB/Ethernet Router User’s Guide

2

Model 5667

Window s XP

1. On the Windows desktop,
click Start | Network

Connections | Local Area
Connection.

2. In the dialog box, click to
highlight Internet
Protocol (TCP/IP);then
click the Properties.

TheInternet Protocol

(TCP/IP) Properties

dialog box displays.

0

SpeedStream Dual USB/Ethernet Router User’s Guide

2

Model 5667

3. In the Internet Protocol (TCP/IP)
Properties dialog box, ensure that
Obtain IP address automatically
and Obtain DNS server address
automaticall y are selected.

4. Click OK twicetosaveyour
settings.

5. Reboot your computer if prompted

You can now configure the SpeedStream Dual USB/Ethernet Router as detailed in the next chapter.

1

SpeedStream Dual USB/Ethernet Router User’s Guide

2

Model 5667

Chapter 4

Configuring the Router

Before you can configure the SpeedStream®USB/Ethernet Router with SecureRouteTM,the
TCP/IP protocolmust be installed and configured on allcomputers in your network. If you need
to installTCP/IP, refer to your systemdocumentation or online help. To configure TCP/IP, refer
to Chapter 3, “Configuring Network Settings” in this document.

After TCP/IP is installed and configured on your network computers, you can configure the
SpeedStream router from a Web browser, including Internet Explorer or Netscape Navigator,
versions 4.0 or above. The Web interface allows you to configure settings for the router, view
status, and access the many features of this unit.

Navigating the Web Interface

Using the Web interface, you can define system parameters, manage and control the router and its ports,
or monitor network conditions. The management interface includes the following menus:

2

SpeedStream Dual USB/Ethernet Router User’s Guide

2

Model 5667

Simple Setup Main menu item; allows you to set PPP username and password, select a

firewall setting, and change the system password. Advanced Setup

Main menu item; provides access to advanced features for those
users who require a custom router configurations, including
ConfigurationProcedures, Status and Statistics, Command List. Also
includes Initial Setup provisions and Configuration Procedures.

- Configuration Procedures Advanced Setup menu item; provides access to user-customizable

settings including WAN, LAN, PPP, DHCP, DNS, Firewall, Port
Forwarding, IP Routing and RIP Configuration, and Configuration
Access.

- Status and Statistics Advanced Setup menu item; displays ADSL linestats and status.

- Command List Advanced Setup menu item; displays commands in left vertical menu

bar, descriptions and settings for modification in main screen.

- Back to Start Advanced Setup menu item; returns to main menu and displays Simple

Router Setup screen if not configured. If WAN is configured it goes to
Configuration Summary.

- Save Configuration Advanced Setup menu item; saves settings from active session – this

may take up to one minute. Do not power cycle or reset the router during
this operation, or the router will become non-functional.

- Configuration Procedures Advanced Setup menu item; provides access to user-customizable

settings including WAN, LAN, DHCP, DNS, Firewall, Port Forwarding,
IP Routing and RIP Configuration, and Configuration Access.

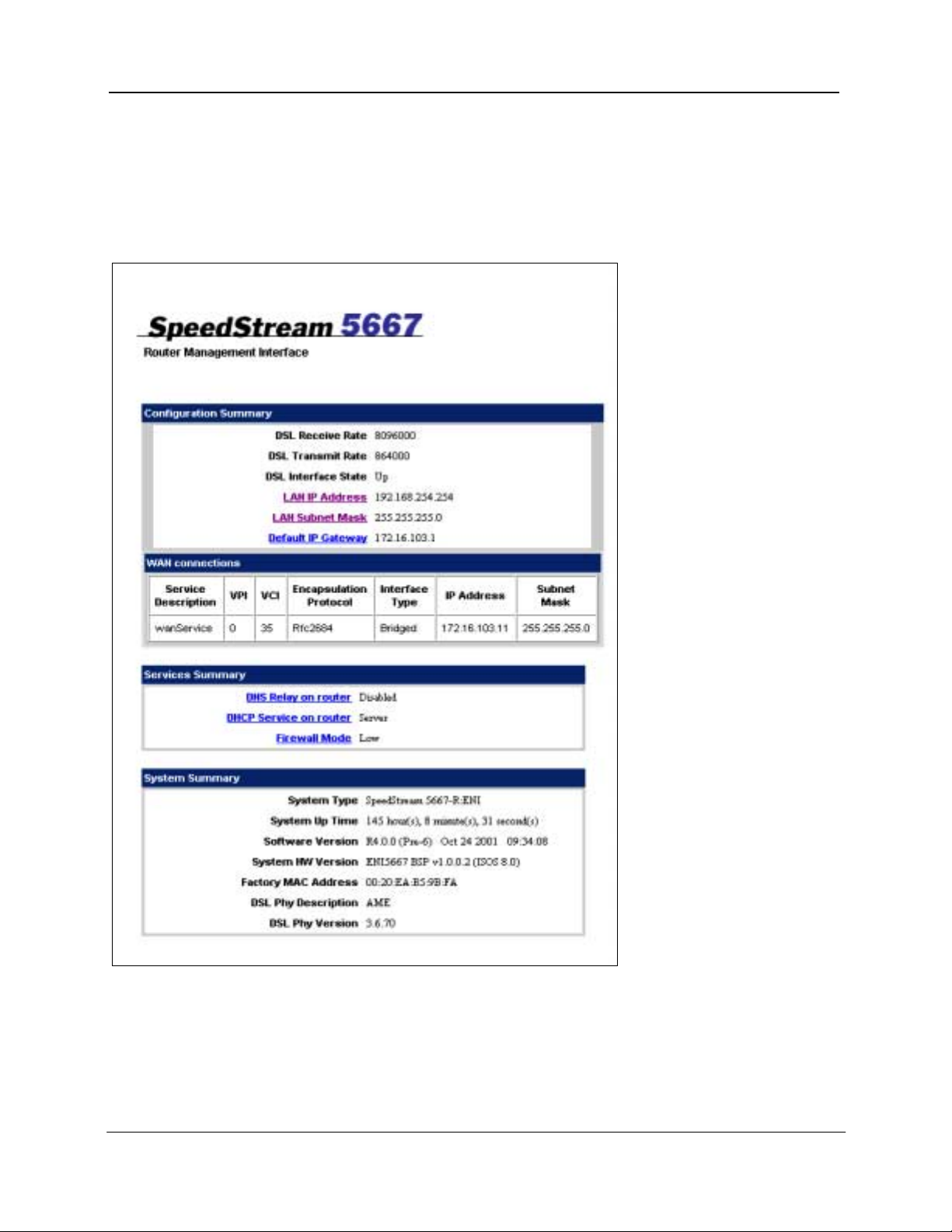

Configuration Summary Main menu item; displays Configuration Summary, WAN Connections,

Services Summary, and SystemSummary.

Save Configuration Main menu item; saves settings from active session - this may take up to

one minute. Do not power cycle or reset the router during this operation,
or the router will become non-functional.

The following table details the menu items, screen names and contents of the Web interface.

Menu Screen Name Description

Simple Setup Simple Router Setup

Advanced Setup

Configuration Procedures

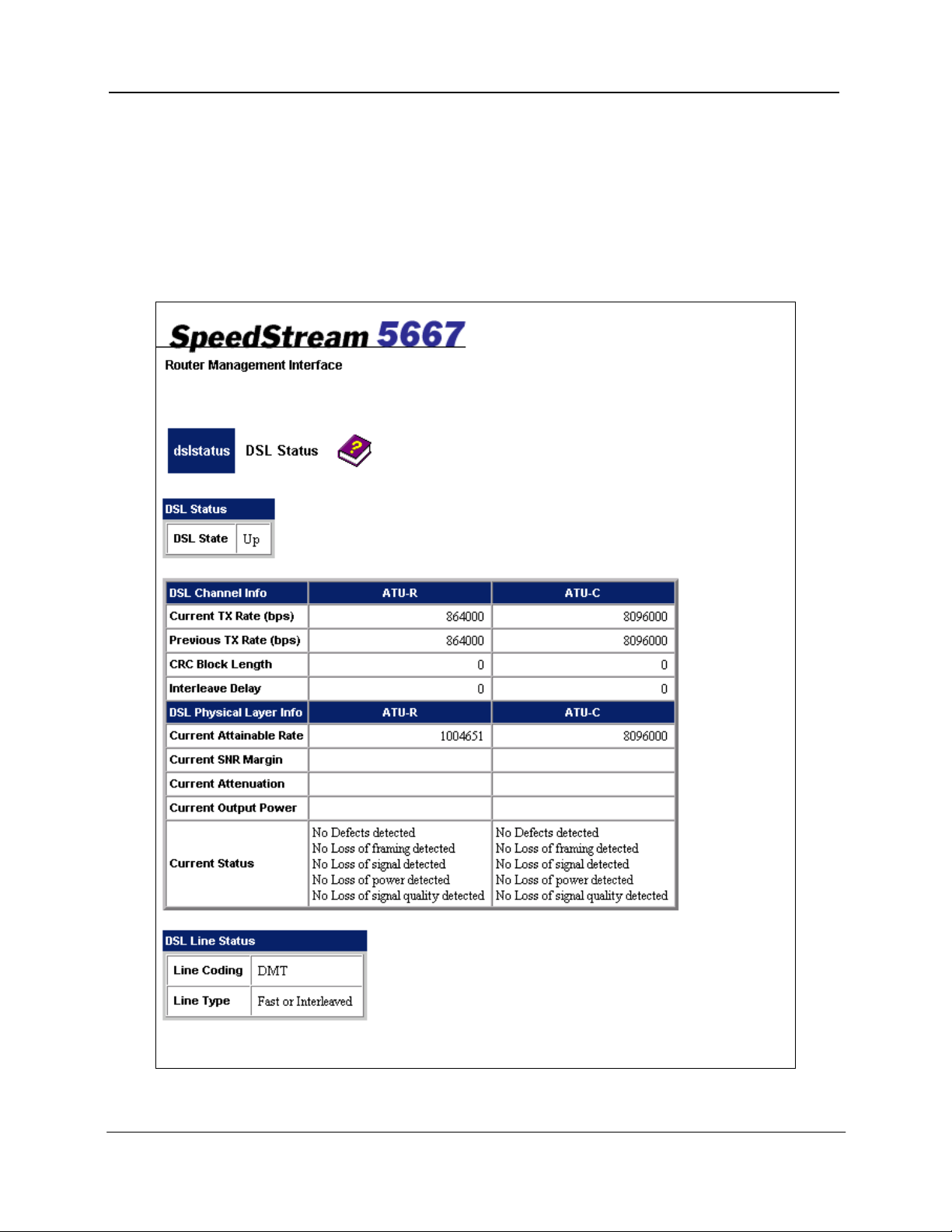

Status and Statistics DSL Status

• PPP username and password

• Router/modem pas sword

• Firewall and security level

• Configuration Summary

• WAN Connections

• Services Summary

• System Summary

• DSL Status

3

SpeedStream Dual USB/Ethernet Router User’s Guide

2

Model 5667

Menu Screen Name Description

• DSL Channel Info

• DSL Physical Layer Info

• DSL Line Status

Command List

• atmping

• dhcpcfg

• dns

• dslstatus

• ethip

• ip

• ipgateway

• firewall

• password

• ping

• portforward

• ppp

• reboot

• ripcfg

• route

• vc

• wanaccess

Back to Start Displays main menu and Configuration

Save Configuration Saves current settings

Initial Setup

Troubleshooting Troubleshooting Procedures 1. Check the LEDs on the front panel.

Set System Password Set System Password Set, change or deactivate system password.

Configuration Procedures

WAN Virtual Connection Virtual Circuit Information View/modify virtual WAN connections
LAN LAN IP Configuration LAN IP information.

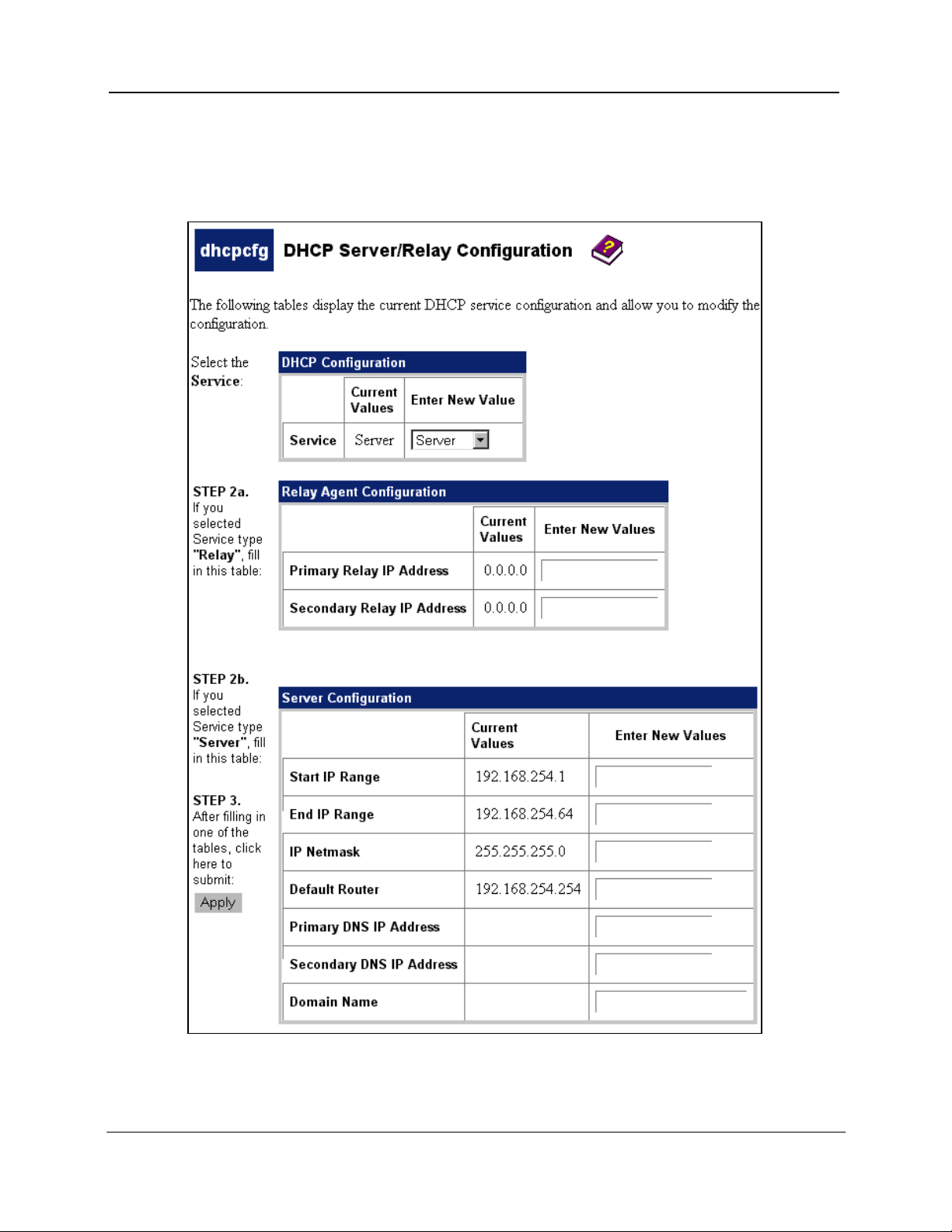

DHCP DHCP Server/RelayConfiguration Display/modifyDHCP service

DNS Configure DNS Settings Configure DNS servers and DNS relay
Firewall Changing Firewall Configuration

• ATM “Ping”

• DHCP Server/Relay Configuration

• Configure DNS Settings

• DSL Status

• LAN IP Configuration

• IP Configuration

• IP Gateway/Default Router Configuration

• ChangingFirewall Configuration

• Set System Password

• Ping an IP Address

• Server Port Forwarding

• PPP Configuration

• Reboot the Modem

• Select Interface

• Setting and Displaying Routes

• Virtual Circuit Information

• Enable/Disable Configuration Access from

WAN

Commands listed in menu area of window
(left vertical bar)

• Transmit OAM loopback over ATM

• Display/modify DHCP configuration

• Add/modify/delete DNS settings

• View DSL status

• Configure LAN IP address

• Display IP information

• Display/modifyIP gatewaysettings

• Firewall and security settings

• Set /change/deactivate password

• Ping an IP address

• Configure port forwarding services

• Manually configure PPP settings

• Reboot the router

• Configure RIP

• View routing table, add static routes

• Display virtual circuit information

• Configure WAN access through Telnet

and HTTP

Procedures screen

2. Test the ATM circuit.

3. Check for IP routing problems.

configuration

• View current firewall mode

• Change firewall mode

• Set snooze duration

Port Forwarding Server Port Forwarding Configure one or more port forwarding

services on the WAN.

IP Routing and RIP

Configuration

Configuration Access Enable/Disable Configuration Access from

IP Routing

• IP Configuration

• IP Gateway/Default Router Configuration

• Setting and Displaying Routes

• Select Interface

WAN

• View current settings

• Configure IP gateway

• View/modifyrouting table

• View/modify RIPconfiguration

Configure WAN access through Telnet and
HTTP

Accessing the Web Interface

1. In your Web browser Address box, enter the default router IP address http://192.168.254.254

4

SpeedStream Dual USB/Ethernet Router User’s Guide

2

Model 5667

6. On the Enter Network Password screen, enter the default username and password:
Username: admin

Password: admin

Then click OK.TheSystem Status screen is displayed.

Note:

The password is case-sensitive.

Recording System Settings

Appendix A, “Configuration Data Sheets,” provides you with a location to record the current
configuration of the router. This information is important to have on file in case the configuration is
inadvertently changed and the original working settings must be restored.

5

SpeedStream Dual USB/Ethernet Router User’s Guide

2

Model 5667

Simple Setup

From the Simple Setup screen, you can configure the router for basic routing operation and entering
authentication parameters.

1. From the main menu, select Simple Setup.

2. Enter username and password.

Note: You may ignore “Set the password for this modem” and “Set the security level for the firewall”,if

you want to leave these settings at the default values.

6

SpeedStream Dual USB/Ethernet Router User’s Guide

2

Model 5667

3. Click Apply, if you are not changing the password for the modem and the security level for the

firewall.

4. Select the system password for this modem.

5. Set the security level for the firewall.

6. Click Apply.

7

SpeedStream Dual USB/Ethernet Router User’s Guide

2

Model 5667

Advanced Setup

From the Advanced Setup menu, you can configure advanced functions including special applications
configuration, and remote management. We highly recommend that you keep the default settings unless
you have a specific need to change them.

8

SpeedStream Dual USB/Ethernet Router User’s Guide

2

Model 5667

Status and Statistics

Selecting Status and Statistics from the main menu displays t he DSL Status screen.

9

SpeedStream Dual USB/Ethernet Router User’s Guide

3

Model 5667

System Password

To set or change the system password, click Set System Password beneath the main menu or under
Initial Setup on the Advanced Setup submenu.

Configuration Procedures

In the Configuration Procedures submenu section of the Advanced Setup menu, you can access the
screens that allow you to customize these router settings:

• WAN Virtual Connections

• LAN

• DHCP

• DNS

• Firewall

• Port Forwarding

• IP Routing and RIP Configuration

• Configuration Access

Detailed information on these functions follows.

0

SpeedStream Dual USB/Ethernet Router User’s Guide

3

Model 5667

WAN Virtual Connection

Under Configuration Procedures on the Advanced Setup submenu, click WAN Virtual Connections
to view or modify virtual connection settings.

1

SpeedStream Dual USB/Ethernet Router User’s Guide

3

Model 5667

RCF 1577 Connection

2

SpeedStream Dual USB/Ethernet Router User’s Guide

3

Model 5667

PPP Connection

3

SpeedStream Dual USB/Ethernet Router User’s Guide

3

Model 5667

RCF 2684 Connection

4

SpeedStream Dual USB/Ethernet Router User’s Guide

3

Model 5667

LAN Configuration

Under Configuration Procedures on the Advanced Setup submenu, click LAN to modify the LAN IP
address or subnet mask.

5

SpeedStream Dual USB/Ethernet Router User’s Guide

3

Model 5667

DHCP Configuration

Under Configuration Procedures on the Advanced Setup submenu, click DHCP to view or modify the
current DHCP server settings.

6

SpeedStream Dual USB/Ethernet Router User’s Guide

3

Model 5667

DNS Configuration

Under Configuration Procedures on the Advanced Setup submenu, click DNS to add or remove DNS
servers and domain search entries, and enable or disable the DNS relay.

Firewall Configuration

Under Configuration Procedures on the Advanced Setup submenu, click Firewall to enable or disable
the router firewall, and set the firewall security level. From this sub-menu the firewall can also be
temporarily disabled via the snooze button.

7

SpeedStream Dual USB/Ethernet Router User’s Guide

3

Model 5667

The following table shows the security of each mode of the firewall as per the application/protocol. The
Snooze mode is when the firewall is disabled for the time specified.

Application/Protocol

HTTP

HTTPS

FTP

Telnet

Ping

SMTP

POP3

NNTP

High Medium Low NAPT Off

In Out In Out In Out In Out

√√ √√
√√ √√

√√ √√

Security

√√√
√√√

√√√
√√√

√√

NTP

ICMP

√√ √√

√√√

8

SpeedStream Dual USB/Ethernet Router User’s Guide

3

Model 5667

Application/Protocol

IGMP

SSH

DNS

IRC

RTSP

SIP

H.323

T.120

IPSec single-session

IPSecmulti-session

Security

High Medium Low NAPT Off

In Out In Out In Out In Out

√√√
√√√

√√ √√

√√

√√ √√

√√
√√

√√
√√√
√√√

PPTP single-session

PPTP multi-session

PPPoE

L2TP

Real Video

Real Audio

Windows Media Player

MSN Messenger

Yahoo Messenger

AOL

AOL IM

Quicktime 4

√√√
√√√
√√√
√√√

√√ √√
√√ √√
√√ √√

√√

√√

√√ √√

√√

√√ √√

9

SpeedStream Dual USB/Ethernet Router User’s Guide

4

Model 5667

Application/Protocol

ICU II

CUSeeMe

Napster

GNUtella

ICQ 2000

Calista IP Phone

Buddy Phone

Dialpad

Net2phone

Netshow Client

Security

High Medium Low NAPT Off

In Out In Out In Out In Out

√√

√√

√√

√√

√√
√√√
√√√
√√√
√√√

√√

Heretic II

Abuse.Net

Asherons Call

BattleNet

Bungie.Net

Delta Force

DirectPlay

Half Life

Hexen II

Diablo

Diablo 2

Soldier of Fortune

√√√
√√√
√√√
√√√
√√√
√√√
√√√
√√√
√√√
√√√
√√√
√√√

0

SpeedStream Dual USB/Ethernet Router User’s Guide

4

Model 5667

Application/Protocol

doom

Quake II

Quake Arena

Rainbow Six

Kali

Starcraft

Counterstrike

Ultima Onlin e

Unreal Tournament

Descent II/III

Security

High Medium Low NAPT Off

In Out In Out In Out In Out

√√√
√√√
√√√
√√√
√√√
√√√
√√√
√√√
√√√
√√√

Red Alert II

Tiberian Sun

Dune 2000

Baldur’sGateII

Rogue Spear

Warcraft

Age of Empires

EverQuest

Myth

MSN Gaming Zone

Mplayer

MechWarrior 4

√√√
√√√
√√√
√√√
√√√
√√√
√√√
√√√
√√√
√√√
√√√
√√√

1

SpeedStream Dual USB/Ethernet Router User’s Guide

4

Model 5667

Application/Protocol

Need for Speed

VNC

PCAnywhere

Traceroute

MS Netmeeting (Chat,
White board, file
transfer, audio, video)

XDM

High Medium Low NAPT Off

In Out In Out In Out In Out

√√ √√

Security

√√√

√√

√√

√√

√√

Note: All protocols/apps are conditionally allowed IN if the outbound session was initiated locally and
allowed OUT.

2

SpeedStream Dual USB/Ethernet Router User’s Guide

4

Model 5667

Port Forwarding Configuration

Under Configuration Procedures on the Advanced Setup submenu, click Port Forwarding to
configure one or more port forwarding services on the WAN.

3

SpeedStream Dual USB/Ethernet Router User’s Guide

4

Model 5667

IP Routing and RIP Configuration

Under Configuration Procedures on the Advanced Setup submenu, click IP Routing and RIP
Configuration to:

• View current IP information for all interfaces on the router.

• Configure the IP gateway (default router).

• View or modify the Routing Table and configure static routes.

• View or modify the RIP configuration.

View Current IP Information

4

SpeedStream Dual USB/Ethernet Router User’s Guide

4

Model 5667

Configure IP Gateway

View/Modify Routing Table

5

SpeedStream Dual USB/Ethernet Router User’s Guide

4

Model 5667

View RIP Configuration

Modify RIP Configuration

After selecting the desired Interface the following screen will appear. From this screen you may
select the Mode, Version, and Operation of RIP.

Configuration Access

Under Configuration Procedures on the Advanced Setup submenu, click
Configuration Access to enable or disable Telnet or HTTP configuration access

from the WAN.

6

SpeedStream Dual USB/Ethernet Router User’s Guide

4

Model 5667

7

SpeedStream Dual USB/Ethernet Router User’s Guide

4

Model 5667

Connection problems usually occur when the router’s software configuration contains incomplete
or incorrect information. Diagnostic tools are available to help identify and solve problems that
may occur with your router.

Using LEDs

STEP 1: Check the LEDs on the front panel

Certain hardware problems can be diagnosed and solved by checking the LEDs. After
powering on the router, all LED indicator lights turn a solid green.

If the Powe r (PWR) LED is off:

Chapter 5

Troubleshooting

• Check that the power cord is firmly plugged into the back panel of the router

and the other end into an active AC wall or power-strip outlet.

• Check that the power switch is turned on.

The following table shows the possiblestates of the LEDs (lights) on the 5667 router/bridge.

power adsl act eth usb

Unlit

Solid

Blinking

All

Off DSL not

connected

On Ready for data

traffic

N/A Searching for

signal

Post failure

DSL not
connected

N/A Ethernet port connected to

DSL traffic
flow

Ethernet port not
connected; check Ethernet
cable connection if using
Ethernet interface

LAN
Ethernet traffic flow USBtraffic flow

USB port not connected;
check USB cable
connection if using USB
interface

USB port connected to
host

Blinking

Ethernet Link LED Status

The Ethernet LED indication on the front of the router/bridge indicates Ethernet connectivity at
thehardware level.

No Link - Unlit

This indicates that there is no Ethernet link detected. Check the Ethernet cable connection from
the PC to the 5600 series device. If you have used the wrong cable, the

eth LED will remain unlit

andsowilltheLEDontheEthernetcardinyourPC.

8

SpeedStream Dual USB/Ethernet Router User’s Guide

4

Model 5667

Carrier Not Detected – Not Lit

If the Ethernet LED is not lit, check the connection on the other end of the Ethernet cable.

Carrier Detected - Solid Green

There are conditions in which the Ethernet link will not be operational when the green Ethernet
LED is lit. The Ethernet interface on the host computer or hub connected to the router's Ethernet
port should be set to

half-duplex, no auto-negotiation. Otherwise connectivity problems can arise.

Examining the Ethernet statistics that will indicate a one-sided connection usually can see this.

STEP 2: Test the ATM Circuit

Use the ATM ping command to send OAM loopback cells on the VPI/VCI that you believe is
correct. The Network Service Provider at the other end of your connection will be using a specific
VPI/VCI (often it is set to 8/35). If you think you have the VPI/VCI set properly, you can use
atmping command to send out cells on a different channel to see if there is a response.

STEP 3: Check for IP Routing Problems

IP routing problems usually are the result of something being misconfigured. Check the following
functions:

• Execute the ping command to see if the destination IP address is alive.

• Make sure the default route (IP gateway) is defined correctly. It must be on the same

subnetwork as your router.

• Check to see that there are static routes set up to t he specified network.

• Check whether the Routing InformationProtocol (RIP) is supplying information or

supplying erroneous information.

• If Firewall is enabled, and not snoozing, IP packets will stop at the router depending

upon the level at which the firewall is running. Check the Firewall configuration.
Firewall events are logged to the console.

Connection Problems

If you cannot connect your PC to the target router for configuration:
For a LAN connection, verify that the router’s IP address matches the IP address previously stored into

the router’s configuration. You must have previously set the router’s Ethernet LAN IP address and
subnet mask, saved the Ethernet configuration changes, and rebooted the router for the new IP address to
take effect.

CheckthatyourLANcableispinnedcorrectlyandeachpinendissecurelypluggedin.

9

SpeedStream Dual USB/Ethernet Router User’s Guide

5

Model 5667

Make sure the PC and target router are on the same IP subnetwork or the target router is reachable
through a router on your LAN. They can, however, be on different networks if IP routing is off.

Check Network TCP/IP properties under Windows 95 and the control panel of the TCP/IP driver
installed.

Troubleshooting: ATM Connectivity

The ATM physical layer provides a mechanism for monitoring cell delineation. The cell delineation
function allows the identification of cell boundaries in the payload. The emweb:EwSysModeCurrentLC;
softwaremonitors Out of Cell Delineation (OCD) alarms which indicatethat there are errors foundin the
payload. If the OCD condition persists for greater than 2.5 seconds, it will cause the DSL line to retrain.

You can test the health of the ATM link by manually sending Operations and Maintenance (OAM) cells
over a specified virtual connection. This command requires the specification of:

• OAM loopback cell type - either F4 or F5

• Transmit over a single LAN segment (one hop) or end-to-end

• VPI/VCI number of connection to transmit OAM cell over

The response section of the web page will indicate if an OAM reply has been received for the transmitted
OAM cell.

Login Password Problems

You have been prompted for the login password and received the following message: Login Password is
invalid.

Type the correct password and press enter. Remember that the password is case-sensitive. If the
password is admin, check that you are entering it in lowercase and that the Caps key is not active.

If you have forgotten the password, you must reset the login password.

DSL Line Training

If the DSL line is retraining frequently, it may be that there are errors in the ATM traffic that is causing
out-of-cell delineation alarms. If there is an OCD alarm state for more than 2.5 seconds, the DSL line will
retrain.

The DSL LED on the front of the router will indicate green when the DSL line has been operational for
10 seconds.

Check the DSL Status page for details.

0

SpeedStream Dual USB/Ethernet Router User’s Guide

5

Model 5667

PPP Troubleshooting

Capture a PPP Trace for Debugging

1. UnplugDSL cable.

2. Using Simplesetup, enter username/password.

3. Select Transfer form the main menu, then select Capture Text.

4. Enter the following command via console:

ppp event {1-9} (9 displays all PPP information)
event show (enables logging)

5. Insert DSL cable.

6. Once showtime (DSL sync) is reached, the 5667 will attempt to connect.

7. Capture log for an unspecified amount of time.

8. Stop capture.

9. Enter the command ‘event unshow’ to turn off logging.

1

SpeedStream Dual USB/Ethernet Router User’s Guide

5

Model 5667

Appendix A

Configuration Data Sheets

Your router is preconfigured with settings specific to your network. Recording these settings is important
in case your router is inadvertently reset to the default configuration and you need to reestablish your
original configuration.

Use the following worksheets to record your router’s current configuration. The worksheets are organized
on the following pages according to the following services and features: Simple Setup settings, router
configuration, password information, and settings for LAN IP, DHCP, DNS, RIP, and NAPT.

Simple Setup

The options in Simple Setup allow you to configure the router for basic routing operation and require only
the configuration of the PPP type a nd PPP authenticationparameters. The r outer uses the factory default
parameters for all other operational parameters

Parameter Default Value Your Value

PPP Authentication

Username (Provided by IP)
Password (Provided by IP)

Router Configuration

Parameter Default Value Your Value

ATM VC

VPI
VCI

Multiplexing (encapsulation)
Mode
Connection Type (Not used when in

Local IP Information (if router
connection type)

ADSL IP Address

ADSL IP Subnet Mask
PPP Type PPPoE
PPP Authentication
Username
Password

0000081
2335363738
3535
LLC/SNAP

PPPoE/PPPoA mode)

None
None

None
None

LLC/SNAP  VC Multiplexing
Bridge  Router

PPPoA  PPPoE

2

SpeedStream Dual USB/Ethernet Router User’s Guide

5

Model 5667

Parameter Default Value Your Value

Authentication Method CHAP

CHAP  PAP

Service/Feature Configuration

Router Password Settings

Use this form to record your username and password for accessing the router.

Parameter Default Value Your Value

Password

Username
Password

LAN IP Settings

Use this form to configure Ethernet LAN IP settings.

admin
admin

Parameter Default Value Your Value

LAN IP
IP Address
Subnet Mask

192.168.254.254

255.255.255.0

DHCP Settings

Use this form to record DHCP settings.

Parameter Default Value Your Value

LAN IP Address 192.168.254.254
Subnet Mask 255.255.255.0
DHCP Mode server
Assign address pool range

Beginning IP Address

End IP Address
DNS Server IP Address none

On
1 (range: 1 to 253)
64 (range: 1 to 253)

save  relay  disable
on  off

3

SpeedStream Dual USB/Ethernet Router User’s Guide

5

Model 5667

Firewall Configuration

Use this form to record Firewall settings.

Parameter Default Value Your Value

Mode low
Snooze 30

Port Forwarding Configuration

Use this form to record Port Forwarding settings.

Parameter Default Value Your Value

23/telnet 192.168.254.254
21/ftp 192.168.254.254
80/http 192.168.254.254

RIP Settings

Use this form to record RIP settings.

Parameter Default Value Your Value

Mode off

on  off

Destination network ID none
Destination subnet mask none
Next hop IP none

4

SpeedStream Dual USB/Ethernet Router User’s Guide

5

Model 5667

Technical S pecifications

Routing

RFC 2364 Point-to-Point protocol over ATM PVCs (PPPoA)
RFC 2684 (formerly 1483) Bridged Ethernet and routedencapsulation
RFC 1577 Classical IP over ATM
Network Address Port Translation (NAPT)
DHCP server and DNS relay agent
Configurable PAP and CHAP authentication
Packet filtering
Point-to-Point protocol over Ethernet (PPPoE)

Management

Intuitive, Web-based GUI management access
SNMP support
Comprehensive hardware diagnostics
Local and remote management console

Appendix B

Media Interface

RJ-11 ADSL WAN connection
10Base-T RJ-45 Ethernet LAN connection
USB LAN connection

Standards Compliance

IEEE 802.3
USB 1.0

Diagnostic LEDs

Power, ADSL, Activity, Ethernet status, USB status

Power

18VAC, 0.8A power supply included

Certifications

FCC Part 15, Class B
CE certification

5
