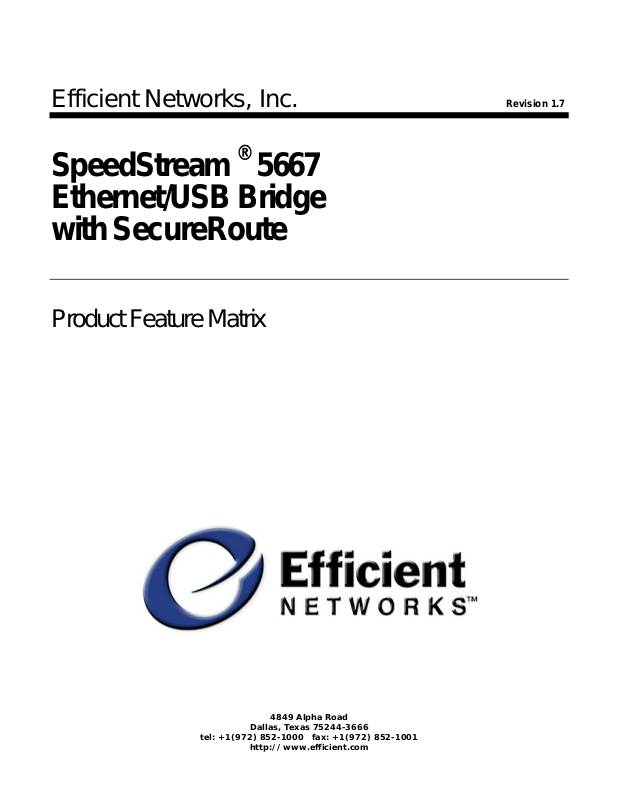

Efficient Networks, Inc. Revision 1.7
SpeedStream ® 5667
Ethernet/USB Bridge
with SecureRoute
Product Feature Matrix
4849 Alpha Road
tel: +1(972) 852-1000 fax: +1(972) 852-1001
Dallas, Texas 75244-3666
http://www.efficient.com
Page 2
SpeedStream 5667 with SecureRoute Feature Matrix Revision 1.7
1 Introduction
The SpeedStream
flexibility of connecting the computer via the Ethernet port and/or the USB port. Plug and Play
USB installation allows the SpeedStream® 5667 to be installed on any PC running Windows® 98,
Windows
®
98 Second Edition, Windows® ME and Windows® 2000. Computers attached to USB
and Ethernet ports can share local resources and the ADSL line.
The SpeedStream® 5667 support two different networking feature sets, available as configuration
options within the 5667 software. The first feature set supports IEEE 802.1d transparent MAClayer bridging. The second feature set supports routing of IP datagrams. Although the 5667
software supports both bridging and routing modes, only one mode is supported at a time.
1.1 Legend
Value Description
Yes Supported
No Not Supported
N/A Not Applicable
®
5667 is a Dual USB/Ethernet bridge. The SpeedStream® 5667 provides the
2 Power, Mechanical, Packaging
2.1 Power
Feature Comments
110 VAC 60 Hz power Yes
220 VAC 50 Hz power Yes
External AC power supply Yes
External power switch No
Power consumption 10 watts maximum
2.2 Physical Interfaces
Feature Comments
10Base-T connector RJ-45 LAN port
RJ-11 connector RJ-11 ADSL WAN port
USB connector USB 1.1 compliant
Serial console Mini-din (5 pin)
Reset Button Yes
Efficient Networks, Inc. Confidential Page 2 of 13
Page 3
SpeedStream 5667 with SecureRoute Feature Matrix Revision 1.7
2.3 Visual Indicators
Feature Comments
Front panel LED for Power status Yes
Front panel LED for DSL status Yes
Front panel LED for Activity status Yes
Front panel LED for Ethernet status Yes
Front panel LED for USB status Yes
2.4 Product Cabinet
Feature Comments
Desktop package Yes
Cooling fan No
2.5 Environmental
Feature Comments
Operating temperature 5 to 40 degrees centigrade
Non-operating storage -10 to +85 degrees centigrade
Operating humidity 20% to 80% Non-condensing
Non-operating humidity 5% to 95% Non-condensing
2.6 Product Packaging
2.6.1 Cabling
Feature Comments
RJ-11 Phone Cable Yes, 12ft (3.57 m)
RJ-45 Straight-through cable Yes, 10ft (3 m)
RJ-45 Crossover cable Yes, 10ft (3 m)
USB cable Yes, 6ft (1.82 m)
Serial Console cable Yes, DB9 female to Mini-din
(5 pin) female
2.6.2 Documentation
Feature Comments
Quick start guide Yes
Software/Documentation CD Yes, CD contains USB drivers,
quick start guide, and Adobe
Acrobat Reader
Safety sheet Yes
Release notes Yes, if necessary
Efficient Networks, Inc. Confidential Page 3 of 13
Page 4
SpeedStream 5667 with SecureRoute Feature Matrix Revision 1.7
2.6.3 Physical Packaging
Feature Comments
Dimensions 5.5W x 7D x 1.5H in.
139W x 177D x 33H mm
Weight: 1.25 lbs (567 g)
Shock resistant individual shipping
Yes
package
2.7 Quality and Reliability
Feature Comments
MTBF Exceeds 75,000 hours
3 Safety and Certification
3.1 Safety and Emissions
Feature Comments
FCC Part 15 emissions Class B
FCC Part 68 approval Yes
CE Mark Yes
UL Mark Yes
4 User Plane Capabilities
4.1 10BASE-T Ethernet Interface
Feature Comments
Number of hub ports 1
Factory MAC address Yes
IEEE 802.3 Ethernet Yes
Ethernet v2 Yes
Full duplex Ethernet Yes
Efficient Networks, Inc. Confidential Page 4 of 13
Page 5
SpeedStream 5667 with SecureRoute Feature Matrix Revision 1.7
4.2 USB Interface
Feature Comments
Number of USB ports 1
Factory MAC address No
Data Transfer Bulk Transfer
USB Compliance 1.1
OS support 98, 98SE, ME, W2K
Host Controller Support OHCI and UHCI
Data Rate Up to 12Mbps
Device Type High Speed
4.3 DMT ADSL WAN Interfa ce
Feature
Alcatel Microelectronics DMT
Comments
MTK-20150
chipset & version
Alcatel Firmware 3.6.7.0
Explicit rate operation Yes; As set by ATU-C
Rate adaptive operation Yes; As set by ATU-C
Fast or interleaved Forward Error
Yes; As set by ATU-C
Correction
Dual latency No; single latency path is
supported
Dying Gasp
Yes
Network Timing Reference No
Frequency Division Multiplexing Yes
Echo Cancellation No
Bit swapping Yes; As supported by MTK-
20150 chipset
Trellis coding Yes; As supported by MTK-
20150 chipset
T1.413 Issue 2 reduced overhead
Yes
framing
Support for G.HS, T1.413 Issue2,
Yes, default mode: multi-mode
G.dmt, g.lite, and multi-mode.
Efficient Networks, Inc. Confidential Page 5 of 13
Page 6
SpeedStream 5667 with SecureRoute Feature Matrix Revision 1.7
4.4 AAL5, ATM and Cell Transmission Convergence
Feature Comments
Maximum simultaneous VCCs 8
Pre-configured PVC Yes, 0/32, 0/35, 0/36, 0/37,
0/38, 8/35, 1/35
VPI range VPI= 0-255
VCI range VCI= 0-65,535
ATM traffic classes supported UBR + PCR
per-VCC Peak Cell Rate traffic
Yes
shaping
ITU I.432 HEC cell delineation Yes
ITU I.432 cell payload scrambling Yes
ATM to DMT transmission
convergence
AS0 downstream, LS0
upstream
ADSL Forum TR-002
ILMI version Future support
SVC signaling version Future support
4.5 ATM/AAL5 Data Encapsulation
Feature Comments
IP encapsulation into PPP Yes
RFC 2684 Bridged Ethernet
encapsulation
RFC 2684 Routed IP Ethernet
Yes, LLC and VCMUX.
Yes, LLC and VCMUX.
encapsulation
RFC 2364 LLC encapsulated and
Yes
VC multiplexed PPP over ATM
RFC 2516 PPP over Ethernet Yes
Multiple PPPoE sessions No
Efficient Networks, Inc. Confidential Page 6 of 13
Page 7
SpeedStream 5667 with SecureRoute Feature Matrix Revision 1.7
4.6 Packet Forwarding
4.6.1 Layer 3 Routing - IP
Feature Comments
Static routing Yes, maximum of 24
Default route Yes
Variable length subnet masks Yes
RIP version 1 Yes, active and passive
RIP version 2 Yes, active and passive
VCC to VCC routing Yes
ICMP redirects Yes
Simultaneous routing and bridging No
CIDR Support Yes
4.6.2 Layer 3 Routing – Other P rotocols
Feature Comments
IPX routing No, but bridgeable
Appletalk No, but bridgeable
4.6.3 Layer 2 Bridging
Feature Comments
IEEE 802.1d MAC layer bridging Yes
MAC address learning and aging Yes
Maximum MAC addresses learned 64
Spanning Tree Algorithm No
Multicast groups Yes
VCC to VCC bridging N/A
MAC address filtering No
5 Control Plane Capabilities
5.1 ATM Virtual Circuit Connections
Feature Comments
Manual PVC creation and tear
down
ILMI version Future
SVC signaling version N/A
Yes
Efficient Networks, Inc. Confidential Page 7 of 13
Page 8
SpeedStream 5667 with SecureRoute Feature Matrix Revision 1.7
5.2 PPP Session Management
Feature Comments
PPP session establishment Follows PVC
PPP session is established if
PVC is active.
PPP session tear down Follows PVC
Manual PPP connect/disconnect
Yes
controls
6 Management Plane Capabilities
6.1 Management Interfaces
6.1.1 Local and Remote Console
Feature Comments
Command line interface via serial
port
Password Protection Yes
Command line interface via Telnet Yes
Telnet access via LAN and WAN
ports
Yes
Yes
Efficient Networks, Inc. Confidential Page 8 of 13
Page 9
SpeedStream 5667 with SecureRoute Feature Matrix Revision 1.7
6.1.2 Remote Protocol-based Management
6.1.2.1 SNMP
Feature Comments
SNMP support Yes
Configurable Trap manager address Yes
SNMPv1 status and event
Yes
notification
Number of Trap destinations 2
RFC 1213 MIB-II Yes
RFC 1623 Ethernet MIB Yes
RFC1695 AToM MIB Yes
RFC 2662 ADSL MIB Yes
ADSL Forum Line MIB Yes
6.1.2.2 HTTP – Web-Based Management
Feature Comments
Internal HTTP server Yes
Web management available from
LAN
LAN/WAN
Password Protected Yes
Ability to disable Yes
Ability to run over port other than
Yes
80
Built-in help / command line
Yes
manuals
Browser compatibility Internet Explorer 4.0 and
Netscape Navigator 4.0 or
greater
JAVA based No
6.2 ATM Layer In-band Management
Feature Comments
Generate and reply to F4 & F5
Yes
Loopback OAM cells
F4 & F5 AIS/RDI OAM cell flow
Yes
support
Efficient Networks, Inc. Confidential Page 9 of 13
Page 10
SpeedStream 5667 with SecureRoute Feature Matrix Revision 1.7
6.3 ADSL In-band Management
Feature Comments
DMT Embedded Operations
Channel (EOC)
Yes;
As supported by DSL chipset
6.4 Configuration Management
6.4.1 Software and Configuration Updates
Feature Comments
Persistent storage of configuration
Yes
during power down
TFTP software updates via
Yes
LAN/WAN port
Xmodem software updates via
Yes
console port
FTP software updates via
No
LAN/WAN port
FTP configuration updates via
No
LAN/WAN port
Firmware updates via local PC
Yes
application
Configuration changes via local or
Local only
remote console
Configuration changes via web
Yes
browser
Efficient Networks, Inc. Confidential Page 10 of 13
Page 11
SpeedStream 5667 with SecureRoute Feature Matrix Revision 1.7
6.4.2 IP Address and DNS Name Management
Feature Comments
Ethernet port factory default IP
192.168.254.254
address
Manual IP address assignment for
Yes
Ethernet
Dynamic IP address assignment for
Yes
ATM VCC via PPP/IPCP
DHCP relay agent for LAN clients Yes
DHCP server for LAN clients Yes
DHCP client for WAN port Yes
DNS server for LAN clients Yes
DNS relay Yes
Configurable CHAP or PAP Yes
Synchronized DHCP and DNS
servers
Yes;
IP address and DNS name
assignments are synchronized.
Network Address Port Translation Yes;
Many LAN hosts mapped to a
single WAN IP address
Configurable WAN-to-LAN passthrough of NAPT
Yes;
Provides access to LAN-side
servers (FTP, SMTP, HTTP,
etc.)
VPN pass-through support PPTP (multiple sessions)
6.5 Fault Management
Feature Comments
Power-on self test Yes
Front panel alarm indication Yes
Reset button Yes
Event logging Yes
PPP link status and reset Yes
PING packet generation Yes
ATMPING cell generation Yes
Traceroute Yes
Efficient Networks, Inc. Confidential Page 11 of 13
Page 12
SpeedStream 5667 with SecureRoute Feature Matrix Revision 1.7
6.6 Performance and Accounting Management
Feature Comments
Ethernet port statistics Yes
Bridging statistics Yes
IP statistics Yes
ICMP statistics Yes
PPP statistics Yes
TCP & UDP statistics Yes
ATM/AAL5 statistics Yes
Near end ADSL statistics (ATU-R) Yes;
As provided by DSL chipset
Far end ADSL statistics (ATU-C) Yes;
As provided by DSL chipset
6.7 Security Management
Feature Comments
Password for Web-based access Yes
Password for console and Telnet
Yes
access
Configurable SNMP community
Yes
string
Access lists No
Number of privileged users 1
Renumber well known server ports No
Limit access to management from
No
LAN
Efficient Networks, Inc. Confidential Page 12 of 13
Page 13
SpeedStream 5667 with SecureRoute Feature Matrix Revision 1.7
Document Revision History
Version Date Editor Description
1.0 12/02/00 DL Initial document creation
1.1 12/14/00 DL Corrections on USB data transfer, speed
1.2 12/18/00 DL Initial document release
1.3 1/31/01 DL Additional corrections of physical interfaces, management
and password.
1.4 2/15/01 IA Updated to include upgradeable router feature set.
1.5 3/23/01 DL Formatting corrections, added metric conversions
1.6 7/9/2001 DL Formatting corrections, update feature setup.
Corrections: added CHAP/PAP support
1.7 7/10/2001 DL Minor Corrections
Efficient Networks, Inc. Confidential Page 13 of 13
Loading...
