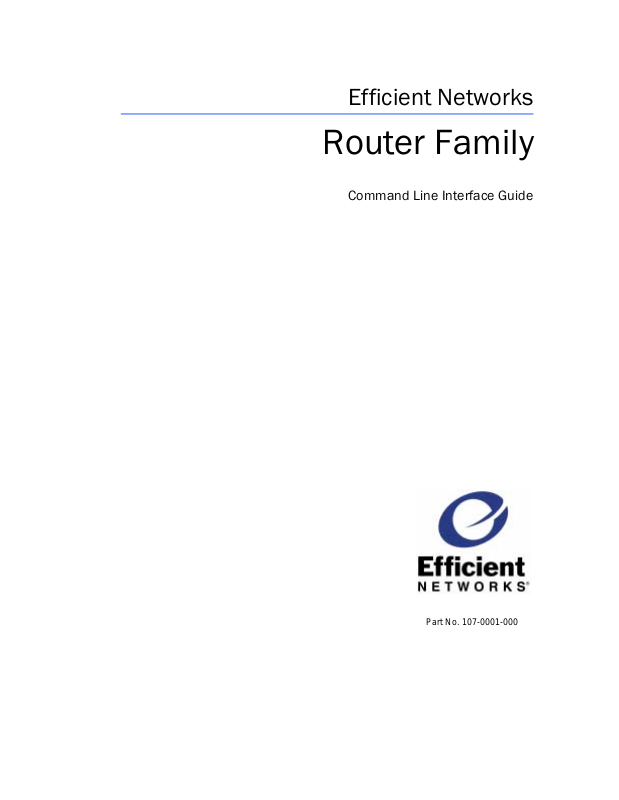

Efficient Networks 107-0001-000 User Manual

(IILFLHQW1HWZRUNV

5RXWHU)DPLO\

&RPPDQG/LQH,QWHUIDFH*XLGH

Part No. 107-0001-000

Efficient Networks

®

Software License and Limited Warranty

 Copyright 2002, Efficient Networks, Inc.

All rights reserved. Printed in the U.S.A.

Efficient Networks and SpeedStream are registered trademarks, and the Efficient Networks logo is a trademark of Efficient
Networks, Inc. All other names may be trademarks, service marks or registered trademarks held by their respective companies.
This document is for information purposes only, Efficient Networks is not responsible for errors or omissions herein. Efficient
reserves the right to make changes to product specifications without notice.

Efficient Networks, Inc. – End User Software License and Warranty

INSTALLATION OF THE HARDWARE AND SOFTWARE PROVIDED BY EFFICIENT NETWORKS, INC. ("EFFICIENT") CONSTI­TUTES ACCEPTANCE BY YOU OF THE TERMS OF THE FOLLOWING SOFTWARE LICENSE AND LIMITED WARRENTY. IF YOU
DO NOT ACCEPT THESE TERMS, PLEASE RETURN THE HARDWARE AND SOFTWARE AND SOFTWARE IN ITS ORIGINAL
PACKAGING TO THE VENDOR FROM WHICH YOU PURCHASED IT FOR A FULL REFUND OF THE PURCHASE PRICE.

The following describes your license to use the software (the"Software") that has been provided with your EFFICIENT DSL customer premise
equipment ("Hardware") and the limited warranty that EFFICIENT provides on its Software and Hardware. EFFICIENT reserves any right not
expressly granted to the end user.

Software License
The Software is protected by copyright laws and international copyright treaties. The Software is licensed and not sold to you. The definition

od Software includes, but not limited to, system and operating software marketed by EFFICIENT, including firmware, embedded software, soft­ware provided on media, downloadable software, software for configuration or programmable logic elements, and all EFFICIENT maintenance
and diagnostic tools associated with the above mentioned software. Accordingly, while you own the media (such as CD ROM or floppy disk)
on which the software is recorded, EFFICIENT or its licensors retains ownership of the Software itself.

1. Grant of License
You may make backup copies of the system configuration as required. If the Hardware is being installed on a network, you may install the Soft­ware on the network server or other server-side devise on which the Hardware is being installed and onto the client-side devices.

2. Restrictions

• sublicense, assign, or distribute copies of the Software to others;

• decompile, reverse engineer, disassemble or otherwise reduce the Software or any part thereof to a human perceivable form;

• modify, adapt, translate or create derivative works based upon the Software or any part thereof; or

• rent, lease, loan or otherwise operate for profit the Software.

3. Transfer
the Software from any devices onto which you have installed it, and must ensure that the party to whom you transfer the Hardware receives this
License Agreement and Limited Warranty.

4. Upgrades Covered
may receive from EFFICIENT, whether delivered via tangible media (CD ROM or floppy disk), down loaded from EFFICIENT, or delivered
through customer support. Any such additional software shall be considered "Software" for all purposes under this License.

5. Export Law Assurances
firm that you will not export or re-export the Software to any countries that are subject to export restrictions.

6. No Other Rights Granted.
otherwise, is granted to any copyright, patent, trademark, trade secret, or other proprietary rights of EFFICIENT or its licensors.

7. Termination.
provisions. Upon termination, you must return the Software and all copies thereof.

Limited Warranty
The following limited warranties provided by EFFICIENT extend to the original end user of the Hardware/licensee of the Software and are not

assignable or transferable to any subsequent purchaser/licensee.

1. Hardware. EFFICIENT warrants that the Hardware will be free from defects in materials and workmanship and will perform substantially
in compliance with the user documentation relating to the Hardware for a period of one year from the date the original end user received the
Hardware.

2. Software
the Hardware and Software for a period of ninety days from the date the original end user received the Hardware and Software. The end user is
responsible for the selection of Hardware and Software used in the end user’s network. Given the wide range of third-party hardware and appli­cations, EFFICIENT does not warrant the compatibility or uninterrupted or error free operation of our Software with the end user’s systems or
network.

3. Exclusive Remedy
sole option, either (a) a refund of the purchase price paid for the Hardware/Software or (b) repair or replacement of the Hardware/Software with
new or remanufactured products. Any replacement Hardware or Software will be warranted for the remainder of the original warranty period
or thirty days, which ever is longer.

4. Warranty Procedures
Α. Prior to returning a product under this warranty, the end user must first call EFFICIENT at [phone], or send an email to EFFI CIEN T

at [e-mail] to obtain a return materials authorization (RMA) number. RMAs are issued between 8:00 a.m. and 5:00 p.m. Central
Time, excluding weekends and holidays. The end user must provide the serial number(s) of the products in order to obtain an RMA.

. You may install and use one (and only one) copy of the Software in conjunction with the EFFICIENT provided Hardware.

. The license granted is a limited license. You may NOT:

. You may transfer the Software only where you are also transferring the Hardware. In such cases, you must remove all copies of

. This License covers the Software originally provided to you with the Hardware , and any additional software that you

. You acknowledge that the Software may be subject to export control laws and regulations of the U.S.A. You con-

Other than the limited license expressly granted herein, no licens e, whethe r expre s s or implie d, by estoppel or

Without limiting EFFICIENT’s other rights, EFFICIENT may terminate this license if you fa il to c omply with any of these

. EFFICIENT warrants that the Software will perform substantially in compliance with the end user documentation provided with

. Your exclusive remedy and EFFICIENT’s exclusive obligation for breach of this limited warranty is, in EFFICIENT’s

. If a problem develops during the limited warranty period, the end user shall follow the procedur e outlined be low:

Efficient Networks

®

Software License and Limited Warranty

B. After receiving an RMA, the end user shall ship the product or defective component, including power supplies and cable, where applicable,
freight or postage prepaid and insured, to EFFICIENT at 4849 Alpha Road, Dallas Texas 75244, U.S.A. Within five (5) days notice from EF-

FICIENT, the end user shall provide EFFICIENT with any missing items or, at EFFICIENT’s sole option, EFFICIENT will either (a) replace
missing items and charge the end user or (b) return the product to the end user freight collect. The end user shall include a return address, daytime
phone number and/or fax. The RMA number must be clearly marked on the outside of the package.

C. Returned Products will be tested upon receipt by EFFICIENT. Products that pass all functional tests will be returned to the end user.
D. EFFICIENT will return the repaired or replacement Product to the end user at the address provided by the end user at EFFICIENT Network’s

expense. For Products shipped within the United States of America, EFFICIENT will use reasonable efforts to ensure delivery within five (5)
business days from the date received by EFFICIENT. Expedited service is available at additional cost to the end user.

E. Upon request from EFFICIENT, the end user must prove the date of the original purchase of the product by a dated bill of sale or dated
itemized receipt.

5. Limitations

• The end user shall have no coverage or benefits under this limited warranty if the product has been subject to abnormal use, abnormal condi­tions, improper storage, exposure to moisture or dampness, unauthorized modifications, unauthorized repair, misuse, neglect, abuse, accident,
alteration, improper installation, or other acts which are not the fault of EFFICIENT, including acts of nature and damage caused by shipping.

• EFFICIENT will not honor, and will not consider the warranty voided, if: (1) the seal or serial number on the Product have been tampered
with or (2) there has been any attempted or actual repair or modification of the Product by anyone other than an EFFICIENT authorized service
provider.

• The limited warranty does not cover defects in appearance, cosmetic, decorative or structural items, including framing, and any non-operative
parts.

• EFFICIENT’s limit of liability under the limited warranty shall be the actual cash value of the product at the time the end user returns the
product for repair, determined by the price paid by the end user for the product less a reasonable amount for usage. EFFICIENT shall not be
liable for any other losses or damages.

• The end user will be billed for any parts or labor charges not covered by this limited warranty. The end user will be respo n sible for any ex­penses related to reinstallation of the product.

• THIS LIMITED WARRENTY IS THE ONLY WARRENTY EFFICIENT MAKES FOR THE PRODUCT AND SOFTWARE. TO THE
EXTENT ALLOWED BY LAW, NO OTHER WARRENTY APPLIES, WETHER EXPRESS, IMPLIED OR STATUTORY, INCLUDING
ANY WARRENTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

6. Out of Warranty Repair. Out of warranty repair is available for a fixed fee. Please contact EFFICIENT at the numbers provided above to
determine out of warranty repair rate. End users seeking out of warranty repair should contact EFFICIENT as described above to obtain an RMA
and to arrange for payment of the repair charge. All shipping char ges will be bille d to the end-us er .

.

General Provisions
The following general provisions apply to the foregoing Software License and Limited Warranty.

1. No Modification. The foregoing Limited Warranty is the end user’s sole and exclusive remedy and is in lieu of all other warranties, express
or implied. No oral or written information or advice given by EFFI C IEN T or tis dealers, distributors, employees or agents shall in any way
extend, modify or add to the foregoing Software License and Limite d Wa rr an ty. This Softwa r e Licen se an d Limi ted War ra nty c ons titutes the
entire agreement between EFFICIENT and the end user, and supersedes all prior and contemporaneous representation, agreements or under­standings, oral or written. This Software License and Limited Warranty may not be changed or amended except by a written instrument executed
by a duly authorized officer of EFFICIENT.

EFFICIENT neither assumes nor authorizes any authorized service center or any other person or entity to assume for it any other obligation or
liability beyond that which is expressly provided for in this Limited Warranty including the provider or seller of any extended warranty or service
agreement.

The Limited Warranty period for EFFICIENT supplied attachments and accessories is specifically defined within their own warranty cards and
packaging.

2. EXCLUSION OF INCIDENTAL, CONSEQUENTIAL AND OTHER DAMAGES
IN NO EVENT SHALL EFFICIENT OR ITS LICENSORS BE LIABLE, WHETHER UNDER CONTRACT, WARRENTY, TORT OR ANY
OTHER THEORY OF LAW FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES WHATSOEVER, INCLUDING
BUT NOT LIMITED TO DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRPUTION, PERSONAL INJURY, LOSS OR IMPAIR­MENT OF DATA OR BUSINESS INFORMATION, EVEN IF EFFICIENT HAS BEEN NOTIFIED OF THE POSSIBILITY OF SUCH
DAMAGES. EFFICIENTS’S OR IT’S LICENSOR’S LIABILITY TO YOU (IF ANY) FOR ACTUAL DIRECT DAMAGES FOR ANY
CAUSE WHATSOEVER, AND REGARDLESS OF THE FORM OF THE ACTION, WILL BE LIMITED TO, AND SHALL NOT EXCEED,
THE AMOUNT PAID FOR THE HARDWARE/SOFTWARE.

3. General
United States (excluding conflicts of laws rules), and shall insure to the benefit of EFFICIENT and its successor, assignees and legal represen­tatives. If any provision of this Software License and Limited Warranty is held by a court of competent jurisdiction to be a invalid or unenforce­able to any extent under applicable law, that provision will be enforced to the maximum extent permissible, and the remaining provisions of t hi s
Software License and Limited Warranty will remain in full force and effect. Any notices or other communications to be sent to EFFICIENT
must be mailed by certified mail to the following address:

Efficient Networks, Inc.
4849 Alpha Road
Dallas, TX 75244
U.S.A.
Attn: Customer Service

. This Software License and Limited Warranty will be covered by and construed in accordance with the laws of the State of Texas,

. TO THE FULL EXTENT PERMITTED BY LAW,

Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

Revision History

Revision Effective Date Description Of Change

- 001 12 Feb 2002 Initial Release. Information provided to support software kernel
release 6.0.0.

Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

Table of Contents

Contents

Introduction 1-1

How This Manual is Organized . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1

Command Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2

Accessing the Command Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Terminal Sessions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3

Terminal Session under Windows (HyperTerminal) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4

Terminal Session for Macintosh or UNIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6

Telnet Session for Remote Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

Command Line via the Web Management Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-8

Status Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

? or help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

arp delete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4

arp list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 -4

bi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

bi list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 6

call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-7

date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-8

exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-10

ifs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10

ipifs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-11

iproutes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-12

ipxroutes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-12

ipxsaps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13

logout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-14

mem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-15

mlp summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-16

password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17

ping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-18

Efficient Networks

®

6

Table of Contents Efficient Networks® Router family

Command Line Interface Guide

Contents

ps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 2 0

reboot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-21

save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-22

sntp active . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2 3

sntp disable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 2 3

sntp enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-24

sntp offset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-24

sntp prefserver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2- 2 5

sntp request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-26

sntp server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-2 7

tcp stats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-28

time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-29

traceroute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-30

vers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-32

File System Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

copy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2

delete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-3

dir . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

execute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-5

format disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-6

msfs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-7

rename . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-8

sync . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

System Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

system ? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

system addbootpserver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-5

system addhostmapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-7

system addhttpfilt er . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-8

system addiproutingt able . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-9

system addserver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-10

system addsnmpfilter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-12

system addsyslogfilter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-13

7 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

Table of Contents

Contents

system addsyslogserv e r . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-14

system addtelnetfilter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-15

system addudprelay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-16

system authen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-17

system backup add . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18

system backup delete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-19

system backup disable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20

system backup enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-21

system backup pinginterval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22

system backup pingsamples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-23

system backup retry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-24

system backup stability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-25

system backup successrate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-25

system blocknetbiosdefault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-26

system community . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-27

system default modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-28

system delbootpserver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-28

system delhostmapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-29

system delhttpfilter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-30

system deliproutingtable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-30

system delserver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-31

system delsnmpfilter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-33

system delsyslogfilter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-34

system delsyslogserver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-34

system deltelnetfilter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-35

system deludprelay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-36

system history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-36

system httpport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-38

system list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-39

system log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-40

system modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-41

system moveiproutingtable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-42

system msg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-43

Efficient Networks

®

8

Table of Contents Efficient Networks® Router family

Command Line Interface Guide

Contents

system name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-44

system onewandialup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-45

system passwd . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-46

system riptimer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-4 6

system securemode list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-47

system securemode set. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-47

system securemode set cli. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-48

system securemode set lan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-49

system securemode set wan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-49

system securitytimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-50

system selnat addpolicy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-51

system selnat delpolicy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-52

system selnat list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-5 2

system snmpport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-53

system sshport. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-55

system supporttrace. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-55

system syslogport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-65

system telnetport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-66

system vpnpassthru. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-67

system wan2wanforwarding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-68

Ethernet Interface Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

eth ? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-4

eth add . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-5

eth delete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-6

eth ip addhostmapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-7

eth ip addr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-8

eth ip addroute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-9

eth ip addserver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-10

eth ip bindroute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-11

eth ip defgateway . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-13

eth ip delhostmapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-14

eth ip delroute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-15

eth ip delserver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-16

9 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

Table of Contents

Contents

eth ip directbcast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-18

eth ip disable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 -18

eth ip enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-19

eth ip filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-20

eth ip firewall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-26

eth ip mgmt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 -27

eth ip options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-28

eth ip ripmulticast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-29

eth ip translate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 -30

eth ip unbindroute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 -31

eth ip vrid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-32

eth ipx addr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-33

eth ipx disable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 -33

eth ipx enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-34

eth ipx frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 -35

eth list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-35

eth mtu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-37

eth start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-38

eth stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-39

eth vrrp add . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 -40

eth vrrp clear password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-41

eth vrrp delete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 -42

eth vrrp list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-43

eth vrrp set multicast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-43

eth vrrp set option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-44

eth vrrp set password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-45

eth vrrp set priority . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-46

eth vrrp set timeinterval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-48

eth ip remsrcrouteopt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-50

Remote Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

remote ? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-6

remote add . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-6

remote addbridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7

remote addhostmapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-8

Efficient Networks

®

10

Table of Contents Efficient Networks® Router family

Command Line Interface Guide

Contents

remote addiproute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9

remote addipxroute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-11

remote addipxsap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-12

remote addserver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-13

remote bindipvirtualroute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-15

remote blocknetbios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-16

remote del . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-16

remote delatmsnap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-17

remote delbridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-17

remote delencryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-18

remote delhostmapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-19

remote deliproute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-19

remote delipxroute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-20

remote delipxsap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-21

remote delourpasswd . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-22

remote deloursysname . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-22

remote delphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-23

remote delserver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-23

remote disable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-25

remote disauthen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-25

remote disbridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-26

remote enaauthen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-27

remote enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-27

remote enabridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-28

remote ipfilter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-2 9

remote list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-34

remote listbridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-36

remote listiproutes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-37

remote listipxroutes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-38

remote listipxsaps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-38

remote listphones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-39

remote restart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-40

remote setatmsnap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-40

11 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

Table of Contents

Contents

remote setauthen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-41

remote setbod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-42

remote setbroptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-43

remote setbwthresh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-44

remote setcompression . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-45

remote setencryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-45

remote setencryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-46

remote setipoptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-47

remote setipslaveppp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-48

remote setiptranslate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-49

remote setipxaddr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-49

remote setipxoptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-50

remote setmaxline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-51

remote setmgmtipaddr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-51

remote setminline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-53

remote setmtu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-54

remote setourpasswd . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-55

remote setoursysname . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-55

remote setpasswd . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-56

remote setphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-56

remote setpppoptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-58

remote setppppretrytimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6- 5 9

remote setprefer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-60

remote setprotocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-62

remote setpvc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-63

remote setrmtipaddr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-64

remote setspeed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-65

remote setsrcipaddr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-66

remote settimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-67

remote start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-68

remote stats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-69

remote stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-70

remote unbindipvirtualroute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-71

Efficient Networks

®

12

Table of Contents Efficient Networks® Router family

Command Line Interface Guide

Contents

WAN Interface Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

ADSL Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-2

adsl ? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-2

adsl restart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3

adsl speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-3

adsl stats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-4

ATM Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-5

atm ? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-5

atm pcr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-6

atm save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-7

atm speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7

remote setatmtraffic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8

DMT Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-10

dmt ? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-10

dmt link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-11

dmt mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-12

Dual-Ethernet Router (ETH) Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-13

eth br enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-14

eth br disable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-14

eth br options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-15

Frame Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-17

frame ? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-17

frame cmpplay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-18

frame lmi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-18

frame stats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-19

frame voice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-20

GTI Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-21

gti ? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-21

gti speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-21

gti stats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-22

gti version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-23

HDSL Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-24

hdsl ? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-24

hdsl save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-25

hdsl speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-25

hdsl terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-26

IDSL Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-27

idsl list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-27

13 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

Table of Contents

Contents

idsl save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-28

idsl set speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-28

idsl set switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-29

remote setdlci . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-29

remote setprotocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-30

SDSL Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-31

sdsl ? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-31

sdsl preact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-32

sdsl save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-33

sdsl speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-33

sdsl terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-35

SHDSL Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-36

shdsl ? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-37

shdsl annex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-37

shdsl list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-38

shdsl margin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-39

shdsl ratemode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-39

shdsl restart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-40

shdsl save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-41

shdsl speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-41

shdsl stats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-43

shdsl terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-44

shdsl ver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-45

DHCP Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

dhcp ? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-3

dhcp add . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3

dhcp addrelay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-5

dhcp bootp allow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6

dhcp bootp disallow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-6

dhcp bootp file . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7

dhcp bootp tftpserver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-8

dhcp clear addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-8

dhcp clear all records . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-9

dhcp clear expire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9

dhcp clear valueoption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-10

dhcp del . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 -1 1

Efficient Networks

®

14

Table of Contents Efficient Networks® Router family

Command Line Interface Guide

Contents

dhcp delrelay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-12

dhcp disable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-12

dhcp enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-13

dhcp list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-14

dhcp list definedoptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-16

dhcp list lease . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-18

dhcp set addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-19

dhcp set expire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-19

dhcp set lease . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-20

dhcp set mask . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-21

dhcp set otherserver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-22

dhcp set valueoption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-23

L2TP Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1

l2tp ? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3

l2tp add . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-3

l2tp call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-4

l2tp close . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-4

l2tp del . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-5

l2tp forward . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-6

l2tp list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-7

l2tp set address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-8

l2tp set authen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-9

l2tp set chapsecret . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-9

l2tp set dialout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-10

l2tp set hiddenavp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-10

l2tp set ouraddress . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-11

l2tp set ourpassword . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-12

l2tp set oursysname . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-12

l2tp set ourtunnelname . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-13

l2tp set remotename . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-13

l2tp set type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9- 1 4

l2tp set wanif . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-15

15 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

Table of Contents

Contents

l2tp set window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-16

remote setl2tpclient . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-17

remote setlns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-18

Bridge Filtering Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1

filter br ? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-1

filter br add . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 0 -2

filter br del . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-3

filter br list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-4

filter br use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-5

PPPoE Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1

remote setpppoeservice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-1

pppoe close . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-2

pppoe list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-3

IKE/IPsec Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1

ike ipsec ? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-5

ike commit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-6

ike flush . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-6

ike ipsec policies add . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-7

ike ipsec policies delete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-7

ike ipsec policies disable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-8

ike ipsec policies enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-9

ike ipsec policies list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-10

ike ipsec policies set dest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-11

ike ipsec policies set destport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-11

ike ipsec policies set interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-13

ike ipsec policies set mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-14

ike ipsec policies set peer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-15

ike ipsec policies set pfs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-16

ike ipsec policies set proposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-17

ike ipsec policies set protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-18

ike ipsec policies set source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-19

ike ipsec policies set sourceport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-20

Efficient Networks

®

16

Table of Contents Efficient Networks® Router family

Command Line Interface Guide

Contents

ike ipsec policies set translate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-21

ike ipsec proposals add . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-22

ike ipsec proposals delete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-23

ike ipsec proposals lis t . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-24

ike ipsec proposals set ahauth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-25

ike ipsec proposals set espauth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-26

ike ipsec proposals set espenc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-27

ike ipsec proposals set ipcomp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-28

ike ipsec proposals set lifedata . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-28

ike ipsec proposals set lifetime . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-29

ike peers add . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-30

ike peers delete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-31

ike peers list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-31

ike peers set address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-32

ike peers set localid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-33

ike peers set localidtype . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-34

ike peers set mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-36

ike peers set peerid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-37

ike peers set peeridtype . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-37

ike peers set secret . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-38

ike proposals add . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-39

ike proposals delete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-39

ike proposals list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-40

ike proposals set dh_group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-41

ike proposals set encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-42

ike proposals set lifetime . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-42

ike proposals set message_auth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-43

ike proposals set session_auth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-44

ipsec add . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-45

ipsec delete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-46

ipsec disable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-46

ipsec enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-47

ipsec flush . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-48

17 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

Table of Contents

Contents

ipsec list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-48

ipsec set authentication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-50

ipsec set authkey . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-50

ipsec set direction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-51

ipsec set compression . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-52

ipsec set enckey . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-52

ipsec set encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-53

ipsec set gateway . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-54

ipsec set ident . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-54

ipsec set mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-55

ipsec set service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-56

Voice Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-1

dsp ? / voice ? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13-2

dsp ecode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13-3

dsp jitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-4

dsp provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13-5

dsp save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-6

dsp vr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13-6

voice l2clear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-7

voice l2stats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-7

voice profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13-8

voice refreshcas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-9

radius Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-1

rad ? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14-2

rad deleteserver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-2

rad list secret . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-3

rad list server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14-4

rad set retries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-5

radius set server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14-5

radius set secret . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14-6

radius set timeout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14-6

Efficient Networks

®

18

Table of Contents Efficient Networks® Router family

Command Line Interface Guide

Contents

User Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-1

user ? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-2

user add access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-3

user add class . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-4

user add user . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-5

user delete access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-6

user delete class . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-7

user delete user . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-8

user disable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-9

user enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-10

user list1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-10

user list lookup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-12

user list template . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-12

user set lookup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-14

user set password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-15

Key Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-1

key ? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16-2

key add . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 6 -3

key delete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-4

key disable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16-5

key enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-6

key list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16-6

key revoke . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16-8

key unrevoke . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-8

key update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16-9

SNMP Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17-1

snmp ? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-2

snmp addtrapdest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-3

snmp community . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-4

snmp delsnmpfilter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-5

snmp deltrapdest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17-6

snmp disablesnmpif . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-6

19 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

Table of Contents

Contents

snmp enablesnmpif . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17-7

snmp list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-7

snmp settrapenable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17-8

snmp snmppasswd . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17-9

snmp snmpport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17-10

Stateful Firewall Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-1

firewall ? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18-2

firewall allow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-3

firewall clearcounter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18-6

firewall clearcounter all . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18-7

firewall delete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-7

firewall delete all . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18-8

firewall deny . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 8 -9

firewall list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18-11

firewall modify . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18-12

firewall set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18-14

firewall setdroppktthreshold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18-14

firewall seticmpfl oodthreshold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18-15

firewall setsynfloodthreshold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18-16

firewall setudpfloodthreshold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18-17

firewall viewdroppkts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-17

firewall watch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18-19

SSH Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19-1

ssh ? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19-2

ssh keygen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19-2

ssh list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19-3

ssh load privatekey . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19-3

ssh load publickey . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19-4

ssh set encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19-5

ssh set idletimeout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19-6

ssh set keepalive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19-6

ssh set mac . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19-7

Efficient Networks

®

20

Table of Contents Efficient Networks® Router family

Command Line Interface Guide

Contents

ssh set rekey . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19-8

ssh set status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19-8

system sshport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19-9

QoS Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-1

qos ? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20-2

qos append . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20-2

qos del . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20-3

qos diffserv . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20-4

qos disable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-4

qos enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20-5

qos insert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 0 -6

qos list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20-6

qos move . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20-8

qos movetoend . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20-8

qos off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20-9

qos on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20-10

qos save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20-10

qos set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20-11

qos setweight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20-13

Switch Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-1

switch ? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21-2

switch agetime . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21-2

switch block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21-3

switch mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 - 4

switch status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21-5

switch unblock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21-6

21 Efficient Networks

®

Efficient Networks® Router family

Command Line Interface Guide

This page intentionally left blank.

Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

This manual contains information on the syntax and use of the Command Line
Interface for the Ef fici ent Networks fa mily of bu siness-cla ss DSL router s. This manual
is intended for small and home of fice users, remote off ice users, and other networ king
professionals who are installing and maintaining bridged and routed networks.

It assumes that you have read the User Reference Guide that came with the router
and have installed the router as described in that guide. If the configuration i s to
include advanced functionality, a Technical Reference Guide has also been supplied
that provides essential information on the appli cation, configur ation, and management
of these features.

Chapter 1: Introduction

CHAPTER 1

CHAPTER 1 INTRODUCTION

Configuration of network connections, bridging, routing, and security features are
essentially the same for all DSL routers, unless otherwise noted.

As described in the User Reference Guide, a graphical int erface is also available for
configuring the router . It provides many , but not all, of the capabilities of the Command
Line Interface. Look for the User Referen ce Guide in the box in which your router was
shipped or find it on the Technical Support web site (www.efficient.com).

How This Manual is Organized

This manual is organized in two parts:

• How to Access the Command Line. Describes how to access the router

command line from a PC so you can enter router commands.

• Command Reference. Provides a description and syntax for each command.

Efficient Networks

®

Page 1-1

Chapter 1: Introduction Efficient Networks® Router family

Command Line Interface Guide

Command Conventions

The Command Line Interface (CLI), unless noted otherwise, follows these
conventions:

• Command line length may be up to 120 characters long unless otherwise

noted. Input characteristics are footnoted throughout the manual.

• The Command Line Interface is not cas e-sensi tive except for pas swords and

router names, and key strings.

• All parameters are positional; i.e., each keyword/parameter must be entered

in the correct order, as shown in the command format in this manual.

The command formats shown in this manual follow these conventions:

• For each command, the input format is provided. Many command use

additional parameters that allow

• Parameters enclosed in < and > are placeholders representing specific

information that you supply or a li st of defi ned p aramet ers of which one mus t
be entered.

• Parameters (may include more than one) enclosed in the charact ers [ and ]

are optional.

Accessing the Command Line

To use the Command Line Interface, you must first access the router command line.
To do this, perform the following steps:

Step 1 Connect a PC (or ASCII) terminal to a port of the router.

(The required cable and adapter are provided with the router. The connection
procedure is described in detail in the User Reference Guide that came with the
router.)

Step 2 Restart the PC and power on the router.
Step 3 Open a terminal window or start a terminal session on the PC.
Step 4 The router displays the login prompt. Login with the username superuser.

Username:

Step 5

The router displays the password prompt, enter the login password (default
password is admin.

Password:

Page 1-2 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

NOTE:

The password will be displayed as *****

Chapter 1: Introduction

Step 6

Step 7

Step 8

Step 9

A confirmation is returned; the command line interface is now available.

Logged in successfully!

If the default login password (admin) was used a message will be displayed.

**************************************************************
WARNING: You must change your password from the default value!
**************************************************************

Enter a new password at the prompt.

Enter New Password:

Re-enter the new password at the prompt.

Enter New Password Again:

The password change will be confirmed:

Password changed.

The command line is now available for use.

Terminal Sessions

The router supports both local access and remote access. In step 3 above, the
terminal session could be:

• Terminal Session under Windows (HyperTerminal) or Terminal Session for

Macintosh or UNIX (for local access)

• Telnet Session for Remote Access

Task Complete

Efficient Networks

®

Page 1-3

Chapter 1: Introduction Efficient Networks® Router family

Command Line Interface Guide

Terminal Session under Windows (HyperTerminal)

To open the HyperTerminal emulator available under the Windows operating system:

Step 1 Click Start on the Windows taskbar, then select:

> Programs

> Accessories

> Communications

> Hyperterminal

> Hyper Terminal

The HyperTerminal window will appear in the background and you will be prompted
for configuration information.

Step 2 In the Connection Description window, enter a name for the connection and select

OK.

Step 3 In the Phone Number window, under Connect using, select Com 1 (or 2).

Page 1-4 Efficient Networks

®

Efficient Networks® Router family

Chapter 1: Introduction

Command Line Interface Guide

Step 4 In the Com 1 (or 2) Properties page, enter the following port settings and select OK:

Bits per second:

Data bits:
Parity:
Stop bits:
Flow control:

a

To use a baud rate other than 9600, “Option 7: Set Console Baud Rate” on page 4-39 in the
Technical Reference Guide.

a

9600

8
None
1
Hardware

Task Complete

Efficient Networks

®

Page 1-5

Chapter 1: Introduction Efficient Networks® Router family

Command Line Interface Guide

Terminal Session for Macintosh or UNIX

To open a terminal window emulation in a Macintosh or UNIX environment, a VT100
terminal emulation program is required.

Step 1 Start your VT100 terminal emulator.
Step 2 Configure the emulator with the following settings:

Bits per second:
Data bits:
Parity:
Stop bits:
Flow control:

a

To use a baud rate other than 9600, “Option 7: Set Console Baud Rate” on page 4-39 in the
Technical Reference Guide.

a

9600
8
None
1
Hardware

Task Complete

Page 1-6 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

Chapter 1: Introduction

Teln et Session for Remote Access

From the local area network you can use TELNET to login in using the Ethernet IP
address. (For more information, see Telnet Remote Access.)

NOTE:

Remote access to the router configuration can be disabled or restricted. For further
information, see “Controlling Remote Management” on page 5-15.

Step 1 Make sure that your PC and router addresses are in the same subnetwork. For

example, the router address could be 192.168. 254.254 and the PC address could be

192.168.254.253.

Step 2 Start a TELNET session.

a.If you are using a PC running Windows“ 95/98/NT“, select Start > Run. If on a

UNIX system, bring up a shell window.

b.In the Run dialog box (or shell) window, enter:

telnet 192.168.254.254

c.Click OK, or press <Enter>.

Step 3 A TELNET window will be launched; a line identifying the router will be displayed,

followed by the Login: prompt as shown below.

Efficient 5950 G.SHDSL [ATM] Router (5950-001)Ready
Username:

Task Complete

Efficient Networks

®

Page 1-7

Chapter 1: Introduction Efficient Networks® Router family

Command Line Interface Guide

Command Line via the Web Management Interface

The Web Management interface provides a web gateway to the command line
interface allowing command line syntax the be entered through a browser-based
connection. For more information on connecting to the system via the Web
Management Interface, refer to the User Refer ence Guide.

Page 1-8 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

The commands in this section are onli ne action an d st atus commands. They faci lit at e
the following functions:

• log into and log out of configuration update mode

• display the router’s configuration, the version and level numbe rs

• list running tasks, memory, and communication interfaces

• dial a remote router to test the ISDN line

Chapter 2: Status Commands

CHAPTER 2

CHAPTER 2 STATUS COMMANDS

• connect to a remote router to test the line

• list IP routes, IPX routes and SAPs, and root bridge

• save the new configuration image

• reboot the system

The status commands found in this section in clude:

Table 2-1: Status Command Listing

Command Function

? or help

Lists the top-level commands and k eywords and a
brief description of their function.

arp delete Deletes the IP address of the ent ry i n the Ad dress

Resolution Protocol (ARP) table.

arp list Lists ARP table entries.
bi Lists the root bridge, and indicat es whether the

mode is learning, listening, or forwarding.

bi list Lists the contents of the bridge table.
call Dials a remote router.
date Displays or changes the current date on the rout-

Efficient Networks

er’s clock.

®

Page 2-1

Chapter 2: Status Commands Efficient Networks® Router family

Command Line Interface Guide

Table 2-1: Status Command Listing (Cont.)

Command Function

erase Erases the entire router’s configuration or parts of

it from FLASH memory.

exit Has the same function as logout, but will discon-

nect the Telnet session.

ifs Lists the communicatio n in terfac es installed in the

router and the status of the interfaces.

ipifs Lists the system IP inter face(s).
iproutes Lists the current entries in the IP routing table.
ipxroutes Lists the current entries in the IPX routing table.
ipxsaps Lists the current servi ces in t he IPX SAPs table.
logout Logs user out (to Login prompt ->) to reinstate ad-

ministrative security.

mem Reports the amount of RAM memory installed in

the router and its current allocation.

mlp summary Lists the status of the protocols negotiated for an

active remote connection.

password Changes the current user password.
ping Transmits an echo message.
ps List s all of the tasks (processes ) running in the sys-

tem and the status of the tasks.

reboot Initiates a reboot of the system.
save Saves the entire router’s configurati on or parts of it

to FLASH memory.

sntp active Displays the active SNTP server.
sntp disable Displays the active SNTP server.
sntp enable Enables SNTP requests.
sntp offset Specifies the SNTP offset from the Universal T ime

Coordinate (UTC).

sntp prefserver Displays or changes the preferred SNTP server.
sntp request Requests the time from an SNTP server.

Page 2-2 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

Table 2-1: Status Command Listing (Cont.)

Command Function

sntp server Displays or changes the SNTP server list.
tcp stats Displays the TCP statistic s and open connections.
time Displays or changes the current time on the rout-

traceroute T rac es the route t aken by pac kets sent f rom the lo-

vers Displays the software version level, source, soft-

? or help

Chapter 2: Status Commands

er’s clock.

cal router to the specified IP address or domain
name.

ware options, and amount of elap sed t ime that the
router has been running.

Lists the top-level commands and keywords and a brief description of their function.

Input Format

? or help

Parameters

None

Response

A listing of the top-level commands and keywords with a description of their function.

Efficient Networks

®

Page 2-3

Chapter 2: Status Commands Efficient Networks® Router family

Command Line Interface Guide

arp delete

Deletes the IP address of the entry in the ARP table. For additional information, see

”ARP” on page 6-6.

Mgmt Class

Network (R/ W)

Input Format

arp delete <ipaddr> | all

Parameters

Example

Response

arp list

Mgmt Class

<ipaddr>
all

a

Dotted-decimal notation.

arp delete 128.1.2.0

Command prompt.

Lists Address Resolution Protocol (ARP) table entries in an IP routing environment .
ARP is a tool used to find the appropriate MAC addresses of devices based on the
destination IP addresses. For additional information, see ”ARP” on page 6-6.

Network (R)

a

IP address of IP entry to delete from ARP table.
Deletes all existing are table entries.

Input Format

arp list <ipaddr> <interfacename> <interfaceunit>

Page 2-4 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

Parameters

Chapter 2: Status Commands

Example

Response

bi

<ipaddr>

<interfacename>
<interfaceunit>

a

Dotted-decimal notation.

b

HEX notation

c

Integer

a

IP address associated with a MAC address for a device on the local
interface

b

MAC address on the local network.

c

For an Ethernet interface, this can be a 1 or 0. For a DSL interface,
this is a VPN number.

arp list

-> arp list

IP Addr Mac Address Interface

192.84.210.148 00:05:02:00:80:A8 ETHERNET/0

Lists the root bridge, and indicat es whether the mode is learning, listening, or
forwarding. For additional information, see ”Bridging” on page 2-2.

Mgmt Class

Voice (R)

Input Format

bi

Parameters

None

Response

-> bi

GROUP 0Our ID=8000+00206f0249fc Root ID=8000+00206f0249fc
Port ETHERNET/0 00+00 FORWARDING

Efficient Networks

®

Page 2-5

Chapter 2: Status Commands Efficient Networks® Router family

Command Line Interface Guide

bi list

Lists the contents of the bridge table. Each MAC address in the table is listed with its
corresponding bridge port as learned by the bridge function. The line also shows the
number of seconds elapsed since the last packet was received by the MAC address
followed by flags. Possible flags include:

P Permanent (This entry is not aged out of the table.)
FLD Flood
US This entry is for the target router.
A Accept
FWD Forward
BC Broadcast
MC Multicast

Mgmt Class

Voice (R)

Input Format

bi list

Parameters

None

Response

-> bi list

BRIDGE GROUP 0:
00206F024C34: P US SD A
0180C2000000: P A MC
FFFFFFFFFFFF: P FLD A BC MC
02206F02E70D: ETHERNET/0 325 FWD
00C04F2E1AEB: ETHERNET/0 143 FWD
0060081BD761: ETHERNET/0 95 FWD

Page 2-6 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

call

Dials a remote router. This command can be used to test the ISDN link or L2TP
secession and the configuratio n settings for the remote router.

Mgmt Class

Voice (R/W)

Input Format

call <remotename>

Parameters

Chapter 2: Status Commands

<remotename>

a

ASCII string.

Response

Normal response:

Request Queued

If an unknown target <

unknown remotename <hq>

a

Name of the target router.

remotename> is entered, the following is displayed:

Efficient Networks

®

Page 2-7

Chapter 2: Status Commands Efficient Networks® Router family

Command Line Interface Guide

date

Displays or changes the current date on the router’s clock. To change the current
time, use the time command.

Automatic SNTP requests are gener ated if the sy stem need s to get t he time. You can
specify an SNTP server using the command sntp server () and a UTC offset with the

sntp offset command.

To see the current date and time on the router clock, enter date with no parameters:

Mgmt Class

All (R/W)

Input Format

date <mm/dd/yy>

Parameters

<mm>
<dd>
<yy>

a

Integer 1- 12

b

Integer 1- 31

c

Integer, indicating a year from 196 8 through 2034. Thus , 1/1/4 is Jan uary 1, 200 4, 1/1/33 is January
1, 2033, and 1/1/78 is January 1, 1978.

Response

Display when date is entered with no parameters.

-> date

BootTime: 7/1/2001 at 15:42:42
Current time: 7/1/2001 at 15:49:16

Display when date is entered with parameters.

-> date 7/1/1

Time set to UTC-420, 7/1/2001 at 15:59:29
Time adjusted for (-) 0 days 0 hours 10 minutes 13 seconds

a

b

c

Month
Day
Year

Page 2-8 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

erase

Erases the entire router’s configuration or parts of it from FLASH memory.

CAUTION:

You will need to completely reconfigure any part of the configuration that you erase.

NOTE:

An erase command does not take effect until after a reboot without a save command.

Mgmt Class

Admin (R/W)

Input Format

Chapter 2: Status Commands

erase all | keys | dod | sys | eth | filter | ipsec | ike | atom
| sdsl | idsl | frame | dhcp | atm25 | l2tp | sntp

Parameters

***
all

atom
dhcp

dod
eth

filter

keys
sys

When entered with no parameters, same as erase all.
Erases the entire router configuration from FLASH memory, includ-

ing settings for the system, Ethernet LAN, DSL line, DHCP, and re­mote router database.

Erases the ATM configuration settings.
Erases the DHCP configuration settings from FLASH memory. To

clear all DHCP information without erasing FLASH memory, us e the
command dhcp clear all records (xxx).

Erases the current state of the remote router database.
Erases the configuration settings for the Ethernet LAN from FLASH

memory.
Erases the current bridging filtering database from FLASH memo-

ry.When you issue this command you must reboot (without a save).
Erases the software option keys from FLASH memory.
Erases the name, message, and authentication password system

settings from FLASH memory.

Example

# erase dod

Efficient Networks

®

Page 2-9

Chapter 2: Status Commands Efficient Networks® Router family

Command Line Interface Guide

Response

Command prompt.

NOTE:

There is a time lag between the response issued by the erase command and the time
that the data is actually deleted from FLASH memory. To commit the changes to
FLASH memory , issue a sync command after an erase command before powering of f
the router.

exit

Has the same function as logout, but will disconnect an active Telnet session.

Mgmt Class

All (R)

Input Format

Parameters

Response

ifs

Mgmt Class

Input Format

exit

None

Command prompt.

Lists the communication inte rfaces installed in the router and the status of the
interfaces.

Voice (R), Network (R)

ifs

Parameters

None

Page 2-10 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

Response

A typical response is shown below.

Interface Speed In % Out % Protocol State Connection
ETHERNET/0 10.0mb 0%/0% 0%/0% (Ethernet) OPENED
SHDSL/0 384kb 50%/50% 50%/50% (ATM) OFF
ATM-VOICE/1 384kb 45/45% 0%/0% (ATM) OFF
BACKUP/0 57kb 0%/0% 0%/0% (AHDLC/PPP) OPENED to backup
CONSOLE/0 9600 b 0/0% 0%/0% (ATM) OFF
VOX-STRM/0 0 b (CLEAR) OFF

An example of additional interfaces that may be displa yed.

FR/3 144kb 0%/0% 0%/0% (HDLC/FR) OPENED
FR-VC/1 144kb 0%/12% 0%/2% (FR) OPENED to internet
DMT/0 0 b (ATM) OFF
ATM-VC/1 0 b (ATM) OFF

ipifs

Chapter 2: Status Commands

Lists the system IP interface(s).

Mgmt Class

Network (R)

Input Format

ipifs

Parameters

None

Response

-> ipifs

ATM_VC/1 192.168.254.1 (FFFFFF00) dest 192.168.254.2 sub

ETHERNET/0 192.84.210.12 (FFFFFF00) dest 0.0.0.0 sub

192.168.254.0 net 192.168.254.0 (FFFFFF00) P-2-P

192.84.210.0 net 192.84.210.0 (FFFFFF00) BROAD­CAST mtu 1500

Efficient Networks

®

Page 2-11

Chapter 2: Status Commands Efficient Networks® Router family

Command Line Interface Guide

iproutes

Lists the current entri es in the IP routing table.

Mgmt Class

Network (R)

Input Format

iproutes

Parameters

None

Response

-> iproutes

IP route / Mask --> Gateway Interface Hops Flags

0.0.0.0 /ffffffff --> 0.0.0.0 [none] 0 NW PRIV

192.84.210.0 /ffffff00 --> 0.0.0.0 ETHERNET/0 1 NW FW DIR PERM

192.84.210.12 /ffffffff --> 0.0.0.0 ETHERNET/0 0 ME

192.168.254.0 /ffffff00 --> 0.0.0.0 [none] 0 NW PRIV

192.168.254.1 /ffffffff --> HQ ATM_VC/1 0 ME

192.168.254.2 /ffffffff --> HQ ATM_VC/1 1 FW DIR PRIV

224.0.0.9 /ffffffff --> 0.0.0.0 [none] 0 ME

255.255.255.255 /ffffffff --> 0.0.0.0 [none] 0 NW PERM

ipxroutes

Lists the current entries in the IPX routing table.

Mgmt Class

Network (R)

Input Format

ipxroutes

Parameters

None

Page 2-12 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

Response

-> ipxroutes

Network Gateway Interface Hops Ticks Flags
00001001 HQ [down] 1 4 STATIC FORWARD DOD
00000456 (DIRECT) ETHERNET/0 0 1 FORWARD

ipxsaps

Lists the current services in the IPX SAPs table.

Mgmt Class

Network (R)

Input Format

Chapter 2: Status Commands

ipxsaps

Parameters

None

Response

-> ipxsaps

Service Name Type Node number Network Skt Hops
SERV312_FP 4 000000000001:00001001:045 1

Efficient Networks

®

Page 2-13

Chapter 2: Status Commands Efficient Networks® Router family

Command Line Interface Guide

logout

Logs user out (to login prompt) to reinstate administrative security.

Mgmt Class

All (R)

Input Format

logout

Parameters

None

Response

Command prompt.

Page 2-14 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

mem

Reports the amount of RAM memory installed in the router and its current allocation.

Mgmt Class

System (R), Debug (R)

Input Format

mem

Parameters

None

Response

-> mem

Chapter 2: Status Commands

Small buffers used.......18 (7% of 256 used)

Large buffers used.......41 (16% of 256 used)

Buffer descriptors used..59 (7% of 768 used)

Number of waiters s/1....0/0

Table memory allocation statistics:
Sizes 16 32 64 128 256 512 1024 2048
Used 34 18 12 3 8 9 8 7
Free 3 1 4 0 1 1 1 1

Sizes 4096 8192
Used 3 1
Free 1 0

Efficient Networks

®

Page 2-15

Chapter 2: Status Commands Efficient Networks® Router family

Command Line Interface Guide

mlp summary

Lists the status of the protocols negotiated for an active remote connection. The
following are the most common protocols:

• MLP (Multilink Procedure)

• IPNCP (IP routing Network Protocol)

• CCP (Compression Control Protocol)

• BNCP (Bridging Network Protocol)

• IPXCP (IPX Network Protocol)

Mgmt Class

Network (R)

Input Format

mlp summary

Parameters

None

Response

Open - indicates that the protocol is in re ady state.
Stopped - means that the protocol is defined, but did not successfully negotiate with

the remote end.
No message (command prompt

->) indicates that the link is not active.

Page 2-16 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

password

Changes the current user password.

Mgmt Class

All (R/W)

Input Format

password <old password> <new password>

Parameters

Chapter 2: Status Commands

<old password>
<new password>

a

ASCII string

Response

The follwoing example would change the password for user admin101 from 1675309
to lobster:

admin101@console-> password 1675309 lobster

Password changed for user "admin101"

a

User’s current password.

a

User’s new password.

Efficient Networks

®

Page 2-17

Chapter 2: Status Commands Efficient Networks® Router family

Command Line Interface Guide

ping

Transmits an echo message, available within the TCP/IP protocol suite. The echo
message is sent to a remote node and returned; the echo test s connectivity to the
remote node. It is particularl y useful for locating connection problems on a network.

The remote node can be specified by IP address or by domain name. If a domain
name is specified, the address of the domain is requested from the domain name
server (DNS).

A status message is issued for each echo message sent.

NOTE:

You cannot ping your own LAN address; you can ping your own WAN address.

To fit the echo message into one ATM cell in routin g mode, set the l engt h of us er dat a
down to 0 bytes (-s 0 or -l 0).

NOTE:

To terminate the ping before it ends, press control-c.

Mgmt Class

Network (R/ W)

Input Format

ping [-c <count>] [-i <wait>] [- s | -l <size>)] [-I
<srceaddr>] <ipaddr> | <domainname>

Parameters

-c <count>

-i <wait>

-s | -l <size>

-I <scraddr>

<ipaddr>
<domainname>

a

integer, 1 - 2000000000 (5)

b

integer, 1 - 10 (1)

c

integer, 0 - 1648 (56)

d

Dotted-decimal notation

e

ASCII string

a

b

Number of packets sent.
Wait period between packets in seconds.

c

Packet data length in bytes.

d

Source IP address contained in t he echo message. Use th is option
to force packets into a tunnel or to force use of the mana gement ad­dress as the source address.

d

Remote node to which the echo message is sent. It can be specified
by its domain name or by its IP address.

e

Page 2-18 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

Response

The following are application examples of the ping command and their typical
responses.

Example

The following command will ping the domain name www.yahoo.com.

-> ping www.yahoo.com

The command attempts a DNS (domain name server) lookup to find the address of
the domain. If the DNS server address is not known, it returns the following message:

ping: unknown host www.yahoo.com

If the DNS lookup is successful, the ping sends f ive pack ets , one second apar t, with a
packet length of 56 bytes.

ping: reply from 216.32.74.52: bytes=56 (data), icmp_seq=1, time=86 ms
ping: reply from 216.32.74.52: bytes=56 (data), icmp_seq=2, time=81 ms
ping: reply from 216.32.74.52: bytes=56 (data), icmp_seq=3, time=82 ms
ping: reply from 216.32.74.52: bytes=56 (data), icmp_seq=4, time=84 ms
ping: reply from 216.32.74.52: bytes=56 (data), icmp_seq=5, time=82 ms
ping: packets sent 5, packets received 5

Chapter 2: Status Commands

Example

The following command requests 2 echo messages sent 7 seconds ap art with a
packet length of 34 bytes. The messages are sent to IP address 192.168.254.2.

-> ping -c 2 -i 7 -s 34 192.168.254.2

-ping: reply from 192.168.254.2: bytes=34 (data), time<5 ms
ping: reply from 192.168.254.2: bytes=34 (data), time<5 ms
ping: packets sent 2, packets received 2

Example

The following command sends packets with the source IP address 192.168.254.254
to the IP address 192.4.210.122. Default values are used f or the other options.

-> ping -I 192.168.254.254 192.4.210.122

Example

The following command uses management address 192.168.1.2 as the source
address when pinging destination address 192.168.100.100.

-> ping -I 192.168.1.2 192.168.100.100

Efficient Networks

®

Page 2-19

Chapter 2: Status Commands Efficient Networks® Router family

Command Line Interface Guide

ps

Lists all of the tasks (processes) running in the system and the status of the tasks.

Mgmt Class

System (R), Debug (R)

Input Format

ps

Parameters

None

Response

-> ps

TID: NAME FL P BOTTOM CURRENT SIZE
1:IDLE 02 7 1208f0 121008 2032
3:MSFS_SYNC 03 6 1224a0 122ba8 2032
4:SYSTEM LOGGER 03 5 122cd0 1233d8 2032
5:LL_PPP 03 5 126750 126e58 2032
6:NL_IP 03 5 126fe0 1272e0 1000
7:TL_IP_UDP 03 3 127460 127768 1000
8:TL_IP_TCP 03 3 1278c0 127fd0 2032
9:IP_RIP 03 4 128120 128420 1000
10:TELNETD 03 5 128550 128838 1000
11:DUM 03 5 12b580 12bc88 2032
12:ATM25 03 1 12c0a0 12c790 2032
13:SNMPD 03 5 124b60 125a70 4080
14:BOOTP 03 5 12e3d0 12e6c0 1000
15:CMD 01 6 12cba0 12d9f8 4080

Page 2-20 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

reboot

This command causes a reboot of the system.

CAUTION:

A reboot erases any configuration changes that have not been saved. If necessary,
enter a save command before the reboot command.

Certain configuration settings require a reboot before the setting becomes effective,
including:

• A change from IP routing to bridging or the reverse.

• The addition of IKE filters

• IPX changes

• Certain changes to Stateful Firewall rules

Other configuration changes bec ome effective following either a reboot or a restart of
the Ethernet or remote interface. These change s include:

Chapter 2: Status Commands

• System settings

• Ethernet IP address

• TCP/IP routing

• Remote router default bridging destination

• TCP/IP route addresses

• SAPs and bridging

• Adding a new remote entry to the remote database.

A reboot also ensures that all file system updates are completed. There is a time lag
between the entry of a save command and the safe storage of the data in FLASH
memory. If the power goes off before the data is stored in memory, the data can be
lost. Always reboot before powering off the router. Or, use the sync command to
commit file changes to memory.

Mgmt Class

All (R/W)

Input Format

reboot <option>

Efficient Networks

®

Page 2-21

Chapter 2: Status Commands Efficient Networks® Router family

Command Line Interface Guide

Parameters

NOTE:

The word default cannot be abbreviated in the command.

Response

save

***

factory

default

User is prompted to verify the command.

The save command saves the entire router’s configuration or parts of it to FLASH
memory. The keyword in the command determines what is saved.

If no option is specified, the router is reboo ted using the existing con­figuration file.

This option deletes all files except AUTOEXEC.OLD if it exists. AU­TOEXEC.OLD is renamed AUTOEXEC.BAT; it is re-executed by the
reboot. This option also resets the non-volat ile RAM; thus deleting the
IP address of the router and the TFTP server during the boot process
and also forcing the rout er to boot from FLASH i nstead of f rom the net­work.

This option deletes t he system configuration fi le and restores the rout er
to its original defaults (before any conf iguration was entered).

NOTE:

There is a time lag between the response issued by the save command and the time
when the data is actually stored in FLASH memory. Issue a sync command after a
save command before powering off the router. This commits the changes to FLASH
memory.

Mgmt Class

All (R/W)

Input Format

save

Parameters

None

Response

Command prompt.

Page 2-22 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

sntp active

Displays the active SNTP server, that is, the server that last responded to an SNTP
request.

Mgmt Class

Admin (R/W)

Input Format

sntp active

Parameters

None

Response

-> sntp active

Active SNTP server is 1 (192.6.38.127)

Chapter 2: Status Commands

sntp disable

Disables SNTP requests.

Mgmt Class

Admin (R/W)

Input Format

sntp disable

Parameters

None

Response

-> sntp disable

Current offset from UTC is 0 minutes
Use <system sntp offset> to set time zone

Efficient Networks

®

Page 2-23

Chapter 2: Status Commands Efficient Networks® Router family

Command Line Interface Guide

sntp enable

Enables SNTP requests.

Mgmt Class

Admin (R/W)

Input Format

sntp enable

Parameters

None

Response

-> sntp enable

Current offset from UTC is 0 minutes
Use <system sntp offset> to set time zone

sntp offset

Specifies the SNTP offset from the Universal Time Coordinate (UTC). The offset is
specified in minutes. A positive offset is an offset to the east of the Greenwich
meridian; a negative offset is to the west of the Greenwich meridi an.

Mgmt Class

Admin (R/W)

Input Format

sntp offset <minutes>

Parameters

***
<minutes>

a

Integer 1 - 59

When no parameter is entered, current offset is displayed.

a

Number of minutes east or west of the Greenwich meridian. A pos­itive number is east; a negative number is west.

Page 2-24 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

Response

-> sntp offset

Current offset from UTC is 0 minutes
Use <system sntp offset> to set time zone
usage: sntp offset <Minutes from UTC>

(offset is negative for west, positive for east of Greenwich meridian)

-> sntp offset -360

sntp prefserver

Displays or changes the preferred SNTP server. (The preferred server is the server
that should be attempted first when a request is made.)

To specify a server preference, specify the number of the preferred server within the
SNTP server list. To see the SNTP server list, enter sntp server.

To see the active SNTP server (that is, the server that last responded to an SNTP
request), use the command sntp active.

Chapter 2: Status Commands

NOTE:

To make this change permanent, a save must be performed before a reboot.

Mgmt Class

Admin (R/W)

Input Format

sntp prefserver <number>

Parameters

***

<number>

a

Integer

Response

When entered with no <number> parameter:

-> sntp prefserver

The preferred SNTP server is 1 (192.6.38.127)

When no parameter is entered, current preferred server displayed.

a

Number of a server within the SNTP server list.

Efficient Networks

®

Page 2-25

Chapter 2: Status Commands Efficient Networks® Router family

Command Line Interface Guide

When entered with a <number> parameter:

-> sntp prefserver 3

Preferred SNTP server is set to 3 (192.6.38.127)

sntp request

Requests the time from an SNTP server. (SNTP is the Simple Network Time Protocol
defined by RFC 1769.)

NOTE:

A request is performed only if SNTP is enabled (see sntp enable).

Mgmt Class

Admin (R/W)

Input Format

sntp request

Parameters

None

Response

When entered while sntp function is currently disabled:

-> sntp request

SNTP is currently disabled

When entered and no sntp preferred server is defined:

-> sntp request

Time server IP address not set, use "sntp server w.x.y.z"

When entered and an sntp preferred server has been defined:

-> sntp request

Time set to UTC-480, 5/7/2001 at 17:29:25.245
Time adjusted for (-) 0 days 1 hours 0 minutes 0 seconds

Page 2-26 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

sntp server

Displays or changes the SNTP server list.

• To see the current SNTP server list, specify sntp server with no parameter.

• To specify the default server list, specif y sntp server default.

• To add a server to the list, specify snt p ser ver wit h the ser ver IP address and

a new number for the entry.

• To change the address of a server, specify sntp server with the server IP

address and the existing entry number.

• To remove a server from the list, specify sntp server 0.0.0.0 and the number

of the server to be removed.

NOTE:

To make a change permanent, you must save the change before you reboot.

Chapter 2: Status Commands

Mgmt Class

Admin (R/W)

Input Format

sntp server <ipaddress> | default [<number>]

Parameters

<ipaddress>
default
<number>

a

Dotted-decimal notation

b

To remove a server, specify 0.0.0.0 as the IP address.

c

Integer

Response

When entered with the <default> parameter:

-> sntp server default

a

IP address of an SNTP server.

b

Requests the default server list.

c

Number of the server in the list. If that server number is already in the
list, the IP address is changed; oth erwise, a new entry is added to the
list. If you omit a number , the IP address of the acti ve server is changed.

Current server (1) IP addr: 192.5.41.40
Current server (2) IP addr: 192.6.38.127
Current server (3) IP addr: 209.81.9.7
Current server (4) IP addr: 129.7.1.66
Current server (5) IP addr: 192.168.254.2

Efficient Networks

®

Page 2-27

Chapter 2: Status Commands Efficient Networks® Router family

Command Line Interface Guide

tcp stats

Displays the TCP statistics and open connections.

Mgmt Class

Network (R)

Input Format

tcp stats

Parameters

None

Response

Typical response:

-> tcp stats

TCP Statistics:

Active Opens.............. 0

Passive Opens............. 0

Failed Connect Attempts... 0

Connections Reset......... 0

Current Connections....... 0

Segments Received......... 0

Segments Sent............. 0

Segments Retransmitted.... 0

Bad Checksums............. 0

Bad Packet Lengths........ 0

Segments with Reset Flag.. 0
*:80 0.0.0.0:0 LISTEN s=0 r=0 f=0
*:23 0.0.0.0:0 LISTEN s=0 r=0 f=0

Page 2-28 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

time

Displays or changes the current time on the router’s clock. To change the current
date, use the command date.

Automatic SNTP requests are genera ted if the sy stem needs to get the ti me. You can
specify an SNTP server using the command sntp server and a UTC offset with the
command sntp offset.

Mgmt Class

All (R/W)

Input Format

time <hh:mm:ss>

Parameters

Chapter 2: Status Commands

***

<hh>
<mm>
<ss>

a

Integer, 1 - 23

b

Integer, 0 - 59

Response

When entered with no parameters:

-> time

BootTime: 5/18/2001 at 11:57:12
Current time: 5/18/2001 at 12:00:01

When entered with parameters:

-> time 1:01:01

Time set to UTC-420, 5/18/2001 at 1:01:01.074
Time adjusted for (-) 0 days 11 hours 49 minutes 34 seconds

When entered with no parameters, current time and date is
displayed.

a

b

b

Hour parameter.
Minute parameter.
Second parameter.

Efficient Networks

®

Page 2-29

Chapter 2: Status Commands Efficient Networks® Router family

Command Line Interface Guide

traceroute

Traces the route taken by packets sent from the local router to the specified IP
address or domain name. A packet is sent for each hop in the rout e. The output lists
the IP addresses of the hops that returned packets.

Unless the -n option is specifi ed, traceroute also at tempts t o look up the name of each
gateway in the route. If the DNS lookup is successful, the name is incl uded in the
output message.

NOTE:

To terminate the traceroute before it ends, press control-c.

Mgmt Class

Network (R/W), Debug (R)

Input Format

ping [-c count] [-i <wait>] [- s | -l <size>)] [-I <srceaddr>]
[-n] <ipaddr> | <domainname>

Parameters

-c <count>

-i <wait>

-s <size>

-l <size>

-I <scrceaddr>

-n

<ipaddr>
<domainname>

a

Integer, 1 - 2000000000 (5)

b

Integer, 1 - 10 (1)

c

Integer, 0 - 1648 (56)

d

Dotted-decimal notation

e

ASCII string

a

b

c

c

Number of packets sent.
Wait period between packets in seconds.
Packet data length in bytes.
Packet data length in bytes. Same as -s.

d

Source IP address contained in t he echo message. Use th is option
to force packets into a tunnel or to force use of the mana gement ad­dress as the source address.

Eliminates the DNS lookup for each hop. Only the IP address of the
hop is listed in the output message.

Remote node to which the echo message is sent. It can be specified
by its domain name or by its IP address.

e

Response

The following are application examples of the tr aceroute command and their
responses.

Page 2-30 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

Example

The following two commands trace the same route. The first specifies the domain
name; the second specifies the IP address.

-> traceroute www.yahoo.com

-> traceroute 204.71.200.68

Both commands send up to thirty packets with a wait period of one second and a
packet length of 56 bytes. The following is an example of the command output:

1: 172.17.20.122 l2tp-router.flowpoint.com

2: 172.17.20.1 checkpoint.flowpoint.com

3: 12.39.98.136 csco2.efficient.com
4: 12.124.40.65
5: 12.123.13.166 gbr5-p56.sffca.ip.att.net
6: 12.122.5.142 gbr3-p100.sffca.ip.att.net
7: 12.122.5.253 gbr2-p60.sffca.ip.att.net
8: 12.123.13.61 gar1-p370.sffca.ip.att.net
10: 206.132.150.250
11: 206.132.254.37 ge0-0-1000M.hr8.SNV.gblx.net
12: 206.178.103.62 baslr-ge3-0-hr8.snv.yahoo.com
13: reply from 204.71.200.68: bytes=56 (data), time=18 ms

traceroute: packets set 13, packets received 12

Chapter 2: Status Commands

Example

For a faster route trace, specify the -n option to eliminate the domain name lookup.

-> traceroute -n 204.71.200.68

1: 172.17.20.122

2: 172.17.20.1

3: 12.39.98.136
4: 12.124.40.65
5: 12.123.13.166
6: 12.122.5.142
7: 12.122.5.253
8: 12.123.13.61
10: 206.132.150.250
11: 206.132.254.37
12: 206.178.103.62
13: reply from 204.71.200.68: bytes=56 (data), time=8 ms

traceroute: packets set 13, packets received 12

Efficient Networks

®

Page 2-31

Chapter 2: Status Commands Efficient Networks® Router family

Command Line Interface Guide

vers

Displays the software version level, source, software options, and amount of time
elapsed since router has been running.

All software options are listed.

• If the option has no prefix, the option was enabled when the router was

manufactured.

• If the option has a + prefix, the option was enabled using a key.

• If the option has a ~ prefix, the option is disabled in this router.

For more information, refer to the Technical Reference Guide and see ”Key Enabled

Features” on page 4-29.

Mgmt Class

All (R)

Input Format

vers

Parameters

None

Response

Typical response:

-> vers

Efficient 5950 G.SHDSL [ATM] Router (5950-001)
Efficient-5000 BOOT/POST V5.9.0 (25-Apr-00 16:19)
Software version v6.0.0 built Wed Jan 29 09:30:26 PDT 2002
Maximum users: unlimited
Options: SDSL, RFC1483, ipstack, ipcheck, ipfilter, WEB, ~HW-DES,
+ipsec, +3DES, ~l2tp, ~des, ~QoS, ~firewall, ~HWcrypt, ~radius,
+sshd, BRIDGE, IPX, DIAL-BACKUP, VRRP, ~IntModem
Up for 49 days 19 hours 57 minutes (started 12/20/2001 at 17:11)

Page 2-32 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

The file system commands allow you to perform maintenance and recovery on the
device. These commands allow you to:

• Format the file system

• List the contents of the file system

• Copy, rename, and delete files

The router file system is DOS-compati ble, and the file system commands are similar
to the DOS commands of the same name.

Chapter 3: File System Commands

CHAPTER 3

CHAPTER 3 FILE SYSTEM COMMANDS

The file system commands found in this section include:

Table 3-1: File System Command Listing

Command Function

copy
delete Deletes the specified fi le from the flash filesystem.
dir Displays the directory of the file system. The size

Copies a file from the source to the destination.

of each file is liste d in by te s .

execute This command loads batch files of configuration

commands into the router.

format disk Erases and reformats the device file system.
msfs Checks and reports the structure of the file system.
rename Renames a file in the file system.
sync Commits the changes made to the file system to

FLASH memory.

Efficient Networks

®

Page 3-1

Chapter 3: File System Commands Efficient Networks® Router family

Command Line Interface Guide

copy

Copies a file from the source to the destination. This command allows you to update
the device software level or to write configuration files to a TFTP server

Issue a sync command after a copy command to commit the changes to FLASH
memory.

CAUTION:

No warning message is issued if copying over an existing file.

Mgmt Class

All (R/W)

Input Format

copy <srcfile> <dstfile>

Parameters

<srcfile>

<dstfile>

A local filename is in the format: name.ext.
A remotely accessed filename is specified as: tftp@serveraddr:filename.ext. The

TFTP server address is optional. If the TFTP server addr ess is not specified, the
address used is either the one from which the router booted or the one per mane ntly
configured in the boot system.

To force use of a specif ic sou rce address when copying a file from a TFTP server, use
this format: tftp@serveraddr-sourceaddr:filename.ext

Examples

The following command copies the file KERNELNW on TFTP server 128.1.210.66 to
the local file KERNEL.F2K.

-> copy tftp@128.1.210.66:kernelnw kernel.f2k

Copying...
421888 bytes copied

Filename of the source file to be copied.It can be either the name of a local
file or a file accessed remotely via a TFTP server.

Destination filename to which the file is copied.

The following command uses the source address 192.168.1.2 when copying the file
KERNELNW on TFTP server 192.168.100.100 to the local file KERNEL.F2K.

-> copy tftp@192.168.100.100-192.168.1.2:kernelnw kernel.f2k

Page 3-2 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

Response

Refer to examples for typical responses.

delete

Deletes the specified file from the flash filesystem.

Mgmt Class

Admin (R/W), System (R/W)

Input Format

delete <filename>

Parameters

Chapter 3: File System Commands

<filename>

a

ASCII string

Response

A typical response is shown below.

-> delete kernel.f2k

kernel.f2k deleted

a

Name of the file to be deleted.

Efficient Networks

®

Page 3-3

Chapter 3: File System Commands Efficient Networks® Router family

Command Line Interface Guide

dir

Displays the directory of the file syst em. The size of each file is listed in bytes.

Mgmt Class

Admin (R/W), System (R/W)

Input Format

dir

Parameters

None

Response

A typical response is shown below.

-> dir

KEYFILE DAT 768
SYSTEM CNF 2816
ATOM DAT 44
DHCP DAT 1024
SDSL DAT 32
FILTER DAT 1284
KERNEL F2K 682018
ASIC AIC 15091
DSP DAT 24

Page 3-4 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

execute

This command loads batch files of configuration commands into the router. This
allows for customization and simpler i nst allatio n of the devi ce. A scri pt fil e can cont ain
commands, comments (lines introduced by the # or ; characters), and blank lines.

There are two kinds of script files:

• A one-time script that is execute d on startup (only once).

• A group of commands that can be executed at any time from the Command

Line Interface with the

One-time scripts are useful to execut e the complete configuration process from a
default (unconfigured) st ate.

Mgmt Class

All (R/W)

Chapter 3: File System Commands

execute <filename> command.

Input Format

execute <filename>

Parameters

<filename>

a

ASCII string

Response

Command prompt.

a

Name of the file to be executed.

Efficient Networks

®

Page 3-5

Chapter 3: File System Commands Efficient Networks® Router family

Command Line Interface Guide

format disk

Erases and reformats the device file system. This command should only be used
when the file system is unusable. If the device does not execute the POST test and
software boot successful ly, and the result of the dir command indicates t he file system
is corrupted, you may wish to reformat the disk, reboot the device, and recopy the
system software.

Mgmt Class

System (R/W), Debug (R/W)

Input Format

format disk

Parameters

None

Response

The following is an example of the format disk command.

-> format disk

NEWFS: erasing disk..
NEWFS: fs is 381k and will have 762 sectors
NEWFS: 128 directory slots in 8 sectors
NEWFS: 747 fat entries in 3 sectors
NEWFS: writing boot block...done.
NEWFS: writing fat tables...done.
NEWFS: writing directory...done.
Filesystem formatted!

Page 3-6 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

msfs

Checks the structure of the file system. This command perf o rms a function similar to
the DOS chkdsk command. The router analyzes the File Allocation Table (FAT) and
produces a file system status repor t.

CAUTION:

When you specify <fix>, make sure that no other operation is being performed on the
configuration files at the same time by another user .

Mgmt Class

System (R/W), Debug (R/W)

Input Format

msfs <fix>

Chapter 3: File System Commands

Parameters

<fix>

a

This option shou ld onl y be used w hen an ms fs co mman d resu lts in a rec omme ndatio n to ap ply t he
fix option.

Response

The following is an example of a typical response without the fix parameter.

-> msfs

Filesystem 0, size=825k
Checking filesystem...
Checking file entries...

Optional - If fix is specified, errors are corrected in the FAT.

SYSTEM CNF ... 2304 bytes .. ok.
ATM25 DAT ... 20 bytes .. ok.
DHCP DAT ... 1536 bytes .. ok.
KERNEL F2K ... 257014 bytes .. ok.
IDL_7 AIC ... 14828 bytes .. ok.
ASIC AIC ... 14828 bytes .. ok.
FILTER DAT ... 1284 bytes .. ok.
1097 fat(s) used, 0 fat(s) unused, 0 fat(s) unref, 534 fat(s) free
561664 bytes used by files, 9728 bytes by tables, 273408 bytes free

a

Efficient Networks

®

Page 3-7

Chapter 3: File System Commands Efficient Networks® Router family

Command Line Interface Guide

rename

Renames a file in the file system.

Mgmt Class

All (R/W)

Input Format

rename <oldname> <newname>

Parameters

Response

sync

Mgmt Class

Input Format

<oldname>
<newname>

a

ASCII string

a

a

Existing name of the file.
New name of the file.

The following is an example rename command.

-> rename ether.dat oldeth.dat

‘ether.dat’ renamed to ‘oldeth.dat’

Commits the changes made to the file system to FLASH memory.

All (R/W)

sync

Parameters

None

Response

-> sync

Syncing file systems...done.

Page 3-8 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

All commands in this section begin with the word system. The commands set basic
router configuration information, such as the following:

• name of the router

• optional system message

• authentication password

• security authentication protocol

Chapter 4: System Commands

CHAPTER 4

CHAPTER 4 SYSTEM COMMANDS

• management security

• system administration password

• IP address translation

• NAT configuration

• host mapping

• WAN-to-WAN forwarding

• filters

• Dial Backup configuration

• SNTP parameters

The system commands found in this section include:

Table 4-1: System Command Listing

Command Function

system ?
system addbootpserver Adds an address to the BootP server list.

Lists the supported keywords.

system addhostmapping Remaps a range of local-LAN IP addresses to a

Efficient Networks

range of public IP addresses on a s ystem-wide ba­sis.

®

Page 4-1

Chapter 4: System Commands Efficient Networks® Router family

Command Line Interface Guide

Table 4-1: System Command Listing (Cont.)

Command Function

system addhttpfilter Enables blocking all devices except those within

the defined IP address ran ge from using t he HTTP
protocol

system addiproutingtable Defines a new virtual routing table.
system addserver Configures a local IP address as the selected serv-

er on the LAN (FTP, SMTP , etc.) for the global con­figuration.

system addsnmpfilter Validates SNMP clients by defining a range of IP

addresses that are allowed to access the router vi a
SNMP.

system addsyslogfilter Limits the Syslog server addr esses that may be re-

turned by DHCP.

system addsyslogserver Adds an address to the list of Syslog servers.
system addtelnetfilter Validates Telnet clients by defining a range of IP

addresses that are allowed to access the router vi a
Telnet.

system addudprelay Create a UDP port range for packet forwarding.
system authen Forces the target router authentication protocol

that is used for security negotiat ion with the remote
routers when the local side authentication is set.

system backup add Adds an IP address to the list of addresses to be

pinged for the Dial Backup option.

system backup delete Deletes an IP address from the list of addresses to

be pinged for the Dial Backup option.

system backup disable Disables the Dial Backup option i n the rout er.
system backup enable Enables the Dial Backup option in the router.
system backup pinginterval Changes the ping interval for a group, that is, the

number of seconds between pings duri ng a test of
the addresses in the group.

system backup pingsamples Changes the number of ping samples for a group,

that is, the number of pings performed for eac h ad­dress in the group.

system backup retry Changes the Dial Backup retry period.
system backup stability Changes the Dial Backup stability period.

Page 4-2 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

Table 4-1: System Command Listing (Cont.)

Command Function

Chapter 4: System Commands

system backup successrate

Changes the minimum success ra te requir ed for a
group of pinged addresses.

system blocknetbiosdefault Sets the default value used when a remote router

entry is defined.

system community Enables changing the SNMP community name

from its default value.

system default modem Lists the default modem settings.
system delbootpserver Removes an address from the BootP server list.
system delhostmapping Undoes an IP address/host translation (remap-

ping) range

system delhttpfilter Deletes an http address filter.
system deliproutingtable Deletes a range of addresses that reference a vir-

tual routing table or deletes the entire virtual rout­ing table.

system delserver Deletes an server entry.
system delsnmpfilter Deletes the SNMP client range.
system delsyslogfilter Renames a file in the file system.
system delsyslogserver Deletes the Syslog address filter.
system delte lnetfilter Deletes the Telnet client range.
system deludprelay Deletes the UDP port range.
system history Displays the router’s most recent console log.
system httpport Manages the system HTTP port access.
system list Lists the system settings for the target router.
system log Allows logging of the device’s activity in a Telnet

session.

system modem Changes the selected modem setting.
system moveiproutingtable Moves a range of IP addresses to another virtual

routing table.

system msg Sets or changes the message saved in the local

router you are configuring.

Efficient Networks

®

Page 4-3

Chapter 4: System Commands Efficient Networks® Router family

Command Line Interface Guide

Table 4-1: System Command Listing (Cont.)

Command Function

system name Sets or changes the name of the local router being

configured.

system onewandialup Can force the router to have no more than one re-

mote connection active at a time.

system passwd Sets the system authentication password for the

target router that is used when the router connects
to other routers or is challenged by them.

system riptimer Sets the duration for RIP information to be ex-

changed with remote routers.

system securemode list Displays the current secure mode configuration

values and the number of concurrent Telnet and
SSH sessions allowed.

system securemode set Enables and disables the secure mode function.
system securemode set cli Sets the number of concurrent Telnet and SSH

sessions the system will allow.

system securemode set lan Allows discrete control of the secure mode fo r the

LAN interface.

system securemode set wan Allows discrete control of the secure mode for the

WAN interface.

system securitytimer Allows the user to change the 10-minute default

security tim e r to a n other value.

system selnat addpolicy Adds a Selective NAT policy.
system selnat delpolicy Deletes a Selective NAT policy.
system selnat list Lists the current Selective NAT policies.
system snmpport

system sshport Manages SSH port access.
system supporttrace Provides the abil ity to capture all configuration dat a

Manages SNMP port access.

to a file for troubleshooting.

system syslogport Manages Syslog port access.
system telnetport Manages the built-in Telnet server port access.
system wan2wanforwarding Allows management of WAN-to-WAN forwarding

of data from one WAN link to another.

Page 4-4 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

system ?

Lists the supported keywords. To see the syntax for a command, enter the command
followed by a ?.

Mgmt Class

All (R)

Input Format

system ?

Parameters

None

Response

Chapter 4: System Commands

A listing of all the supported system commands and keywords with a bri ef desc ription
of their function.

system addbootpserver

Adds an address to the BootP server list. (The BootP server list is also the DHCP
relay list.)

While the BootP server list has at least one address, the router disables its own
DHCP server and, instead, forwards al l DHCP/BootP request s to all servers in the list.
It forwards every reply received from any of the servers in the list to the appropriate
LAN. To read about BootP service, see ”BootP Service” on page 4-15 of the Technical
Reference Guide.

Addresses can also be added to the list using the dhcp addrelay command. To
remove an address from the list, use the dhcp delrelay command.

To see the current BootP server address, enter the command dhcp addrelay or

system addbootpserver with no parameters. To remove a BootPserver address, use

the command dhcp delrelay or system delbootpserver.

Mgmt Class

Network (R/W)

Input Format

system addbootpserver <ipaddr>

Efficient Networks

®

Page 4-5

Chapter 4: System Commands Efficient Networks® Router family

Command Line Interface Guide

Parameters

<ipaddr>

a

Dotted-decimal notation

Response

The following is an example of adding a server address then querying a response.

-> system addbootpserver 128.1.210.64

-> system addbootpserver

BOOTP/DHCP Server address: 128.1.210.64

a

IP address of the server.

Page 4-6 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

system addhostmapping

Remaps a range of local-LAN IP addresses to a range of public IP addresses on a
system-wide basis. These local addresses are mapped one-to-one to the public
addresses.

NOTE:

The range of public IP addresses is defined by <first public addr> only. The
rest of the range is computed automatically (from

<first public addr> + number of addresses remapped - 1) inclusive.

Automatic SNTP requests are genera ted if the sy stem needs to get the ti me. You can
specify an SNTP server using the command sntp server and a UTC offset with the
command sntp offset.

Mgmt Class

Network (R/W)

Chapter 4: System Commands

<first public addr> to

Input Format

system addhostmapping <first private addr>
<second private addr> <first public addr>

Parameters

<first private addr>

<second private addr>

<first public addr>

a

Dotted-decimal notation

Response

Command prompt.

a

First IP address in the range of IP addresses to be
remapped.

a

Last address in the range of IP addresses to be
remapped.

a

Last address in the range of IP addresses to be
remapped.

Efficient Networks

®

Page 4-7

Chapter 4: System Commands Efficient Networks® Router family

Command Line Interface Guide

system addhttpfilter

Enables blocking all devices except those within the defined IP address range from
using the HTTP protocol (for example, to brows e the Web). This command can block
devices on the W AN from accessi ng the W eb browser. This validation feature is of f by
default.

NOTE:

This command does not require a reboot and is effecti ve immediately.

NOTE:

To list the range of allowed clients, use the command system list when you are logged
in with read and write permission (be sure to log in with password). To delete
addresses from the HTTP filter, use the system delhttpfilter command.

For more information, see ”Controlling Remote Management” on page 5-15 of the
Technical Reference Guide.

Mgmt Class

Security (R/W)

Input Format

system addhttpfilter <first ip addr> [<last ip addr>] | lan

Parameters

<first ipaddr>
<last ipaddr>
lan

a

Dotted-decimal notation

b

May be omitted if the range contains only one IP address.

Response

Command prompt.

a

First IP address in the range.

a

Last address in the range of IP addresses to be remapped.
Local Ethernet LAN.

b

Page 4-8 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

system addiproutingtable

Defines a new virtual routing table. Once defined, you can add routes to the table
using the commands eth ip bindroute and remote bindipvirtualroute.

The command specifies the name of the new routing table and the range of IP
addresses that reference the table for their routing. When the router receives a
packet, the source address of the packet determines which routing table is used. For
example, if the range of addresses for the virtual routing table ROSA includes
address 192.168.25.25, then every packet with the source address 192.168.25.25 is
routed using virtual routing table ROSA.

If the source address of a packet is not wit hin the address ranges for any virtual
routing table, the default routing table is referenced to route the packet.

For more information, see ”Virtual Routing Tables” on page 6-2 of the Technical
Reference Guide.

If an IP routing table has been defined, you can see its range of addresses using the

system list command.

Chapter 4: System Commands

Mgmt Class

Network (R/W)

Input Format

system addiproutingtable <first ipaddr> [<last ipaddr>] <tablename>

Parameters

<first ipaddr>
<last ipaddr>
<tablename>

a

Dotted-decimal notation

b

May be omitted if the range contains only one IP address.

c

This parameter may be omitted if th e range conta ins only on e IP address. Th e specifie d address ran ge
may not overlap the address range defined for any other virtual routing table.

a

First IP address in the range.

a

Last IP address in the range of IP addresses to be remapped.
Name of the virtual routing table to which the addresses are as-

signed.

c

b

Efficient Networks

®

Page 4-9

Chapter 4: System Commands Efficient Networks® Router family

Command Line Interface Guide

Response

Example

The following command defines a virtual routing table named ROSA (if it does not
already exist) and assigns it the IP address range 192.168. 1.5 through 192.168.1.12.

-> system addiproutingtable 192.168.1.5 192.168.1.12 ROSA

After routing tab le ROSA has been defined, th e following line appears in the out put for
the command

192.168.1.5 through 192.168.1.12 uses IP Routing Table <ROSA>

system list:

system addserver

This Network Address Translation (NAT) command is used to configure a loc a l IP
address as the selected server on the LAN (FTP, SMTP, etc.) for the global
configuration. To learn more, see ”Network Address Translation (NAT)” on page 4-17
of the Technical Reference Guide.

Multiple system addserver, remote addserver, and eth ip addserver commands can
designate different servers for different protocols, ports, and interfaces. When a
request is received, the r outer searches the server list for the appropriate ser ver. The
order of search for a server is discussed in ”Server Request Hierarchy” on page 4-22
of the Technical Reference Guide.

To delete a server designation, use the system delserver command.

Mgmt Class

Network (R/ W)

Input Format

system addserver <action> <protocol> <first port> [<last port>
[<first private port>]]

Response

Command prompt.

Page 4-10 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

Parameters

Chapter 4: System Commands

<action>

<protocol>

<first port>

One of the following command actions:

<ipaddr>
discard
me

a

Selects the host with this IP address as server.
Discards the incoming server request.
Sends the incoming server requests to the local

router, regardless of the IP address.

Protocol used by the selected server.

<protocolid>
tcp
udp
all

b

Numerical protocol ID.
TCP only.
UDP only.
All protocols.

First or only port as seen by th e remote end. Port used by the select ­ed server.

<portid>

c

Numerical port value; a value of 0 matches any
port.

dns
ftp
h323
http
login
rsh
smtp
snmp

Domain Name Server (DNS) port.
File Transfer Protocol (FTP) port.
H.323 port.
Hypertext Transfer Protocol (HTTP) port .
rlogin port (513).
Remote shell port.
Simple Mail Transfer Protocol (SMTP) port.
Simple Network Management Protocol (SNMP)

port.

t120
telnet
tftp
all

T.120 port.
Telnet port.
Trivial File Transfer Protocol (TFTP) port.
All ports.

<last port>

<first private
port>

a

Dotted-decimal notation

b

Integer

c

Integer, 0 - 65,535

Efficient Networks

Optional last port in the range of port s as seen by the remote end for
the server on the LAN.

c

®

If specified, this is a port remapping of the incoming request s from the
remote end.

Page 4-11

Chapter 4: System Commands Efficient Networks® Router family

Command Line Interface Guide

system addsnmpfilter

Validates SNMP clients by defining a range of IP addresses that are allowed to
access the router via SNMP. This validation feature is off by default . This command is
functionally equivalent to the snmp addsnmpfilter command.

NOTE:

This command does not require a reboot and is effecti ve immediately.

NOTE:

To list the range of allowed clients, use the system list command. To delete addresses
from the SNMP filter, use the system delsnmpfilter or snmp delsnmpfilter command.

For more information, see ”Controlling Remote Management” on page 5-15 of the
Technical Reference Guide.

Mgmt Class

Security (R/W)

Input Format

system addsnmpfilter <first ip addr> [<last ip addr>] | lan

Parameters

<first ipaddr>
<last ipaddr>
lan

a

Dotted-decimal notation

b

May be omitted if the range contains only one IP address.

Response

Command prompt.

a

First IP address of the client range.

a

Last IP address of the client range.
Local Ethernet LAN.

b

Page 4-12 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

system addsyslogfilter

Limits the Syslog server addresses that may be returned by DHCP. By default, this
validation feature is off.

The Syslog filter can com prise one or more ranges of IP addresses that DHCP may
return for Syslog servers. To delete addresses from the Syslog fi lter, use the system

delsyslogfilter command.

This command does not affe ct the Syslog s erver addr esses that you s pecify expl icitly.
For more information on the route r as a Syslog c lient, s ee ”Syslog Client” on page 7-1
of the Technical Reference Guide.

NOTE:

This command does not require a reboot and is effect ive immediately.

NOTE:

To list the range of allowed clients, use the system li st command.

Chapter 4: System Commands

Mgmt Class

Security (R/W)

Input Format

system addsyslogfilter <firstipaddr> [<last ipaddr>] | lan

Parameters

<first ipaddr>
<last ipaddr>
lan

a

Dotted-decimal notation

b

May be omitted if the range contains only one IP address.

Response

Command prompt.

a

First IP address of the valid server range.

a

Last IP address of the valid server range.
Local Ethernet LAN.

b

Efficient Networks

®

Page 4-13

Chapter 4: System Commands Efficient Networks® Router family

Command Line Interface Guide

system addsyslogserver

Adds an address to the list of Syslog servers. The router sends system event
messages to all Syslog servers in the list, unless the Syslog port has been disabled.
For more information about the router as a Syslog client, refer to ”Syslog Client” on

page 7-1 of the Technical Reference Guide.

To see the server addresses, use the system list command. To remove a Syslog
server address from the list, use the system delsyslogserver command.

NOTE:

The new server address becomes effectiv e after performing a save and a reboot.

Mgmt Class

System (R/W)

Input Format

system addsyslogserver <ipaddr>

Parameters

<ipaddr>

a

Dotted-decimal notation

Response

Command prompt.

a

IP address to be added to the Syslog server address list.

Page 4-14 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

system addtelnetfilter

V alidates Telnet clients by defining a range of IP addresses that ar e allowed to access
the router via Telnet. The mode is off by default. For more information, refer to
”Controlling Remote Management” on page 5-15 of the Technical Reference Guide.

NOTE:

This command does not require a reboot and is effect ive immediately.

NOTE:

To list the range of all owed client s, u se the system l ist command. To delete addresses
from the Telnet filter, use the system deltelnetfilter command.

Mgmt Class

Security (R/W)

Chapter 4: System Commands

Input Format

system addtelnetfilter <first ip addr> [<last ip addr>] | lan

Parameters

<first ipaddr>
<last ipaddr>
lan

a

Dotted-decimal notation

b

May be omitted if the range contains only one IP address.

Response

Command prompt.

a

First IP address of the client range.

a

Last IP address of the client range.
Local Ethernet LAN.

b

Efficient Networks

®

Page 4-15

Chapter 4: System Commands Efficient Networks® Router family

Command Line Interface Guide

system addudprelay

Create a UDP port range for p acket forwa rding. You can specify a port ra nge from 0 to
65535; however, 137 to 139 are reserved for NetBIOS ports.

NOTE:

Overlap of UDP ports is not allowed.

Mgmt Class

Network (R/ W)

Input Format

system addudprelay <ipaddr> <first port>|all [<last port>]

Parameters

<ipaddr>

<first port>
all
<last port>

a

Dotted-decimal notation

b

Integer, see description above for port range.

Response

Command prompt.

a

IP address of the server to which the UDP packet will be for­warded.

b

First port in the UDP port range to be created.
Incorporates all the available UDP ports in the new range.

b

Last port in the UDP port range to be created.

Page 4-16 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

system authen

Forces the target router authentication protocol that is used for security negotiation
with the remote routers when the local side aut hentication is set . You should not need
to issue this command as t he best s ecur ity pos sible is pro vid ed with t he none def ault.
To read about PAP/CHAP, see ”PAP/CHAP Security Authentication” on page 5-20 of
the Technical Reference Guide.

Mgmt Class

Security (R/W)

Input Format

system authen none | pap | chap

Parameters

Chapter 4: System Commands

***

none

pap

chap

Response

This following example illustrates setting the authentication level, then displaying the
current setting.

-> system authen chap

-> system authen

Authentication needed.................CHAP

When the command is entered with no p arameters, the cur rent authen­tication override is displayed.

The authentication protocol is negotiated, wit h the minimum best secu­rity level as defined for each remote router in the database.

Negotiation begins with PAP (instead of CHAP) for those entries that
have PAP in the remote database and only when t he c all i s init iated lo­cally.

Overrides all the remote database entries with CHAP, that is, only
CHAP is performed.

Efficient Networks

®

Page 4-17

Chapter 4: System Commands Efficient Networks® Router family

Command Line Interface Guide

system backup add

Adds an IP address to the list of addresses to be pinged for the Dial Backup option.
The command can specify an explicit address, or it can request that the router
determine the gateway or DNS address and add that address to the list.

For additional information, see ”Dial Backup” on page 6-7 of the Technical Reference
Guide.

Mgmt Class

Network (R/ W)

Input Format

system backup add <ipaddr> | gw | dns [<group>]

Parameters

<ipaddr>
gw
dns

<group>

a

Dotted-decimal notation

b

integer, 0 - 65535 (0 )

Examples

The following command adds the address 192. 168.1.5 to gr oup 0 of t he addresses t o
be pinged.

-> system backup add 192.168.1.5

The following command adds the gateway address to group 1 of the addresses to be
pinged.

-> system backup add GW 1

Response

a

IP address to be added to the list.
Gateway address. The router determines the actual gateway address.
Domain Name Server address. The router determines the actual DNS

address.

b

Optional number of a group to which the address is assigned.

Command prompt.

Page 4-18 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

system backup delete

Deletes an IP address fr om the list of addresses to be pinged for the Dial Backup
option. The command can:

• Specify an explicit address to be deleted.

• Request that the router delete the gateway or DNS address from the list.

• Delete all addresses in a group.

• Clear all addresses from the list.

To see the addresses in the current list, use th e sy stem list command. For more
information, refer to ”Dial Backup” on page 6-7 of the Technical Reference Guide.

Mgmt Class

Network (R/W)

Input Format

Chapter 4: System Commands

system backup delete <ipaddr> | gw | dns | all [<group> | all ]

Parameters

<ipaddr>
gw
dns

all <group>

all

a

Dotted-decimal notation

b

integer, 0 - 65535 (0)

Examples

The following command deletes the address 192.168.1.5 from group 0.

-> system backup delete 192.168.1.5

The following command deletes the gateway address from group 1.

a

IP address to be deleted from the list.
Gateway address. The router determines the actual gateway address.
Domain Name Server address. The router determines the actual DNS

address and deletes it.

b

Optional number of a group to which the specified address or all ad­dresses are deleted.

Requests deletion of all addresses in all groups including group 0.

-> system backup delete GW 1

The following command deletes all addresses from group 2.

-> system backup delete all 2

Efficient Networks

®

Page 4-19

Chapter 4: System Commands Efficient Networks® Router family

Command Line Interface Guide

The following command clears all addresses from the list.

-> system backup delete all all

Response

Command prompt.

system backup disable

Disables the Dial Backup option in the router.

NOTE:

Because Dial Backup uses the console port, you cannot access the command line via
the console port while Dial Backup is enabled. You must use the Web GUI i nterface or
a Telnet session to disable Dial Backup.

NOTE:

If you do not use the save command to save this change, Dial Backup is only
temporarily disabled and it is re-enabl ed at the next reboot . Temporarily disabling Dial
Backup stops Dial Backup, but it does not change the use of the console port . To
disable Dial Backup across reboots, see ”Disabling and Re-Enabling Dial Backup” on

page 6-15 of the Technical Reference Guide.

To re-enable the Dial Backup option, use the system backup enable command. For
more information about Dial Backup, refer to ”Dial Backup” on page 6-7 of the
Technical Reference Guide.

Mgmt Class

Network (R/ W)

Input Format

system backup disable

Parameters

None

Response

Command prompt.

Page 4-20 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

system backup enable

Turns on the enable s wit ch for t he Dial Backup opt ion i n the rout er. To see the current
setting of the Dial Backup switch, use the system list command. To disable Dial
Backup, use the system backup disable command. For more inform ation, see ”Dial

Backup” on page 6-7 of the Technical Reference Guide.

NOTE:

Dial Backup cannot be enabled unless the remote containing its dialup parameters is
also enabled. (Check this using the remote list command).

Mgmt Class

Network (R/W)

Input Format

system backup enable

Chapter 4: System Commands

Parameters

None

Response

Command prompt.

Efficient Networks

®

Page 4-21

Chapter 4: System Commands Efficient Networks® Router family

Command Line Interface Guide

system backup pinginterval

Changes the ping interval for a group, that is, the number of seconds between pings
during a test of the addresses in the group.

To see the current ping intervals, use t he system list command. For more information
about the ping interval and Dial Backup, see ”Ping Interval, Number of Samples, and

Success Rate” on page 6-13 of the Technical Reference Guide.

NOTE:

If you change the ping interval to 0, the group of addresses is disab led.

Mgmt Class

Network (R/ W)

Input Format

system backup pinginterval <seconds> [<group>]

Parameters

<seconds>
<group>

a

Integer

b

integer, 0 - 65535 (0 )

Examples

The following command changes the ping interval to 10 seconds for group 0.

-> system backup pinginterval 10

The following command disables the pinging of addresses in group 1.

-> system backup pinginterval 0 1

Response

Command prompt.

a

Number of seconds in the ping interval for the gr oup.

b

Optional, number of a group.

Page 4-22 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

system backup pingsamples

Changes the number of ping samples for a group, that is, the number of pings
performed for each address in the group.

To see the current ping sample values, use the system list command. For more
information about ping samples and Dial Backup, see ”Addresses to Ping” on page 6-

12 of the Technical Reference Guide.

NOTE:

If you change the ping samples value to 0, you disable pinging for that group of
addresses.

Mgmt Class

Network (R/W)

Input Format

Chapter 4: System Commands

system backup pingsamples <samples> [<group>]

Parameters

<samples>
<group>

a

Integer, (6)

b

integer, 0 - 65535 (0)

Examples

The following command changes the number of ping samples to 10 for addresses in
group 0.

-> system backup pingsamples 10

The following command disables the pinging of addresses in group 1.

-> system backup pingsamples 0 1

Response

Command prompt.

a

Number of times the addresses in the group are pinged.

b

Optional, number of a group.

Efficient Networks

®

Page 4-23

Chapter 4: System Commands Efficient Networks® Router family

Command Line Interface Guide

system backup retry

Changes the Dial Backup retry period. The retry period determines how often the
router attempts to restore the DSL link . For more information about the Dial Backup
retry period, see ”Setting DSL Link Conditions” on page 6-11 of the Technical
Reference Guide.

The default retry period is thirty minutes. The minimum retry period is two minutes. To
see the current retry value, use the system li st command.

NOTE:

When the Dial Backup retry timer expires , the modem i s d isconnected ev en i f ther e is
traffic on the modem.

Mgmt Class

Network (R/ W)

Input Format

system backup retry <minutes>

Parameters

<minutes>

a

Integer, 2 - 60 (20)

Examples

The following command changes the retry period to 60 minutes.

-> system backup retry 60

The following command changes the retry period to 2.

-> system backup retry 1

Response

Command prompt.

a

Number of minutes in the retry period.

Page 4-24 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

system backup stability

Changes the Dial Backup st abil ity period. Th e st abi lity period guards against f requent
switching back and forth between the DSL link and the backup port. For more
information about the Dial Bac kup stability period, see ”Stability Period” on page 6-11
of the Technical Reference Guide.

To see the current stability value, use the system list command.

Mgmt Class

Network (R/W)

Input Format

system backup stability <minutes>

Parameters

Chapter 4: System Commands

<minutes>

a

Integer, 1 - 60 (3)

a

Number of minutes in the stability period.

Examples

The following command changes the stability period to 5 minutes.

-> system backup stability 5

Response

Command prompt.

system backup successrate

Changes the minimum success rate required for a group of pinged addresses . If the
success rate is less than the minimum, the DSL link is assumed to have failed and a
switchover to the backup is performed.

NOTE:

If you change the success rate to 0, you disable pinging for that group of addresses.

NOTE:

A minimum success rate of 100% is not recommended; this would require a reply
from every ping sent.

Efficient Networks

®

Page 4-25

Chapter 4: System Commands Efficient Networks® Router family

Command Line Interface Guide

To see the current success rate values, use the system list command. For more
information about success rates and Dial Backup, see ”Ping Interval, Number of

Samples, and Success Rate” on page 6-13 of the Technical Reference Guide.

Mgmt Class

Network (R/ W)

Input Format

system backup successrate <percentage> [<group>]

Parameters

<percentage>

a

Minimum success rate required during a ping test of the addresses in
the group.

<minutes>

a

Integer, 0 - 99 (50)

b

Integer, 0 - 65535 (0)

b

Optional, number of a group.

Examples

The following command changes the success rate to 75% for addresses in group 0.

-> system backup successrate 75

The following command disables the pinging of addresses in group 1.

-> system backup successrate 0 1

Response

Command prompt.

system blocknetbiosdefault

The router can block all NetBIOS and NetBUI requests fr om being sent over the
WAN. This command sets the default value used when a remote router entry is
defined.

The command remote blocknetbios can change the NetBIOS setting for a specific
remote router. To see the current NetBIOS default, use the system list command.

Mgmt Class

Security (R/W)

Page 4-26 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

Input Format

system blocknetbiosdefault yes | no

Parameters

Chapter 4: System Commands

yes
no

Sets the default to block all NetBIOS and NetBUI requests.
Sets the default to not block all NetBIOS and NetBUI requests.

Examples

The following command will block all NetBIOS and Net B UI requests

-> system blocknetbiosdefault yes

Response

Command prompt.

system community

Enhances SNMP security by allowing the user to change the SNMP community name
from its default value of “public” to a different value. Refer to ”SNMP” on page 7-2 of
the Technical Reference Guide for additional informat ion.

NOTE:

This command is functionally equivalen t to the snmp community command.

Mgmt Class

Security (R/W)

Input Format

system community [<snmp community name>]

Parameters

***

<snmp community name>

a

ASCII string, 40 characters maximum

Efficient Networks

When entered with no parameter the curr ent community
name is displayed.

a

SNMP community name to which device is added.

®

Page 4-27

Chapter 4: System Commands Efficient Networks® Router family

Command Line Interface Guide

Response

The following response is given when the system com munity is changed to ’fred’:

-> system community fred

The community name fred will take effect at the next reboot

system default modem

Lists the default modem settings. The modem setti ngs are for the backup V.90
modem connected to the console port.

To change the modem settings, use the command system modem. For more
information on the Dial Backup option, refer to ”Dial Backup” on page 6-7 of the
Technical Reference Guide.

Mgmt Class

Network (R/ W)

Input Format

system defaultmodem

Parameters

None

Response

Command prompt.

system delbootpserver

Removes an address from the BootP server list. (The BootP server list is also the
DHCP relay list.)

Addresses can also be removed from the list using the command dhcp delrelay. To
add an address to the list, use the dhcp addrelay command.

Mgmt Class

Network (R/ W)

Input Format

system delbootpserver <ipaddr> | all

Page 4-28 Efficient Networks

®

Efficient Networks® Router family
Command Line Interface Guide

Parameters

Chapter 4: System Commands

<ipaddr>

a

IP address of the server to be deleted from the BootP server
list.

all

a

Dotted-decimal notation

Removes all addresses from the BootP server list.

Examples

The following command will remove only the address 128.1.210. 64 from the bootP
server list.

-> system delbootpserver 128.1.210.64

The following command will remove all addresses from the bootP server list.

-> system delbootpserver all

Response

Command prompt.

system delhostmapping

Undoes an IP address/host translation (rema pping) range that was previously
established with the command remote addhostmapping on a per-system-wide basis.

Mgmt Class

Network (R/W)

Input Format

system delhostmapping <first private addr> <second private
addr> <first public addr>

Parameters

<first private addr>
<second private addr>
<first public addr>

a

Dotted-decimal notation

b

The rest of the range is computed automatically.

Response

a

First IP address in the range of IP address.

a

Last IP address in the range of IP address.

a

Defines the range of public IP addresses.

b

Command prompt.

Efficient Networks

®

Page 4-29

Chapter 4: System Commands Efficient Networks® Router family

Command Line Interface Guide

system delhttpfilter

Deletes an http address filter created by the system addhttpfilter command. To see
the address range of the filter, use the system list command.

Mgmt Class

Security (R/W)

Input Format

system delhttpfilter <first ip addr> [<last ip addr>] | lan

Parameters

<first ipaddr>
<last ipaddr>
lan

a

Dotted-decimal notation

b

May be omitted if the range contains only one IP address.

a

a

Response

Command prompt.

system deliproutingtable

Deletes a range of addresses that reference a virtual routing table or deletes the
entire virtual routing tabl e. To list the virtual routing tabl es, use the iproutes command.
For more information, see ”Vir tual Routing Tables” on page 6-2 of the Technical
Reference Guide.

Mgmt Class

Network (R/ W)

First IP address of the range.

Last IP address of the range.

b

Local Ethernet LAN.

Input Format

system addiproutingtable <first ip addr> [<last ip addr>]
<tablename>

Page 4-30 Efficient Networks

®
