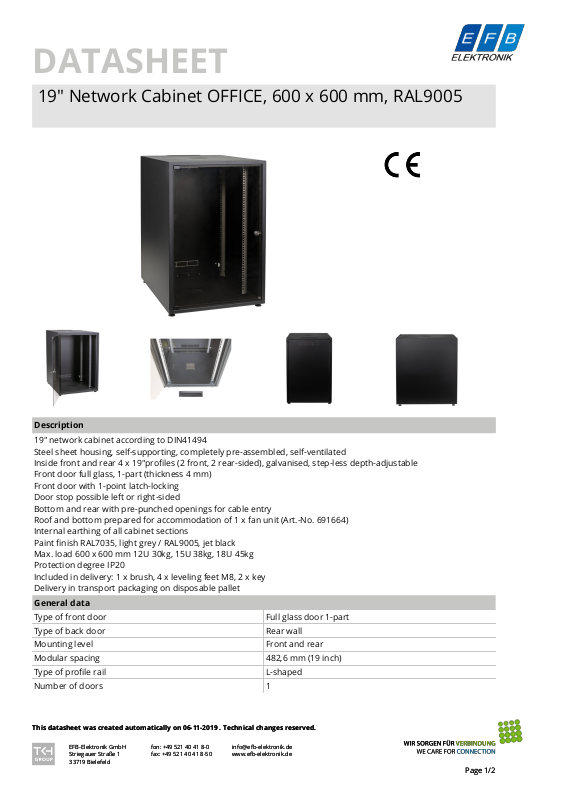

DATASHEET
DATASHEET
19" Network Cabinet OFFICE, 600 x 600 mm, RAL9005
19" Network Cabinet OFFICE, 600 x 600 mm, RAL9005
Description
19" network cabinet according to DIN41494
Steel sheet housing, self-supporting, completely pre-assembled, self-ventilated
Inside front and rear 4 x 19"profiles (2 front, 2 rear-sided), galvanised, step-less depth-adjustable
Front door full glass, 1-part (thickness 4 mm)
Front door with 1-point latch-locking
Door stop possible left or right-sided
Bottom and rear with pre-punched openings for cable entry
Roof and bottom prepared for accommodation of 1 x fan unit (Art.-No. 691664)
Internal earthing of all cabinet sections
Paint finish RAL7035, light grey / RAL9005, jet black
Max. load 600 x 600 mm 12U 30kg, 15U 38kg, 18U 45kg
Protection degree IP20
Included in delivery: 1 x brush, 4 x leveling feet M8, 2 x key
Delivery in transport packaging on disposable pallet
General data
Type of front door Full glass door 1-part
Type of back door Rear wall
Mounting level Front and rear
Modular spacing 482,6 mm (19 inch)
Type of profile rail L-shaped
Number of doors 1
This datasheet was created automatically on 06-11-2019 . Technical changes reserved.
This datasheet was created automatically on 06-11-2019 . Technical changes reserved.
EFB-Elektronik GmbH
EFB-Elektronik GmbH
Striegauer Straße 1
Striegauer Straße 1
33719 Bielefeld
33719 Bielefeld
fon: +49 521 40 41 8-0
fon: +49 521 40 41 8-0
fax: +49 521 40 41 8-50
fax: +49 521 40 41 8-50
info@efb-elektronik.de
info@efb-elektronik.de
www.efb-elektronik.de
www.efb-elektronik.de
Page 1/2
Page 1/2
DATASHEET
19" Network Cabinet OFFICE, 600 x 600 mm, RAL9005
General data
Type of ventilation Passive
With roof plate True
With earthing True
With front door True
With backside door True
With sidewall True
With socket False
Material Steel
Type of surface With powder coating
Degree of protection (IP) IP20
Toolless depth adjustment False
Demountable False
DimensionsDimensions
Width 600 mm
Depth 600 mm
Available variants
Article no. Title
OFF-1266TS.V1RW
OFF-1566TS.V1RW
OFF-1866TS.V1RW
accessory
OFF-ROL01 Castor Set for OFFICE
OFF-ARB01 Set for Raising the Worktop
OFF-ARB66.TS Worktop for OFFICE
Network Cabinet OFFICE 12U, 600x600 mm,
RAL9005
Network Cabinet OFFICE 15U, 600x600 mm,
RAL9005
Network Cabinet OFFICE 18U, 600x600 mm,
RAL9005
Number of height
units
12 HE 604 mm Black 9005
15 HE 737 mm Black 9005
18 HE 871 mm Black 9005
Height Colour RAL-number
spare part
OFF-TUR186V1 Front Door for OFFICE W=600, Full Glass, 1-Part, Latch
OFF-PRO18 19" Profile Rails for OFFICE, Set 2 Pieces
