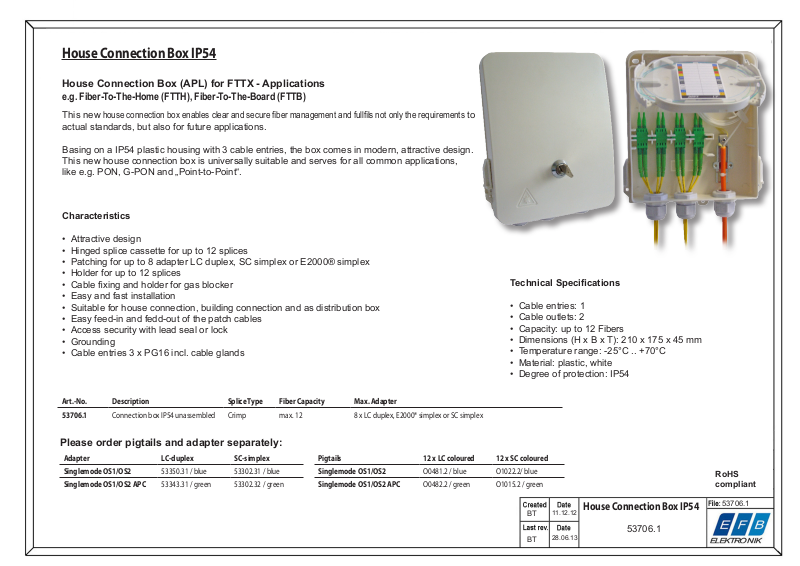

House Connection Box IP54
House Connection Box (APL) for FTTX - Applications
e.g. Fiber-To-The-Home (FTTH), Fiber-To-The-Board (FTTB)
This new
house connection box enables clear and secure ber management and fullls not only the requirements
to
actual standards, but also for future applications.
Basing on a IP54 plastic housing with 3 cable entries, the box comes in modern, attractive design.
This new house connection box is universally suitable and serves for all common applications,
like e.g. PON, G-PON and „Point-to-Point“.
Characteristics
• Attractive design
• Hinged splice cassette for up to 12 splices
• Patching for up to 8 adapter LC duplex, SC simplex or E2000® simplex
• Holder for up to 12 splices
• Cable xing and holder for gas blocker
• Easy and fast installation
• Suitable for house connection, building connection and as distribution box
• Easy feed-in and fedd-out of the patch cables
• Access security with lead seal or lock
• Grounding
• Cable entries 3 x PG16 incl. cable glands
Technical Specications
• Cable entries: 1
• Cable outlets: 2
• Capacity: up to 12 Fibers
• Dimensions (H x B x T): 210 x 175 x 45 mm
• Temperature range: -25°C .. +70°C
• Material: plastic, white
• Degree of protection: IP54
Art.-No. Description Splice Type Fiber Capacity Max. Adapter
53706.1 Connection box IP54 unassembled Crimp max. 12 8 x LC duplex, E2000® simplex or SC simplex
Please order pigtails and adapter separately:
Adapter LC-duplex SC-simplex
Singlemode OS1/OS2 53350.31 / blue 53302.31 / blue
Singlemode OS1/OS2 APC 53343.31 / green 53302.32 / green
Pigtails 12 x LC coloured 12 x SC coloured
Singlemode OS1/OS2 O0481.2 / blue O1022.2/ blue
Singlemode OS1/OS2 APC O0482.2 / green O1015.2 / green
BT
BT
11.12.12
28.06.13
House Connection Box IP54
53706.1
RoHS
compliant
53706.1
