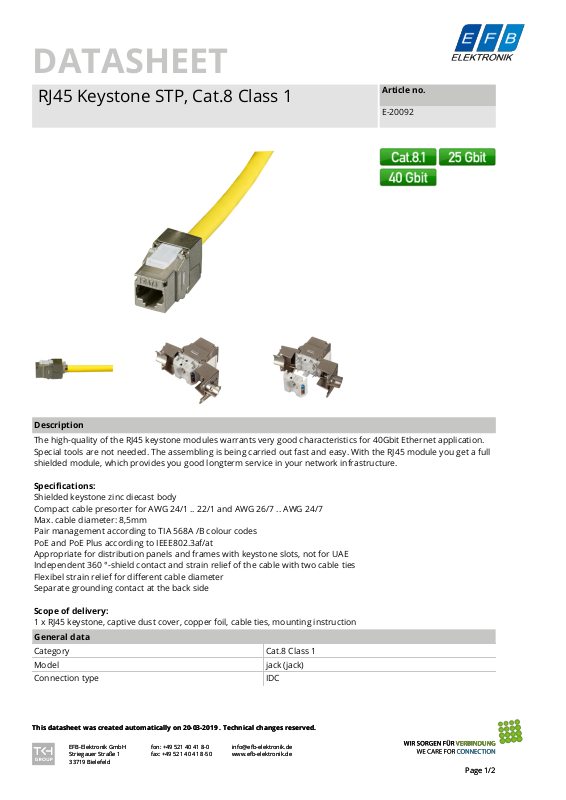

Page 1

DATASHEET

RJ45 Keystone STP, Cat.8 Class 1

Article no.

E-20092

Description

The high-quality of the RJ45 keystone modules warrants very good characteristics for 40Gbit Ethernet application. Special tools are not needed. The assembling is being carried out fast and easy. With the RJ45 module you get a full shielded module, which provides you good longterm service in your network infrastructure.

Specifications:

Shielded keystone zinc diecast body Compact cable presorter for AWG 24/1 .. 22/1 and AWG 26/7 .. AWG 24/7 Max. cable diameter: 8,5mm Pair management according to TIA 568A /B colour codes PoE and PoE Plus according to IEEE802.3af/at Appropriate for distribution panels and frames with keystone slots, not for UAE Independent 360 °-shield contact and strain relief of the cable with two cable ties Flexibel strain relief for different cable diameter Separate grounding contact at the back side

Scope of delivery:

1 x RJ45 keystone, captive dust cover, copper foil, cable ties, mounting instruction

General data

Category Cat.8 Class 1

Model jack (jack)

Connection type IDC

This datasheet was created automatically on 20-03-2019 . Technical changes reserved.

EFB-Elektronik GmbH

EFB-Elektronik GmbH Striegauer Straße 1

Striegauer Straße 1 33719 Bielefeld

33719 Bielefeld

fon: +49 521 40 41 8-0

fon: +49 521 40 41 8-0 fax: +49 521 40 41 8-50

fax: +49 521 40 41 8-50

[email protected]

[email protected] www.efb-elektronik.de

www.efb-elektronik.de

Page 1/2

Page 2

DATASHEET

RJ45 Keystone STP, Cat.8 Class 1

General data

Type of connector RJ45 8(8)

Screened yes

AWG-range for litz wire conductor 26 – 24

AWG-range for solid core 24 – 22

Special tool necessary No

Suitable for round cable yes

Suitable for flat cable No

Suitable for litz wire conductor yes

Suitable for solid core yes

Dust cover yes

Standards, approvals, certifications

4PPOE certified True

Article no.

E-20092

Available variants

Article no. Title Colour

E-20092 RJ45 Keystone STP, Cat.8 Class 1, 2000MHz silver

accessory

88035.2 Field installable connector RJ45 Cat.8 Class 1

37576.1 Distribution Panel 19" 1HE 24-Port, metal

37578.1 Distribution Panel 19" 1HE 24-Port, grey

37580.1 Distribution Panel 19" 1U 24-Port, black

This datasheet was created automatically on 20-03-2019 . Technical changes reserved.

EFB-Elektronik GmbH Striegauer Straße 1 33719 Bielefeld

fon: +49 521 40 41 8-0 fax: +49 521 40 41 8-50

[email protected] www.efb-elektronik.de

Page 2/2
