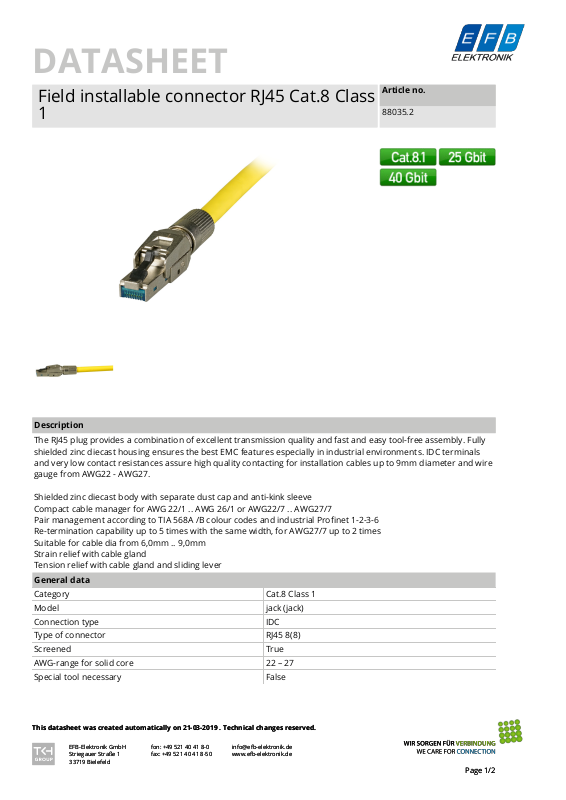

DATASHEET
DATASHEET
Field installable connector RJ45 Cat.8 Class
Field installable connector RJ45 Cat.8 Class
1
1
Article no.
Article no.
88035.2
88035.2
Description
The RJ45 plug provides a combination of excellent transmission quality and fast and easy tool-free assembly. Fully
shielded zinc diecast housing ensures the best EMC features especially in industrial environments. IDC terminals
and very low contact resistances assure high quality contacting for installation cables up to 9mm diameter and wire
gauge from AWG22 - AWG27.
Shielded zinc diecast body with separate dust cap and anti-kink sleeve
Compact cable manager for AWG 22/1 .. AWG 26/1 or AWG22/7 .. AWG27/7
Pair management according to TIA 568A /B colour codes and industrial Profinet 1-2-3-6
Re-termination capability up to 5 times with the same width, for AWG27/7 up to 2 times
Suitable for cable dia from 6,0mm .. 9,0mm
Strain relief with cable gland
Tension relief with cable gland and sliding lever
General data
Category Cat.8 Class 1
Model jack (jack)
Connection type IDC
Type of connector RJ45 8(8)
Screened True
AWG-range for solid core 22 – 27
Special tool necessary False
This datasheet was created automatically on 21-03-2019 . Technical changes reserved.
This datasheet was created automatically on 21-03-2019 . Technical changes reserved.
EFB-Elektronik GmbH
EFB-Elektronik GmbH
Striegauer Straße 1
Striegauer Straße 1
33719 Bielefeld
33719 Bielefeld
fon: +49 521 40 41 8-0
fon: +49 521 40 41 8-0
fax: +49 521 40 41 8-50
fax: +49 521 40 41 8-50
[email protected]
www.efb-elektronik.de
www.efb-elektronik.de
Page 1/2
Page 1/2
Page 2
DATASHEET
Field installable connector RJ45 Cat.8 Class
Article no.
1
General data
Suitable for round cable True
Suitable for flat cable False
Suitable for litz wire conductor True
Suitable for solid core True
Standards, approvals, certifications
4PPOE certified Ja
Available variants
Article no. Title Colour
88035.2 Field installable connector, RJ45 Cat.8 Class 1 AWG22 - 27, zinc alloy silver
88035.2
accessory
99827.1 Cat.8.2 Installation cable S/FTP 2000MHz AWG22
E-20092 RJ45 Keystone STP, Cat.8 Class 1
This datasheet was created automatically on 21-03-2019 . Technical changes reserved.
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
fon: +49 521 40 41 8-0
fax: +49 521 40 41 8-50
[email protected]
www.efb-elektronik.de
Page 2/2
