Mini-Patchpanel STP 8xRJ45 Cat.5e, 10“ 1U
Mini-Patchpanel STP 8xRJ45 Cat.5e, 10“ 1U
Description
The high quality of the shielded Cat.5e RJ45 mini patch panel ensures excellent performance for 2.5 Gigabit
Ethernet applications. In addition, the mini patch panel is characterized by its versatile mounting options. It is
suitable for installation in a 10 "plane, for attachment to the wall or in conjunction with the DIN rail clamp set
(Part No. H83030.1) for DIN rail mounting.
10 "mounting / wall mounting or DIN rail mounting possible, 1U
8 ports
LSA connection strip for installation cable AWG24..AWG22
Color code according to TIA / EIA 568 A / B
Lid with quick release
With earthing terminal
Scope of delivery:
8 cable ties, assembly instructions
4 screws (M6x16mm) and nut
General data
Mounting method other
Category 5E
Transmission 2.5 Gbit
Bandwidth 100 MHz
Number of height units 1
This datasheet was created automatically on 17-05-2019 . Technical changes reserved.
This datasheet was created automatically on 17-05-2019 . Technical changes reserved.
EFB-Elektronik GmbH
EFB-Elektronik GmbH
Striegauer Straße 1
Striegauer Straße 1
33719 Bielefeld
33719 Bielefeld
fon: +49 521 40 41 8-0
fon: +49 521 40 41 8-0
fax: +49 521 40 41 8-50
fax: +49 521 40 41 8-50
[email protected]
www.efb-elektronik.de
www.efb-elektronik.de
Page 1/3
Page 1/3
Page 2
DATASHEET
Mini-Patchpanel STP 8xRJ45 Cat.5e, 10“ 1U
General data
Connection type LSA
Type of connector RJ45 8(8)
Screened True
Cross section AWG 24 - AWG 22
Colour code acc. TIA/EIA 568A/B
Complaint to UL94 V-0
Mechanical characteristics
Housing material Panel Steel, 1.5mm
Housing material of RJ45 jacks PBT
Housing material LSA-terminal PC
Material LSA contacts Phosphor bronze, tinned
Insertion force 50 N
Durability LSA contacts 200
Mating cycles RJ45 jack 750
DimensionsDimensions
Height 44.0 mm
Width 254.6 mm
Depth 108.0 mm
Environmental conditions
Temperature range (Storage) -40 – 70 °C
Temperature range (Operation) -10 – 60 °C
Electrical characteristics
Electrical strength 125 V AC RMS
Dielectric Withstanding Voltage 750 V AC 60Hz
Current Rating 1,5 A
Insulation Resistance 1000 MΩ
Contact Resistance 100 mΩ
Available variants
Article no. Title
37735.8
Mini-Patchpanel STP 8xRJ45 Cat.5e, 10“ 1U, RAL7035
grey
Number of
buses/couplings
Colour RAL-number
8 grey 7035
This datasheet was created automatically on 17-05-2019 . Technical changes reserved.
EFB-Elektronik GmbH
Striegauer Straße 1
33719 Bielefeld
fon: +49 521 40 41 8-0
fax: +49 521 40 41 8-50
[email protected]
www.efb-elektronik.de
Page 2/3
Page 3
DATASHEET
Mini-Patchpanel STP 8xRJ45 Cat.5e, 10“ 1U
37735SW.8

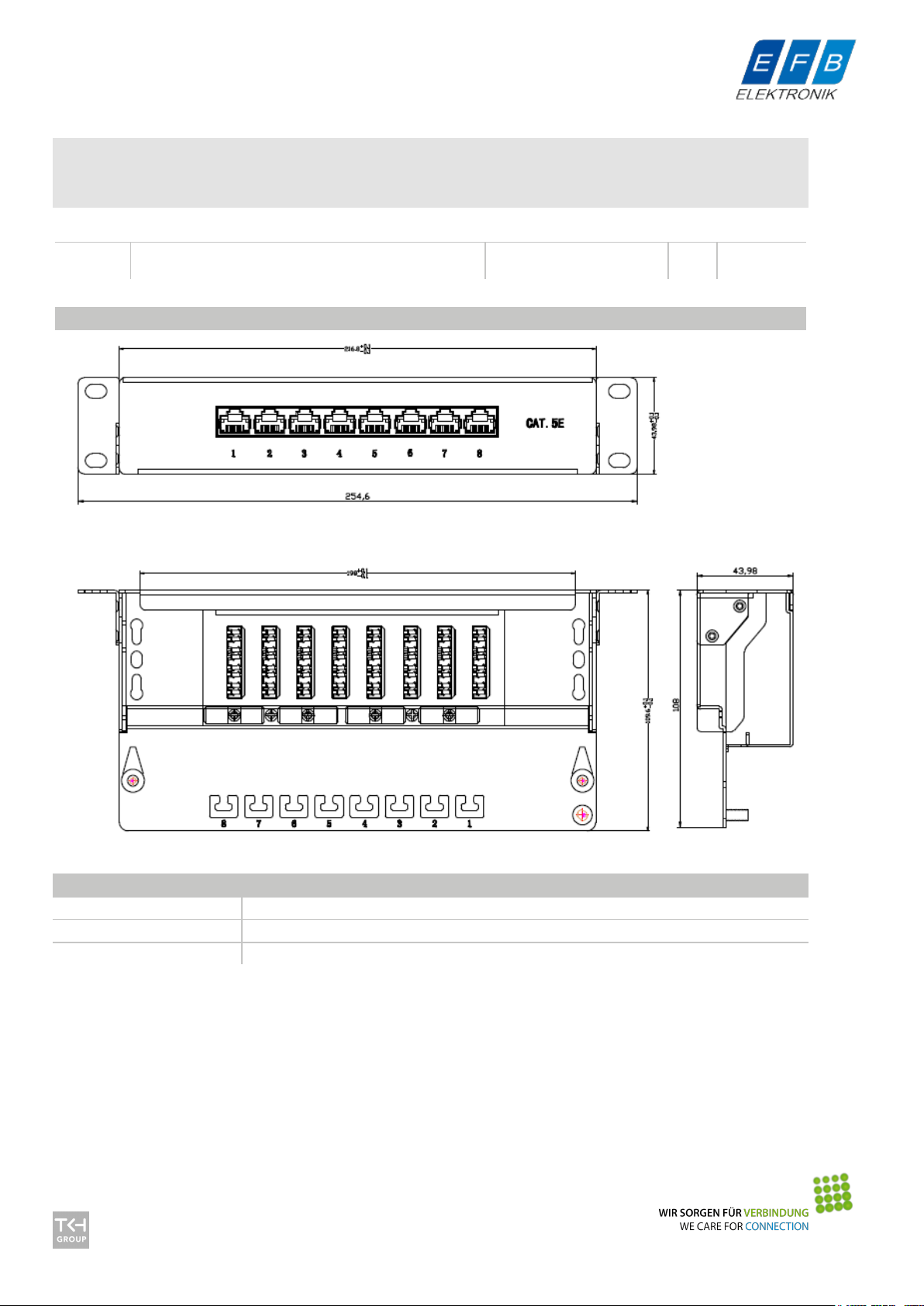

Technical drawings
Mini-Patchpanel STP 8xRJ45 Cat.5e, 10“ 1U, RAL9005
black
8 black 9005
accessory
81022.100 Cable Ties
37520.7-100 RJ45 Dummy Plugs
H83030.1 Set Din Rail holder
