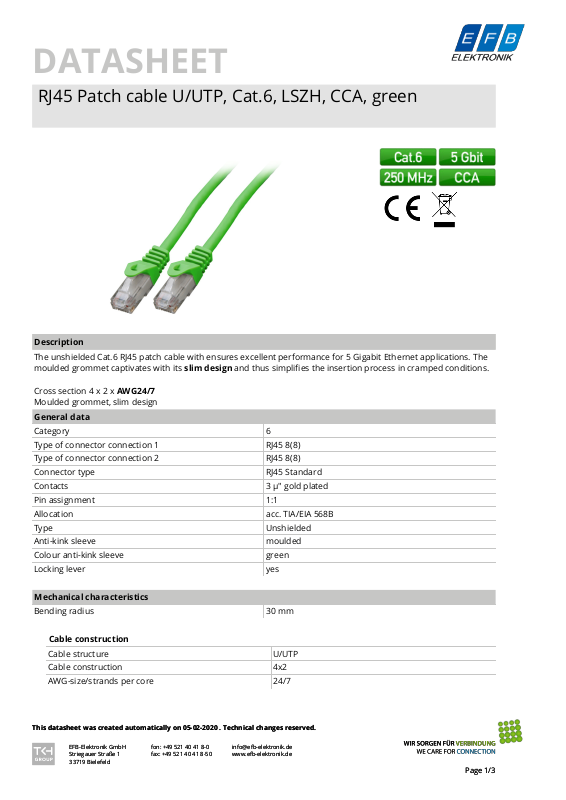

RJ45 Patch cable U/UTP, Cat.6, LSZH, CCA, green
RJ45 Patch cable U/UTP, Cat.6, LSZH, CCA, green
Description
The unshielded Cat.6 RJ45 patch cable with ensures excellent performance for 5 Gigabit Ethernet applications. The
moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.
Cross section 4 x 2 x AWG24/7
Moulded grommet, slim design
General data
Category 6
Type of connector connection 1 RJ45 8(8)
Type of connector connection 2 RJ45 8(8)
Connector type RJ45 Standard
Contacts 3 µ" gold plated
Pin assignment 1:1
Allocation acc. TIA/EIA 568B
Type Unshielded
Anti-kink sleeve moulded
Colour anti-kink sleeve green
Locking lever yes
Mechanical characteristics
Bending radius 30 mm
Cable construction
Cable structure U/UTP
Cable construction 4x2
AWG-size/strands per core 24/7
This datasheet was created automatically on 05-02-2020 . Technical changes reserved.
This datasheet was created automatically on 05-02-2020 . Technical changes reserved.
EFB-Elektronik GmbH
EFB-Elektronik GmbH
Striegauer Straße 1
Striegauer Straße 1
33719 Bielefeld
33719 Bielefeld
fon: +49 521 40 41 8-0
fon: +49 521 40 41 8-0
fax: +49 521 40 41 8-50
fax: +49 521 40 41 8-50
info@efb-elektronik.de
info@efb-elektronik.de
www.efb-elektronik.de
www.efb-elektronik.de
Page 1/3
Page 1/3
DATASHEET
RJ45 Patch cable U/UTP, Cat.6, LSZH, CCA, green
Cable construction
Conductor Material CCA
Cable sheath
Silicone-free yes
Jacket material LSZH
Colour outer sheath green
Printing Cat.6 U/UTP AWG24/7 stranded x 4pairs LSZH cable
Outer diameter of the cable 5.9 mm
Flame-retardant yes
Halogen-free yes
Low smoke yes
Electrical characteristics
NVP value - %
Transmission characteristics
Bandwidth 250MHz
Standards, approvals, certifications
Connector IEC 60603-7-4
Available variants
Article no. Title Length
K8104GN.0,25 RJ45 Patch cable U/UTP, Cat.6, LSZH, CCA, 0,25m, green 0.25 m
K8104GN.0,5 RJ45 Patch cable U/UTP, Cat.6, LSZH, CCA, 0,5m, green 0.5 m
K8104GN.1 RJ45 Patch cable U/UTP, Cat.6, LSZH, CCA, 1m, green 1.0 m
K8104GN.1,5 RJ45 Patch cable U/UTP, Cat.6, LSZH, CCA, 1,5m, green 1.5 m
K8104GN.2 RJ45 Patch cable U/UTP, Cat.6, LSZH, CCA, 2m, green 2.0 m
K8104GN.3 RJ45 Patch cable U/UTP, Cat.6, LSZH, CCA, 3m, green 3.0 m
K8104GN.4 RJ45 Patch cable U/UTP, Cat.6, LSZH, CCA, 4m, green 4.0 m
K8104GN.5 RJ45 Patch cable U/UTP, Cat.6, LSZH, CCA, 5m, green 5.0 m
K8104GN.7,5 RJ45 Patch cable U/UTP, Cat.6, LSZH, CCA, 7,5m, green 7.5 m
K8104GN.10 RJ45 Patch cable U/UTP, Cat.6, LSZH, CCA, 10m, green 10.0 m
K8104GN.15 RJ45 Patch cable U/UTP, Cat.6, LSZH, CCA, 15m, green 15.0 m
K8104GN.20 RJ45 Patch cable U/UTP, Cat.6, LSZH, CCA, 20m, green 20.0 m
