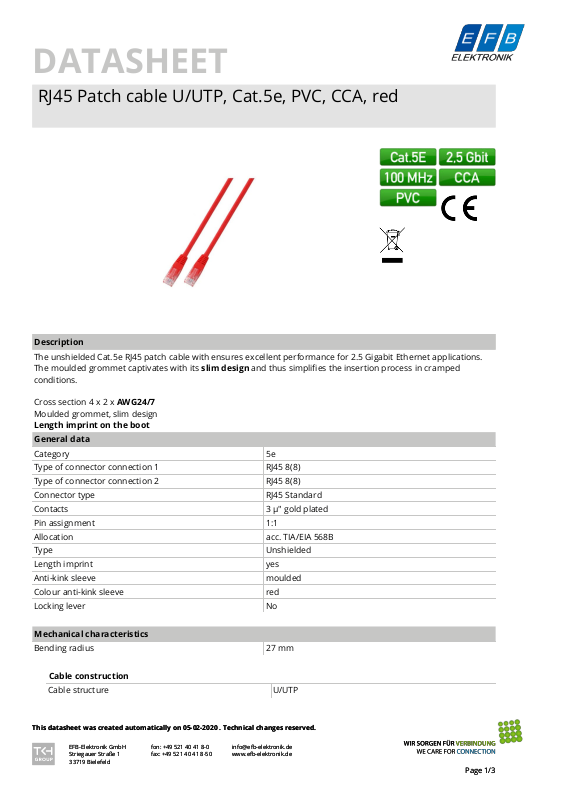

RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, red
RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, red
Description
The unshielded Cat.5e RJ45 patch cable with ensures excellent performance for 2.5 Gigabit Ethernet applications.
The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped
conditions.
Cross section 4 x 2 x AWG24/7
Moulded grommet, slim design
Length imprint on the boot
General data
Category 5e
Type of connector connection 1 RJ45 8(8)
Type of connector connection 2 RJ45 8(8)
Connector type RJ45 Standard
Contacts 3 µ" gold plated
Pin assignment 1:1
Allocation acc. TIA/EIA 568B
Type Unshielded
Length imprint yes
Anti-kink sleeve moulded
Colour anti-kink sleeve red
Locking lever No
Mechanical characteristics
Bending radius 27 mm
Cable construction
Cable structure U/UTP
This datasheet was created automatically on 05-02-2020 . Technical changes reserved.
This datasheet was created automatically on 05-02-2020 . Technical changes reserved.
EFB-Elektronik GmbH
EFB-Elektronik GmbH
Striegauer Straße 1
Striegauer Straße 1
33719 Bielefeld
33719 Bielefeld
fon: +49 521 40 41 8-0
fon: +49 521 40 41 8-0
fax: +49 521 40 41 8-50
fax: +49 521 40 41 8-50
info@efb-elektronik.de
info@efb-elektronik.de
www.efb-elektronik.de
www.efb-elektronik.de
Page 1/3
Page 1/3
DATASHEET
RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, red
Cable construction
Cable construction 4x2
AWG-size/strands per core 24/7
Conductor Material CCA
Cable sheath
Silicone-free yes
Jacket material PVC
Colour outer sheath red
Printing
Outer diameter of the cable 5.4 mm
Environmental conditions
Temperature range 0 – 60 °C
UTP Cat.5E 100MHZ 24AWGX4P Patch ISO/IEC 11801 &
EN 50173 verified
Electrical characteristics
NVP value - %
Transmission characteristics
Bandwidth 100MHz
Transmission 2.5Gbit
Standards, approvals, certifications
Connector IEC 60603-7-2
Available variants
Article no. Title Length
K8096.0,5 RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 0.5m, red 0.5 m
K8096.1 RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 1m, red 1.0 m
K8096.1,5 RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 1.5m, red 1.5 m
K8096.2 RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 2m, red 2.0 m
K8096.3 RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 3m, red 3.0 m
K8096.5 RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 5m, red 5.0 m
K8096.7,5 RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 7.5m, red 7.5 m
K8096.10 RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 10m, red 10.0 m
K8096.15 RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 15m, red 15.0 m
K8096.20 RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 20m, red 20.0 m
K8096.25 RJ45 Patch cable U/UTP, Cat.5e, PVC, CCA, 25m, red 25.0 m
