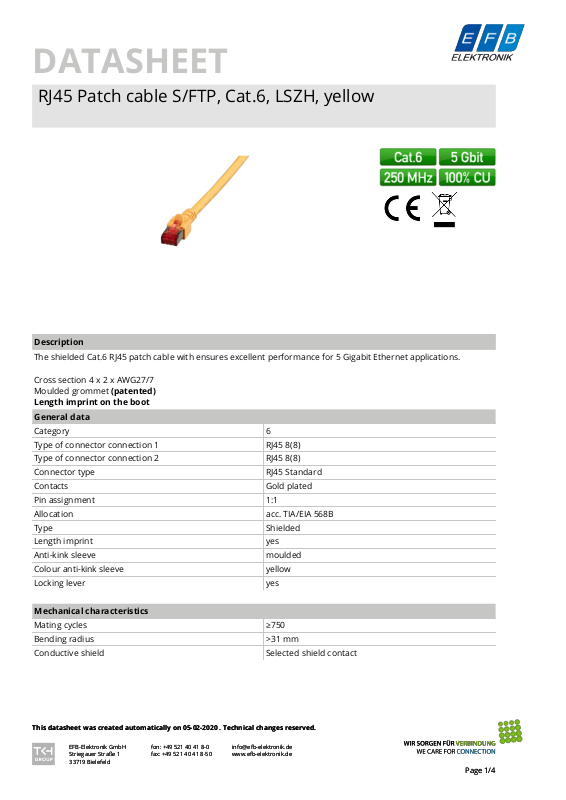

RJ45 Patch cable S/FTP, Cat.6, LSZH, yellow

Description

The shielded Cat.6 RJ45 patch cable with ensures excellent performance for 5 Gigabit Ethernet applications.

Cross section 4 x 2 x AWG27/7 Moulded grommet (patented)

Length imprint on the boot

General data

Category 6

Type of connector connection 1 RJ45 8(8)

Type of connector connection 2 RJ45 8(8)

Connector type RJ45 Standard

Contacts Gold plated

Pin assignment 1:1

Allocation acc. TIA/EIA 568B

Type Shielded

Length imprint yes

Anti-kink sleeve moulded

Colour anti-kink sleeve yellow

Locking lever yes

Mechanical characteristics

Mating cycles ≥750

Bending radius >31 mm

Conductive shield Selected shield contact

This datasheet was created automatically on 05-02-2020 . Technical changes reserved.

EFB-Elektronik GmbH

EFB-Elektronik GmbH Striegauer Straße 1

Striegauer Straße 1 33719 Bielefeld

33719 Bielefeld

fon: +49 521 40 41 8-0

fon: +49 521 40 41 8-0 fax: +49 521 40 41 8-50

fax: +49 521 40 41 8-50

info@efb-elektronik.de

info@efb-elektronik.de www.efb-elektronik.de

www.efb-elektronik.de

Page 1/4

DATASHEET

RJ45 Patch cable S/FTP, Cat.6, LSZH, yellow

Cable construction

Cable structure S/FTP

Cable construction 4x2

AWG-size/strands per core 27/7

Conductor Material Copper

Cable sheath

Silicone-free yes

Jacket material LSZH

Colour outer sheath yellow

Cat.6 S/FTP 4x2xAWG27/7 PIMF ISO/IEC 11801 &

Printing

Outer diameter of the cable 6.2 mm

Flame-retardant acc. IEC60332-1

Halogen-free yes

Low smoke yes

EN50173-1 TIA/EIA 568B.2-1 Halogen Free ***Gigabit***

Environmental conditions

Temperature range 0 – 60 °C

Electrical characteristics

NVP value - %

Conductor resistance DC 185 Ω/km

Loop resistance 370 Ω/km

Resistance unbalance 5 %

Insulation resistance 10 MΩ

Contact resistance 30 mΩ

Transmission characteristics

Bandwidth 250MHz

Standards, approvals, certifications

Connector IEC 60603-7-5

Available variants

Article no. Title Length

K5511.0,15 RJ45 Patch cable S/FTP, Cat.6, LSZH, 0.15m, yellow 0.15 m

This datasheet was created automatically on 05-02-2020 . Technical changes reserved.

EFB-Elektronik GmbH Striegauer Straße 1 33719 Bielefeld

fon: +49 521 40 41 8-0 fax: +49 521 40 41 8-50

info@efb-elektronik.de www.efb-elektronik.de

Page 2/4

DATASHEET

RJ45 Patch cable S/FTP, Cat.6, LSZH, yellow

K5511.0,25 RJ45 Patch cable S/FTP, Cat.6, LSZH, 0.25m, yellow 0.25 m

K5511.0,5 RJ45 Patch cable S/FTP, Cat.6, LSZH, 0.5m, yellow 0.5 m

K5511.1 RJ45 Patch cable S/FTP, Cat.6, LSZH, 1m, yellow 1.0 m

K5511.1,5 RJ45 Patch cable S/FTP, Cat.6, LSZH, 1.5m, yellow 1.5 m

K5511.2 RJ45 Patch cable S/FTP, Cat.6, LSZH, 2m, yellow 2.0 m K5511.3 RJ45 Patch cable S/FTP, Cat.6, LSZH, 3m, yellow 3.0 m K5511.5 RJ45 Patch cable S/FTP, Cat.6, LSZH, 5m, yellow 5.0 m

K5511.7,5 RJ45 Patch cable S/FTP, Cat.6, LSZH, 7.5m, yellow 7.5 m

K5511.10 RJ45 Patch cable S/FTP, Cat.6, LSZH, 10m, yellow 10.0 m K5511.15 RJ45 Patch cable S/FTP, Cat.6, LSZH, 15m, yellow 15.0 m K5511.20 RJ45 Patch cable S/FTP, Cat.6, LSZH, 20m, yellow 20.0 m K5511.25 RJ45 Patch cable S/FTP, Cat.6, LSZH, 25m, yellow 25.0 m K5511.30 RJ45 Patch cable S/FTP, Cat.6, LSZH, 30m, yellow 30.0 m

Article no. Title Length

K5511.40 RJ45 Patch cable S/FTP, Cat.6, LSZH, 40m, yellow 40.0 m

Article no. Title Length

K5511.50 RJ45 Patch cable S/FTP, Cat.6, LSZH, 50m, yellow 50.0 m
