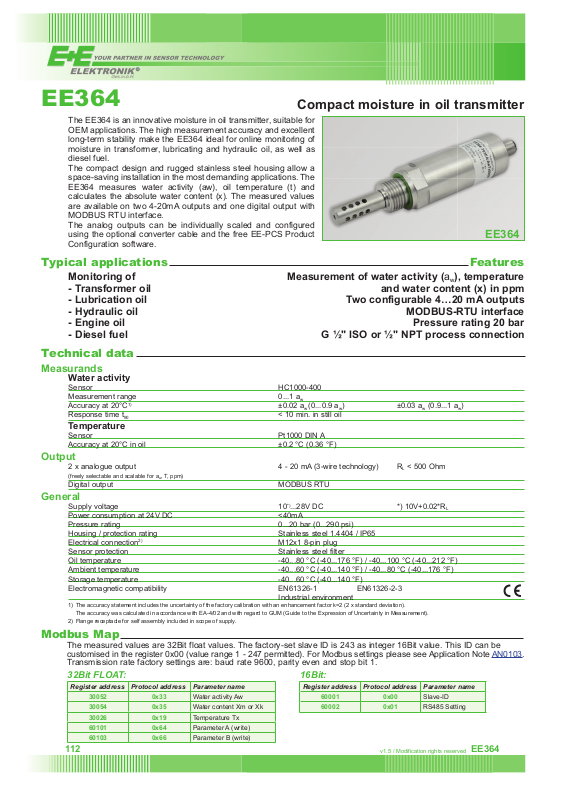

E+E EE364 Specifications

EE364

Compact moisture in oil transmitter

The EE364 is an innovative moisture in oil transmitter, suitable for OEM applications. The high measurement accuracy and excellent long-term stability make the EE364 ideal for online monitoring of moisture in transformer, lubricating and hydraulic oil, as well as diesel fuel. The compact design and rugged stainless steel housing allow a space-saving installation in the most demanding applications. The EE364 measures water activity (aw), oil temperature (t) and calculates the absolute water content (x). The measured values are available on two 4-20mA outputs and one digital output with MODBUS RTU interface. The analog outputs can be individually scaled and configured using the optional converter cable and the free EE-PCS Product

EE364

Configuration software.

Typical applications Features

Monitoring of

- Transformer oil

- Lubrication oil

- Hydraulic oil

- Engine oil

- Diesel fuel

Measurement of water activity (aw), temperature

and water content (x) in ppm

Two configurable 4…20 mA outputs

MODBUS-RTU interface

Pressure rating 20 bar

G ½" ISO or ½" NPT process connection

Technical data

Measurands

Water activity

Sensor HC1000-400

Measurement range 0...1 aw Accuracy at 20°C1) ±0.02 aw (0...0.9 aw) ±0.03 aw (0.9...1 aw) Response time t

Temperature

Sensor Pt1000 DIN A Accuracy at 20°C in oil ±0.2 °C (0.36 °F)

< 10 min. in still oil

Output

2 x analogue output 4 - 20 mA (3-wire technology) RL < 500 Ohm

(freely selectable and scalable for a Digital output MODBUS RTU

, T, ppm)

General

Supply voltage 10*)...28V DC *) 10V+0.02*R Power consumption at 24V DC <40mA Pressure rating 0...20 bar (0...290 psi) Housing / protection rating Stainless steel 1.4404 / IP65 Electrical connection Sensor protection Stainless steel filter Oil temperature -40...80 °C (-40...176 °F) / -40...100 °C (-40...212 °F) Ambient temperature -40...60 °C (-40...140 °F) / -40...80 °C (-40...176 °F) Storage temperature -40...60 °C (-40...140 °F) Electromagnetic compatibility EN61326-1 EN61326-2-3 Industrial environment

1) The accuracy statement includes the uncertainty of the factory calibration with an enhancement factor k=2 (2 x standard deviation). The accuracy was calculated in accordance with EA-4/02 and with regard to GUM (Guide to the Expression of Uncertainty in Measurement).

2) Flange receptacle for self assembly included in scope of supply.

M12x1 8-pin plug

Modbus Map

The measured values are 32Bit float values. The factory-set slave ID is 243 as integer 16Bit value. This ID can be customised in the register 0x00 (value range 1 - 247 permitted). For Modbus settings please see Application Note AN0103. Transmission rate factory settings are: baud rate 9600, parity even and stop bit 1.

32Bit FLOAT: 16Bit:

30052 0x33 Water activity Aw

30054 0x35 Water content Xm or Xk

30026 0x19 Temperature Tx

60101 0x64 Parameter A (write)

60103 0x66 Parameter B (write)

112

60001 0x00 Slave-ID

60002 0x01 RS485 Setting

v1.5 / Modification rights reserved

EE364

Dimensions in mm (inch)

140 (5.5)

Connection diagram

ISO

92 (3.6)

34 (1.36)

Plug

1...NC

2...RS485 B

Ø12

(0.5)

51 (2)

G1/2“

AD27

77 (3)

89 (3.5)

Ø30

(1.2)

3...RS485 A

4...Analogue output 1

5...Analogue output 2

6...GND

7...NC

8...V+

NPT

1/2“NPT

AD22

74 (2.9)

Ordering information

MODEL ANALOGUE DIGITAL OIL TEMPERATURE PRESSURE RATING PROCESS CONNECTION

Transmitter (T) 4-20 mA (6) MODBUS RTU (RS485) (3) 80 °C (A) 20 bar (E) G1/2" thread (A)

100 °C (B) 1/2" NPT thread (C)

EE364-

OUTPUT 1 SCALING 1

Water activity (Aw)1) 0...100 (001) Temperature (T) -40... 60 (002) metric (M)

Water content in mineral transformer oil (Xm) 0...500 (002) 0... 80 (021) non-metric (N)

Water content in customer-specific oil (Xk)

1) Factory setting Aw: 0...1

2) Oil-speciﬁ c parameters can be determined on request.

3) Valid for Xm and Xk

0...1000 (003) -40... 80 (022)

OUTPUT 2 SCALING 2 UNIT

-20... 80 (024)

-40... 180 (052)

-40... 140 (083)

32... 132 (096)

Accessories (see accessories data sheet)

M12x1 8pin mating plug suitable for customer-specific assembly HA010704 Stainless steel filter HA010110 M12x1 8pin connection cable socket/flying leads 1.5m HA010322 Modbus - USB converter cable HA011013 M12x1 8pin connection cable socket/flying leads 5m HA010324 M12x1 8pin connection cable socket/flying leads 10m HA010325

Product Conﬁ guration Software

EE-PCS (free download: www.epluse.com/EE364)

Order example

EE364-T63BEA/AwT002M

Model: Transmitter Output 1: Water activity Analogue output: 4-20 mA Output 2: Temperature Digital output: MODBUS RTU Scaling 2: -40...60 Oil temperature: 100 °C Units: metric [°C] Pressure rating: 20 bar Process connection: G1/2" thread

EE364

v1.5 / Modification rights reserved
