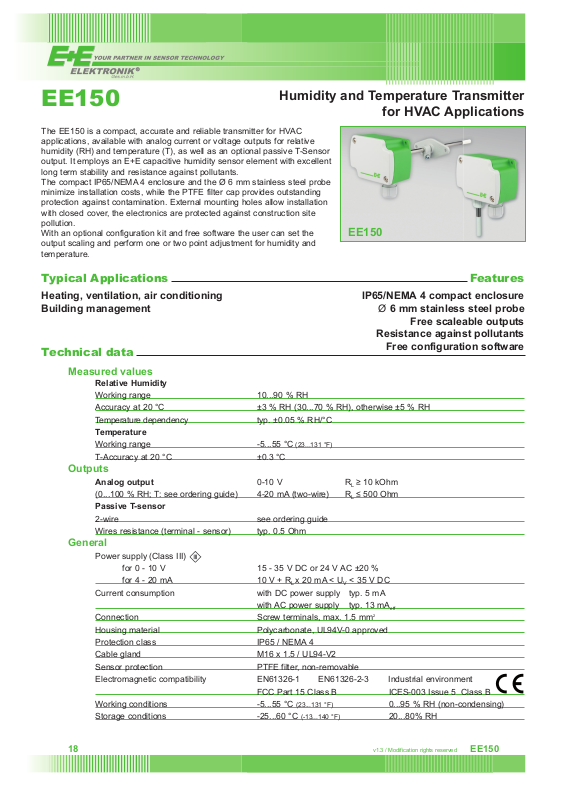

E+E EE150 Specifications

EE150

The EE150 is a compact, accurate and reliable transmitter for HVAC
applications, available with analog current or voltage outputs for relative
humidity (RH) and temperature (T), as well as an optional passive T-Sensor
output. It employs an E+E capacitive humidity sensor element with excellent
long term stability and resistance against pollutants.
The compact IP65/NEMA 4 enclosure and the Ø 6 mm stainless steel probe
minimize installation costs, while the PTFE filter cap provides outstanding
protection against contamination. External mounting holes allow installation
with closed cover, the electronics are protected against construction site
pollution.
With an optional configuration kit and free software the user can set the
output scaling and perform one or two point adjustment for humidity and
temperature.

Humidity and Temperature Transmitter

for HVAC Applications

EE150

FeaturesTypical Applications

Heating, ventilation, air conditioning
Building management

IP65/NEMA 4 compact enclosure

Ø 6 mm stainless steel probe

Free scaleable outputs

Resistance against pollutants

Technical data

Free configuration software

Measured values

Relative Humidity

Working range 10...90 % RH
Accuracy at 20 °C ±3 % RH (30...70 % RH), otherwise ±5 % RH
Temperature dependency typ. ±0.05 % RH/°C

Temperature

Working range -5...55 °C
T-Accuracy at 20 °C ±0.3 °C

(23...131 °F)

Outputs

Analog output 0-10 V R

(0...100 % RH; T: see ordering guide) 4-20 mA (two-wire) R

Passive T-sensor

2-wire see ordering guide

Wires resistance (terminal - sensor) typ. 0.5 Ohm

≥ 10 kOhm

L

≤ 500 Ohm

L

General

Power supply (Class III)

for 0 - 10 V 15 - 35 V DC or 24 V AC ±20 %

for 4 - 20 mA 10 V + R
Current consumption with DC power supply typ. 5 mA
with AC power supply typ. 13 mA
Connection Screw terminals, max. 1.5 mm
Housing material Polycarbonate, UL94V-0 approved
Protection class IP65 / NEMA 4
Cable gland M16 x 1.5 / UL94-V2
Sensor protection PTFE filter, non-removable
Electromagnetic compatibility EN61326-1 EN61326-2-3 Industrial environment
FCC Part 15 Class B ICES-003 Issue 5 Class B
Working conditions -5...55 °C
Storage conditions -25...60 °C

x 20 mA < UV < 35 V DC

L

eff

2

(23...131 °F) 0...95 % RH (non-condensing)

(-13...140 °F) 20...80% RH

18

v1.3 / Modification rights reserved

EE150

EE150

Dimensions (mm/inch)

Duct mount Wall mount

63 (2.48)

ø 7

42 (1.65)

drilled hole for
mounting: ø>9 (ø>0.35)

(ø 0.28)

56 (2.2)

28.55

(1.12)

200

ø 5 (ø 0.2)

(7.87)

ø 4 (ø 0.16)

39.5 (1.56)

80.8 (3.18)

55.3 (2.18)

CABLE GLAND M16x1.5

ø 6

(ø 0.24)

Connection diagram

EE150-M1A3xx

5
6

EE150-M1A6xx

42 (1.65)

115.2 (4.54)

80.8 (3.18)

63 (2.48)

39.5 (1.56)

Ordering Guide

Model Humidity + Temperature M1

Output RH / T

Additional
T-Sensor passive

1)

Type

T-Unit

T-Scale low

T-Scale high

1) T-Sensor details see www.epluse.com/R-T_Characteristics

2) Within working range. For scaling beyond working range limits please contact the E+E sales representative.

0-10 V A3
4-20 mA A6
none no code
Pt100 DIN A TP1
Pt1000 DIN A TP3
NTC10k TP5
Ni1000 TK6180 TP9
Duct mount no code
Wall mount T1
°C no code
°F MB2
0 no code

2)

Value

50 no code

2)

Value

Order example

EE150-M1A6TP1

Model: Humidity + Temperature

Output RH / T: 4-20 mA

Additional T-Sensor passive: Pt100 DIN A
Type: Duct mount
T-Unit: °C
T-Scale low: 0
T-Scale high: 50

EE150-M1A6TP1T1MB2SBL-5SBH55

Model: Humidity + Temperature

Output RH / T: 4-20 mA

Additional T-Sensor passive: Pt100 DIN A
Type: Wall mount
T-Unit: °F
T-Scale low: -5
T-Scale high: 55

EE150-

SBL value

SBH value

EE150

v1.3 / Modification rights reserved

19
