Edwards Signaling Series 93 AdaptaBeacon, Series 93DF AdaptaBeacon, Series 94 AdaptaBeacon, Series 94DF AdaptaBeacon, Series 97 AdaptaBeacon Installation Guide

Installation Instructions for Catalog Series 93, 93DF, 94,

94DF, 97 and 97DF AdaptaBeacon

Description

The catalog series 93, 94 and 97 AdaptaBeacon signals are UL
and cUL listed strobe lights suitable for indoor or outdoor (weath­erproof) installation. A hardware kit is included with the 97 series
signals for direct surface mounting applications.

The 93 and 94 series are ac powered; the 97 series signals are dc
powered. These signals are also available in double flash ver­sions (denoted by DF in the catalog numbers). Voltage and cur­rent ratings for all models are shown in Electrical Specifications.

Replacement Parts for the signals are available. Refer to Table 1
for details.

Electrical Specifications

Catalog Rated Current
Number Voltage

93(*)-N5 120V 50/60 Hz 0.10 Amp
93(*)-R5 240V 50/60 Hz 0.05 Amp
93DF(*)-N5 120V 50/60 Hz 0.10 Amp
93DF(*)-R5 240V 50/60 Hz 0.05 Amp
94(*)-N5 120V 50/60 Hz 0.10 Amp
94(*)-R5 240V 50/60 Hz 0.05 Amp
94DF(*)-N5 120V 50/60 Hz 0.10 Amp
94DF(*)-R5 240V 50/60 Hz 0.05 Amp
97(*)-EK 12 - 48V DC 1.20 Amp
97(*)-MP 75 - 125V DC 0.20 Amp
97(*)-S1 250V DC 0.10 Amp
97DF(*)-EK 12 - 48V DC 1.20 Amp
97DF(*)-MP 75 - 125V DC 0.20 Amp

*The letter (A - amber, B - blue, C - clear, G - green, M ­magenta or R - red) in this position signifies the color the
supplied lens.

Installation

®

Signals

CAUTIONS

To prevent damage to the strobe tube, lift the lens
straight up and off of the signal.

To prevent damage to the strobe tube, handle the
strobe tube only by the base.

1. Disassemble the signal using one of the following applicable
procedures.

a. 93 and 97 Series: Refer to Figure 1. Except for the

voltage ratings, the 93 and 97 series are identical.
Remove the three screws from the skirt, grasp the lens
and lift the lens/skirt straight up off of the base. Then,
remove the three screws holding the strobe tube support
plate to the signal base; grasp the socket (on the strobe
tube support plate) and carefully lift the support plate
off of the signal base. Proceed to step 2.

b. 94 Series: Refer to Figure 2. Remove the three screws

and the rubber gaskets (washers) holding the protective
dome to the signal base. Lift the dome and its rubber
gasket straight up off of the signal base. Then loosen
the three screws in the keyhole slots in the base of the
lens, turn the lens clockwise and lift it off of the strobe
tube support plate. Next, remove the three screws holding
the strobe tube support plate to the signal base; grasp
the socket (on the strobe tube support plate) and carefully
lift the support plate off of the signal base. Proceed to
step 2.

2. The 93 and 94 series signals are conduit mounted. The 97
series can be conduit mounted or direct surface mounted.
Install the signal base using one of the following applicable
procedures.

WARNINGS

To prevent leakage and a potential shock hazard,
when mounting outdoors the signal m ust be
installed with the lens or dome facing directl y up.

WARNINGS

To prevent electrical shock, ensure that power is
disconnected before installing the signal.

To prevent leakage and potential electrical shock,
use care when disassembling the signal to pre vent
tearing of the permanently affixed gaskets provided
for weatherpr oofing.

Conduit Mounting

a. Route the field wiring from the appropriate power source

for the signal through 3/4" (19 mm) NPT conduit and
through the conduit entrance hole in the signal base.
Refer to Figure 1 for the 93 and 97 series signals and
Figure 2 for the 94 series.

b. Install the signal base on the conduit and proceed to step

3.

P-047550-0943 ISSUE 7 © 2003

Direct Surface Mounting (97 Series Signals Only)

a. Remove the three outer knockouts from the bottom of

the signal base. The location of the knockouts
corresponds to the three outer holes in the gasket provided
in the direct mounting hardware kit shown in Figure 3.

b. Place the 7 3/8" (187 mm) mounting gasket on the

mounting surface and mark the center of the four holes
in the gasket on the surface. Refer to Figure 3. Remove
the mounting gasket and drill a 3/8" (9.5 mm) hole at
each of the marked positions.

c. Install the three rubber expansion plugs provided in the

hardware kit into the three outer holes in the mounting
surface as indicated in Figure 4.

d. Route the wiring from the required power source for the

signal (refer to signal's label for voltage rating) through
the center hole in the mounting surface, mounting gasket
and signal base. Use a suitable means to protect the
wiring from chafing in the hole.

e. Align the holes in the mounting gasket with the holes in

the signal base. Insert the three screws with lockwashers
(provided in the hardware kit) through the three mounting
holes inside the signal base and align the screws with
the rubber expansion plugs as shown in Figure 4. Press
the signal base firmly against the mounting surface and
tighten the screws. Proceed to step 3.

Figure 2. Conduit Mounting of 94 Series Signal

3. Connect field wiring to signal wiring.

a. 93 and 94 Series: Connect the field wiring to the signal's

wire leads, using wire nuts (not supplied). Polarity is
not important. Connect the green ground wire leads using
wire nuts (not supplied).

b. 97 Series: Connect the field wiring to the signal's wire

leads using wire nuts (not supplied) as follows. Polarity
must be observed. Connect the red positive (+) wire
lead to the positive power source wire and connect the
signal's white negative (-) wire lead to the negative power
source wire.

4. Place the connected wires inside the signal base and
reassemble the signal.

5. Turn on the power and verify that the signal operates properly.

Figure 1. Conduit Mounting of 93 and 97 Series Signals

P-047550-0943 ISSUE 7

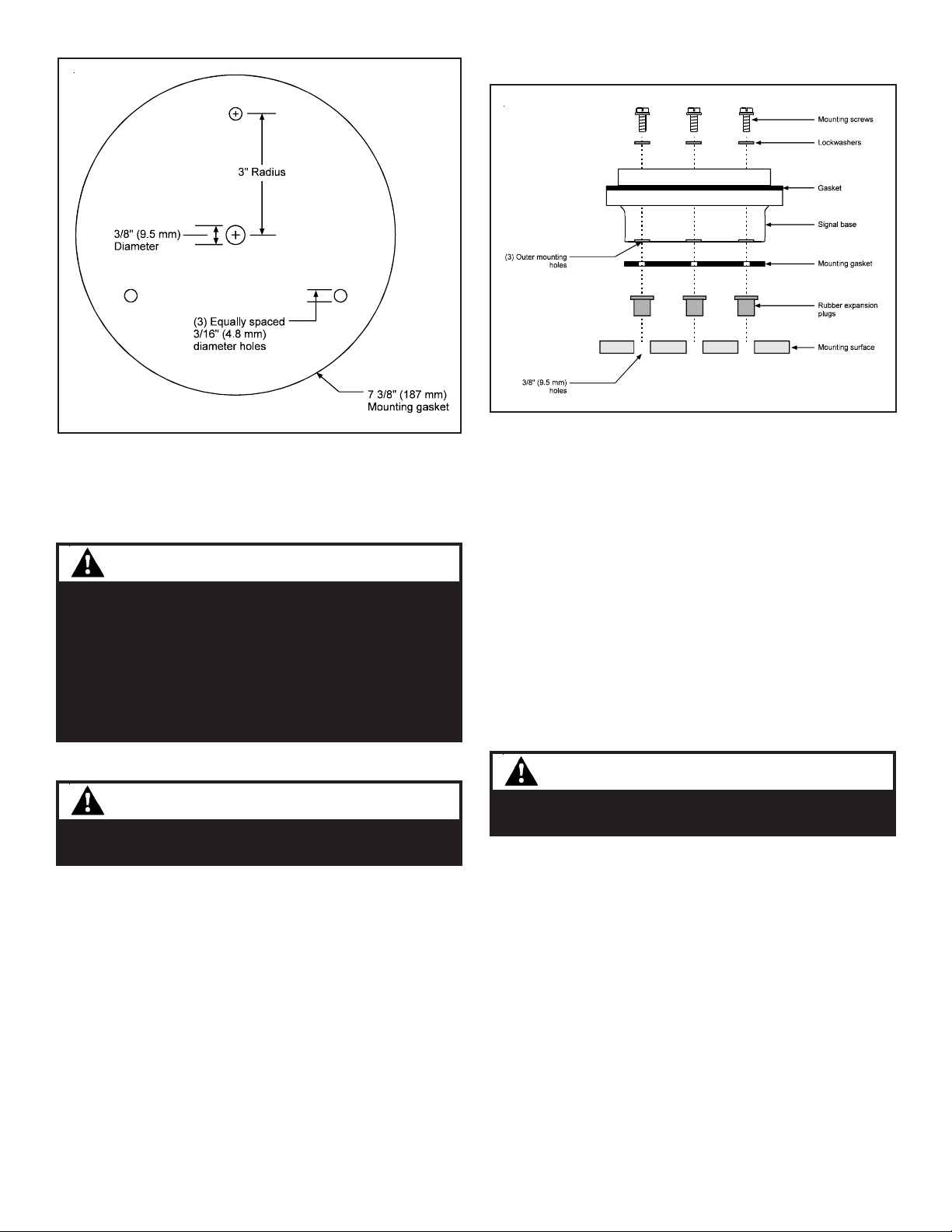

Figure 3. Mounting Gasket for Direct Surface Mounting of

97 Series Signals

Figure 4. Direct Surface Mounting of 97 Series Signals

Maintenance

WARNINGS

To prevent electrical shock, disconnect power and
allow five (5) minutes for stored energy to dissipate
before disassembling the signal.

To prevent leakage and potential electrical shock,
use care when disassembling the signal to pre vent
tearing of the permanently affixed gaskets provided
for weatherpr oofing.

Cleaning

CAUTION

To prevent damage to the lens and dome, do not
use abrasive materials or cleaners.

Periodically clean the signal lens and dome (as applicable) to
maintain optimum light visibility. These items may be cleaned
with a soft cloth or sponge using water or a mild detergent solu­tion. Ensure that the lens and dome are completely dry before
replacing.

Strobe Tube Replacement

1. After disconnecting the power and waiting five minutes,
replace the strobe tube as follows:

a. 93 and 97 Series: Refer to Figure 1. Remove the three

screws from the skirt, grasp the lens and lift the skirt and
the lens straight up off of the signal base. Proceed to
step 2.

b. 94 Series: Refer to Figure 2. Remove the three screws

and the rubber gaskets holding the protective dome to
signal base. Lift the dome and rubber gasket off the
signal base. Loosen the three screws in the keyhole slots
in the base of the lens, turn the lens clockwise and lift it
straight up off the strobe tube support plate. Proceed to
step 2.

CAUTION

To prevent damage to the strobe tube, handle the
strobe tube only by the base.

2. Grasp the base of the strobe tube and pull firmly, or carefully
pry between the strobe tube base and the socket, to remove
the tube from the socket. Install the new strobe tube by
aligning the key on the strobe tube base with the slot in the
socket and then pressing the strobe tube base onto the socket.
Reassemble the signal.

3. Turn on the power and verify that the strobe operates.

Refer to Table 1 for the required strobe tube.

P-047550-0943 ISSUE 7

Table 1. Replacement Parts

Replacement parts for the 93, 94 and 97 series signals are available from your local Edwards distributor.

Catalog or

Component Used On Part Number

Xenon Strobe Tube All series 92-ST

Dome (Clear) 94 Series 94-DC

Lens (Amber, Blue, Clear, Green, Magenta or Red) All series 93-L(*)

*Specify color of lens by adding one of the following letters to the catalog number or part number: A - amber, B - blue, C - clear,
G - green, M - magenta, or R - red.

P-047550-0943 ISSUE 7
