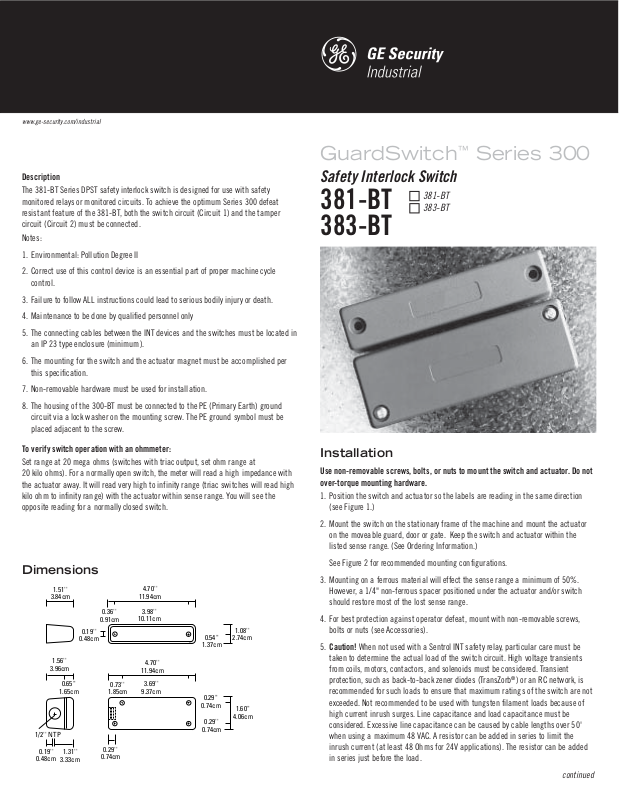

Page 1

www.ge-security.com/industrial

GuardSwitch™ Series 300

Description

The 381-BT Series DPST safety interlock switch is designed for use with safety monitored relays or monitored circuits. To achieve the optimum Series 300 defeat resistant feature of the 381-BT, both the switch circuit (Circuit 1) and the tamper circuit (Circuit 2) must be connected.

Notes:

1. Environmental: Pollution Degree II

2. Correct use of this control device is an essential part of proper machine cycle control.

3. Failure to follow ALL instructions could lead to serious bodily injury or death.

4. Maintenance to be done by qualified personnel only

5. The connecting cables between the INT devices and the switches must be located in an IP 23 type enclosure (minimum).

6. The mounting for the switch and the actuator magnet must be accomplished per this specification.

7. Non-removable hardware must be used for installation.

8. The housing of the 300-BT must be connected to the PE (Primary Earth) ground circuit via a lock washer on the mounting screw. The PE ground symbol must be placed adjacent to the screw.

To verify switch operation with an ohmmeter:

Set range at 20 mega ohms (switches with triac output, set ohm range at 20 kilo ohms). For a normally open switch, the meter will read a high impedance with the actuator away. It will read very high to infinity range (triac switches will read high kilo ohm to infinity range) with the actuator within sense range. You will see the opposite reading for a normally closed switch.

Dimensions

3.84cm

3.96cm

1/2'' NTP

0.19''

0.48cm

1.51''

1.56''

1.65cm

0.65''

1.31''

3.33cm

0.19''

0.48cm

0.36''

0.91cm

0.73''

1.85cm

0.29''

0.74cm

4.70''

11.94cm

3.98''

10.11cm

4.70''

11.94cm

3.69''

9.37cm

0.54''

1.37cm

0.29''

0.74cm

0.29''

0.74cm

1.08''

2.74cm

1.60''

4.06cm

Safety Interlock Switch

381-BT

383-BT

Installation

Use non-removable screws, bolts, or nuts to mount the switch and actuator. Do not over-torque mounting hardware.

1. Position the switch and actuator so the labels are reading in the same direction (see Figure 1.)

2. Mount the switch on the stationary frame of the machine and mount the actuator on the moveable guard, door or gate. Keep the switch and actuator within the listed sense range. (See Ordering Information.)

See Figure 2 for recommended mounting configurations.

3. Mounting on a ferrous material will effect the sense range a minimum of 50%. However, a 1/4" non-ferrous spacer positioned under the actuator and/or switch should restore most of the lost sense range.

4. For best protection against operator defeat, mount with non-removable screws, bolts or nuts (see Accessories).

5. Caution! When not used with a Sentrol INT safety relay, particular care must be taken to determine the actual load of the switch circuit. High voltage transients from coils, motors, contactors, and solenoids must be considered. Transient protection, such as back-to-back zener diodes (TransZorb recommended for such loads to ensure that maximum ratings of the switch are not exceeded. Not recommended to be used with tungsten filament loads because of high current inrush surges. Line capacitance and load capacitance must be considered. Excessive line capacitance can be caused by cable lengths over 50' when using a maximum 48 VAC. A resistor can be added in series to limit the inrush current (at least 48 Ohms for 24V applications). The resistor can be added in series just before the load.

) or an RC network, is

continued

Page 2

The voltage drop and the power rating of the resistor must be considered. Voltage drop = I•R; Watts = I

R (I = maximum continuous current of the load).

6. When mounting the switch on an ungrounded machine, ground the switch housing by connecting your ground lead to one of the switch mounting screws.

Figure 1

sensing face

Mounting Configurations

Figure 2

Perpendicular

Actuation

Door

Actuation

Pivot Actuation

Parallel Actuation

S2 S3

CIR. 1

CIR. 2

BLK

WHT

BLUE

RED

*Circuits shown with magnet actuator away from switch.

S1 Normally open reed switch, closed when actuator is within 0.6" S2, S3 Normally open reed switches, will close if misaligned or tampered with a

standard magnet

S4 Biased closed reed switch, open when actuator is between 0.3" and 0.6"

N.O. circuit: Black and white wires. N.C. biased tamper circuit: Red and blue wires.

Best Best

Good

Not Recommended

The parallel actuation can result in on/off/on signal if the actuator passes by the switch rather than coming to rest in proximity to it. This is NOT a recommended configuration for safety interlock applications.

Wiring Diagram for Category 3

Inputs shown with safety gates/guards in closed position. One Series 300-BT GuardSwitch™ required for each safety gate.

(–)

INT-03-230: 230V AC INT-03-120: 120V AC INT-03-024: 24V DC

(+)

Required Fast or Slow-Acting Fuse: (250V, 5x20 mm F) INT-03-230: 40mA INT-03-120: 80mA INT-03-024: 1/4A

RESET

L1 L2 1 2 X1 X2 Y1 Y2

–

Safety Monitor Relay INT-03

SAFE AUX.

BCD

N.O. N.C.

OUTPUTS

EFG

*300-BLT-

*Or other DPST GuardSwitch

(See the 300-BT Series installation instructions)

Series Circuit

W H T

*300-BLT-

B L U

Parallel Circuit

*300-BLT-

B L U

Required Fast or SlowActing Fuses: 4A (250V, 5x20 mm F

GE Security Industrial

230 VAC

60 VDC

LOADS

Note – The LED on the BLT model will be ON when the guard is open

Fuses: 1 A (250 v)

Multiple DPST GuardSwitches – Shown with actuators in position, all guards closed.

120 VAC

30 VDC

The L.E.D of the BLT model will be on when the guard is open. If multiple guards

are open, L.E.D will be dimmer. The maximum number of GuardSwitches that can

be used is 50, although troubleshooting and line resistance must be considered.

(Do not exceed 30 Ohms of combined contact and line resistance. Each GuardSwitch

will have less than 0.5 Ohms of resistance.)

GuardSwitchTM Series 300 www.ge-security.com/industrial

Page 3

CE Compliance Information

These switches are TUV certified for CE applications only when used with the INT Safety Monitor Relays. See Risk Category 3 and Category 4 wiring diagrams above.

Declaration of Conformity

available upon request.

General Specifications

Enclosure Coated Aluminum

Temperature Range -40°F to 180°F (-40°C to 80°C)

Environmental Hermetically Sealed Contact Switch

Encapsulated in Polyurethane

NEMA Rating 1, 2, 5

Protection Class IP 64

Response Time 1 msec

Individual circuits The two circuits do not switch simultaneously, and depend

on the speed of the guard closure. Based on closure speed

of 1' per second and a gap of 1/8", a delay less than

50 msec is typical.

Life Cycles 100,000 Under Full Load;

Up to 200,000,000 Under Dry Circuit

Conduit Connection 1/2" Threaded NPT

UL/CSA/TUV All Models

File E 122942 LR89176

Wiring Diagram for Category 4

Inputs shown with safety gate/guard in closed position. Two Series 300-B GuardSwitches™ with one INT relay are required for each safety gate.

When first applying the INT Safety Monitor Relay, the inputs must be cycled to check for proper operation before the output contacts close. To cycle the inputs, the guard must be opened and then closed. This start-up test is sufficient; however, we recommend that the proper operation of the switches and relay be checked at least every 24 hours.

(–)

INT-03-230: 230V AC INT-03-120: 120V AC INT-03-024: 24V DC

(+)

Required Fast or Slow-Acting Fuse: (250V, 5x20 mm F) INT-03-230: 40mA INT-03-120: 80mA INT-03-024: 1/4A

Required Fast or Slow-Acting Fuses: 4A (250V, 5x20 mm F

230 VAC

60 VDC

LOADS

RESET

L1 L2 1 2 X1 X2 Y1 Y2

–

Safety Monitor Relay INT-03

SAFE AUX.

BCD EFG

N.O. N.C.

OUTPUTS

W H T

*Or other DPST GuardSwitch

(See the 300-BT Series

installation instructions)

120 VAC

30 VDC

*300-BLT-

Note – The LED on the BLT model

will be ON when the guard is open

Fuses: 1A (250V)

W H T

B L K

*300-BLT-

GE Security Industrial

GuardSwitchTM Series 300 www.ge-security.com/industrial

Page 4

Electrical Specifications

CIRCUIT CIRCUIT CONTACT LOAD SWITCHING SWITCHING NUMBER TYPE CONFIGURATION RATING VOLTAGE CURRENT

1 Switch: S1 N.O. 40W/VA 48VAC/VDC 1.0ADC, 0.7AAC

2 Tamper: S2, S3, S4 N.C. 10W/VA 48VAC/VDC 0.3A

Ordering Information

PART NUMBER

381-BT DPST: 1 N.O., 1 N.C. 0.3"(0.8cm) 0.6"(1.5cm) 1.2"(3.0cm) #6 screws

383-BT DPST: 1 N.O., 1 N.C. 0.3"(0.8cm) 0.6"(1.5cm) 1.2"(3.0cm) #6 screws

CONTACT CONFIGURATION MINIMUM MAXIMUM RANGE TYPE

SENSE RANGE

BREAK TERMINAL

Accessories

PART NUMBER TAMPER PROOF SCREWS & SCREWDRIVER

1953 #6 x 3/4"L Tampruf Roundhead Screw

1954 #8 x 1-1/2"L Tampruf Roundhead Screw

1955 Tampruf® Screwdriver

1956 Tampruf® 1/4" Drive Bit for #6 and #8 Screws

Warning— Each electrical rating is an individual maximum and cannot be exceeded!

The part numbers 381 and 383 are the same in all respects except the conduit connection exits 381 left and 383 right.

Configuration with actuator away from the switch

Proximity of ferrous materials usually reduces sense range — typically by 50%. The shape and type of material cause a wide diversity of effects.

Testing is required to determine actual sense range for specific applications.

GE Security

Industrial

www.ge-security.com/industrial

12345 SW Leveton Drive Tualatin, OR 97062 Phone: 800-247-9447 Fax: 503-691-7563


