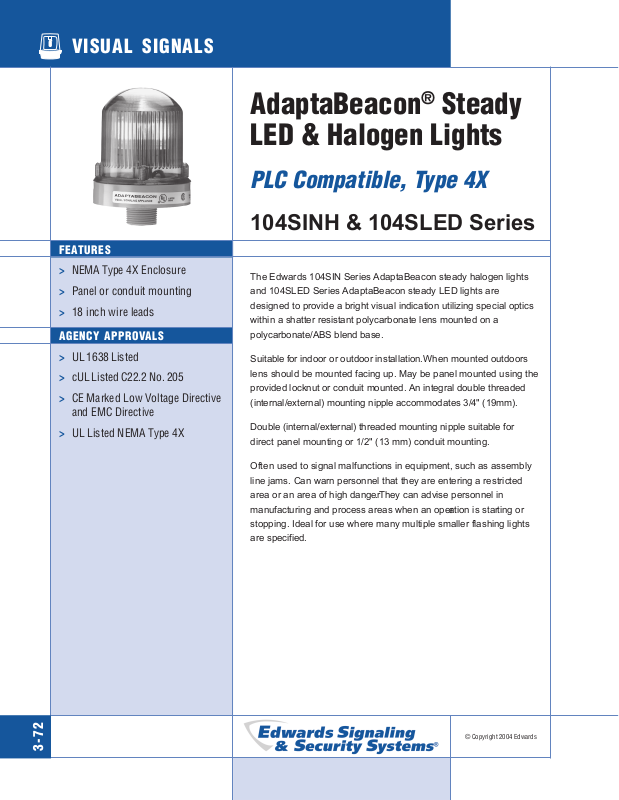

Edwards Signaling 104SINH Series, 104SLED Series Catalog Page

VISUAL SIGNALS

FEATURES

AdaptaBeacon® Steady
LED & Halogen Lights

PLC Compatible, Type 4X

104SINH & 104SLED Series

> NEMA Type 4X Enclosure

> Panel or conduit mounting

> 18 inch wire leads

AGENCY APPROVALS

> UL 1638 Listed

> cUL Listed C22.2 No. 205

> CE Marked Low Voltage Directive

and EMC Directive

> UL Listed NEMA Type 4X

The Edwards 104SIN Series AdaptaBeacon steady halogen lights

and 104SLED Series AdaptaBeacon steady LED lights are

designed to provide a bright visual indication utilizing special optics

within a shatter resistant polycarbonate lens mounted on a

polycarbonate/ABS blend base.

Suitable for indoor or outdoor installation. When mounted outdoors

lens should be mounted facing up. May be panel mounted using the

provided locknut or conduit mounted. An integral double threaded

(internal/external) mounting nipple accommodates 3/4" (19mm).

Double (internal/external) threaded mounting nipple suitable for

direct panel mounting or 1/2" (13 mm) conduit mounting.

Often used to signal malfunctions in equipment, such as assembly

line jams. Can warn personnel that they are entering a restricted

area or an area of high danger. They can advise personnel in

manufacturing and process areas when an operation is starting or

stopping. Ideal for use where many multiple smaller flashing lights

are specified.

3-72

© Copyright 2004 Edwards

TECHNICAL INFORMATION

Gasket (provided for use

when direct panel mounting)

VISUAL SIGNALS

3 7/8"

(98.4mm)

Double threaded for

panel mounting or

1/2" (13mm)

conduit mounting

3 1/4"

(82.6mm)

Locknut - 1.3625" O.D.

(provided for use when direct

panel mounting)

Lens Replacement Light Source Electrical Replacement

Cat. No. Color Lens Cat. No. Ratings Ratings Candlepower Lamp Cat. No.

104SINHA-G1 Amber 104-LA 9

Watts 24V DC 653** 50LMP-9WH-D or
104SINHB-G1 Blue 104-LB 15,000 hr.*** 0.77 Amps industry trade no.
104SINHC-G1 Clear 104-LC 1692* (incandescent)
104SINHG-G1 Green 104-LG
104SINHR-G1 Red 104-LR

104SINHA-G5 Amber 104-LA 9 Watts 24V 50/60 Hz 653** 50LMP-9WH-D or
104SINHB-G5 Blue 104-LB 15,000 hr.*** 0.77 Amps industry trade no.
104SINHC-G5 Clear 104-LC 1692* (incandescent)
104SINHG-G5 Green 104-LG
104SINHR-G5 Red 104-LR

104SINHA-N5 Amber 104-LA 12 Watts 120V 50/60 Hz 879** 50LMP-12WH-D or
104SINHB-N5 Blue 104-LB 25,000 hr.*** 0.25 Amps industry trade no.
104SINHC-N5 Clear 104-LC 15T7DC* (incandescent)
104SINHG-N5 Green 104-LG
104SINHR-N5 Red 104-LR

104SLEDA-G1 Amber 104-LA 120,000 hr. 24V DC 38 lumens** N/A
104SLEDG-G1 Green 104-LG 0.065 A 102 lumens**
104SLEDB-G1 Blue 104-LB 35 lumens**
104SLEDR-G1 Red 104-LR 28 lumens**

104SLEDA-N5 Amber 104-LA 120,000 hr. 120V 50/60 Hz 38 lumens** N/A
104SLEDG-N5 Green 104-LG 0.025 A 102 lumens**
104SLEDB-N5 Blue 104-LB 35 lumens**
104SLEDR-N5 Red 104-LR 28 lumens**

*A non-halogen lamp as listed may be used in place of the halogen lamp.
**Bulb manufacturer's rating.
***Projected lamp life based on manufacturer's calculated lamp life at 65 fpm and 50% duty cycle.

SIGNAL INPUT LOAD CHARACTERISTICS*

Operating Max. off state Continuous on Surge (inrush/duration)

Cat. No. Voltage leakage current (mA) Current (mA) Amps/milliseconds

104SINH( )-G1 24V DC 25 320 .36/1
104SINH( )-N5 120V AC 25 250 .5/8
104SLED( )-G1 24V DC 4 65 .07/1
104SLED( )-N5 120V AC 5 25 .09/8

*This device is PLC compatible and may be operated by PLCs with output characteristics that match the input load requirements of this signal.
