Page 1
7 3/4” (197 mm)
3 lbs (1.4 kg)
11 3/8” (289 mm)
4 lbs (1.8 kg)
15” (381 mm)
5 lbs (2.3 kg)
18 5/8” (473 mm)
6 lbs (2.7 kg)
Figure 1. Dimensions
22 1/4” (565 mm)
7 lbs (3.2 kg)
Description
Edwards AdaptaLight Series 101XBRM Stackable Beacon
is a unique signaling appliance which can contain up to ve
modules, stacked onto a single AdaptaLight Base Unit (as
illustrated above). The 101XBRM series can be combined
or stacked with any of the models shown in Table 2 only if
modules have same input voltage. The 101XBRM LED Series is supplied in steady-on mode but offers a eld-selectable
65 fpm ash mode. Up to ve modules can be used in any
position in the AdaptaLight Stackable Beacon.
The AdaptaLight base unit (101BS) contains a mini pulsating
horn rated 85 dB at 10 feet (3.05 m). This horn can operate
as a sixth independent signal or with any one of the stacked
modules shown in Table 2. The base unit has a screw-type
terminal strip for positive hard wiring. Each module in the
stack is electrically interconnected through solid copper
busses and mating contacts to withstand vibration. Each is
positively connected to the one below it by a solid throughbolt for mechanical integrity.
AdaptaLight is UL and cUL listed for direct surface or pipe
mounting in non-hazardous dust and outdoor applications.
The AdaptaLight may be mounted vertically with lenses facing
up or with lenses facing down (on ceiling). The AdaptaLight
is not suitable for outdoor installations when mounted with
the lenses facing down. The AdaptaLight must never be
mounted horizontally. Assemble and install in accordance
with these instructions.
PLC Compatibility
The electrical input load requirements for PLC compatible
signaling devices are listed in Table 1. Signaling devices
may be directly connected to output cards that meet these
input load requirements. Unit is PLC compatible only when
in steady mode.
Installation
WARNING
To prevent electrical shock, do not connect
power until instructed to do so.
This equipment must be installed by a qualied electrician in
accordance with the latest edition of the National Electrical
Code and applicable local codes.
1. Mount the base vertically either facing up or down using
one of the following procedures (Figures 2 and 3).
NOTE: For indoor applications, the base may be direct
surface mounted, mounted on a 4" (102 mm)
octagon box, or mounted on 1/2" NPT conduit.
For outdoor (weatherproof) applications, the base
must be conduit mounted vertically facing up.
a. Loosen the screw in the clamp ring, remove ring and
set aside.
The AdaptaLight modules have double fresnel polycarbonate
lenses available in a variety of colors, each providing a 360°
non-shadowed light pattern.
Mechanical Specications
Outdoor Locations
Temperature Ratings ........... -31F to +150F (-35C to +66C)
http://www.edwardssignaling.com Phone: (800) 336-4206 Fax: (800) 454-2363
NOTE: A permanently afxed gasket is supplied on the
base. Use care when handling the base unit to
prevent tearing of the gasket.
P/N 3101631 ISSUE 3
© 2010
Page 2
Table 1. PLC Compatibility
Operating Maximum off state Continuous on
Cat. No. voltage* leakage current (mA) current (mA) Surge (inrush/duration)
101BS-G1 24V DC 1.2 20 2/1 A/millisecond
101BS-N5 120V AC 25 50 2/1 A/millisecond
101XBRM( )24D 24V DC 5 215 34.5/52 A/microsecond
101XBRM( )120A 120V AC 5 108 37.5/164 A/microsecond
*All AC volts at 50/60 Hz
b. Direct Surface Mounting (indoor installation only)
Remove the two knockouts from the bottom of the
base.
Fasten the base to the surface using suitable
hardware (not supplied).
c. 4" (1 02 mm) Octagon Box Mounting (in doo r
installation only)
Remove the two knockouts from the bottom of the
base.
Fasten the base to the octagon box (not supplied) by
installing the screws (supplied with the box) through
the knockout holes in the base.
d. Conduit Mounting (indoor or outdoor installation)
Install a 1/2" NPT conduit (not supplied). Align the
conduit entrance hole on the base with the conduit
and rotate base until base is tightly secured.
2. Route incoming eld wiring into the base through the
conduit entrance hole.
Up to ve 101XBRM LED modules or any other modules
shown in Table 2 can be used in any position in the stack.
The terminal block labels, 1 through 5, correspond to the
stacked modules with 1 being the bottom module on the
stack.
Connect eld wiring to the terminal block as shown in
Figure 4.
Ground the AC AdaptaLights to the grounding screw
(Figure 3) in accordance with applicable codes. Place
the connected wires inside of the base.
Continue adding modules in this manner as required.
Place the cap supplied with the base unit onto the top
module ensuring the gasket is in place. Secure with
an o-ring and 3/8" (9.5 mm) cap screw (supplied).
4. Turn on power and verify that module(s) and horn
are operating properly.
Maintenance/Flash Pattern Change
Refer to "Specications" for replacement parts.
WARNING
To prevent electrical shock, disconnect all
power before starting work on unit.
1. Remove the 3/8" (9.5 mm) cap screw, o-ring and cap
from top of unit.
2. Remove the #8-32 x 3/8" (9.5 mm) plastic panhead screw
from the side of the module lens.
3. Loosen the slotted panhead through-bolt (on top module).
Do not remove the through-bolt from the module; turn
the bolt approximately 30 turns.
4. Carefully remove the module and gasket.
5. Continue to disassemble until the internal dipswitch on
the top circuit is reached or the component to be replaced
is located. To change the ash pattern, set the dipswitch
as illustrated in Figure 6. To replace the pulsating horn,
follow instructions shown below.
6. Replace mini pulsating horn.
Assemble the base unit and place the base gasket on
top as shown in Figure 2.
3. To stack the modules, align the notch on the bottom of
the rst module with the notch on the base and press
into position. Secure by tightening the slotted panhead
through-bolt located on the top of the module.
NOTE: Never try to remove the through-bolt from the
module.
Install the #8-32 x 3/8" (9.5 mm) plastic panhead
screw in the side of the module lens (Figure 5).
Place gasket supplied with module onto the top of
the module.
P/N 3101631 ISSUE 3
a. Remove the screw in the clamp ring, remove ring
and set aside.
b. Remove three phillips head screws from top of base
skirt and the base/horn assembly from the top portion
of the base (Figure 2).
c. Remove the phillips head screw securing the horn
to the mounting bracket (Figure 2).
d. Disconnect wires by cutting off the wire crimp
connectors.
e. Secure the new horn on the mounting bracket with
the screw removed in step 6.c.
f. Connect wires using wire nuts (not supplied).
Page 3
Gasket
Base Skirt
NOTE: It is not necessary
to disassemble this portion
of the unit for installation.
Figure 2. Catalog Series 101BS AdaptaLight Base Unit Assembly
Pipe Mounting
Clamp ring
Terminal
Block
Horn
Base/horn
assembly
Top
Portion
Base Unit
Bottom
Portion
#12 x 7/8” Phillips head screw
Direct Surface Mounting
(with or without 4" octagonal back box)
1/2” NPT Conduit
(Not supplied)
Grounding
Screw
Conduit mount
entrance hole
(2) Knockouts for
Direct Surface Mounting
Figure 3. Mounting the Catalog Series 101BS AdaptaLight Base Unit
Grounding
Screw
P/N 3101631 ISSUE 3
Page 4
Cleaning
The AdaptaLight module lens surfaces should be periodically
dusted and cleaned with a dry soft clean cloth to maintain
optimum light visibility. If necessary, the outer lenses may
be cleaned with water and a mild detergent on a well rung
out soft clean cloth.
Steady-On Incandescent Light Unit*
120V AC 12V DC 24V DC Lens Color
101SINHR-N5 101SINR-E1 101SINHR-G1 Red
101SINHA-N5 101SINA-E1 101SINHA-G1 Amber
101SINHB-N5 101SINB-E1 101SINHB-G1 Blue
101SINHG-N5 101SING-E1 101SINHG-G1 Green
101SINHM-N5 101SINM-E1 101SINHM-G1 Magenta
101SINHC-N5 101SINC-E1 101SINHC-G1 Clear
101XBRM LED Units
120V AC 12V DC 24V DC Lens Color
101XBRMR120A -- 101XBRMR24D Red
101XBRMA120A -- 101XBRMA24D Amber
101XBRMB120A -- 101XBRMB24D Blue
101XBRG120A -- 101XBRMG24D Green
101XBRMW120A -- 101XBRMW24D White
Flashing Incandescent Light Unit*
120V AC 12V DC 24V DC Lens Color
101FINHR-N5 101FINR-E1 101FINHR-G1 Red
101FINHA-N5 101FINA-E1 101FINHA-G1 Amber
101FINHB-N5 101FINB-E1 101FINHB-G1 Blue
101FINHG-N5 101FING-E1 101FINHG-G1 Green
101FINHM-N5 101FINM-E1 101FINHM-G1 Magenta
101FINHC-N5 101FINC-E1 101FINHC-G1 Clear
Flashing Strobe Light Unit
120V AC 12V DC 24V DC Lens Color
101STR-N5 101STR-E1 101STR-G1 Red
101STA-N5 101STA-E1 101STA-G1 Amber
101STB-N5 101STB-E1 101STB-G1 Blue
101STG-N5 101STG-E1 101STG-G1 Green
101STM-N5 101STM-E1 101STM-G1 Magenta
101STC-N5 101STC-E1 101STC-G1 Clear
*H in catalog number (e.g., 101SINHR-N5) signies halogen
module.
P/N 3101631 ISSUE 3
Table 2. Stackable Light Units Available

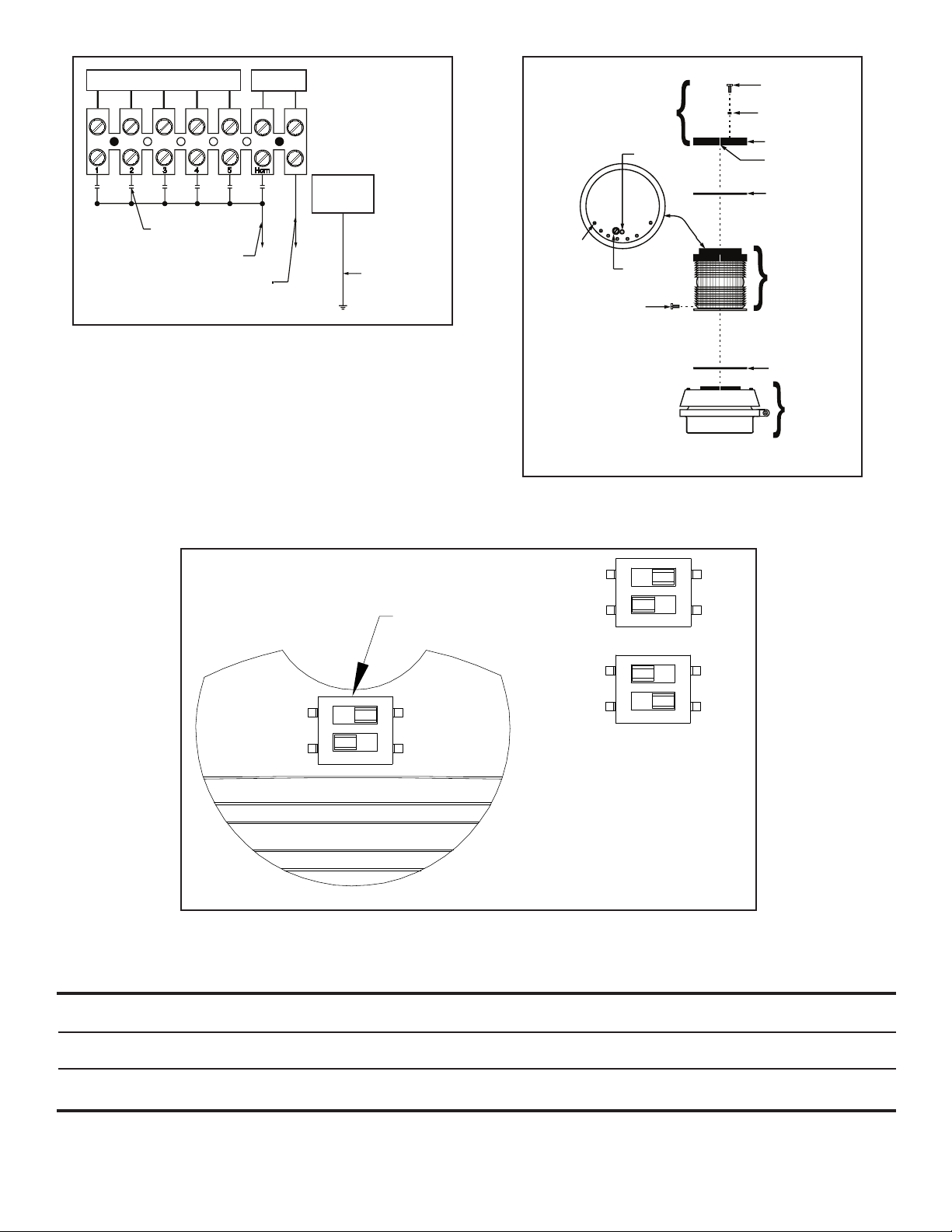

Page 5
Factory installed copper conductors from
terminals 1 thru 5 to contact points.
Typical actuating
contact (by others).
(+) for DC,
Hot (line) for AC
Factory installed
horn wire leads.
(-) for DC,
COM for AC
Figure 4. Wiring to the Terminal Block
Green insulated
ground lead from
120V AC
Adaptalight.
Connection to
installation ground
#6 x 3/8” Cap
screw
Contacts
Supplied with
Base Unit
#8-32 x 3/8”
Plastic panhead
screw
Cap screw or
through-bolt
entrance hole
Slotted panhead
through-bolt
(Do not remove)
Gasket
Cap
Align notches
for assembly
Gasket
Module
Gasket
Base Unit
Figure 5. Stacking the Modules on Adapta-
Light Base Unit
OFF
OFF
OFF
1
STEADY
(FACTORY
DEFAULT)
1
2
ON
ON
OFF
OFF
OFF
2
STEADY
1
2
65 FPM
ON
ON
ON
ON
Figure 6. Dipswitch Settings
Table 3. Specications
Median LED Light Replacement
Catalog Number Voltage Current Sound Output Life (L70) Output Horn
101BS-N5 120V 50/60 Hz 0.05A 85 dB at 10 ft. (3.05 m) -- __ 123A-N5
101BS-G1 24V DC need new number
101XBRM*120A 120V 50/60 Hz 0.108A -- 148,000 hr.
101XBRM*24D 24V DC 0.215A -- 148,000 hr.
*Letter in this position species lens and LED color: A - amber, B - blue, G - green, R - red or W - white (lens is clear with white LEDs).
†
Based on LED manufacturer's projections. Refer to http://www.philipslumileds.com/pdfs/WP15.pdf.
†
†
P/N 3101631 ISSUE 3
