Installation Instructions for Edwards AdaptaLight
Heavy Duty Industrial Stackable Beacons
TM

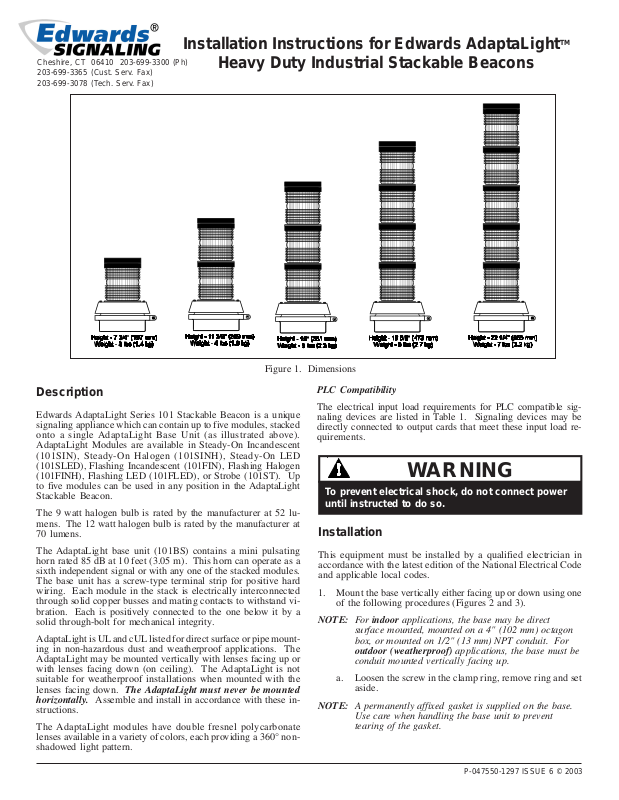

Figure 1. Dimensions
Description
Edwards AdaptaLight Series 101 Stackable Beacon is a unique
signaling appliance which can contain up to five modules, stacked
onto a single AdaptaLight Base Unit (as illustrated above).
AdaptaLight Modules are available in Steady-On Incandescent
(101SIN), Steady-On Halogen (101SINH), Steady-On LED
(101SLED), Flashing Incandescent (101FIN), Flashing Halogen
(101FINH), Flashing LED (101FLED), or Strobe (101ST). Up
to five modules can be used in any position in the AdaptaLight
Stackable Beacon.
The 9 watt halogen bulb is rated by the manufacturer at 52 lumens. The 12 watt halogen bulb is rated by the manufacturer at
70 lumens.
The AdaptaLight base unit (101BS) contains a mini pulsating
horn rated 85 dB at 10 feet (3.05 m). This horn can operate as a
sixth independent signal or with any one of the stacked modules.
The base unit has a screw-type terminal strip for positive hard
wiring. Each module in the stack is electrically interconnected
through solid copper busses and mating contacts to withstand vibration. Each is positively connected to the one below it by a
solid through-bolt for mechanical integrity.
AdaptaLight is UL and cUL listed for direct surface or pipe mounting in non-hazardous dust and weatherproof applications. The
AdaptaLight may be mounted vertically with lenses facing up or
with lenses facing down (on ceiling). The AdaptaLight is not
suitable for weatherproof installations when mounted with the
lenses facing down. The AdaptaLight must never be mounted
horizontally. Assemble and install in accordance with these instructions.
The AdaptaLight modules have double fresnel polycarbonate
lenses available in a variety of colors, each providing a 360° nonshadowed light pattern.
PLC Compatibility
The electrical input load requirements for PLC compatible signaling devices are listed in Table 1. Signaling devices may be
directly connected to output cards that meet these input load requirements.
WARNING
To prevent electrical shock, do not connect power
until instructed to do so.
Installation
This equipment must be installed by a qualified electrician in
accordance with the latest edition of the National Electrical Code
and applicable local codes.
1. Mount the base vertically either facing up or down using one
of the following procedures (Figures 2 and 3).
NOTE: For indoor applications, the base may be direct
surface mounted, mounted on a 4" (102 mm) octagon
box, or mounted on 1/2" (13 mm) NPT conduit. For
outdoor (weatherproof) applications, the base must be
conduit mounted vertically facing up.
a. Loosen the screw in the clamp ring, remove ring and set
aside.
NOTE: A permanently affixed gasket is supplied on the base.
Use care when handling the base unit to prevent
tearing of the gasket.
P-047550-1297 ISSUE 6 © 2003
Table 1. PLC Compatibility
Operating Maximum off state Continuous on Surge (inrush/duration)
Cat. No. voltage* leakage current (mA) current (mA) (A/ms**)
101BS-G1 24V DC 25 50 2/1
101BS-N5 120V AC 25 50 2/1
101SINH( )-G1 24V DC 25 320 0.36/1
101SINH( )-N5 120V AC 25 110 0.5/8
101SLED( )-G1 24V DC 4 65 0.07/1
101SLED( )-N5 120V AC 5 25 0.09/8
101FINH( )-G1 24V DC 25 320 1.2/100
101FINH( )-N5 120V AC 25 110 1.15/8
101FLED( )-G1 24V DC 4 65 0.07/1
101FLED( )-N5 120V AC 5 25 0.09/8
101ST( )-G1 24V DC 1.5 300 0.33/1
101ST( )-N5 120V AC 5 120 2.1/1
*All AC volts at 60 Hz
**Amps/milliseconds
b. Direct Surface Mounting (indoor installation only)
Remove the two knockouts from the bottom of the base.
Fasten the base to the surface using suitable hardware
(not supplied).
c. 4" (102 mm) Octagon Box Mounting (indoor installation
only)
Remove the two knockouts from the bottom of the base.
Fasten the base to the octagon box (not supplied) by
installing the screws (supplied with the box) through the
knockout holes in the base.
d. Conduit Mounting (indoor or outdoor installation)
Install a 1/2" (13 mm) NPT conduit (not supplied). Align
the conduit entrance hole on the base with the conduit
and rotate base until base is tightly secured.
2. Route incoming field wiring into the base through the conduit
entrance hole.
Up to five high-intensity strobe modules, and/or flashing
halogen or LED modules, and/or steady-on halogen or LED
modules can be used in any position in the stack. The terminal
block labels, 1 through 5, correspond to the stacked modules
with 1 being the bottom module on the stack.
Connect field wiring to the terminal block as shown in Figure
4.
Ground the AC AdaptaLights to the grounding screw (Figure
3) in accordance with applicable codes. Place the connected
wires inside of the base.
Assemble the base unit and place the base gasket on top as
shown in Figure 2.
3. To stack the modules, align the notch on the bottom of the
first module with the notch on the base and press into position.
Secure by tightening the slotted panhead through-bolt located
on the top of the module.
NOTE: Never try to remove the through-bolt from the module.
Install the #8-32 x 3/8" (9.5 mm) plastic panhead screw in
the side of the module lens (Figure 5).
Place gasket supplied with module onto the top of the module.
Continue adding modules in this manner as required.
Place the cap supplied with the base unit onto the top module
ensuring the gasket is in place. Secure with an o-ring and 3/
8" (9.5 mm) cap screw (supplied).
4. Turn on power and verify that module(s) and horn are
operating properly.
Maintenance
Refer to "Specifications" for replacement parts.
WARNING
To prevent electrical shock, disconnect all power
and wait 5 minutes for stored energy in strobe
modules to dissipate before starting work on unit.
1. Remove the 3/8" (9.5 mm) cap screw, o-ring and cap from
top of unit.
2. Remove the #8-32 x 3/8" (9.5 mm) plastic panhead screw
from the side of the module lens.
P-047550-1297 ISSUE 6
Figure 2. Catalog Series 101BS AdaptaLight Base Unit Assembly
Pipe Mounting
Direct Surface Mounting
(with or without 4" octagonal back box)
Figure 3. Mounting the Catalog Series 101BS AdaptaLight Base Unit
P-047550-1297 ISSUE 6
g
3. Loosen the slotted panhead through-bolt (on top module).
Do not remove the through-bolt from the module; turn the
bolt approximately 30 turns.
4. Carefully remove the module and gasket.
5. Continue to disassemble until the component to be replaced
is located and replace as follows.
CAUTION
To prevent damage to the lamp,
with bare fingers. Grasp glass with a soft, clean
cloth or with packaging supplied with the replacement lamp.
6. Replace the incandescent or halogen lamp.
a. Reach inside module, carefully grasp the lamp and press
down while turning counterclockwise to release.
b. Place new lamp in socket and press down while turning
clockwise.
7. Replace the strobe tube.
do not
touch glass
CAUTION
To prevent damage to the strobe tube,
glass with bare fingers. Grasp the base of the
replacement strobe tube.
a. Reach inside module, grasp the base of the strobe tube
and remove.
b. Holding the new strobe tube only by its base (if possible),
insert tube in socket.
8. Replace mini pulsating horn.
a. Remove the screw in the clamp ring, remove ring and
set aside.
b. Remove three phillips head screws from top of base skirt
and remove the base skirt and the base/horn assembly
from the top portion of the base (Figure 2).
c. Remove the phillips head screw securing the horn to the
mounting bracket (Figure 2).
do not
touch
Steady-On Incandescent Light Unit*
120V AC 12V DC 24V DC Lens Color
101SINHR-N5 101SINR-E1 101SINHR-G1 Red
101SINHA-N5 101SINA-E1 101SINHA-G1 Amber
101SINHB-N5 101SINB-E1 101SINHB-G1 Blue
101SINHG-N5 101SING-E1 101SINHG-G1 Green
101SINHM-N5 101SINM-E1 101SINHM-G1 Magenta
101SINHC-N5 101SINC-E1 101SINHC-G1 Clear
Steady-On LED Light Unit
120V AC 24V DC Lens Color
101SLEDR-N5 101SLEDR-G1 Red
101SLEDA-N5 101SLEDA-G1 Amber
101SLEDB-N5 101SLEDB-G1 Blue
101SLEDG-N5 101SLEDG-G1 Green
Flashing Incandescent Light Unit*
120V AC 12V DC 24V DC Lens Color
101FINHR-N5 101FINR-E1 101FINHR-G1 Red
101FINHA-N5 101FINA-E1 101FINHA-G1 Amber
101FINHB-N5 101FINB-E1 101FINHB-G1 Blue
101FINHG-N5 101FING-E1 101FINHG-G1 Green
101FINHM-N5 101FINM-E1 101FINHM-G1 Magenta
101FINHC-N5 101FINC-E1 101FINHC-G1 Clear
Flashing LED Light Unit
120V AC 24V DC Lens Color
101FLEDR-N5 101FLEDR-G1 Red
101FLEDA-N5 101FLEDA-G1 Amber
101FLEDB-N5 101FLEDB-G1 Blue
101FLEDG-N5 101FLEDG-G1 Green
Flashing Strobe Light Unit
120V AC 12V DC 24V DC Lens Color
101STR-N5 101STR-E1 101STR-G1 Red
101STA-N5 101STA-E1 101STA-G1 Amber
101STB-N5 101STB-E1 101STB-G1 Blue
101STG-N5 101STG-E1 101STG-G1 Green
101STM-N5 101STM-E1 101STM-G1 Magenta
101STC-N5 101STC-E1 101STC-G1 Clear
*H in catalo
number (e.g., 101SINHR-N5) signifies halogen module.
Stackable Light Units Available
d. On DC models, disconnect wire leads from the terminal
blocks. On AC models, disconnect wires by cutting off
the wire crimp connectors.
e. Secure the new horn on the mounting bracket with the
screw removed in step 8.c.
P-047550-1297 ISSUE 6
f. On DC models, connect the wires from the horn to the
terminal block. On AC models, connect wires using wire
nuts (not supplied).
Cleaning
The AdaptaLight module lens surfaces should be periodically
dusted and cleaned with a dry soft clean cloth to maintain optimum light visibility. If necessary, the outer lenses may be cleaned
with water and a mild detergent on a well rung out soft clean
cloth.
Figure 4. Wiring to the Terminal Block
Figure 5. Stacking the Modules on AdaptaLight
Base Unit
Table 2. Specifications
Lamp Light Replacement Replacement
Catalog Number Voltage Current Sound Output Life Output Horn Lamp**
101BS-N5 120V 50/60 Hz 0.05A 85 dB at 10 ft. (3.05 m) -- __ 123A-N5 -101BS-E1 12V DC 122-E1
101BS-G1 24V DC 122-G1
101SINH*-N5 120V 50/60 Hz 0.11A -- 25,000 hr.
101SIN*-E1 12V DC 1.0A 1,520 hr.
101SINH*-G1 24V DC 0.32A 15,000 hr.
101SLED*-N5 120V 50/60 Hz 0.022A -- 100,000 hr.
†
†
†
70 lumens
189 lumens
52 lumens
†
101SLED*-G1 24V DC 0.062A
101FINH*-N5 120V 50/60 Hz 0.11A -- 25,000 hr.
101FIN*-E1 12V DC 0.10A 1,520 hr.
101FINH*-G1 24V DC 0.32A 15,000 hr.
101FLED*-N5 120V 50/60 Hz 0.022A -- 100,000 hr.
†
†
†
70 lumens
189 lumens
52 lumens
†
101FLED*-G1 24V DC 0.062A
101ST*-N5 120V 50/60 Hz 0.12A -- 3,000 hr.
‡
101ST*-E1 12V DC 0.5A peak candela
101ST*-G1 24V DC 0.3A
*Letter in this position specifies lens and LED color: A - amber, B - blue, C - clear, G - green, M - magenta, R - red.
NOTE: LED modules are only available in amber, blue, green and red.
**The LED modules are permanently installed.
***A non-halogen bulb may be used in place of the halogen bulb as follows. For 120V models, use Lamp Industry Trade No. 15T7DC and for 24V DC models, use
Lamp Industry Trade No. 1692.
†
Projected lamp life based on manufacturer's calculated lamp life @ 65 fpm and 50% duty cycle.
‡
Calculated strobe tube life at operating power to 75% efficiency.
#
Manufacturer's lumen rating.
#
#
#
-- 50LMP-12WH-D***
Ind. Trade 94
50LMP-9WH-D***
-- -- --
#
#
#
-- 50LMP-12WH-D***
Ind. Trade 94
50LMP-9WH-D***
--
300,000 -- 91B-ST
P-047550-1297 ISSUE 6
